Weinmann Brake Lever: drilled and QR

Old 02-08-22, 09:24 AM
  #1
Aardwolf
Old Git
Thread Starter

Join Date: Aug 2021
Location: London UK
Posts: 233

Bikes: 1982 Holdsworth Avanti

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 128 Times in 74 Posts
Weinmann Brake Lever: drilled and QR

Hiya Folks,
I've only just discovered my Weinmann brake levers probably have a 'quick release' feature.
They're on a 1982 bike but I can't see any date code on the levers, and the hoods are original so I don't want to remove them.
So I'm wondering what model they are since they're also drilled:




According to Velobase that's "Weinmann AG (drilled levers)": https://velobase.com/ViewComponent.a...m=118&AbsPos=7
But that page doesn't show a quick release.

This catalogue page from 1981 shows 'part 4' (161-1) which looks like my levers.



Is it the case that Weinmann did many variations so I've got a "Weinmann AG (drilled levers) with QR"

And can anybody tell me what the quick release actually does ?
I'm probably being stupid but I can't see how it helps
Aardwolf is offline
Old 02-08-22, 09:30 AM
  #2
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 5,001
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1397 Post(s)
Liked 978 Times in 592 Posts
The release on the brake lever allows the brake calliper to open wider to make it easier to remove the wheel. Many brake callipers have a release lever on the calliper itself, but withe these brake levers you don't need one. Shimano also made levers with a similar feature and all current Campagnolo brake levers also use a release feature on the brake lever
alcjphil is offline
Old 02-08-22, 10:12 AM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,926
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2892 Post(s)
Liked 1,475 Times in 1,075 Posts
-----

Weinmann also offered this lever with larger oval cutouts as on this Raleigh model RRA of 1973

​​​​​​

(yellow accent colour is an owner addition)

-----
juvela is offline
Likes For juvela:
Old 02-08-22, 10:44 AM
  #4
Aardwolf
Old Git
Thread Starter

Join Date: Aug 2021
Location: London UK
Posts: 233

Bikes: 1982 Holdsworth Avanti

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 128 Times in 74 Posts
Originally Posted by alcjphil View Post
The release on the brake lever allows the brake calliper to open wider to make it easier to remove the wheel. Many brake callipers have a release lever on the calliper itself, but withe these brake levers you don't need one. Shimano also made levers with a similar feature and all current Campagnolo brake levers also use a release feature on the brake lever
Yep, I had read that, but I can't work out how to actually use it
I can't seem to move the quick release bit when the brake cable is installed (at both ends).
Aardwolf is offline
Old 02-08-22, 11:07 AM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,593

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3488 Post(s)
Liked 2,265 Times in 1,471 Posts
Those lever quick-releases can be a real blessing in a race. I crashed in one that I wanted to do well in. Got back on and chased but the front rim was hitting the brake shoe. I was also feeling a little shaky. Reaching for the caliper release would have been scary (and left me with half my braking power). Flipping the release on the lever was easy, both hands stayed on the bars and braking wasn't affected at all other than needing to reach a little more. Diacomp levers so the release was a little different but the effect as the same other than the Diacomp stays off until you reset it and as I recall, those Weinmann ones snap back when you squeeze the lever.
79pmooney is offline
Old 02-08-22, 11:11 AM
  #6
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,593

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3488 Post(s)
Liked 2,265 Times in 1,471 Posts
Originally Posted by Aardwolf View Post
Yep, I had read that, but I can't work out how to actually use it
I can't seem to move the quick release bit when the brake cable is installed (at both ends).
Squeeze the lever. Then push down? Back? on that tab. Sorry, I haven't done it since 1978 but once you've squeezed it should be pretty obvious.
79pmooney is offline
Old 02-08-22, 11:18 AM
  #7
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,188
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 1,628 Times in 783 Posts
Squeeze the lever, push the little tab upward while releasing the lever, allowing the little tab to travel up into the body. Squeeze lever to reset. They came stock on one of my bikes. Nice levers, but i switched to a different style with no built-in release, as my calipers have a release of their own.
BFisher is offline
Likes For BFisher:
Old 02-08-22, 11:20 AM
  #8
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,022

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 957 Times in 578 Posts
Originally Posted by Aardwolf View Post
Yep, I had read that, but I can't work out how to actually use it
I can't seem to move the quick release bit when the brake cable is installed (at both ends).

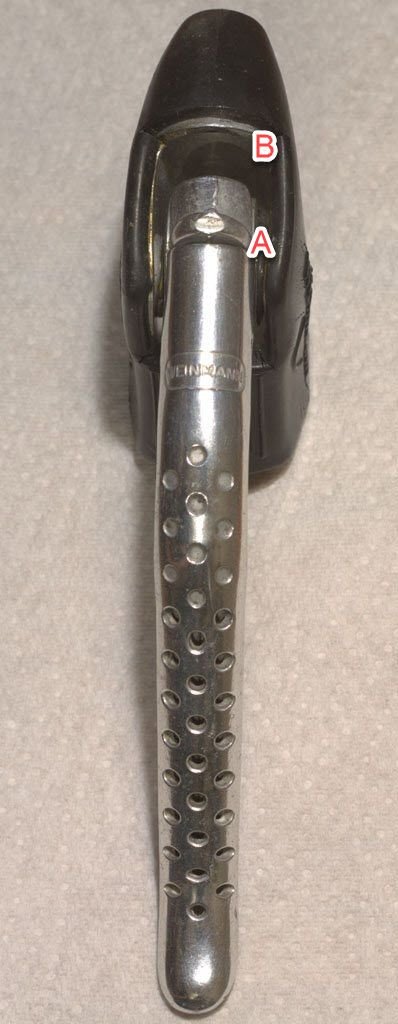

When the cable has tension, the tab sits out and the top of A rests against B. When you press A, it snugs under B to give you more space at the caliper. I had these on my Motobecane a couple of years ago, and I thought it was an elegant solution. I was also a little confused about how they worked until I installed them.
noobinsf is offline
Likes For noobinsf:
Old 02-08-22, 11:58 AM
  #9
Aardwolf
Old Git
Thread Starter

Join Date: Aug 2021
Location: London UK
Posts: 233

Bikes: 1982 Holdsworth Avanti

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
Liked 128 Times in 74 Posts
Yay, great explanation noobinsf.

I've now 'got them working', and as you say quite a simple solution.
Thanks everybody, there's always something new to learn
