Rainbow Paramount asks Suntour group hand in marriage she says YES!!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Rainbow Paramount asks Suntour group hand in marriage she says YES!!

Old 02-11-22, 11:13 PM
  #1
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
Rainbow Paramount asks Suntour group hand in marriage she says YES!!

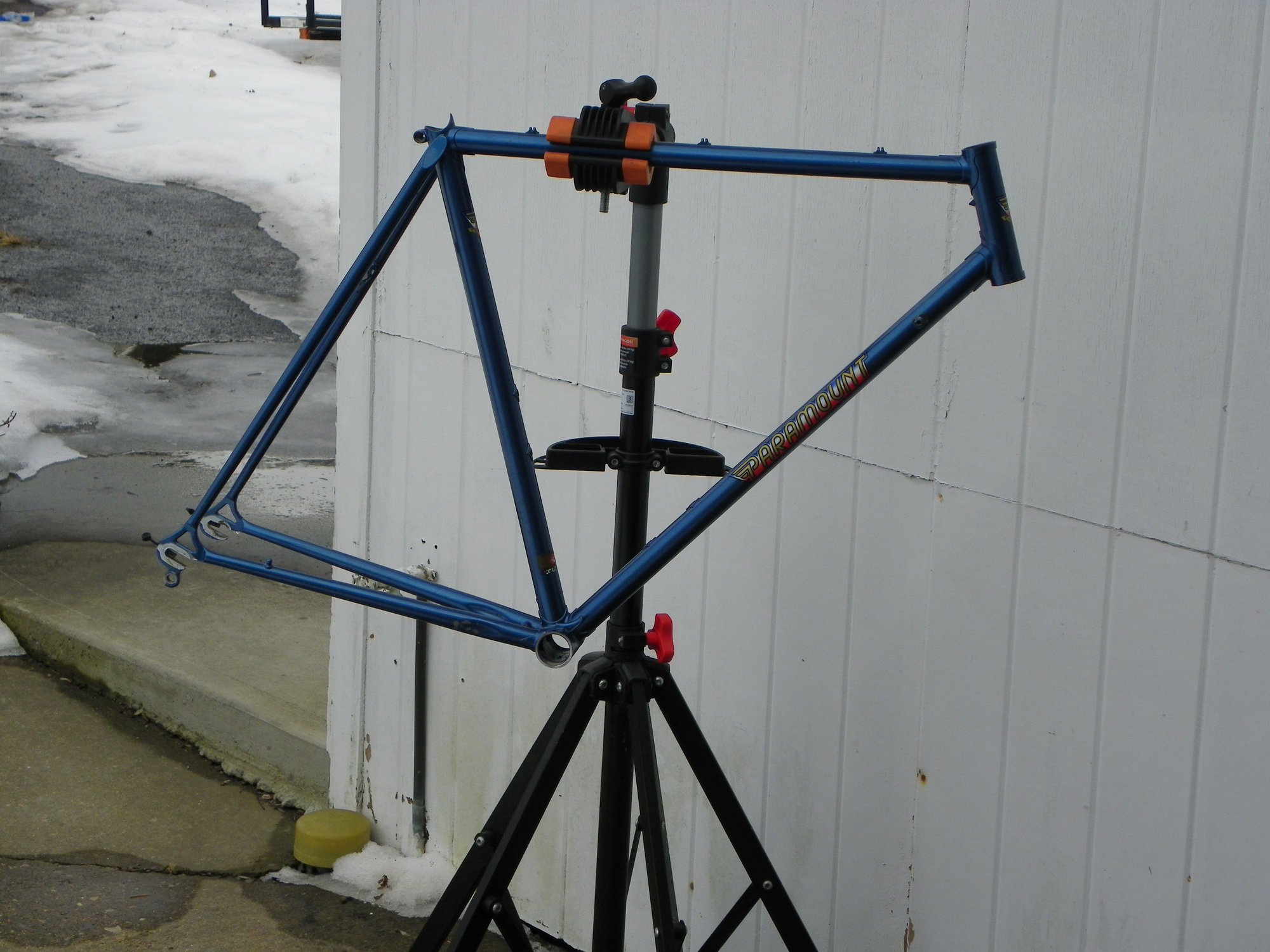

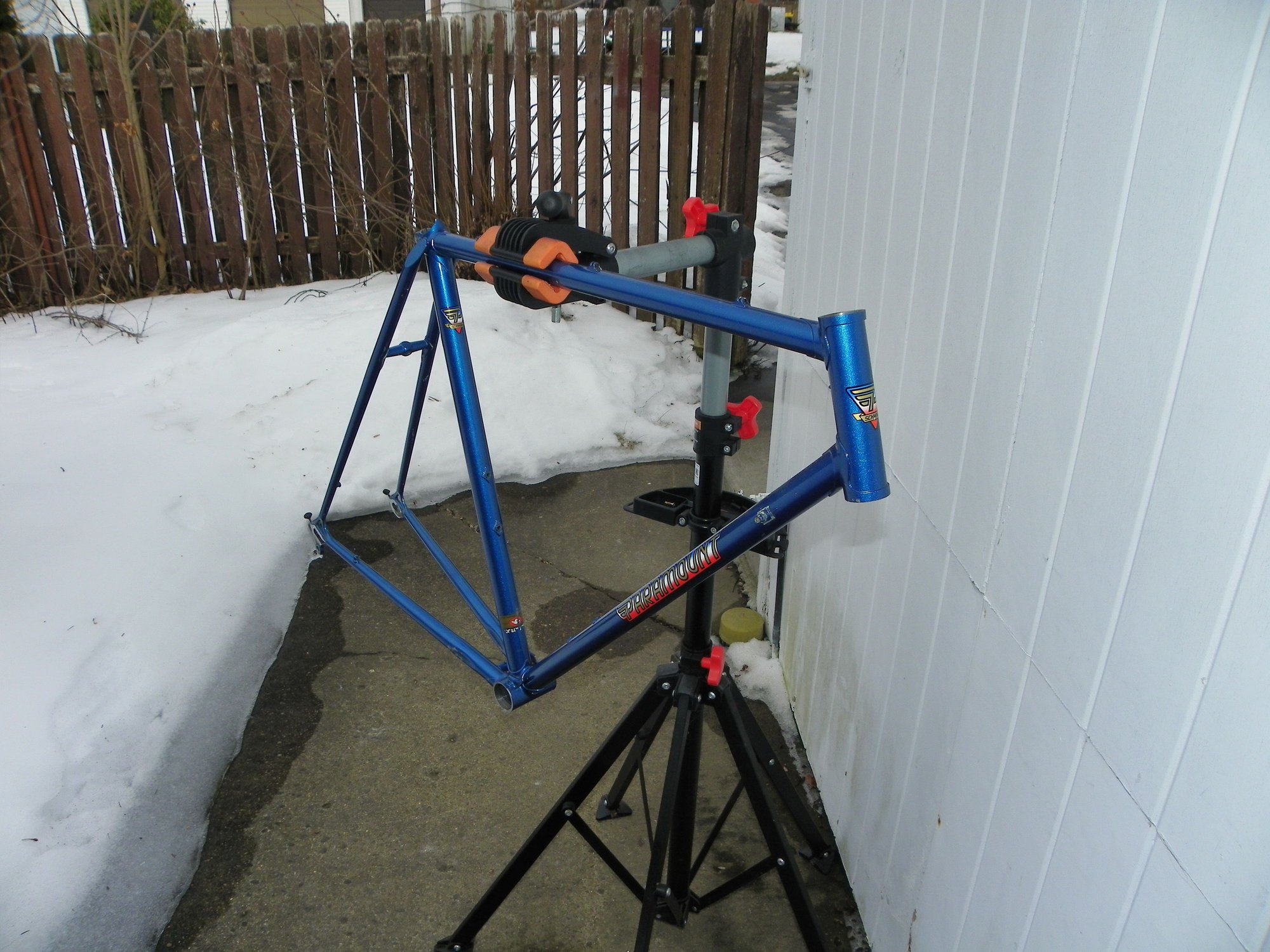

The Groom
84 Schwinn Paramount
Rainbow decals
Born June 84 at 56 CM

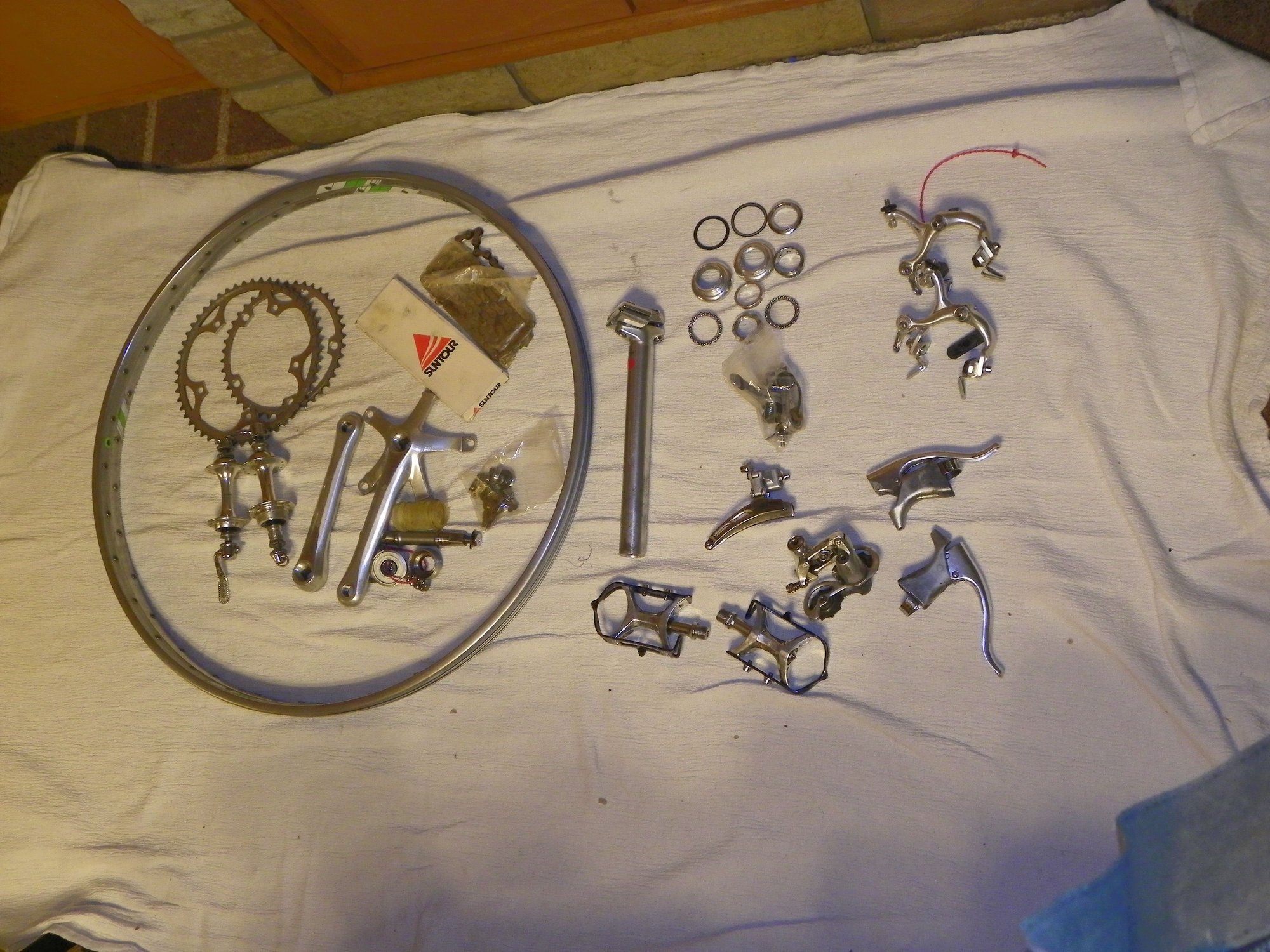

The Bride
Suntour Superbe Pro Group
Someware close to the groom’s age, probably a little younger

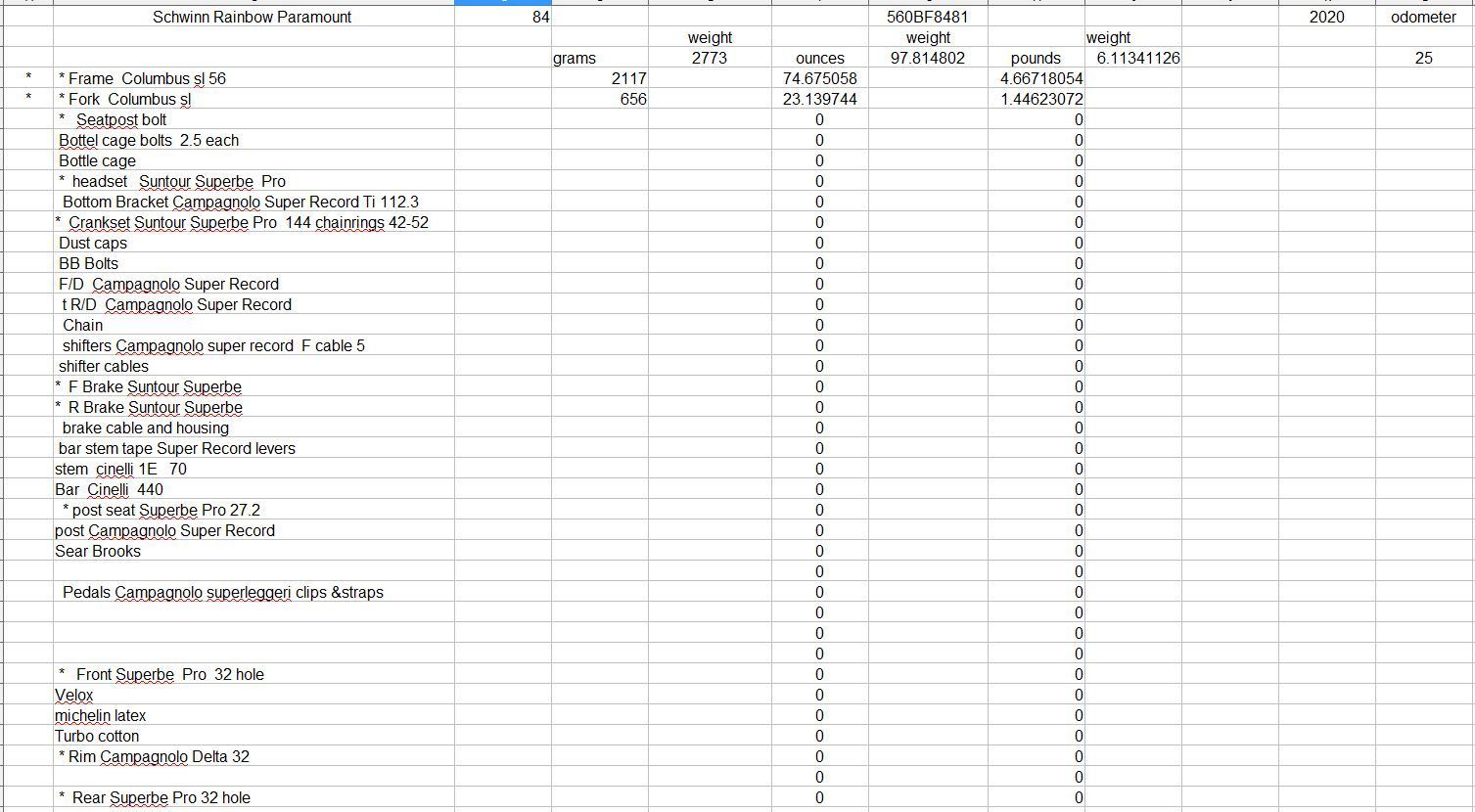

The build sheet

Where I will keep track of what I have done and what things weigh

The pictures so you can follow along
First things first, Wash and 3 coates of wax no pict
Chase the threads

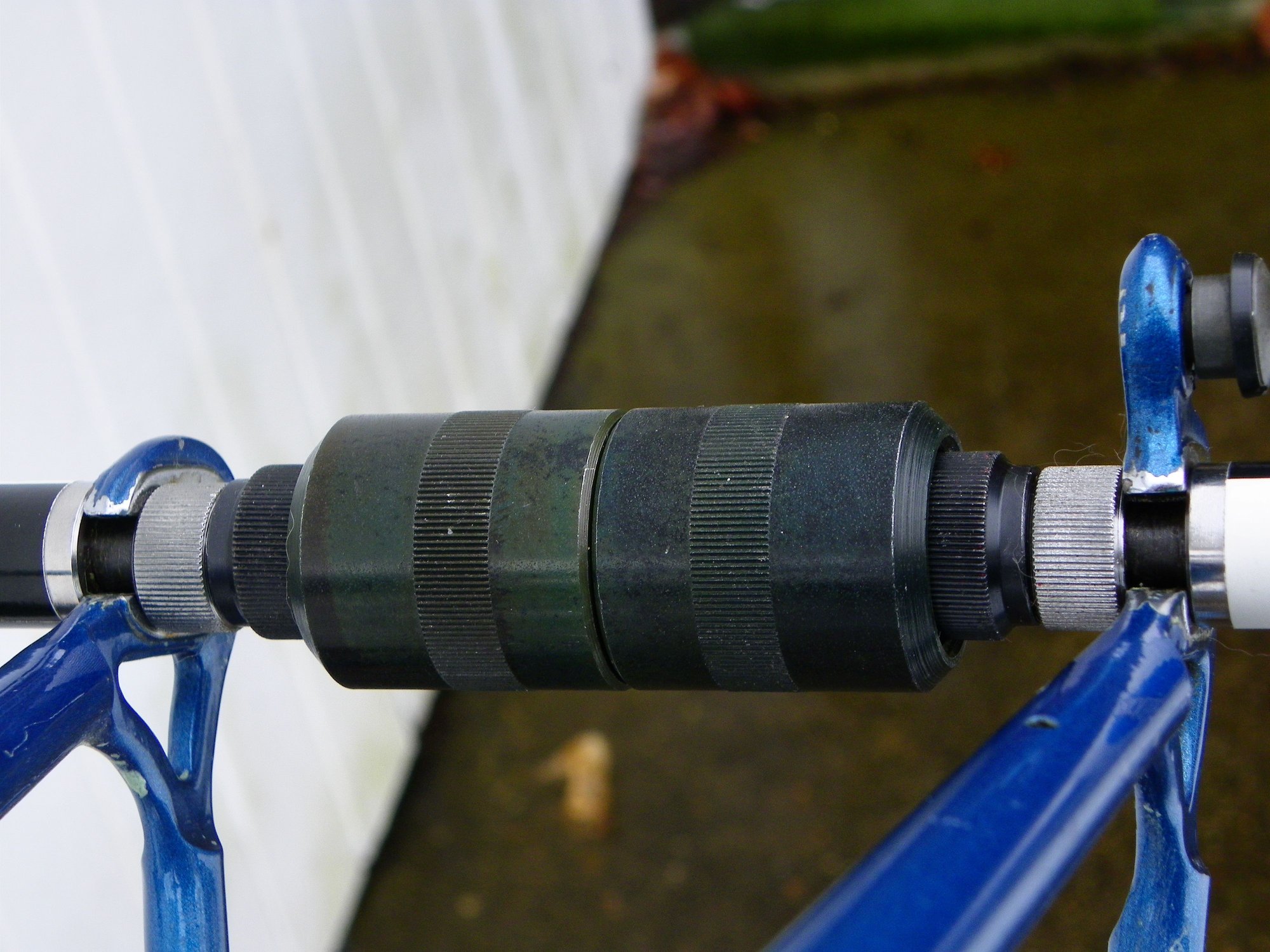

Chasing threads ,chasers made from old bb

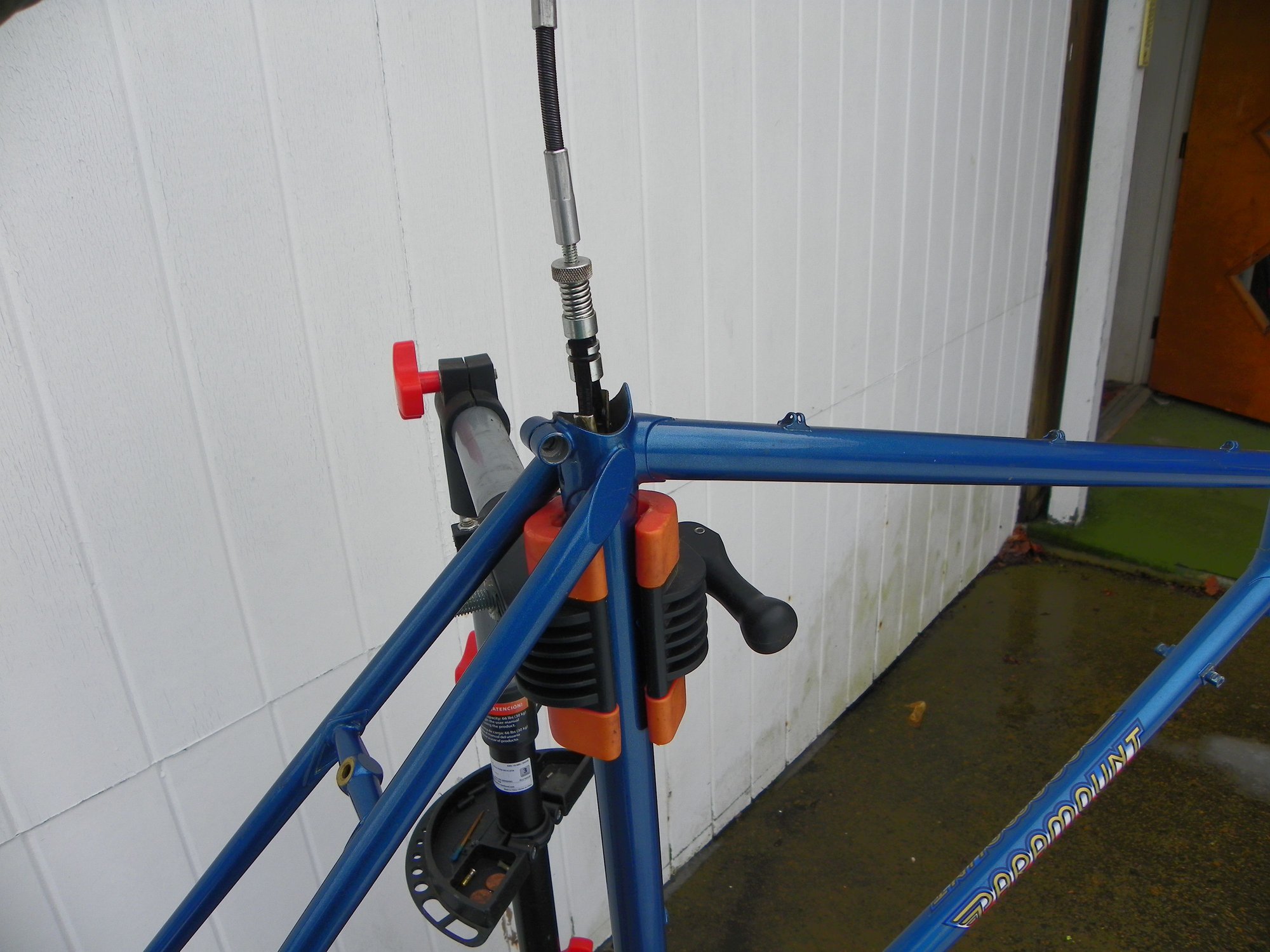

thread chaser made from old derailleur hanger boltt

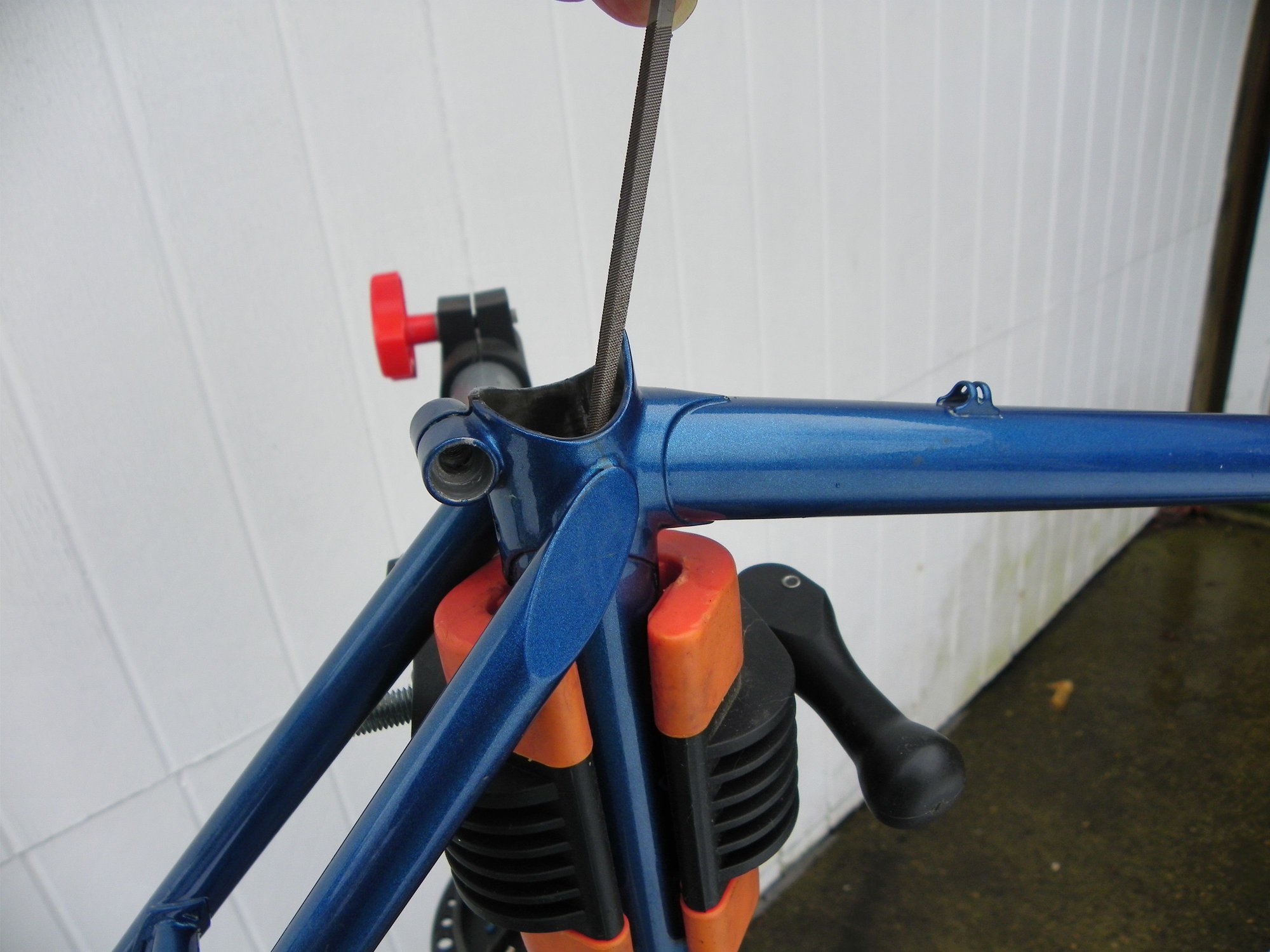

Hone and file sharp edges of seat tube
trainman999 is offline
Likes For trainman999:
Old 02-11-22, 11:21 PM
  #2
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
hone and file sharp edges of seat tube

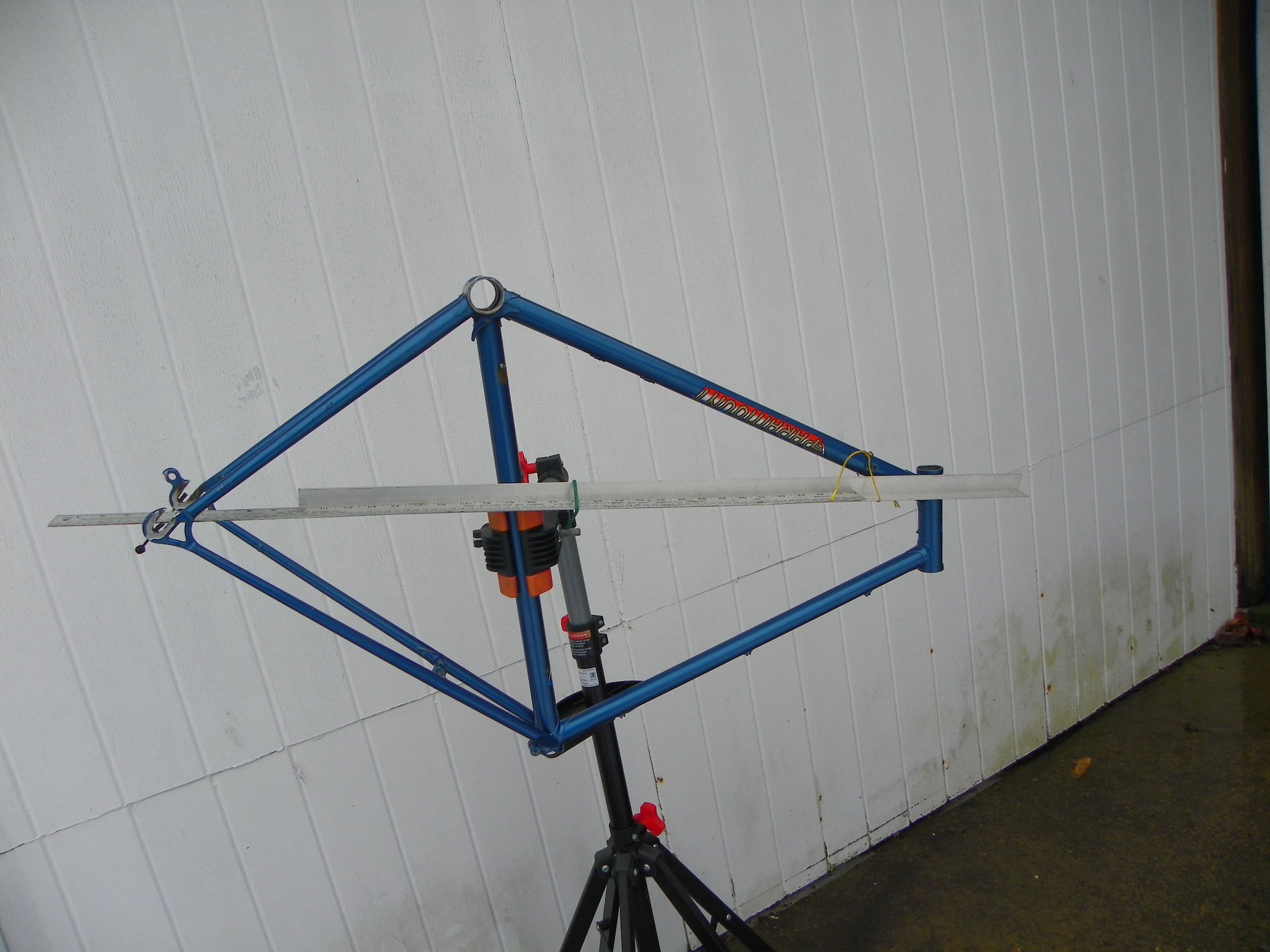

check aligment

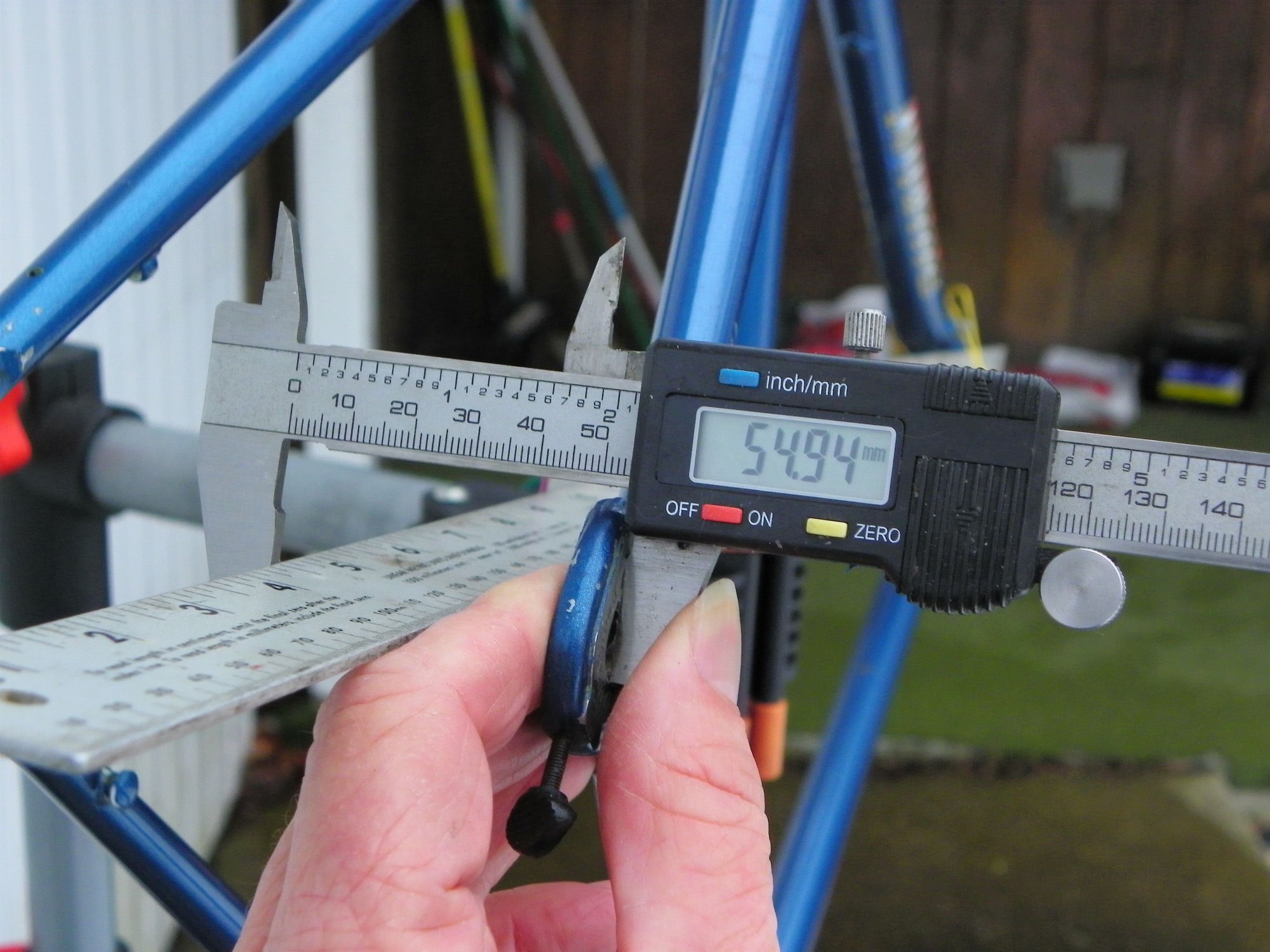

54.94 left 54.99 right cloes enough for me

droupout check


looks good
trainman999 is offline
Old 02-11-22, 11:35 PM
  #3
TPL
Senior Member

Join Date: Jul 2017
Posts: 248
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 88 Times in 63 Posts
10 X 1 tap for rear derailleur hanger ....can be used for Campy or Suntour

These taps can be found at a good hardware store or auto parts supplier ....phone around and see who has this at the lowest price

Inexpensive and very handy to have around if you are working on bicycles often
TPL is offline
Likes For TPL:
Old 02-12-22, 09:07 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 8,939

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2098 Post(s)
Liked 2,090 Times in 1,290 Posts
Originally Posted by TPL View Post
10 X 1 tap for rear derailleur hanger ....can be used for Campy or Suntour

These taps can be found at a good hardware store or auto parts supplier ....phone around and see who has this at the lowest price

Inexpensive and very handy to have around if you are working on bicycles often
RD Hanger, drop out adjuster, and cage/rack/eyelet taps are a wise investment.
dedhed is offline
Old 02-12-22, 09:46 AM
  #5
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,190
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 545 Times in 330 Posts
Doesn’t the Superbe crank use a JIS square taper? Are you sure it will play well with a Campy BB?
icemilkcoffee is offline
Old 02-12-22, 09:59 AM
  #6
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,879

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 3194 Post(s)
Liked 2,743 Times in 1,396 Posts
I want to catch the bouquet - so you can perform the partnership joining of my next frameset and grouppo.

Thoroughly nice work, tho'! . Congrats.

Last edited by Wildwood; 02-12-22 at 10:03 AM.
Wildwood is offline
Likes For Wildwood:
Old 02-12-22, 03:23 PM
  #7
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
next up check insied of tubes

inside tube check tools, a bore light from wal mart gun section and a mirror

The set up and the lousey picts,


light in the vent hole mirror in BB

light in the vent hole look through the seatpost slot

looking up the down tube

looking through the seatpost slot view is much better wirh a mark 1 eyeball
needed a tripod but you get the idea chain stays are a little tricker to get mirror and light in right place but you can do it
trainman999 is offline
Old 02-12-22, 03:36 PM
  #8
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
Next up Hedset and seat post

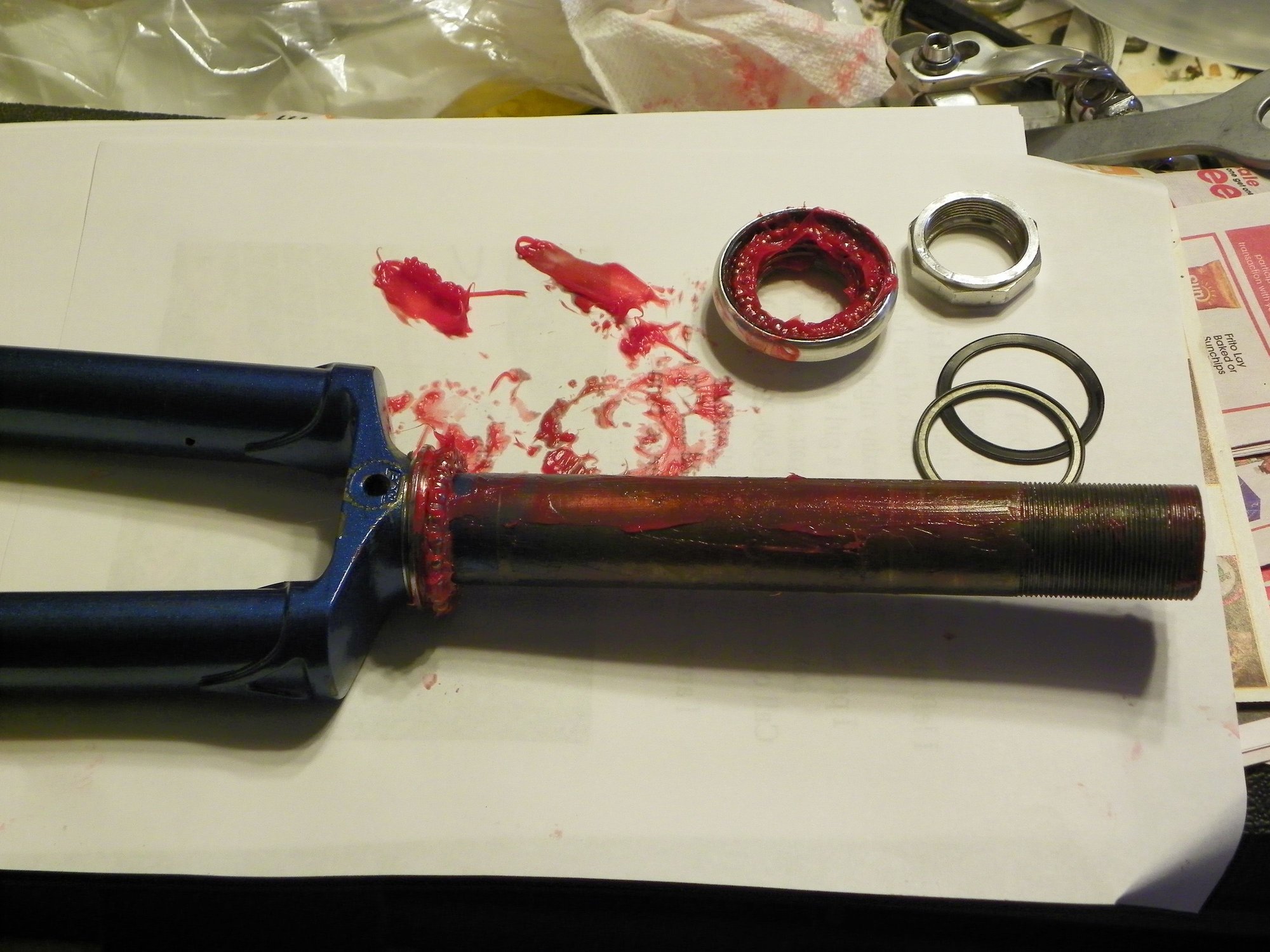

hedset greased up and ready for assembly

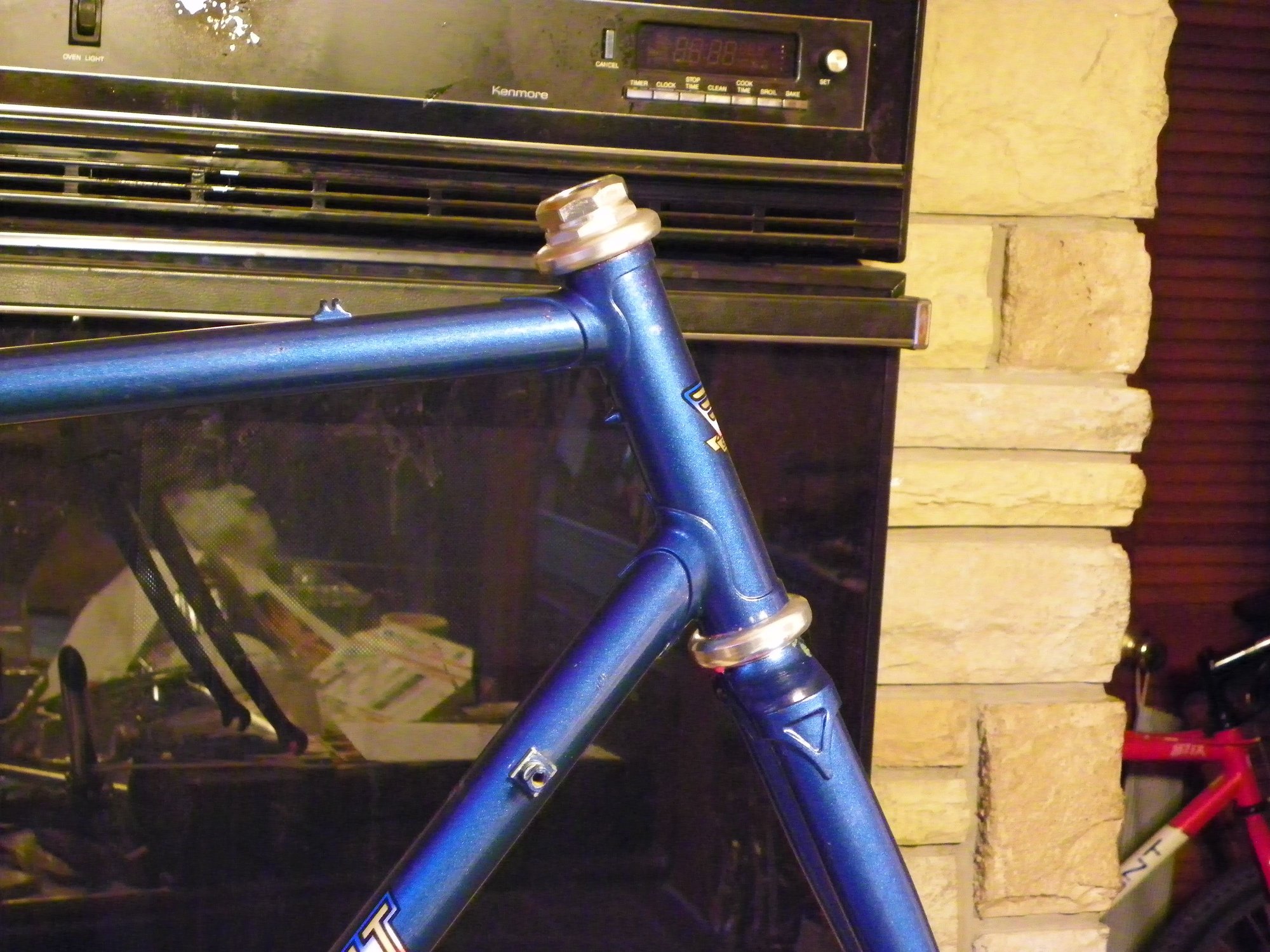

Installed Superbe pro 125 gram

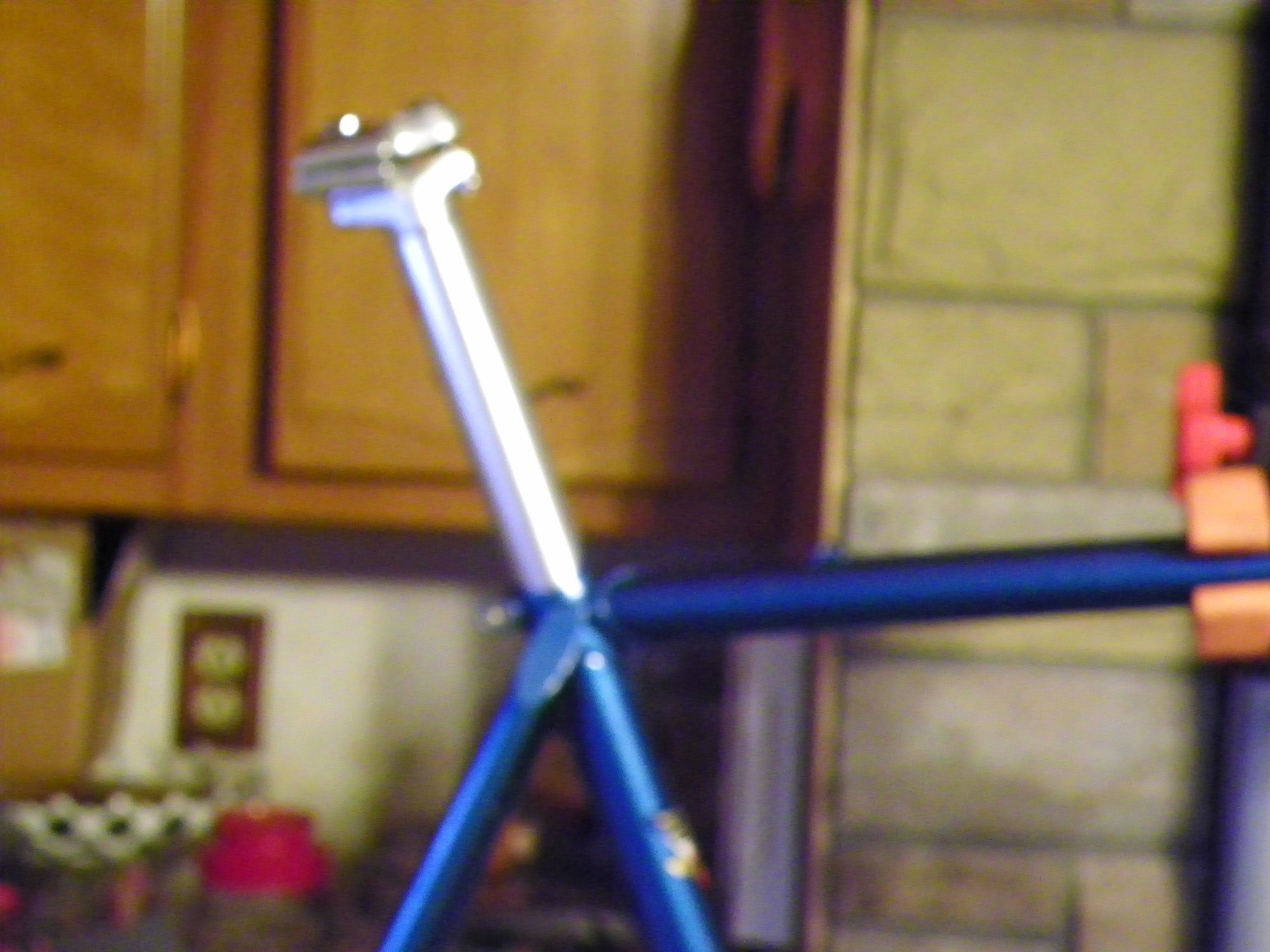

Superbe pro seat post 274 gram polished it up used paraffin on sliding surfaces, anti sieze on therads bolt 6 gram anti sieze on threds

trainman999 is offline
Likes For trainman999:
Old 02-12-22, 06:37 PM
  #9
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,014

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 892 Post(s)
Liked 674 Times in 374 Posts
When you are ready for the matrimonial ceremony, I can make their union official.

The shade of blue used on those Rainbow Paramounts is superb (sic). While I like my black '83, I've always wished it was blue.
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 02-12-22, 07:15 PM
  #10
qcpmsame
Semper Fi

Join Date: Jan 2008
Posts: 12,911
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Liked 313 Times in 212 Posts
Originally Posted by pastorbobnlnh View Post
When you are ready for the matrimonial ceremony, I can make their union official.

The shade of blue used on those Rainbow Paramounts is superb (sic). While I like my black '83, I've always wished it was blue.
I see what you did there Bob😉

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Likes For qcpmsame:
Old 06-25-22, 09:29 AM
  #11
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
A slow progress report finished the brakes and installed

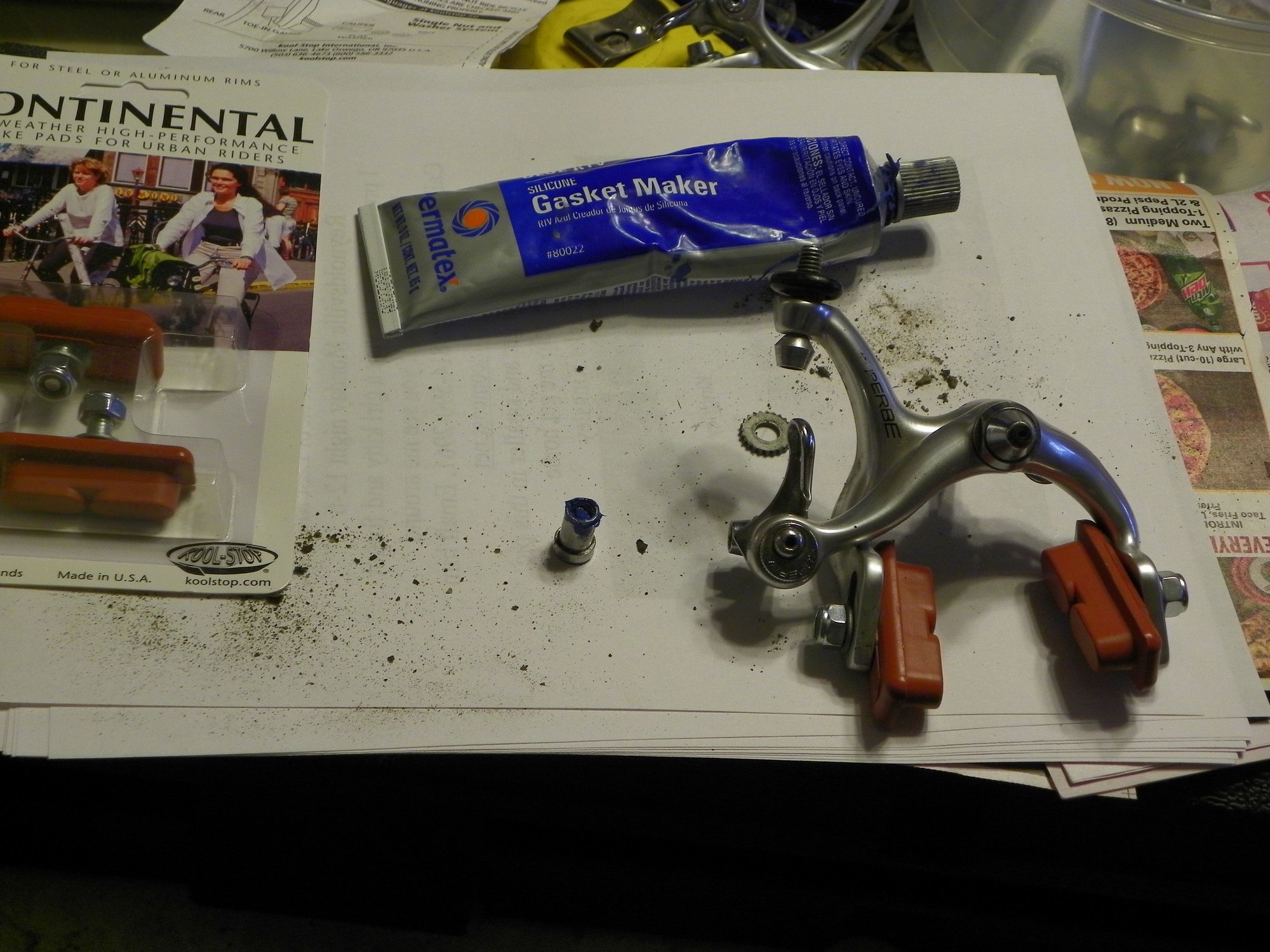

Suntour Superb brake calaper

Finished Front and rear derailleur and installed Rear upper pivit a pain to put back toghether

Suntour Superbe Pro front derailleur

Suntour indexed Superbe Pro rear derailleur
Hopefully more Progress today
trainman999 is offline
Old 06-25-22, 09:40 AM
  #12
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,428

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 3412 Post(s)
Liked 2,168 Times in 1,408 Posts
Originally Posted by icemilkcoffee View Post
Doesn’t the Superbe crank use a JIS square taper? Are you sure it will play well with a Campy BB?
I don't know but I'd expect that SunTour would have followed the lead of Sugino with its Mighty crankset which was Campy standard. And Sungino continued that with the 75 line.
79pmooney is offline
Old 06-25-22, 11:16 AM
  #13
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,651

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 649 Post(s)
Liked 259 Times in 158 Posts
What are you doing with the silicone?
Bad Lag is offline
Old 06-25-22, 11:28 AM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,157

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3150 Post(s)
Liked 2,926 Times in 1,849 Posts
Originally Posted by Bad Lag View Post
What are you doing with the silicone?
Looks like it's sealing and maybe holding the recessed nut in place?
merziac is offline
Old 06-25-22, 11:33 AM
  #15
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,242

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 907 Post(s)
Liked 273 Times in 193 Posts
Looks like a fun project. Suntour Superbe stuff on this period correct bike should be fun. Just curious: are there known issues with the components why you want to do such a thorough tear down and rebuild?

Also, just curious - is it you intention to run the gearing friction or indexed?

Last edited by masi61; 06-25-22 at 11:38 AM.
masi61 is online now
Old 06-25-22, 08:18 PM
  #16
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
Originally Posted by Bad Lag View Post
What are you doing with the silicone?

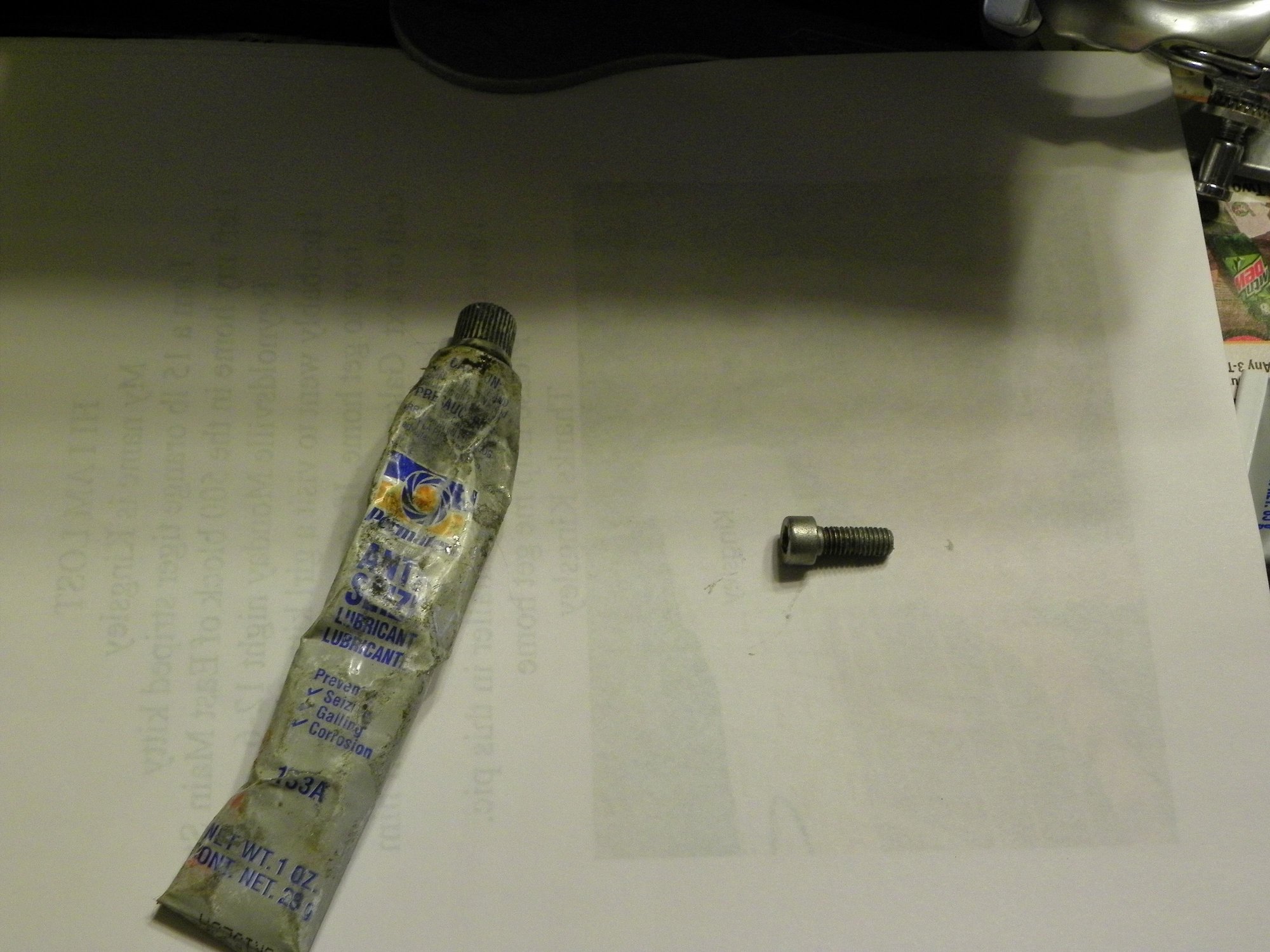

Using it as locktight. It works good on the small fastners found on a bike. Clean the threads smear some on the threads, assemble doesnt have to be super tight but it will not vibrate loose on its own and easly comes loose with a wrench
trainman999 is offline
Likes For trainman999:
Old 06-25-22, 08:32 PM
  #17
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
Originally Posted by masi61 View Post
Looks like a fun project. Suntour Superbe stuff on this period correct bike should be fun. Just curious: are there known issues with the components why you want to do such a thorough tear down and rebuild?

Also, just curious - is it you intention to run the gearing friction or indexed?
No known issues, other than 40 year old grease, and unknown matience. Most of the time they work like new when done.
I will most likley run it in index, The great thing about suntour index if it is giving you a problem shifting just put it in friction
trainman999 is offline
Likes For trainman999:
Old 06-25-22, 08:55 PM
  #18
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
Got it far enough along to take it for a test ride tonight. Only ishue, gona need to swap the brake calipers for the shorter reach ones. The box section rims on the every day wheels had less than 1/2 the pad on the rim. Guess I will try this set on the TX500 Trek. Here is the test ride photo

ride photo

Last edited by trainman999; 06-25-22 at 08:56 PM. Reason: pict cut off part of the text
trainman999 is offline
Likes For trainman999:
Old 06-25-22, 08:58 PM
  #19
trainman999
Senior Member
Thread Starter

Join Date: May 2016
Posts: 403

Bikes: 83 Schwinn Superior, 86 Paramount,86 Madison,87 Cimeron,86 Nishiki Linear

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 139 Times in 79 Posts
The build sheet so far
trainman999 is offline
Likes For trainman999:
Old 06-26-22, 06:53 AM
  #20
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,570

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 516 Post(s)
Liked 708 Times in 384 Posts
Nice build, love the Campagnolo Delta rims.
Tim
tkamd73 is offline
Old 06-26-22, 09:30 AM
  #21
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,242

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 907 Post(s)
Liked 273 Times in 193 Posts
Originally Posted by trainman999 View Post
No known issues, other than 40 year old grease, and unknown matience. Most of the time they work like new when done.
I will most likley run it in index, The great thing about suntour index if it is giving you a problem shifting just put it in friction
Cool. If you run with a 7 speed Winner or Winner Pro (with the "4 prong" freewheel body) these are Accushift compatible and should index quite well on your 6/7 speed 126mm spaced frame.
masi61 is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
