Carlton identification help please

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Carlton identification help please

Old 02-13-22, 04:56 PM
  #1
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Carlton identification help please

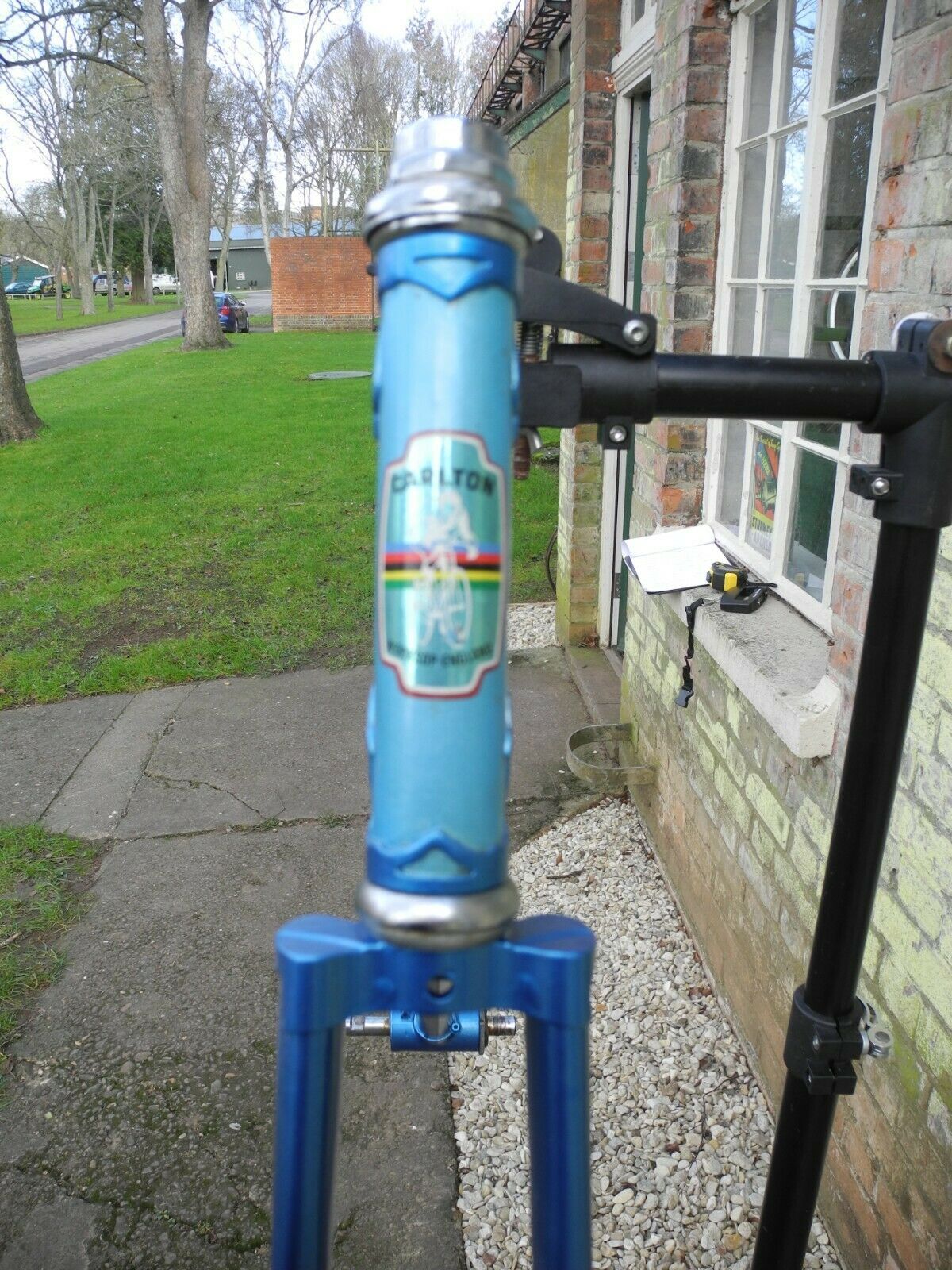

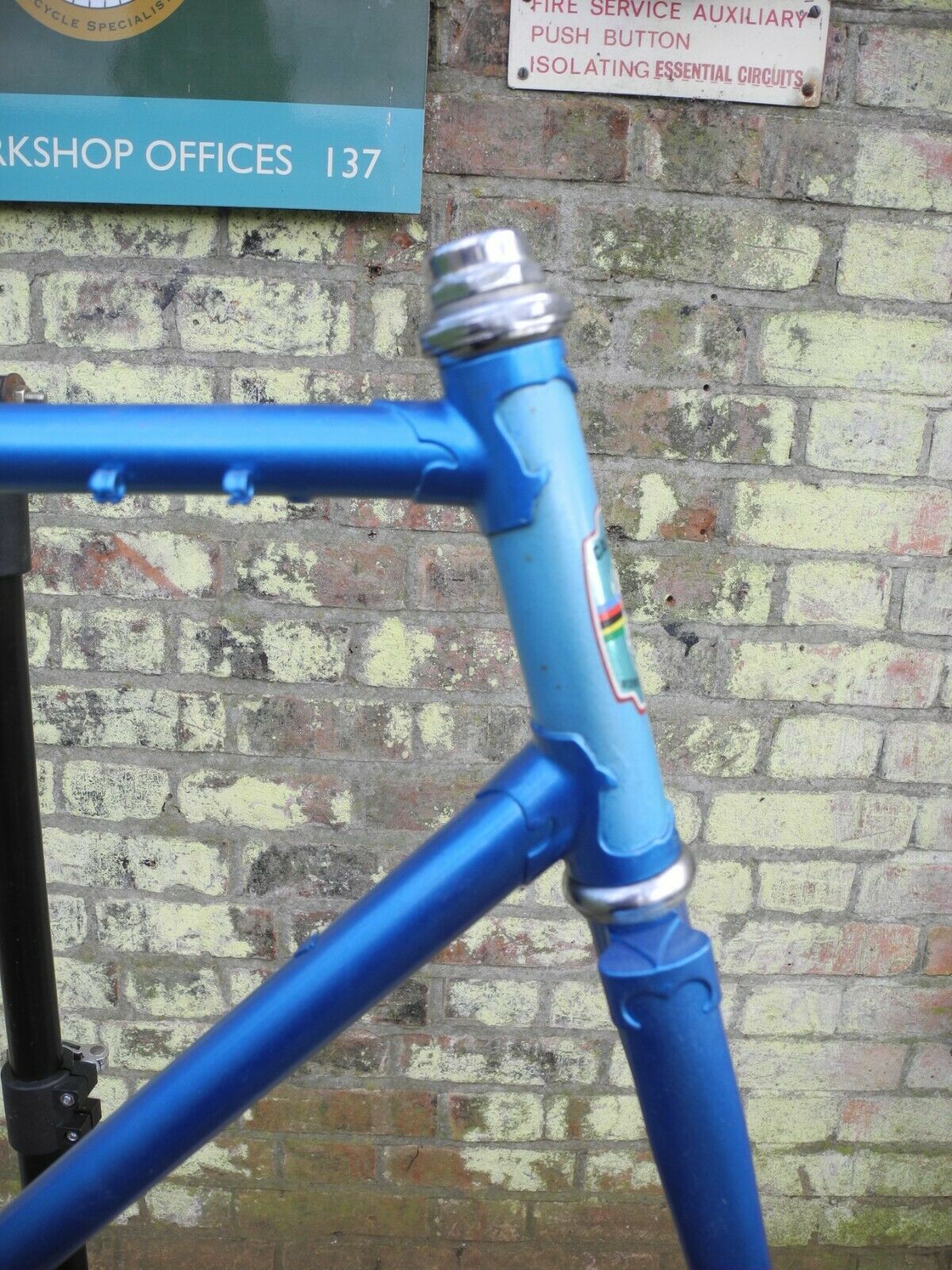

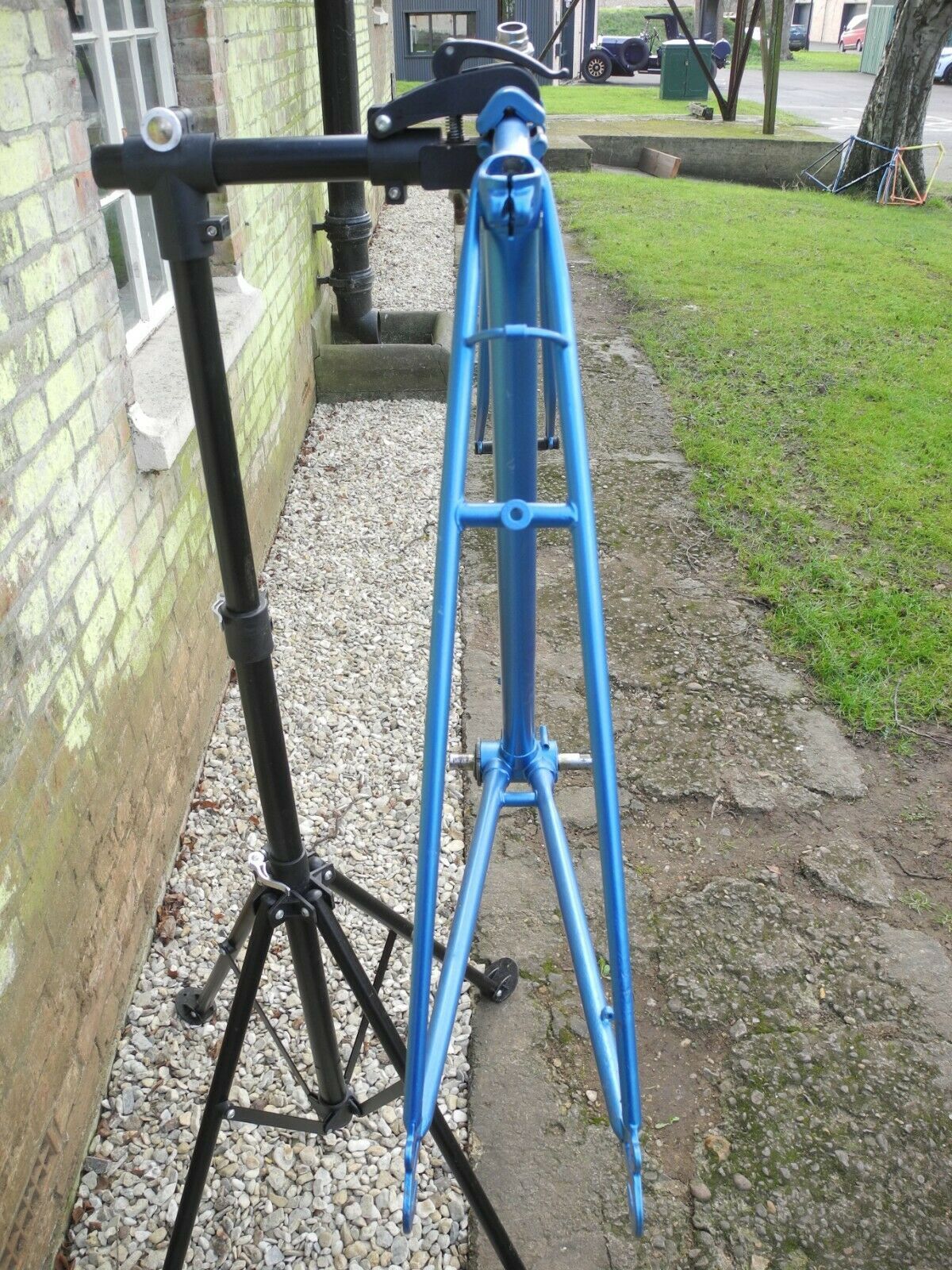

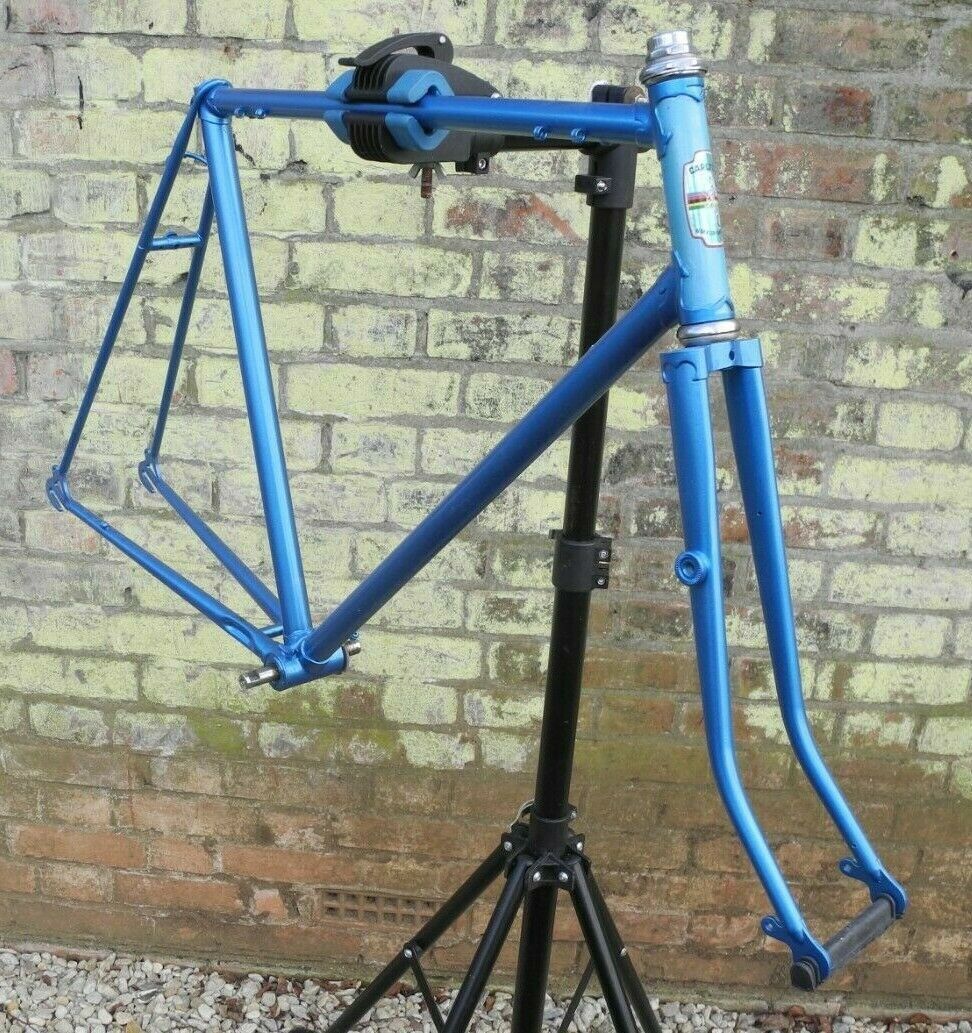

I just purchased this Carlton frame. Can anyone help identify what year and model it is from these pictures? The serial number is WA9005143 so as far as I can figure maybe 1969??? From Worksop January? I think is fairly close but would like someone elses input. Any idea of model? I would like to re-decal and add the contrasting colors if needed but want to make sure I make it reasonably correct for the year.







cdaniels is offline
Old 02-13-22, 05:02 PM
  #2
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Possibly a Carlton Criterium?
cdaniels is offline
Old 02-13-22, 05:26 PM
  #3
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 738

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 418 Times in 240 Posts
Serial number is January 1979.
Pcampeau is offline
Likes For Pcampeau:
Old 02-13-22, 05:38 PM
  #4
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by Pcampeau View Post
Serial number is January 1979.
Are you sure? I thought everyone had rear derailleur mounts by then and had stopped useing the fork mounted headlight.
cdaniels is offline
Old 02-13-22, 06:08 PM
  #5
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,835
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 1,023 Times in 367 Posts
Originally Posted by cdaniels View Post
Are you sure? I thought everyone had rear derailleur mounts by then and had stopped useing the fork mounted headlight.
Not in England! My 1979 Mercian Campionissimo (another basic model of the time) is a very similar frame with the same lug set and dropouts but in fully butted 531. Golden Age Cycles is good people to work with, so I'm sure your frame will arrive in great condition - but yes, it's definitely a later model sporting a rather dated appearance.

A 1979 Mercian Campionissimo - Bike Forums

-Gregory
Kilroy1988 is offline
Old 02-13-22, 06:10 PM
  #6
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 738

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 418 Times in 240 Posts
Originally Posted by cdaniels View Post
Are you sure? I thought everyone had rear derailleur mounts by then and had stopped useing the fork mounted headlight.
Yes Iím sure. This serial number format began in late 1973. Bike also has a 70s head badge.
Pcampeau is offline
Old 02-13-22, 06:11 PM
  #7
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by Kilroy1988 View Post
Not in England! My 1979 Mercian Campionissimo (another basic model of the time) is a very similar frame with the same lug set and dropouts but in fully butted 531. Golden Age Cycles is good people to work with, so I'm sure your frame will arrive in great condition - but yes, it's definitely a later model sporting a rather dated appearance.

A 1979 Mercian Campionissimo - Bike Forums

-Gregory
I bought a 46 Bates BAR from them, they are great to deal with.
cdaniels is offline
Likes For cdaniels:
Old 02-13-22, 06:12 PM
  #8
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by Pcampeau View Post
Yes I’m sure. This serial number format began in late 1973. Bike also has a 70s head badge.
Ok, thanks. But which model?

Last edited by cdaniels; 02-13-22 at 06:20 PM.
cdaniels is offline
Old 02-13-22, 07:03 PM
  #9
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,190

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 833 Times in 569 Posts
Originally Posted by cdaniels View Post
Ok, thanks. But which model?

All stripped down and ready to rebuild.

I am a one-hit wonder when it comes to Carltons (see signature), and very new to the marque, but the seat post diameter may help us narrow down the range of models a bit.
Here is what my 1962 FrancoSuisse looks like:
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 02-13-22, 09:59 PM
  #10
RetroSteel
Fully lugged in

RetroSteel's Avatar

Join Date: Nov 2004
Location: Great Britain
Posts: 131

Bikes: 1969 Carlton Continental 531 / Nervex, 1987 Atala Aelle, 1989 Scapin Atec, 1990 Faggin Aelle, 2012 Planet-X Kaffenback, 2012 Bob Jackson Olympus 631, 2012 One-One Scandal MTB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cdaniels View Post
I just purchased this Carlton frame. Can anyone help identify what year and model it is from these pictures? The serial number is WA9005143 so as far as I can figure maybe 1969??? From Worksop January? I think is fairly close but would like someone elses input. Any idea of model? I would like to re-decal and add the contrasting colors if needed but want to make sure I make it reasonably correct for the year.







Its using Raleigh's numbering system, so post 1973. With the wrapover seatstays and lug design, it looks like the Cobra or Cyclone - lower end but a nice ride. Have you weighed it?

Last edited by RetroSteel; 02-13-22 at 10:26 PM.
RetroSteel is offline
Old 02-14-22, 01:04 AM
  #11
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by RetroSteel View Post
Its using Raleigh's numbering system, so post 1973. With the wrapover seatstays and lug design, it looks like the Cobra or Cyclone - lower end but a nice ride. Have you weighed it?
i dont have it yet, waiting for it to be shipped.
cdaniels is offline
Old 02-14-22, 04:02 AM
  #12
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,111
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 784 Post(s)
Likes: 0
Liked 838 Times in 514 Posts
Originally Posted by RetroSteel View Post
Its using Raleigh's numbering system, so post 1973. With the wrapover seatstays and lug design, it looks like the Cobra or Cyclone - lower end but a nice ride. Have you weighed it?

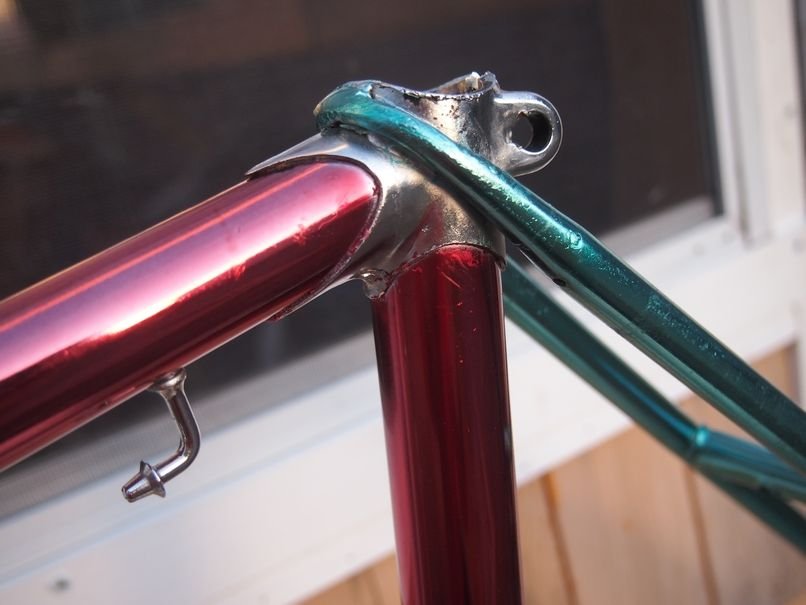

I have a Cobra; it's all chrome, has pump pegs, no brake cable top-tube bits, no rear brake seat-stay stop, a front mech cable stop on the down-tube, different lugs, and a different bridge:

Also has 26tpi so if he has something else perhaps a good thing.


Last edited by oneclick; 02-14-22 at 09:27 AM.
oneclick is offline
Likes For oneclick:
Old 02-14-22, 08:25 AM
  #13
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,835
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 1,023 Times in 367 Posts
It's most likely a Carlton Corsa. Look up the model on Google Images and you'll see many a match for all of the details on your frame. Cheers!

-Gregory
Kilroy1988 is offline
Old 02-14-22, 02:27 PM
  #14
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 245
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 120 Times in 50 Posts
Originally Posted by Kilroy1988 View Post
It's most likely a Carlton Corsa. Look up the model on Google Images and you'll see many a match for all of the details on your frame. Cheers!

-Gregory
I think you're right it's pretty spot-on. Only mine doesn't have the chrome fork socks, but they could have easily been painted over.
cdaniels is offline
Old 02-14-22, 02:31 PM
  #15
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,835
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 779 Post(s)
Liked 1,023 Times in 367 Posts
Originally Posted by cdaniels View Post
I think you're right it's pretty spot-on. Only mine doesn't have the chrome fork socks, but they could have easily been painted over.
Yeah, I want to say that based on the fact that the paint looks pretty good despite there being no decals, it's probably been repainted in the past. There's also hardly any wear on the dropouts, suggesting it may never have been built up since the restoration... Covering the old chrome seems most likely in this case.

-Gregory
Kilroy1988 is offline
Old 02-14-22, 04:07 PM
  #16
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,190

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 833 Times in 569 Posts
Originally Posted by oneclick View Post
... Also has 26tpi so if he has something else perhaps a good thing.
Can anyone enlighten me regarding the use of 24 vs 26tpi in various Carlton models and years? Fortunately, my Carlton has a 24tpi / standard ISO BB shell, but evidently even some newer Carltons had 26tpi, which I would have assumed was already obsolete by the time mine was manufactured.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
