Road Test/Bike Review (1985) ALAN Carbonio

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Road Test/Bike Review (1985) ALAN Carbonio

Old 02-16-22, 05:29 PM
  #1
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Central Florida, USA
Posts: 1,996

Bikes: Litespeed (9); Slingshot (9); Specialized (3); Kestrel (2); Cervelo (1); FELT (1); Trek (2)

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked 3,335 Times in 970 Posts
Road Test/Bike Review (1985) ALAN Carbonio











__________________
WTB: Slingshot bicycle promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May - Aug, Oct, Dec 1966.
WTB: Bicycle Guide issues 1984 (any); Jun 1987; Jul, Nov/Dec 1992; Apr 1994; 1996 -1998 (any)
WTB: Bike World issue Jun 1974.














SpeedofLite is offline
Likes For SpeedofLite:
Old 02-16-22, 06:07 PM
  #2
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 4,414
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 1806 Post(s)
Liked 3,253 Times in 1,533 Posts
Boy, it would be interesting to see how this compares to a standard aluminum Alan! Weight, stiffness, etc. If the carbon tubes still have aluminum sleeves at the ends, it doesn't seem likely to have dropped too much weight relative to the aluminum models.

Steve in Peoria
steelbikeguy is offline
Old 02-16-22, 10:45 PM
  #3
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,423
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Likes: 0
Liked 800 Times in 518 Posts

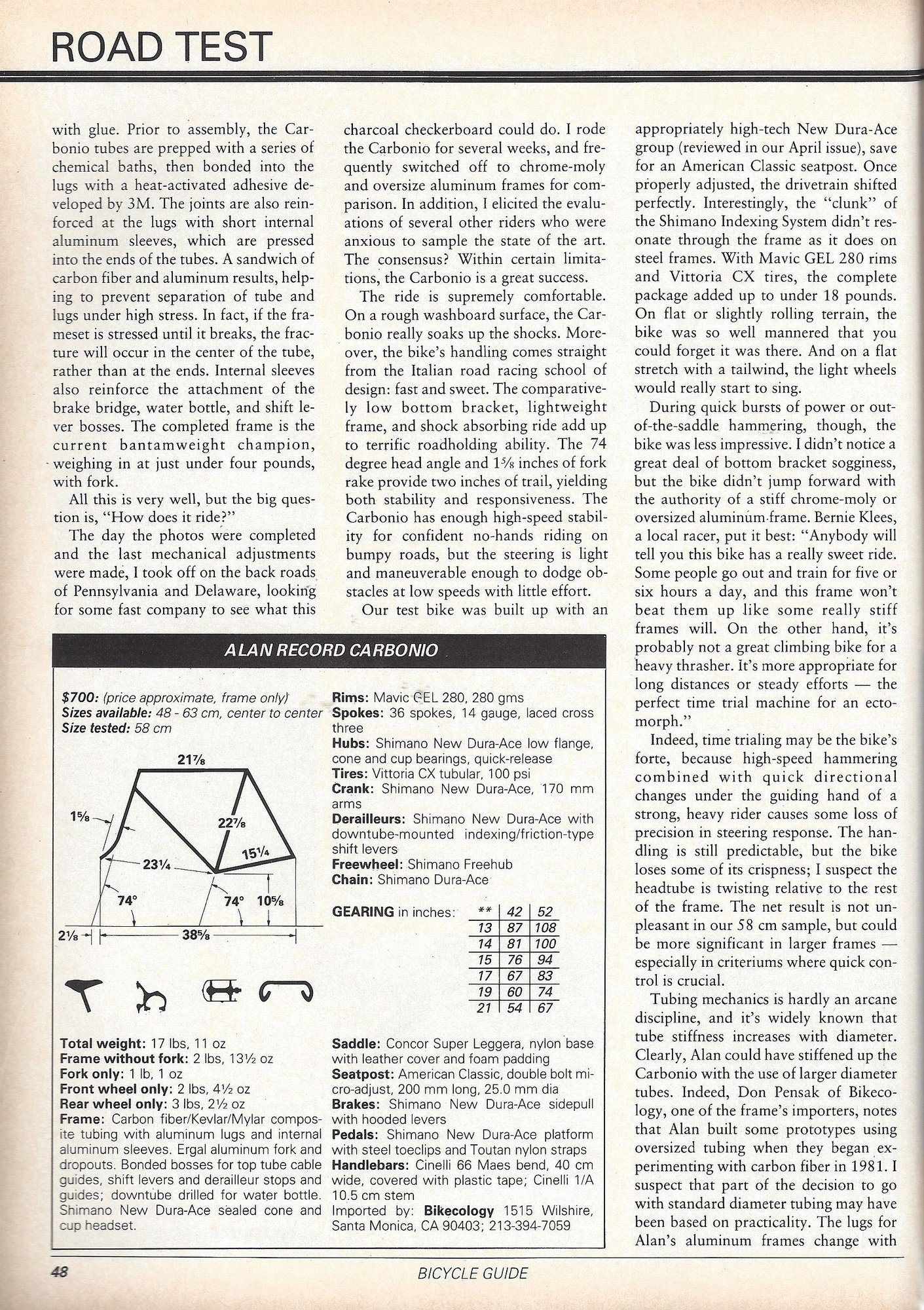

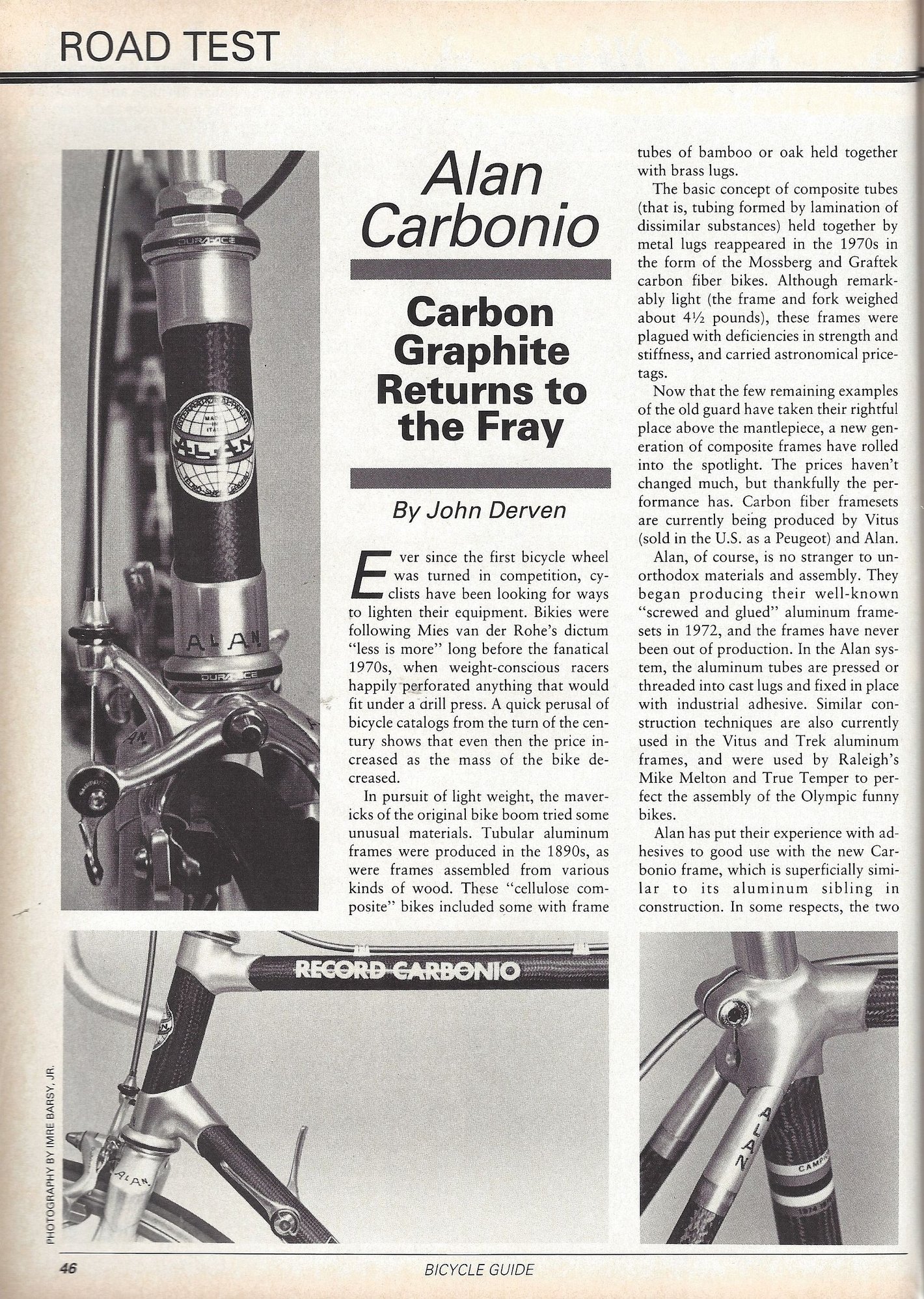

Thnk you very much for posting this article!
It's not often when one comes across such for one's own C&V bike.


Interesting that supposedly only 150 Carbonios were imported into the US??
I'm almost sure there must have been more of these sold in the States.
I wonder if those were numbers for whole bikes or just framesets......

Last edited by Chombi1; 02-16-22 at 11:45 PM.
Chombi1 is offline
Old 02-16-22, 11:39 PM
  #4
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Central Florida, USA
Posts: 1,996

Bikes: Litespeed (9); Slingshot (9); Specialized (3); Kestrel (2); Cervelo (1); FELT (1); Trek (2)

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 426 Post(s)
Liked 3,335 Times in 970 Posts
Originally Posted by Chombi1
Thnk you very much for posting this article!
It's not often when one comes across such for one's own C&V bike.


Interesting that supposedly only 150 Carbonuos were imported into the US??
I'm almost sure there must have been more of these sold in the States.
I wonder if those were numbers for whole bikes or just framesets......
Great photo!
__________________
WTB: Slingshot bicycle promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May - Aug, Oct, Dec 1966.
WTB: Bicycle Guide issues 1984 (any); Jun 1987; Jul, Nov/Dec 1992; Apr 1994; 1996 -1998 (any)
WTB: Bike World issue Jun 1974.














SpeedofLite is offline
Old 02-17-22, 02:08 AM
  #5
JSL
Newbie

Join Date: Jan 2015
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 8 Times in 5 Posts
Did you buy this new or was it a refurb? Looks unridden as is
JSL is offline
Old 02-17-22, 04:31 AM
  #6
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,423
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Likes: 0
Liked 800 Times in 518 Posts
Originally Posted by JSL
Did you buy this new or was it a refurb? Looks unridden as is
Built it up from close to NOS frameset about 5 years ago. Just finished it when I took the pic.
build weight ended up around 18 pounds.
It rides just like described in the article. My best handling bike. Handling can be described as almost "telepathic". It feels like you just think your way into turns without any twitchyness. Always stable at any speed. It does not feel that flexy at all though, maybe because mine is a 56 and they tested a 58....., so maybe just a bit stiffer than the bike tested. But I'm also more into spinning and motoring fast on flats than mashing up big hills......
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 02-17-22, 05:01 AM
  #7
JSL
Newbie

Join Date: Jan 2015
Posts: 32
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Liked 8 Times in 5 Posts
Very well done. Congrats
JSL is offline
Old 02-17-22, 05:05 AM
  #8
Senior Member

Join Date: Apr 2021
Posts: 4,083
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 2332 Post(s)
Liked 2,092 Times in 1,310 Posts
I did not have the Alan but did have a Vitus Carbonne 9 with C Record and all the lightest parts possible, it was just right at 17 pounds. It was a good century road bike, but an unreliable design. The bonding failed but more importantly the aluminum bits used on the seatpost were stupid. But, it was nice while it lasted.
GhostRider62 is offline
Old 02-17-22, 10:37 AM
  #9
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 671

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 996 Times in 355 Posts
Originally Posted by steelbikeguy
Boy, it would be interesting to see how this compares to a standard aluminum Alan! Weight, stiffness, etc. If the carbon tubes still have aluminum sleeves at the ends, it doesn't seem likely to have dropped too much weight relative to the aluminum models.

Steve in Peoria
400 grs according to this,

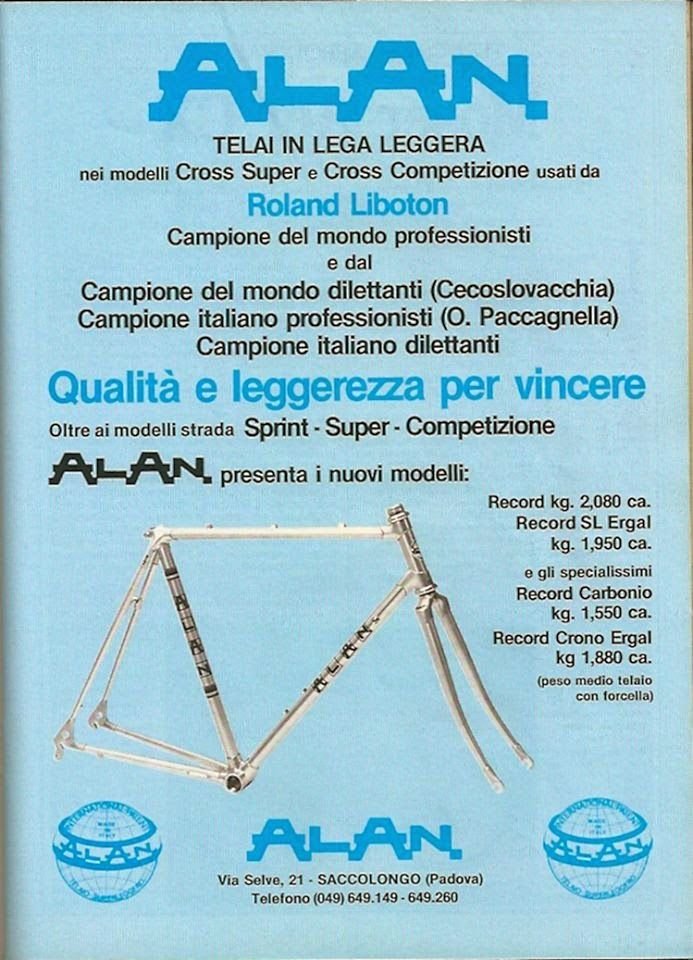

a catalogue from some years later shows models with internal cable handling, a difference from 350 grs.

fabiofarelli is offline
Likes For fabiofarelli:
Old 02-17-22, 01:33 PM
  #10
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 671

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 996 Times in 355 Posts
fabiofarelli is offline
Likes For fabiofarelli:
Old 02-17-22, 01:38 PM
  #11
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,423
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Likes: 0
Liked 800 Times in 518 Posts
Originally Posted by GhostRider62
I did not have the Alan but did have a Vitus Carbonne 9 with C Record and all the lightest parts possible, it was just right at 17 pounds. It was a good century road bike, but an unreliable design. The bonding failed but more importantly the aluminum bits used on the seatpost were stupid. But, it was nice while it lasted.
Here's my Vitus Plus Carbone 7. It's my ongoing C&V CF weight weenie experiment at just over 16 pounds......
I think I can get it below 16 pounds with changing out the BB to Ti and installing my GEL 280 wheelset on it.
It's a totally different bike from the Carbonio, in terms of ride and handling.....Definitely more flexible....

Last edited by Chombi1; 02-17-22 at 02:06 PM.
Chombi1 is offline
Likes For Chombi1:
Old 02-17-22, 01:47 PM
  #12
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,423
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Likes: 0
Liked 800 Times in 518 Posts
Originally Posted by fabiofarelli
Curuous,....Is the fork steerer tube on your Carbonio aluminum?
I heard that they changed it to steel on some of the forks, midway through the production run because of concerns of it possibly failing under stress.
The one on mine is aluminum and so far holding up with no problems.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
Old 02-18-22, 06:06 AM
  #13
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,302

Bikes: Seriously downsizing.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Liked 608 Times in 269 Posts
Originally Posted by Chombi1
Here's my Vitus Plus Carbone 7. It's my ongoing C&V CF weight weenie experiment at just over 16 pounds......
I think I can get it below 16 pounds with changing out the BB to Ti and installing my GEL 280 wheelset on it.
It's a totally different bike from the Carbonio, in terms of ride and handling.....Definitely more flexible....
Squares with my Vitus/Alan comparisons.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 02-18-22, 06:25 AM
  #14
Senior Member

fabiofarelli's Avatar

Join Date: Jan 2019
Location: Netherlands
Posts: 671

Bikes: Especialy Alan, but also Empella, Cascarsi, Gazelle, Bianchi, CJV, Sirocco, Berkers etcetera

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 188 Post(s)
Liked 996 Times in 355 Posts
Originally Posted by Chombi1
Curuous,....Is the fork steerer tube on your Carbonio aluminum?
I heard that they changed it to steel on some of the forks, midway through the production run because of concerns of it possibly failing under stress.
The one on mine is aluminum and so far holding up with no problems.
This one is aluminium too. I got some loose forks but can't get to it now, I'll check those if I can get back to it, good idea.
If not absolute necessary I keep my hands off the headsets, I try not to change them.
fabiofarelli is offline
