Trouble getting new tires to fit

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Trouble getting new tires to fit

Old 02-23-22, 04:00 PM
  #1
LBCwanabe
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 371
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 200 Times in 85 Posts
Trouble getting new tires to fit

I have a set of nearly new matrix my aero atb wheels that I canít get tires on for the life of me. Iíve tried screwdrivers and soap. No matter what I canít fit the tires on. This tim is very narrow. What am I doing wrong?
LBCwanabe is offline
Old 02-23-22, 07:38 PM
  #2
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,386

Bikes: It's complicated.

Mentioned: 1144 Post(s)
Tagged: 0 Thread(s)
Quoted: 3909 Post(s)
Liked 3,188 Times in 1,436 Posts
First, more details on what "new matrix my aero atb wheels" is. Specifically what rim and tire combo are you using? A picture would help immensely.

BTW, never, never, never use a screwdriver to install a tire. You'll end up with a self-induced pinch flat 9 out of 10 times. Get some proper tire levers at a minimum.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 02-23-22, 07:41 PM
  #3
TPL
Senior Member

Join Date: Jul 2017
Posts: 248
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 88 Times in 63 Posts
Your rims are 571mm

You are trying to force 559mm tires on a too large rim

No go

Either ....get 571mm tires ....or ....559 rims
TPL is offline
Likes For TPL:
Old 02-24-22, 07:44 AM
  #4
bboy314
Senior Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 318
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 119 Times in 68 Posts
Iíve always found Matrix hard anodized rims to be particularly hard to install tires on.
bboy314 is offline
Old 02-24-22, 08:00 AM
  #5
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,179
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 695 Post(s)
Liked 1,596 Times in 773 Posts
Originally Posted by TPL View Post
Your rims are 571mm

You are trying to force 559mm tires on a too large rim

No go

Either ....get 571mm tires ....or ....559 rims
How do you know this?
According to this past thread, the person seeking info about his own Matrix Mt. Aero rims eventually measured the ERD at 535, which aligns with an ISO 559 rim.
Matrix Mt Aero ERD

To the OP, if you still have issues after acquiring good tire levers, Kool Stop produces a tire bead jack that works well.
BFisher is offline
Likes For BFisher:
Old 02-24-22, 08:01 AM
  #6
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,242

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Likes: 0
Liked 1,277 Times in 735 Posts
I am unsure of the rim and tire sizes but I do know one thing for sure. Smaller width tires, say 23mm as opposed to 25 o4 28mm are a heck of a lot more difficult to install.

Forced to install new tires on my Jamaica Bianchi, I reluctantly opted to buy what was on hand in the Black River, Jamaica bicycle repair shop. The only 700c tires he (Conrad, a friend of many years) had on hand were 23mm. I bought them, took them back to my home in Treasure Beach and tried to install them.

With soon to be bloodied fingers, I managed to get a tire on the front rim. Try as I might, however, I gave up trying to fit the other tire onto the rear. It just would not go. So, hoping for the best, I jumped on my motorcycle and rode back to Black River. Though not a regular practice in Jamaica, my bike shop friend agreed to give me a full refund, offering to order a set of tires from Montego Bay. I was stuck and said "please do", asking for 28mm. What arrived, a few days later was a set of 32mm tires. Would they fit?

Well, the just barely fit, with less than 1/8" clearance between the chain stays. That is 1/16" per side. The tires went on with ease and by hand. I did not even need to use my tire irons, which incidentally, are made of plastic.

I would like to add to the warning of NOT using a screwdriver to remove or install tires. Doing so is just asking for damage to the inner tube and/or alloy rim.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 02-24-22, 09:18 AM
  #7
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,521

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1219 Post(s)
Liked 1,182 Times in 655 Posts
Using a screw driver can also mess up your bead with the sharp edges of the side of the blade.
Make sure the bead is in the bottom center of the rim opposite the valve during the last bit of working it over the edge. you are trying to fit the last bit near the valve, right? Don't make the mistake of trying to fit a tire opposite the valve. The valve will not let the bead fit into the bottom of the rim profile.
If the tape covering the spoke heads is too thick, it may cause additional effort to get the bead over the edge.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 02-25-22, 06:51 PM
  #8
LBCwanabe
Senior Member
Thread Starter

Join Date: Apr 2016
Posts: 371
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 200 Times in 85 Posts
Thanks for all of the helpful info. I really appreciate it. Right now I am contemplating disassembling the wheels and using new rims.

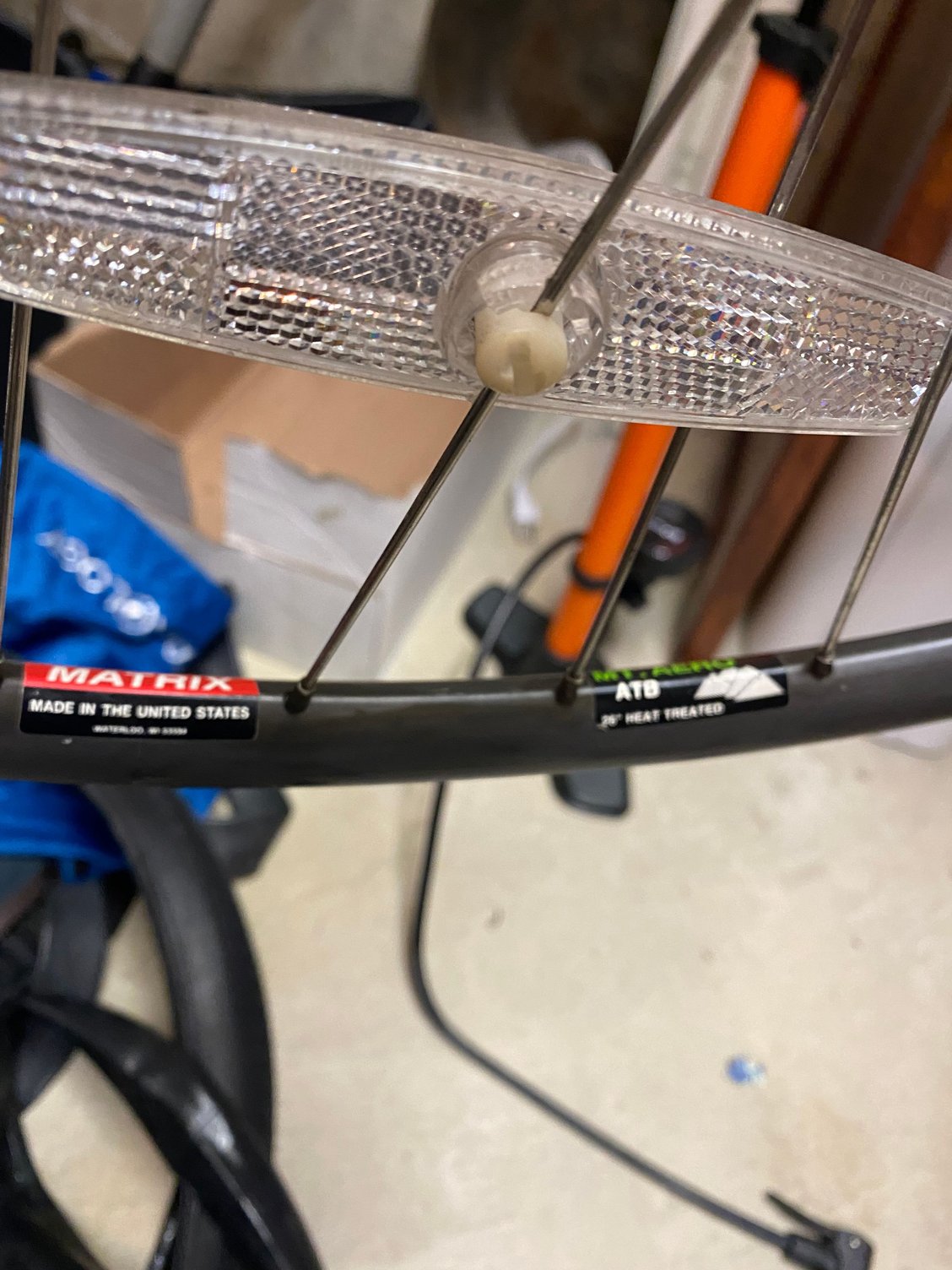

Here is more info on the trims: 26Ēwith inside rim dimension of 12mm & outside of 19mm. These rims are aero in profile





LBCwanabe is offline
Old 02-25-22, 07:31 PM
  #9
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,025
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Liked 228 Times in 158 Posts
Have you tried any other tires on your rims? From your pictures, the bead on those tires looks thicker than most tires. It looks like the beads would take up most of the room available on those rims, which are very narrow, and probably better suited for narrower and lighter tires.
Hobbiano is online now
Old 02-25-22, 09:47 PM
  #10
TPL
Senior Member

Join Date: Jul 2017
Posts: 248
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Likes: 0
Liked 88 Times in 63 Posts
Your new photos speak VOLUMES !

Okay now, that is a MASSIVE amount of rubber you are attempting to squeeze inside the narrow spacing of the flanges of those rims

It may be possible, but this needs to be put in the hands of a real master mechanic = ( likely someone who was working on bicycles BEFORE there was such a thing as a mountainbike )

Thinner tires ....thinner tubes = better choice
TPL is offline
Likes For TPL:
Old 02-26-22, 03:49 AM
  #11
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,351

Bikes: Too many to list here check my signature.

Mentioned: 156 Post(s)
Tagged: 2 Thread(s)
Quoted: 2340 Post(s)
Liked 1,394 Times in 824 Posts
Where do you live? Most of are pretty nice people and always willing to help, so if tell where you live maybe for the price of few PBR Talls some kindly member with strong thumbs will be willing to help.

those all rubber tires could be part of the problem because these rims were likely intended for lighter ďskin wallĒ type tires. However sometimes certain tire and rim combos just donít want to work. I once had a set of aero Ambrosio rims and no matter how small the tube or how careful I cajoled the tire it was a beast to get any tire on them. I think I was secretly happy when the front wheel fell off the La Pre Alpina (last time I used the wheel holders) roof rack one day.

Im no longer a fan of aero rims but these look like real nice wheels, what do they belong to?

Originally Posted by LBCwanabe View Post
Thanks for all of the helpful info. I really appreciate it. Right now I am contemplating disassembling the wheels and using new rims.
Here is more info on the trims: 26Ēwith inside rim dimension of 12mm & outside of 19mm. These rims are aero in profile





__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 02-26-22, 08:58 AM
  #12
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,357

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1303 Post(s)
Liked 772 Times in 490 Posts
Cool rims. Maybe you need cooler tires? This video covers it. The most important part is getting the beads into the center well of the rim.

__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 02-26-22, 09:24 AM
  #13
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 2,023

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 594 Post(s)
Liked 401 Times in 253 Posts
Kool Stop Tire Jack:
, if the tire size is right. Never a screw driver - even if it gets the tire on the wheel, you're likely to put a hole in the tube while you do it.
philbob57 is offline
Likes For philbob57:
Old 02-26-22, 09:56 AM
  #14
bboy314
Senior Member

bboy314's Avatar

Join Date: Dec 2008
Location: Pioneer Valley
Posts: 318
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 69 Post(s)
Liked 119 Times in 68 Posts
Those rims came stock on many trek mountain and road bikes, I believe in the early 90s. Many were hard anodized, I donít know if that has anything to do with it but tires always seem to be a VERY tight fit on them. I agree the kool stop tire jack can be very helpful, the technique may take a little practice though.

Also, if youíre working in a cold climate, try putting the wheel and tire next to a furnace or heat duct overnight before installing.

Last edited by bboy314; 02-26-22 at 10:02 AM.
bboy314 is offline
Old 02-26-22, 06:31 PM
  #15
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,005

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1163 Post(s)
Liked 704 Times in 495 Posts
I find modern tires generally fit more tightly than older ones of the same callout size. I now carry a KoolStop TIre Jack on every ride and use one for almost every installation. The Jack barely clears my 26 x 1.95 mountain bike tires, but it does work. It was the only way I got get a 700C x 28 Michelin folder onto the front wheel of my Peugeot. The Jack is designed for installation, but I have also been able to use it occasionally to aid with removal.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 02-27-22, 09:28 AM
  #16
seedsbelize2
Used to be Seedsbelize

seedsbelize2's Avatar

Join Date: May 2016
Location: Tixkokob, YucatŠn. Mťxico
Posts: 1,727

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe,87 Schwinn Prelude, 88 Centurion Ironman Expert, 92 Schwinn Paramount PDG 5

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 886 Post(s)
Liked 406 Times in 259 Posts
Originally Posted by John E View Post
I find modern tires generally fit more tightly than older ones of the same callout size. I now carry a KoolStop TIre Jack on every ride and use one for almost every installation. The Jack barely clears my 26 x 1.95 mountain bike tires, but it does work. It was the only way I got get a 700C x 28 Michelin folder onto the front wheel of my Peugeot. The Jack is designed for installation, but I have also been able to use it occasionally to aid with removal.
I agree with this. I have a single MA40 rim, onto which I can mount not a single tire with ease. I also have the Koolstop bead jack.
seedsbelize2 is offline
Old 02-27-22, 10:30 AM
  #17
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,268
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 715 Post(s)
Liked 779 Times in 472 Posts

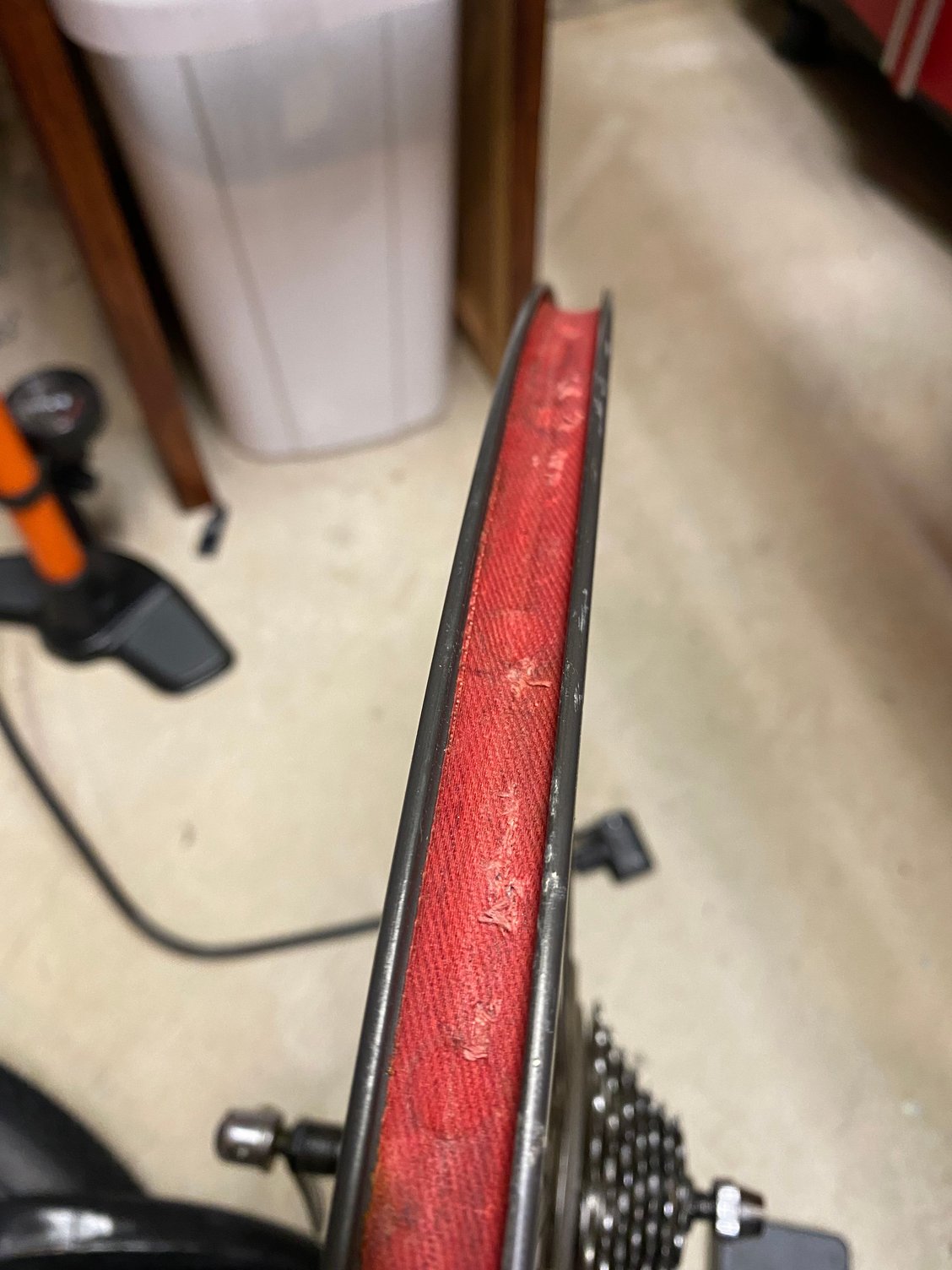

Those are very fine rims, I think the picture of the rim tape shows the issue. That looks like handlebar tape, I think a thin plastic rim tape could help the mountings.

I have the road version of that Matrix, I don't recall any issues with tire installation.
Mr. 66 is offline
Likes For Mr. 66:
Old 02-27-22, 10:41 AM
  #18
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,636
Mentioned: 401 Post(s)
Tagged: 0 Thread(s)
Quoted: 2932 Post(s)
Liked 3,609 Times in 1,623 Posts
I think those rims are telling you, "Don't put those crappy tires on us!"
nlerner is online now
Likes For nlerner:
Old 02-27-22, 10:53 AM
  #19
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,884
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15728 Post(s)
Liked 3,152 Times in 2,348 Posts
Originally Posted by Mr. 66 View Post
Those are very fine rims, I think the picture of the rim tape shows the issue. That looks like handlebar tape, I think a thin plastic rim tape could help the mountings.

I have the road version of that Matrix, I don't recall any issues with tire installation.
I've come to the same conclusion with many "modern" rims. I've pretty much given up on Velox cloth tape. And, use almost exclusively some kind of plastic rim tape. I haven't come up with a definitive answer of what is best, but generally a non-stick plastic ring.

Velo plugs are a unique solution, and also worth considering.

CliffordK is offline
Old 02-27-22, 12:07 PM
  #20
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,641

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 642 Post(s)
Liked 258 Times in 157 Posts
STOP using the screw drivers. You are destroying the rims and the rim tape.

Go buy some STEEL tire levers.
Bad Lag is offline
Old 02-27-22, 12:44 PM
  #21
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,713
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1881 Post(s)
Liked 975 Times in 735 Posts
Originally Posted by Mr. 66 View Post
I think the picture of the rim tape shows the issue. That looks like handlebar tape, I think a thin plastic rim tape could help the mountings.
This, at least in great part. Whatever the type, the tape looks too wide to me. Occupying the space where the tire bead will sit, effectively increasing the diameter. First thing I would try is a "dry fit" with no tube, no rim tape, just to see if that eases the installation. If that works, then the OP has the option, if in a pinch for the right tape/plugs, of trimming the existing tape to a narrower width.

And indeed, as stated above, that looks like an awfully wide tire to put on such narrow rims. There are plenty of narrower street-tread 26" tires out there (for example, Ritchey Tom Slicks come in 26x1.25 IIRC). If the OP is going for a fatter tire look/ride, then a wheel build with wider rims should definitely be on the table.
madpogue is offline
