1951-52 Sun Manxman road bike

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1951-52 Sun Manxman road bike

Old 02-25-22, 01:18 PM
  #1
OTS
Senior Member
Thread Starter

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 991
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 135 Times in 83 Posts
1951-52 Sun Manxman road bike

This my 1951-52 Sun Manxman. This frame/fork is no stranger to the forums. It was first offered for sale by redcaymatt in October of 2015. I inquired about it then, and it was eventually purchased by daf1009.. You can view the link to daf’s purchase and the discussion of his future build here.

I purchased the frame/fork/headset from daf in December 2016. Armed with some information about suitable components (a dangerous thing), I was immediately stymied by the threading of the Cyclo Benelux shifter braze-on. Turns out, I wasn’t the only one with that problem and I was in good company. You can view an entire thread about the uniquely threaded shifter braze-on here.

Parts were procured at a snails pace, and this sat on a back burner as I ran into some issues that I won’t even mention because collectively, we have probably all been there on a build (missing that one last little bit).
Enough back story, here it is, country, period and condition appropriate to the best of my ability.
Many thanks to those that helped me along the way. Very generous C&V forum members advised, inspired, answered questions, gifted missing bits to help with this build and I thank you.
Headset: TDC Continental J 1" BSC
Pedals: Strata Engineering Co.
Saddle: Wrights W3-N
Freewheel: Cyclo 4 speed 14T-20T
Rear Derailleur: Benelux Mk7 with shifter
Seat post: Mory 26.8mm with Sun seat post binder bolt
Crank: CU Williams
Bottom bracket: Bayliss Wiley

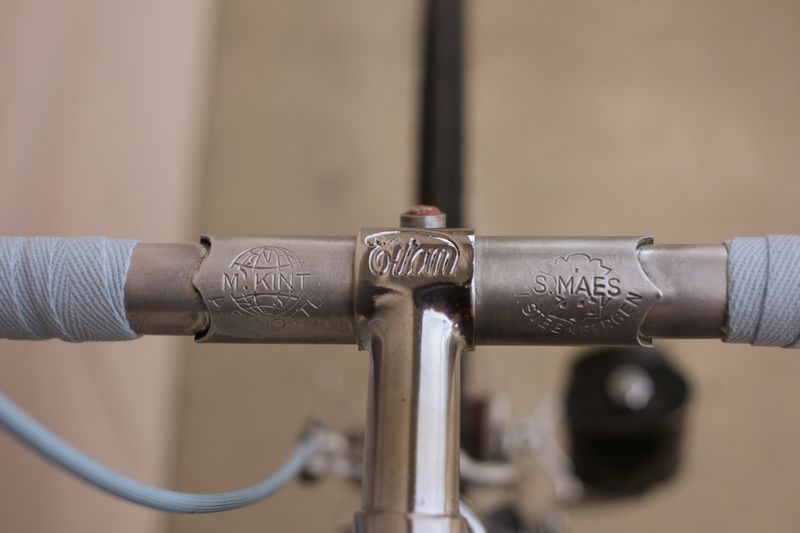

Stem: Titan
Bars: M. Kint - Maes bars
Hubs: Airlite 40 fixed/free and 32 front
Brakes: GB Hiduminium Side Pull Brake Calipers and GB Levers
Frame Pump: Britannialloy

























OTS is offline
Old 02-25-22, 03:30 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,401

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5452 Post(s)
Liked 2,322 Times in 1,499 Posts
Beautiful bike and great build.
bikemig is offline
Likes For bikemig:
Old 02-25-22, 03:39 PM
  #3
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,366
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 306 Times in 183 Posts
Wow! You did an amazing job....
markk900 is offline
Likes For markk900:
Old 02-25-22, 03:43 PM
  #4
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 764
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 93 Times in 51 Posts
You have done justice to a wonderful frame.
I have a few British bikes from that same period, so I can appreciate your perseverance in getting the parts.

If you wanted the cut away saddle, then Rudi could easily do the trim and tie for you.
Are there any other parts on your wish list?
That catalogue page is very tempting.
I have made a mould and recently cast some Shockstop handlebar end plugs for some of my bikes.
Big Block is offline
Likes For Big Block:
Old 02-25-22, 04:16 PM
  #5
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,325
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,194 Times in 916 Posts
I think a Titan stem with Maes Kint bars is quite possibly the coolest stem/bar combo made. I do also like an Ambrosio girder stem, the stupid rarity of a Giotto Cinelli or Cinelli Firenze, but what you have is all that.
iab is offline
Likes For iab:
Old 02-25-22, 05:22 PM
  #6
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
OTS It turned out wonderfully! I had a Sun Wasp Massed Start frame from just about the same period that I sold some time ago. When I purchased the frame I also collected some period Sun literature including the 1951 and 1953 catalogs, which I no longer feel an obligation to keep around considering I have no Sun bicycles. I paid a rather hefty sum to get them all over here from England but am willing to part with it for the price of shipping if you're keen on having it to go along with your bike.

I made a post about the stuff that didn't attract much attention. You can see it below:

A bit of Sun fun! - Bike Forums

Let me know if you would like these documents and we can work it out. Cheers!

-Gregory
Kilroy1988 is offline
Likes For Kilroy1988:
Old 02-25-22, 06:36 PM
  #7
OTS
Senior Member
Thread Starter

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 991
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 135 Times in 83 Posts
Gregory, thank you and thanks for the kind offer.
PM sent.
OTS is offline
Likes For OTS:
Old 02-26-22, 03:20 AM
  #8
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,396

Bikes: Too many to list here check my signature.

Mentioned: 156 Post(s)
Tagged: 2 Thread(s)
Quoted: 2359 Post(s)
Liked 1,423 Times in 840 Posts
Fabulous job! Great looking frame.
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 02-26-22, 05:38 AM
  #9
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,002

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 88 Times in 56 Posts
That looks really great. How many teeth are in your chainring? The original finish is in decent condition. This may be the earliest bike I have seen with factory braze-on pump pegs under the top tube. It appears Sun was looking ahead. I hope you get some great miles out of this bike. Can we get a close-up of the Strata pedals?

I see you got your Mk7 shifter hooked up. Did you get the threading issue on your shifter boss sorted out? When I bought my Grubb, the shifter boss was spinning free and could not be threaded, so I had to have a new (Huret) one welded on.
1989Pre is offline
Old 02-26-22, 06:52 AM
  #10
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,366
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 306 Times in 183 Posts
OTS Curious: what rims did you use? They look a lot like the Alex DM18s I am partial to using in my wheel builds (because they have a somewhat vintage profile and are relatively inexpensive compared to CR18s and the like). I'm always looking for good alternatives.
markk900 is offline
Likes For markk900:
Old 02-26-22, 08:13 AM
  #11
OTS
Senior Member
Thread Starter

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 991
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 135 Times in 83 Posts
Originally Posted by 1989Pre View Post
That looks really great. How many teeth are in your chainring? The original finish is in decent condition. This may be the earliest bike I have seen with factory braze-on pump pegs under the top tube. It appears Sun was looking ahead. I hope you get some great miles out of this bike. Can we get a close-up of the Strata pedals?

I see you got your Mk7 shifter hooked up. Did you get the threading issue on your shifter boss sorted out? When I bought my Grubb, the shifter boss was spinning free and could not be threaded, so I had to have a new (Huret) one welded on.
Thanks, chainring is 48T. This one is a rider and a keeper. As far a s the shifter boss is concerned, I had read some not so great accounts about the Benelux, and of course decided to go Campy Gran Sport without trying it.
Well that idea quickly died when I found out a Campy shifter wouldn't thread into the shifter braze-on. On to plan B. I asked around in PM's but couldn't find definitive answer and the build stalled until this thread popped up.
I finally had some answers.



OTS is offline
Likes For OTS:
Old 02-26-22, 08:14 AM
  #12
OTS
Senior Member
Thread Starter

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 991
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 135 Times in 83 Posts
Originally Posted by markk900 View Post
OTS Curious: what rims did you use? They look a lot like the Alex DM18s I am partial to using in my wheel builds (because they have a somewhat vintage profile and are relatively inexpensive compared to CR18s and the like). I'm always looking for good alternatives.
Rims are Velocity Synergy
OTS is offline
Likes For OTS:
Old 02-26-22, 09:46 AM
  #13
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,932

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 844 Post(s)
Liked 1,490 Times in 634 Posts
Love the crank 😍
thinktubes is offline
Likes For thinktubes:
Old 02-26-22, 10:45 AM
  #14
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,002

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 88 Times in 56 Posts
OTS: Thank you. I had not seen (or heard of) Strata pedals. I have a Strata seat-pin on the Grubb.
1989Pre is offline
Old 02-26-22, 12:47 PM
  #15
OTS
Senior Member
Thread Starter

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 991
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 135 Times in 83 Posts
Originally Posted by 1989Pre View Post
OTS: Thank you. I had not seen (or heard of) Strata pedals. I have a Strata seat-pin on the Grubb.
I hadn't heard of Strata pedals and didn't know they existed until I saw them for sale.
I had heard of Stratalite bars like these
OTS is offline
Old 02-26-22, 02:28 PM
  #16
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,002

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 88 Times in 56 Posts
Originally Posted by OTS View Post
I hadn't heard of Strata pedals and didn't know they existed until I saw them for sale.
I had heard of Stratalite bars like these
Yep, they were pretty big at one time, rivaling GB, Webb, Powell, Terry, etc.
1989Pre is offline
Old 02-26-22, 06:38 PM
  #17
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,057

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1182 Post(s)
Liked 741 Times in 518 Posts
Thank you for this thread -- quite an education for me, even though I have ancestral ties to the Isle of Mann.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
