Carlton Seat Post Nut… Whitworth,

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Carlton Seat Post Nut… Whitworth,

Old 02-27-22, 07:27 PM
  #1
ejw
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 56

Bikes: 2002 Gary Fisher Marlin, 1981 Peugeot PSV 10S, 1974 Paramount Road Racer, 1971 Raleigh International, 1965 Fiorelli, 1961 Rudge Sports

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 81 Times in 20 Posts
Carlton Seat Post Nut… Whitworth

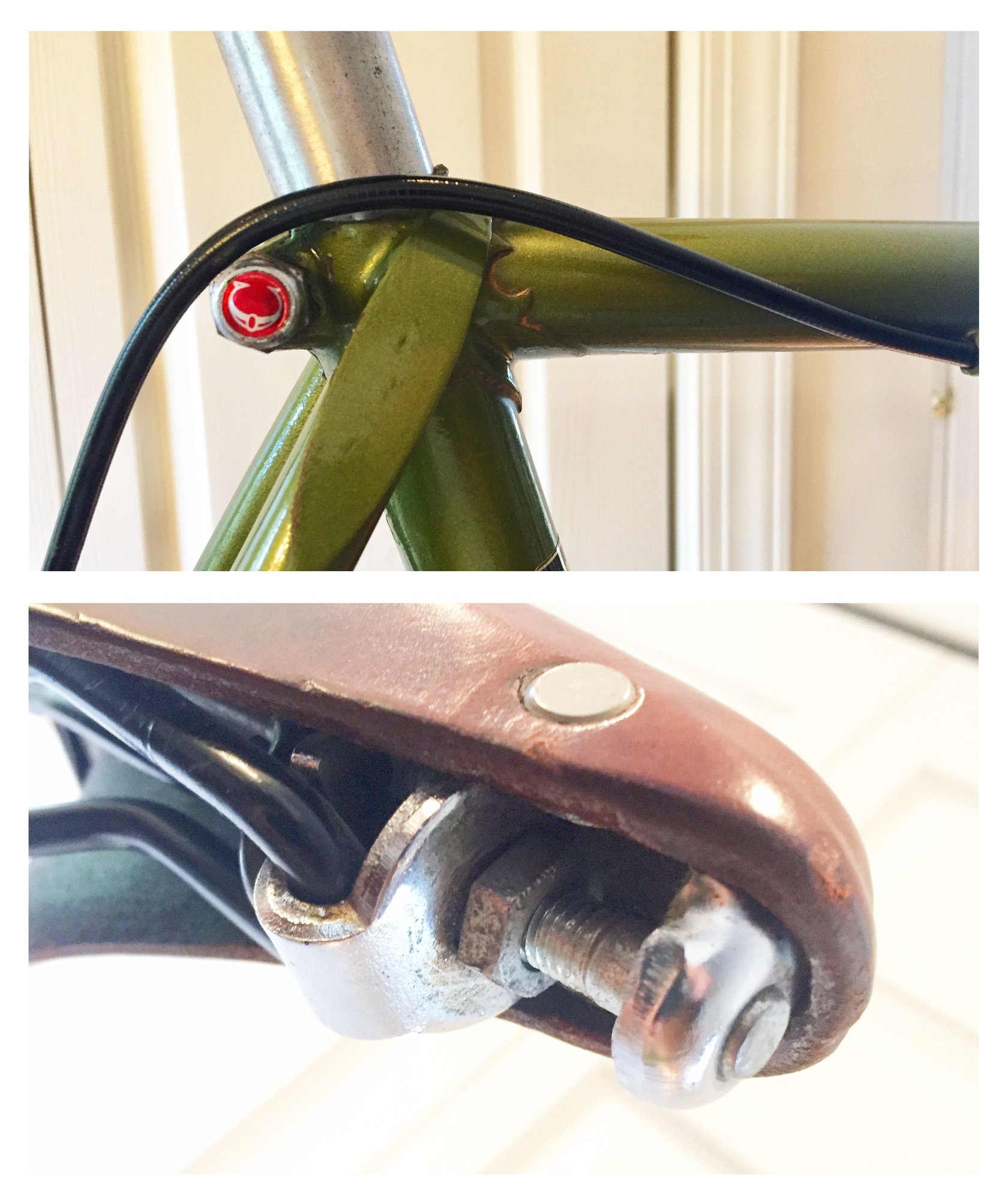

I discovered the Carlton, seat post, nut found on my just purchased circa 1971 Raleigh International is neither SAE nor metric. I’m guessing this is true across the board on Carlton built bikes. The nut is a 1/4W, or 1/4 Whitworth and measures .525” or 13.34mm across the flats. HOWEVER, if I remember correctly, the threads are metric. Also it turns out(no pun intended) that the Brooks Saddle’s adjusting nut, found on, at least certain older Brooks Saddles is a 1/4W as well. Perhaps this explains why many of the those desirable Carlton seat post nuts may be rounded off. Yes an adjustable wrench may suffice, but really shouldn’t be used. Whitworth tools are a bit hard to come by, but check out mossmotors.com for Whitworth tools, and samstagsales.com for valuable Whitworth information and tools as well.


Last edited by ejw; 02-27-22 at 07:31 PM.
ejw is offline
Old 02-27-22, 07:58 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,937
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,482 Times in 1,080 Posts
-----

yes, manufactured by Gripfast

also true for the Raleigh/Carlton wedgebolts


-----
juvela is offline
Old 02-27-22, 08:30 PM
  #3
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,372

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 309 Post(s)
Liked 172 Times in 113 Posts
ejw-

If the seat post bolt is 1/4" Whitworth and the Brooks saddle tension nut is 1/4" Whitworth, why not use the Brooks saddle wrench that comes in the box with the Brooks?
bertinjim is offline
Likes For bertinjim:
Old 02-27-22, 08:50 PM
  #4
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 803

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Liked 335 Times in 155 Posts
Originally Posted by ejw View Post
I discovered the Carlton, seat post, nut found on my just purchased circa 1971 Raleigh International is neither SAE nor metric. I’m guessing this is true across the board on Carlton built bikes. The nut is a 1/4W, or 1/4 Whitworth and measures .525” or 13.34mm across the flats. HOWEVER, if I remember correctly, the threads are metric. Also it turns out(no pun intended) that the Brooks Saddle’s adjusting nut, found on, at least certain older Brooks Saddles is a 1/4W as well. Perhaps this explains why many of the those desirable Carlton seat post nuts may be rounded off. Yes an adjustable wrench may suffice, but really shouldn’t be used. Whitworth tools are a bit hard to come by, but check out mossmotors.com for Whitworth tools, and samstagsales.com for valuable Whitworth information and tools as well.
My 1960s Carlton had a BSF 5/16? socket head capscrew !
Looked to be original and is mentioned in the Carlton literature .

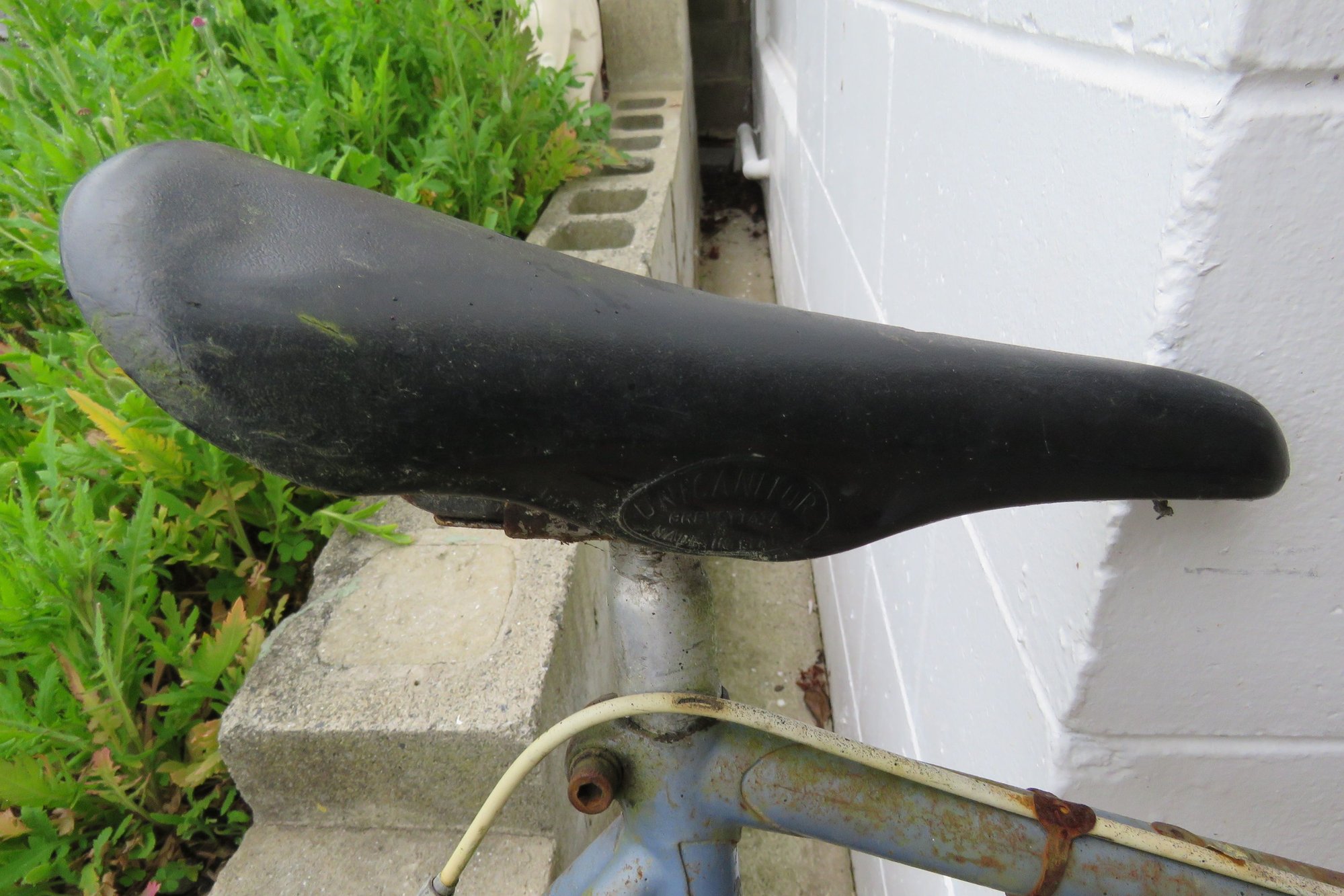

as found
1simplexnut is offline
Old 02-28-22, 07:17 PM
  #5
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Scranton, PA, USA
Posts: 2,519

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (stored at parents' house)

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 59 Times in 40 Posts
I had to get out the calipers and measure the dimension on my own bolt... I can't remember how I was adjusting this thing now. I think I may have been using the 14 mm version of one of those offset wrenches that has 12 points holding the corners only.

Looks like a good reason to get a new tool! Thanks for all of that.
