Trek Bonded CF frames "flexy"?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Trek Bonded CF frames "flexy"?

Old 03-04-22, 10:21 AM
  #1
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
Trek Bonded CF frames "flexy"?

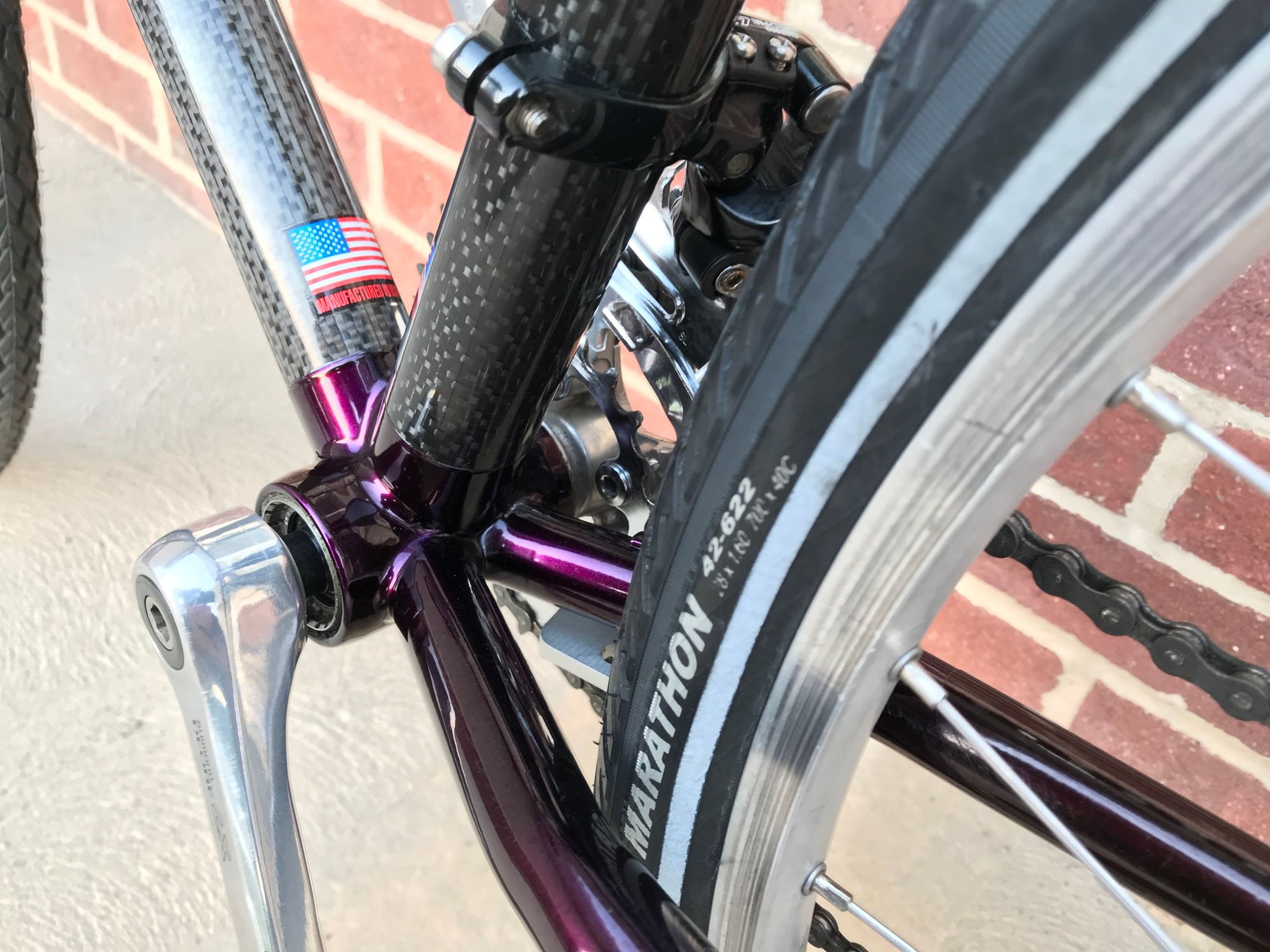

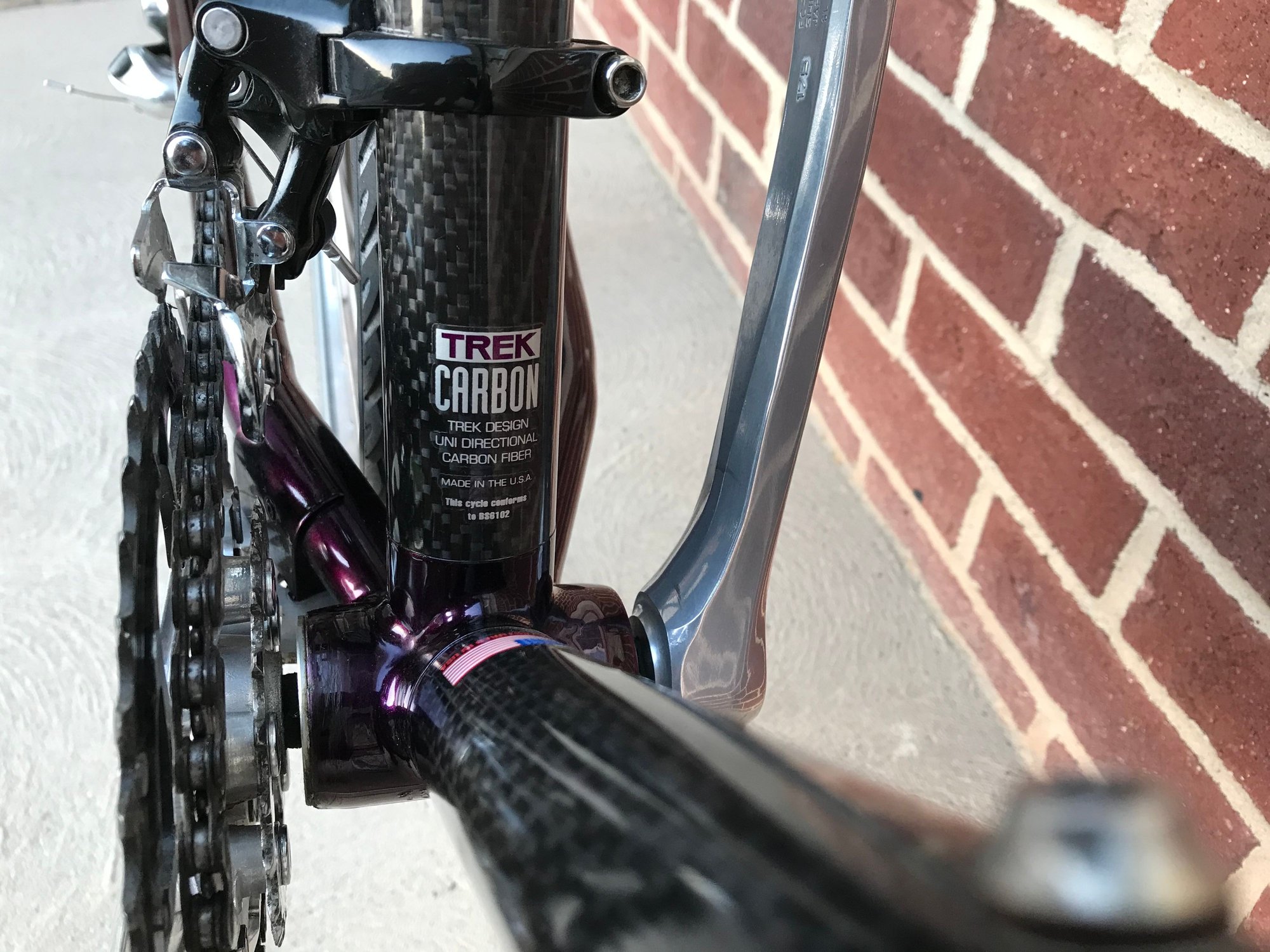

So I've got a 1995 Trek 7900 Multitrack, the one with the main tubes of carbon fiber, bonded onto aluminum lugs and aluminum rear triangle. Think of a Trek 2300, but with fatter tires, cantilevers, and flat bars. Bought it used last summer and have been enjoying it mostly, but it's always felt like it had a low rear tire. You know how it feels when your tire is low and the bike tends to "wander" around, won't track real straight.... Sitting on the bike with the handlebars rested against the wall, I can move my weight through the saddle side to side, and the seat tube (whole frame, really) flexes alarmingly far side to side. Maybe an inch to inch and a half. My other aluminum (and steel frames, for that matter) when subjected to the same "test" don't flex side to side near as much. Feels weird, like the rear end is coming apart or the back tire is low. I've investigated every joint and tube, every junction and connecting point and found nothing. I don't hear any creaking or cracking, nothing. So my question is this: Are these frames known to be more flexy than other, non bonded frames? I have a Raleigh Technium mountain bike (Bonded E9 main tubes to steel lugs/rear triangle) that doesn't behave like this. Am I in danger of imminent failure? Any insight you can give is greatly appreciated.






Smokinapankake is offline
Old 03-04-22, 10:32 AM
  #2
romperrr
Pedal to the medal

Join Date: Sep 2012
Location: The Arsenal of Democracy
Posts: 1,108

Bikes: 1991 Team Miyata Track, 1992 Lemond Alpe d'Huez, 19?? Schwinn High Serra, 1982 Trek 614, 198X Raleigh Alyeska

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 67 Times in 48 Posts
Unfortunately I have no experience with these frames so I can't speak to their flex. I didn't even know Trek had bonded CF frames in the hybrid/mtb line! Interesting seat pillar clamp/brake straddle combo
romperrr is offline
Old 03-04-22, 10:51 AM
  #3
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,435

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 1,079 Times in 622 Posts
Yes, you hear "noodley" with them often. I've owned a couple of the road bikes and will confirm. It really shows up at higher speeds. I just couldn't get used to that.
curbtender is offline
Old 03-04-22, 11:15 AM
  #4
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
Thank you Curbtender for your comments. It's been like this since I bought it (used) but not knowing its history I was afraid I had missed some clue somewhere that would key me into its imminent failure, leaving me broken and battered on the side of the road. But if that's just how they are then I guess I'll just keep wobbling my way down the road.

Anybody else with experience with these frames please feel free to chime in. Thanks!
Smokinapankake is offline
Old 03-04-22, 01:07 PM
  #5
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,330
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 207 Post(s)
Liked 129 Times in 86 Posts
I rode a 2300 for a few months and was pleasantly surprised at the solid feel, comfortable ride and good handling. This was with the original aluminum fork. I weighed ~200 lb at the time FWIW.

Scott Peterson
Newport, OR
rando_couche is offline
Old 03-04-22, 05:08 PM
  #6
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,812
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1424 Post(s)
Liked 854 Times in 455 Posts
I had a 2100 and never objected to the softness of the frame. I raced steel frames that were nice and stiff in the corners and in sprints, but the 2100 was never raced, just LSD because it rode really nice. I believe that under regular riding conditions without stop sign sprints and killer hill repeats, one will find the frame likeable.
TiHabanero is offline
Old 03-04-22, 10:52 PM
  #7
1simplexnut
Senior Member

1simplexnut's Avatar

Join Date: Jul 2014
Location: New Zealand
Posts: 781

Bikes: 1963? Anquetil , 1973 PX10,1979 PX10,1984 PX10, VITUS 979 PX10DU,1970S ALAN,1985 PSV10,1980s PY10FC,1978 bERTIN,ALAN carbon

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 318 Times in 147 Posts
my boy had an alloy framed Trek hybrid machine .
He complained about it wallowing while at speed downhill .
Frame was fine but the tension on the rear wheel spokes was completely out of whack .
Rode like a totally different machine after spoke tension fixed.
I figure the wheel was on the edge of collapse before I got to it .
Just a thought!

That frame is really nice !
1simplexnut is offline
Likes For 1simplexnut:
Old 03-04-22, 11:10 PM
  #8
krakhaus
Senior Member

krakhaus's Avatar

Join Date: Sep 2012
Location: Palm Springs, California
Posts: 399
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 375 Times in 146 Posts
I had a Specialized Epic bonded carbon frame, and it always felt like I was riding on a flat tire. I didn't like it.
krakhaus is offline
Old 03-04-22, 11:15 PM
  #9
feedbag
Junior Member

Join Date: Jun 2016
Location: Terre Haute, IN
Posts: 12

Bikes: Benotto, Fuji, Titan, Bianchi, Specialized, Schwinn, Habanero

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
Flexy or not, that thing is CLEAN.
feedbag is offline
Likes For feedbag:
Old 03-05-22, 12:00 PM
  #10
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,281
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 788 Times in 476 Posts


I don't know about flexy, but they are mighty sexy...
Mr. 66 is offline
Old 03-05-22, 02:52 PM
  #11
bargainguy
Senior Member

bargainguy's Avatar

Join Date: Sep 2012
Location: Trekland
Posts: 2,073
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
Liked 138 Times in 92 Posts
Flexy? Nope, these bonded alu/carbon frames have a dampened, dull ride quality - the opposite of a lively steel frame, for example.

I remember doing something really stupid once - attempting to spread the rear triangle of an alu/carbon 2300 with Park dropout tools. Long story short, it couldn't be done without ruining the frame -- that alu rear triangle wasn't moving at all. So if you're getting flex out of these babies, something else is going on.
bargainguy is offline
Old 03-05-22, 08:00 PM
  #12
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
Thanks for all the input; Iíve done a bit of sniffing around and the results Iím seeing in the few places Iíve found folks discussing these bonded frames reflects what you fine folks are saying - some say theyíre flexy, some say not so much. Iíve been through the wheels; they are trued and properly tensioned so Iím not ready to blame them. I am looking suspiciously at the tires, Specialized Nimbus sport 700 x 45c. Maybe Iíll try something a but stiffer like some Schwalbe Marathons in 35c just to see what that doesÖ

And you are right, they are sexy!
Smokinapankake is offline
Old 03-05-22, 11:57 PM
  #13
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 11,875

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 3190 Post(s)
Liked 2,732 Times in 1,390 Posts
I was looking to buy a carbon fiber road bike about 1995/96.

As often is the case, I think the flexy answer is = maybe; especially, given tire width (as you have pointed out). For 'on-th-road' situations, loaded weight, torque applied to drivetrain, how that torque is applied (out of saddle climbing in harder gear or seated and high cadence smooth spin), lateral stiffnes of frame, other input forces from rider (handlebar width/stiffness?).

My impression was that the 2100/2300 were quite flexy in size 60cm with a 200# rider.
The OCLV 5200 that I tested was stiff, but had no road feel which I attributed to the large BB area and tube sizes. So called "wooden feel". Aegis was similar. Kestrel was better. Look the best. A few years later, 1999, I bought a Calfee, made in Santa Cruz, CA. By then Parlee was getting started, too.

Degradation of the bonded carbon with aluminum lugs was often due to 'galvanic corrosion' as much as any other bonding concern. Not sure if that design&manufacturing challenge was solved 100% in their 1995 models.

Make it the recovery day bike.
Wildwood is offline
Old 03-07-22, 12:07 AM
  #14
billytwosheds
Senior Member

billytwosheds's Avatar

Join Date: Aug 2015
Location: Honolulu, HI
Posts: 1,045

Bikes: Peugeot, Legnano, Fuji, Zunow, De Rosa, Miyata, Bianchi, Pinarello, Specialized, Bridgestone, Cinelli

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Liked 175 Times in 88 Posts
Originally Posted by Smokinapankake View Post
Feels weird, like the rear end is coming apart or the back tire is low. I've investigated every joint and tube, every junction and connecting point and found nothing. I don't hear any creaking or cracking, nothing. So my question is this: Are these frames known to be more flexy than other, non bonded frames?
Have you checked your rear wheel? Maybe a broken axle?

That frame appears to be in incredible condition for its age, and as such I think you would be able to spot an issue with the bonding relatively quickly.

To be fair, the seated flex you feel is dependent on some bits being stationary whereas there may be room to slide/skew/move while actually rolling. I can make various parts of a bike flex on their own while stationary (eg crank arm, fork) but in concert, while moving, it's a different song.
billytwosheds is offline
Old 03-07-22, 08:40 AM
  #15
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
Rear wheel is good, axle is not broken. I just trued it Satuday and discovered it is sporting butted spokes (brass nipples), a feature I was unaware of previously. I haven't been able to find anything suspicious about it, other than my fat a$$ sitting on it. I weigh right under 200 pounds some days, just over on other days. Maybe this has something to do with it? At any rate, the next thing I'll try is a tire swap, then if that doesn't produce any noticeable change I'll go for a wheel swap. It's too nice not to ride, and the wiggly feeling doesn't bother me too much, so it'd be foolish to shelve the frame. Until it does separate on me, that is. Thanks for all your input folks, this forum is amazing!
Smokinapankake is offline
Old 03-07-22, 10:33 AM
  #16
bargainguy
Senior Member

bargainguy's Avatar

Join Date: Sep 2012
Location: Trekland
Posts: 2,073
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
Liked 138 Times in 92 Posts

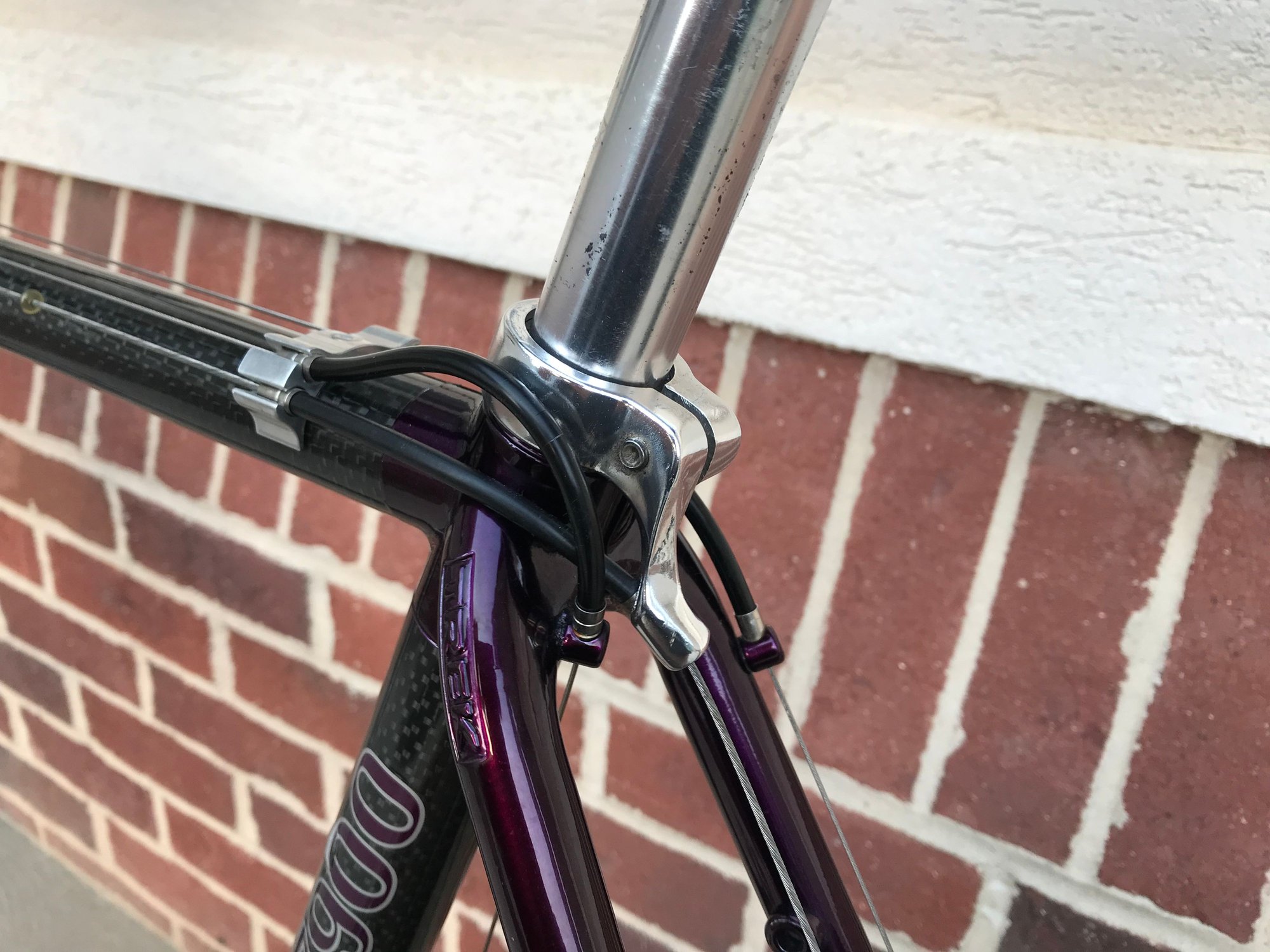

Second pic: What is that vertical line along the seat tube, left side just above the BB?

Since the gloss finish carbon is shiny, it could be a reflection of something on the ground, like a floor pump, but if it isn't - hairline crack?
bargainguy is offline
Old 03-07-22, 11:36 AM
  #17
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,435

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 1,079 Times in 622 Posts
https://www.wisconsinhistory.org/Records/Article/CS2777
curbtender is offline
Likes For curbtender:
Old 03-07-22, 10:09 PM
  #18
tgot
Senior Member

Join Date: Jan 2009
Location: SF Peninsula
Posts: 309

Bikes: 1986 Centurion Ironman, 1997 Trek 2120, Trek T1000

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 114 Times in 72 Posts
Trek 2120 owner here. 200#, not massive wattage. I definitely don't describe it as flexy. And I'll ride it with 15# of picnic lunch and family layers in some panniers

The prior description as somewhat "wooden" is closer to my feeling about the ride.
tgot is offline
Old 03-07-22, 10:10 PM
  #19
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 4,488

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1085 Post(s)
Liked 1,436 Times in 783 Posts
OP, how is the spoke tension on the wheels, check it on both again?
My friend had a similar situation as the one that you are describing and it turned out to be that he had several spokes that were really loose. I tensioned the wheel and all was good.
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 03-08-22, 03:40 PM
  #20
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
Spoke tension is good - the bike hasn't been ridden since last week; been cold outside and I don't like the cold one bit. I rechecked the seat tube at the BB; no cracks so that must have been a reflection or something. Looked at it from all angles with a flashlight to highlight any funkiness and found only smooth contiguous finish. Maybe I'm making too much of it. I've yet to swap out tires.... I'm quite confident the frame is sound.
Smokinapankake is offline
Old 03-21-22, 01:31 PM
  #21
Smokinapankake
Senior Member
Thread Starter

Join Date: Oct 2008
Location: North Ogden, Utah
Posts: 632
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 300 Times in 135 Posts
So I did finally get a chance to swap tires out. Went from Specialized Nimbus Sports labelled to be 700 x45c to Schwalbe Marathon Plus labeled to be 700 x 40c because that's what I had on hand. A 15 mile ride should have revealed any funkiness but I'm quite pleased to report no funkiness was encountered. It appears that the culprit was the tires. In thinking about it, I got to looking at a copy of the 1995 Trek Catalog where it lists the rims and their measurements (pg. 42, if anyone is asking). The Journey rim, which my bike has, measures only 13mm between the bead seats. That seems really narrow to mount a flexy, wide tire on. Or am I thinking wrong? What is the recommended practice with regards to how wide a rim vs. how wide a tire is appropriate? Any thoughts, as always, are welcome.
Smokinapankake is offline
Old 03-21-22, 02:01 PM
  #22
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,600
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 3193 Post(s)
Liked 1,914 Times in 1,117 Posts
That does seem like a pretty narrow rim for a 40 mm tire. Sheldon Brown's page (which has always seemed a bit conservative to me) suggests a max 25 mm tires with a rim that narrow.

https://www.sheldonbrown.com/tyre-sizing.html
