Yet another build - 1979 Raleigh Team 753 SB3311

This is a frame I found last year, and it's been in progress for quite a while.... After many conversations with Neil at Raleigh-sb4059.com, we concluded it is a legitimate SBDU 753 frame, with some modifications. At some point, the bottom bracket had been replaced with a non-standard unit, so it does not have the SBDU number on it, but the fork does - SB3311. It had also been subjected to a sub-par paint job and incorrect decal placements. However, the reason I got it practically for free was there was a crack in one of the chainstays. I found a fellow out here in Colorado, Mark Nobilette, who is one of the original guys to be certified to use 753, and it so happens he had a few stays around his shop....

I just picked it up from the painter, Brian at Davinci Tandems here in town, who did a great job! In consultation with light weight guru Jim Merz, I am planning a light weight build, including:

Campy SR BB, second gen, titanium spindle and Merz titanium washers and nuts
Campy SR pedals, titanium spindles, Christophe "Z" alloy clips
3TTT Superleggero bars
Cinelli 1A stem with alloy stem bolt and Merz titanium pinch bolt
Campy brakes with alloy pad holders from later SR, plus titanium Merz center bolts and other titanium and alloy bits such as alloy barrel adjusters
Campy SR seatpost with Merz titanium bolt
Regina America Superleggero (anodized alloy cogs)
Regina Superleggero hollow pin chain
Campy SR derailleurs, with Merz alloy bolts
Concur Superleggera saddle, alloy rails



As found, driver side chain stay crack... I heard this used to happen fairly often, as 753 is pretty brittle

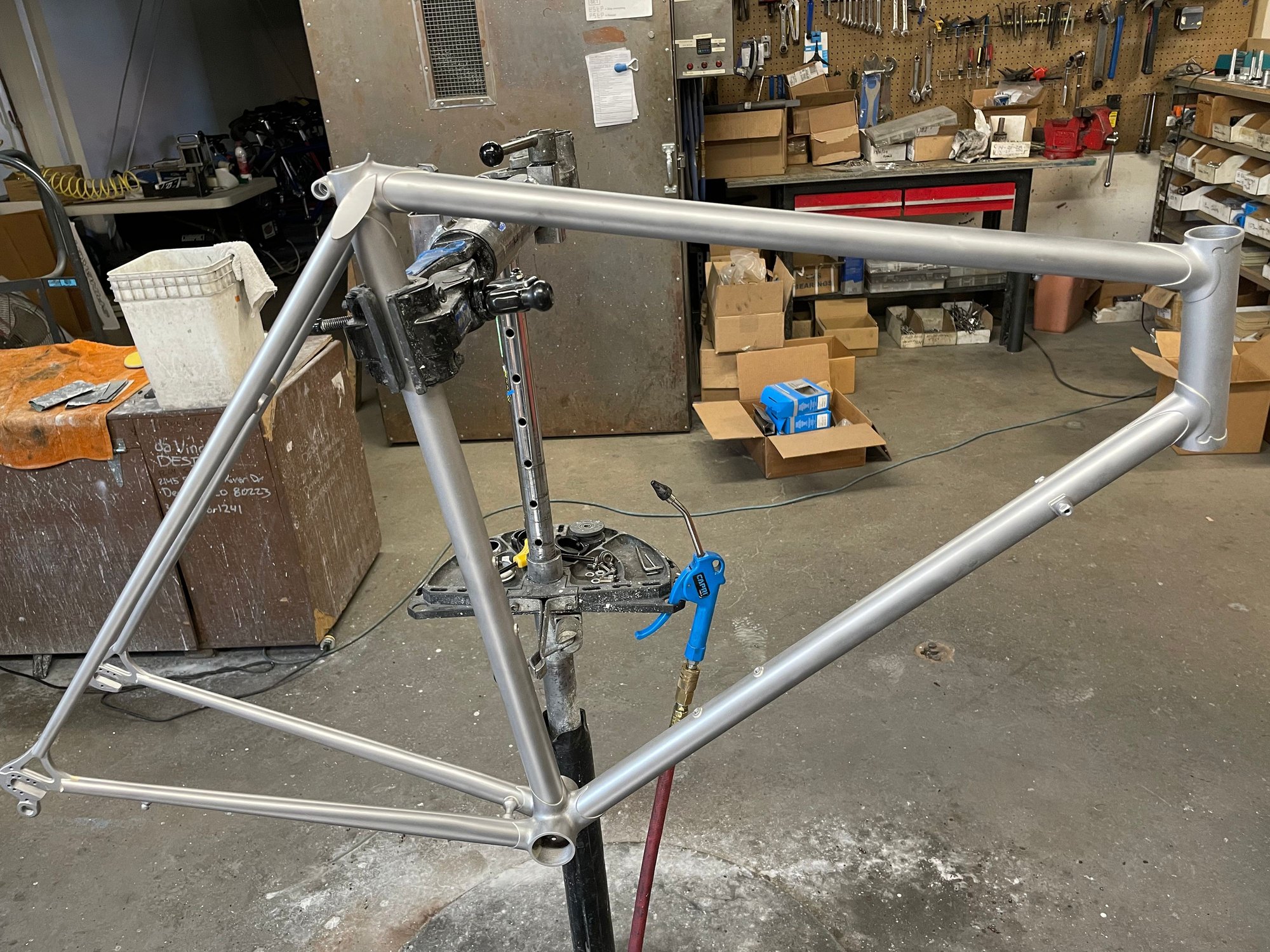

Mark's handiwork, replaced chain stay...

Off to the painter, primer

Picked up just today - FYI Brian at Davinci Tandems does a great job!


Here is the pile of parts I have collected, and I am hoping to get the weight way down....

Back home....

Lightweight wheel set I built, Mavic GEL280 laced to Campy low flange, OMAS alloy skewers, DT revolution spokes
75lechamp is offline
Old 03-04-22, 07:38 PM
  #2
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,272
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 1,572 Times in 791 Posts
wow!
That's quite a restoration! Even better, you got to get Misters Nobilette and Merz involved!
Just wondering.... did Nobilette comment at all on the build quality of the frame? They were built by a small, select group, so I'd expect pretty high standards. I've got a Raleigh 753 Team bike myself, so it is a bit of a selfish question.

The paint job really looks great! Did you use decals for the seat tube graphics, like the original?

Congrats on a wonderful project! I hope it brings a big smile to your face each time you ride it!

Steve in Peoria (very happy with mine)
steelbikeguy is online now
Old 03-05-22, 04:49 PM
  #3
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 347 Times in 97 Posts
Thank you steelbikeguy ! I can't wait to get it built and ride!
75lechamp is offline
Old 03-05-22, 04:57 PM
  #4
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 347 Times in 97 Posts
Continuing the build...

Starting to put the components together.....

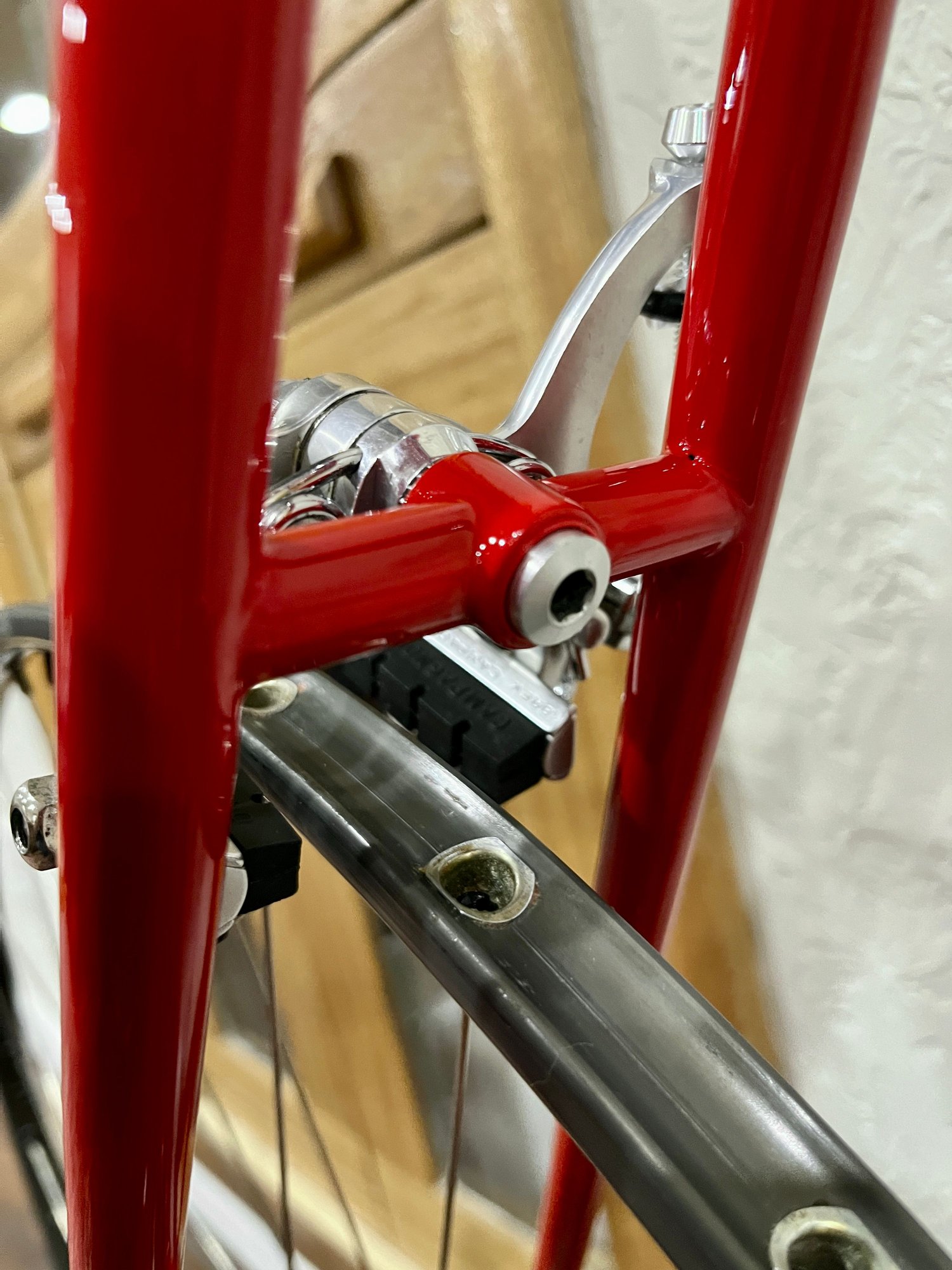

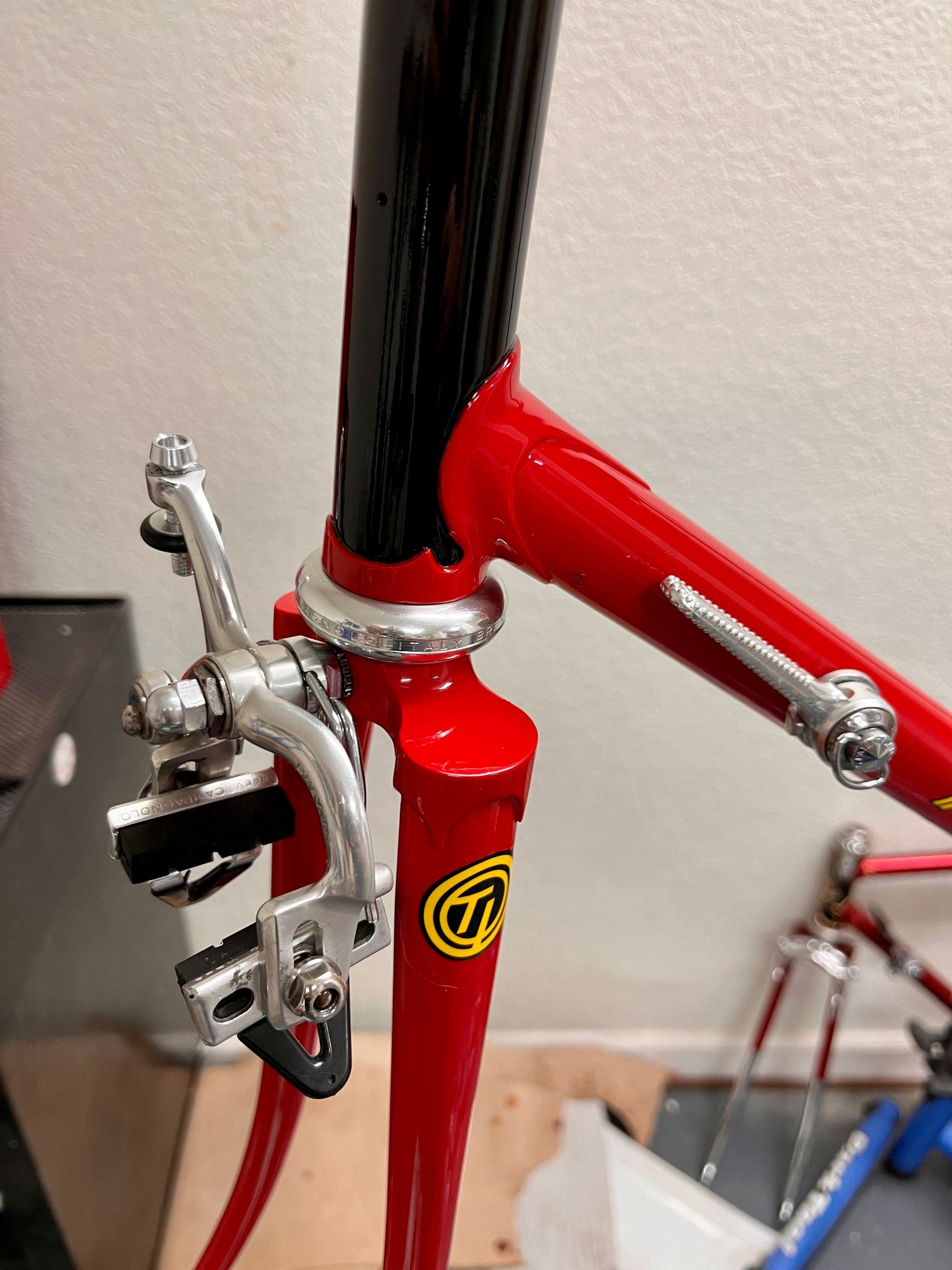

Campy brakes, with Merz titanium center bolts, OMAS dome nuts and titanium recessed nut, alloy pad holders...

Titanium seatpost binder bolt

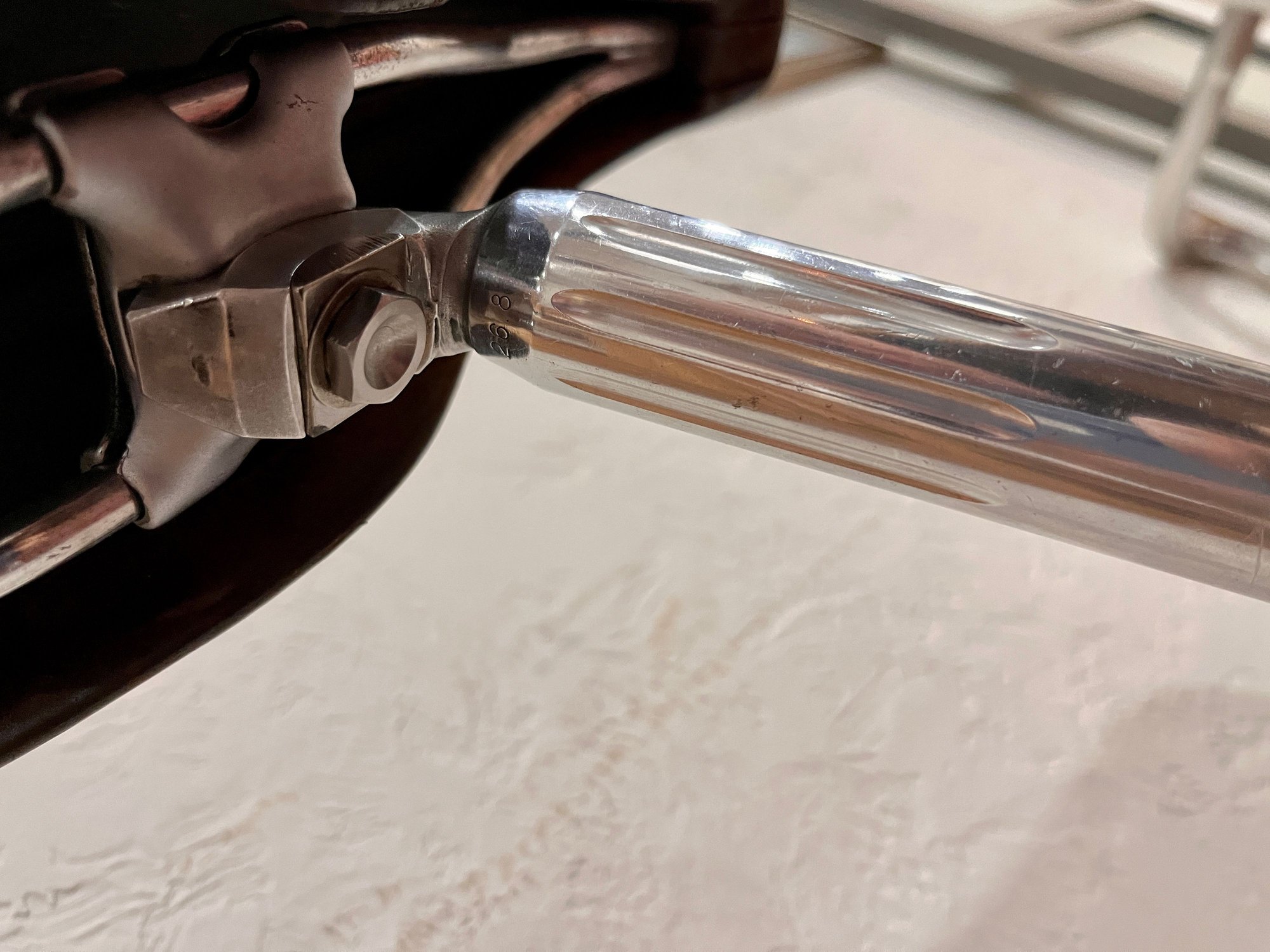

Merz Super Record seatpost bolt

Concur superleggera saddle, with alloy rails


So far, so good...

OMAS recessed nut

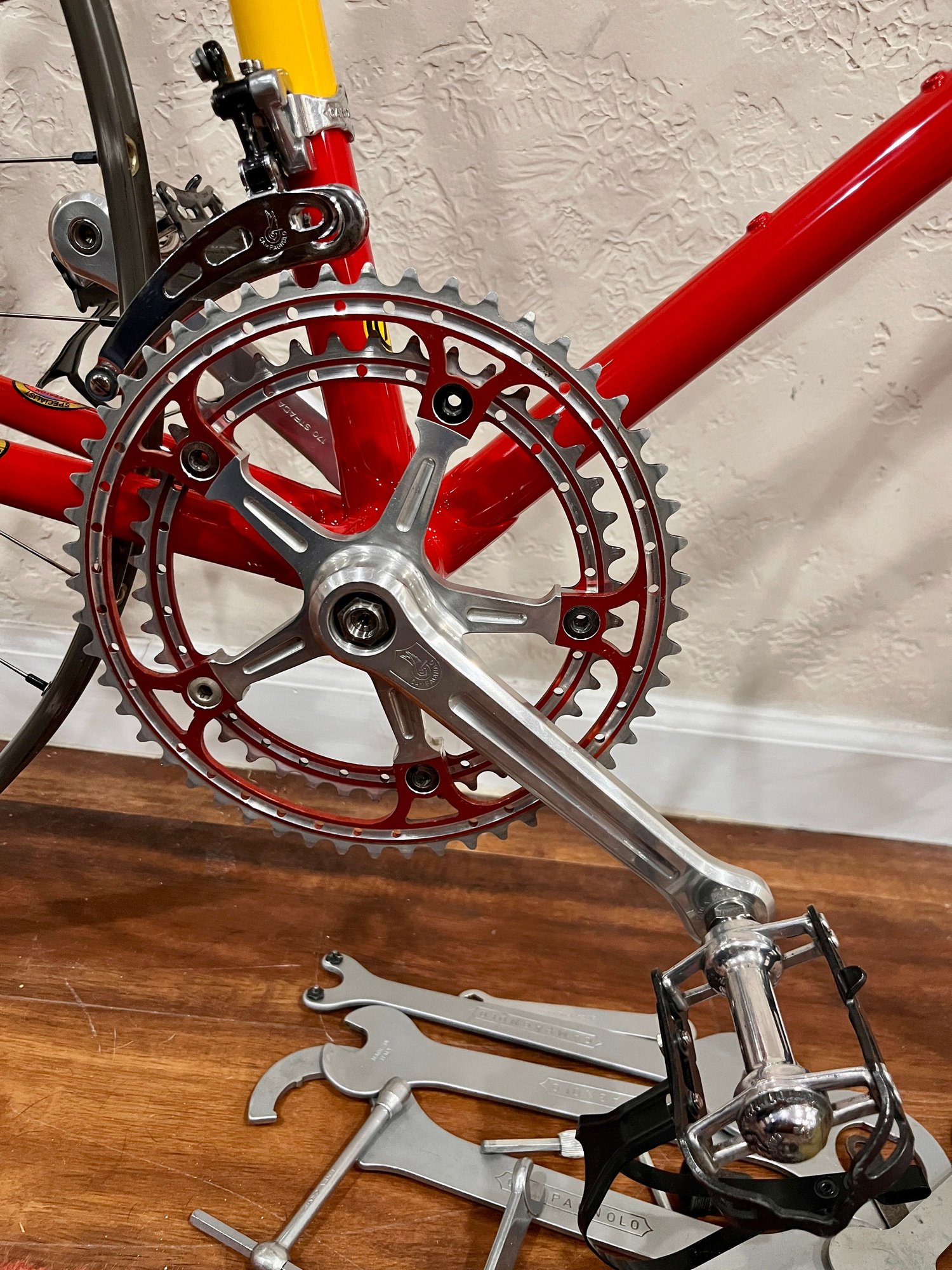

Rino red anodized chainrings, a little lighter than Campy, OMAS alloy chainring bolts, SR titanium pedals, Christophe Z clips anodized black, alloy, Merz titanium nuts and washers on titanium spindle SR second generation BB...
75lechamp is offline
Old 03-05-22, 07:01 PM
  #5
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 347 Times in 97 Posts
More progress....

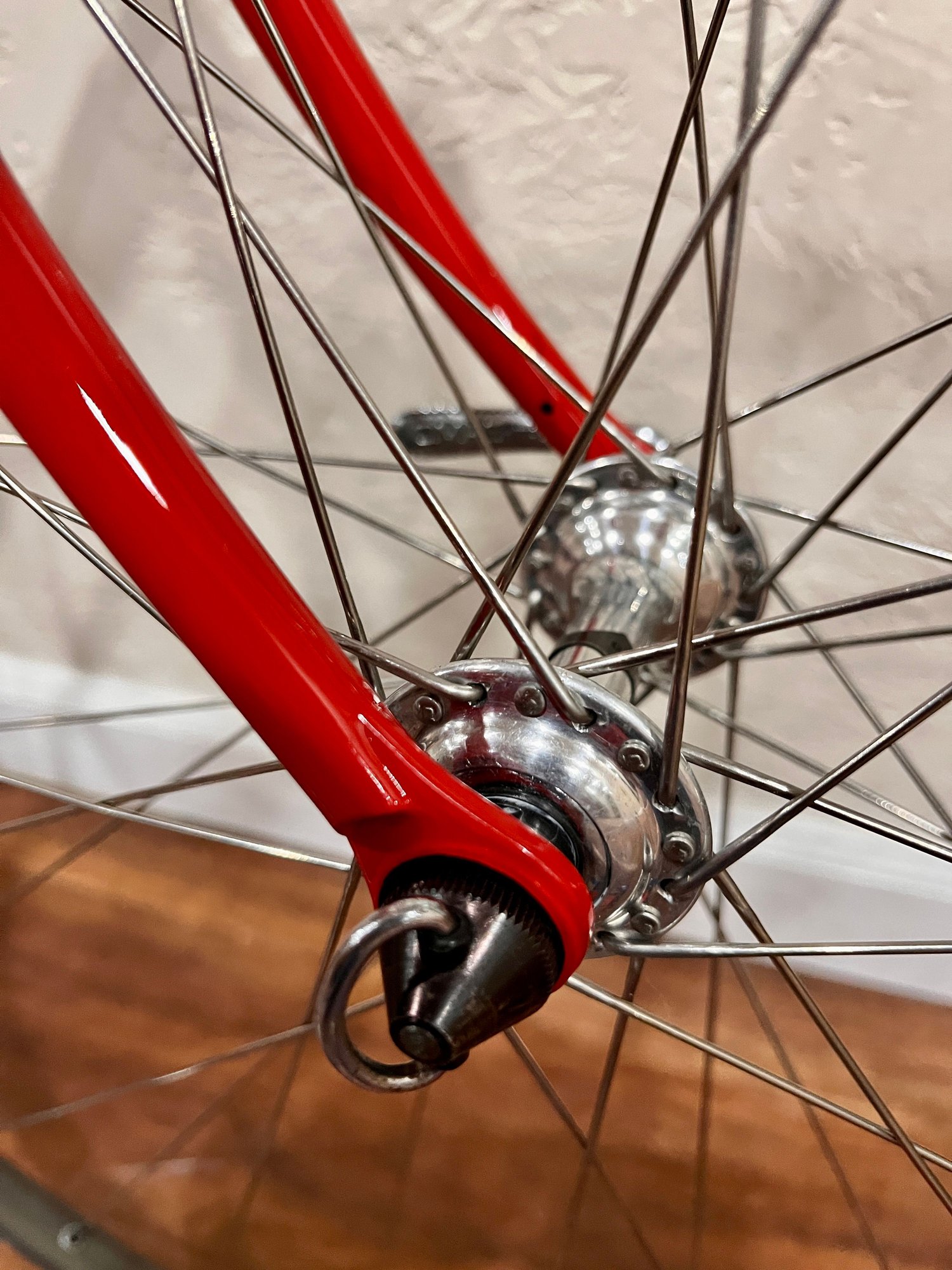

Campy low flange with OMAS alloy skewers

SR titanium BB with Merz titanium nuts and washers

1A stem with OMAS black anodized alloy bolt and Merz titanium pinch bolt

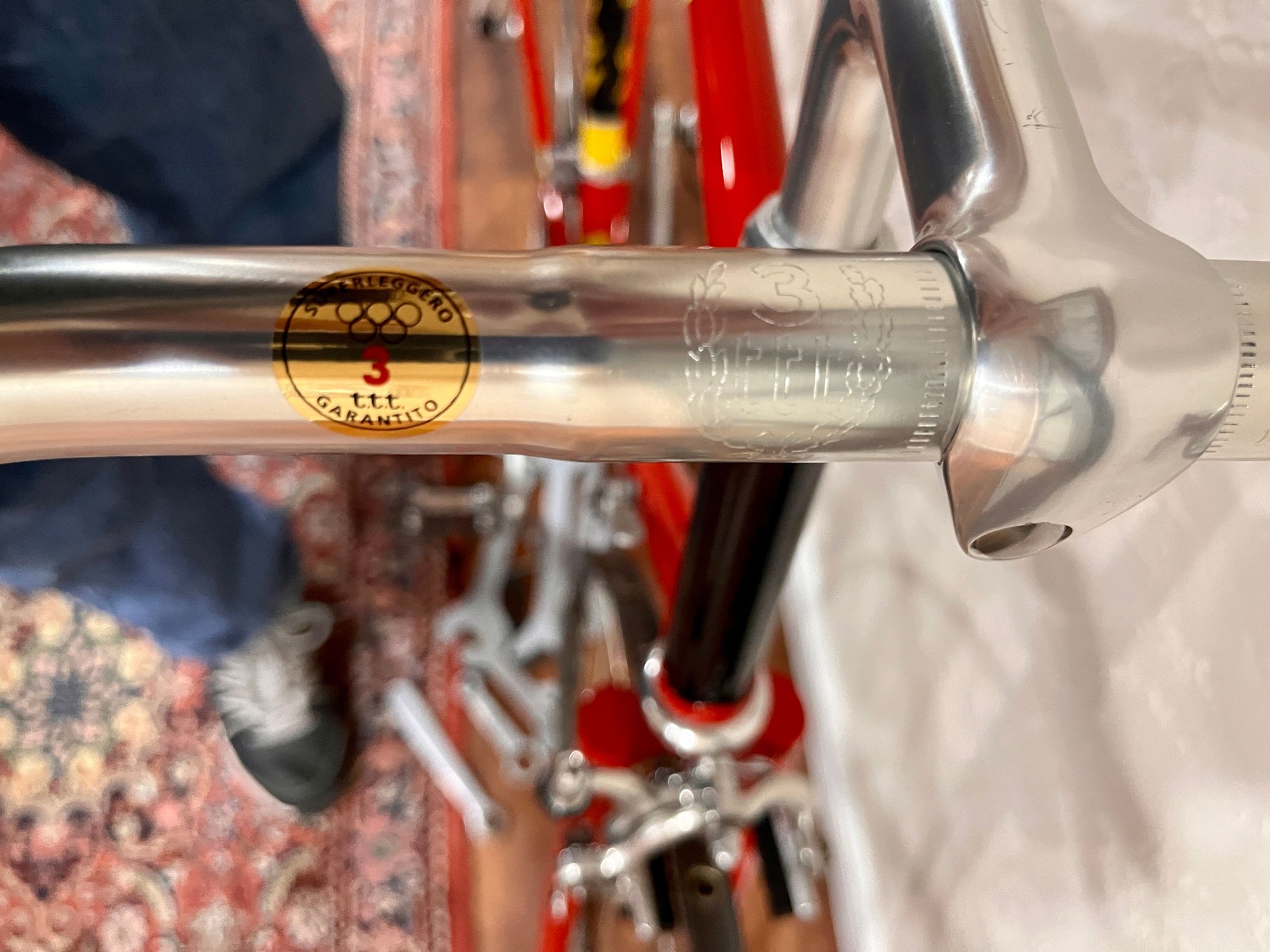

3TTT superleggero bars

New Regina America alloy freewheel
75lechamp is offline
Likes For 75lechamp:
Old 03-05-22, 07:53 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,086

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 3124 Post(s)
Liked 2,868 Times in 1,822 Posts
Originally Posted by 75lechamp View Post
This is a frame I found last year, and it's been in progress for quite a while.... After many conversations with Neil at Raleigh-sb4059.com, we concluded it is a legitimate SBDU 753 frame, with some modifications. At some point, the bottom bracket had been replaced with a non-standard unit, so it does not have the SBDU number on it, but the fork does - SB3311. It had also been subjected to a sub-par paint job and incorrect decal placements. However, the reason I got it practically for free was there was a crack in one of the chainstays. I found a fellow out here in Colorado, Mark Nobilette, who is one of the original guys to be certified to use 753, and it so happens he had a few stays around his shop....

I just picked it up from the painter, Brian at Davinci Tandems here in town, who did a great job! In consultation with light weight guru Jim Merz, I am planning a light weight build, including:

Campy SR BB, second gen, titanium spindle and Merz titanium washers and nuts
Campy SR pedals, titanium spindles, Christophe "Z" alloy clips
3TTT Superleggero bars
Cinelli 1A stem with alloy stem bolt and Merz titanium pinch bolt
Campy brakes with alloy pad holders from later SR, plus titanium Merz center bolts and other titanium and alloy bits such as alloy barrel adjusters
Campy SR seatpost with Merz titanium bolt
Regina America Superleggero (anodized alloy cogs)
Regina Superleggero hollow pin chain
Campy SR derailleurs, with Merz alloy bolts
Concur Superleggera saddle, alloy rails



As found, driver side chain stay crack... I heard this used to happen fairly often, as 753 is pretty brittle

Mark's handiwork, replaced chain stay...

Off to the painter, primer

Picked up just today - FYI Brian at Davinci Tandems does a great job!


Here is the pile of parts I have collected, and I am hoping to get the weight way down....

Back home....

Lightweight wheel set I built, Mavic GEL280 laced to Campy low flange, OMAS alloy skewers, DT revolution spokes
And I'm sure you know but lets make sure not to forget that Jim was the very first to be certified by Reynolds to work with 753.
merziac is offline
Likes For merziac:
Old 03-05-22, 09:18 PM
  #7
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,970

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Davidson Sport Custom, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 1741 Post(s)
Liked 1,662 Times in 688 Posts
Did not know that, thought it was Bob Jackson who was the first certified.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-05-22, 11:29 PM
  #8
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,086

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 3124 Post(s)
Liked 2,868 Times in 1,822 Posts
Originally Posted by rccardr View Post
Did not know that, thought it was Bob Jackson who was the first certified.
Maybe Jim was the first American builder certified, he was also Raleigh's US warranty frame repair contractor at one time as well.
merziac is offline
Old 03-06-22, 02:59 AM
  #9
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,086

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 3124 Post(s)
Liked 2,868 Times in 1,822 Posts
Originally Posted by rccardr View Post
Did not know that, thought it was Bob Jackson who was the first certified.
Yep, sorry, Jim was first US builder and technically Raleigh was the first company in 75 but it was their tubing so.....

Bob Jackson and Harry Quinn soon followed.
merziac is offline
Old 03-06-22, 07:26 AM
  #10
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,970

Bikes: Bob Jackson, Wizard, Pegoretti Duende, Merckx ProSLX, Pelizzoli, Cannondale ST, Schwinn Tempo, Davidson Sport Custom, Canyon Endurace, Richard Sachs, Davidson Discovery

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 1741 Post(s)
Liked 1,662 Times in 688 Posts
I see. Knew that Jim was their repair guy in the US but not dates.
My understanding is that Reynolds sent 753 tubing to Bob Jackson two years ahead of its introduction to the market so that he could provide feedback on frame manufacturing methods using it.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 03-06-22, 09:34 AM
  #11
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,389
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2386 Post(s)
Liked 1,306 Times in 986 Posts
Interesting that the replaced bottom bracket has the seat tube almost tangent to the front of the BB bore and not having the seat tube center passing through the rotation center.

obviously not a problem but more of a curiosity as to who cast the shell. Looks much beefier in total design.

the Davinci drive looks interesting by the way.
the paint looks great too, exceptional masking at the headtube.

Last edited by repechage; 03-06-22 at 09:40 AM.
repechage is offline
Old 03-06-22, 02:53 PM
  #12
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,086

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 200 Post(s)
Tagged: 0 Thread(s)
Quoted: 3124 Post(s)
Liked 2,868 Times in 1,822 Posts
Originally Posted by rccardr View Post
I see. Knew that Jim was their repair guy in the US but not dates.
My understanding is that Reynolds sent 753 tubing to Bob Jackson two years ahead of its introduction to the market so that he could provide feedback on frame manufacturing methods using it.
Well they may have, but Raleigh used it in 74 and 75, both being owned by TI, no surprise. They may have tapped BJ for frames outside their control.

The Retrogrouch: Classic Tubes: Reynolds 753
merziac is offline
Old 03-06-22, 02:59 PM
  #13
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,212

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1341 Post(s)
Liked 1,225 Times in 860 Posts
All I know is that might be one of the finest paint jobs I have ever seen on a bicycle. Wow.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 04-22-22, 02:14 PM
  #14
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 347 Times in 97 Posts
Finished ..... now time to weigh it!

Hey folks, I finally finished my super lightweight build and along the way I found an even lighter freewheel, a Suntour Microlite 6 speed, which by virtue of its alloy body as well as cogs weighed in at around 170g, which is about 100g lighter even than the Regina alloy I had.

Now, time to weigh it...

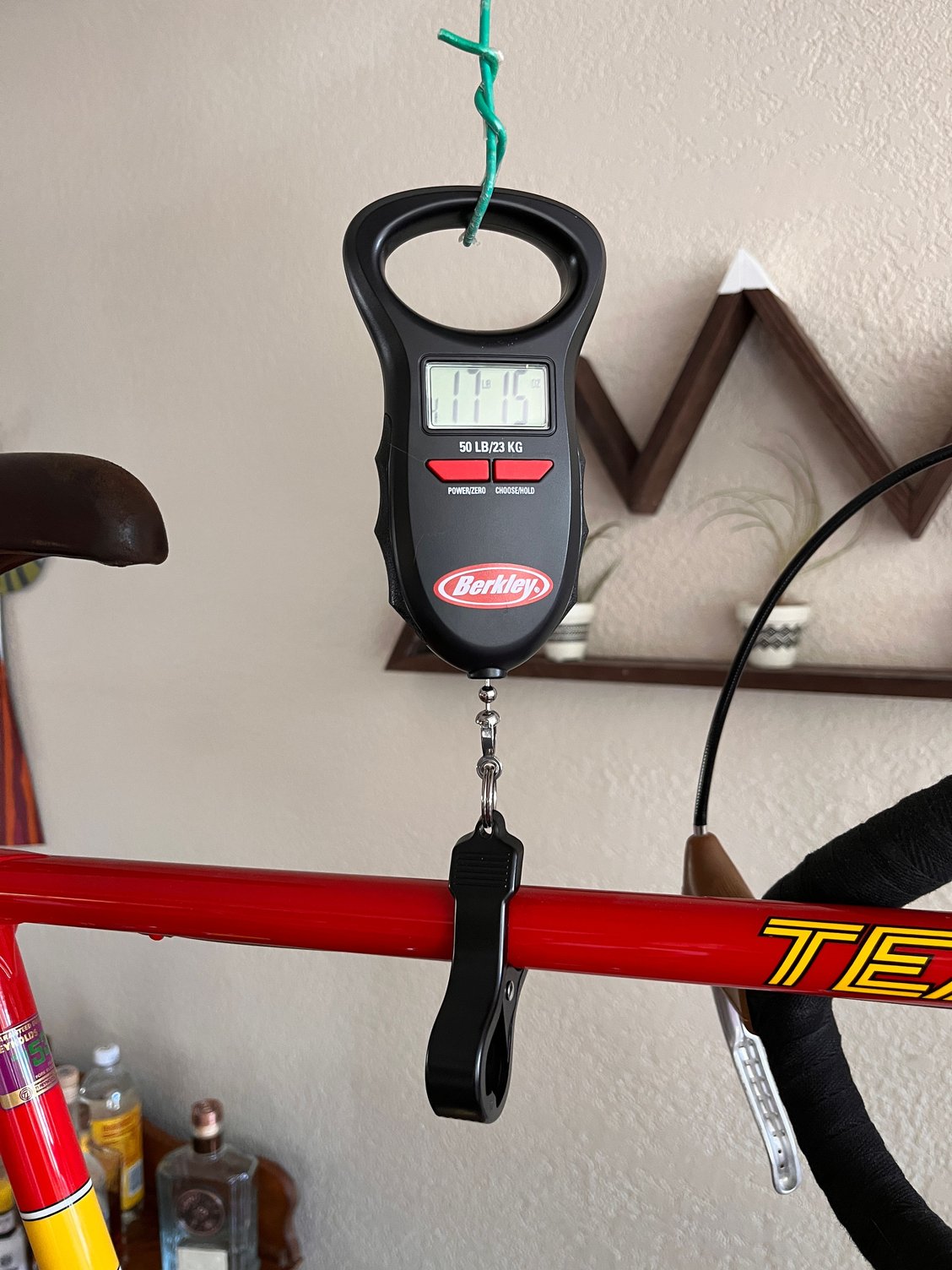

Here it is fully built, and using a fairly cheap digital fish scale, so not sure how accurate this is.....

But it weighs 17 lb 15 oz, even lighter than I thought I might get!
75lechamp is offline
Likes For 75lechamp:
Old 04-25-22, 07:46 AM
  #15
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,844

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Liked 761 Times in 158 Posts
I don't know how I missed this thread, but I'm glad I found it. Lovely bike and great photography. @75lechamp you have some skills!
poprad is offline
Old 04-25-22, 12:56 PM
  #16
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,600

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 514 Post(s)
Liked 761 Times in 388 Posts
I might - might - be able to ride an 18 pound track bike without destroying it under my seriously Clydesdale self, but a 753 road bike? Not a chance.

Beautiful bike. Enjoy the hell out of it. May not be the best choice for gravel grinding, though.
