Handlebar Recommendations 1981 Trek

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Handlebar Recommendations 1981 Trek

Old 03-19-22, 11:29 AM
  #26
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
Originally Posted by 52telecaster View Post
You might not want north road or porteur bars then. The levers are much closer to your hips.
Well, it's worth a look. I take it you are comfortable in your current set up? Looks like it would be...
Bruce27 is offline
Old 03-19-22, 11:37 AM
  #27
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
Originally Posted by Bruce27 View Post
Well, it's worth a look. I take it you are comfortable in your current set up? Looks like it would be...
I'm extremely comfortable. All my bikes are set up pretty similar but I have a bit of arthritis that makes me want to sit upright. I can still tour and do 50-70 miles loaded in this upright position. I'm not fast but I am mobile.
52telecaster is offline
Old 03-19-22, 12:33 PM
  #28
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
Originally Posted by 52telecaster View Post
I'm extremely comfortable. All my bikes are set up pretty similar but I have a bit of arthritis that makes me want to sit upright. I can still tour and do 50-70 miles loaded in this upright position. I'm not fast but I am mobile.
That's my objective here. May I ask if you changed both the stem and bar at the same time or did you start with one, then added the other?
Bruce27 is offline
Old 03-19-22, 12:43 PM
  #29
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
Originally Posted by Bruce27 View Post
That's my objective here. May I ask if you changed both the stem and bar at the same time or did you start with one, then added the other?
First I started with technomic stems. Then later with upright bars. At this point I prefer porteur bars inverted to give a little rise and then the technomic stem will get the bar as high as I could ever want. Dirt drop stems will work too but they are hard to use with a bar that has sharp bends. I use bars that are road diameter so I can use barcons. The whole setup works great for me.
52telecaster is offline
Likes For 52telecaster:
Old 03-19-22, 12:49 PM
  #30
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts

My 3 speed setup
52telecaster is offline
Old 03-19-22, 04:47 PM
  #31
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,088

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2391 Post(s)
Liked 1,069 Times in 633 Posts
Originally Posted by Bruce27 View Post
Many options to consider. Kinda wish I started this project at the beginning of last winter rather than the start of riding season.

Thank you
To tell the truth- during riding season you can make the change and actually ride it to see how it goes.

I know we've talked about bars and lever positions before- my left hand was crushed 10 years ago, so I have to be careful about how much weight it can bear and grip and strength and everything.

Have you considered things like Trekking bars? I have a set on a bike, I play with them from time to time- but the set I have doesn't seem to work for me. But there's BUNCHES of different shapes off the same theme out there.

Trekking Bars Cockpit. by Dave The Golden Boy, on Flickr

1987 Schwinn High Sierra by Dave The Golden Boy, on Flickr



Wow those pix are old... the bars are wrapped and a little more angled now.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 03-19-22, 05:15 PM
  #32
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
Originally Posted by The Golden Boy View Post
To tell the truth- during riding season you can make the change and actually ride it to see how it goes.

I know we've talked about bars and lever positions before- my left hand was crushed 10 years ago, so I have to be careful about how much weight it can bear and grip and strength and everything.

Have you considered things like Trekking bars? I have a set on a bike, I play with them from time to time- but the set I have doesn't seem to work for me. But there's BUNCHES of different shapes off the same theme out there.

Trekking Bars Cockpit. by Dave The Golden Boy, on Flickr

1987 Schwinn High Sierra by Dave The Golden Boy, on Flickr



Wow those pix are old... the bars are wrapped and a little more angled now.
Great option!
52telecaster is offline
Old 03-19-22, 05:28 PM
  #33
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
I was just checking that stem option out TheGoldenBoy and trying to imagine the fit... probably be a bit crazy with drop bars.
Bruce27 is offline
Old 03-19-22, 05:31 PM
  #34
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
I have knockoff stems like that and they give you a ton of rise.
52telecaster is offline
Old 03-19-22, 05:45 PM
  #35
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
Originally Posted by 52telecaster View Post
I have knockoff stems like that and they give you a ton of rise.
Tempting. They are marketed for MTB's but I'd certainly be in a more upright position with that stem. Ever try them with dropbars?
Bruce27 is offline
Old 03-19-22, 05:50 PM
  #36
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
Originally Posted by Bruce27 View Post
Tempting. They are marketed for MTB's but I'd certainly be in a more upright position with that stem. Ever try them with dropbars?
Yes but it's hell getting the bars in on the kalloy version. You have to spring the clamp a bit.
52telecaster is offline
Likes For 52telecaster:
Old 03-19-22, 08:01 PM
  #37
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
Originally Posted by 52telecaster View Post
I have knockoff stems like that and they give you a ton of rise.
Thanks for that. The MTB stem has added even more options. The upward slope combined with a long stem does look like it would add a lot of height and reduce the bar reach. It would be great if I could use the existing bar/brake levers and swap out the stem. Don't think I've ever seen a combination like that before.
Bruce27 is offline
Old 03-19-22, 09:14 PM
  #38
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
Originally Posted by The Golden Boy View Post
To tell the truth- during riding season you can make the change and actually ride it to see how it goes.


I know we've talked about bars and lever positions before- my left hand was crushed 10 years ago, so I have to be careful about how much weight it can bear and grip and strength and everything.


Have you considered things like Trekking bars? I have a set on a bike, I play with them from time to time- but the set I have doesn't seem to work for me. But there's BUNCHES of different shapes off the same theme out there.
Never heard of Trekking bars but keeping an open mind on options. One thing I've realized since this thread is there are way more handlebar designs than I knew. Trying to do a one and done, achieve the results, and not have a domino effect.

The stem vs handlebar change choice has added to the considerations.

Last edited by Bruce27; 03-19-22 at 09:24 PM.
Bruce27 is offline
Likes For Bruce27:
Old 03-20-22, 06:05 AM
  #39
mrv
BIKE RIDE

mrv's Avatar

Join Date: Jun 2014
Location: Michigan
Posts: 1,394

Bikes: my very own customized GUNNAR CrossHairs

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 358 Post(s)
Liked 168 Times in 111 Posts
Latest Rivendell spam

If youíre not RivBikes email list, pm me your email address and Iíll forward it to you.
They got lots of photos of staff bikes handle bar set ups. All are swept back and looking comfy. RivStyle.
It might be on the site, but Iím too lazy to look.

cheers.

https://www.rivbike.com/blogs/news/a...eid=82eb05e380

Last edited by mrv; 03-20-22 at 06:33 AM.
mrv is offline
Likes For mrv:
Old 03-20-22, 09:43 AM
  #40
daywood
Newbie

Join Date: Aug 2017
Posts: 37
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 39 Times in 16 Posts
I like to use a quill adapter because of the world of options it opens for stem length and angle. Iíll even use an adjustable stem sometimes to dial in what works for comfort and geometry, and then replace it with a fixed one that is close to that compromise. Using the quill adapter can also facilitate switching back and forth between a fixed bar setup and a drop bar setup if you want some variety over time on the bike. Chances are each will have a different stem angle and length.
daywood is offline
Likes For daywood:
Old 03-20-22, 09:51 AM
  #41
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
Originally Posted by daywood View Post
I like to use a quill adapter because of the world of options it opens for stem length and angle. Iíll even use an adjustable stem sometimes to dial in what works for comfort and geometry, and then replace it with a fixed one that is close to that compromise. Using the quill adapter can also facilitate switching back and forth between a fixed bar setup and a drop bar setup if you want some variety over time on the bike. Chances are each will have a different stem angle and length.
I have done the same. Quill adapters are incredibly useful.
52telecaster is offline
Old 03-20-22, 04:12 PM
  #42
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,088

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2391 Post(s)
Liked 1,069 Times in 633 Posts
Originally Posted by Bruce27 View Post
I was just checking that stem option out TheGoldenBoy and trying to imagine the fit... probably be a bit crazy with drop bars.
I have a setup like that on my 620:

1985 Trek 620 by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 03-20-22, 05:06 PM
  #43
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
That looks very clean The Golden Boy . It looks like a natural for your bike. Not at all odd like I thought it would look. I'm guessing you replaced the original stem? Were you happy with increased comfort level with the upright stem?
Thanks

Last edited by Bruce27; 03-20-22 at 06:59 PM.
Bruce27 is offline
Old 03-20-22, 10:34 PM
  #44
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,923
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1975 Post(s)
Liked 1,094 Times in 806 Posts
No one's mentioned another option, possibly in conjunction with a stem swap -- switch to conventional drop-bar "aero" levers (introduced mid '80s, so fairly period-correct), and include a set of those "cheater" levers that mount at about the point the tape terminates at the top of the bar. This will give you the tops as another position option.
madpogue is offline
Likes For madpogue:
Old 03-21-22, 09:02 AM
  #45
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 989

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Liked 386 Times in 210 Posts
[QUOTE=Bruce27;22444379]I was just checking that stem option out TheGoldenBoy and trying to imagine the fit... probably be a bit crazy with drop bars.
[/QUOTE

I used a couple of the cheaper mtn dirt drop stems on my bikes, but as stated they may not work easily. Perhaps that Nitto one would. It may have been designed for the conversion originally. I donít think they look too bad.

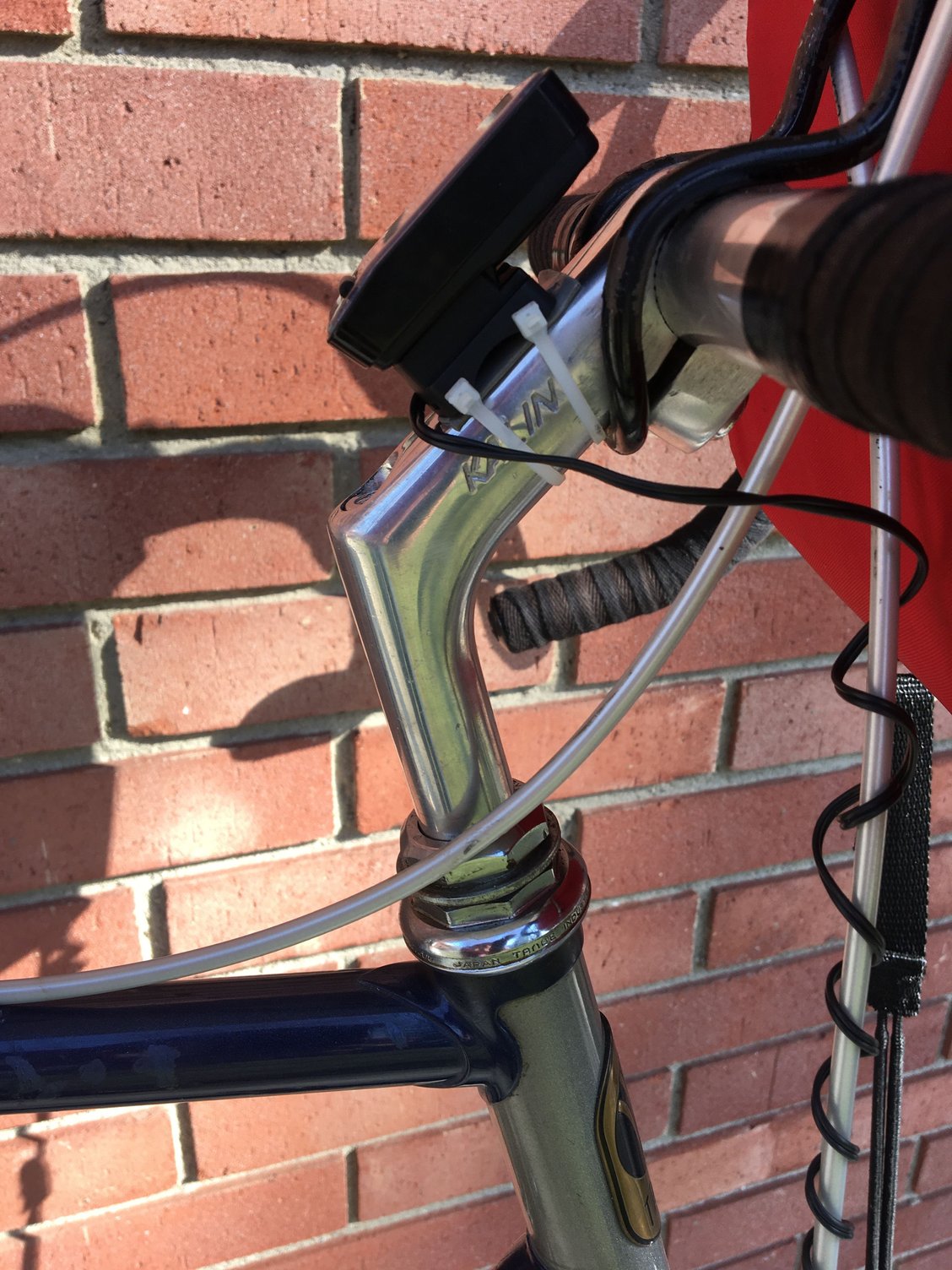

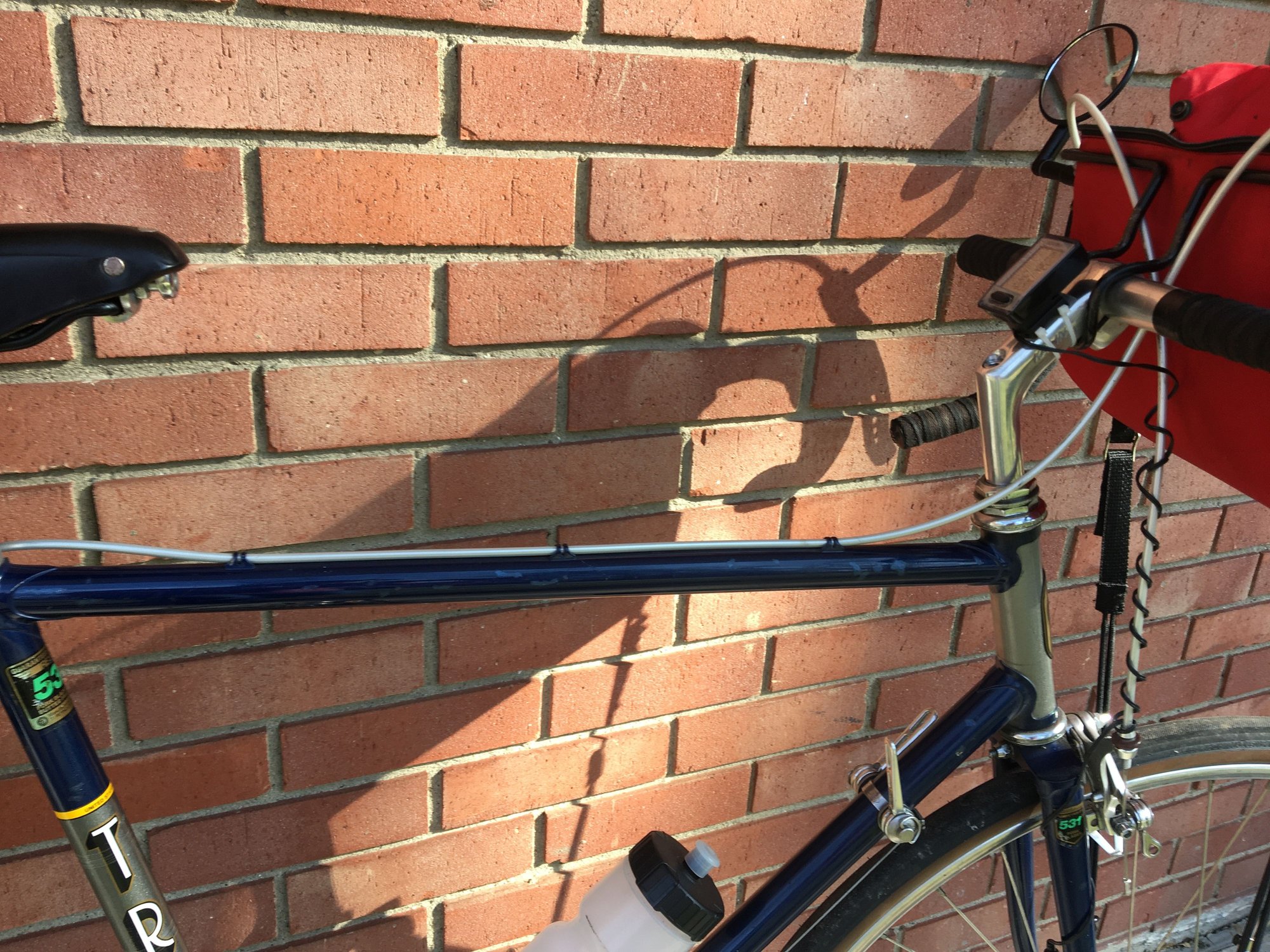

1983 Trek 700



Old Kalloy stem with more room to raise

As stated, putting on around the bar curves is the problem. The couple I used were wider at the bar clamp area than the stock stem. My crude solution was putting on a belt sander to narrow to the same measurement as a standard stem, but then also there needs to be the corresponding angled section that follows the inside curve of the bars when installing. It is a barbaric operation that takes time and trial and error. Invariably nicks and gouges are made that need sanded and cleaned up at the end. This is not a solution for a show bike.

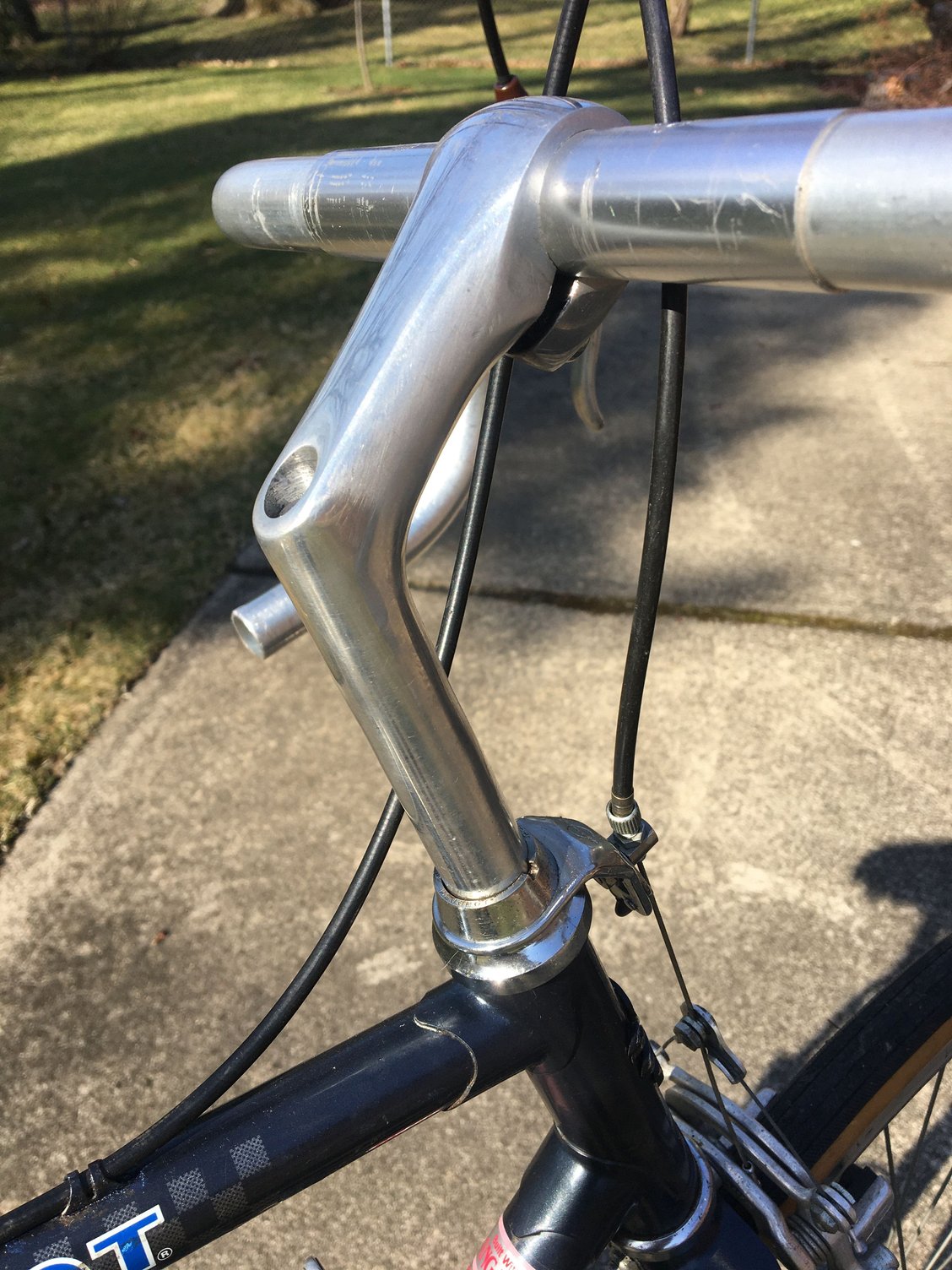

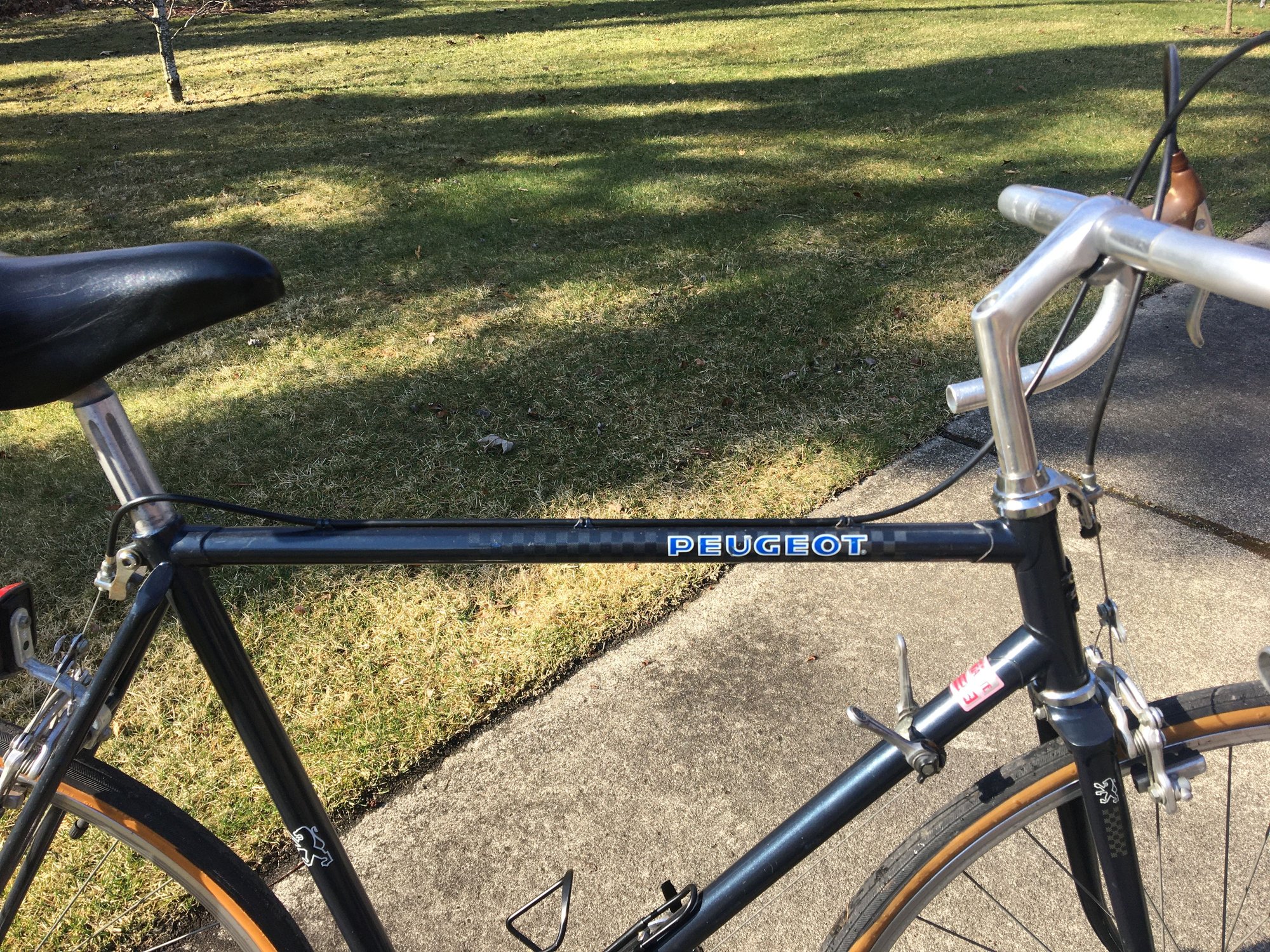

83 Peugeot UO14



Sanding marks more evident here

The mountain stems were wider at the clamp area, so sanding leaves a coarse edge. I wouldnít really recommend this path unless you have the tools and get the stem for very cheap as I did at the co-op. The Nitto pictured in the other post would perhaps work as is. My photos for visualization for you.
sd5782 is offline
Likes For sd5782:
Old 03-21-22, 09:39 AM
  #46
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,663

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 1407 Post(s)
Liked 1,487 Times in 761 Posts
[QUOTE=sd5782;22445767]
Originally Posted by Bruce27 View Post
I was just checking that stem option out TheGoldenBoy and trying to imagine the fit... probably be a bit crazy with drop bars.
[/QUOTE

I used a couple of the cheaper mtn dirt drop stems on my bikes, but as stated they may not work easily. Perhaps that Nitto one would. It may have been designed for the conversion originally. I donít think they look too bad.



1983 Trek 700



Old Kalloy stem with more room to raise

As stated, putting on around the bar curves is the problem. The couple I used were wider at the bar clamp area than the stock stem. My crude solution was putting on a belt sander to narrow to the same measurement as a standard stem, but then also there needs to be the corresponding angled section that follows the inside curve of the bars when installing. It is a barbaric operation that takes time and trial and error. Invariably nicks and gouges are made that need sanded and cleaned up at the end. This is not a solution for a show bike.



83 Peugeot UO14



Sanding marks more evident here

The mountain stems were wider at the clamp area, so sanding leaves a coarse edge. I wouldnít really recommend this path unless you have the tools and get the stem for very cheap as I did at the co-op. The Nitto pictured in the other post would perhaps work as is. My photos for visualization for you.
I did the same on my bob Jackson world tour. The kalloy gave me as much rise as a technomic. I eventually went to porteur bars but kept the stem.
52telecaster is offline
Likes For 52telecaster:
Old 03-21-22, 11:33 AM
  #47
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
I'm checking out a Nitto that has an upward slope. It has a 25.4mm dia at the bar and 22.2mm stem dia. so I'm thinking it would fit. Not sure about the clamp width difference between the original and the Nitto though.
Bruce27 is offline
Old 03-21-22, 05:35 PM
  #48
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,088

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2391 Post(s)
Liked 1,069 Times in 633 Posts
Originally Posted by Bruce27 View Post
That looks very clean The Golden Boy . It looks like a natural for your bike. Not at all odd like I thought it would look. I'm guessing you replaced the original stem? Were you happy with increased comfort level with the upright stem?
Thanks
Thank you!

Yes, this replaced the original stem (which had it's own issues), but the bars are different as well. There's the height, there's reach, and then the hand positions. I'm happy with the height. As I get older, I'm also playing with the idea of changing the reach. For bars, I'm using Nitto B177 bars on most of my bikes as well as a Nitto B132 Rando bar. I ride mostly on the corners, then tops, then ramps, then hoods- I'm only in the drops riding into the wind. When I look at your bars, I'm liking the idea of the upturned bars (hence my recommendation of the trekking/butterfly bars), but the brake lever position looks so anti-ergonomic- rotating the wrists and then reaching... With the bars turned up- that puts an "neutral-ish" lever position way out there. I'm using aero levers now which dramatically change braking ability from the hoods. Seriously- the Tektro RRL levers just fall under your fingers- they're more comfortable, you have more leverage not just because of your more neutral wrist position- but also from the whole aero lever aspect...

Here's the 720 with the Technomic:

IMG_1703 by Dave The Golden Boy, on Flickr



I think this shows how the lever "zigs" towards your fingers- you don't have to reach as far to get purchase on the lever to pull. Of course, the look of the RRL levers is something to get used to...

IMG_0218 by Dave The Golden Boy, on Flickr


What I like: both the riser stem and the Technomic make riding much more comfortable for me. What I like about the B177 bars is the flat area at the corners (more surface area to rest my palm) and the longer ramp. They also have a rise from the tops- Again- I need to change hand positions a lot with my left hand and I do bear more weight with my right- so I need to change positions and spread that weight out as best I can. I realize I'm only going to be able to ride drop bars and use drop bar brake levers comfortably for a finite amount of time- so a few years ago I did get some really nice ATB brake levers for when I do have to go to flat/north road/porteur bars.

Remember there are riser stems that accept different diameter bars- there's no need to get a stem and then do the sanding.

What I would change now- like I mentioned- a little less reach. The top tubes on both the 620 and 720 are a little longer than the average bear- I could easily roll with an 80mm stem instead of the 90.

Good luck with this- This is your contact area with the bike- take the time to get it right for you. Don't try knocking it out of the park on the first try.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 03-25-22, 02:31 PM
  #49
Bruce27
Senior Member
Thread Starter

Bruce27's Avatar

Join Date: Aug 2013
Location: NJ
Posts: 350
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 85 Times in 28 Posts
After receiving much appreciated ideas, here is the result of the change.
Contrary to the thread title, it’s the same handlebar, but, a new stem.
I ended up getting a Nitto MT 10-80. The stem is all the way down and at the stretched limit of the brake housing, but it's giving me about 3-4" in height using the existing cable and housing.
The bar clamp area is about 6mm wider than the original bar and went on without a problem… thank goodness.
The jury will be out until many miles are added, but first impression is positive.
The input from everyone was excellent. What started out as a handlebar change took a totally different direction. Thank you again to all.

Bruce27 is offline
Likes For Bruce27:
Old 03-25-22, 04:19 PM
  #50
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,065
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 247 Times in 170 Posts
I can't believe that is all the way down. You may need to clean the inside of your steerer tube to allow the full range of adjustability.
Hobbiano is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
