Peugeot 130 mm rear frame spacing

Hi everyone. First post here.

I realised a while ago I only really like Peugeots. Probably as I had one as a kid back in the 70's and remember the great times I had on that bike ( UO8 or whatever it was called in the Australian market ).

Are there any Peugeot's back from the classic era that came standard with a 130 mm rear frame spacing ?

I'm thinking they stopped making bikes before this newer standard came in.

I don't really want to cold-set ( alter ) a classic frameset.

Specific model names to look for ( if any ) would be appreciated.
redshift1 is offline
Old 03-23-22, 10:34 PM
  #2
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 14,291

Bikes: Yes

Mentioned: 491 Post(s)
Tagged: 0 Thread(s)
Quoted: 2924 Post(s)
Liked 2,828 Times in 1,136 Posts
I have two suggestions:

1. Any Peugeot with 126mm spacing can be used with a 130mm wheel. It doesn't require modification. Cold setting just makes it easier to get the wheel in and out.

2. 1970's Peugeots, especially UO8s, even now, are among the most common bikes on the planet. I wouldn't worry at all about cold setting one
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 03-24-22, 12:51 AM
  #3
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,112
Mentioned: 101 Post(s)
Tagged: 0 Thread(s)
Quoted: 1482 Post(s)
Likes: 0
Liked 608 Times in 400 Posts
Peugeots were mostly spaced at 122 -126mm through the 70's and 80's.
By the very late 80's they must have gone to the wider 130mm spacing to accomodate more than 6 speeds at the back.....
Chombi1 is offline
Old 03-24-22, 12:54 AM
  #4
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 14,291

Bikes: Yes

Mentioned: 491 Post(s)
Tagged: 0 Thread(s)
Quoted: 2924 Post(s)
Liked 2,828 Times in 1,136 Posts
Originally Posted by Andy_K View Post
1970's Peugeots, especially UO8s, even now, are among the most common bikes on the planet. I wouldn't worry at all about cold setting one
BTW, I wanted to clarify that I don't mean this as a slight against Peugeots. The fact that they sold so many is a testimony to the fact that they were doing something right.
__________________
My Bikes
Andy_K is offline
Old 03-24-22, 03:13 AM
  #5
redshift1
Newbie
Thread Starter

Join Date: Mar 2022
Location: Australia
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 22 Times in 17 Posts
I think Shimano may have been first with introducing 8 speed freehubs ( and the "need" for 130 mm rear spaced frames ) in the late 80's. And their first 8 speed Dura Ace hubs had beveled outer washers to allow easier insertion in 126 mm frames. So the suggestion to insert a 130 mm hub into a 126 mm frame, without cold-setting the frame, seems very acceptable.


I should have mentioned that I was only really looking at Peugeot higher end steel frames as I have some nice Mavic 571 8-speed hubs ( 130 mm rear ) that I would like to use on a Peugeot. So no offence taken about the UO-8's :-)


After spending some time looking through the later Peugeot catalogues, I see models I have never even heard of like the C1500. I think these are past the "classic steel" era, at least for Peugeot's top end bikes, and may be using aluminium or carbon frame materials. Despite the language differences, and that frame rear spacings are not given, I was able to make out "16 v" under "Transmission" in a 1996 catalogue for the C1500. It seems Peugeot have gone to 8 speed by 1996 ( and possibly earlier ) and presumably the compatible 130 mm rear spacing by then.


I think my answer is to use something like an Aneto frame ( mid to late 80's ) and 126 mm, and just see how I go with the 130 mm hubs.


Thanks to both of you for the above replies.
redshift1 is offline
Likes For redshift1:
Old 03-24-22, 06:04 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,233
Mentioned: 638 Post(s)
Tagged: 1 Thread(s)
Quoted: 4707 Post(s)
Likes: 0
Liked 2,989 Times in 1,850 Posts
130mm spacing on road bicycles came with the introduction of 8 speed cassettes by Shimano in 1989. Consequently, 8 speeds started trickling down though the product lines in the 1990s. I don't know the situation in Australian market, but in Canada and the USA, the road line shrunk during this period, while the ATB and hybrid lines expanded. I believe that the only steel tubed models to come though with 130mm spacing were the Dolomites and Biarritz.
T-Mar is offline
Likes For T-Mar:
Old 03-24-22, 08:59 AM
  #7
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Soviet of Oregon or the NW Florida Redoubt
Posts: 5,240

Bikes: Still have a few left!

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 339 Times in 197 Posts

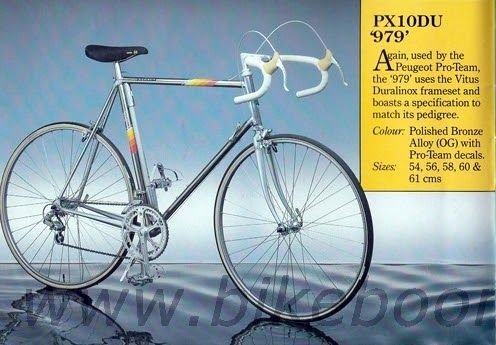

OP: Check out PX-10DU, Vitus 979 frames are 126 mm, produced in large numbers for 18 years, wore many marque's decals. Don



1982 Peugeot team on "979's" (far left/right)
ollo_ollo is offline
Old 03-24-22, 04:39 PM
  #8
redshift1
Newbie
Thread Starter

Join Date: Mar 2022
Location: Australia
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 22 Times in 17 Posts
Originally Posted by T-Mar View Post
130mm spacing on road bicycles came with the introduction of 8 speed cassettes by Shimano in 1989. Consequently, 8 speeds started trickling down though the product lines in the 1990s. I don't know the situation in Australian market, but in Canada and the USA, the road line shrunk during this period, while the ATB and hybrid lines expanded. I believe that the only steel tubed models to come though with 130mm spacing were the Dolomites and Biarritz.
That's exactly what I wanted to know. Thank you !
redshift1 is offline
Old 03-24-22, 07:00 PM
  #9
redshift1
Newbie
Thread Starter

Join Date: Mar 2022
Location: Australia
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 22 Times in 17 Posts
ollo ollo : ( Can't seem to post direct reply. Maybe sub-10 posts issue. )

I'm mainly interested in steel frames at the moment, those look like very nice bikes. Great Peugeot team photo.
redshift1 is offline
Old 03-24-22, 07:12 PM
  #10
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,300

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1251 Post(s)
Liked 926 Times in 621 Posts
I spread my 1959 Capo from 120 to 126, to accommodate a standard 6-speed freewheel, without any problems. Some 7-speed/hub combinations will fit in 126, although most I have seen need 128mm OLD.

I put a Shimano ultra-6 freewheel (7-speed lateral spacing between cogs) on my UO-8, which required pushing it slightly to 122-123mm.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 03-25-22, 04:43 AM
  #11
Slowride79
Full Member

Join Date: Apr 2018
Location: City of the straits
Posts: 262

Bikes: 50s, 60s, 70s Nottingham/Worksop bikes, Moto, Gitane, Bertin, Lion of Sochaux

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 85 Times in 57 Posts
[QUOTE=ollo_ollo;22449344]OP: Check out PX-10DU, Vitus 979 frames are 126 mm, produced in large numbers for 18 years, wore many marque's decals. Don



I will leave for experts to confirm but I believe the vitus 979 aluminum frames are not to be spread at all. Personally I would not even try to put a 130 old wheel in the 126 aluminum frames as it would impart stresses it’s not designed to take not to mention aluminum can not be cold set

Last edited by Slowride79; 03-25-22 at 04:59 AM.
Slowride79 is offline
Old 03-25-22, 10:05 AM
  #12
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Soviet of Oregon or the NW Florida Redoubt
Posts: 5,240

Bikes: Still have a few left!

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 339 Times in 197 Posts
Per above, the OP is only interested in steel frames. So this is just some info on the 979's:

I run my two 979's in 6 speed, 1 has shimano 600 6 speed, the other had Campy Athena set up 7 speed, that I changed to 6 speed with the correct 6 speed disc for a Winner Pro freewheel I found. The rear dropouts on my frames measure 127mm, and the stays have some flex due to their glued joints, so not rigid as a welded aluminum frame would be. The 979 frames have a non-jarring ride due to this flex in the glued joints and I would be comfortable with a 3mm flex to fit a 130 mm rear wheel. (which might only be 128 or 129 mm anyway)
If I needed more gears, I would 1st try to find a Campagnolo Athena rear hub in 126mm, as VeloBase indicates they were made in that size. 8 speed in 126mm spacing would eliminate a need for spreading:
https://www.roadbikereview.com/threa...mm-tail.88938/ https://velobase.com/ViewComponent.a...bd4ae&Enum=110
Don
ollo_ollo is offline
Old 03-26-22, 07:03 AM
  #13
Slowride79
Full Member

Join Date: Apr 2018
Location: City of the straits
Posts: 262

Bikes: 50s, 60s, 70s Nottingham/Worksop bikes, Moto, Gitane, Bertin, Lion of Sochaux

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 85 Times in 57 Posts
Originally Posted by ollo_ollo View Post
Per above, the OP is only interested in steel frames. So this is just some info on the 979's:

I run my two 979's in 6 speed, 1 has shimano 600 6 speed, the other had Campy Athena set up 7 speed, that I changed to 6 speed with the correct 6 speed disc for a Winner Pro freewheel I found. The rear dropouts on my frames measure 127mm, and the stays have some flex due to their glued joints, so not rigid as a welded aluminum frame would be. The 979 frames have a non-jarring ride due to this flex in the glued joints and I would be comfortable with a 3mm flex to fit a 130 mm rear wheel. (which might only be 128 or 129 mm anyway)
If I needed more gears, I would 1st try to find a Campagnolo Athena rear hub in 126mm, as VeloBase indicates they were made in that size. 8 speed in 126mm spacing would eliminate a need for spreading:
https://www.roadbikereview.com/threa...mm-tail.88938/ https://velobase.com/ViewComponent.a...bd4ae&Enum=110
Don
Hello Don, thanks for sharing real world experience. Iíve been interested in these and wondered how they ride and how versatile. Do you have any tips on how to inspect / what to look for regarding any issues with glued joints or other areas of concern? I know the gen I seat tube ears are well documented as being one area hence the design change in gen II. Iíve only come across one for sale where seller said there was a joint issue where tubes separating at glue joint. Thanks for advice . Steve
Slowride79 is offline
Old 03-26-22, 07:12 AM
  #14
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,449

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 1683 Post(s)
Liked 552 Times in 415 Posts
Originally Posted by Andy_K View Post
BTW, I wanted to clarify that I don't mean this as a slight against Peugeots. The fact that they sold so many is a testimony to the fact that they were doing something right.
I agree, and the fact that so many of them have survived!
Road Fan is offline
Old 03-26-22, 07:17 AM
  #15
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,449

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 1683 Post(s)
Liked 552 Times in 415 Posts
I thought 979 was steel. No?
Road Fan is offline
Old 03-26-22, 09:07 AM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,733

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 1368 Post(s)
Liked 926 Times in 647 Posts
Originally Posted by Road Fan View Post
I thought 979 was steel. No?
No. The 979 and later 992 were both made of aluminum tubes bonded to cast aluminum lugs.

The OP has 130mm hubs, but another choice (that I employed in order to get more gears on my 126mm-spaced Klein) is to use a 10s cassette on an un-modified 126mm (7s) Ultegra freehub.
The design of a Shimano or SRAM 10s cassette offsets the largest cog inward toward the spokes, allowing for a narrower mounting on the freehub body, yet without the derailer fouling the spokes at all.

The only caveats are that 9s and 8s cassettes won't allow this, and that a long-threaded (think "SRAM alloy 11s lockring") 11t lockring must be used with a 12t smallest cog (so as to allow the lockring's toothed flange to nest within the annular recess of the 12t cog). That will not allow engagement of the lockring's teeth since the recess is smooth-faced, but one can use a bit of LocTite on the threads if concerned about possible loosening (I used no LocTite and have had no loosening).

The 11t lockring in the 12t smallest cog will require less torque to achieve sufficient tension at the threads because of the absence of mating teeth on the 12t cog's recessed mating surface, so better to use LocTite than to heavily tighten it. Many hubs (even those with alloy freehub bodies) seem to be getting by using just under two full turns of lockring engagement, so the same or slightly less engagement in Shimano's steel freehub body will easily suffice imo (filing off the lockring's teeth would net even more threaded engagement).
dddd is offline
Likes For dddd:
Old 03-26-22, 10:44 AM
  #17
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,343
Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 553 Post(s)
Liked 1,595 Times in 550 Posts
Redshift, I'm a builder/painter that has done lots of widening of rear triangles. Many European frames in the classic era (including Peugeots) where not aligned well coming from the factory and I needed to move both front and rear tubes more than what it takes to go from 126 to 130. It doesn't really hurt a steel frame to cold set the dropouts a few mms wider. In fact doing a proper alignment including spreading the rear to 130 will probably be doing the frame favor. Look at how much bend we put in forks to get the proper rake. And it also isn't difficult to return back to 126 spacing if there was a desire to use original parts again.

My only caution is that I have read on C&V homemade methods to cold set frames that make me shudder. A rear triangle can be bent with 2 X 4s but there are a number of other factors that go into proper alignment that really require special tools to get right. I've found that Japanese frames on the other hand were usually spot on with alignment.

I've enjoyed reading this subject thread finding solutions if one did or could not want to cold set the rear triangle wider.
Doug Fattic is offline
Likes For Doug Fattic:
Old 03-26-22, 12:19 PM
  #18
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Soviet of Oregon or the NW Florida Redoubt
Posts: 5,240

Bikes: Still have a few left!

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 339 Times in 197 Posts
Originally Posted by Slowride79 View Post
Do you have any tips on how to inspect / what to look for regarding any issues with glued joints or other areas of concern?
Steve: I was interested in the 979 until I had a few bone jarring rides on other aluminum bikes, thought 979's claimed smooth ride must be advertising hype, but never rode one. Got my 1st 979 last Summer when saw one for sale near my Puget Sound relatives, The comfortable ride was not hype, and price low.

Buying is like any vintage bike. Inspect all joints carefully, also, look for cracks(I went over mine with a magnifying glass). Don't get so caught up with the frame that you forget to check out the components and wheelset.

The Vitus bonding process used a heat set epoxy to cement the tubes over extensions of the castings with a snug fit. I saw 1 frame with a failed joint that would come loose from the chain stay if you pulled back on the dropout. I asked my chemist/production engineer bro-in-law about age related bond failure and he said similar process is used to bond brake linings onto steel pads. Back in the day, Vitus did repairs, and I've read there were some who did repairs in U.S., but doubt its available now. Some really strong guys like Sean Kelley rode the 979 successfully, but I read he liked to have a new frame every month, so maybe best for smaller guys like me(I weight 142-145 pounds) since we don't have a team budget. Also, I'm old so not riding bike real hard. Don
ollo_ollo is offline
Likes For ollo_ollo:
Old 03-26-22, 09:07 PM
  #19
redshift1
Newbie
Thread Starter

Join Date: Mar 2022
Location: Australia
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 22 Times in 17 Posts
[QUOTE=Doug Fattic;22451482]Redshift, I'm a builder/painter that has done lots of widening of rear triangles. Many European frames in the classic era (including Peugeots) where not aligned well coming from the factory and I needed to move both front and rear tubes more than what it takes to go from 126 to 130. It doesn't really hurt a steel frame to cold set the dropouts a few mms wider. In fact doing a proper alignment including spreading the rear to 130 will probably be doing the frame favor. Look at how much bend we put in forks to get the proper rake. And it also isn't difficult to return back to 126 spacing if there was a desire to use original parts again.

Thanks for the expert info. I probably won't cold-set the 126 mm frame ( which I have but was keeping ) as I'm too "emotionally attached" to it but what you say all adds to know how.
redshift1 is offline
Old 03-27-22, 11:12 AM
  #20
guy153
Senior Member

Join Date: Dec 2019
Posts: 857
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Liked 225 Times in 184 Posts
Originally Posted by redshift1 View Post
Hi everyone. First post here.

I realised a while ago I only really like Peugeots. Probably as I had one as a kid back in the 70's and remember the great times I had on that bike ( UO8 or whatever it was called in the Australian market ).

Are there any Peugeot's back from the classic era that came standard with a 130 mm rear frame spacing ?

I'm thinking they stopped making bikes before this newer standard came in.

I don't really want to cold-set ( alter ) a classic frameset.

Specific model names to look for ( if any ) would be appreciated.
Don't know what you mean by the "classic era" but I have a Columbus Thron Peugeot "Competition" with internal brazing that I bought new in around 2000. It came with Campag Veloce 9sp and has 130mm spacing. Nice bike.
guy153 is offline
Old 03-27-22, 11:54 AM
  #21
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,733

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 1368 Post(s)
Liked 926 Times in 647 Posts
Originally Posted by guy153 View Post
Don't know what you mean by the "classic era" but I have a Columbus Thron Peugeot "Competition" with internal brazing that I bought new in around 2000. It came with Campag Veloce 9sp and has 130mm spacing. Nice bike.
By around 1992 or so, any road bike of even decent (not box-store) quality and "good" enough to use a freehub was made to the 130mm width, even those that still featured (130mm) 7s freehubs.
Peugeot was not an exception.
dddd is offline
Old 03-28-22, 06:12 AM
  #22
redshift1
Newbie
Thread Starter

Join Date: Mar 2022
Location: Australia
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 22 Times in 17 Posts
Originally Posted by guy153 View Post
Don't know what you mean by the "classic era" but I have a Columbus Thron Peugeot "Competition" with internal brazing that I bought new in around 2000. It came with Campag Veloce 9sp and has 130mm spacing. Nice bike.
Good point. The term "classic era" wasn't very precise. I should have specified lugged steel bikes but since being on this forum for a short while and seeing what bikes others have, I have widened my view, starting to consider Vitus alum. and internal brazed framed Peugeots like yours.
redshift1 is offline
Likes For redshift1:
Old 03-28-22, 09:25 AM
  #23
guy153
Senior Member

Join Date: Dec 2019
Posts: 857
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 296 Post(s)
Liked 225 Times in 184 Posts
Originally Posted by redshift1 View Post
Good point. The term "classic era" wasn't very precise. I should have specified lugged steel bikes but since being on this forum for a short while and seeing what bikes others have, I have widened my view, starting to consider Vitus alum. and internal brazed framed Peugeots like yours.
To me internal brazing is the defining feature of Peugeots. Everyone had those silky white ones back when I were a lad which were usually made of various proprietary steel alloys a bit below where the Reynolds and Columbus ranges started.
guy153 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
