Davidson New to me

I thought i would reach out to the Hive and show my recent acquisition, it would seem the previous owner a long standing cyclist had the bike for 15 or so years maybe longer,
It so new to me i haven't done any investigation, other then the little bit of reading i did about these frames prior to getting the bike.

Any information on how to investigate would be appreciated, the previous owner got the bike used and was told it was a custom build when made, so i have no idea on what tubing was used,

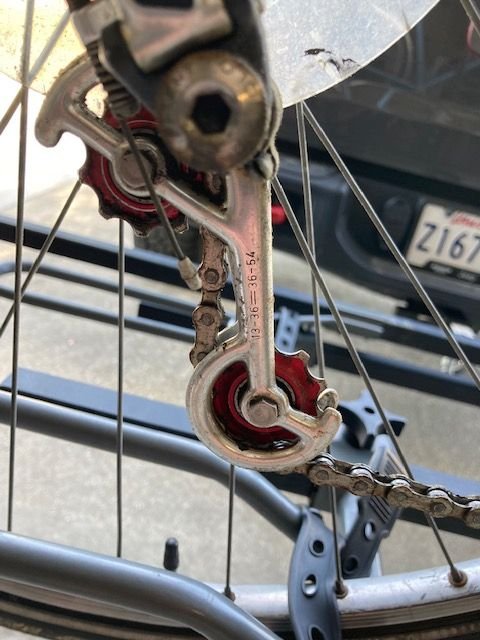

it has some nice equipment on it, Super Record long cage RD, and a campy triple front chain set.

I'm looking forward to give it a wash then a once over and if the tires look ok a short ride to see what it rides like...

Gary






Gary12000 is offline
Old 03-28-22, 01:25 PM
  #2
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,871

Bikes: Indeed!

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1150 Post(s)
Liked 1,929 Times in 664 Posts
Lucky you!
Seat post diameter may give us some indication of tubing used. @bulgie should be along soon to shed some light on this mystery.
Brent
obrentharris is offline
Old 03-28-22, 01:28 PM
  #3
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,715

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 412 Post(s)
Liked 671 Times in 326 Posts
Whoa! A Super Record-Rally rear derailleur. Not something you see everyday.
Dylansbob is offline
Likes For Dylansbob:
Old 03-28-22, 01:30 PM
  #4
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,599

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2325 Post(s)
Liked 3,019 Times in 1,639 Posts
Great score in a beautiful color. Tall frame. Bill Davidson is still making bicycles in Seattle. The year of your bike would be around '79, give or take.
SurferRosa is offline
Old 03-28-22, 01:53 PM
  #5
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,834
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Likes: 0
Liked 458 Times in 316 Posts

I have a Davidson that's supposed to have been a 1983 custom build.
I believe the custom builds were called their "Signature" line.
Excellent build quality from Bill Davidson. The lugwork and paint (Imron?) On it looks flawless.
No tubing decals on the bike, but I suspect it could be Columbus SL
Chombi1 is offline
Likes For Chombi1:
Old 03-28-22, 01:57 PM
  #6
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,345

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1304 Post(s)
Liked 1,182 Times in 617 Posts
Damn is that nice. I love the rear mech and fenders. A real civilized bicycle!!!
52telecaster is online now
Likes For 52telecaster:
Old 03-28-22, 02:55 PM
  #7
C9H13N
Senior Member

Join Date: Dec 2012
Location: North Seattle
Posts: 287

Bikes: Davidson ’81

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 127 Times in 67 Posts

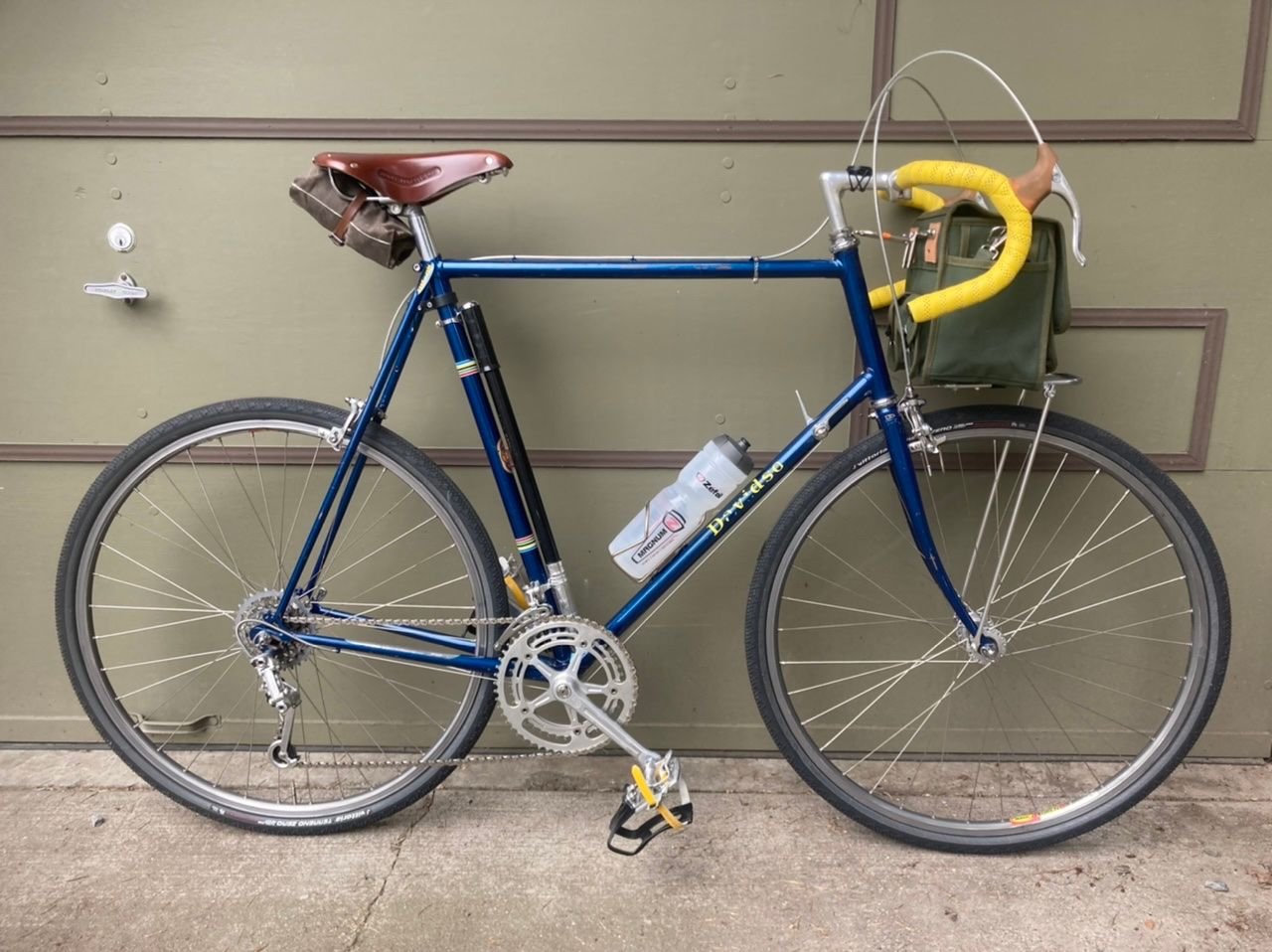

Yours is close to the same vintage as mine. I bought it a couple years ago from the original owner who said it was built c. 1980.


Last edited by C9H13N; 03-28-22 at 03:01 PM.
C9H13N is offline
Likes For C9H13N:
Old 03-28-22, 03:15 PM
  #8
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 4,312

Bikes: Panasonic PT-4500

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1335 Post(s)
Liked 1,077 Times in 759 Posts
I like the 13-36 rear with a 54/36 front. No more guessing what your maximum capacity is!
WGB is offline
Old 03-28-22, 03:27 PM
  #9
Gary12000
Senior Member
Thread Starter

Join Date: Apr 2021
Location: South Louisiana
Posts: 252

Bikes: '71 Raleigh Inter, '98 Tommasini, ' 79 Peugeot Super Comp, '82 Trek 714, '95 Trek 520

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 119 Times in 61 Posts
long cage

Originally Posted by WGB View Post
I like the 13-36 rear with a 54/36 front. No more guessing what your maximum capacity is!
Yeah i thought that was clever, who the heck is riding a 54 on a 13 though lol Speedy Gonzales???
Gary12000 is offline
Old 03-28-22, 03:29 PM
  #10
Gary12000
Senior Member
Thread Starter

Join Date: Apr 2021
Location: South Louisiana
Posts: 252

Bikes: '71 Raleigh Inter, '98 Tommasini, ' 79 Peugeot Super Comp, '82 Trek 714, '95 Trek 520

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 119 Times in 61 Posts
C9H13H,
You got the long cage RD also..that dark blue is a nice color... the build looks very similar style wise, i actually have a matching painted silca pump also, but the hand grip is cracked...
Gary12000 is offline
Old 03-28-22, 04:21 PM
  #11
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 836
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 481 Post(s)
Liked 774 Times in 385 Posts
Originally Posted by obrentharris View Post
@bulgie should be along soon to shed some light on this mystery.
I started there in '84, and I agree with SurferRosa that this one is about a '79.

The lugs are the first version of Henry James (Folson), cast in USA.

I think Bill used some Reynolds 531 back then, but by the time I got there and for some little while previous, he'd been using mostly Columbus. The steerer tube is the easiest one to ID, just take the fender off and see if there are raised helical reinfocements (sometimes called rifling). If there, it means Columbus. If the bore is smooth then I'd expect 531. If you take the fork out, you should be able to see either a Columbus dove stamped in, or the words Reynolds Butted in all-caps. Sometimes paint obscures the stamps, which are shallow.

If you positively ID the steerer, it doesn't necessarily mean the rest of the tubes are the same brand, he did mix'n'match a little, but more often I'd say the steerer does match the drapes er I mean the frame tubes.

If the fork blades are the older Reynolds "skinny oval" (about 29x16mm) then they're definitely Reynolds, Columbus didn't make blades in that oval that I know of. I think narrow oval 531 blades are very unlikely though, they were unfashionable by then. The fatter oval (about 28x20mm) was made by both companies, so that doesn't help. Their blade shape is very subtly different, hard to tell after paint. Some will tell you they're different ovals, but they both fit in the same crowns.

Another place you might be able ID by eye is the chainstays. If the stays are fluted, i.e. indents for the tire clearance, then those are relatively easy to ID as either 531 or Col., for those in the know. (R flutes and C flutes look quite different.) It's harder if they're round-oval-round — I can still tell an R from a C in person, but the difference is subtle, hard to see in a photo, and impossible to teach over the internet.

Looking inside the bottom bracket will tell you if the tubes are SLX/SPX, but I don't think Davidson used much of that — I don't remember any. Very unlikely on this vintage anyway.

Not all his frames were custom back then, he also made small batches that were sold thru REI. There are no distinguishing differences, no serial numbers or sales records, don't bother asking! The batch-built frames were just as good though, no corner-cutting that I'm aware of. Later he came out with "price point" frames with model names like Challenge, Discovery, Impulse and others that were less expensive, made with Tange tubes. That's when the custom bikes started to become known as Signature. Before that, all frames got the sig decal whether custom or not.

I realize none of this really matters. I seem to like spewing out all the facts I know, whether or not it makes any difference. Ride it and enjoy!

Mark B

Last edited by bulgie; 03-28-22 at 06:37 PM.
bulgie is offline
Old 03-28-22, 05:03 PM
  #12
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 570

Bikes: '82 Ron Cooper, '83 Allez, '86 Tommasini Racing, '86? Klein Quantum, '87 Ciocc Designer 84, '95 Trek 5500, '98 S-Works Mtb, '01 Allez

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 168 Times in 79 Posts
@Gary12000 Congratulations re "Davidson New to Me"! I've been looking for a frame recently. In the interim, I've settled for this poster that I purchased at Bill Davidson's Elliot Bay Cycles shop in the 80's....

IMG_3182
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline
Likes For Dean51:
Old 03-28-22, 05:10 PM
  #13
Gary12000
Senior Member
Thread Starter

Join Date: Apr 2021
Location: South Louisiana
Posts: 252

Bikes: '71 Raleigh Inter, '98 Tommasini, ' 79 Peugeot Super Comp, '82 Trek 714, '95 Trek 520

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Liked 119 Times in 61 Posts
Interesting facts

Originally Posted by bulgie View Post
I started there in '84, and I agree with SurferRosa that this one is about a '79.

The lugs are the first version of Henry James (Folson), cast in USA.

I think Bill used some Reynolds 531 back then, but by the time I got there and for some little while previous, he'd been using mostly Columbus. The steerer tube is the easiest one to ID, just take the fender off and see if there are raised helical reinfocements (sometimes called rifling). If there, it means Columbus. If the bore is smooth then I'd expect 531. If you take the fork out, you should be able to see either a Columbus dove stamped in, or the words Reynolds Butted in all-caps. Sometimes paint obscures the stamps, which are shallow.

If you positively ID the steerer, it doesn't necessarily mean the rest of the tubes are the same brand, he did mix'n'match a little, but more often I'd say the steerer does match the drapes er I mean the frame tubes.

If the fork blades are the older Reynolds "skinny oval" (about 29x16mm) then they're definitely Reynolds, Columbus didn't make blades in that oval that I know of. I think narrow oval 531 blades are very unlikely though, they were unfashionable by then. The fatter oval (about 28x20mm) was made by both companies, so that doesn't help. Their blade shape is very subtly different, hard to tell after paint. Some will tell you they're different ovals, but they both fit in the same crowns.

Another place you might be able ID by eye is the chainstays. If the stays are fluted, i.e. indents for the tire clearance, then those are relatively easy to ID as either 531 or Col., for those in the know If they're round-oval-round, I can still tell an R from a C in person but the difference is subtle, hard to see in a photo, and impossible to teach over the internet.

Looking inside the bottom bracket will tell you if the tubes are SLX/SPX, but I don't think Davidson used much of that — I don't remember any. Very unlikely on this vintage anyway.

Not all his frames were custom back then, he also made small batches that were sold thru REI. There are no distinguishing differences, no serial numbers or sales records, don't bother asking! The batch-built frames were just as good though, no corner-cutting that I'm aware of. Later he came out with "price point" frames with model names like Challenge, Discovery, Impulse and others that were less expensive, made with Tange tubes. That's when the custom bikes started to become known as Signature. Before that, all frames got the sig decal whether custom or not.

I realize none of this really matters. I seem to like spewing out all the facts I know, whether or not it makes any difference. Ride it and enjoy!

Mark B
Mark… thanks for the info, it all matters to us vintage nerds… and it creates a record of your experience on here for posterior- erity as I get into the details I will try to discover more…
Gary12000 is offline
Likes For Gary12000:
Old 03-28-22, 08:45 PM
  #14
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,599

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2325 Post(s)
Liked 3,019 Times in 1,639 Posts
Originally Posted by Dean51 View Post
I've settled for this poster...
Next time you're in Fremont, you gotta get that signed.
