'72 PX-10 rehab/650b conversion

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

'72 PX-10 rehab/650b conversion

Old 04-06-22, 02:34 PM
  #1
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
'72 PX-10 rehab/650b conversion

Finally got out for a 20mi shakedown ride on the '72 Peugeot PX-10 I picked up last fall. The generally terrible roads around me, and frequent stretches of gravel I ride led me to convert to 650b with my first wheel-set build. Red Clover triplizer to handle the hills, SLJ GT to cope with the gearing range.
Going to take me a bit to get reacquainted with friction-shifting, but so far, so good. The SLJ RD and the (cheap) 7sp Sunrace freewheel play together very nicely. Shifting from the granny to the middle ring is a little tricky, but I think I need to play around with the FD more.
The tab on the downtube to keep the shifters from sliding fell off somewhere on the ride. I was afraid it might- it had been JB welded on by the PO and came off when I cleaned up the frame. I tried JB'ing it back on, but it didn't hold, so then I tried super-glue which seemed to do the trick. Alas, no. Not sure what to try now to keep the shifters from moving- I'd rather not get something brazed on and ruin the paint (rough and 'patina'd' as it may be....).
My Shimano quasi-mtb spd shoes don't really work well with the Berthets & clips (I knew they wouldn't). For now I think it'll be cheaper to get some SPD pedals rather than get new shoes, aesthetically egregious as that may be!
The V-O bottle-cages behind the seat don't work so well with SS water-bottles- bottle went flying a couple times when I went over large bumps- I've got some other tighter, more rigid cages that might work.
The ride on the Hetres is very nice and comfy, yet the bike still feels more nimble & sporty than my Cannondale T700. I *think* I can make a set of Zeppelin fenders fit with a bit of dimpling/massaging. Probably will require deflating the rear tire to get it on and off, though, but it gets wet and messy where I ride so it will be worth it.
Bar tape is ugly, but what I happened to have on hand (& yes, the blue electrical tape is awful, I know....) and works for now. Crane Creek hoods don't fit the Mafac levers particularly well, but they were cheap and are doing the job. Bar-end mirror is super fugly too, but I've never been able to make a helmet-mounted mirror work for me.
Mini-rack, decaleur and rando bag to be added. And a pump of some sort.




Stuck to what passes for a moderately flat route around here, but I'm looking forward to seeing how it feels in the hills after some mechanical adjustments!

Last edited by ehcoplex; 04-06-22 at 02:37 PM.
ehcoplex is offline
Old 04-06-22, 02:47 PM
  #2
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts

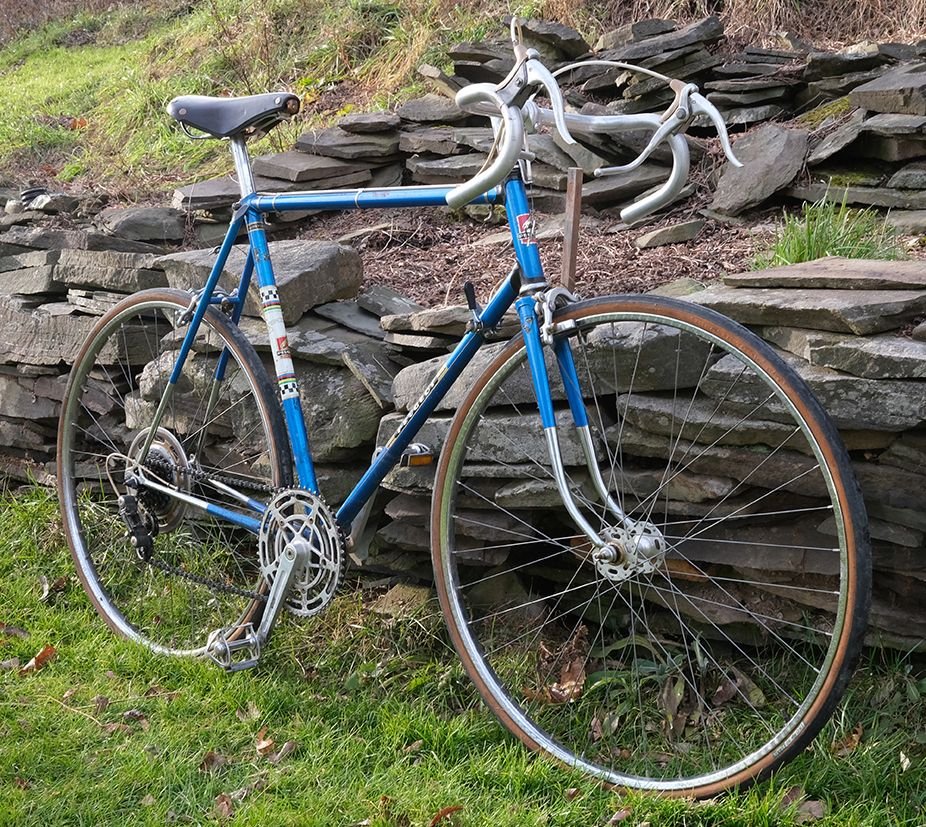

The before-

ehcoplex is offline
Likes For ehcoplex:
Old 04-06-22, 03:42 PM
  #3
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,653

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 583 Times in 419 Posts
That is looking really spiffy @ehcoplex . I like the use of lots of French stuff that works. Pedals, derailleur, shifters, and Stronglight crank. I didn't know that a Tripizer could be had for the star shaped Stronglights. I love them even with two chainrings.

I am thinking that on the braze on stop piece for the shift levers, that when it fell off it left behind a little rusty patch. If you could clean that patch down to clean steel, perhaps you can use a soldering iron to get a little piece of brass soldered to that patch of down tube. If you can get the solder to flow between the down tube and the brass stop, it should hold. I soldered shift cable stops. Since they don't have high loads, it held just fine. I used plumbing solder and flux.

What hubs are they?

This should look great with Zeppelin fenders. Keep the pictures coming.

It looks like you might be able to lower that front derailleur just a tad, or maybe it is just the angle of the picture.
Velo Mule is online now
Likes For Velo Mule:
Old 04-06-22, 03:50 PM
  #4
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
The triplizer is pretty cool- very inconspicuous.
Funny you should mention the FD- I was just in the basement tinkering and lowered it. It was positioned where it was as the tail of the FD was hitting the RD cable, but I was able to push the cable-guide down a bit to lower the RD cable closer to the chain stay. Seems to be shifting better now, at least on the stand!
I've got plumbing solder & a butane torch, so maybe I'll give it a try with a little piece of brass.
Velo Orange hubs and rims. I was kinda looking for some French hubs, but then a V-O sale came along a month or so ago, so that's what I went with.

Last edited by ehcoplex; 04-06-22 at 03:54 PM.
ehcoplex is offline
Likes For ehcoplex:
Old 04-06-22, 11:16 PM
  #5
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 1,042
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 1,090 Times in 508 Posts
Originally Posted by Velo Mule View Post
I didn't know that a Tripizer could be had for the star shaped Stronglights.
Triplizer by BF's own jonwvara. Properly designed and well made. Check it out (and buy it) here: https://www.redclovercomponents.com/..._42_Teeth.html

Or if you're handy and have some time to waste, you can make your own from a Stronglight 99 chainring, as I did here:



There are downsides, like needing hard-to-find 86 mm BCD granny rings, versus common 74 mm rings like Jon's uses. Mine only goes down to 28t, where Jon's can take a 24t. Mine takes a couple hours of your time, versus Jon's that's just a few clicks and a Visa card away..

Seriously, just buy Jon's. But if you're in love with the idea of an all-vintage-Stronglight solution that could have been pieced together in 1972, then maybe have a look at my Flickr here where I give more info, including which counterbore tool to buy. PM me with any questions not covered there, but honestly if you have to ask, you may not be up for it. You need as a minimum a good bench vise, hacksaw, drill press, files, just the right type of Stronglight 99 ring (or 99 bis, as in the photo), and a very specific counterbore that almost no one has. Lots of sawing, filing counterboring and polishing to make it look like this.

Mark B
bulgie is offline
Likes For bulgie:
Old 04-07-22, 06:10 AM
  #6
jonwvara
Senior Member

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,592

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 454 Times in 241 Posts
Originally Posted by bulgie View Post
Triplizer by BF's own jonwvara. Properly designed and well made. Check it out (and buy it) here: https://www.redclovercomponents.com/..._42_Teeth.html

Or if you're handy and have some time to waste, you can make your own from a Stronglight 99 chainring, as I did here:



There are downsides, like needing hard-to-find 86 mm BCD granny rings, versus common 74 mm rings like Jon's uses. Mine only goes down to 28t, where Jon's can take a 24t. Mine takes a couple hours of your time, versus Jon's that's just a few clicks and a Visa card away..

Seriously, just buy Jon's. But if you're in love with the idea of an all-vintage-Stronglight solution that could have been pieced together in 1972, then maybe have a look at my Flickr here where I give more info, including which counterbore tool to buy. PM me with any questions not covered there, but honestly if you have to ask, you may not be up for it. You need as a minimum a good bench vise, hacksaw, drill press, files, just the right type of Stronglight 99 ring (or 99 bis, as in the photo), and a very specific counterbore that almost no one has. Lots of sawing, filing counterboring and polishing to make it look like this.

Mark B
That is spiffy, Mark--if I had thought of that myself, I doubt that Red Clover Components would exist, since my initial modest goal was just to have one triplizer to install on the Stronglight 93 on my Raleigh Gran Sport. But once I had one of them in hand and it worked so well, it became my destiny to move on to world domination of the prodigious obsolete-BCD-triplizer market.

To the OP, how would you compare the ride on 650B wheels to that on the originbal 700s (or 27s, not sure which it would have had)?
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 04-07-22, 06:12 AM
  #7
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by bulgie View Post


Mark B
That's a thing of beauty!
ehcoplex is offline
Likes For ehcoplex:
Old 04-07-22, 06:26 AM
  #8
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by jonwvara View Post
To the OP, how would you compare the ride on 650B wheels to that on the originbal 700s (or 27s, not sure which it would have had)?
I can't really make a direct comparison. The bike had 27" out-of-true steel wheels with rotted tires when I got it. It held just enough air just long enough for a couple figure-8s in the driveway when I bought it, but the DRs where out of whack, brakes disconnected, etc, so I wasn't thinking much about how the ride felt!

From starting at 28c and ending up with 38c (biggest that will fit) on my Cannondale when I got back into cycling last year, I know from the riding I do (and my aging joints...) wider is better, so figured I'd see what all the fuss is about Hetres. TBH, I don't feel a huge difference 'cush-wise' between the 38s on my C'dale and the 42s on the PX, but I haven't yet been on any 'real' gravel with the PX and I don't have an accurate pressure guage with a Presta chuck (the other bikes all have Schrader..) and I think I've got the Hetres a little bit over-inflated. Probably 38s would've been fine for me on the PX, but that would've still required the 650B conversion to clear the fork crown, so I figured why not go for the max.
ehcoplex is offline
Old 04-07-22, 11:27 AM
  #9
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,653

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 583 Times in 419 Posts
Also noteworthy is that the original Mafac calipers were able to reach the rim on the 650B. I see that the pad is all the way at the top of the slot with the 27" steel rim and all the way a the bottom with the 65B. That's pretty good that you didn't have to change calipers. Another plus with Mafac's. Please don't let anyone outside of this forum know of this amazing ability. These are already precious.

Most 650B conversion require new calipers of one form or another.

@bulgie that Stronglight crank is mesmerizing. Nice work. Your are right though, if I had a Stronglight crank that needed a little chainring I would go to RedCloverComponents.com so I can focus on better things.

Last edited by Velo Mule; 04-07-22 at 11:34 AM.
Velo Mule is online now
Old 04-07-22, 11:36 AM
  #10
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by Velo Mule View Post
Also noteworthy is that the original Mafac calipers were able to reach the rim on the 650B. I see that the pad is all the way at the top of the slot with the 27" steel rim and all the way a the bottom with the 65B. That's pretty good that you didn't have to change calipers. Another plus with Mafac's. Please don't let anyone outside of this forum know of this amazing ability. These are already precious.

Most 650B conversion require new calipers of one form or another.
Alas, no- If you look closely you'll see those are Mafac Raids on the bike now, Racers didn't have the reach. I was on the fence about doing the conversion, but scored the Raids on eBay France for a good price.
A couple days ago a friend gave me a box of bike stuff from cleaning out an in-law's garage that had some Weinmann Vainqueur calipers, doh! If I'd had those a few weeks ago it would've saved me a little bit of $!
ehcoplex is offline
Likes For ehcoplex:
Old 04-07-22, 11:39 AM
  #11
gesta
Senior Member

Join Date: Jun 2014
Location: Finland
Posts: 57
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 47 Times in 14 Posts
Very nice pug indeed, and that deep blue color!

Mafac calipers: Racers or Raids?
edit. I was late with that question

Did you need to massage the frame in any way (= dent the chainstays) to fit those Hetres and how are the clearances?

Last edited by gesta; 04-07-22 at 11:43 AM.
gesta is offline
Old 04-07-22, 11:52 AM
  #12
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by gesta View Post
Very nice pug indeed, and that deep blue color!

Mafac calipers: Racers or Raids?

Did you need to massage the frame in any way (= dent the chainstays) to fit those Hetres and how are the clearances?
Had to go with Raids. No dimpling the chain stays- about 6mm/side clearance at the tire's widest point (with the wheel all the way back in the drop-outs). There'd still be enough clearance with the wheel moved up some, but the original little bolt-in spacers rub the chain on the smallest cog. I might play around with adding a spacer to either side of the axle so there's clearance with the spacers so I can move the wheel up, though I really don't think I would notice any difference at all ride-wise with the wheel moved up. Might help with the fender lines, though....
ehcoplex is offline
Likes For ehcoplex:
Old 04-07-22, 05:09 PM
  #13
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,136

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 806 Times in 554 Posts
You didn't like the turkey "safety" brake lever extensions?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 04-07-22, 05:42 PM
  #14
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by John E View Post
You didn't like the turkey "safety" brake lever extensions?
Ha....... no! However...... I've wondered if the tops of the lower levers got cut down when the 'safety' levers got installed. I assume 'no', because $, but... the reach on these levers seems really long with the 'safety' extensions removed. I've got pretty long fingers, so it's not a big deal. And I'm sure positioning the levers on the bars in a more 'modern' location puts them in a spot there weren't originally designed for.
ehcoplex is offline
Old 04-07-22, 05:50 PM
  #15
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,136

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 806 Times in 554 Posts
Originally Posted by ehcoplex View Post
Ha....... no! However...... I've wondered if the tops of the lower levers got cut down when the 'safety' levers got installed. I assume 'no', because $, but... the reach on these levers seems really long with the 'safety' extensions removed. I've got pretty long fingers, so it's not a big deal. And I'm sure positioning the levers on the bars in a more 'modern' location puts them in a spot there weren't originally designed for.
The long reach is why I personally avoid Mafac, Campagnolo, Modolo, and similar levers, and sacrilegiously put short-reach Shimanos on my Bianchi and on the PKN-10 while I had it, and why I like the OEM Weinmanns on my Carlton and Capos. If you indeed have hands like Sergei Rachmaninoff's, no problem ... . I can operate longer-reach levers, but I cannot confidently and firmly grab them quickly for a panic stop.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 04-07-22, 08:05 PM
  #16
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3637 Post(s)
Liked 2,070 Times in 1,314 Posts
Very cool build. Arguably still fulfilling its original purpose, but more comfortable and capable now. You could skip the fenders and bags and leave it as a go-fast bike if you wanted.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 04-12-22, 05:42 PM
  #17
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Maybe it's just because it's 'new' (to me), or just different, but the PX-10 sure does feel more fun than my Cannondale.....! Waiting for some bits from boltdepot to get the zeppelin fenders properly mounted. A bit of a shame to break the aesthetics and take the Berthets off, but the SPD pedals are much more comfortable and convenient. I've pretty much blown through my bicycle budget for '22 already, but some Retrofriction levers are on my list, as well as an appropriate pump. And at some point a taller rando bag so I can incorporate a decaleur (the Acorn on there now is kinda kludge'd on with straps & bungies).



Ugh, looking at the photo those hoods look awful! I really wish Rustines would start selling Mafac hoods again....
ehcoplex is offline
Likes For ehcoplex:
Old 04-12-22, 06:19 PM
  #18
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,913

Bikes: '18 Redline Zander, '14 Surly Pugsley, '97 GT Vantara, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 1345 Post(s)
Liked 630 Times in 475 Posts
What a great resto-mod, with a stunning result! Cheers!
hokiefyd is offline
Likes For hokiefyd:
Old 04-13-22, 04:58 AM
  #19
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 973
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 163 Times in 121 Posts
That is a beauty. Have you figured out what you want to do about the shifters? I once installed a set just below the tab by accident on my old Trek and could not get them to stay in place. They just slid down the tube over time. If I were in your shoes, I would wrap the down tube in some cotton handlebar tape to see if the shifters like that better before I would try brazing a tab on there.
__________________
Andy
beicster is offline
Likes For beicster:
Old 04-13-22, 05:20 AM
  #20
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by beicster View Post
That is a beauty. Have you figured out what you want to do about the shifters? I once installed a set just below the tab by accident on my old Trek and could not get them to stay in place. They just slid down the tube over time. If I were in your shoes, I would wrap the down tube in some cotton handlebar tape to see if the shifters like that better before I would try brazing a tab on there.
There's a rough spot where the tab was JB'd & superglued on which seems to provide enough purchase to keep the band from slipping. I'll see if that holds up for now, but I suspect it may rub off after which I'll try some tape before trying to braze or solder something on. I'm on the fence about Retrofriction down-tube shifters or some sort of bar-ends. On the one hand I'm getting (re)used to the DTs, and Retrofrictions would keep things French, but on the other hand bar-ends would make more (& possibly safer) sense for the kind of mixed-surface riding a regularly do..

Last edited by ehcoplex; 04-13-22 at 05:28 AM.
ehcoplex is offline
Likes For ehcoplex:
Old 04-18-22, 12:45 PM
  #21
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
V-O Zeppelin fenders installed. Lots (& lots, & lots......) of put-em-on, check, take-em-off, massage/adust, repeat, repeat, repeat! At the moment the rear tire has to be deflated to remove the wheel, but I think I can do something at the chain-stay bridge mount with a spring or removable rubber stopper so that the fender will move forward to get the wheel out.... Or just live with deflating. A couple little details of note (that may assist future readers....)- Old-school nut-and-bolt stay-mount at the dropouts interfered with the chain on the small sprocket, so I tapped the drop-out eyelets to take an M6 bolt. I repurposed a Mafac horizontal-to-vertical brake-mount adapter to create a mount at the seat-stay bridge. I hesitated for a couple seconds, as these adapters apparently go for $30 on eBay, but used it anyway. It required slightly boring out the mounting hole and grinding off a tiny bit of the lip on the threaded hole. The daruma that came with the fenders was too short (there seems to be a real need for longer darumas out there, but no source.....), so I cut it down a bit and added a trimmed-down coupling to create a threaded receptacle for a button-head bolt from under the fender. This series of blog posts was very helpful in the process. Only a couple rides up and down my (very rocky, rough and bumpy) driveway, but so far no rattles. Not exactly an elegantly-tight French fit with the lines, but I ride a fair bit on gravel and think the extra clearance is a good thing.





ehcoplex is offline
Old 04-18-22, 01:32 PM
  #22
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,914

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 472 Post(s)
Liked 358 Times in 215 Posts
How about a cut down wine fork for the CS bridge fender mount? Haven’t used or needed one myself, but often recommended to give just a bit of compliance for tire removal.

And if it was from a bottle of French wine, it would work even better on this pretty bike!

Last edited by Dfrost; 04-18-22 at 01:37 PM.
Dfrost is offline
Likes For Dfrost:
Old 04-18-22, 01:46 PM
  #23
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3637 Post(s)
Liked 2,070 Times in 1,314 Posts
I don't know if it's irresponsible for me to suggest this, but I cut the corners out of this VO Zeppelin and carefully filed/sanded all the edges smooth, and it hasn't cracked in several years of riding:

__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 04-18-22, 02:00 PM
  #24
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by ThermionicScott View Post
I don't know if it's irresponsible for me to suggest this, but I cut the corners out of this VO Zeppelin and carefully filed/sanded all the edges smooth, and it hasn't cracked in several years of riding:

I was very close to doing this, but decided to live with mounting with a nylon spacer and having to deflate for now. Truth is that if/when things are well dialed in I don't expect to be taking the rear wheel off/on very often, so having to pump isn't that big of a deal.
ehcoplex is offline
Likes For ehcoplex:
Old 04-18-22, 02:02 PM
  #25
ehcoplex
Senior Member
Thread Starter

Join Date: Jun 2021
Posts: 882

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, ‘7? Valgan, ’79 Holdsworth Pro, ’80 Peugeot TH-8 tandem, '87 Trek 400T, ’97 Cannondale T900, '98 Peugeot Appalaches, ‘7? Raleigh Sports, ‘7? Raleigh Superbe, ‘6? Herc

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 353 Post(s)
Liked 584 Times in 298 Posts
Originally Posted by Dfrost View Post
How about a cut down wine fork for the CS bridge fender mount? Haven’t used or needed one myself, but often recommended to give just a bit of compliance for tire removal.

And if it was from a bottle of French wine, it would work even better on this pretty bike!
I have a feeling a cork wouldn't last very long (at least not a real cork, synthetic might fare better), but it may be worth a try. Of course it may take several bottles to find just the right French cork for the job....
ehcoplex is offline
Likes For ehcoplex:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
