Short short-reach side pull brake?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Short short-reach side pull brake?

Old 04-06-22, 07:51 PM
  #1
tendency
Full Member
Thread Starter

Join Date: Jul 2008
Posts: 357
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 102 Times in 66 Posts
Short short-reach side pull brake?

Looking for a pretty short short-reach brake for a mid 80s bike that I'm running a track fork on. Dura Ace 7400-10 are just a mil or two too long. Other ideas? I suppose it doesnt have to be a vintage brake..
tendency is offline
Old 04-07-22, 05:52 AM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,976
Mentioned: 621 Post(s)
Tagged: 1 Thread(s)
Quoted: 4581 Post(s)
Likes: 0
Liked 2,747 Times in 1,729 Posts

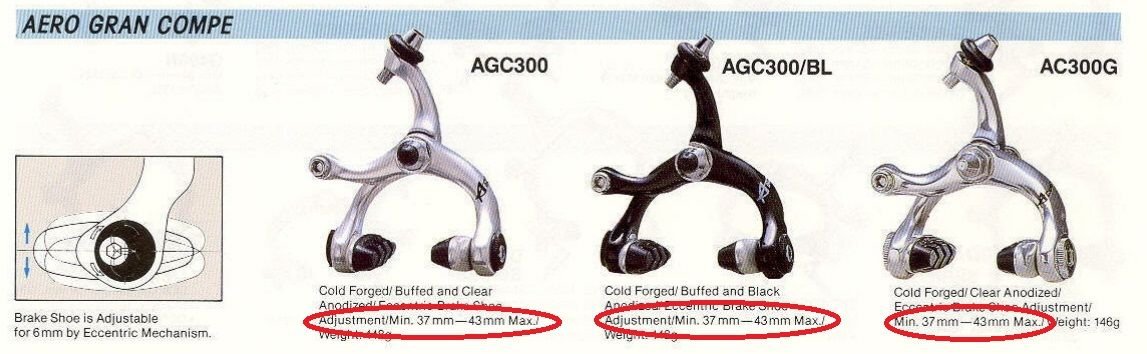

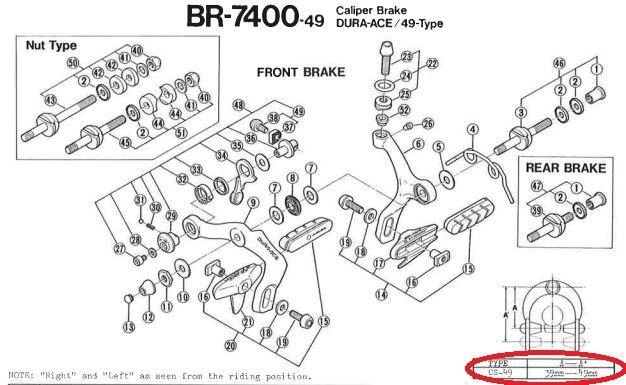

The shortest reach, era appropriate, side-pull calipers of which I'm aware, are the Dia-Compe Aero Gran Compe (the ones with the eccentric pad height adjustment). Their claimed reach range was 37-43mm. Dura-Ace 7400-49 (never heard of the -10 suffix) was a claimed 39-49mm. So, the AGC should provide the 2mm reach reduction for which you are searching.

T-Mar is offline
Likes For T-Mar:
Old 04-07-22, 06:59 AM
  #3
tendency
Full Member
Thread Starter

Join Date: Jul 2008
Posts: 357
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Liked 102 Times in 66 Posts
Nice info - thanks T-Mar!
tendency is offline
Old 04-07-22, 11:47 AM
  #4
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,204

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2208 Post(s)
Liked 2,282 Times in 1,410 Posts
These or Bdop drop pads run upside down might also be an option.

​​​​​​https://www.amazon.com/Aican-Aluminu...0788QZBTP?th=1
dedhed is offline
Old 04-07-22, 12:19 PM
  #5
reissue59
Full Member

Join Date: Dec 2014
Posts: 276
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 90 Times in 41 Posts
Try and shave the pad at an angle so it contacts the rim
reissue59 is offline
Old 04-07-22, 01:07 PM
  #6
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,726

Bikes: 86' Centurion Ironman Cannondale "track"

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 587 Post(s)
Liked 197 Times in 128 Posts
A little pricy but this is how it is done .
https://www.tracksupermarket.com/hac...no-clamps.html
__________________
"Great Googly Moogly" - Nanook
markwesti is offline
Likes For markwesti:
Old 04-07-22, 02:54 PM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,737

Bikes: Several, mostly not name brands.

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 3038 Post(s)
Liked 2,165 Times in 1,293 Posts
Universal AER calipers are similar to the Dia-Compe AGC @T-Mar mentions, with similar reach. One problem with the AGC caliper is that it uses a proprietary pad and holder; once the OEM pads wear out, you'll be hard-pressed to find replacements. The AER pad holders are similar to Modolo; not exactly common, but more so than the AGC pads, and they'll accept Modolo replacement pads or other pads that have been re-shaped to fit.
Attached Images
File Type: jpg
File Type: jpg
JohnDThompson is online now
Likes For JohnDThompson:
Old 04-07-22, 03:34 PM
  #8
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,300

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2113 Post(s)
Liked 1,510 Times in 967 Posts

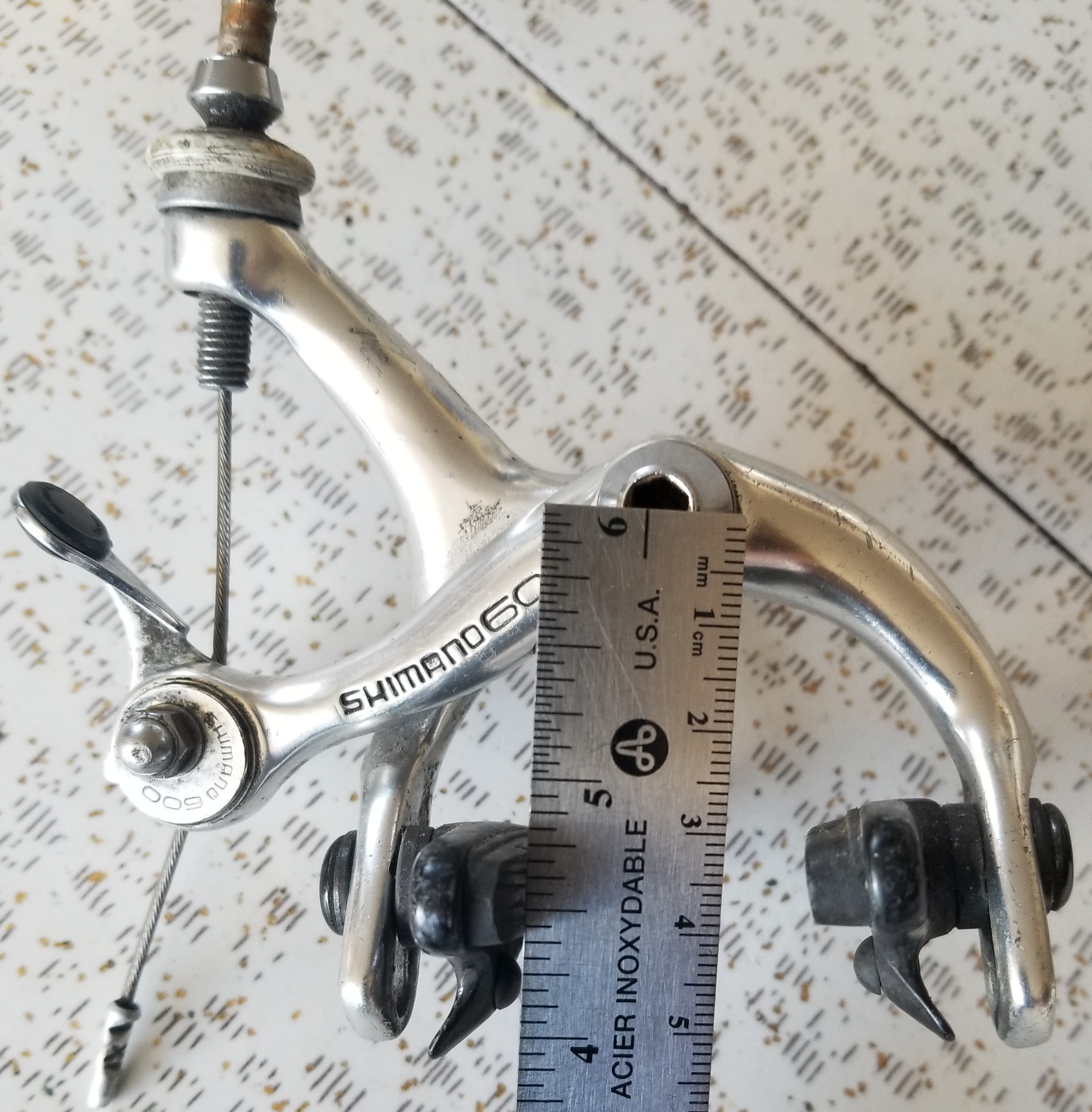

I've got a short reach 600EX 6207 that's 49-39 mm. I ran it on a Centurion track fork and it has good stopping power.

clubman is offline
Old 04-07-22, 03:36 PM
  #9
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,092

Bikes: Old school lightweights

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2556 Post(s)
Liked 3,525 Times in 1,875 Posts
Originally Posted by tendency View Post
just a mil or two too long...
Dremel tool and/or narrow pads.
SurferRosa is offline
Likes For SurferRosa:
Old 04-07-22, 05:05 PM
  #10
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,133

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 805 Times in 553 Posts
Is the Weinmann 500 too long?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 04-07-22, 09:40 PM
  #11
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,716
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 952 Post(s)
Liked 535 Times in 300 Posts
Can you file out the slot 1 or 2mm up?
Narhay is offline
Likes For Narhay:
Old 04-08-22, 05:07 AM
  #12
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
Dia-Compe AGC300/BL Black Calipers

Originally Posted by tendency View Post
Looking for a pretty short short-reach brake for a mid 80s bike that I'm running a track fork on. Dura Ace 7400-10 are just a mil or two too long. Other ideas? I suppose it doesnt have to be a vintage brake..
I have a set of Dia-Compe AGC300/BL black calipers that I'm getting ready to post in the Classic & Vintage Sales Forum - CHEAP!

PM me if interested

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Old 04-08-22, 06:53 AM
  #13
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,564

Bikes: Too many to list here check my signature.

Mentioned: 162 Post(s)
Tagged: 2 Thread(s)
Quoted: 2427 Post(s)
Liked 1,550 Times in 906 Posts
How is the clearance between the tire and the crown? What about tire and brake caliper? Don’t forget the tire will deform slightly and get a wee bit taller when you put your weight on it.
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 04-08-22, 08:47 AM
  #14
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,472
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 786 Post(s)
Liked 919 Times in 553 Posts
Sounds like the square peg for a round hole. I would get a new frame and fork that match and swap the parts to it.
Mr. 66 is online now
Old 04-08-22, 08:52 AM
  #15
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,712

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto/Raleigh

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 630 Post(s)
Liked 256 Times in 185 Posts
Originally Posted by markwesti View Post
A little pricy but this is how it is done .https://www.tracksupermarket.com/hac...no-clamps.html
BTW, thanks for that link to that website, very interesting! Bookmarked for my growing list of Bike Parts Websites.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto, 197x Raleigh Gran Sport. Susan: 1976 Windsor Profesional.

tiger1964 is offline
Likes For tiger1964:
