RASETTO Italian bike frame

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

RASETTO Italian bike frame

Old 04-07-22, 01:29 PM
  #1
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
RASETTO Italian bike frame

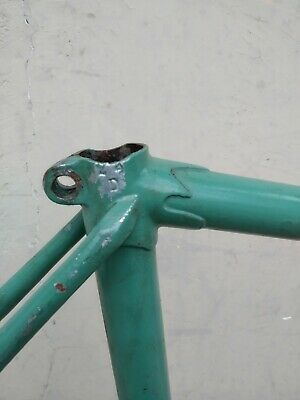

I have recently bought a Rasetto frame in Italy. I have no idea who built it and my Italian bicycle historian can't identify it either. I don't know if Cicli Rasetto is or was was a bike shop or whether Rasetto was a guy who built frames in small numbers. The head badge has been removed but there are old decals on the down-tube and the seat-tube.
From their design, I'm guessing that the frame dates from the 1940'-1950's era, but I could be completely wrong - possibly even the 1930's.
Does anyone have any information which could help me in solving this issue please ?
Kind regards,
Keith




keidal is offline
Old 04-07-22, 04:40 PM
  #2
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
I'm hoping that when I receive the frame I'll be able to identify the "town" at the bottom of the seat-tube decal. In the meantime, here are some more photographs.







keidal is offline
Old 04-07-22, 09:39 PM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,927
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 987 Post(s)
Liked 507 Times in 415 Posts
juvela is one of the go-to experts on vintage Italian frames so hope he chimes in.
At a glance I don't think this is as old as 1930s, I'd guess more like '50s or even '60s, but would (should) leave this guessing to better authorities
unworthy1 is offline
Old 04-08-22, 01:13 AM
  #4
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Thanks, the following have been suggested as the possible builder of this frame :-
Giame, Amerio, Peloso, Pela and Gios.
The frame angles to me, do look more recent than the 30's, 40's - but who knows !
keidal is offline
Old 04-08-22, 02:37 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,244

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 2,684 Times in 1,172 Posts
The town on the seat tube decal is Moncalieri, in the outskirts of Turin:

__________________
Woo hoo!









non-fixie is offline
Old 04-08-22, 07:06 AM
  #6
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Thank you, most grateful.
keidal is offline
Old 04-08-22, 08:10 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,546
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2447 Post(s)
Liked 1,375 Times in 1,034 Posts
The shown effort and seat stay tops I think could place it either side of WWII

I think before due to the plain dropouts
might have been a city bike. Are there fender mount points at the stay bridges? Under?

obviously the green paint is later.
repechage is offline
Old 04-09-22, 12:45 AM
  #8
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Thank you for your comments. There are some interesting developments on the possible [ likely ] builder of this frame, from detailed investigations being made in Italy at this time.
Hopefully at some stage within the next day or so, all will be revealed here.
keidal is offline
Old 04-09-22, 02:32 PM
  #9
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Cicli Rasetto was a bike shop in Moncalieri, Italy and that they didn't build frames - they were bought in, ready painted and only decals were applied.
It is known that approximately 3 km away in Nichelino, also near Turin there was a frame building company called Fratelli Porta [ Porta brothers ] and they were in business from the 1940's at least until the 1980's. The sports / racing frames supplied [ ? ] to Cicli Rasetto were painted green. More sedate models were black definitely in the 1940's. The brothers also had a company called G.S. Porta Limone who produced rims. They also financed a racing team.
No frames of the early period are known to have survived except perhaps one owned by Enrico Mollo.
It is thought that my frame dates from the 1940 period and would have had Magistroni, Fratelli Brivio, Ambrosio and Simplex components and we are 99% certain that it was built by Fratelli Porta.
I have located and bought a Porta brass / enamel head badge which I believe could have been removed from the frame. The red frame showing Porta lettering dates from the 1970's.
I hope that this search has been of some interest. An old Godio frame is the next to be researched !
I will post photographs to follow on.
keidal is offline
Likes For keidal:
Old 04-10-22, 02:34 AM
  #10
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts








keidal is offline
Old 04-12-22, 02:05 AM
  #11
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 494

Bikes: None in ridable condition

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 362 Times in 128 Posts

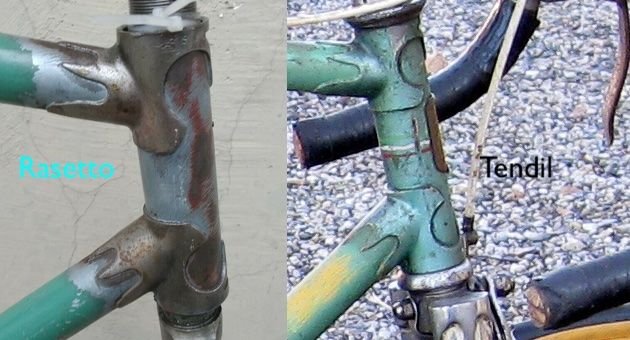

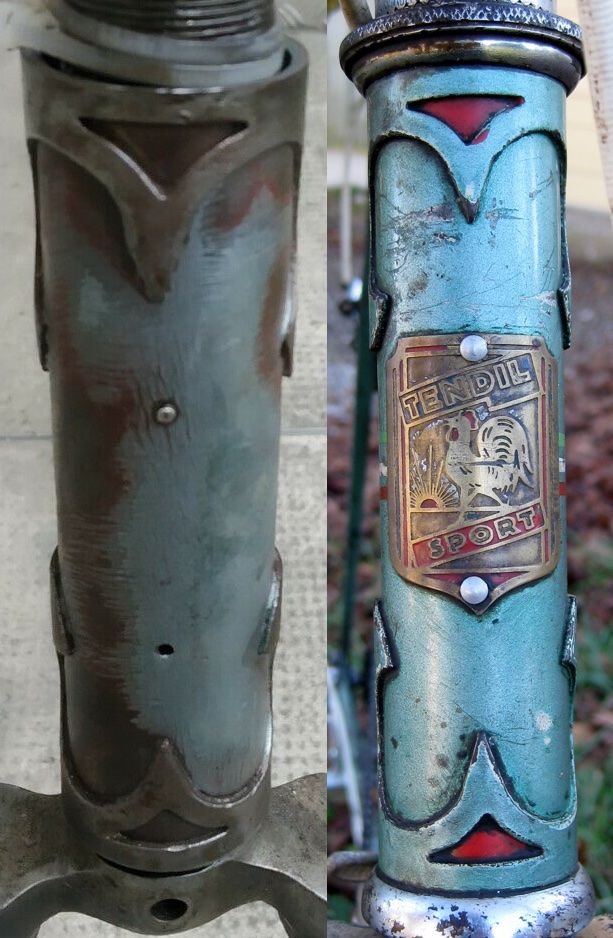

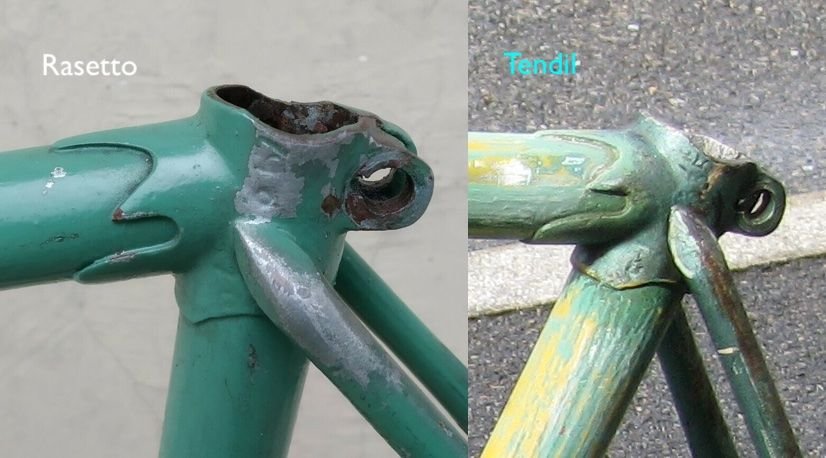

I remember seeing this bike when it was listed on eBay a while back. It's a pretty interesting looking frame. I remember the seller was guessing it was either a Giamè or a Frejus. It didn't look like either to me, but then there aren't all that many early examples of Giamè out there.


keidal - how did you settle on this being a Porta brothers built frame?

I don't remember the original listing mentioned it, but do you know what the bb threading is? Also, there are vertical head badge rivet holes - would the distance (center-to-center) between them be around 47mm?


The reason for those questions is that the frame looks repainted so it's unclear at what point the Rasetto transfers were applied. This could bring into question whether it was built specifically for Rasetto, or even whether it was made in the Turin area in the first place. Also, the fork (at least to my eye) doesn't look original.


The Porta brothers certainly built a decent number of frames but, of the several dozen examples I've seen over the years, the Rasetto doesn't look like any of them.


While using French frame bits (Simplex dropouts were common) on frames made by builders in Turin and the Piedmont lasted into the 1960s, this frame has more French stuff on it than any Italian frame I've ever seen.

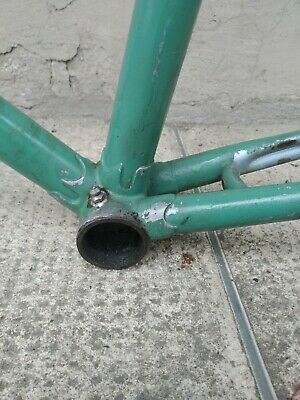

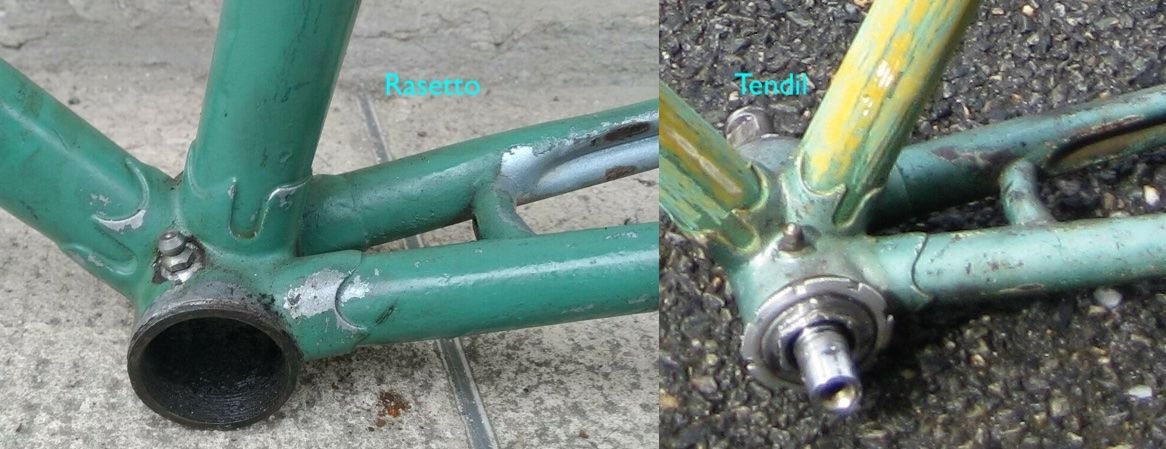

One of the pics in the original eBay listing showed the underside of the bb shell. It showed a stamp of "AC" inside a diamond with an "18" on the other side:





The AC inside the diamond is a stamp of the bb shell manufacturer - A Crozet. I have never seen an Italian made frame built with their bb shell. A fair number of French frames from 1930 and 1940s were though.


While the bb threading would be a good data point to establish, the general features of this frame look a lot like this Tendil Sport that might be their Martano Professional "Special" model (more here), which came in metalllic green:













MauriceMoss is offline
Old 04-12-22, 02:13 AM
  #12
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,244

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 2,684 Times in 1,172 Posts
OK, I'm impressed. Again.
__________________
Woo hoo!









non-fixie is offline
Likes For non-fixie:
Old 04-18-22, 08:20 AM
  #13
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Hello Maurice,
Thank you for all the research that you've done and all the information that you've kindly given to me. It is very much appreciated.
I have not received the frame, it is not yet in the UK apparently, even thoigh it was exported on 9 April..
All the details do suggest that the frame is of French origin. When the frame arrives, I will check the bottom bracket shell width - if it's French it will be 68 mm and the threads will be 35.mm. The steerer tube internal diameter should be 22 mm.
If these dimensions are correct it seems as if it is an elderly Tendil frame.
As soon as I receive the frame, I'll let you know the results.
In the meantime, very many thanks once again !
Kind regards,
Keith
keidal is offline
Old 05-02-22, 01:24 PM
  #14
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Hello, I can't continue with this, because the frame, "allegedly" exported on 9 April, has not arrived in the UK. Well done Poste Italiene !
keidal is offline
Old 05-02-22, 01:36 PM
  #15
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,244

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 2,684 Times in 1,172 Posts
Sorry to hear that. If it's any consolation, it has happened to me a few times, and in all cases the goods did show up eventually. In most cases I never found out what the problem had been.

Let's hope the frame will show up someday.
__________________
Woo hoo!









non-fixie is offline
Old 05-02-22, 01:51 PM
  #16
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,019

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Originally Posted by keidal View Post
Hello, I can't continue with this, because the frame, "allegedly" exported on 9 April, has not arrived in the UK. Well done Poste Italiene !
I wouldn't worry too much -- you have to resign yourself to waiting, sort of like sitting in traffic. "There is nothing I can do to make this go faster." Everything is taking longer to ship these days.
noobinsf is offline
Old 05-03-22, 12:21 AM
  #17
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
A parcel shipped two days later by Posre Italiene was delivered [as usual] six days later. Parcel Force used their own tracking devices a few days ago and the parcel was last recorded to be in a container at a depot in Italy. Another tracking site found the parcel to be at a "central hub" in Italy on the 23 April.
Poste Italiene told the sender two weeks ago that the parcel would be delivered the following day !
According to P I's tracking service, their Agent is PTT, ie the Turkish Postal Service !

Last edited by keidal; 05-03-22 at 12:23 AM. Reason: more information added
keidal is offline
Old 07-04-22, 05:05 AM
  #18
keidal
Full Member
Thread Starter

Join Date: Apr 2010
Posts: 319
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
After almost three months, the seller / Paypal have refunded my money in full. The frame disappeared in transit apparently - it never arrived in the UK from Italy.
keidal is offline
Old 07-04-22, 09:34 AM
  #19
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,352
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Liked 831 Times in 506 Posts
Oh that hurts, I'm glad you able to get your funds returned.
Mr. 66 is offline
Old 07-04-22, 11:39 AM
  #20
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,244

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 2,684 Times in 1,172 Posts
Ouch! Sorry to hear that.
__________________
Woo hoo!









non-fixie is offline
Old 07-04-22, 12:36 PM
  #21
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,325
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2494 Post(s)
Liked 2,198 Times in 916 Posts
Originally Posted by keidal View Post
After almost three months, the seller / Paypal have refunded my money in full. The frame disappeared in transit apparently - it never arrived in the UK from Italy.
My last purchase from Italy has been stuck at the Milano post office since 5 May. I hope it comes, I'd rather have the item than the money. I rolled the dice again on Saturday. We'll see if that one gets here.
iab is offline
