Cue the Miami Vice theme song, Centurion time

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cue the Miami Vice theme song, Centurion time

Old 04-13-22, 06:45 AM
  #1
Podagrower
Senior Member
Thread Starter

Podagrower's Avatar

Join Date: Nov 2012
Location: Central Florida
Posts: 678

Bikes: Giant Defy Composite, Spechialized Ruby (hers), Niner RLT9, Miyata 712, Condor ??

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 31 Times in 19 Posts
Cue the Miami Vice theme song, Centurion time

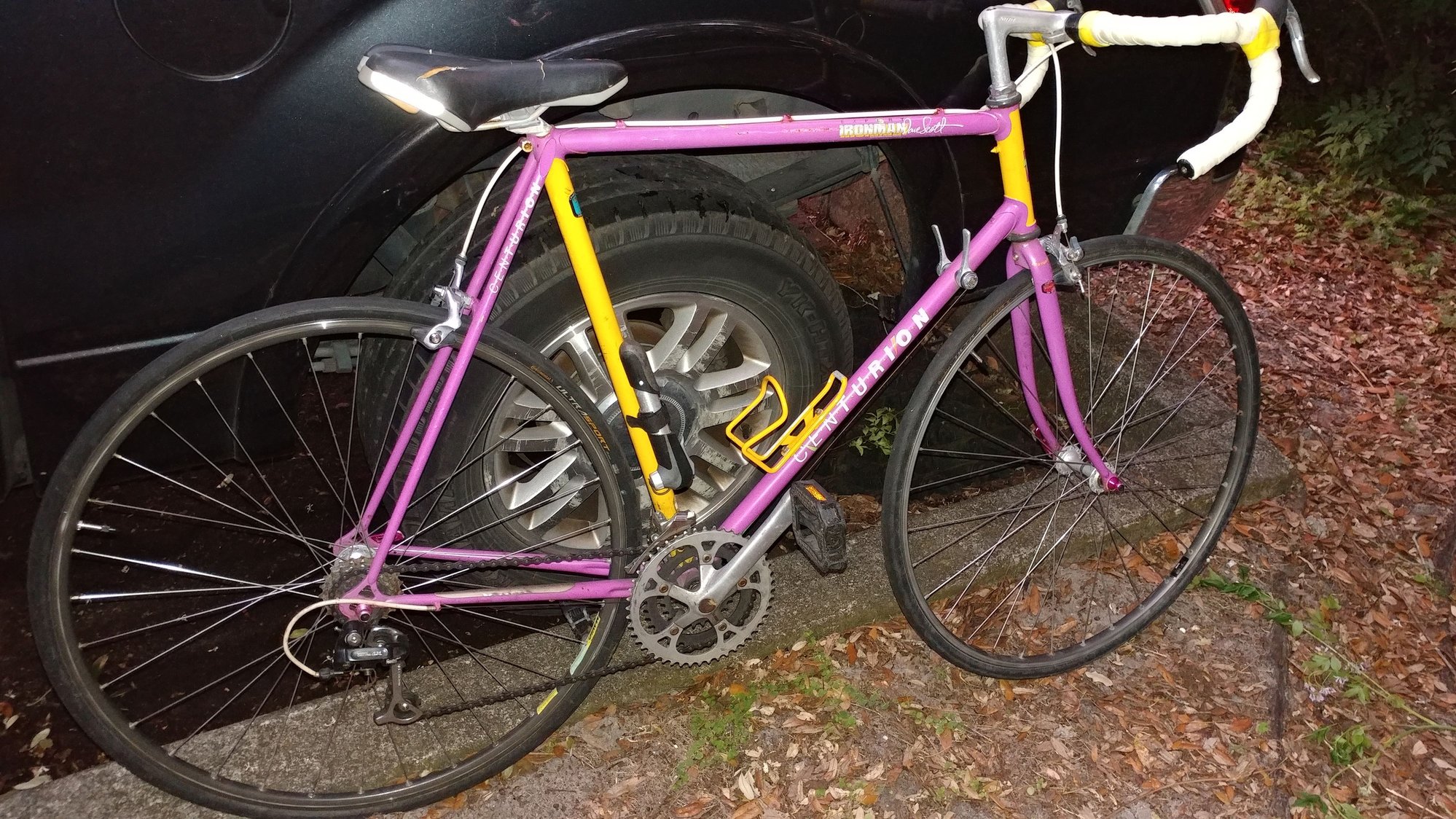

Needs some love, for sure. There's a little bit of surface rust where the cable holders are on the top tube. The saddle, bar tape, hoods, cables, chain (I assume), brake pads will all need to be changed. The Deore rear derailleur is a crime against cycling. And the back wheel does not turn well at all (feels like bearing cups are too tight). And I wasn't looking for a bike. But when a piece of 80's nostalgia that is the right size pops up for $50, it's a crime not to buy it.
Podagrower is offline
Old 04-13-22, 06:52 AM
  #2
daverup
Senior Member

daverup's Avatar

Join Date: Jun 2019
Location: Michigan USA
Posts: 569

Bikes: A bunch of old bikes.

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 403 Times in 213 Posts
I hope that slammed seatpost isn't stuck.
Definitely worth that price anyway.
daverup is offline
Old 04-13-22, 07:34 AM
  #3
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: Stillwater, OK
Posts: 7,852
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1740 Post(s)
Liked 533 Times in 368 Posts
That seatpost is definitely stuck. Good score though!
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Likes For shoota:
Old 04-13-22, 08:00 AM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,978
Mentioned: 621 Post(s)
Tagged: 1 Thread(s)
Quoted: 4583 Post(s)
Likes: 0
Liked 2,747 Times in 1,729 Posts
Originally Posted by shoota View Post
That seatpost is definitely stuck. Good score though!
+1. When the cinch bolt is missing from the seat lug, you're guarranteed to have a real fight on your hands.
T-Mar is offline
Likes For T-Mar:
Old 04-13-22, 08:14 AM
  #5
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,887
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 3427 Post(s)
Liked 2,174 Times in 1,285 Posts
Even if it is irreversibly stuck, there's gotta be $50 worth of parts hanging on that frame.
himespau is offline
Old 04-13-22, 08:19 AM
  #6
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3636 Post(s)
Liked 2,070 Times in 1,314 Posts
The Deore RD was no doubt needed to make the triple work. Good luck with the refurb!
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Likes For ThermionicScott:
Old 04-13-22, 09:05 AM
  #7
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,526

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 898 Times in 562 Posts
Paint looks great. The 87 Miami Vice is a very fine rider as originally equipped but it might be fun to get that triple working. There is a 650B conversion on the IM thread.

As already mentioned, get that seat post soaking in everything you got ASAP.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 04-13-22, 05:12 PM
  #8
bamboobike4
Banned.

Join Date: Jan 2022
Posts: 1,072
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 557 Times in 328 Posts
Lotta people like those.
Get the seat post out and you're in high cotton.
bamboobike4 is offline
Likes For bamboobike4:
Old 04-13-22, 07:09 PM
  #9
Aerzon
Senior Member

Aerzon's Avatar

Join Date: Sep 2019
Location: Minnesota
Posts: 59

Bikes: Raleigh Mojave 4.0, Panasonic DX1000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 9 Times in 6 Posts
The paint scheme on these is always so good. Youch, that Rear Derailleur and those Plastic Flat Pedals though.
Aerzon is offline
Old 04-13-22, 07:46 PM
  #10
markwesti
Senior Member

markwesti's Avatar

Join Date: Jul 2015
Location: Seal Beach Ca. On the right , next to Long Beach
Posts: 1,727

Bikes: 86' Centurion Ironman Cannondale "track"

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 587 Post(s)
Liked 199 Times in 128 Posts
Don't drink the Kool Aid .
Post your Centurion Ironman.. For the love of 80s paint jobs!
__________________
"Great Googly Moogly" - Nanook
markwesti is offline
Old 04-13-22, 08:26 PM
  #11
Clang
Senior Member

Join Date: Nov 2013
Location: South of the Twin Cities, MN
Posts: 5,089
Mentioned: 24 Post(s)
Tagged: 1 Thread(s)
Quoted: 972 Post(s)
Liked 1,157 Times in 804 Posts
There's nothing wrong with an LX RD other than it's a mtb component. I guess it's anachronistic given that the black LX stuff first appeared in '93.
Clang is offline
Likes For Clang:
Old 04-14-22, 03:22 AM
  #12
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
Stuck IM Seatpost

Podagrower You have some work cut out removing that seatpost.

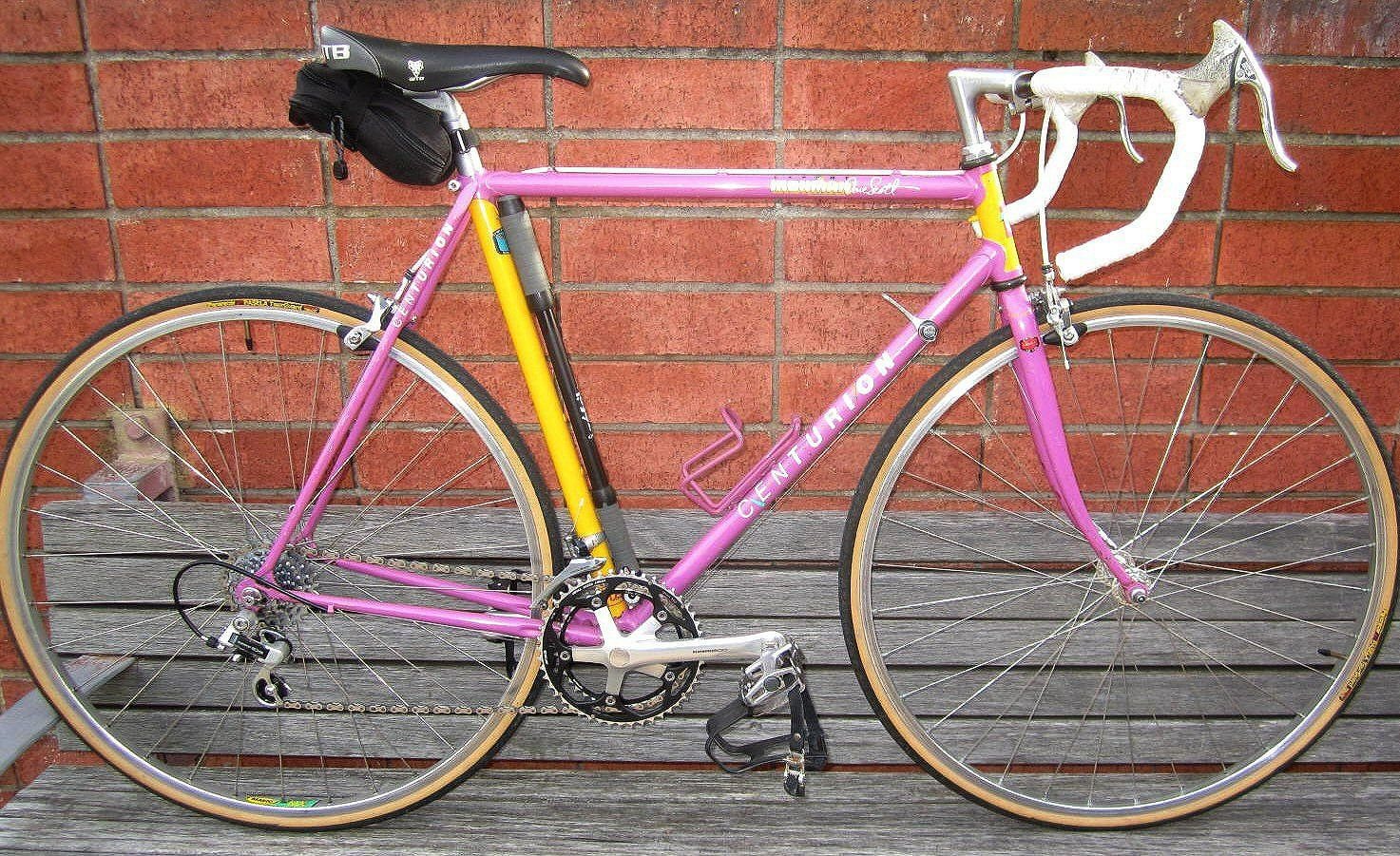

I too got my IM for $50 bucks but sans wheels and saddle. I bought several bikes, frames and other stuff the the seller that day and it was an out the door parting shot... "Hey take this one for $50 bucks". I'd been beaten down already and didn't check it out for a few days.



On closer examination it had literally been rode hard and put away wet by some SoCal triathlon moron! One afternoon I dug into the seatpost. It was permanently stuck. Surgery was the only answer. Took well over 3 hours to get the job done.

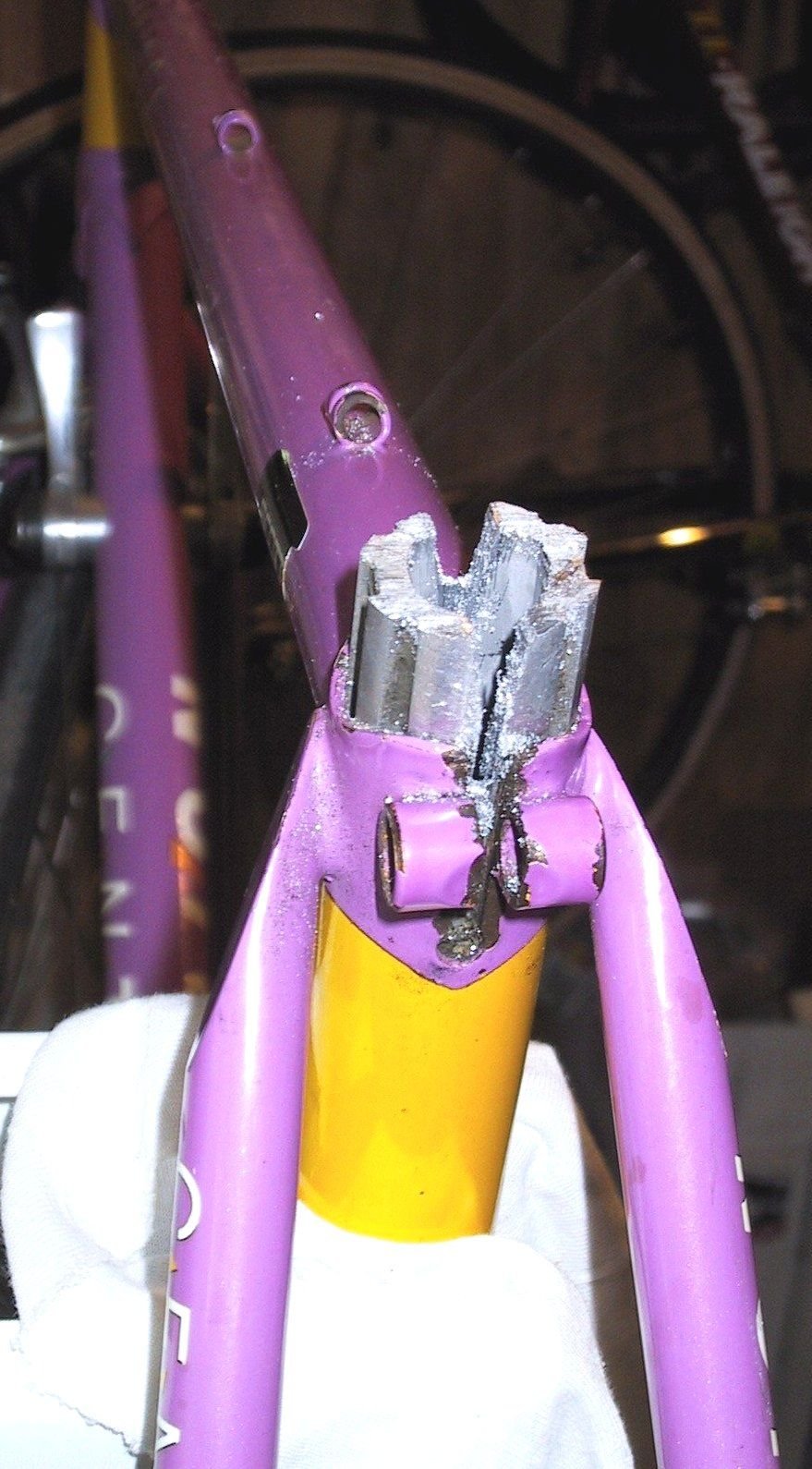

First step, bob the top off. The cast seatpost was almost 1/4" thick in places.

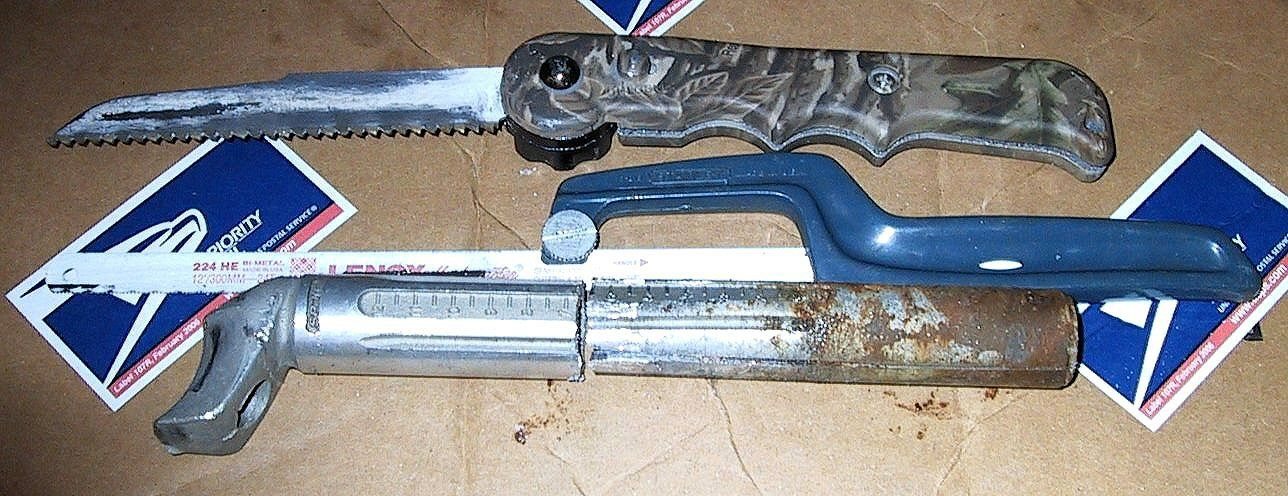

I used a thin hack saw blade jab saw to get the cut started followed with a folding pocket buck saw.

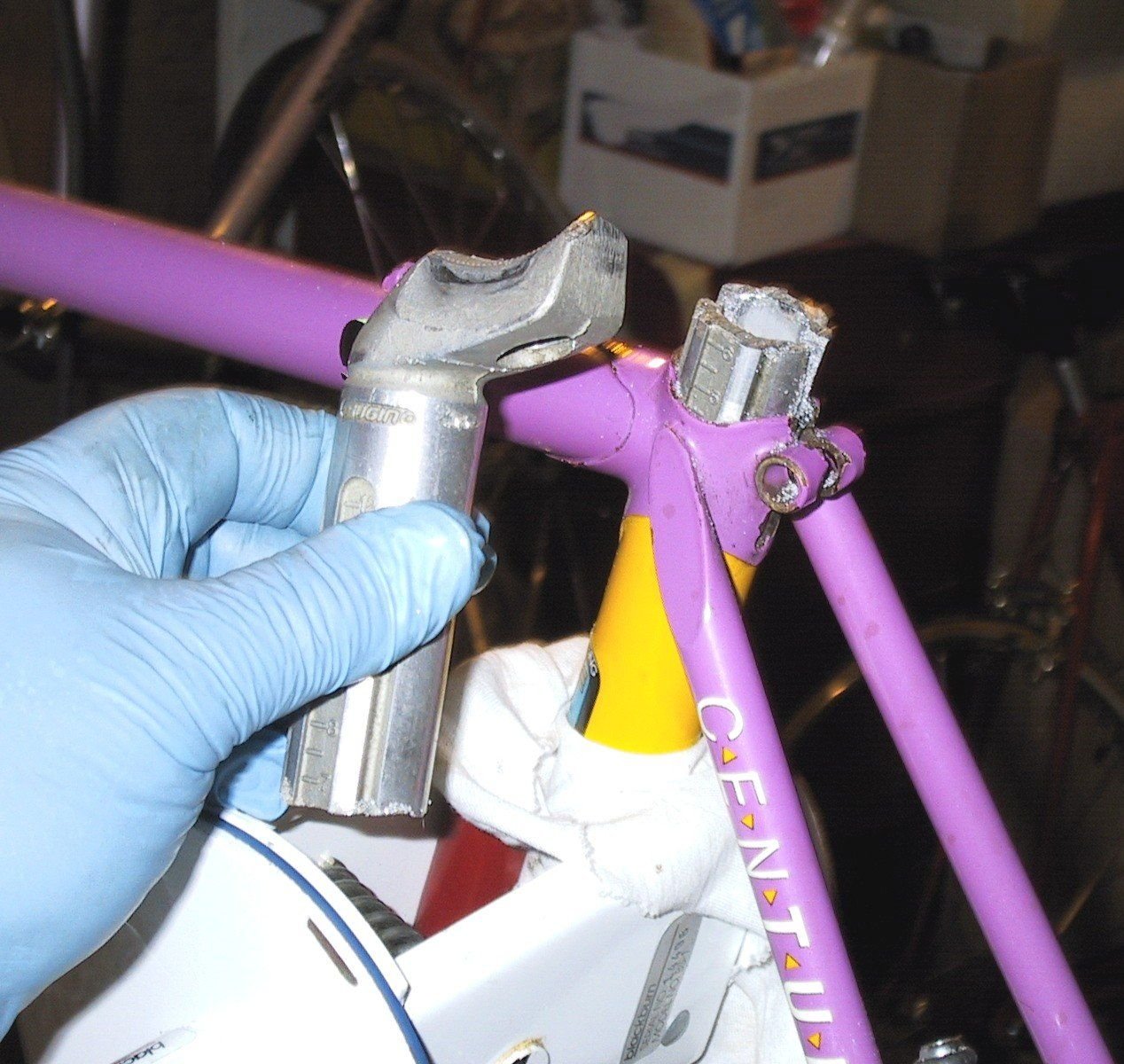

When I finally cut through to the bottom of the seatpost, I had to use a pair of 20" Channel Lock pliers to collapse it enough to separate the aluminum/steel corrosion. Note the corrosion at the bottom of the post.




I was careful not to cut into the seat tube. When I started to ream out the tube I realized that the bike had a double butted Tange 1 seat tube with a 0.9mm x 0.6mm x 0.9mm wall thickness. To clean up the rust inside the seat tube, I had to ream it out to 0.6mm at the top so it now takes a 27.2 seatpost.

I sold the radar array tri bars for $50 bucks so I sorta broke even...

The real reason I wanted the bike was to offend the sensibilities of the purists who rode around Woodside, Palo Alto and Los Altos, CA area. The Miami Vice pink and yellow was just so over the top!

Aside from the initial investment plus elbow grease, I have less than $225 in the bike (I like good wheels so that was half of it)



I don't know who the genius was who spec'd out the deeply fluted Sugino seatpost for a bike intended to be used by wet riders but what were they thinking?



Clang "There's nothing wrong with an LX RD other than it's a mtb component. I guess it's anachronistic given that the black LX stuff first appeared in '93"...

There's little or no functional difference between most MTB and road components. I have LX RDs on several of my road bikes set up as triples. I like the steel pulley cages because they're stiffer than the alloy ones used on most top end long arm RDs.



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 04-14-22 at 03:27 AM.
verktyg is offline
Likes For verktyg:
Old 04-14-22, 08:43 AM
  #13
bamboobike4
Banned.

Join Date: Jan 2022
Posts: 1,072
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 557 Times in 328 Posts
Originally Posted by verktyg View Post
The real reason I wanted the bike was to offend the sensibilities of the purists who rode around Woodside, Palo Alto and Los Altos, CA area.
The Miami Vice pink and yellow was just so over the top!
verktyg
LOL. BTDT.

Metric Century ride, my MV IM was sporting Vento's with the fuscia decals.
At a rest stop, leaned it up against a table and sat a bit off.
A group gathered, all female, liked the bike. "Pretty bike."
Their carbon cowboyfriends, not so much. "Steel. Probably heavy."

We passed them about 2 miles out. I had to say it.
"Pretty bikes, guys. Carbon. Probably really light?"
"Yeah."
"I get it, but check back in 30 years."

Last edited by bamboobike4; 04-14-22 at 08:47 AM.
bamboobike4 is offline
Likes For bamboobike4:
Old 04-14-22, 08:45 AM
  #14
bamboobike4
Banned.

Join Date: Jan 2022
Posts: 1,072
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 557 Times in 328 Posts
Originally Posted by verktyg View Post
I don't know who the genius was who spec'd out the deeply fluted Sugino seatpost for a bike intended to be used by wet riders....

but what were they thinking?


verktyg
Probably the same person who convinced Dave to wear a pornstar mustache and a pink and white lei....
bamboobike4 is offline
Likes For bamboobike4:
Old 04-14-22, 04:02 PM
  #15
mtbikerjohn
Full Member

mtbikerjohn's Avatar

Join Date: Aug 2007
Location: near Detroit
Posts: 225

Bikes: a few..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 69 Times in 43 Posts
^^^^ Knowledge keeper!
mtbikerjohn is offline
Old 04-14-22, 04:08 PM
  #16
mtbikerjohn
Full Member

mtbikerjohn's Avatar

Join Date: Aug 2007
Location: near Detroit
Posts: 225

Bikes: a few..

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 69 Times in 43 Posts
Originally Posted by verktyg View Post
Podagrower You have some work cut out removing that seatpost.

I too got my IM for $50 bucks but sans wheels and saddle. I bought several bikes, frames and other stuff the the seller that day and it was an out the door parting shot... "Hey take this one for $50 bucks". I'd been beaten down already and didn't check it out for a few days.



On closer examination it had literally been rode hard and put away wet by some SoCal triathlon moron! One afternoon I dug into the seatpost. It was permanently stuck. Surgery was the only answer. Took well over 3 hours to get the job done.

First step, bob the top off. The cast seatpost was almost 1/4" thick in places.



I used a thin hack saw blade jab saw to get the cut started followed with a folding pocket buck saw.



When I finally cut through to the bottom of the seatpost, I had to use a pair of 20" Channel Lock pliers to collapse it enough to separate the aluminum/steel corrosion. Note the corrosion at the bottom of the post.




I was careful not to cut into the seat tube. When I started to ream out the tube I realized that the bike had a double butted Tange 1 seat tube with a 0.9mm x 0.6mm x 0.9mm wall thickness. To clean up the rust inside the seat tube, I had to ream it out to 0.6mm at the top so it now takes a 27.2 seatpost.

I sold the radar array tri bars for $50 bucks so I sorta broke even...

The real reason I wanted the bike was to offend the sensibilities of the purists who rode around Woodside, Palo Alto and Los Altos, CA area. The Miami Vice pink and yellow was just so over the top!

Aside from the initial investment plus elbow grease, I have less than $225 in the bike (I like good wheels so that was half of it)



I don't know who the genius was who spec'd out the deeply fluted Sugino seatpost for a bike intended to be used by wet riders but what were they thinking?



Clang "There's nothing wrong with an LX RD other than it's a mtb component. I guess it's anachronistic given that the black LX stuff first appeared in '93"...

There's little or no functional difference between most MTB and road components. I have LX RDs on several of my road bikes set up as triples. I like the steel pulley cages because they're stiffer than the alloy ones used on most top end long arm RDs.



verktyg
t...I love the knowledge of this forum , thank you,@ vertktyg...
mtbikerjohn is offline
Old 05-11-22, 07:03 AM
  #17
Podagrower
Senior Member
Thread Starter

Podagrower's Avatar

Join Date: Nov 2012
Location: Central Florida
Posts: 678

Bikes: Giant Defy Composite, Spechialized Ruby (hers), Niner RLT9, Miyata 712, Condor ??

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 31 Times in 19 Posts
So, I've made a little progress. I decided it would be less obvious to my beautiful and understanding wife if a frame and parts showed up in the garage instead of a whole bike (I wasn't wrong and fortunately we haven't reached S-1 quantity yet). At some point, somebody loved this bike, the rear wheel is a replacement, both derailleurs are replacements, crankset has been changed to a triple. But then it got rode hard and put away wet, the bar tape is actually yellow that has sun faded to white, the cables are trash, the seatpost is stuck (to the surprise of nobody).

And the chain; the chain was in good shape wear wise, but not installed correctly, they used this pin to close the chain but didn't push it in all the way. It took me about 30 seconds to break the chain apart by hand. And when I was trying to figure out what the rear hub actually is I thought it would be easiest to take off the cassette and measure the spacer. It's 600 tri color so it could be 6, 7 or 8 speed, it had a 7 speed cassette (so the shifter was being used in friction mode). But the spacer is 3.2mm which isn't right for any of the options. The good? news is that the rear wheel replacement is a Shimano FH 6402 (600 tri color 8 speed). So that is going to be the build direction, slightly period incorrect 600 tri color for everything except the crankset. The crankset will be a 600 Arabesque unit I already have.
Podagrower is offline
Likes For Podagrower:
Old 05-11-22, 07:24 AM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,775
Mentioned: 117 Post(s)
Tagged: 0 Thread(s)
Quoted: 2530 Post(s)
Liked 1,455 Times in 1,097 Posts
That post is so low that I would determine the extent of deformation and if so, open it up so the slot is straight and not tapered in, maybe a touch open beyond.

the surgery can work, I am always reluctant to cut it off as that only leaves you the "bonesaw" option.

I would be tempted to remove the bottom bracket invert the frame and add Kroil, the oil that creeps after you assess the lug ears.
repechage is offline
Old 05-11-22, 07:42 AM
  #19
bamboobike4
Banned.

Join Date: Jan 2022
Posts: 1,072
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 557 Times in 328 Posts
Originally Posted by Podagrower View Post
I decided it would be less obvious to my beautiful and understanding wife if a frame and parts showed up in the garage instead of a whole bike..
I thought that worked, too. Ask my ex.

Originally Posted by Clang View Post
anachronistic
They said there wouldn't be any math.

Last edited by bamboobike4; 05-11-22 at 09:46 AM.
bamboobike4 is offline
Old 05-12-22, 03:43 AM
  #20
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 1,005
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 140 Times in 86 Posts
ATF (Automatic Transmission Fluid) and Acetone in a 50/50 mix works well if you don't have Kroil.
Easy to make, & works well ( I used it on a stem)
OTS is offline
Old 05-12-22, 06:48 AM
  #21
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,366
Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 2515 Post(s)
Liked 1,565 Times in 1,012 Posts
Originally Posted by OTS View Post
ATF (Automatic Transmission Fluid) and Acetone in a 50/50 mix works well if you don't have Kroil.
Easy to make, & works well ( I used it on a stem)
If you can't find any Kroil, You can use a Krull Glaive. Those things are magical! It will quickly shred that seatpost and the bike will become a Fire Mare.


seypat is offline
Likes For seypat:
Old 06-06-22, 12:26 PM
  #22
Podagrower
Senior Member
Thread Starter

Podagrower's Avatar

Join Date: Nov 2012
Location: Central Florida
Posts: 678

Bikes: Giant Defy Composite, Spechialized Ruby (hers), Niner RLT9, Miyata 712, Condor ??

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 31 Times in 19 Posts
Short update. The seatpost has left the conversation! All it took was: Beating the crap out of the saddle with a rubber mallet and hammer, zero effect. Hosing the seatpost with WD 40, zero effect. Filling the seat tube upside down with ATF, zero effect. Trying to twist the frame while standing on the saddle, zero effect. I really had high hopes for the ATF and maybe I should have let it set longer than 1 day. But in the end, it was the big a$$ pipe wrench and the frame laying on it's side, a good shoulder workout. There was no sign of either the WD 40 or ATF on the seatpost when it came out.

So now, we are ready to clean and rebuild. Does anybody have a color match for these colors? There's a couple of dings and rust spots I'd like to touch up.

And I was able to solve one of the mysteries about the bike. Did somebody love this bike enough to put on the triple cranks and the 7 speed rear wheel (600 hub, Mavic rim, shifter set to friction) to keep riding or were they just slapping parts on it to keep it rolling? Pulling the cranks gave me the answer, the DS is Suntour, NDS is Shimano.
Podagrower is offline
Old 06-06-22, 01:55 PM
  #23
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,098
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 2059 Post(s)
Liked 1,164 Times in 850 Posts
Originally Posted by Podagrower View Post
But in the end, it was the big a$$ pipe wrench and the frame laying on it's side, a good shoulder workout.
Gotta try this on an old $10 Tempo frame I've been neglecting/ignoring....

So now, we are ready to clean and rebuild. Does anybody have a color match for these colors? There's a couple of dings and rust spots I'd like to touch up.
Sorry, mine's the tame red/white '86, but I love the above-mentioned idea of rocking an MV just to p!$$ off the black-carbon and old-gray-mare crowds. My wife was an artist, and could have matched both colors with the right drops of Testors, just by looking at them.

And I was able to solve one of the mysteries about the bike. Did somebody love this bike enough to put on the triple cranks and the 7 speed rear wheel (600 hub, Mavic rim, shifter set to friction) to keep riding or were they just slapping parts on it to keep it rolling? Pulling the cranks gave me the answer, the DS is Suntour, NDS is Shimano.
If Johnny Cash built a bike.....
madpogue is online now
Old 06-06-22, 02:06 PM
  #24
DMC707
Senior Member

DMC707's Avatar

Join Date: Jan 2013
Location: Norman, Oklahoma
Posts: 5,145

Bikes: Too many to list

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Liked 962 Times in 646 Posts
Originally Posted by Podagrower View Post

And I was able to solve one of the mysteries about the bike. Did somebody love this bike enough to put on the triple cranks and the 7 speed rear wheel (600 hub, Mavic rim, shifter set to friction) to keep riding or were they just slapping parts on it to keep it rolling? Pulling the cranks gave me the answer, the DS is Suntour, NDS is Shimano.

The triple couldve been on purpose -- but i once boogered up a Campy NDS crankarm so bad i had to use a Shimano replacement as it was all i had on hand the night before a race. - It stayed that way until the bike was retired from active duty a year or so later, --- so stuff like that happens
DMC707 is offline
Old 06-06-22, 02:19 PM
  #25
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,526

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1372 Post(s)
Liked 898 Times in 562 Posts
Testors yellow works well. I tried mixing some different "magenta" hued nail polishes to get kinda close. My wife used one of em on her nails last night. My daughter has another one with her in N.Y.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
