Could my rear spacing have been reduced?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Could my rear spacing have been reduced?

Old 04-13-22, 10:26 PM
  #1
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
Could my rear spacing have been reduced?

This frame has been patiently waiting for a while now. During the pandemic I assembled the components I needed, basically a 10sp campy groupset and a basic Miche wheelset. The bike was stored the way it had been previously built, i.e. as a fixie with a formula hub in the rear. Somehow I assumed the rearspacing was either 126 or (if lucky) 130. I do not know the exact year of the frame. Well I should have measured it earlier. The digital caliper is firm: 120mm in the rear. I believe this actually matches the measure for track hubs, so in a way it sort of makes sense, but I'm still confused. Could this measure indicate that the frame has already been cold set to actually match the track hub? Or could it simply be that the nuts holding the previous hub in place applied pressure in such a way that it "naturally" cold set the frame over the course of time?

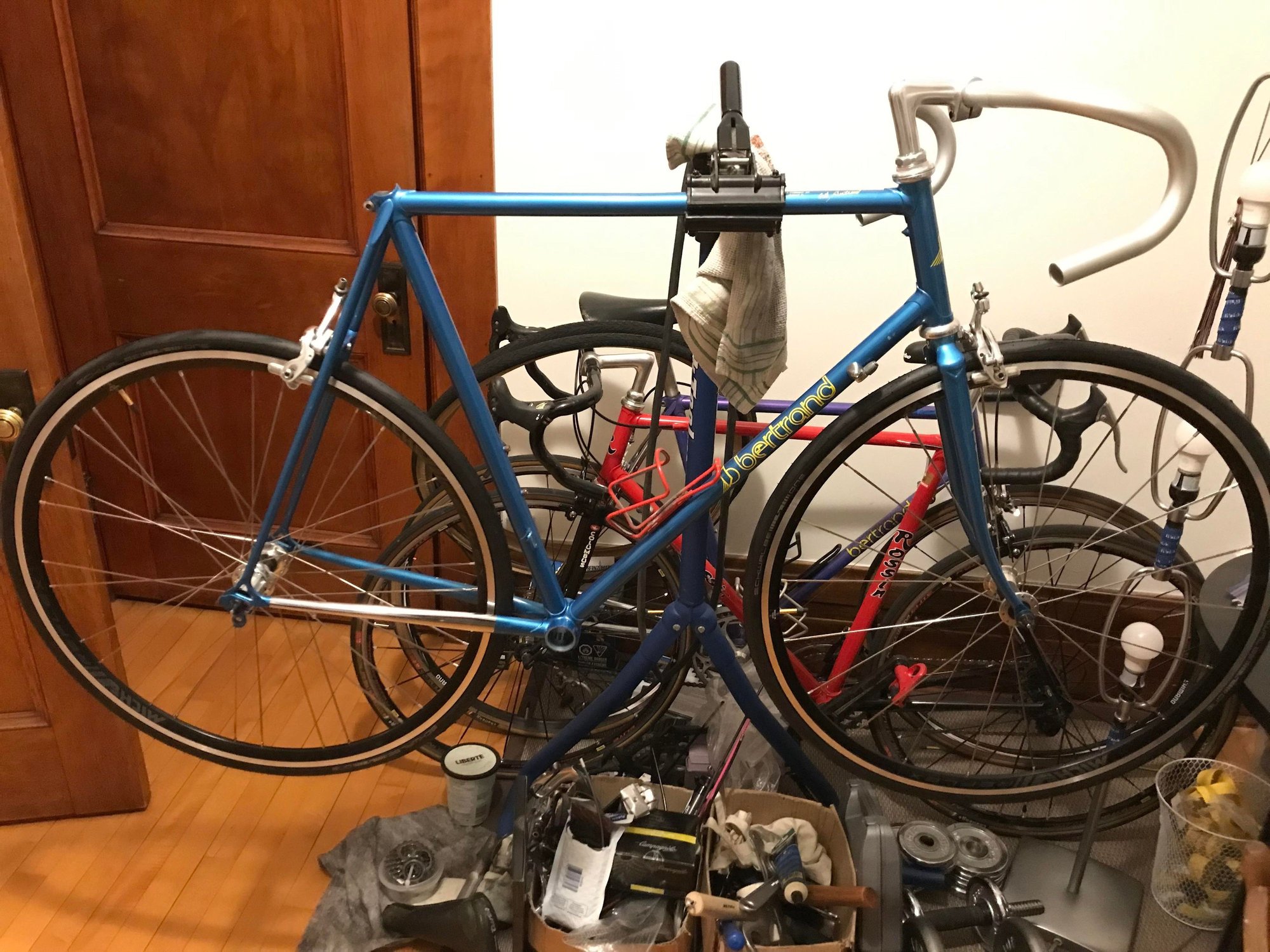

Here is a picture with the new wheels on, but I'm guessing that this amount of pressure on a modern hub is no good. Should I then cold set it, at least to 126? Advice is most welcome.

Oh and for those who worry, the frame is not actually clamped that way.
jonny7 is offline
Old 04-14-22, 12:18 AM
  #2
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,543

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23296 Post(s)
Liked 6,715 Times in 4,806 Posts
Could this measure indicate that the frame has already been cold set to actually match the track hub?
...that's the most likely scenario. If the frame is old enough to go back to the days of 5 speed freewheels, it could have been 120mm spacing originally. But none of the frame details look that old (fork crown, bottle braze-ons, braze on for front derailleur, etc.)

Or could it simply be that the nuts holding the previous hub in place applied pressure in such a way that it "naturally" cold set the frame over the course of time?
...it doesn't work that way. You can keep a hub clamped in the rear forever, and it won't reset the spacing.

I wouldn't worry too much about the pressure on the hub from the dropouts. You get that much pressure or more from a skewer. But the misalignment of the dropout faces will make your rear axle more prone to bending or breakage. And it will often be less firmly fixed in the dropouts because of this misalignment. So yes, your preferred alternative is to measure the distance between the locknut faces, and cold set your frame to this new standard. You need to be careful to do it in such a way that each dropout ends up equidistant from the centerline plane of the frame.

The final step is to realign the dropouts so they are parallel at this new spacing. There are threads on here with advice on how to do this, and some of them have photos.
__________________
3alarmer is offline
Likes For 3alarmer:
Old 04-14-22, 01:04 AM
  #3
Fredo76
The Wheezing Geezer

Fredo76's Avatar

Join Date: Oct 2021
Location: Española, NM
Posts: 274

Bikes: 1976 Fredo Speciale, Jamis Citizen 1, Ellis-Briggs FAVORI, Rivendell Clem Smith Jr.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 209 Times in 107 Posts
120 mm was standard 5-speed road spacing for a couple decades before 6-speeds and 126 mm came along. It was more likely built to 120 mm, I would think.
Fredo76 is offline
Old 04-14-22, 05:39 AM
  #4
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,610

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2327 Post(s)
Liked 3,026 Times in 1,643 Posts
An original '80s road bike with brazed fd and 120mm rear spacing seems crazae.
SurferRosa is online now
Old 04-14-22, 05:43 AM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,747
Mentioned: 604 Post(s)
Tagged: 1 Thread(s)
Quoted: 4484 Post(s)
Likes: 0
Liked 2,558 Times in 1,621 Posts
I agree with 3alarmer, this was almost certainly cold set to 120mm by the previous owner. The combination of frame features, such as short non-Portacatena dropouts. recessed brake mounting, front derailleur hanger, dual bottle bosses, pump peg and cable routing under the BB shell, suggests no early than mid-1980s, by which time 126mm would have been standard at this level. The only feature that I'm not seeing, are top tube tunnels or ports for the rear brake. I guess they could be hidden on the non-drive side but Bertrand typically mounted brake ports on the top side of the tube.

The other thing to consider is that Bertrand wasn't even building frames until the 1980s. I guess it could be a something other than a Bertrand, but with the exception of the previously mentioned brake routing, it looks legitimate to me.

I'd be cold setting and aligning to 130mm, for the proposed wheelset.

Last edited by T-Mar; 04-14-22 at 05:46 AM.
T-Mar is offline
Likes For T-Mar:
Old 04-14-22, 08:00 AM
  #6
jonny7
Senior Member
Thread Starter

Join Date: Oct 2018
Posts: 380

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 65 Times in 50 Posts
Originally Posted by T-Mar View Post
I agree with 3alarmer, this was almost certainly cold set to 120mm by the previous owner. The combination of frame features, such as short non-Portacatena dropouts. recessed brake mounting, front derailleur hanger, dual bottle bosses, pump peg and cable routing under the BB shell, suggests no early than mid-1980s, by which time 126mm would have been standard at this level. The only feature that I'm not seeing, are top tube tunnels or ports for the rear brake. I guess they could be hidden on the non-drive side but Bertrand typically mounted brake ports on the top side of the tube.

The other thing to consider is that Bertrand wasn't even building frames until the 1980s. I guess it could be a something other than a Bertrand, but with the exception of the previously mentioned brake routing, it looks legitimate to me.

I'd be cold setting and aligning to 130mm, for the proposed wheelset.
Yes you're guessing right, the cable guides on the top tube are oddly placed on the side of the tube. This is the first time I see this on a Bertrand - nonetheless I see no reason to doubt the legitimacy of the bike, it has all the classic Bertrand features including the Cinelli BB shell. I will try to find someone in my area to carefully cold set it for me. I'd hate to ruin the rear triangle. Thanks everybody for the replies.
jonny7 is offline
Likes For jonny7:
Old 04-14-22, 08:55 AM
  #7
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,156
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 1,112 Times in 424 Posts
Originally Posted by jonny7 View Post
Y I will try to find someone in my area to carefully cold set it for me. I'd hate to ruin the rear triangle.
I suggest you find a framebuilder 1st. This is a primary skill for them. There is a chance some bike store may have the knowledge and equipment but that is going to be a secondary skill they may have occasionally used sometime in the past.
Doug Fattic is offline
Likes For Doug Fattic:
Old 04-14-22, 09:09 AM
  #8
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 26,884
Mentioned: 213 Post(s)
Tagged: 0 Thread(s)
Quoted: 15732 Post(s)
Liked 3,159 Times in 2,352 Posts
You could try a straight edge along the seatstays. The bend should be pretty subtle, but should be noticeable at the brake bridge.
CliffordK is offline
Old 04-14-22, 11:45 AM
  #9
Shrevvy
Senior Member

Join Date: May 2017
Location: NE Ohio
Posts: 737

Bikes: 77 Trek TX900, 81.5 Trek 950, 83 Trek 970, 84 Schwinn Peloton, 88 Schwinn Premis, 85 Pinarello Montello, 88 Lemond Pro, more...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Liked 264 Times in 129 Posts
I had a 1984 Schwinn Peloton build by Panasonic. The specs are 120 mm rear, but it has all the more modern frame touches - recessed brakes, dual water bottle bosses, cables routed under bb. It did have a clamp on front derailleur. Schwinn went to 126 mm in 1985 for the Peloton.
__________________
#GCVintageBicycles for pics of C&V bikes and parts.
Shrevvy is offline
Old 04-14-22, 12:43 PM
  #10
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,610

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2327 Post(s)
Liked 3,026 Times in 1,643 Posts
Originally Posted by Shrevvy View Post
I had a 1984 Schwinn Peloton build by Panasonic. The specs are 120 mm rear... Schwinn went to 126mm in 1985.
Yeah, that's very different than what most everybody else was doing with higher end road bikes that deep into the '80s. Schwinn catalog scans for that model show an Ultra-6 freewheel for '84 and Ultra-7 for '85.
SurferRosa is online now
Old 04-14-22, 03:56 PM
  #11
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,227

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1344 Post(s)
Liked 1,236 Times in 865 Posts
Schwinn was always a bit slow to the table...
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Old 04-14-22, 04:03 PM
  #12
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 2,441

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Liked 894 Times in 517 Posts
I have a 1989 Fuji Ace, Ishiwata tubing, that was originally 120mm rear spacing. I cold set it to 130 just a couple of months ago.
delbiker1 is offline
Likes For delbiker1:
Old 04-14-22, 06:53 PM
  #13
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,610

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2327 Post(s)
Liked 3,026 Times in 1,643 Posts
Originally Posted by delbiker1 View Post
I have a 1989 Fuji Ace that was originally 120mm rear spacing.
Originally, it should have been 126 with Suntour 6-speed Accushift (Blaze).
SurferRosa is online now
Old 04-14-22, 11:00 PM
  #14
Fredo76
The Wheezing Geezer

Fredo76's Avatar

Join Date: Oct 2021
Location: Española, NM
Posts: 274

Bikes: 1976 Fredo Speciale, Jamis Citizen 1, Ellis-Briggs FAVORI, Rivendell Clem Smith Jr.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 209 Times in 107 Posts
Why would somebody cold-set a road frame smaller to run a track hub? Maybe an early, proto-retro-grouch ordered his frame with new bits and old spacing, to run his old wheels, or...?
Fredo76 is offline
Old 04-15-22, 01:43 AM
  #15
Olang
Junior Member

Join Date: Aug 2021
Location: Gothenburg, Sweden
Posts: 6

Bikes: Guerciotti SL -76, Wilier Ramata SL -83, Turconi by Losa -84, Colnago Esa Mexico, De Rosa Primato -93/94, Vitus early 80s etc

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 4 Times in 2 Posts
I have a Wilier from early 1980s which by all accounts should have been 126 mm, but came in at exactly 120 mm. So I chose to run it as a 120 mm/10 speed, as I had the spare wheelset and freewheels at home already.

But to answer your question. Someone has definitively cold set it to 120 mm/track hubs, and hopefully you can cold set it back to your liking instead.
