Looking for help to identify my dad's 1940's Bates bicycle

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Looking for help to identify my dad's 1940's Bates bicycle

Old 04-24-22, 12:38 PM
  #1
RaeAnne50
RaeAnne
Thread Starter

Join Date: Apr 2022
Location: Canada
Posts: 7

Bikes: Bates

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 3 Posts
Looking for help to identify my dad's 1940's Bates bicycle

I have my dads old Bates racing bike and would like to find out the model etc. I will attach some pics.
Thanks
Rae









Last edited by RaeAnne50; 04-24-22 at 03:11 PM. Reason: need to fix photo
RaeAnne50 is offline
Old 04-24-22, 01:02 PM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,406

Bikes: Too many to list here check my signature.

Mentioned: 157 Post(s)
Tagged: 2 Thread(s)
Quoted: 2364 Post(s)
Liked 1,437 Times in 845 Posts
Originally Posted by RaeAnne50 View Post
I have my dads old Bates racing bike and would like to find out the model etc. I will attach some pics.
Thanks
Rae


Hello and welcome to the forums. I donít much about them other than Bates are pretty cool bikes.

could you please post some pics of the chain side and maybe a close up of the rear gear changer?
__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 04-24-22, 01:16 PM
  #3
Chuck M
Butted Hi-Tensile

Chuck M's Avatar

Join Date: Sep 2020
Location: Oklahoma
Posts: 1,135

Bikes: Hi-Ten bike boomers, a Trek Domane and some projects

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 969 Times in 480 Posts
I don't know anything either. But that front fork is interesting.
__________________
"It is the unknown around the corner that turns my wheels." -- Heinz StŁcke

Chuck M is offline
Likes For Chuck M:
Old 04-24-22, 01:39 PM
  #4
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 7,162
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 703 Post(s)
Liked 515 Times in 264 Posts
Some info here.
https://www.classiclightweights.co.u...frame-numbers/
Pics show Diadrant fork and Cantiflex tubing. The tubing is larger diameter in the middle, tapers at the ends as well as being internally butted. Reynolds 531 special for Bates.
big chainring is offline
Likes For big chainring:
Old 04-24-22, 03:05 PM
  #5
RaeAnne50
RaeAnne
Thread Starter

Join Date: Apr 2022
Location: Canada
Posts: 7

Bikes: Bates

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 3 Posts
Sure I will post more pics but I believe my dad replaced most of the parts. The frame is the most interesting.
RaeAnne50 is offline
Likes For RaeAnne50:
Old 04-24-22, 03:41 PM
  #6
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,406

Bikes: Too many to list here check my signature.

Mentioned: 157 Post(s)
Tagged: 2 Thread(s)
Quoted: 2364 Post(s)
Liked 1,437 Times in 845 Posts
Originally Posted by Chuck M View Post
I don't know anything either. But that front fork is interesting.

I think the fork, like the Hetchins ‘Curly Stays’ and Hellenic stays (triple triangle) dates to era where advertising/endorsements were not allowed in racing so innovative designs to dampen the ride or stiffen the frame evolved which also happened to make the bike stand out from the crowd.

RaeAnne50 thanks for the extra pics. Maybe ijab can shed some light on this
__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk

Last edited by Bianchigirll; 04-24-22 at 04:41 PM.
Bianchigirll is offline
Likes For Bianchigirll:
Old 04-24-22, 05:12 PM
  #7
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 764
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 93 Times in 51 Posts
the link provided by big-chainring would enable you to identify the model, and guide you to the period of manufacture. There are more frame numbers provided in the Readers bikes entries for 1944/5, 1948 and 1950 to help narrow down the year of the sequential frame numbers used by Bates.
A general guide to Bates cycles is at https://www.classiclightweights.co.u.../bates-cycles/
and there is the Bates Cantiflex Diadrant Classic Bicycles group on Facebook which is informative.
Big Block is offline
Old 04-24-22, 05:14 PM
  #8
RaeAnne50
RaeAnne
Thread Starter

Join Date: Apr 2022
Location: Canada
Posts: 7

Bikes: Bates

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 3 Posts
Thank you. This is very helpful.
RaeAnne50 is offline
Old 04-24-22, 07:03 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,935
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,480 Times in 1,079 Posts
-----

the three-pointed star symbol washer on the cycle's Juy Competition front gear mech is something which was only current ca. 1958; the mech's knob changed from metal to ivory coloured plastic ca. 1959-60

a companion Tour de France model rear mech with the three-pointed star is thought is have been current only 1959-61

the cycle's Gnutti splined cotterless chainset is a wonderful piece, rather cutting edge at its launch circa 1951
it was quite costly in the context of the time so only encountered on better model cycles
rare even when current



the machines wheel hubs look to be fitted with Campagnolo brand quick releases

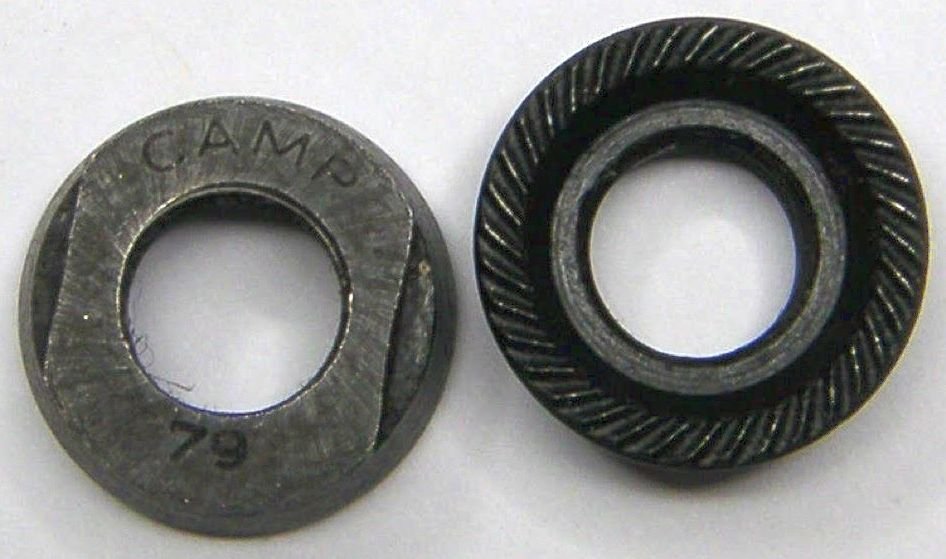

if the hubs themselves are also Campagnolo brand then the axle locknuts will carry a date on their inner faces -




the machine's pedals are Lyotard brand model Marcel Berthet M23 -






the cycle's Weinmann Vainqueur 999 centrepull brake set is a model which was current 1957-1962 -



since several of the bicycle's components are of a date later than you suggested for the machine it is possible that is is a bit later than you thought...

...or it may be that it was upgraded with newer fittings along the way

the forum's experts shall be able to give you much more and better assistance

-----
juvela is offline
Likes For juvela:
Old 04-24-22, 11:01 PM
  #10
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 764
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 93 Times in 51 Posts

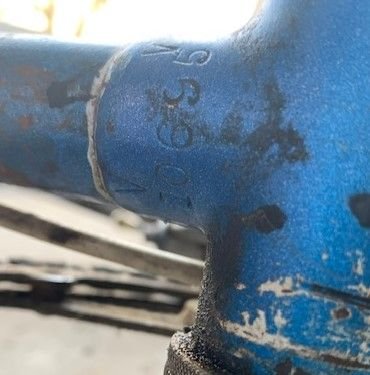

Based on the frame number it is 1944/45 frame build, with later components.

Last edited by Big Block; 04-25-22 at 03:31 PM.
Big Block is offline
Likes For Big Block:
Old 04-25-22, 06:33 AM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,935
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,480 Times in 1,079 Posts
-----

thanks very much for this dating information.

the cycle appears to wear no fittings which go back to that time

so the two main possibilities would seem to be that either it hung in the racks for a long period unbuilt or received a complete reworking about 1958


-----
juvela is offline
Old 04-25-22, 06:51 AM
  #12
RaeAnne50
RaeAnne
Thread Starter

Join Date: Apr 2022
Location: Canada
Posts: 7

Bikes: Bates

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 3 Posts
Sorry new to this forum and not sure how to use it yet. My apologies.
RaeAnne50 is offline
Old 04-25-22, 06:59 AM
  #13
Kilroy1988
Senior Member

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
Originally Posted by juvela View Post
so the two main possibilities would seem to be that either it hung in the racks for a long period unbuilt or received a complete reworking about 1958
The OP mentioned that the father replaced most of the parts over time, as most riders would during that period if they continuously rode. I obsessively watch eBay UK and get the VCC quarterly advertisements, and what seems to be a primary reason why most dealers selling postwar British bicycles as framesets is because typically they are no longer equipped with period-correct components, which is obviously the fashionable thing to do these days when restoring them. The 1954 Carlton Super Python I just refinished was on the road until just before the dealer sold it to me, and it was equipped with a mix of 1970s-80s components that the previous owner was using to keep it reliable. That's a common story for nice older British frames, which individual men or multiple generations of users have kept on the road for decades.

I see no reason why a Canadian rider would not follow along in that fashion for at least some time! The Bates looks well equipped and that's a lovely example. Other users have already filled you in on the details, so good luck with whatever you plan to do with it. Cheers!

-Gregory
Kilroy1988 is offline
Likes For Kilroy1988:
Old 04-25-22, 08:19 AM
  #14
RaeAnne50
RaeAnne
Thread Starter

Join Date: Apr 2022
Location: Canada
Posts: 7

Bikes: Bates

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 12 Times in 3 Posts
Thanks for all the feedback. My dad raced for many years in Scotland, time trials and road racing?
He actually picked the bike up at a garage sale
I really donít know what to do with it except sell it. My family doesnít want it. I donít really even know how to go about finding a collector.
Thanks again everyone for your input.
Rae
RaeAnne50 is offline
Likes For RaeAnne50:
Old 04-25-22, 09:39 AM
  #15
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,935
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2895 Post(s)
Liked 1,480 Times in 1,079 Posts
Originally Posted by RaeAnne50 View Post
Thanks for all the feedback. My dad raced for many years in Scotland, time trials and road racing?
He actually picked the bike up at a garage sale
I really donít know what to do with it except sell it. My family doesnít want it. I donít really even know how to go about finding a collector.
Thanks again everyone for your input.
Rae
-----

thank you for this additional information

if you are curious as to the cycle's value, salability, etc you could begin a discussion on it at the C&V Appraisals forum:

https://www.bikeforums.net/classic-v...th-appraisals/

in addition to value readers could make suggestions regarding where and how to list it for sale with the plusses and minuses of each

-----
juvela is offline
Old 04-25-22, 01:51 PM
  #16
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,941

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 846 Post(s)
Liked 1,503 Times in 642 Posts
Looks like the Facebook group would have info

https://www.facebook.com/groups/2106695046261257/
thinktubes is online now
Old 04-25-22, 02:33 PM
  #17
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,506

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3266 Post(s)
Liked 3,171 Times in 1,979 Posts
Money shot


merziac is offline
Old 04-25-22, 03:52 PM
  #18
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 764
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 93 Times in 51 Posts
Originally Posted by merziac View Post
Money shot


showing the GB hiduminium 'Spearpoint' stem, unknown steel handlebars with a GB Pelissier ferrule (separated from the intended GB Pelissier bend hiduminium handlebar)
Big Block is offline
Likes For Big Block:
Old 04-25-22, 03:59 PM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,506

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3266 Post(s)
Liked 3,171 Times in 1,979 Posts
Originally Posted by Big Block View Post
showing the GB hiduminium 'Spearpoint' stem, unknown steel handlebars with a GB Pelissier ferrule (separated from the intended GB Pelissier bend hiduminium handlebar)
Yep, knew in the back of my mind, the part that only kind of still works ok that something was hinky.

Still pretty cool as I don't think I had seen a GB version ala Titan of that ferrule before, no surprise the bars gave up.
merziac is offline
Old 04-25-22, 06:26 PM
  #20
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 764
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Liked 93 Times in 51 Posts
Originally Posted by merziac View Post
Yep, knew in the back of my mind, the part that only kind of still works ok that something was hinky.

Still pretty cool as I don't think I had seen a GB version ala Titan of that ferrule before, no surprise the bars gave up.
The ferrules were promoted like this to allay the fears of using these 'new' alloy bars.

Source; 1949 Holdsworth Aids to Happy Cycling reproduced on Disraeli Gears site


I have the GB Spearpoint stem and GB Maes bend bars with ferrule on my 1948 Spearman.

Last edited by Big Block; 04-26-22 at 03:39 PM.
Big Block is offline
Likes For Big Block:
Old 04-26-22, 07:23 AM
  #21
Pogliaghi
Senior Member

Pogliaghi's Avatar

Join Date: Jul 2005
Posts: 430
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 52 Times in 17 Posts
Originally Posted by RaeAnne50 View Post
I have my dads old Bates racing bike and would like to find out the model etc. I will attach some pics.
Thanks
Rae








That is a really lovely bike! Would love to have it in my collection but I fear I don't have the room!
Pogliaghi is offline
Likes For Pogliaghi:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
