Suntour Perfect with 13-tooth cog?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Suntour Perfect with 13-tooth cog?

Old 05-03-22, 06:12 AM
  #1
jonwvara
Senior Member
Thread Starter

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,574

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Liked 434 Times in 231 Posts
Suntour Perfect with 13-tooth cog?

I once owned a Suntour Perfect freewheel that had smaller threads in the outside cog position, allowing it to take a 13-tooth small cog. They're not very common, but there are some around, I think. What I can't recall, and haven't been able to find out, is whether these freewheels are designed for a the standard six-speed 126mm OLD, or for the 120mm six-speed ultra variant.

What I'm asking, I guess, is this: Did Suntour (or anyone else, for that matter) make a 120-spaced 6-speed freewheel that would accept a 13-tooth cog? At least one inquiring mind wants to know.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash

Last edited by jonwvara; 05-03-22 at 06:17 AM.
jonwvara is offline
Old 05-03-22, 07:26 AM
  #2
OldCoot
Senior Member

Join Date: Dec 2019
Location: SANTA CRUZ
Posts: 92

Bikes: 82 Univega Specialissima, Bike Friday Pocket Rocket, Kona Wheelhouse, Rocky Mtn Thunderbolt, Viner Strada Bianca, ~73 Bob Jackson, ~75 Volkscycle Mark100.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 87 Times in 42 Posts
Yes, there was a Suntour freewheel version for 6 spd 120 OLD. see https://www.sheldonbrown.com/suntour-freewheel.html
OldCoot is offline
Likes For OldCoot:
Old 05-03-22, 07:26 AM
  #3
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,038

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 706 Times in 391 Posts
Originally Posted by jonwvara View Post
I once owned a Suntour Perfect freewheel that had smaller threads in the outside cog position, allowing it to take a 13-tooth small cog. They're not very common, but there are some around, I think. What I can't recall, and haven't been able to find out, is whether these freewheels are designed for a the standard six-speed 126mm OLD, or for the 120mm six-speed ultra variant.

What I'm asking, I guess, is this: Did Suntour (or anyone else, for that matter) make a 120-spaced 6-speed freewheel that would accept a 13-tooth cog? At least one inquiring mind wants to know.
Jon, in my service experience and IIRC, the 13T Perfect is always spaced for 126mm. I'd check the one I think I have but it is in NH and I'm in GA.

I recently worked on a client's Atom 77 Compact. As you can see it had a 13T sprocket.

Also, the Suntour New Winner, Winner Pro, and Winner bodies can be 6 speed narrow-spaced with 13T.

While I have limited experience with the Regina CX narrow spaced, I'm certain they can be equipped with a 13T as well.
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 05-03-22, 07:29 AM
  #4
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,038

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 706 Times in 391 Posts
And Jon, will you seriously use a 13T? I thought I knew you better!
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 05-03-22, 08:55 AM
  #5
mech986
Senior Member

mech986's Avatar

Join Date: Sep 2010
Location: La Habra, California
Posts: 759

Bikes: Italvega Super Speciales and Superlights

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 333 Post(s)
Liked 190 Times in 122 Posts
This source says yes to a 13T on an Ultra Winner body but not the Perfect body.

https://www.disraeligears.co.uk/site...-_page_26.html
__________________
Italvega and Torpado Enthusiast
mech986 is offline
Old 05-03-22, 09:01 AM
  #6
jonwvara
Senior Member
Thread Starter

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,574

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 633 Post(s)
Liked 434 Times in 231 Posts
Originally Posted by pastorbobnlnh View Post
And Jon, will you seriously use a 13T? I thought I knew you better!
As a general rule, I don't know better, regardless of the endeavor involved. But in this case, I suppose I will take the easy way out and restrict myself to a 14-tooth high. Coasting down hills has a certain charm.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 05-03-22, 09:33 AM
  #7
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 977

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 384 Times in 209 Posts

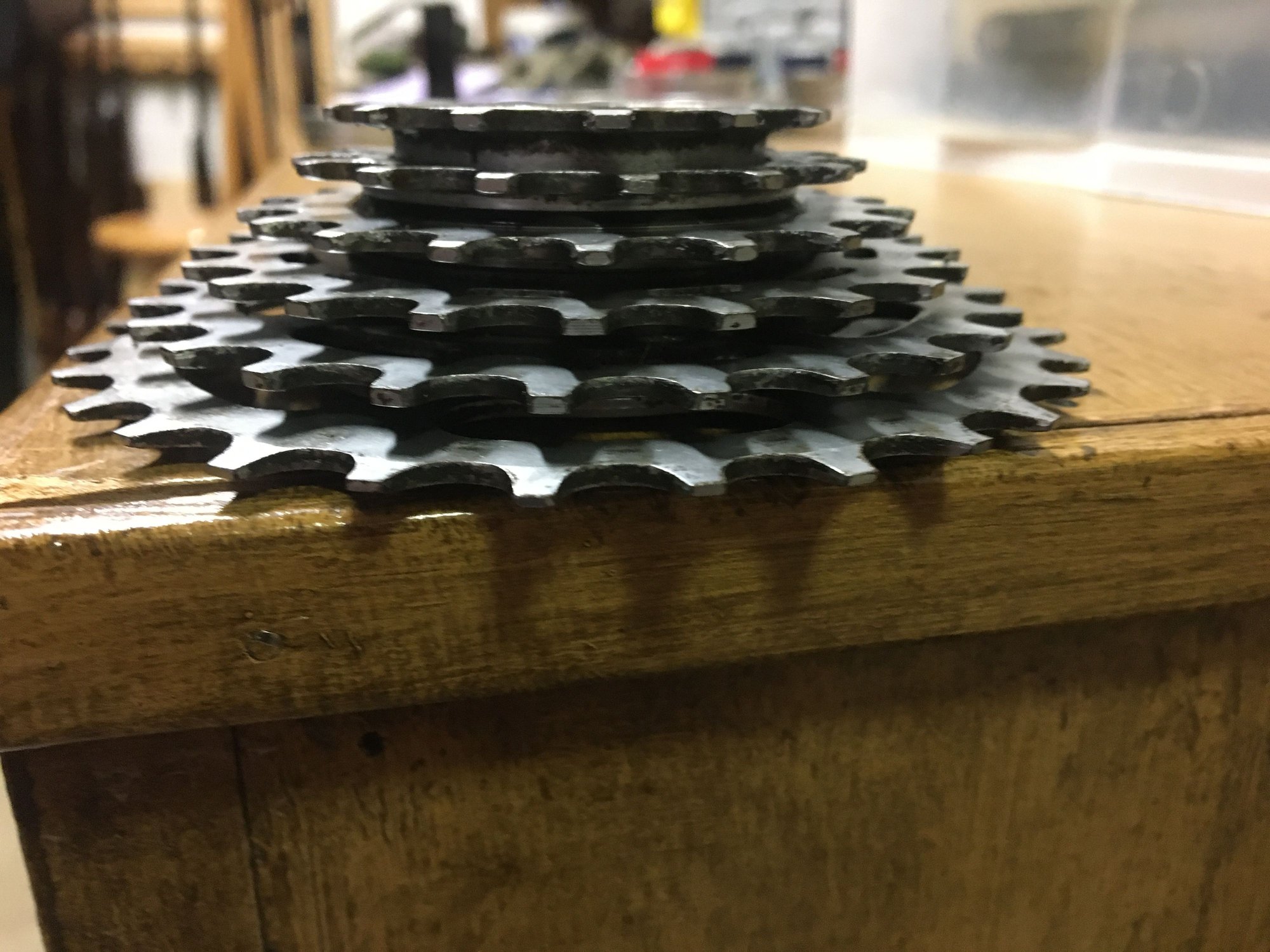

I just picked up at a bike show a Suntour 13-28 6 speed that seems to be ultra spaced when holding it up to compare with another Ultra 6 I have mounted. Body says VIA with a date code of bd. It measures around 29mm thickness. A very nice 13-15-18-21-24-28 spacing and silver cogs. Sorry about the poor picks. Looks like a slightly wider spacing gap between the two smallest cogs. This one may be a home built one, but may give possibilities to others for their own custom built one.




Last edited by sd5782; 05-03-22 at 01:54 PM. Reason: Added content
sd5782 is offline
Old 05-03-22, 04:15 PM
  #8
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,038

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 706 Times in 391 Posts
Originally Posted by sd5782 View Post
I just picked up at a bike show a Suntour 13-28 6 speed that seems to be ultra spaced when holding it up to compare with another Ultra 6 I have mounted. Body says VIA with a date code of bd. It measures around 29mm thickness. A very nice 13-15-18-21-24-28 spacing and silver cogs. Sorry about the poor picks. Looks like a slightly wider spacing gap between the two smallest cogs. This one may be a home built one, but may give possibilities to others for their own custom built one.



Originally Posted by mech986 View Post
This source says yes to a 13T on an Ultra Winner body but not the Perfect body.

https://www.disraeligears.co.uk/site...-_page_26.html
I suppose that technically speaking, the 13T Perfect has a different model name. It's shown in the post above. It uses the same sprockets which fit Perfect and ProCompe bodies in the other five positions. The internals are identical with the exception of the upper part of the outer body.

I believe the one above has had the original standard spacers replaced with ultra spacers. The giveaway is the gap between the 13T and the second sprocket. IIRC, this model only came in standard spacing. Can you compare it to a six speed Shimano? It should be about the same height.
pastorbobnlnh is offline
Old 05-03-22, 04:54 PM
  #9
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 977

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 384 Times in 209 Posts

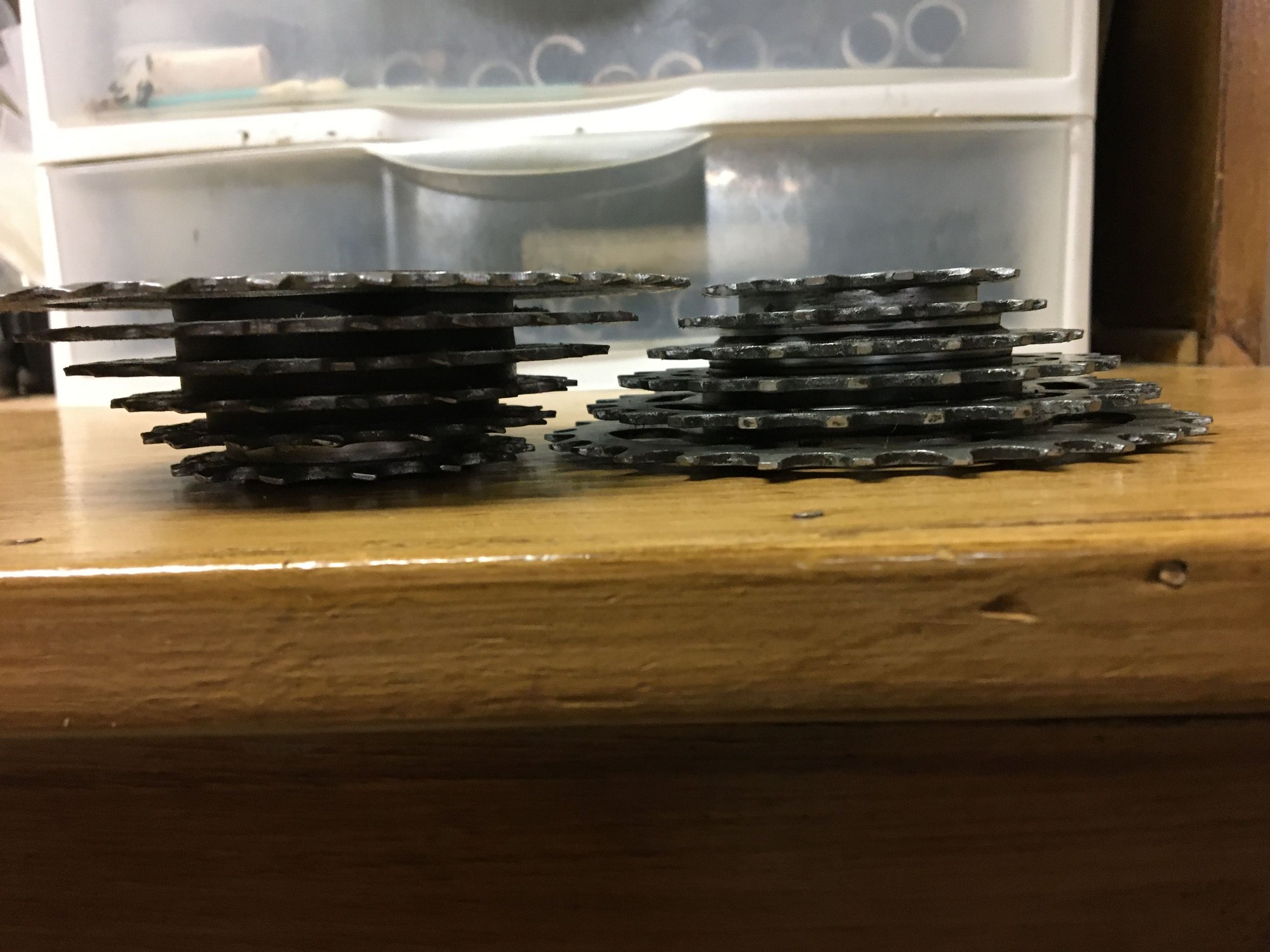

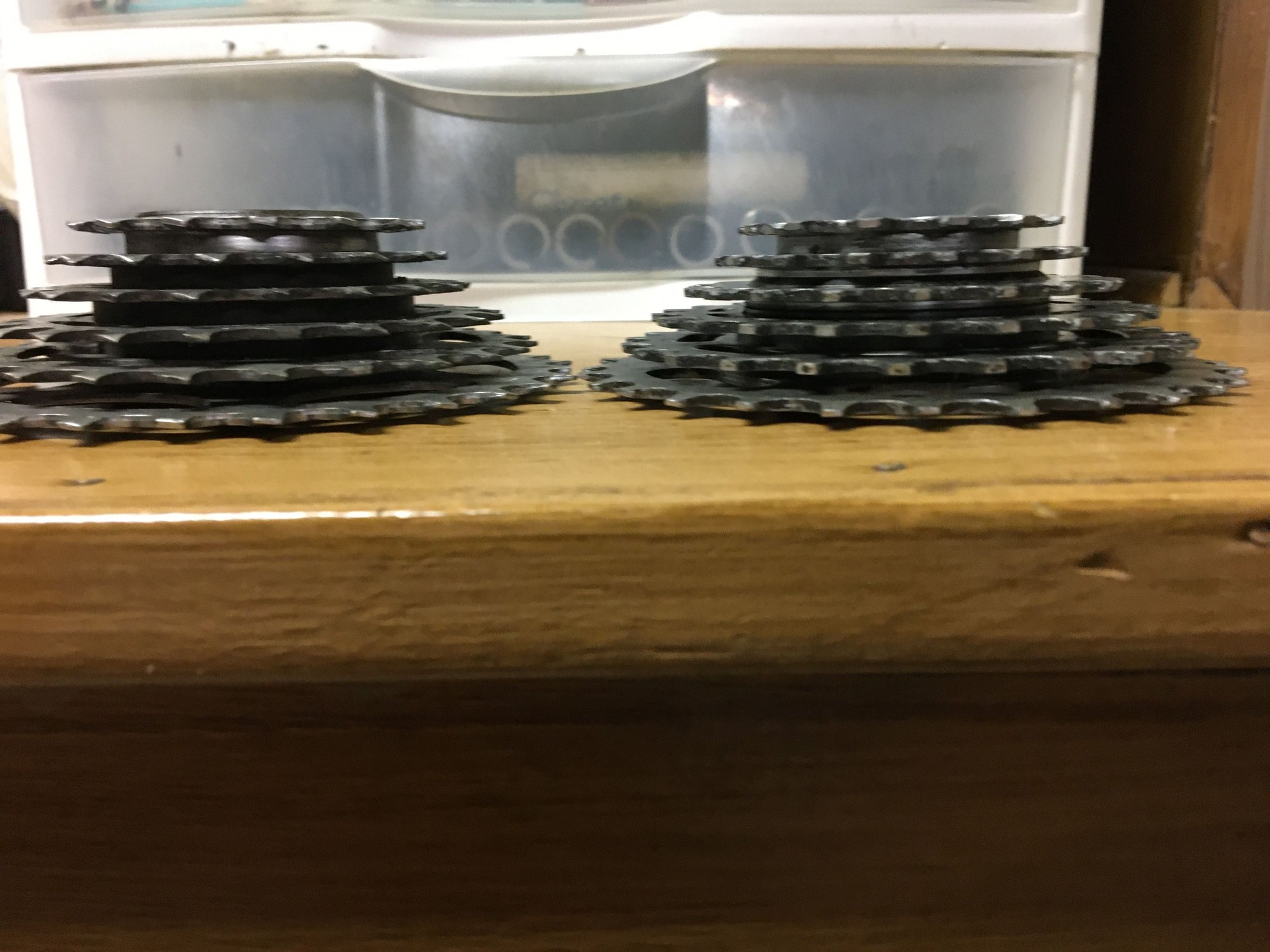

Pretty close in height of cogs to the Shimano. Perhaps the Suntour is just a wee bit thinner through the stack height. The Shimano does have more overhang. Shimano is on the left.




sd5782 is offline
Old 05-03-22, 04:56 PM
  #10
Gonzo Bob
cycles per second

Gonzo Bob's Avatar

Join Date: Oct 2003
Location: Minnesota
Posts: 1,930

Bikes: Early 1980's Ishiwata 022 steel sport/touring, 1986 Vitus 979, 1988 DiamondBack Apex, 1997 Softride PowerWing 700, 2001 Trek OCLV 110

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 71 Times in 48 Posts
Yes. I bought a Team Fuji in 1984 that was spaced at 120mm and came with a Suntour New Winner Ultra-6 13-24 freewheel
Gonzo Bob is offline
Old 05-03-22, 05:48 PM
  #11
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 8,249

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2374 Post(s)
Liked 1,522 Times in 1,062 Posts
The Perfect and the Winner/New Winner are completely different freewheels. If the Perfect ever came with a 13T outer I've forgotten it.
thumpism is offline
Old 05-03-22, 06:28 PM
  #12
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: NH Mountains NW of Concord & Mid-GA Coast!
Posts: 12,038

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 912 Post(s)
Liked 706 Times in 391 Posts
Originally Posted by thumpism View Post
The Perfect and the Winner/New Winner are completely different freewheels. If the Perfect ever came with a 13T outer I've forgotten it.
...and to clarify further, the internals on a New Winner are completely different from a Winner which is different from the Winner Pro. However, a ProCompe is a tuned-up Perfect.

Just to add to the conversation.
__________________
Bob
Dreaming about riding in NH's summertime while enjoying the GA coast for the remainder of the year!

Thanks for visiting my website: www.freewheelspa.com




pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 05-03-22, 07:25 PM
  #13
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,059

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1182 Post(s)
Liked 744 Times in 519 Posts
Originally Posted by pastorbobnlnh View Post
And Jon, will you seriously use a 13T? I thought I knew you better!
I never thought I would need a 13, but it works well with a 45-42 / 13-15-17-20-23-26 half-step or my 46-38 / 13-15-17-19-22-25 1.5-step. With a 49 or 50T outer chainring, I am happy with a 14T high in back.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-04-22, 12:58 AM
  #14
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,635

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1403 Post(s)
Liked 1,461 Times in 743 Posts
Originally Posted by pastorbobnlnh View Post
...and to clarify further, the internals on a New Winner are completely different from a Winner which is different from the Winner Pro. However, a ProCompe is a tuned-up Perfect.

Just to add to the conversation.
I thought I had a perfect with a 13 but maybe I'm wrong.
Edit.... I was wrong, just looked.

Last edited by 52telecaster; 05-04-22 at 01:01 AM.
52telecaster is offline
Old 05-04-22, 05:18 AM
  #15
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 928
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 540 Post(s)
Liked 910 Times in 435 Posts

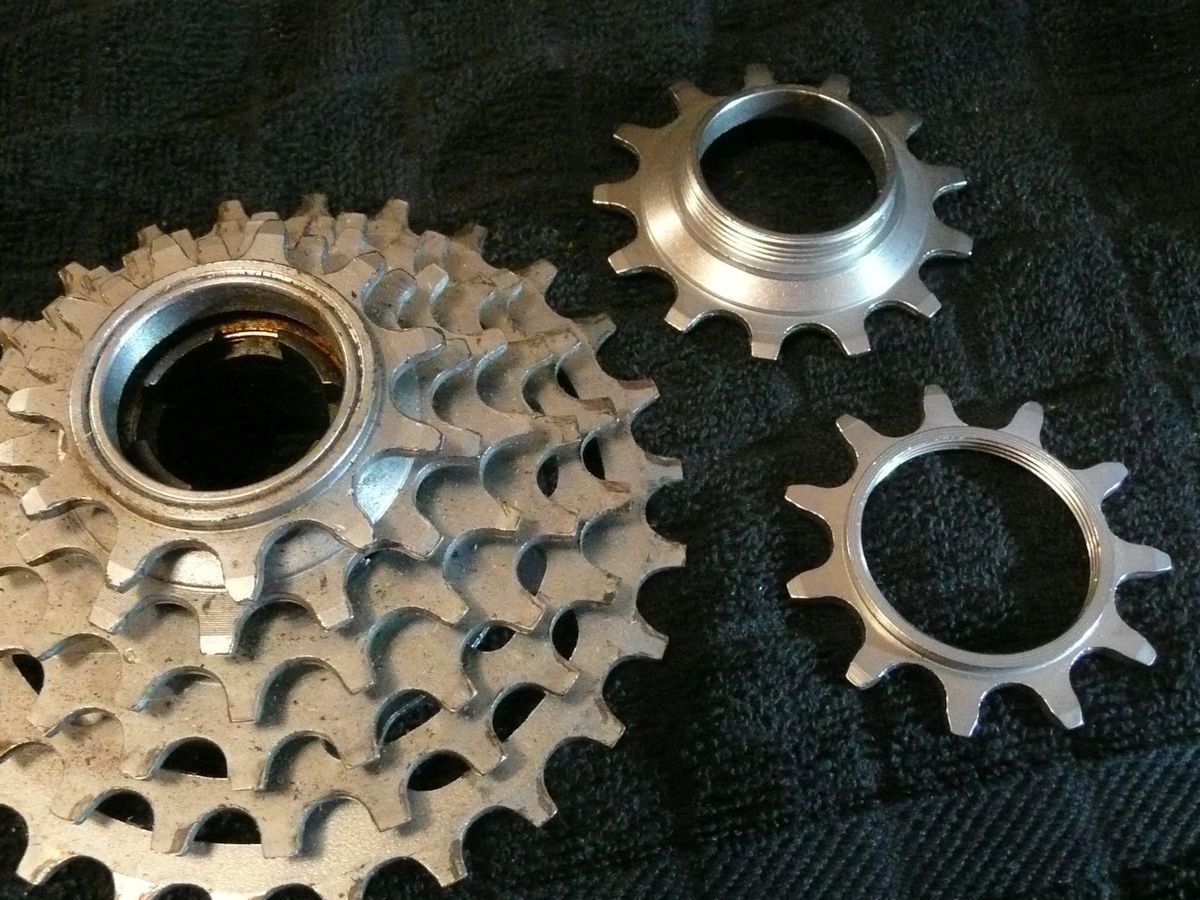

Not what anyone was asking, just a fun fact, in the mid-'80s there was a wide 6 (not Ultra) that went to eleven. Endorsed by Nigel Tufnel.

They were Winner Pro IIRC. I have a couple of them, could go look but I'm lazy and someone here (@pastorbobnlnh) will know off the top of his head.



The Z-11 cog could only go on the Y-13, no other choice. The Y-Z combo could only go on a wide-6 not narrow 6 nor 7 nor 5 speeds.



I used 'em on my MTB for a while there, circa '85. The 11t let me use a 42 for the big ring, on a XC-racer. An adapter I made let me use a freewheel cog as the granny ring on my triple, a TA 5-vis; I settled on an 18 to 20t granny That let me use a smaller freewheel, which in turn let me use a Dura-Ace 7400 short-cage rear mech, so I had SIS on my MTB — before the pros did. (Joe Murray came up to me at Crested Butte and complained about Shimano promising him SIS and not delivering. He seemed mad at me for having it!) I had to make a "perch" to graft the SIS DT shifter to, at first, thumb-shifter position on a flat bar, then a bit later I switched to drop bars and made bar-end shifter perches for the DT levers. Later there were commercially-available products to do this — Keith Bontrager for one, sold bar-end shifter perches for DT levers — but none were around when I first made mine. And of course eventually Shimano made indexing thumbies and bar-ends, putting all us DIY-ers out of business...
Oh but I'm totally rambling now. What were we talking about?

Mark B
