Avocet II hub exploded - need replacement sealed bearings!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Avocet II hub exploded - need replacement sealed bearings!

Old 05-04-22, 06:27 AM
  #1
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Avocet II hub exploded - need replacement sealed bearings!

Hello folks,

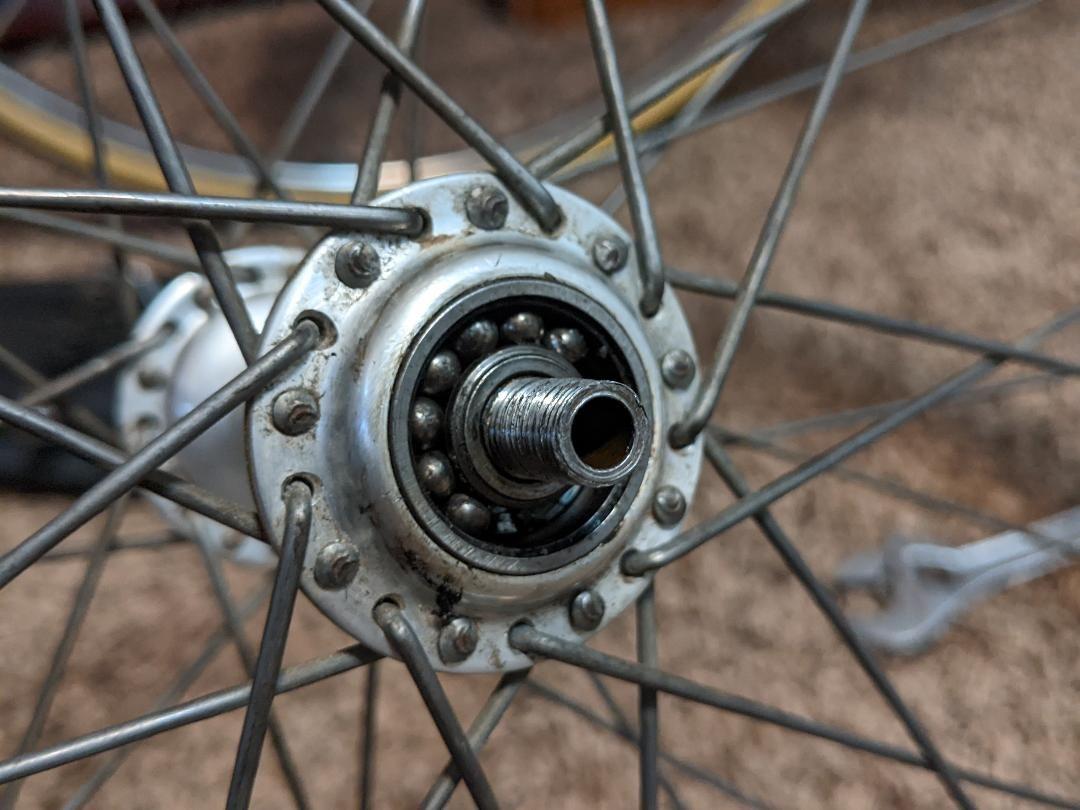

I was only out on my second ride using a set when about 10 miles in I looked down to see the bearings physically poking out on either side of the hub - the damn thing had peeled itself apart as I was rolling along! I stopped at my destination to observe the bearings all locked up and the internal bits either in okay or disintegrated condition. The old cartridges squeaked awfully and did not spin very freely anyway, so no big loss...A rather quick internet search turned up what appear to be some sealed cartridge bearings that will fit the Avocet front hubs such over at Boca Bearings. Now I'm just trying to figure out if anyone knows why I can't find the rear bearings? Might as well replace the lot!

#BRK-016RS by Boca Bearings :: Ceramic Bearing Specialists
Kilroy1988 is offline
Old 05-04-22, 09:15 AM
  #2
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,370

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 65 Times in 44 Posts
I have a set of Ofmega sealed cartridge bearing hubs. Ofmega made the Avocet sealed cartridge hubs. The bearings in my Ofmega rear hub are the same size as in the front hub. They are industry size code 6001. 12X28X8 mm. Two rubber seals. You can find them on ebay if you search the generic specs.
__________________
My C&V Bikes:
1972 Bottecchia Professional, 1972 Legnano Olympiade Record,
1982 Colnago Super,1987 Bottecchia Team C-Record, 1988 Pinarello Montello,
1995 Bianchi Campione d'Italia, 1995 DeBernardi Thron Super Record







CroMo Mike is offline
Old 05-04-22, 09:24 AM
  #3
ThermionicScott
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,050

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 3628 Post(s)
Liked 2,058 Times in 1,306 Posts
Can't see the pictures.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-04-22, 11:39 AM
  #4
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,918
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 984 Post(s)
Liked 502 Times in 411 Posts
2 tips: those shown at Boca are stainless which might be nice if you are sure to expose them to a very wet, salty life, but I think both over-kill and over-priced.
Your should be able to fine high grade 2RS sealed 6001s for half that price.
Check out another bearing supply or online, and get some made in US, Japan, or EU (for some reason Slovakia and Slovenia are hot in the bearing business, lately). Chinese-made cart bearings vary too much in quality to be a sure bet, IMO.
tip 2: since you spun out those in the alloy hub this may have enlarged the cavities in the hub shell to where new ones will not securely press-fit anymore. If so just clean surfaces and get some LocTite GREEN in the gaps. Once that cures your bearings should be tight in the hub body again.
unworthy1 is offline
Old 05-04-22, 01:23 PM
  #5
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,017

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 982 Post(s)
Liked 956 Times in 577 Posts
Good info here: Revisiting Avocet (+/- 1980) sealed bearings

Sounds like it ended poorly for the OP in the final post, but not because of the bearings.
noobinsf is offline
Old 05-04-22, 01:35 PM
  #6
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 711
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 282 Post(s)
Liked 262 Times in 164 Posts
Try these guys, there should be some numbers and coding imprinted on the bearing seals that you can read -

Motion Industries

Address: 9644 W Nicholas Ave, Visalia, CA 93291
Hours:
Open ⋅ Closes 5PM
Confirmed by this business 3 weeks ago
Phone: (559) 651-0111

https://www.motionindustries.com/pro...tockOnly=allDc
grizzly59 is offline
Old 05-04-22, 08:19 PM
  #7
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Thanks for the information, fellas... Much more confident I'll be able to work this out now! Bookmarking until I can move along with overhauling the wheels, which will require me to finish another build that's taking up all the work space at the moment. Cheers!

-Gregory
Kilroy1988 is offline
Old 05-04-22, 09:35 PM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 20,727

Bikes: old ones

Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 23531 Post(s)
Liked 7,030 Times in 5,013 Posts
Originally Posted by grizzly59 View Post
Try these guys, there should be some numbers and coding imprinted on the bearing seals that you can read -

Motion Industries

Address: 9644 W Nicholas Ave, Visalia, CA 93291
Hours:
Open ⋅ Closes 5PM
Confirmed by this business 3 weeks ago
Phone: (559) 651-0111

https://www.motionindustries.com/pro...tockOnly=allDc
...if you have this local Motion Industries outlet, I would pop out the old bearings and take them over there when they are open. I have done this several times here in Sacramento, when I couldn't figure out what I needed for a sealed bearing application, and they always seem to come up with something that works well.
__________________
3alarmer is offline
Likes For 3alarmer:
Old 05-21-22, 06:37 PM
  #9
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Okay, I feel like an idiot, as I cannot for the life of me figure out how to remove the axle or the cartridges from this hub. I just took apart another pair of later Suntour sealed bearing hubs and I suspect the inner ring here is threaded onto the hub, but I cannot turn anything in any direction that begins to break one part or the other loose. Help???

Thanks!

-Gregory

Kilroy1988 is offline
Old 05-21-22, 07:17 PM
  #10
philpeugeot
Full Member

Join Date: Aug 2017
Location: San Mateo, CA
Posts: 328

Bikes: Bike Friday PRP, Bike Friday NWT, Bromton M6R, 1991 Miyata 914, 1991 Miyata 1000, 1986 Raleigh Portage, many more frames

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 214 Times in 120 Posts
Originally Posted by Kilroy1988 View Post
Okay, I feel like an idiot, as I cannot for the life of me figure out how to remove the axle or the cartridges from this hub. I just took apart another pair of later Suntour sealed bearing hubs and I suspect the inner ring here is threaded onto the hub, but I cannot turn anything in any direction that begins to break one part or the other loose. Help???

Thanks!

-Gregory

I ran into a similar issue with some Suzue hubs; bearings and axle wouldn't budge. In my case, a liberal amount of WD-40 and some light tapping on the axle with a hammer managed to free one of the bearings and axle. I imagine that there's some corrosion that's preventing the bearings and axle from freeing from the hub.
philpeugeot is offline
Old 05-21-22, 07:44 PM
  #11
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,370

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 65 Times in 44 Posts
The axle is machined with a step that is larger than the rest of the axle and fits the 12mm i.d. of the bearing snug but not tight. With the locknuts removed, you should be able to tap the axle out one side through both bearings. Generally the bearing's outer diameter is an interference fit into the hub. Since aluminum expands more than steel when heated, you should be able to heat the hub to about 200F with a hair dryer or heat gun, then bump the bearing out with an extractor or a punch from the opposite side. Be careful not to apply too much heat to the spokes if using a torch or heat gun. If they turn blue, they may be toast.
__________________
My C&V Bikes:
1972 Bottecchia Professional, 1972 Legnano Olympiade Record,
1982 Colnago Super,1987 Bottecchia Team C-Record, 1988 Pinarello Montello,
1995 Bianchi Campione d'Italia, 1995 DeBernardi Thron Super Record







CroMo Mike is offline
Likes For CroMo Mike:
Old 05-21-22, 08:15 PM
  #12
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Thanks CroMo Mike and philpeugeot , and also thanks to Mad Honk who sent a PM. The piece that I mentioned "disintegrating" in the first post was the little steel clip that sits over the bearings to keep them spaced inside the cartridge, but in fact it was just slightly bent and not broken as I initially thought.

Since I really want to ride this bicycle I decided to heat up the bearings enough that they were loose in the chambers then applied a liberal amount of grease to repack them. I got the seals to sit flush on both sides, tightened on the lock nuts and gave them a spin around the block. It looks like it might hold together!

The rear hub is spinning freely for now but I'm sure also needs grease, so I'll take that apart some coming weekend. If ever I do need to remove this your help this evening has been much appreciated. Cheers!

-Gregory
Kilroy1988 is offline
Old 05-21-22, 11:38 PM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,433

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1234 Post(s)
Liked 737 Times in 520 Posts
I always gently heat the hubshell till hot, use a heat gun or more carefully using a torch (the shell is thin and the spokes are thin, things that can heat up too locally and too fast).

You can just drop the bearings into a heated hubshell, no need to drive them in just make sure they are fully seated when the shell cools.

I'm literally doing this all the time with modern freehubs.
dddd is offline
Old 06-02-22, 01:40 PM
  #14
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Thanks again for all the advice. I managed to completely disassemble the hub with help from a blow dryer and a bit more elbow grease than I usually employ on such dainty components then purchased new bearings at Motion Industries as grizzly59 suggested. I picked them up this morning and reassembled the hub and now all should be well! I've been under the weather but next week after the mist has cleared from my mind I hope to get out for a good ride to confirm that that is the case indeed. Cheers!

-Gregory
Kilroy1988 is offline
Old 06-02-22, 01:50 PM
  #15
Sactown_Albert
Junior Member

Sactown_Albert's Avatar

Join Date: Sep 2020
Location: Sacramento, CA
Posts: 89

Bikes: 2017 Sage Skyline, 2015 Co-Motion Periscope Tandem, 2012 Soma Smoothie, 2006 Kona Jake, 1986 Miyata Nine Twelve, 1977 Peugeot UO18c, 1977 Peugeot PRN10, 1974 Allegro Schweitzermeister Model 76, 1971 Peugeot PX10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Liked 97 Times in 35 Posts
Your dimensions can be input at the Boca Bearings Site

Originally Posted by CroMo Mike View Post
I have a set of Ofmega sealed cartridge bearing hubs. Ofmega made the Avocet sealed cartridge hubs. The bearings in my Ofmega rear hub are the same size as in the front hub. They are industry size code 6001. 12X28X8 mm. Two rubber seals. You can find them on ebay if you search the generic specs.
As an experiment, I did a dimension search at the Boca website using your numbers. The search returned industry size code 6001.
Sactown_Albert is offline
Old 06-02-22, 01:54 PM
  #16
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
The bearings I removed from the front hub were 629-2rs bearings and I purchased the same - the "2rs" just means "two rubber seals" according to the person who ordered them from the distribution center for me. The ones I purchased are by SKF and made in Italy and cost $27 each, though of course they can be had much cheaper but I was interested in quality since I don't want to have to do this again for a very long time!

-Gregory
Kilroy1988 is offline
Old 06-02-22, 02:09 PM
  #17
CroMo Mike
All Campy All The Time

CroMo Mike's Avatar

Join Date: Nov 2013
Location: Richmond, Virginia
Posts: 1,370

Bikes: Listed in my signature.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 65 Times in 44 Posts
I checked and the 926 is 9x26x8mm. I don't know if mine have a different size or I've gotten my numbers wrong.
__________________
My C&V Bikes:
1972 Bottecchia Professional, 1972 Legnano Olympiade Record,
1982 Colnago Super,1987 Bottecchia Team C-Record, 1988 Pinarello Montello,
1995 Bianchi Campione d'Italia, 1995 DeBernardi Thron Super Record







CroMo Mike is offline
Old 06-02-22, 02:21 PM
  #18
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,740
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 734 Post(s)
Liked 841 Times in 321 Posts
Originally Posted by CroMo Mike View Post
I checked and the 926 is 9x26x8mm. I don't know if mine have a different size or I've gotten my numbers wrong.
BUY 629 Ball Bearings | 9X26X8mm | EASY Bearings Selector (misumi-ec.com)

That would be the same as what I purchased - 629 bearings are 9x26x8mm.

-Gregory
