Ovalized seat tube

OK, I know this has been covered a lot. I've searched and read many threads. I've read about various techniques. But for some reason I'm just having a hard time applying the information to my situation. Please have pity on a feeble-minded guy and offer me some guidance.

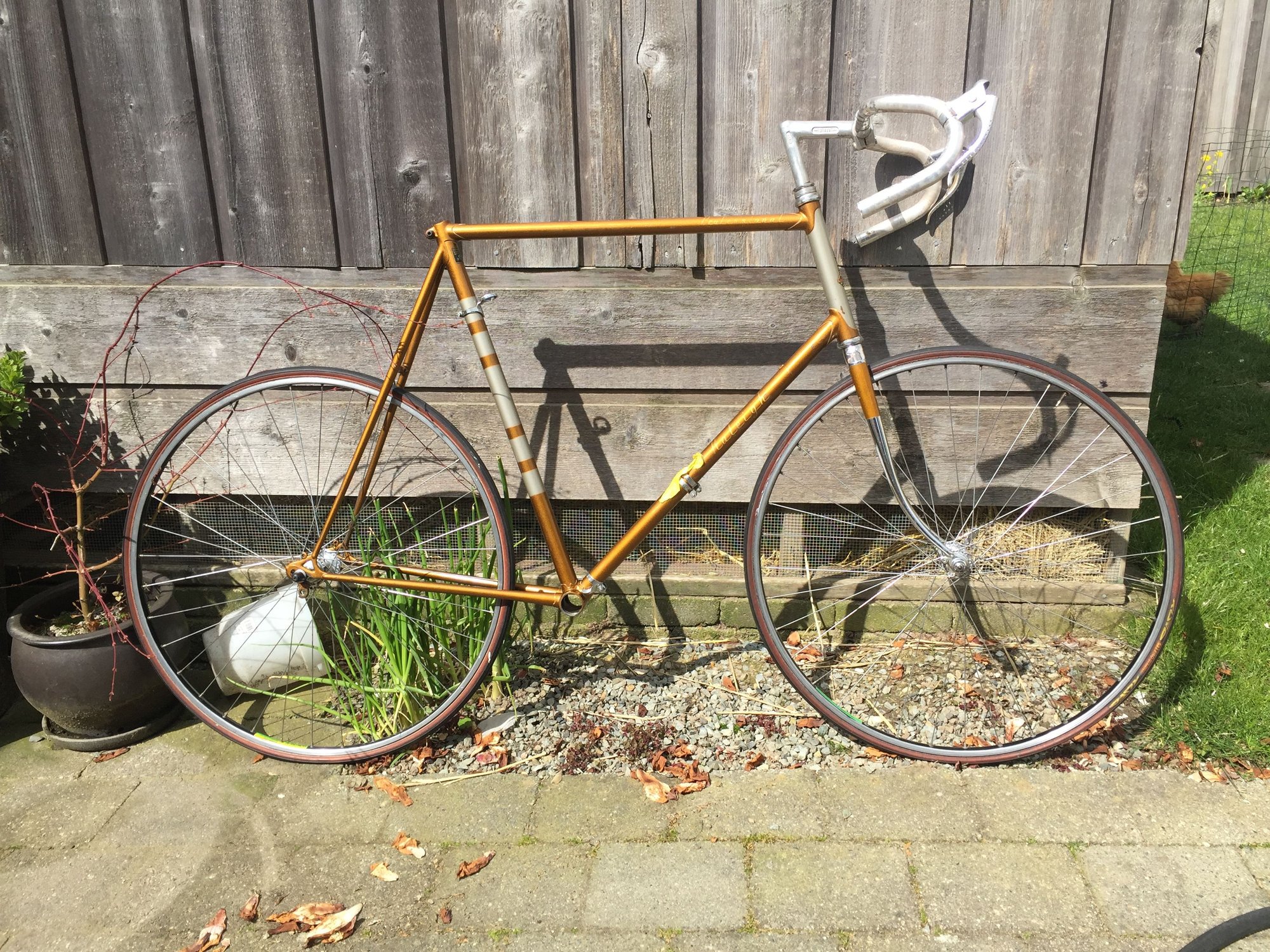

My situation is that I have 1960's PX-10 with great original paint and patina. I believe it should take a 26.4 seatpost, but the previous owner says it had a 26.2 when he had it. The 26.2 I have is a very tight fit. I can get it in, but only with a lot of struggle. I've only had it in enough to try it out, because it's requiring a lot of back-and-forth for every bit that goes in. (When I pulled it back out today, I did the zig zag thing and when it finally came loose I managed to hit myself squarely in the mouth with it.)

The part that I'm uncomfortable with is that it's too wide side-to-side. With the 26.2 seatpost in there, I can slide a piece of paper between the frame and the post. I took measurements with a digital caliper, and at the widest point it's about 26.94mm wide. Along the diagonals near the tab, it measures about 26.19mm.



There's a lot of material at the lug, so assuming it's only ovalized around the top it should be no problem to ream it out to 26.4. I'm concerned about the width though. Is it going to cause problems to have it too wide there? Is that common?

In another thread @bulgie suggested a method of making a C-shaped shim of the right size (perhaps cutting a section from an old seatpost) and then using something like a quill stem with a wedge to push it out from the inside. Depending on how the opening got it's current shape, it seems like that might draw in the sides. I like this idea. I'm just not sure I have the ability to pull it off. I'll be enlisting the help of The Bike Butcher of Portland on this, but I'd like to have a clear idea of what approach I want to take before I take it to him.

Suggestions?
@gugie
__________________
My Bikes
Andy_K is offline
Old 05-06-22, 03:07 PM
  #2
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,411

Bikes: It's complicated.

Mentioned: 1147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3925 Post(s)
Liked 3,236 Times in 1,452 Posts
Originally Posted by Andy_K View Post
Suggestions?
There's nothing wrong with it.
It's French.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 05-06-22, 03:15 PM
  #3
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,800

Bikes: Yes

Mentioned: 447 Post(s)
Tagged: 0 Thread(s)
Quoted: 2613 Post(s)
Liked 1,963 Times in 832 Posts
Originally Posted by gugie View Post
There's nothing wrong with it.
It's French.
Oh, I forgot the French used oval seatposts.
__________________
My Bikes
Andy_K is offline
Old 05-06-22, 03:16 PM
  #4
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,082

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 832 Post(s)
Liked 369 Times in 257 Posts
Originally Posted by gugie View Post
There's nothing wrong with it.
It's French.
Ha ha ha! Just spread those ears and clean the crud out of there!
FBOATSB is offline
Old 05-06-22, 03:32 PM
  #5
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,656

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 882 Post(s)
Liked 681 Times in 411 Posts
The measurements that you've taken at the top of the tube may not tell the whole story. I'd recommend finding a shop that has a proper reaming tool to correct it back to spec. What does the slot look like from the rear? The sides should be parallel.
Moe Zhoost is offline
Old 05-06-22, 03:38 PM
  #6
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,800

Bikes: Yes

Mentioned: 447 Post(s)
Tagged: 0 Thread(s)
Quoted: 2613 Post(s)
Liked 1,963 Times in 832 Posts
Originally Posted by Moe Zhoost View Post
The measurements that you've taken at the top of the tube may not tell the whole story. I'd recommend finding a shop that has a proper reaming tool to correct it back to spec. What does the slot look like from the rear? The sides should be parallel.
From the rear



The grey gunk on there seems to have been plumber's putty, BTW. The whole slot was filled with it.

Reaming does seem to be in order here, and I believe @gugie has the correct tool for that. I'm just trying to decide if I should try to do something about the extra width first.
__________________
My Bikes
Andy_K is offline
Old 05-06-22, 03:44 PM
  #7
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,411

Bikes: It's complicated.

Mentioned: 1147 Post(s)
Tagged: 0 Thread(s)
Quoted: 3925 Post(s)
Liked 3,236 Times in 1,452 Posts
Originally Posted by Andy_K View Post
From the rear



The grey gunk on there seems to have been plumber's putty, BTW. The whole slot was filled with it.

Reaming does seem to be in order here, and I believe @gugie has the correct tool for that. I'm just trying to decide if I should try to do something about the extra width first.
Reamers are standing by.

There's a proper looking 26.6 seatpost on the big auction site right now. I'd like some feedback from others who might have done this before on equivalent seat tube. Don't want to get that area too thin.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 05-06-22, 03:49 PM
  #8
Andy_K
Senior Member
Thread Starter

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,800

Bikes: Yes

Mentioned: 447 Post(s)
Tagged: 0 Thread(s)
Quoted: 2613 Post(s)
Liked 1,963 Times in 832 Posts
Originally Posted by gugie View Post
There's "proper" and then there's "Super Deluxe" -- which I have in hand and is a big (too big, probably) part of why I want to get it to 26.4.

__________________
My Bikes
Andy_K is offline
Old 05-06-22, 03:52 PM
  #9
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,371

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1313 Post(s)
Liked 1,211 Times in 631 Posts
On motobecanes I've gone 26.4 and 26.6 to match seatposts I've had without issue. The o.d. was 28mm on both. My reamer is ancient but effective!
52telecaster is offline
Likes For 52telecaster:
Old 05-06-22, 04:12 PM
  #10
FBOATSB
Senior Member

FBOATSB's Avatar

Join Date: Jul 2014
Location: Central Indiana
Posts: 2,082

Bikes: Old Stuff

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 832 Post(s)
Liked 369 Times in 257 Posts
That slot sure looks squeezed in to me. I predict re-shaping the slot, clean and de-burr will make it.
FBOATSB is offline
Likes For FBOATSB:
Old 05-06-22, 04:26 PM
  #11
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 2,281
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 720 Post(s)
Liked 788 Times in 476 Posts
I would pry those open just a little, feel for sharp edges use a crescent file, grab a steel 26.4 post with a saddle. Insert, with the steel you won't need to worry about scratching then you can work that thing back and forth, up and down, the steel post will help reshape. Check for sharpe edges again, usually the top front or back, and the pinch slot could need filing.

I had to open up the seattube on the Raleigh Professional, it had a 26.8 that was mangled from not being able to hold. I gently pried and massaged in a black steel 27.2, it took some time effort grease. I use a junk 27.2 alloy for checking for scratching.

It was extreme on the Professional, it was worth it.


Last edited by Mr. 66; 05-06-22 at 04:30 PM.
Mr. 66 is offline
Likes For Mr. 66:
Old 05-06-22, 04:29 PM
  #12
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,395

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 1220 Post(s)
Liked 716 Times in 505 Posts
I've dealt with this exact situation a few times before.

I used the same technique on all of them, based not on metal removal but on forming the opening round again.

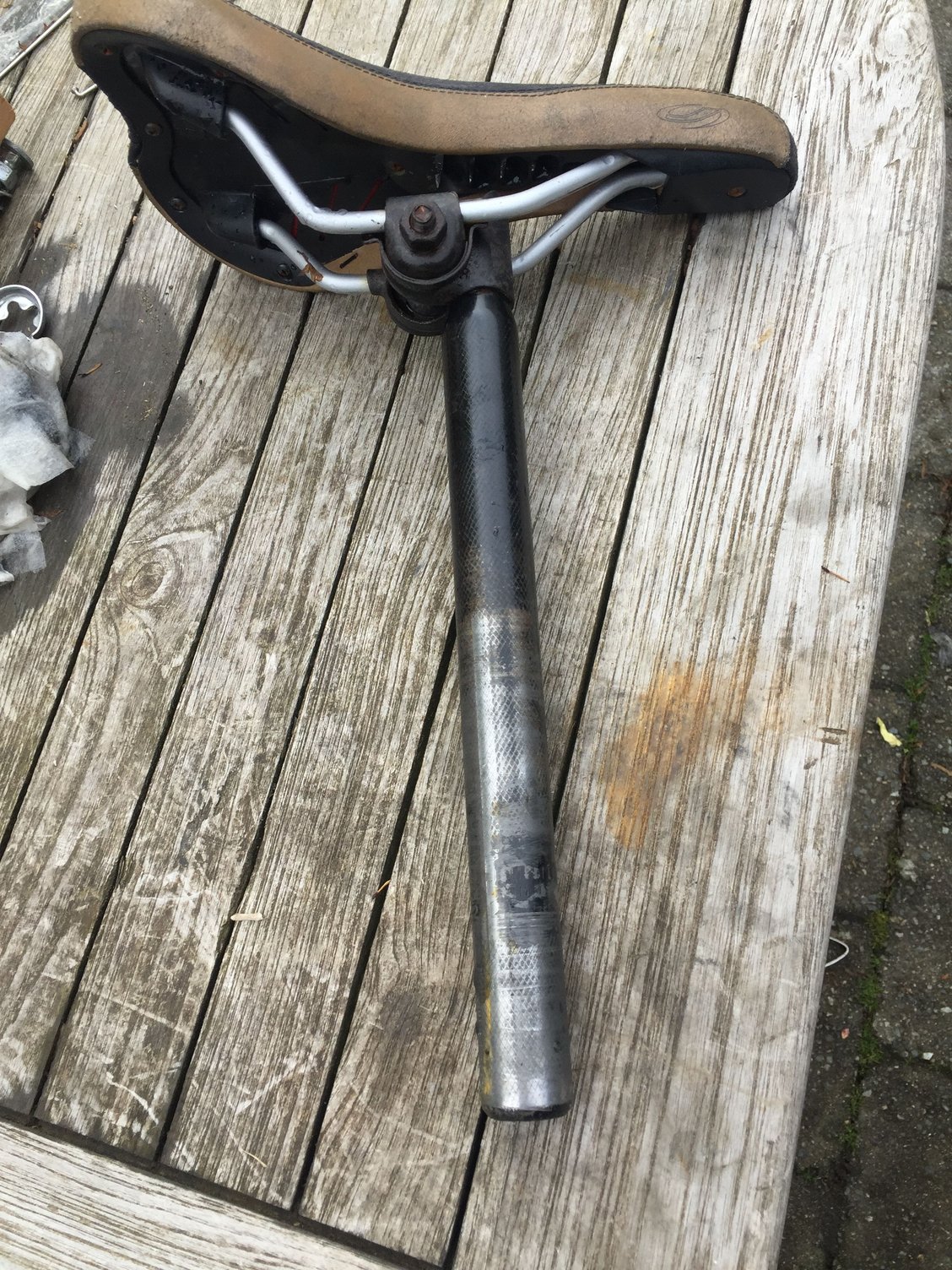

Get thee a steel or thick-walled 26.2mm post (with saddle attached).

Force(?) in the post to about 1" depth, give-or-take (starting with the full 1" and working down as needed).

Simply lean rearward on the saddle using hands backed up by chest weight if needed.
The ears will magically open to their original state, and the opening will become round.

Finally, install the bike's original 26.4mm seatpost, which is chromed steel and won't get scratched. If using an alloy post, often a bit of smoothing of the seat tube's ID using a half-round file will get you a perfect and burr-free opening that is friendly to the softer alloy.
dddd is offline
Likes For dddd:
Old 05-07-22, 03:51 AM
  #13
oneclick
Senior Member

Join Date: Feb 2020
Posts: 1,897
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Likes: 0
Liked 742 Times in 445 Posts
As others have said, don't ream, just bend it round again. The lug and tube at that point are not very hard and it should not take much work.

Reaming is a bad idea generally, the tube walls are not very thick. Recently there was posted here a picture of a seat tube that had been reamed, and the reamer went a tiny bit off-axis (a bent seat lug can do that). A few inches down the tube the bottom of the reamer had got so close to one side of the tube that it broke through the paint.
oneclick is offline
Likes For oneclick:
Old 05-07-22, 09:48 AM
  #14
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,371

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1313 Post(s)
Liked 1,211 Times in 631 Posts
Originally Posted by oneclick View Post
As others have said, don't ream, just bend it round again. The lug and tube at that point are not very hard and it should not take much work.

Reaming is a bad idea generally, the tube walls are not very thick. Recently there was posted here a picture of a seat tube that had been reamed, and the reamer went a tiny bit off-axis (a bent seat lug can do that). A few inches down the tube the bottom of the reamer had got so close to one side of the tube that it broke through the paint.
I should have noted that I always get the seat lug reasonable before I would ream. Also with a reamer I start small enough that I can work it in by hand as deep as I will want to go. Pretty hard to be off center then. If one is careless a reamer can do real harm.
