Polishing Vintage Shimano Crank Arms... Replace Logos or Not?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Polishing Vintage Shimano Crank Arms... Replace Logos or Not?

Old 05-10-22, 09:10 AM
  #1
PoorInRichfield
Senior Member
Thread Starter

Join Date: Nov 2013
Location: Richfield, WI
Posts: 636

Bikes: Trek Domane SL7 Disc, Cannondale F29

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 261 Times in 159 Posts
Polishing Vintage Shimano Crank Arms... Replace Logos or Not?

I recently purchased a "probably nostalgic only to me" 1987 Schwinn Tempo with a Shimano 105 6-speed group set. The crank arms are quite tarnished and warn looking so I am going to polish them which will obviously remove the "Shimano 105" logo (of which the logo is already coming off due to rubbing toe clip straps.)

For those of you who restore Shimano group sets, do you replace the logos or just live with the thought that "shiny, mirror finish with no logo" is better than "OEM finish with logo"?

I'm in the USA and VeloCals is the only place I've been able to find replacement decals for Shimano parts. The decals look a little pixelated and are obviously not the same as how Shimano originally put the logos on the cranks, but as close as I've been able to find. Have any of you used these decals? Did you clear coat over them? From the research I've done, clear coats over polished aluminum is apparently not a great idea.

PoorInRichfield is offline
Old 05-10-22, 10:17 AM
  #2
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,928

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Liked 298 Times in 205 Posts
If you want to polish the cranks - go ahead and do it. It's your bike.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Old 05-10-22, 10:20 AM
  #3
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,472

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 1,114 Times in 710 Posts
I've seen some good decals, but doubt they'll last very long. But on the flip side, you can replace them as often as you need! I think just polished will look great.
smd4 is offline
Old 05-10-22, 10:57 AM
  #4
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,040

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1402 Post(s)
Liked 1,679 Times in 859 Posts
The crank is not like a rarity, Do with it what you want.
I agree that pixilated decals are somewhat disconcerting. Got some for my Pinarello, slightly disappointed.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 05-10-22, 10:58 AM
  #5
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,748

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 646 Post(s)
Liked 682 Times in 481 Posts
These were ordinally silkscreen or pad printed on. Although these process are usually durable for most products, on the crank they were rubbed and didn't last. So most examples will have the logo worn off to some degree. I have a pair that is 175mm. I cleaned them up and my plan was to get a vinyl transfer for it and sell it since 175 is longer than I would like. But the vinyl transfer won't last either.

My personal opinion is that I prefer not to have the labels so big on components, so if it were on my bike, I'd polish it or get a nice lightly brushed finish and leave the decal off.
Velo Mule is offline
Likes For Velo Mule:
Old 05-10-22, 11:10 AM
  #6
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,472

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1488 Post(s)
Liked 1,114 Times in 710 Posts
Originally Posted by Velo Mule View Post
These were ordinally silkscreen or pad printed on.
I suspect it was a little tougher than that. I once tried to remove the lettering from some Ultegra hubs. Nothing I used--from paint thinner to acetone and every other solvent I could think of--even smudged the lettering. Maybe the 105 lettering is applied with inks...
smd4 is offline
Likes For smd4:
Old 05-10-22, 11:17 AM
  #7
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,191
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1098 Post(s)
Liked 648 Times in 507 Posts
pad print (Tampo)inks are quite durable, much more so that thin vinyl decals or waterslides, but as noted on crank arms the constant shoe contact wears off even the most durable ink or paint.
It also wears off the even more durable anodizing, which is what you need completely off if you intend to polish the resulting "raw" aluminum alloy, it ain't gonna polish otherwise.
And with that you are in for a multi-step process and my advice: leave them blank!
Hint: paint remover (like 3M Safest or Citra Strip) applied with a brush or Q-tip will take off most Tampos (with a bit of rubbing and sometimes repeat 2X or more).

Last edited by unworthy1; 05-10-22 at 11:20 AM.
unworthy1 is offline
Likes For unworthy1:
Old 05-10-22, 02:56 PM
  #8
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 1,069

Bikes: You had me at rusty and Italian!!

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 421 Post(s)
Liked 644 Times in 363 Posts
Write it on using a permanent marker?

I got nothin’…..
RustyJames is offline
Old 05-10-22, 03:47 PM
  #9
eshew
Junior Member

Join Date: Feb 2013
Posts: 97
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 41 Times in 24 Posts
Most shimano cranks are clear anodized... So you'll have to strip off that if you actually want to polish anything. Otherwise it's just a lot of polishing clear coat, which I've tried a few times with less than amazing results.

Polishing uncoated aluminum is very easy & rewarding. Trying to polish Shimano cranks is not.

You can always try a reverse dacal and use a Birchwood Casy Alumnium Black Touch Up Pen to try and recreate the logo. That might be better than a sticker or clear coat long term.

Last edited by eshew; 05-10-22 at 03:51 PM.
eshew is offline
Old 05-10-22, 04:07 PM
  #10
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,500

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2186 Post(s)
Liked 1,713 Times in 1,065 Posts
If you're not restoring the whole bike, why bother with the polishing? A total bike cleaning and light polish gets you on the road in style...shabby chic is how I describe most of my bikes.
clubman is offline
Old 05-12-22, 04:39 PM
  #11
PoorInRichfield
Senior Member
Thread Starter

Join Date: Nov 2013
Location: Richfield, WI
Posts: 636

Bikes: Trek Domane SL7 Disc, Cannondale F29

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 261 Times in 159 Posts
Originally Posted by eshew View Post
Most shimano cranks are clear anodized... So you'll have to strip off that if you actually want to polish anything. Otherwise it's just a lot of polishing clear coat, which I've tried a few times with less than amazing results.
Just as a test, I rubbed some fine steel wool over some of the ugly areas of the crank arm and it made a difference pretty quickly. Perhaps Shimano didn't clear coat their crank arms in the 1980s?
Originally Posted by clubman View Post
If you're not restoring the whole bike, why bother with the polishing? A total bike cleaning and light polish gets you on the road in style...shabby chic is how I describe most of my bikes.
I do intend to restore the whole bike and then hang it on the wall and just stare at it every once in a while (literally) The paint on the frame is pretty bad so I intend to do a repaint. Other than the cranks and frame, the rest of the bike and components are in really good shape.
PoorInRichfield is offline
Old 05-12-22, 04:41 PM
  #12
eshew
Junior Member

Join Date: Feb 2013
Posts: 97
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 41 Times in 24 Posts
That's great news. Mother's mag & aluminium wheel polish is amazing. Highly recommended. Super good looking and fast.
eshew is offline
Likes For eshew:
Old 05-12-22, 05:09 PM
  #13
Bici Veloce
Junior Member

Join Date: Sep 2021
Location: So Cal
Posts: 90

Bikes: 2022 Cervelo Caledonia-5 SRAM Rival etap AXS, 2019 Specialized Sirrus Elite Alloy, 1977 Schwinn Super LeTour 12.2, 85 Bianchi Limited Shimano New 600EX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 48 Times in 26 Posts
I can't say with certainty that your cranks are not anodized, but they sure look like it to me. I have a pair of anodized 600 cranks on a 1985 Bianchi that had the same (flat/yellowing/plastic) appearance. I used Easy-Off and a Scotch-Brite pad to remove the coating and polished using a cheap Harbor Freight polishing wheel set up on my grinder. They turned out real nice. Had I taken the time to sand before polishing, I probably could have removed some of the larger scratches, but it wasn't worth the time to me. I did polish the wheels, seat post, stem, chainring, RD, and shifters. None of the other parts were anodized. I spent about 3 hours polishing the cranks.

To be sure, try using and aluminum polish on them and check results. You should know pretty quick if they're anodized. Best of luck!

Before:



Bare aluminum:

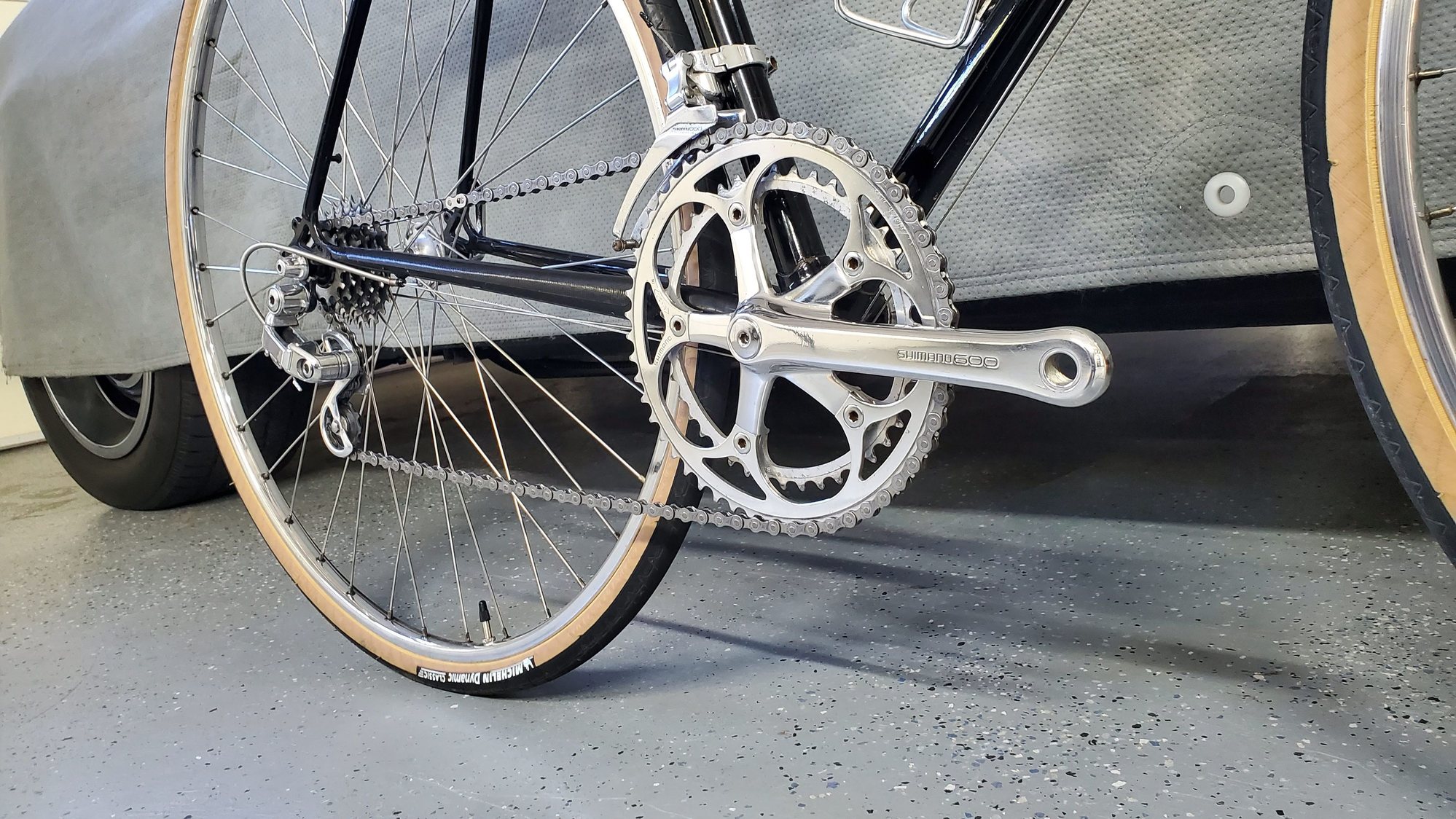

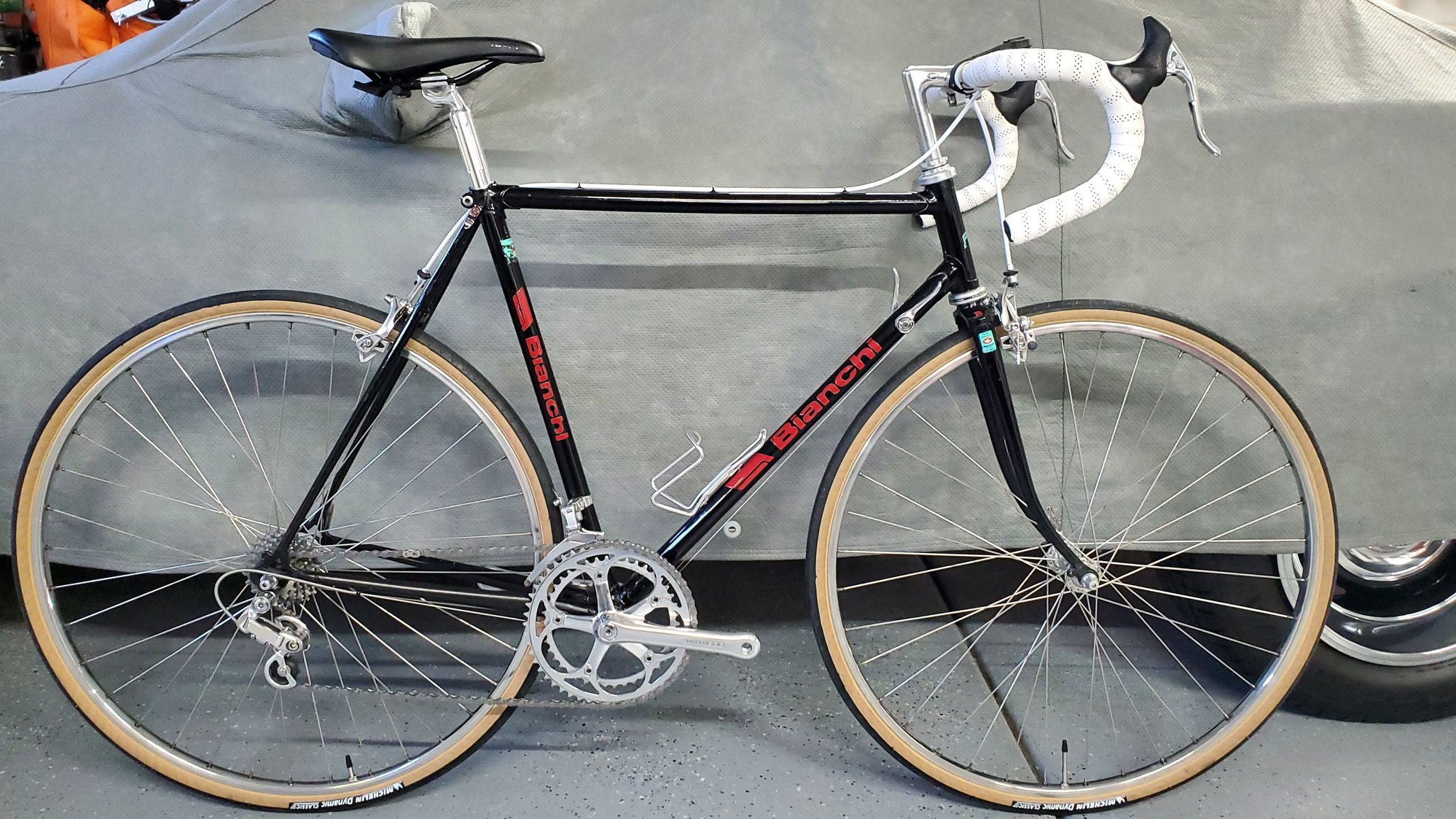

After:


Bici Veloce is offline
Likes For Bici Veloce:
Old 05-12-22, 05:15 PM
  #14
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,500

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2186 Post(s)
Liked 1,713 Times in 1,065 Posts
[QUOTE=PoorInRichfield;22504432]

I do intend to restore the whole bike and then hang it on the wall and just stare at it every once in a while (literally)

Been there done that, more power to you!
clubman is offline
Old 05-12-22, 05:28 PM
  #15
Sactown_Albert
Full Member

Sactown_Albert's Avatar

Join Date: Sep 2020
Location: Sacramento, CA
Posts: 214

Bikes: 2017 Sage Skyline, 2015 Co-Motion Periscope Tandem, 2012 Soma Smoothie, 2006 Kona Jake, 1986 Miyata Nine Twelve, 1977 Peugeot UO18c, 1977 Peugeot PRN10, 1974 Allegro Schweitzermeister Model 76, 1971 Peugeot PX10

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 300 Times in 96 Posts
These look pretty good

[QUOTE=clubman;22504456]
Originally Posted by PoorInRichfield View Post

I do intend to restore the whole bike and then hang it on the wall and just stare at it every once in a while (literally)

Been there done that, more power to you!
For 14 dollars, this might not be a bad way to go. https://www.ebay.com/itm/15434438248...8AAOSw55NgNsCI

Make sure you thoroughly clean the cranks after polishing so that the polishing compound doesn’t impact adhesion.
Sactown_Albert is offline
Old 05-12-22, 06:10 PM
  #16
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 14,165

Bikes: Yes

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 2851 Post(s)
Liked 2,648 Times in 1,067 Posts
Originally Posted by smd4 View Post
I've seen some good decals, but doubt they'll last very long. But on the flip side, you can replace them as often as you need!
I have a black Shimano crankset with a foot rub spot on the drive-side arm. When it bugs me enough, I fill it in with Sharpie and it looks perfect, but after a single ride the rub mark is back. Now I just use the Sharpie when I want to take a picture of the bike.
__________________
My Bikes
Andy_K is online now
Old 05-22-22, 06:59 AM
  #17
PoorInRichfield
Senior Member
Thread Starter

Join Date: Nov 2013
Location: Richfield, WI
Posts: 636

Bikes: Trek Domane SL7 Disc, Cannondale F29

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 261 Times in 159 Posts
Rubbing the crank arms with some Mothers Mag & Aluminum Polish and fine steel wool made an amazing difference with hardly any work. The end result isn't museum quality, but probably as nice or nicer than the original finish on a 105 crank arm.

PoorInRichfield is offline
Likes For PoorInRichfield:
Old 05-22-22, 09:07 AM
  #18
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 5,355

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1709 Post(s)
Liked 1,774 Times in 1,190 Posts
Originally Posted by PoorInRichfield View Post
Rubbing the crank arms with some Mothers Mag & Aluminum Polish and fine steel wool made an amazing difference with hardly any work. The end result isn't museum quality, but probably as nice or nicer than the original finish on a 105 crank arm.

Did you remove the anodizing?
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, 1996ish Cannondale M500, 1984 Mercian, 1982 AD SuperLeicht, 1985 Massi (model unknown), 1988 Daccordi Griffe (most not finished of course)...need to not buy any more.





jdawginsc is online now
Old 05-22-22, 10:41 AM
  #19
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 14,165

Bikes: Yes

Mentioned: 486 Post(s)
Tagged: 0 Thread(s)
Quoted: 2851 Post(s)
Liked 2,648 Times in 1,067 Posts
Originally Posted by jdawginsc View Post
Did you remove the anodizing?
If Mothers made that kind of difference, I'd say there was no anodizing.
__________________
My Bikes
Andy_K is online now
Likes For Andy_K:
