New Build: 1975 Schwinn Paramount P10-9

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

New Build: 1975 Schwinn Paramount P10-9

Old 05-20-22, 02:51 PM
  #1
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 348 Times in 97 Posts
New Build: 1975 Schwinn Paramount P10-9

Well here's another build - I recently acquired a '75 Paramount, in Opaque Red. As it came to me, it was a little bit of a mess, with a few misses on the original parts, but with a few really cool parts included....

Here are the facts:
  • Serial number D75 76, which indicates year 1975, month April, and the 76th frame built that month
  • Original color and mostly (I think) original paint, Opaque Red. I decided to clean up the paint as much as possible to see how it looked. I'm not 100% convinced this is the original paint, but for now I am going to keep it as is. A lot of scrapes and so on, but no dings I could find. I may change my mind and have it repainted to another Paramount color, possibly Flamboyant Red...
  • With regard to the decals, I have seen '75 Paramounts that have either the earlier decals, or the later decals. I prefer the earlier style, and have seen at least one '75 (date code G75 61) that has the older style. So, I re-decaled with the earlier style. It has the original unique to Schwinn 531 decal and the bands, which are crackly with age.
  • The Campy dated parts are from 1973, which I have seen also on another '75 Paramount. The theory is the factory was working on a backlog at that point
  • The bike came with the infamous "double drilled" large flange hubs
  • Thanks to Kurt Kaminer's site, I finally figured out this is a P10-9 - it has the braze on top tube clips, the "Schwinn Approved" Weinmann center pulls, eyelets on the fork and dropouts. I also have a Kool Lemon '71 P13-9 and it's the same frame with the exception of Nervex lugs on this '75 vs the Prugnat lugs on the '71.



Headbadge in great condition. Since this is a P10-9, it came with Weinmann \"Schwinn Approved" center pulls...

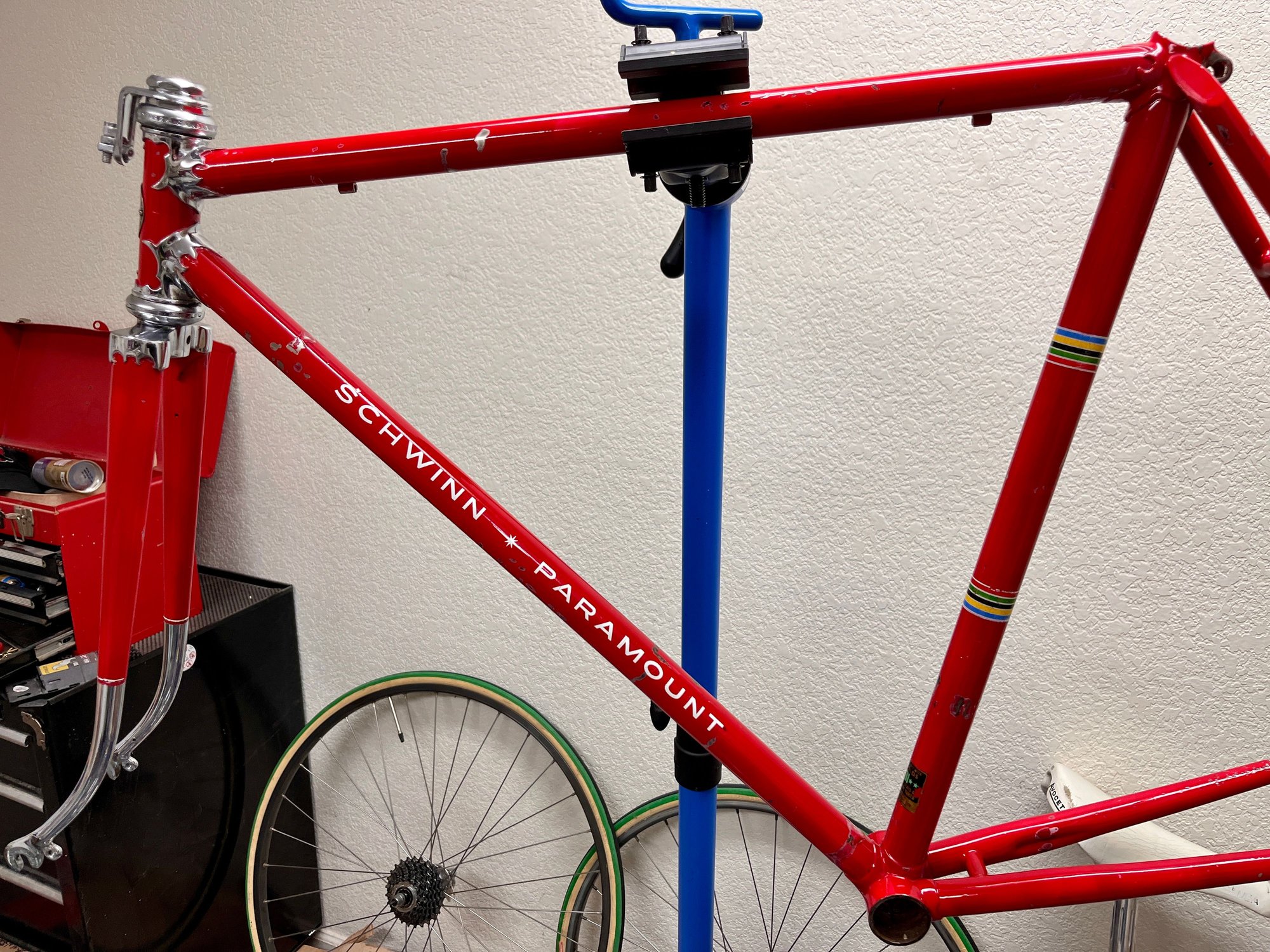

After polishing and re-decal, looks fairly decent. This color is Opaque Red, which I think was introduced in 1974 ...

Re-decal...

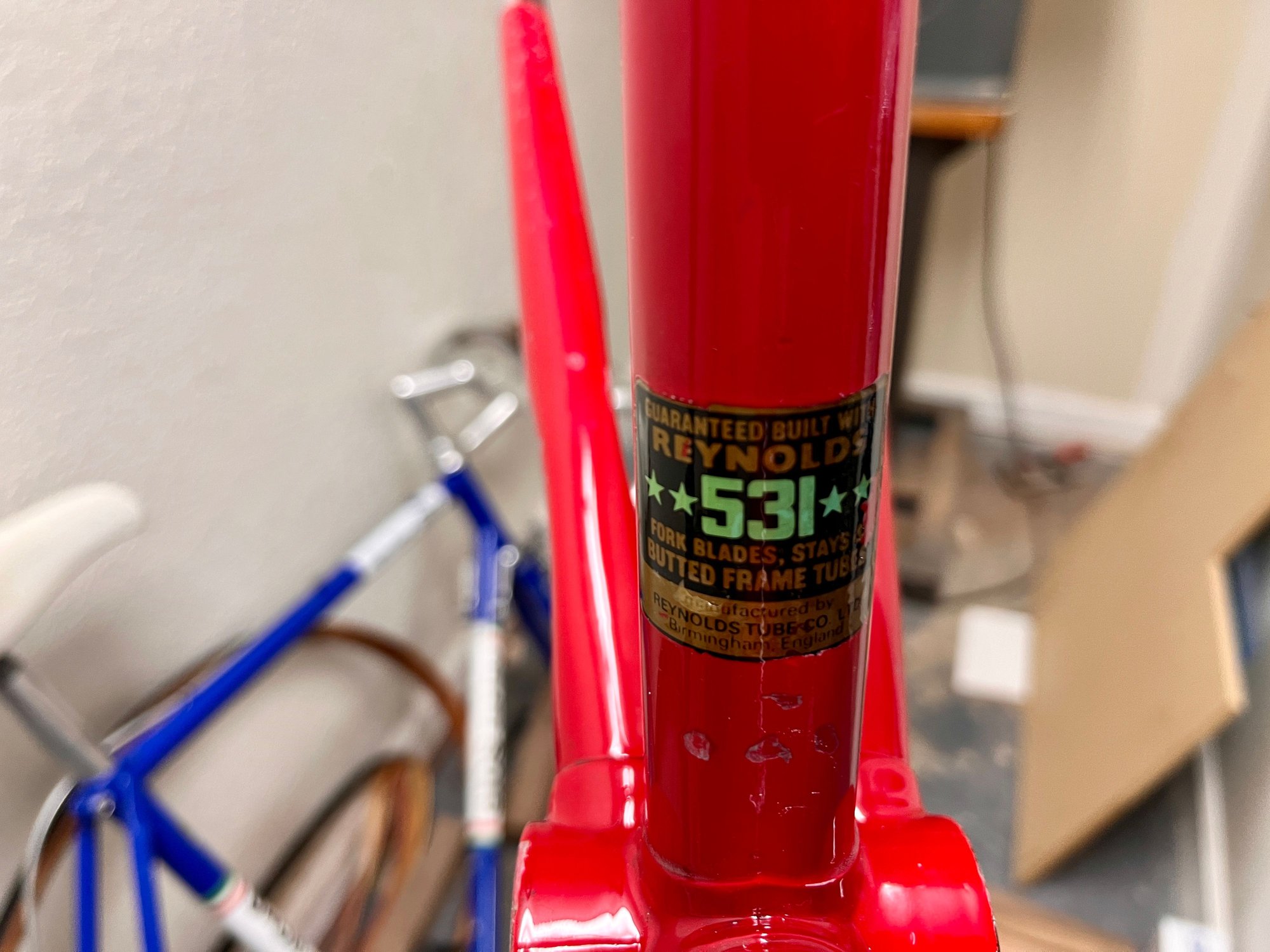

Original 531 Schwinn-specific frame decal...

D75 76 - 76th frame made in April 1975...

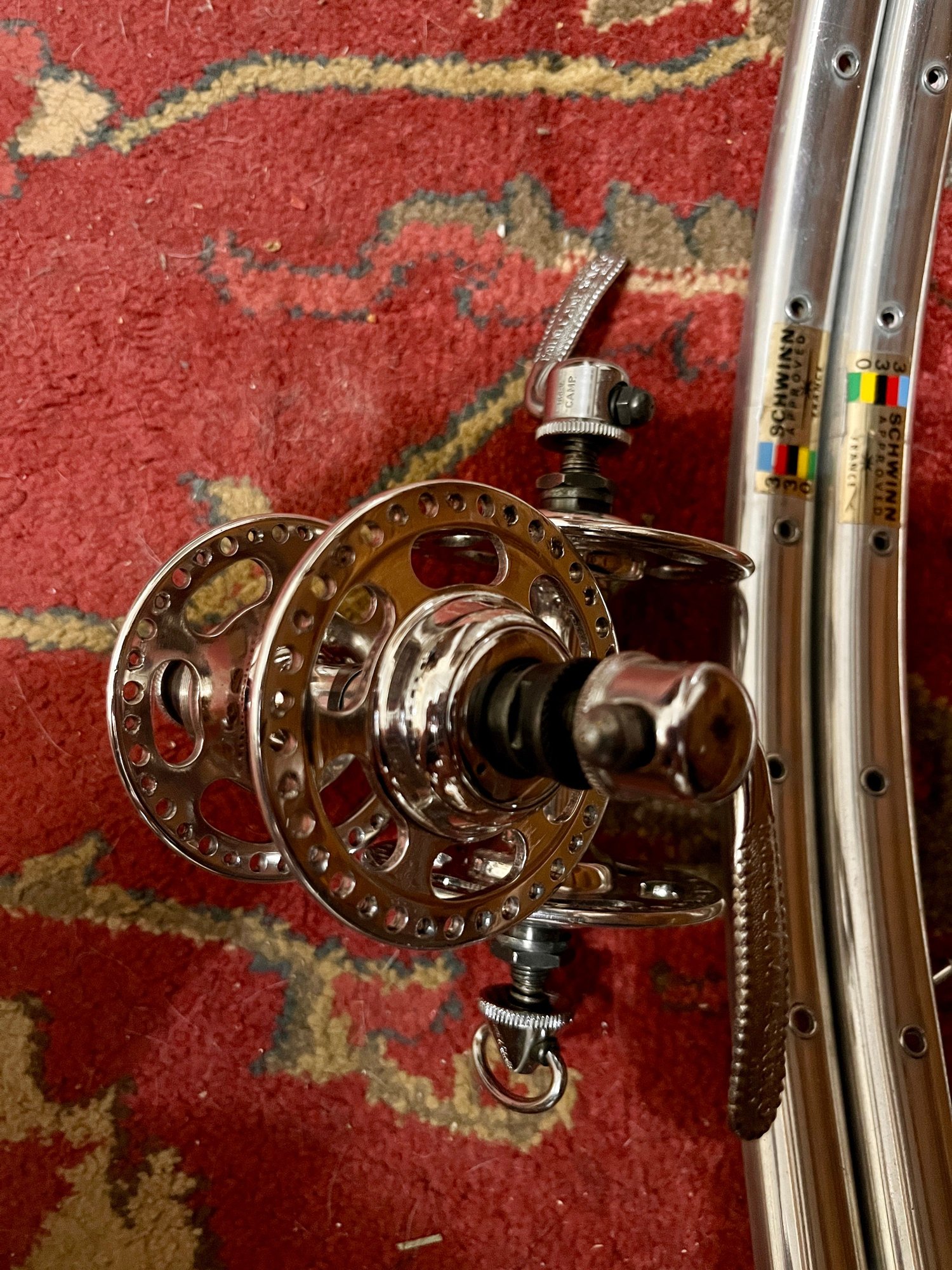

Mostly original parts, with the coolest being the large flange campy hubs, which are the famous \"mistakes" double drilled.... Interesting, the Campy crankset and rear derailleur are dated 1973.... I saw this also on Bob Freeman's '75 Paramount, and I think the factory was working on a surplus of parts at that point...

More parts... I need to repair the front derailleur arm, as well as the pivot pins on the rear derailleur need repair or replacement ...
75lechamp is offline
Old 05-20-22, 03:12 PM
  #2
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 594

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 400 Times in 199 Posts
Ahhh, those chrome lugs!! It's going to be beautiful.
ehcoplex is offline
Likes For ehcoplex:
Old 05-20-22, 03:13 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,157

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3149 Post(s)
Liked 2,923 Times in 1,848 Posts
Go man go.
merziac is offline
Likes For merziac:
Old 05-20-22, 05:59 PM
  #4
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 433

Bikes: yes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 211 Times in 108 Posts
Beautiful! Those parts trays look like they're from the greatest model kit ever
panzerwagon is offline
Likes For panzerwagon:
Old 05-20-22, 08:45 PM
  #5
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,879

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 825 Post(s)
Liked 1,400 Times in 602 Posts
Even as a pile, it looks great!
thinktubes is offline
Old 05-20-22, 09:00 PM
  #6
Fairlane63
Member

Join Date: Apr 2022
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 22 Times in 12 Posts
Look forward to updates and the final build.
Fairlane63 is offline
Old 05-20-22, 09:05 PM
  #7
Fahrenheit531
No Chain Lube Preference

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,917

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 705 Post(s)
Liked 484 Times in 253 Posts
Very cool.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 05-21-22, 07:33 AM
  #8
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,240

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 1,086 Times in 647 Posts
Fun!! I look forward to updates. Always nice to see these threads with the classics in the right hands.
Kabuki12 is offline
Old 05-21-22, 04:28 PM
  #9
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 914

Bikes: 1989 Cinelli Super Corsa

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 526 Post(s)
Liked 320 Times in 226 Posts
What a beautiful frame. Canít wait to see the final build.
smd4 is offline
Old 05-31-22, 02:24 PM
  #10
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 348 Times in 97 Posts
Finished! Inaugural Ride!

Well, I completed the Paramount today, and took it for a short spin...



Original "mistake" high flange Campys... with "Schwinn Approved 330" sewup rims...

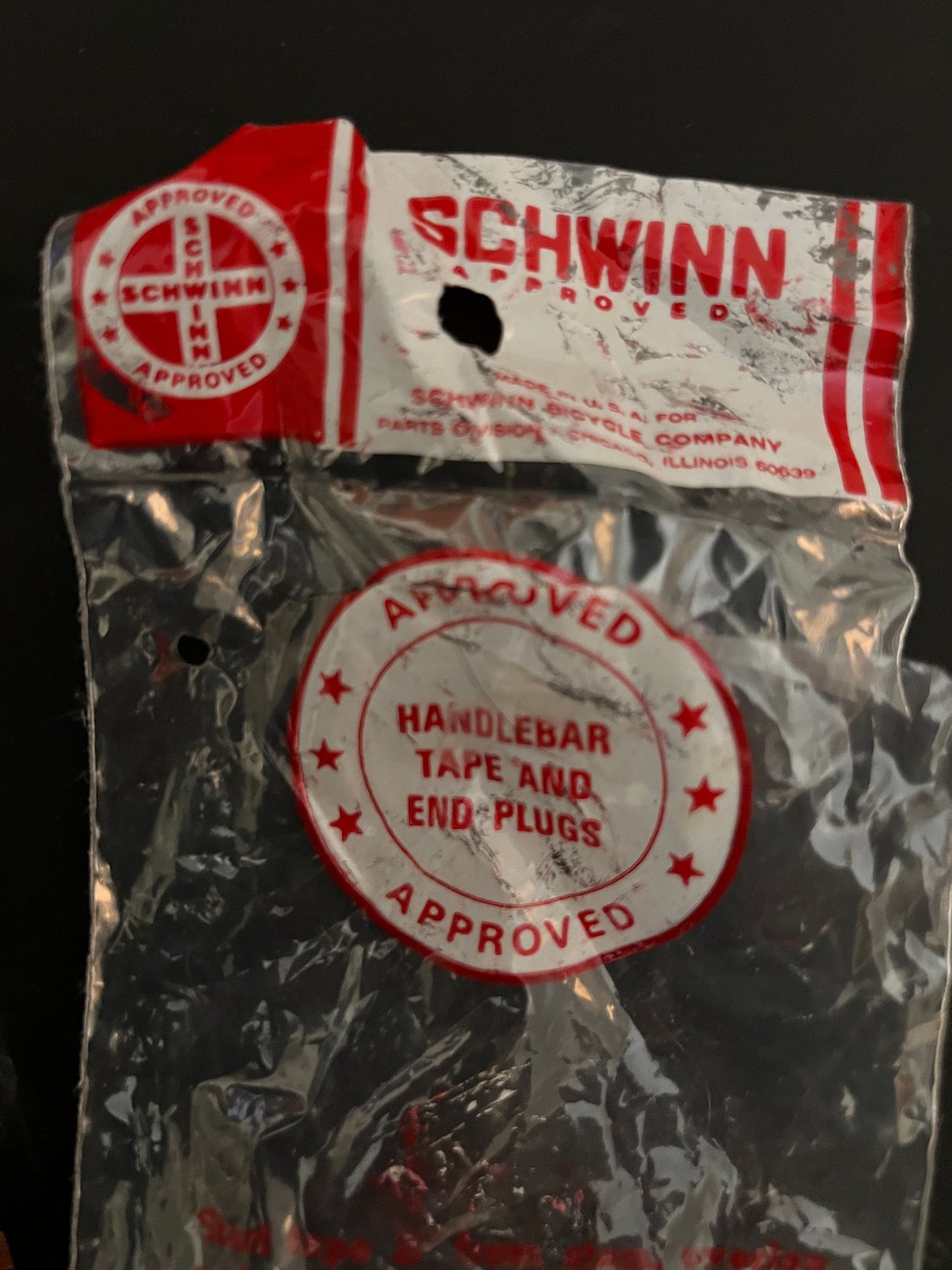

Got some "Schwinn Approved" textured vinyl bar tape...

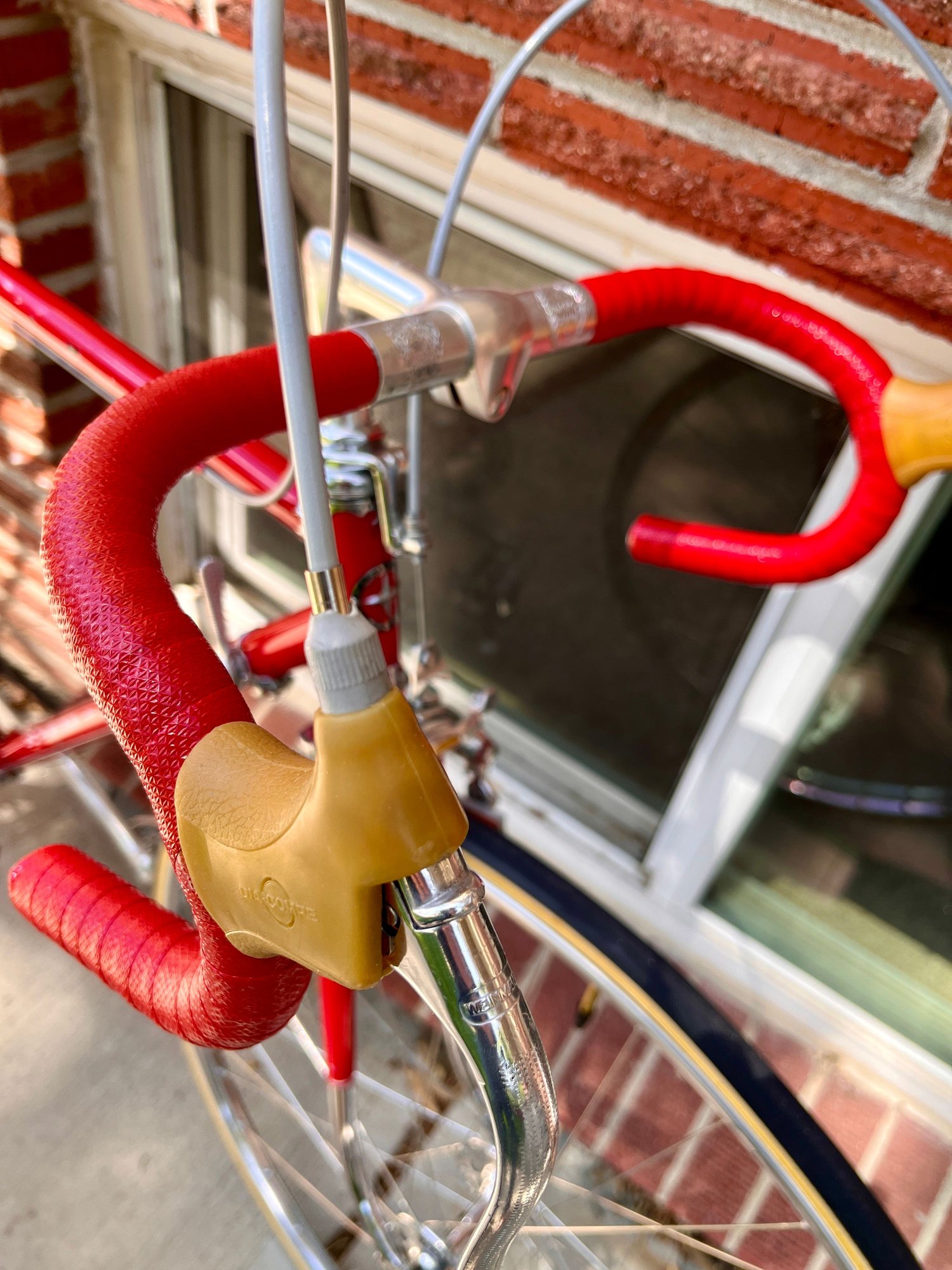

No Weinmann hoods available, but these Dia Compes work pretty well...

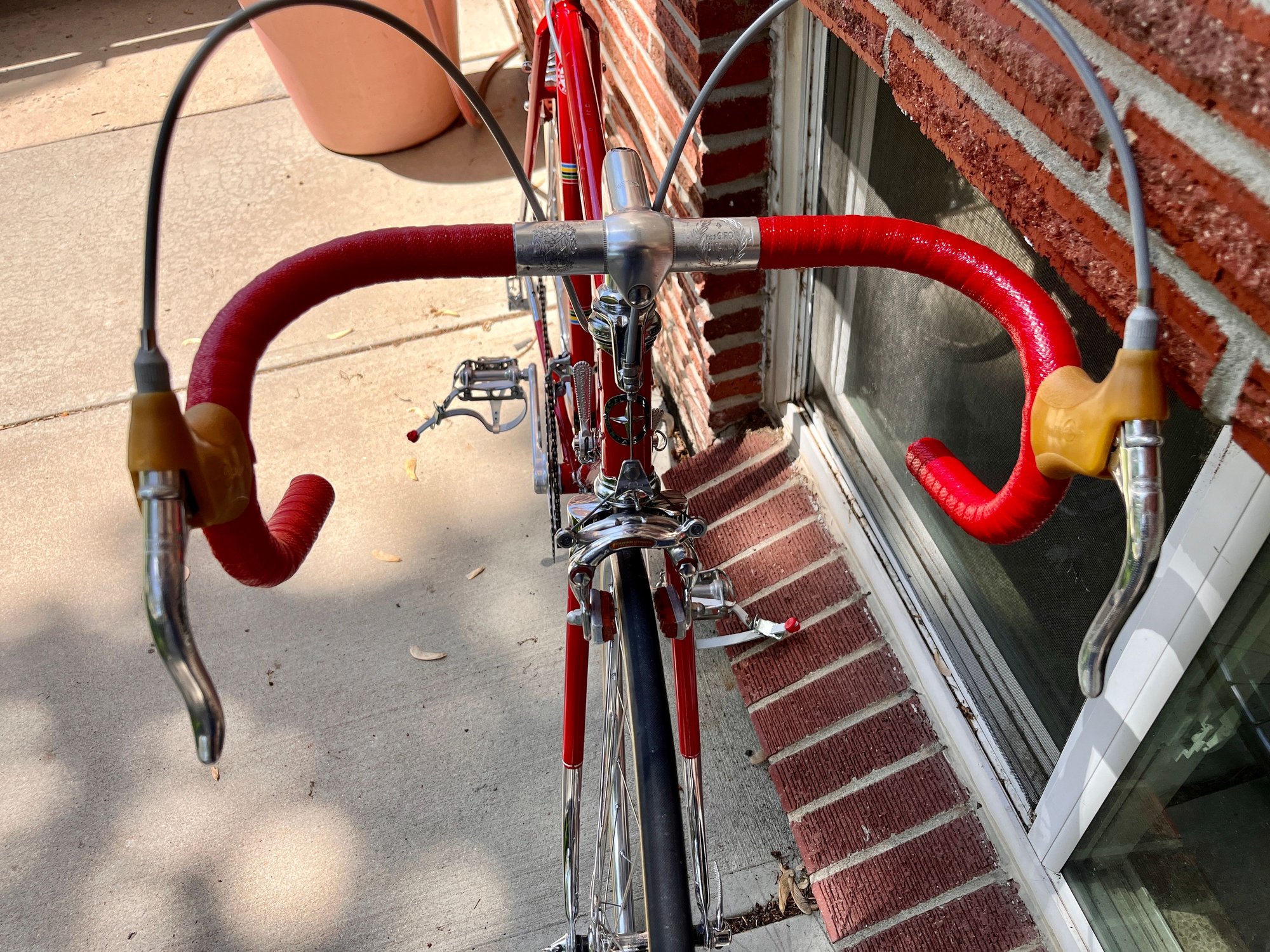

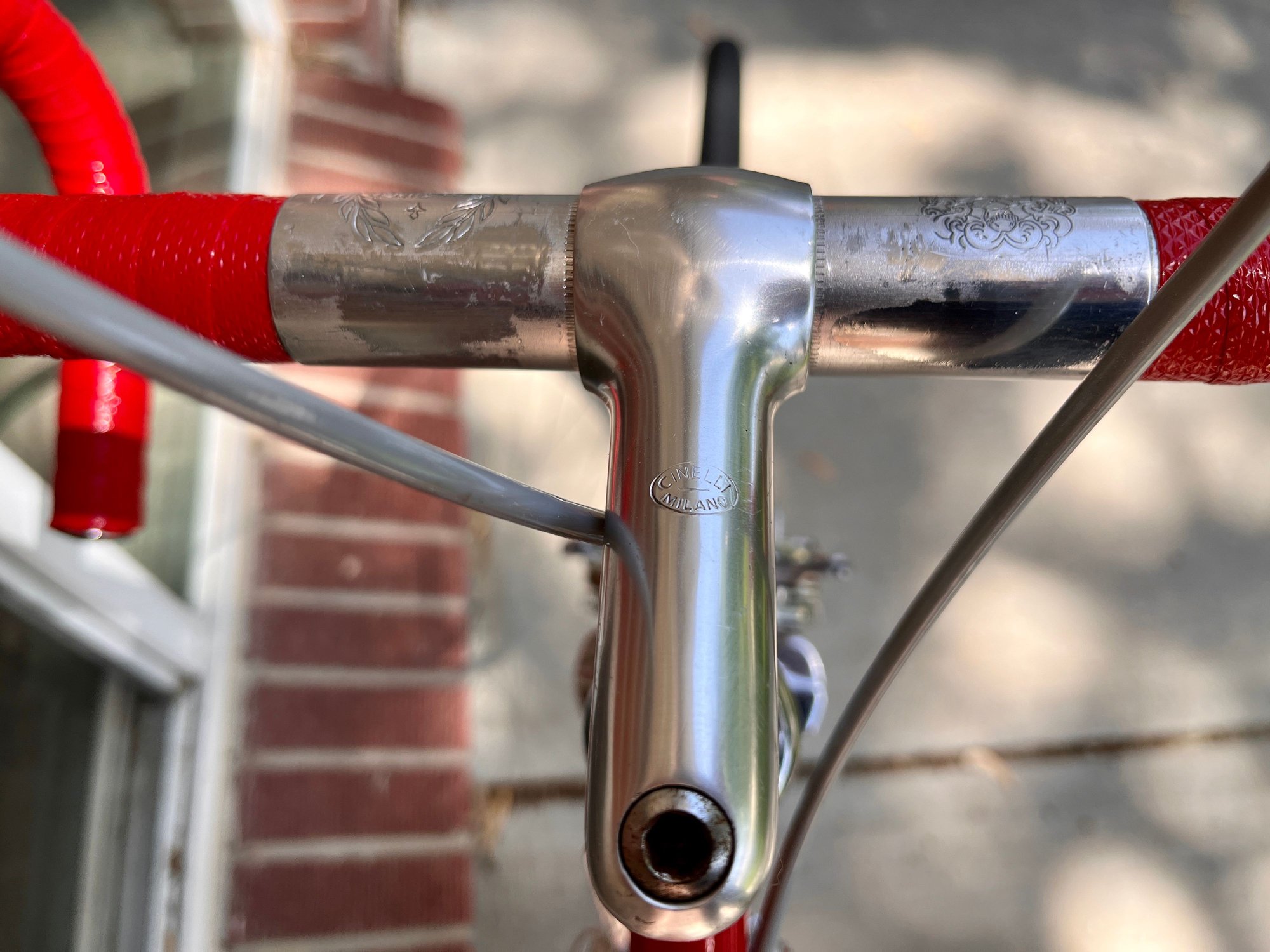

Old logo Cinelli 1A with old logo Giro d'Italia (model 64) bars... note the anodizing is worn off over time...

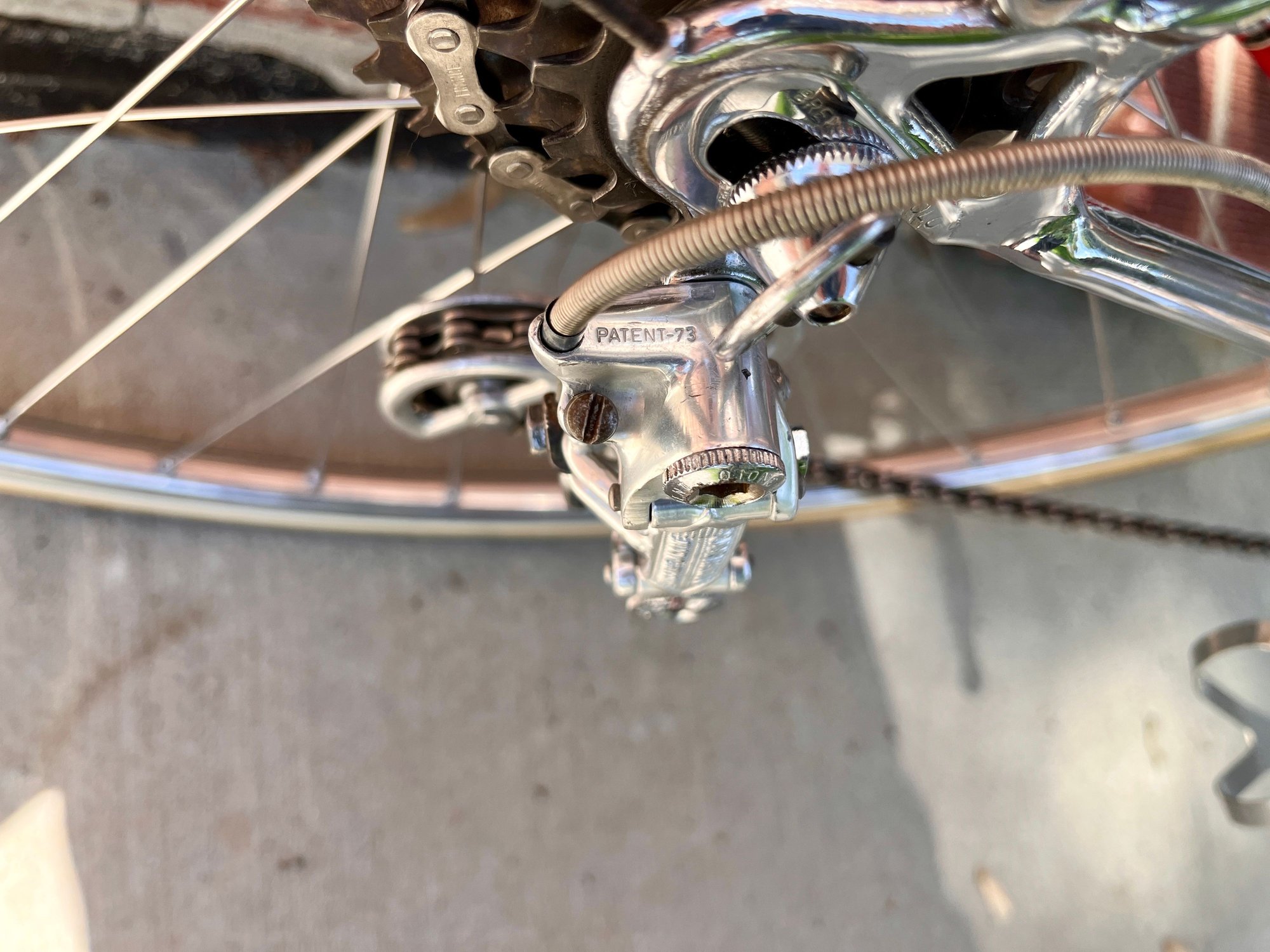

Although this is a '75, the components that are dated are from '73.... I think Schwinn was working on a backlog. The derailleur arrived bent and one pin broken, Jim Merz supplied me with a replacement he re-worked, thanks Jim!

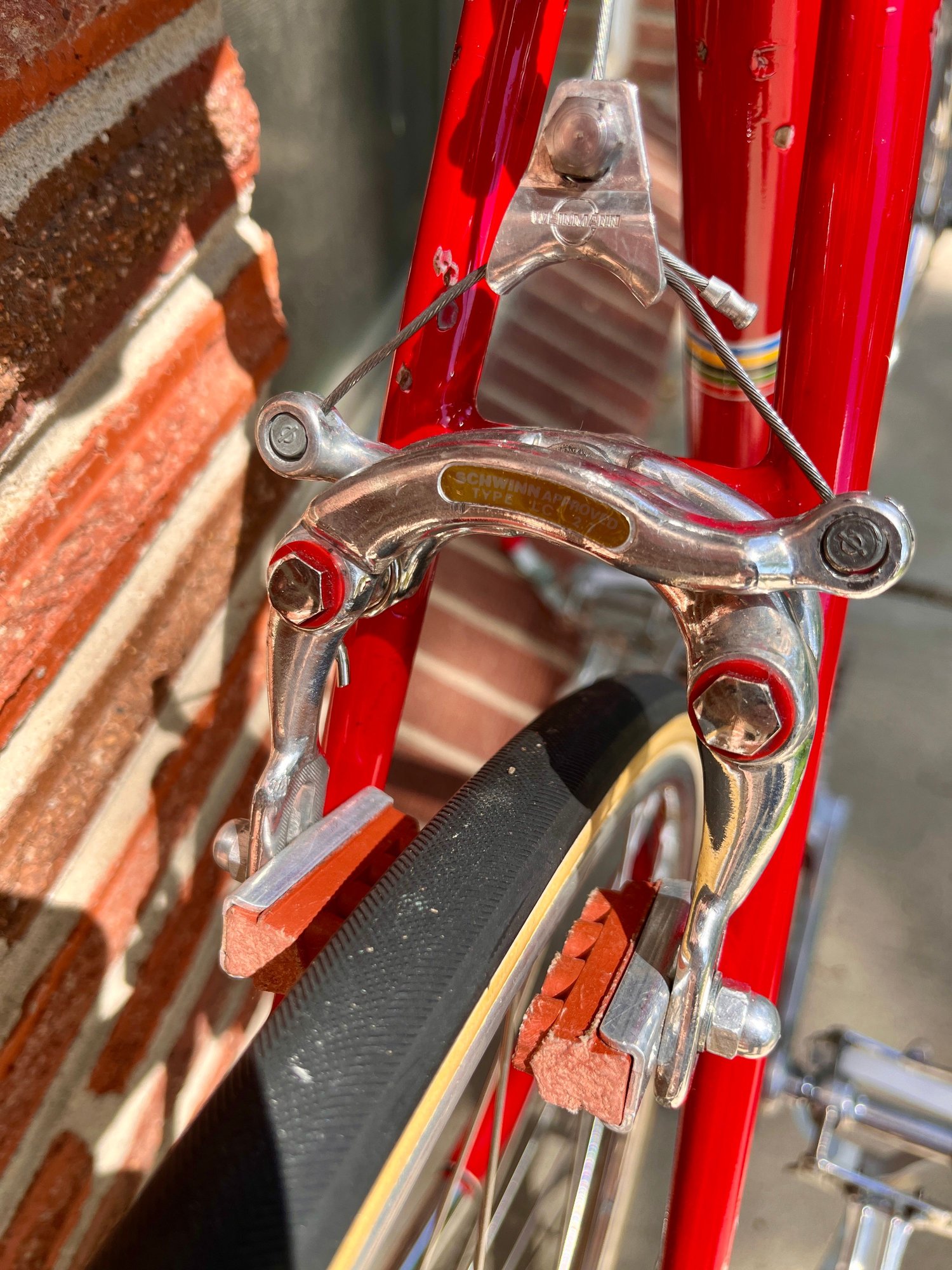

"Schwinn Approved" Weinmanns, need to get some replacement Kool Stop pads...


Finished!
75lechamp is offline
Likes For 75lechamp:
Old 05-31-22, 02:31 PM
  #11
Fairlane63
Member

Join Date: Apr 2022
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 22 Times in 12 Posts
Just lovely. So, how does it ride? I know the answer but would like to hear it anyway.
Fairlane63 is offline
Likes For Fairlane63:
Old 05-31-22, 04:59 PM
  #12
orcas island
Senior Member

Join Date: Sep 2009
Posts: 782
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 209 Times in 99 Posts
Gorgeous bike! Iím guessing itís the correct size for you?
orcas island is offline
Likes For orcas island:
Old 05-31-22, 05:01 PM
  #13
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 348 Times in 97 Posts
Fairlane63 it's a fabulous ride, owing mostly to that long wheelbase. It's the touring model rather than the racing.
75lechamp is offline
Likes For 75lechamp:
Old 05-31-22, 05:14 PM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,157

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3149 Post(s)
Liked 2,923 Times in 1,848 Posts
Originally Posted by 75lechamp View Post
Well, I completed the Paramount today, and took it for a short spin...

Original "mistake" high flange Campys... with "Schwinn Approved 330" sewup rims...

Got some "Schwinn Approved" textured vinyl bar tape...

No Weinmann hoods available, but these Dia Compes work pretty well...


Old logo Cinelli 1A with old logo Giro d'Italia (model 64) bars... note the anodizing is worn off over time...
Oven cleaner could have been employed here, very carefully of course.

Great job, love it when this happens, especially with a Paramount.
merziac is offline
Old 05-31-22, 06:50 PM
  #15
beicster
Senior Member

Join Date: Jan 2017
Location: Berea, KY
Posts: 969
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 161 Times in 119 Posts
Did you have to do anything to those hoods to stretch them over the large barrel adjusters? I have very similar brakes that need new hoods and have not found any with that look designed to work with them.
__________________
Andy
beicster is offline
Old 05-31-22, 07:44 PM
  #16
75lechamp
Senior Member
Thread Starter

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 204

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 348 Times in 97 Posts
That is a really great question. Here is what worked for me:

1. Take off the clamp bands
2. Put the hoods in warm water and a soapy solution. Soap up the lever body.
3. Unscrew the gray plastic adjusters. There is still a male threaded end on the body, but far less length to go over
4. Slowly slide the hoods on, from the back
5. Once you get close to the threaded part on the front top of the lever body, stretch carefully to get over the threaded part
6. Once the hood is on, screw the gray plastic adjuster back on. Mine was a pretty tight fit, took a little maneuvering and persuasion.

Hope that helps!
75lechamp is offline
Likes For 75lechamp:
Old 05-31-22, 09:00 PM
  #17
Fairlane63
Member

Join Date: Apr 2022
Posts: 40
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 22 Times in 12 Posts
Originally Posted by 75lechamp View Post
Fairlane63 it's a fabulous ride, owing mostly to that long wheelbase. It's the touring model rather than the racing.
Good to hear! Knew the answer though, they knew what they were doing when they made those vintage Paramounts.
Fairlane63 is offline
