1974 Paramount P-10 Part II

This past week I finally tore down the Paramount that I first posted here 3 1/2 years ago :
74 Paramount P-10

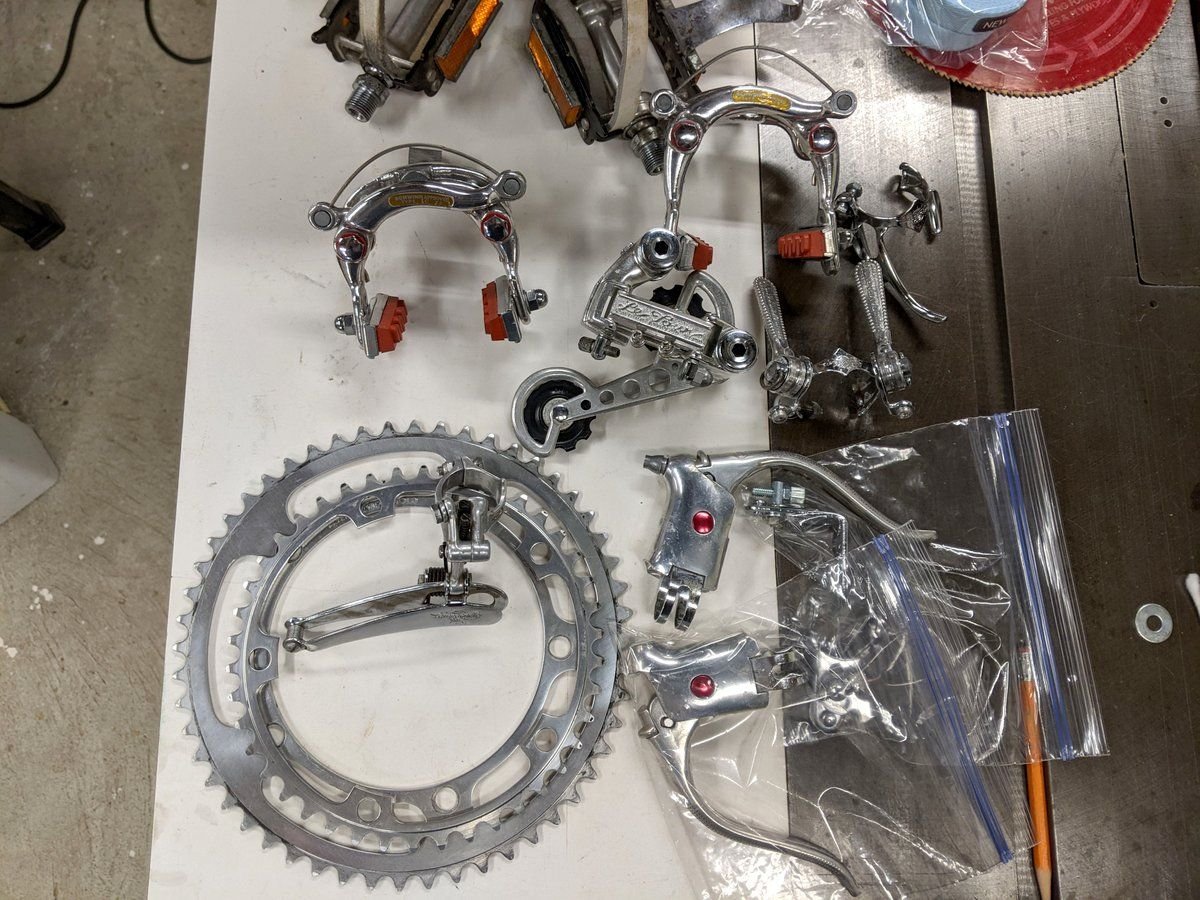

As I gathered parts for the re-build I found myself moving towards its original configuration, so as much as I liked the drilled brake levers that came with the Carrera sidepulls, a pair of quick-release levers and centerpull brakes ended up in the parts box.
As found:



I found a 26T Schwinn freewheel and 1974 NR RD, but for now I'm sticking with the 32T and the LeTour GT300

It is a pleasure working on a bike of this quality. Some tear-down photos:

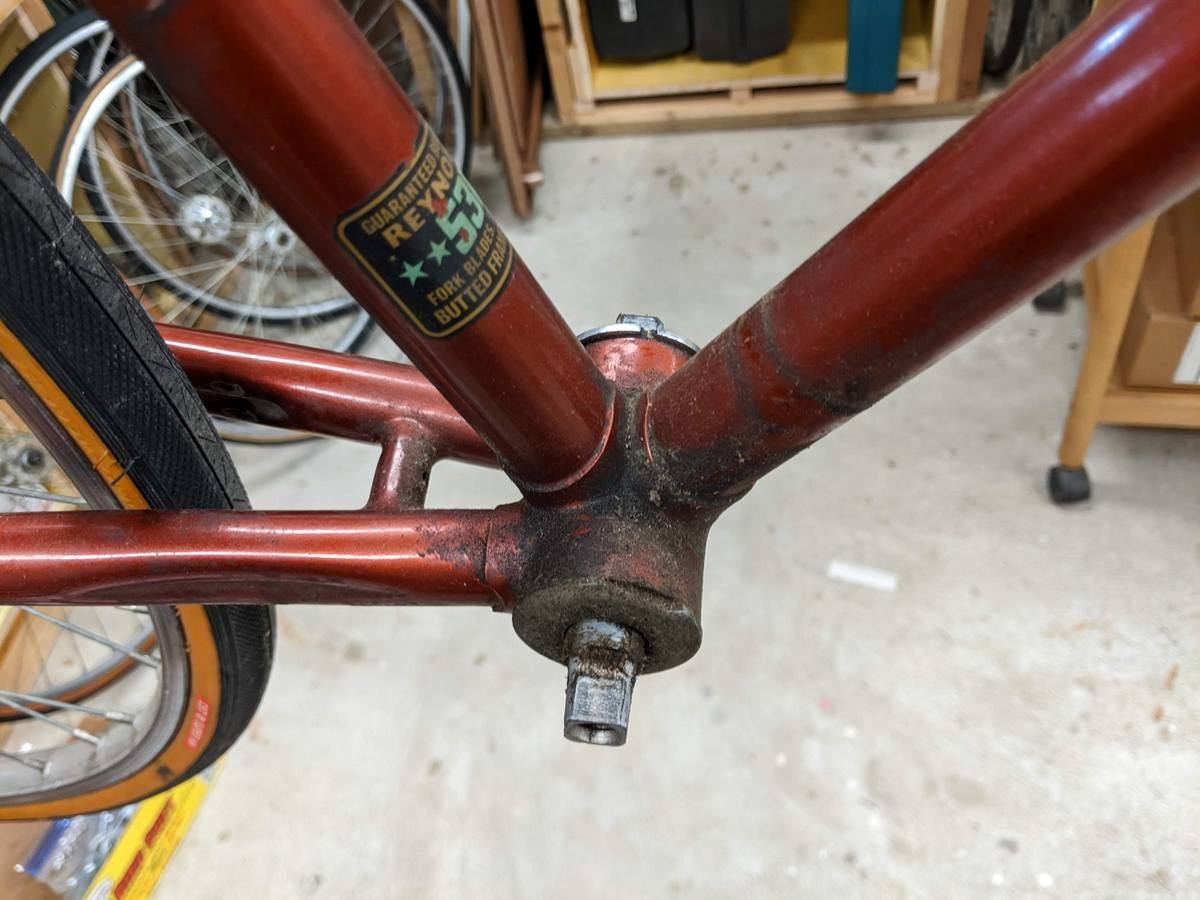

Early 531 decal

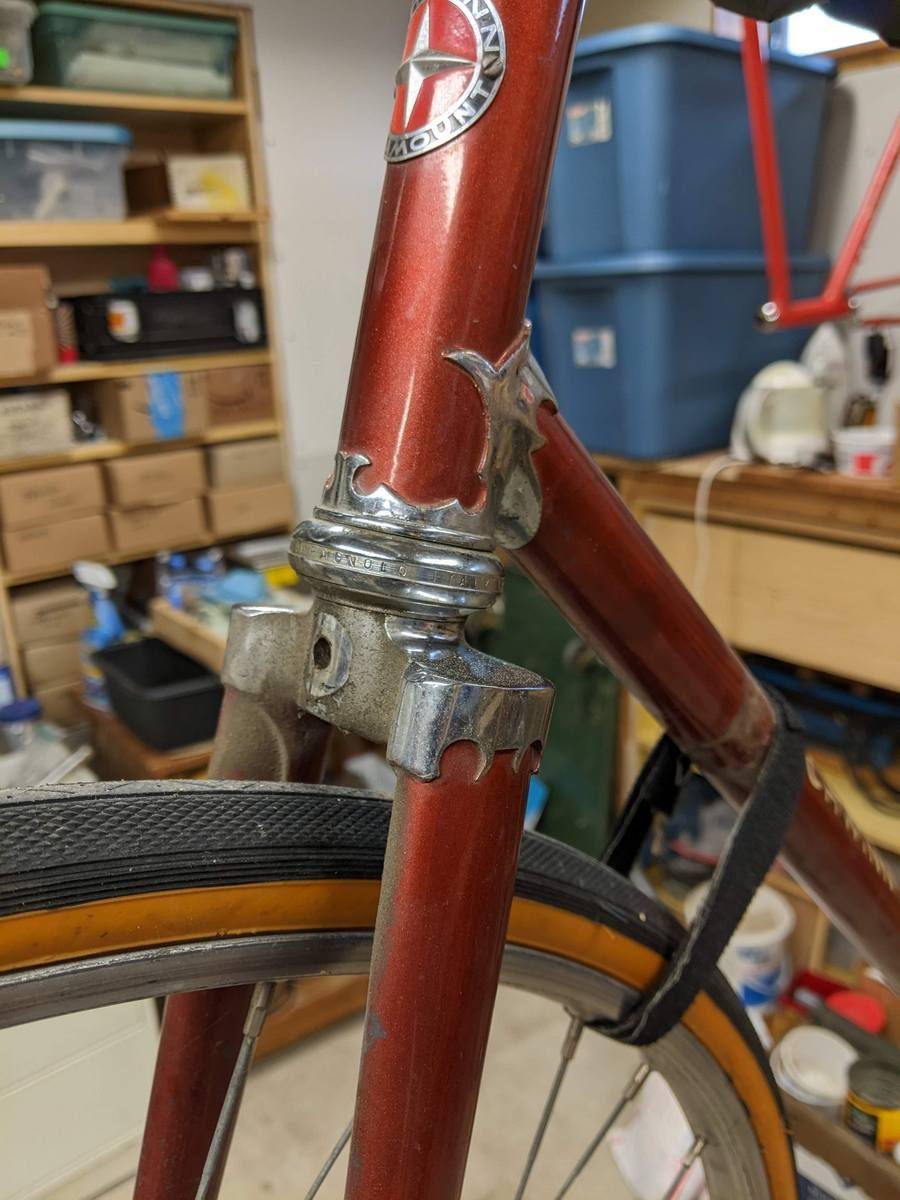

Fork crowns are flat on this one. There is no brazed-on pib to keep the downtube shifters from slipping.

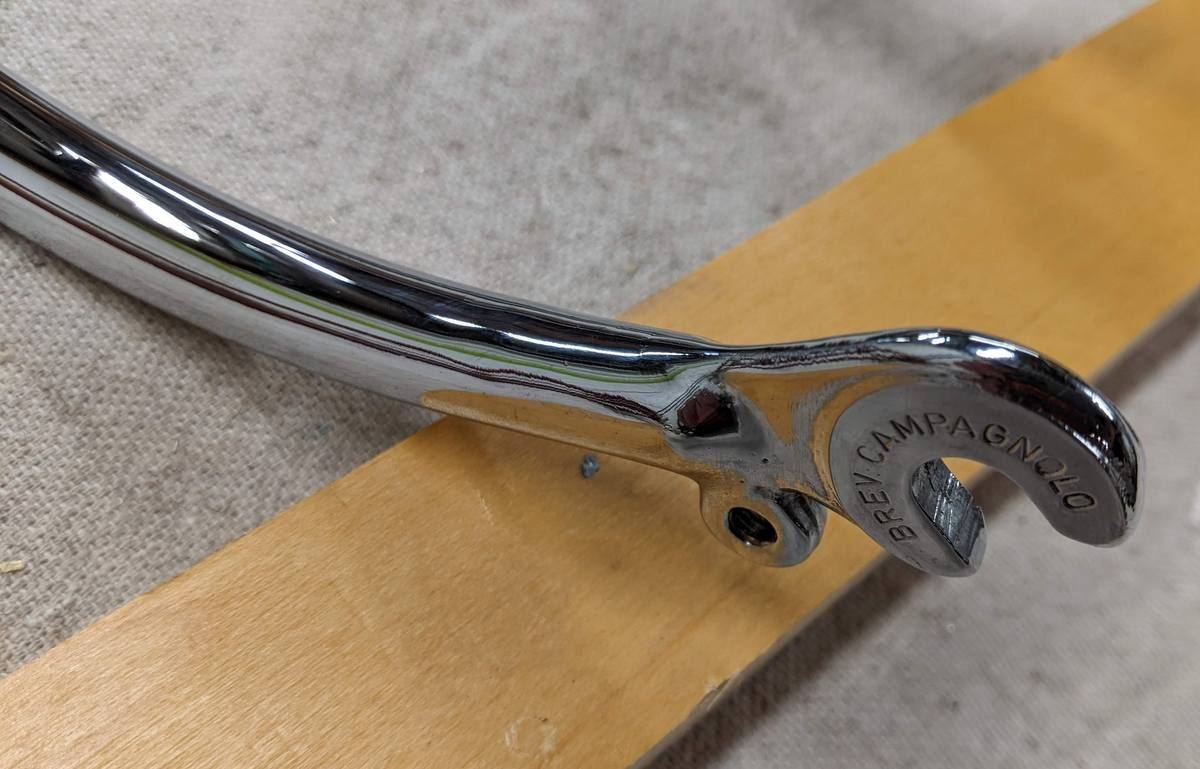

Matching serial number on the fork


Noticed this stamp while soaking the stem bolt with penetrating oil.

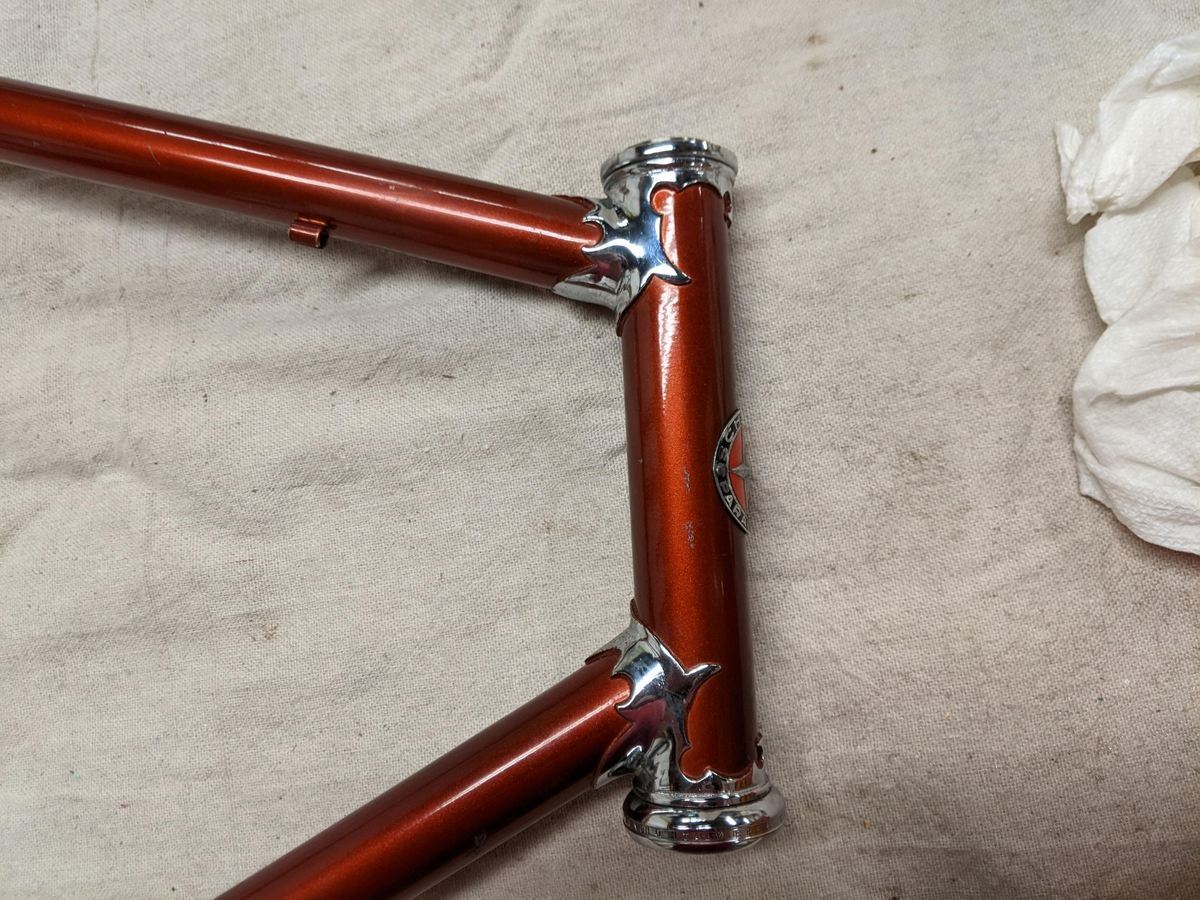

The brazing transitions are really smooth.

Lugs after a little bronze wool. Still need to use some cleaner wax on the paint.
__________________
72+76 Super Course, 74 P-10+ 79 Tandem Paramounts, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue





Last edited by Schreck83; 05-21-22 at 07:01 AM. Reason: spellling
Schreck83 is offline
Old 05-21-22, 07:23 AM
  #2
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,426

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 565 Post(s)
Liked 1,240 Times in 732 Posts
That is a beauty. I had my friend’s ‘74 stored at my shop for about a year (P13) and always admired that bike even though a size small for me . I rode it and they ride as good as they look. It was very similar to my Super Mondia , same lugs , fork crown etc.
Kabuki12 is offline
Old 05-21-22, 07:47 AM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,581

Bikes: A bunch of old bikes and a few new ones

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 5516 Post(s)
Liked 2,458 Times in 1,578 Posts
Beautiful bike. I'd be tempted to run a 50.4 bcd TA or Nervar crank to eke out some lower gears. Couple that with the long cage shimano RD you are using and you'll get some good hill climbing gears.

Last edited by bikemig; 05-21-22 at 08:10 AM.
bikemig is offline
Likes For bikemig:
Old 05-21-22, 08:01 AM
  #4
75lechamp
Full Member

Join Date: Feb 2014
Location: Arvada, Colorado
Posts: 229

Bikes: 1975 Motobecane LeChampion (silver lilac), 1974 Motobecane Grand Jubile (red/black); 1975 Motobecane Team Champion (orange); 1982 Pinarello Professional (Exorcist Green); 1974 Raleigh Professional MkIV mink blue, 1974 Motobecane Grand Record blk/red

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 411 Times in 114 Posts

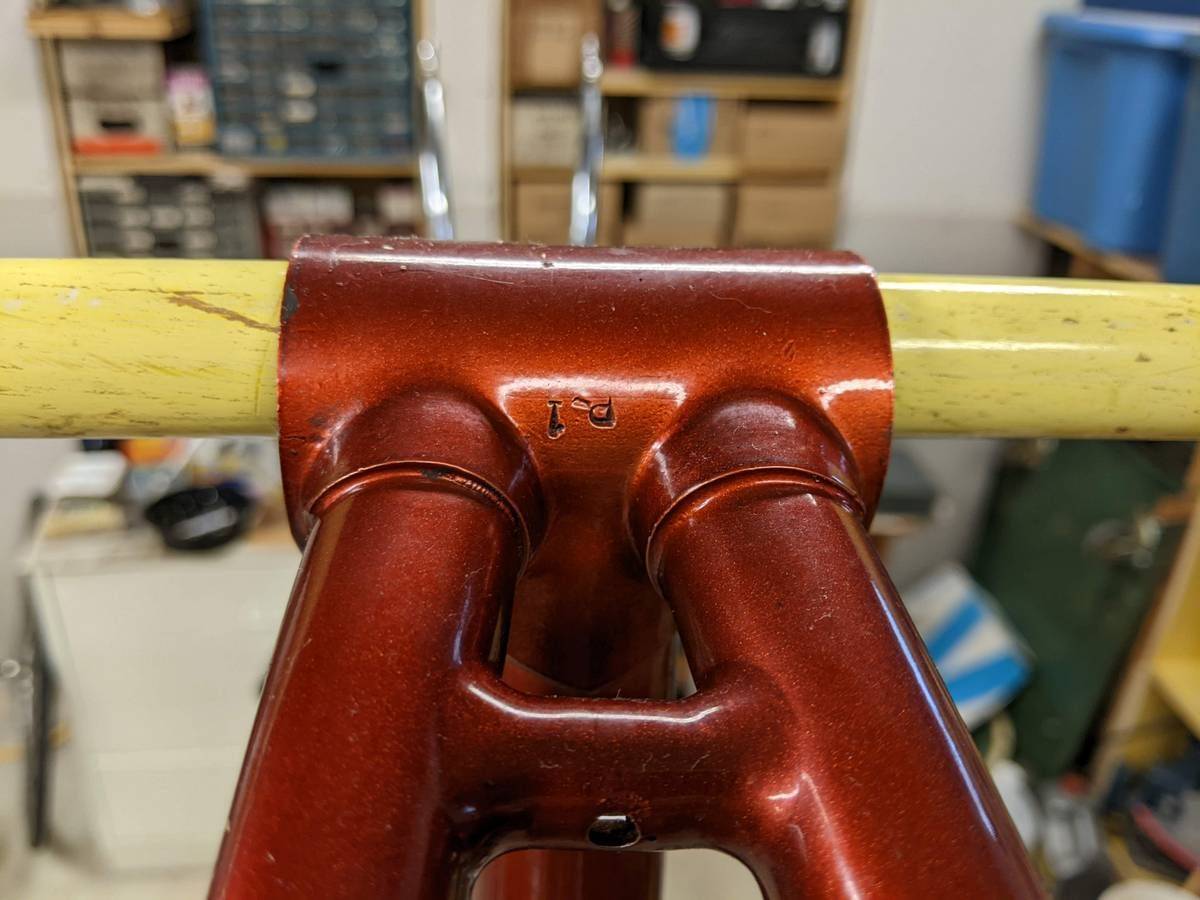

Congrats on this project! I am working on a '75 Paramount, also a P10-9, and mine also has the "P-1" stamped in exactly the same spot on the bottom bracket. From what I have been able to find, I believe this means the frame was outsourced to Don Mainland at Pioneer Manufacturing in Racine, Wisconsin. On another topic, do you have a pic of the 26T freewheel? I have a Shimano on this one, but not sure if it is original to this bike....


75lechamp is offline
Old 05-21-22, 08:57 AM
  #5
Schreck83
Full Member
Thread Starter

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 367
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 182 Times in 101 Posts
Originally Posted by 75lechamp View Post
Congrats on this project! I am working on a '75 Paramount, also a P10-9, and mine also has the "P-1" stamped in exactly the same spot on the bottom bracket. From what I have been able to find, I believe this means the frame was outsourced to Don Mainland at Pioneer Manufacturing in Racine, Wisconsin. On another topic, do you have a pic of the 26T freewheel? I have a Shimano on this one, but not sure if it is original to this bike....
I haven't checked the tooth count against the Paramount specs but here is the 1974 order form:

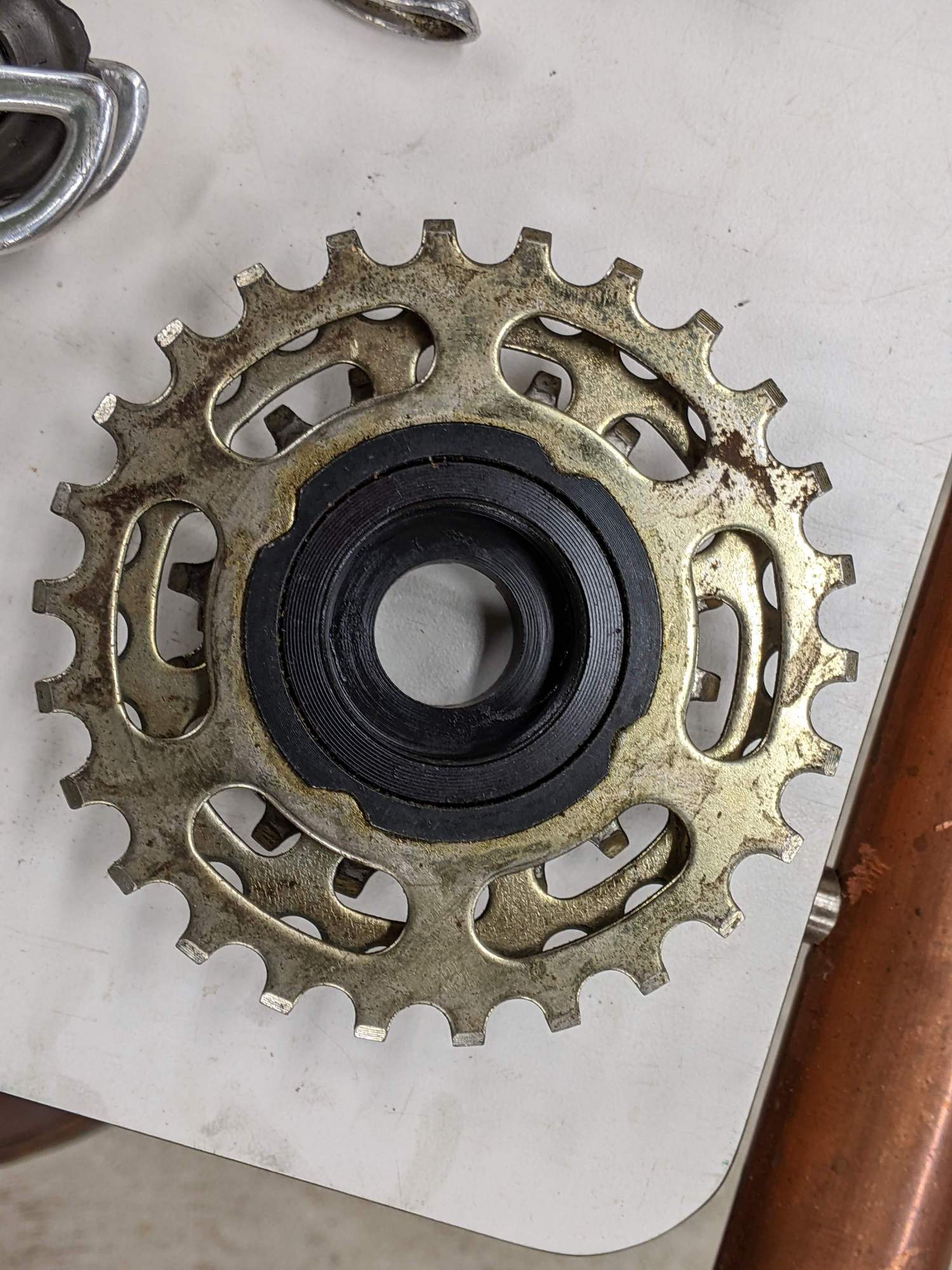

Looks like a SunTour ProCompe to me. The 23T cog is kind of big for the sequence but I haven't check the ratios against the 52/42 chalinwheels.
__________________
72+76 Super Course, 74 P-10+ 79 Tandem Paramounts, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue




Schreck83 is offline
Likes For Schreck83:
Old 07-09-22, 08:01 AM
  #6
Schreck83
Full Member
Thread Starter

Schreck83's Avatar

Join Date: Jul 2018
Location: WNY
Posts: 367
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 182 Times in 101 Posts
Photos taken before the shakedown ride:

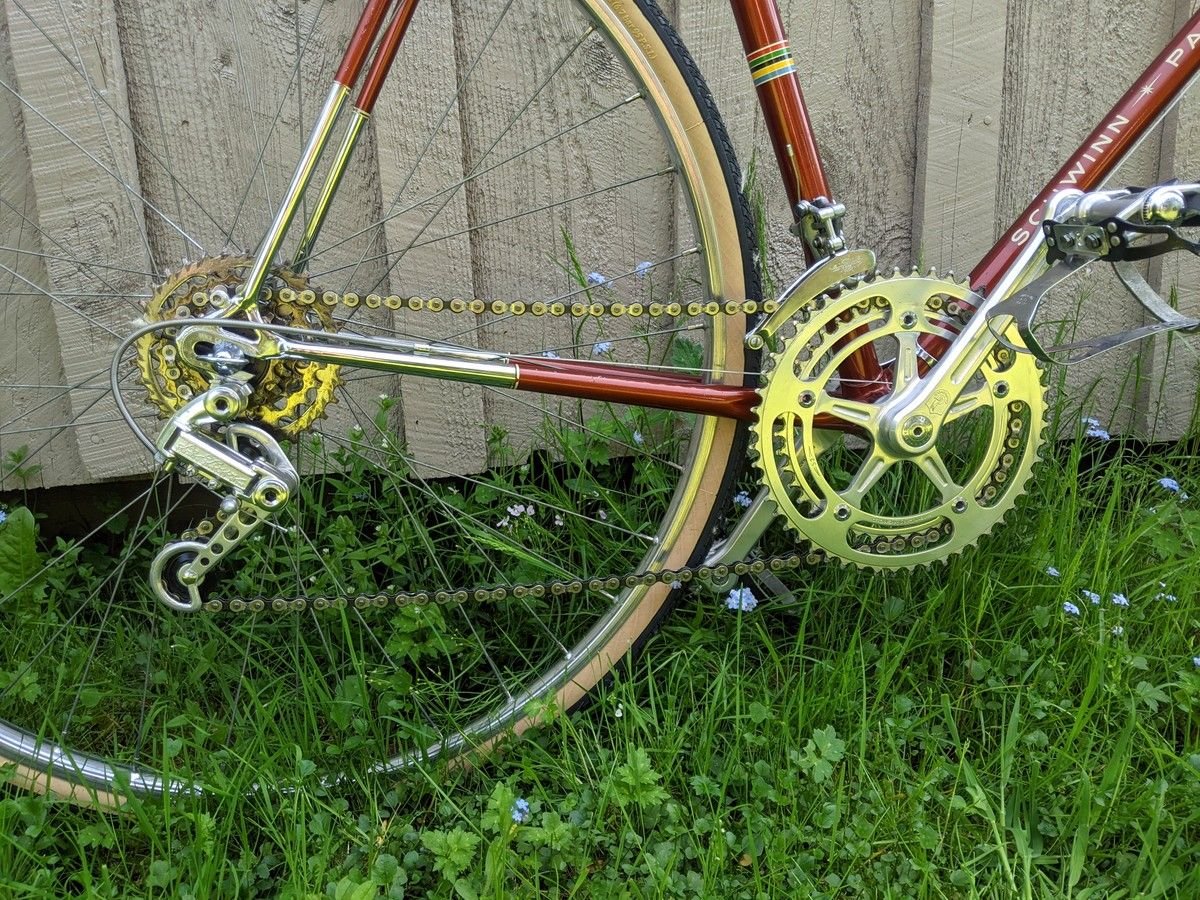

I don't know why the P10-9 had a 26T freewheel and NR RD standard. Seems like an odd spec for a "tourist" bike. If I don't like the LeTour I'll install a Gran Tourismo.

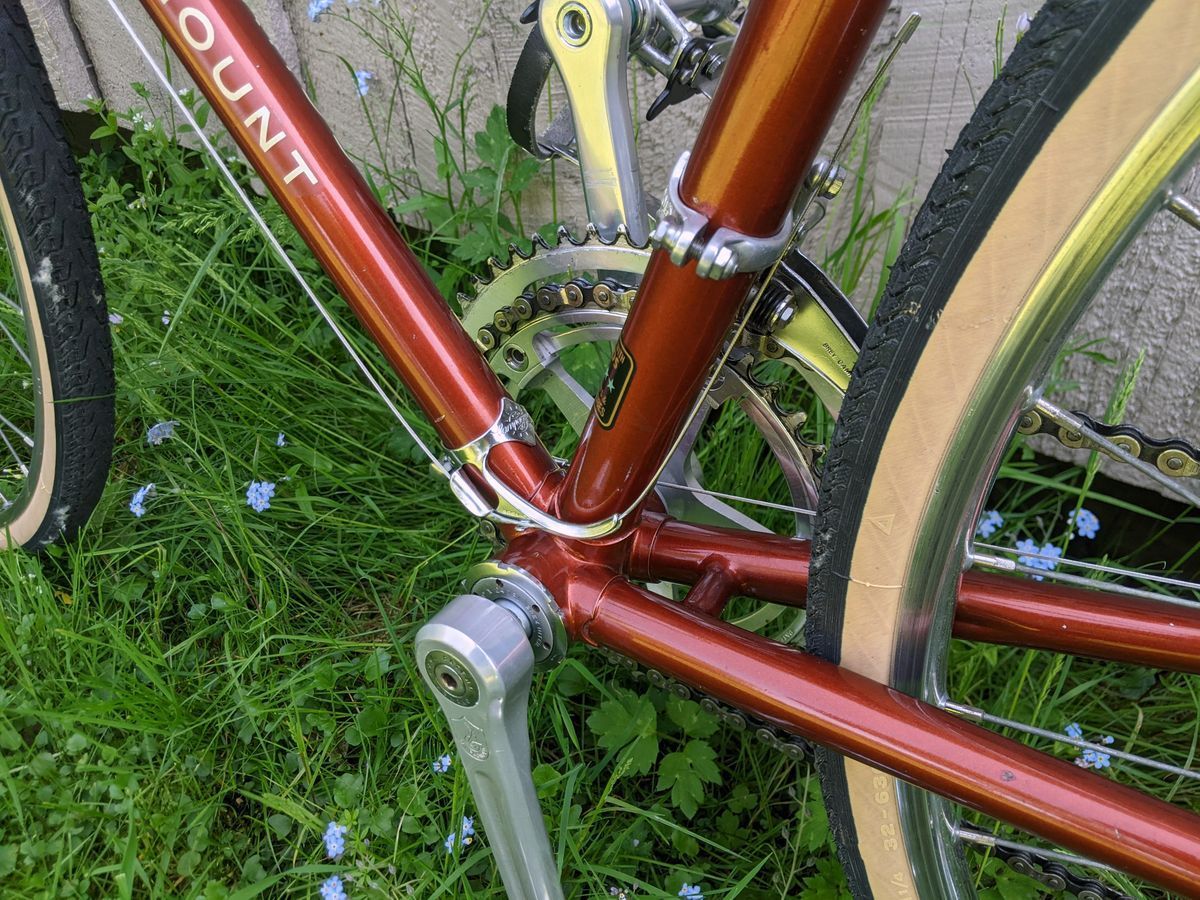

Lots of room for fenders here. I like these QR cable hangers better than the chunky originals.

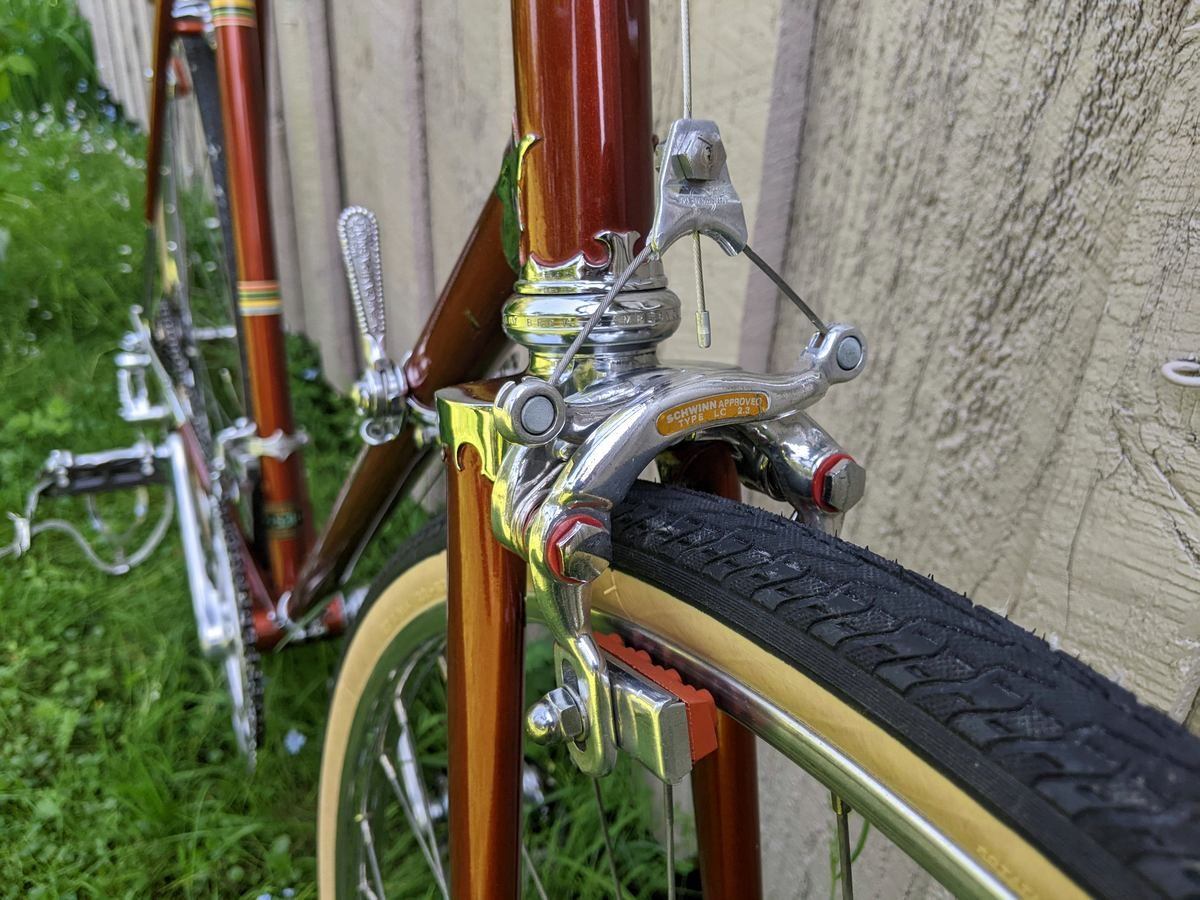

Tires are wired-on Pasela 27 x 1 1/4" as the original Weinmann rims are hookless. Not much room here to go wider.


Kool Stop inserts
__________________
72+76 Super Course, 74 P-10+ 79 Tandem Paramounts, 84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte and a queue




Schreck83 is offline
Likes For Schreck83:
Old 07-09-22, 08:29 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,826
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2541 Post(s)
Liked 1,484 Times in 1,114 Posts
Wow, 27" wheels and it still has Long rear brake reach... I was expecting 700c

differential braking circa 1974
repechage is offline
Old 07-09-22, 08:56 AM
  #8
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,136

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 806 Times in 554 Posts
I always hated, and never understood, the 18-23T gap in the Paramount freewheel. I happily run a 14-26 myself on the Bianchi, but it is a 6-speed with a much-used 20T cog, giving me a really good 1.5-step ratiometric progression with 50-42 / 14-16-18-20-23-26.

The proper way to do a 5-speed 14-26 is 14-16-19-22-26, which works well with a 4-tooth drop in front.
