Alex Singer Information?

Hello list friends,

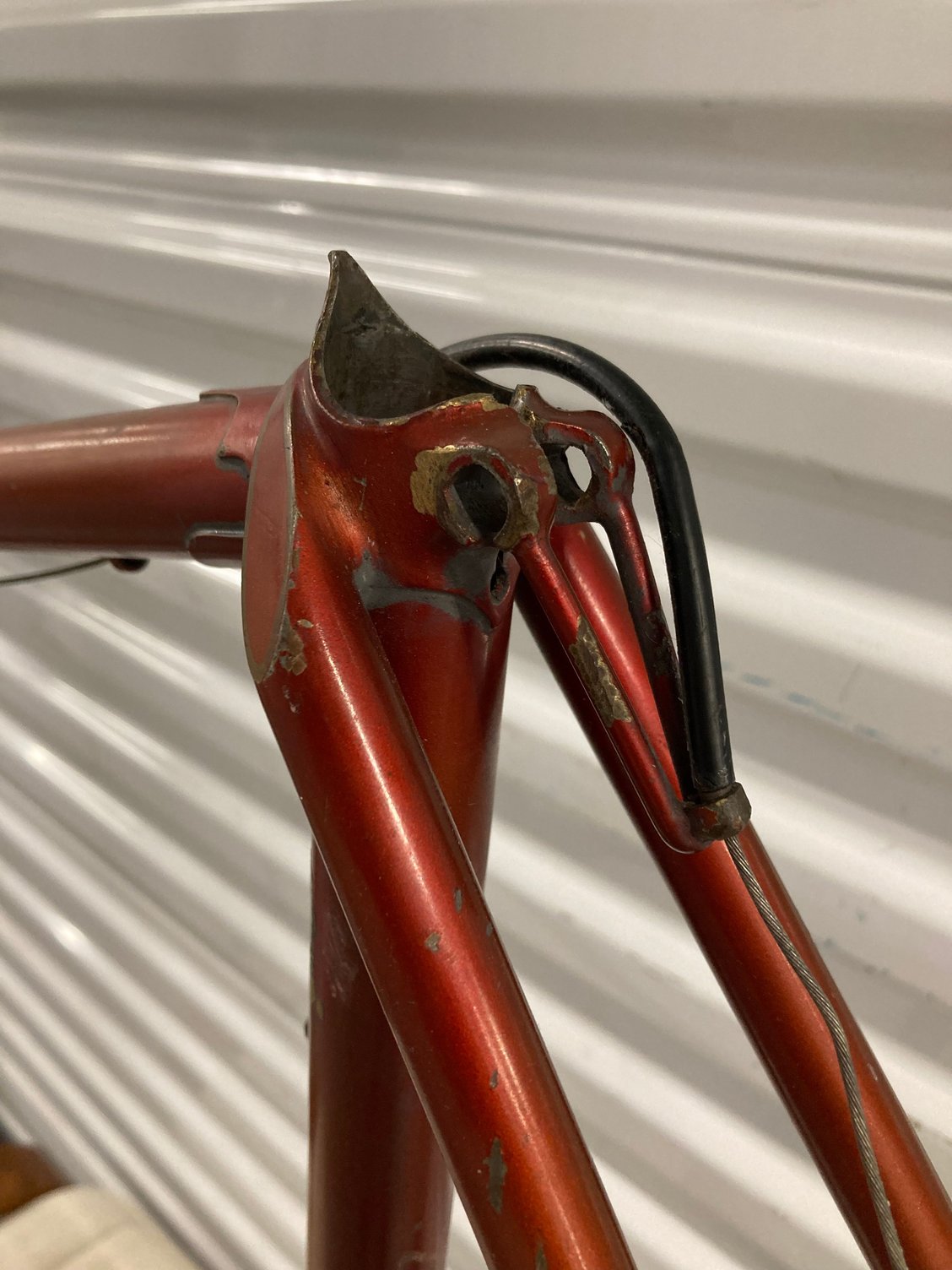

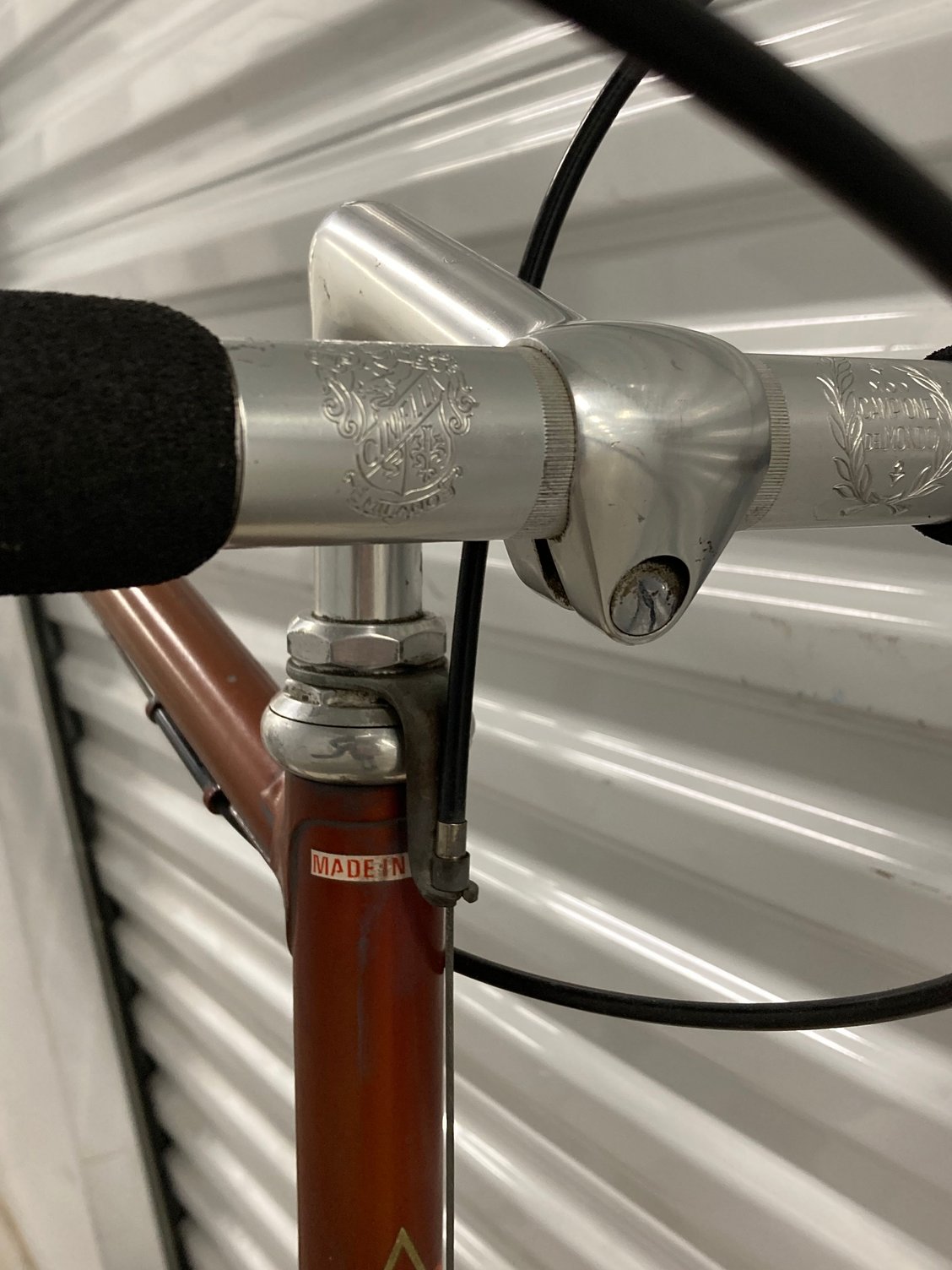

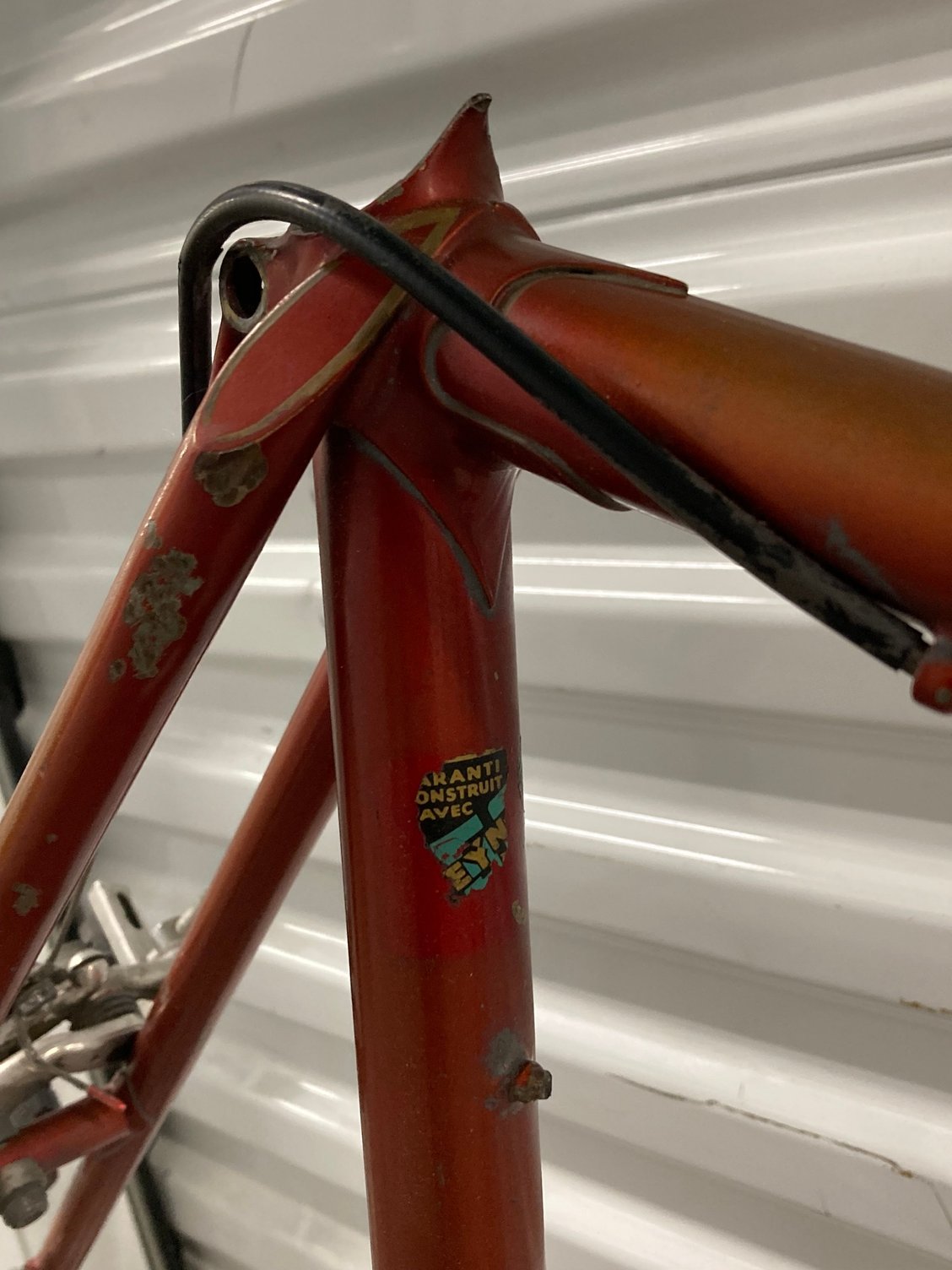

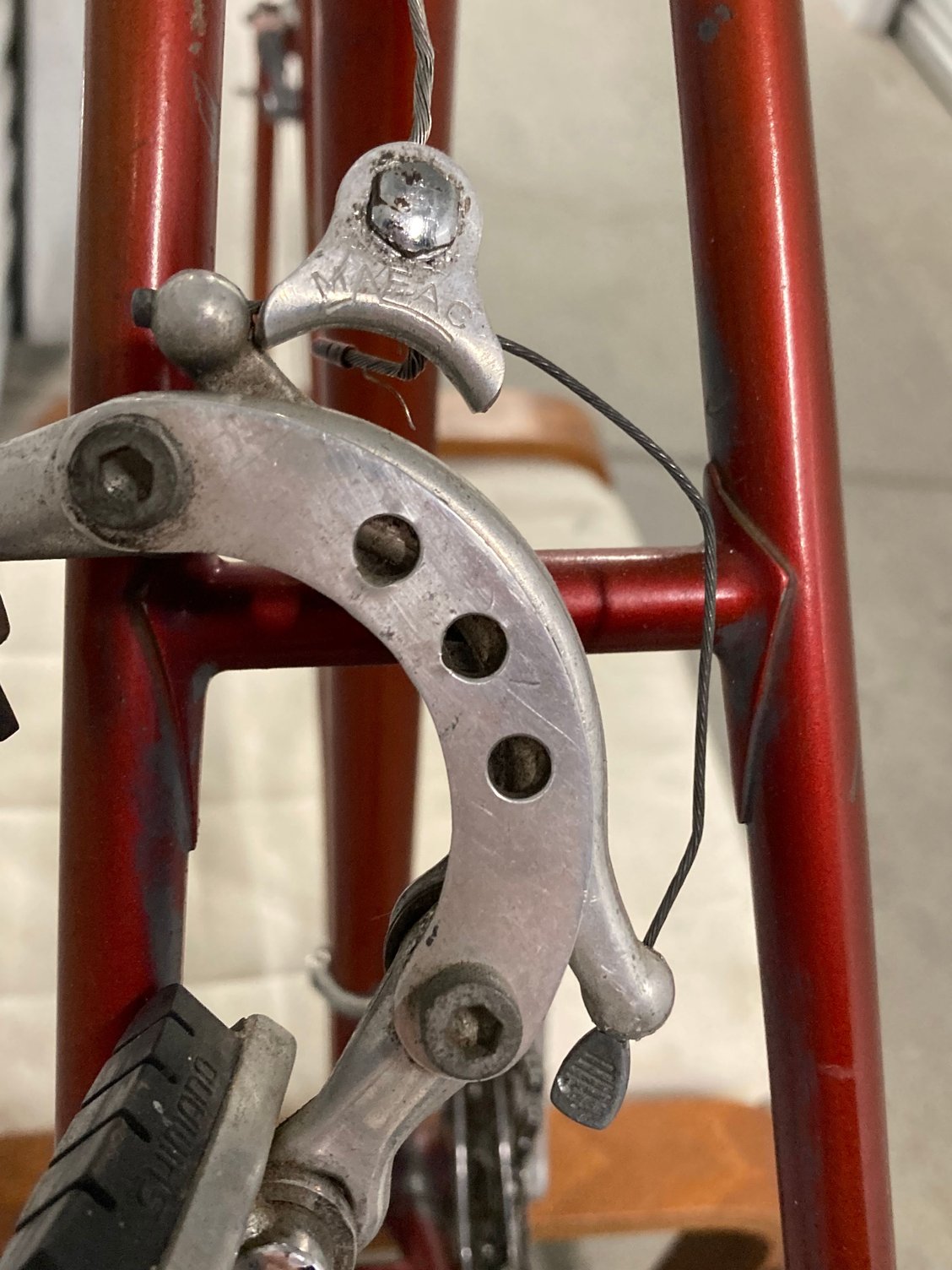

I was fortunate enough to happen upon this Alex Singer. Beneath piles of children's bicycles and rust buckets caught my eye this very special offering... a potential Alex Singer. Of course, the bicycle followed me, and now my curiosity regarding its legitimacy/history has peaked. Below are a few photographs of the bike in all of its mistreated glory. Please, feel free to share any thoughts as I am looking for information on the bike (besides the little that I might already know). Excuse the condition of the bike, its positioning, and the quite bad photos.

There is a four digit serial number printed on the non-drive side rear dropout.









SoccerBallXan is offline
Old 05-23-22, 01:07 AM
  #2
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,848

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 767 Times in 161 Posts
That could be a lovely build. Next time I am at the shop I can find out the name of the original order, the paper invoices are all in huge binders back to the 50s. I don't see a serial # on the dropout, just the "brev. campagnolo". If you can read a number post it. Shame about the cracked seat lug, that likely makes it non-rideable unless fixed. If you were willing Olivier would probably repair for you but it wouldn't be cheap or fast. I could show him this thread and ask what he thinks. PM me if you want to proceed that direction.
poprad is offline
Old 05-23-22, 01:34 AM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,140

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3144 Post(s)
Liked 2,908 Times in 1,840 Posts
!!!!!



merziac is online now
Old 05-23-22, 08:34 AM
  #4
bbbob
Member

Join Date: Oct 2020
Posts: 43

Bikes: Bianco porteur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 31 Times in 13 Posts
Highly likely it was sold by Spence Wolf, so the A. Singer records will indicate such. "made in France" indicates an export. The Mafac brake stiffener is a "spensism"... same with the choice of dropouts.
bbbob is offline
Likes For bbbob:
Old 05-23-22, 01:39 PM
  #5
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,848

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 767 Times in 161 Posts
Originally Posted by bbbob View Post
Highly likely it was sold by Spence Wolf, so the A. Singer records will indicate such. "made in France" indicates an export. The Mafac brake stiffener is a "spensism"... same with the choice of dropouts.
That's great info...I'd wondered about those Campy dropouts. They do look odd on a Singer.
poprad is offline
Old 05-23-22, 02:37 PM
  #6
bbbob
Member

Join Date: Oct 2020
Posts: 43

Bikes: Bianco porteur

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 31 Times in 13 Posts

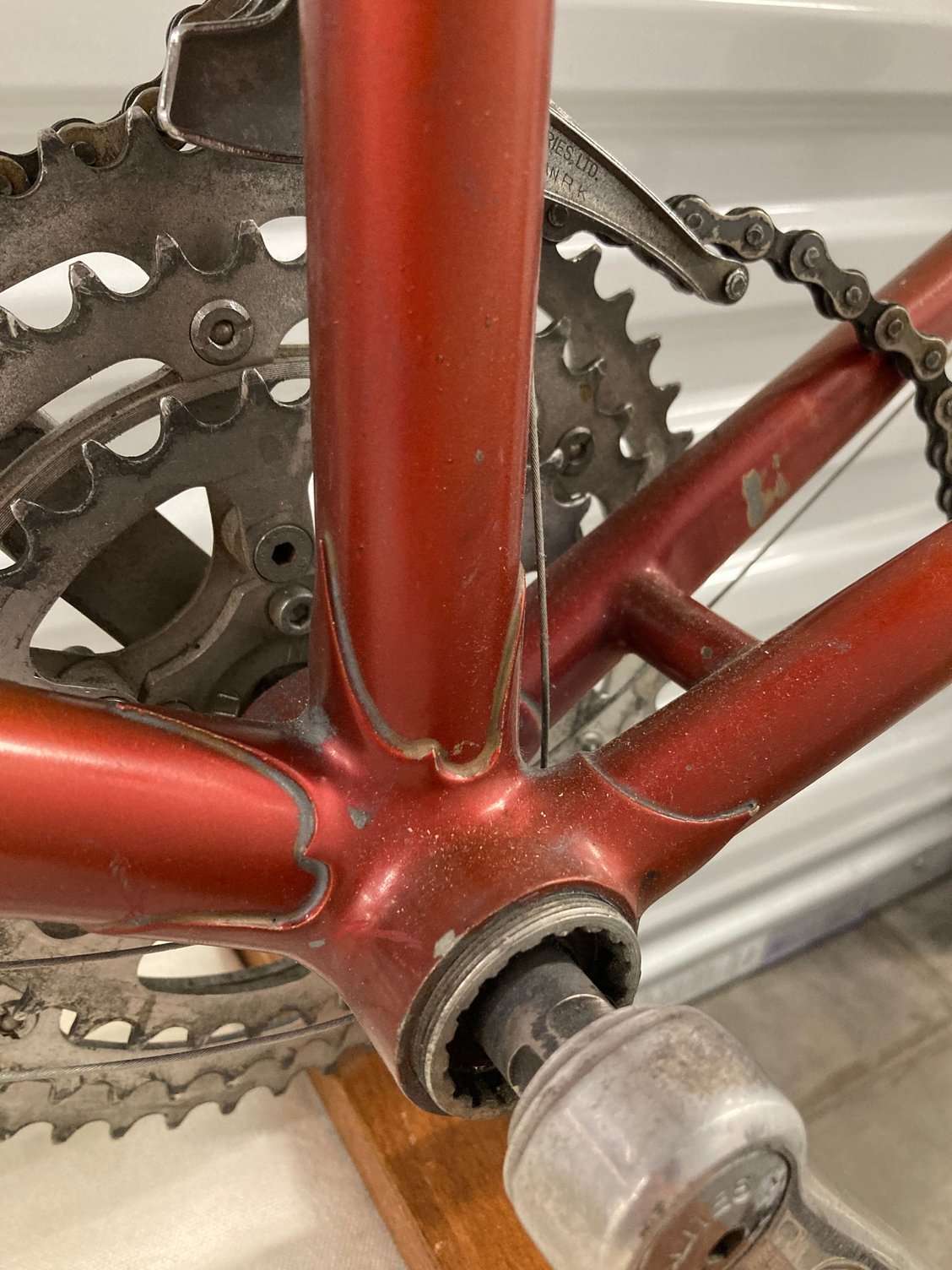

This is Roland's work. Also this frame has extra work done to the BB shell, an optional "extra", all the long points and tongues were steel welded on and filed to blend, this takes hours. The Phil BB is yet another spensism.
bbbob is offline
Likes For bbbob:
Old 05-24-22, 07:23 AM
  #7
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,848

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 767 Times in 161 Posts
Originally Posted by bbbob View Post
This is Roland's work. Also this frame has extra work done to the BB shell, an optional "extra", all the long points and tongues were steel welded on and filed to blend, this takes hours. The Phil BB is yet another spensism.

Right you are Bob, and props from the Man himself:

poprad is offline
Old 05-24-22, 08:37 AM
  #8
Fat Tire Trader
Senior Member

Fat Tire Trader's Avatar

Join Date: Aug 2014
Location: San Quentin California
Posts: 104

Bikes: https://www.fattiretrading.com/collection.html

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 63 Times in 21 Posts
For comparison here is my Singer 1975 Alex Singer (fattiretrading.com)
Fat Tire Trader is offline
Likes For Fat Tire Trader:
Old 05-24-22, 10:07 AM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,878
Mentioned: 329 Post(s)
Tagged: 1 Thread(s)
Quoted: 2876 Post(s)
Liked 1,446 Times in 1,056 Posts
-----

1978 would make it during the relatively brief period where Spence had the shop in Pacific Grove, California

visited both the original Randy Lane and Pacific Grove locations

always a treat!

absolutely wonderful courtesy, knowledge, graciousness & generosity of spirit

still have in me spares drawers some treasures purchased during the big moving/inventory reduction sale as they were preparing to relocate from Randy Lane to P.G.

have wonderful fun with this outstanding find


-----
juvela is offline
Likes For juvela:
Old 05-24-22, 05:35 PM
  #10
mikekone
Junior Member

Join Date: Sep 2020
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 10 Times in 6 Posts
For the seatlug, I'd do the most minimal repair possible - a builder should fabricate a splice to complete the ear. If fitted carefully, it could be silver brazed perhaps. That would minimize disturbing the rest of the joint and minimize any possible distortion. But a good builder could do it in brass as well. I've seen Mark Nobilette do splices that were significantly more complicated.

Interestingly, some of Singers that came into the US were actually designed for 27" wheels. There were a couple of frames that came in around the time of this one that went to the Boulder Spoke Bicycle Shop as "spec" frames and at least one was 27".

The Singer frames of this period tend to ride very well. It's very much worth restoring to it's former glory!
mikekone is offline
Likes For mikekone:
Old 05-24-22, 07:27 PM
  #11
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Where's this crack y'all are seeing?
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 05-24-22, 08:04 PM
  #12
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,140

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3144 Post(s)
Liked 2,908 Times in 1,840 Posts
Originally Posted by scarlson View Post
Where's this crack y'all are seeing?
The seat binder ear is mangled from too many butchers in the mix.
merziac is online now
Old 05-24-22, 10:56 PM
  #13
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Still not seeing a crack, only paint chipping, but maybe I am just thick. Looks rideable from here!
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 05-24-22, 11:45 PM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,140

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3144 Post(s)
Liked 2,908 Times in 1,840 Posts
Originally Posted by scarlson View Post
Still not seeing a crack, only paint chipping, but maybe I am just thick. Looks rideable from here!
The paint chip on the ST is obscuring it, the NDS ear is split way open at the bottom.

And I think you're probably right, it could be ridden with a good bolt/washer setup, but given it is what it is, it should be properly fixed first.
merziac is online now
Old 05-25-22, 05:21 AM
  #15
El Chaba
Senior Member

Join Date: Dec 2016
Posts: 352
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 132 Times in 45 Posts
The transport would add to the cost, but it would be great if this bike could go back to Alex Singer for the repairs and refinishing. It’s beautifully built and quite worth the investment….
El Chaba is offline
Old 05-25-22, 06:23 AM
  #16
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Originally Posted by merziac View Post
The paint chip on the ST is obscuring it, the NDS ear is split way open at the bottom.

And I think you're probably right, it could be ridden with a good bolt/washer setup, but given it is what it is, it should be properly fixed first.
I think that's just the keyway for the seat binder bolt key, (you know, the notch to stop the left side of the binder bolt from moving when you are tightening the right side). I don't think that goes all the way through, and I don't think it's damaged much at all.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Old 05-25-22, 07:12 AM
  #17
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,848

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 767 Times in 161 Posts
I'm pretty sure this isn't a crack but an entire missing piece, this should be a continuous metal surround of the binder bolt nut:




For reference a brand new one

Last edited by poprad; 05-25-22 at 07:17 AM.
poprad is offline
Likes For poprad:
Old 05-25-22, 07:53 AM
  #18
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
I'm pretty sure it's just a seat binder bolt keyway. To take a seat binder bolt with a key that stops the left side from turning. Like this one. I do not think it was originally hex shaped.

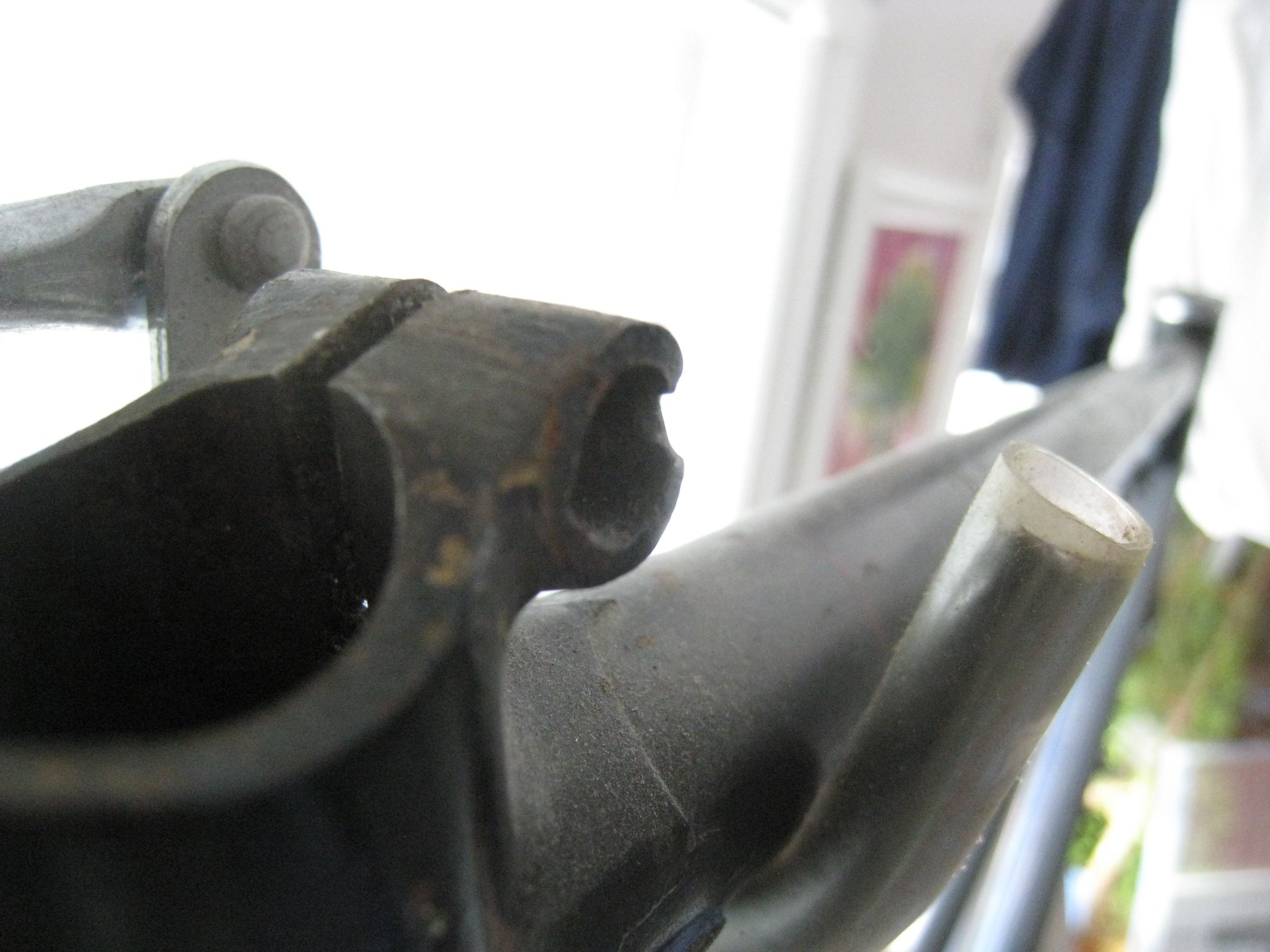

See similar on my René Herse.



From that angle, I can see how it might appear to be a ripped-out section. But, 1) I cannot imagine quite how that might happen, and 2) I can see the bottom of the keyway, dimly, in that photo. Yes, it's cut quite deep, much deeper than my René Herse, but I'm 85% sure that's what's going on here. Admittedly a cruder design than your beautiful new Singer, and it relies on those silly Campy binder bolts with their added weight and infamous stress-risers. But, no brazing needed!

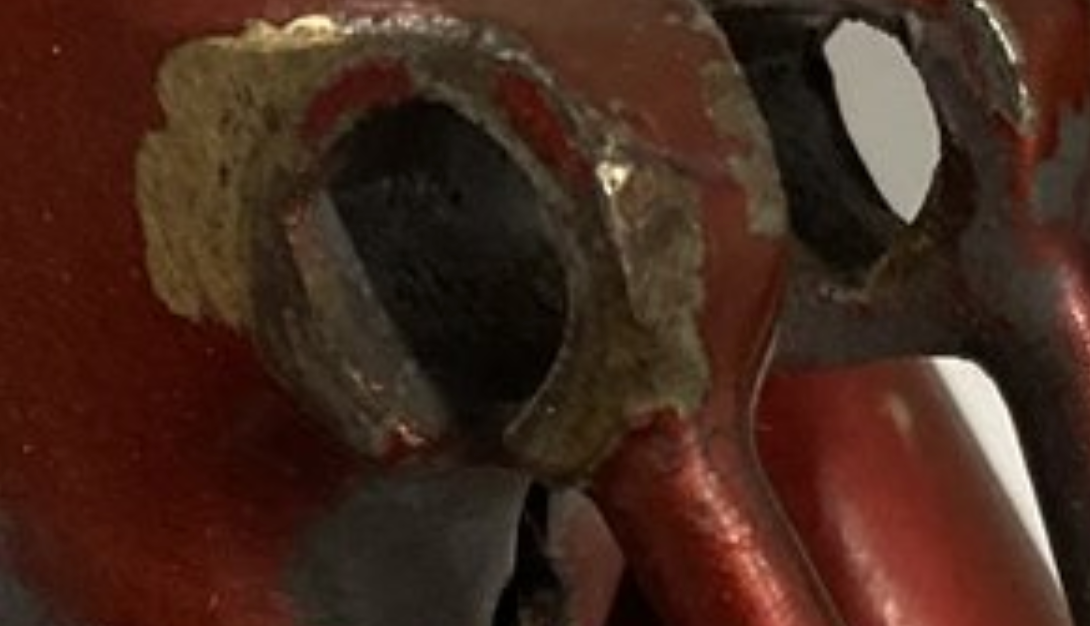

Edit: here are two zoomed-in images. In the first, I outline the edges of the keyway. In the second, it's just zoomed-in. Do you see it?


__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.

Last edited by scarlson; 05-25-22 at 08:02 AM.
scarlson is offline
Likes For scarlson:
Old 05-25-22, 08:37 AM
  #19
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,848

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 767 Times in 161 Posts
Huh. Well now I have no idea until OP posts a better-lit photo..
poprad is offline
Likes For poprad:
Old 05-25-22, 08:40 AM
  #20
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,022

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 2364 Post(s)
Liked 1,010 Times in 597 Posts
Originally Posted by poprad View Post


Oh good god that's hot.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 05-25-22, 10:21 AM
  #21
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 714

Bikes: You had me at rusty and Italian!!

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 275 Post(s)
Liked 422 Times in 233 Posts
I’m dumber than a sack of hammers but is it normal for the binder hole to be squared off on the inside? It looks like a carriage bolt goes in there.
RustyJames is offline
Old 05-25-22, 10:28 AM
  #22
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,794

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 823 Post(s)
Liked 1,083 Times in 584 Posts
Originally Posted by RustyJames View Post
I’m dumber than a sack of hammers but is it normal for the binder hole to be squared off on the inside? It looks like a carriage bolt goes in there.
I think it started out round but someone gouged it a bit on that corner-y looking region in front near the tube, by putting the key on the wrong side and started to tighten it before realizing something was wrong. This sorta makes sense, as many lugs will have the keyway facing forward. Some fool, probably reassembling a new seat binder in there after the original one broke (thanks Campy!), started it out wrong with the key facing forward thinking it was just like any other bike. It made a little gouge which approximates a straight line, giving the illusion of a squared off hole. I've seen worse. My Trek was way worse! My friend saw a bike shop goon do it to his Nishiki when his binder bolt broke on a ride!
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.

Last edited by scarlson; 05-25-22 at 10:32 AM.
scarlson is offline
Old 05-25-22, 10:32 AM
  #23
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 714

Bikes: You had me at rusty and Italian!!

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 275 Post(s)
Liked 422 Times in 233 Posts
Originally Posted by scarlson View Post
I think it started out round but someone gouged it a bit on that corner-y looking region in front near the tube, by putting the key on the wrong side and started to tighten it before realizing something was wrong.
That would ‘splain it. Thx.
RustyJames is offline
Likes For RustyJames:
Old 05-25-22, 01:26 PM
  #24
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,140

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 3144 Post(s)
Liked 2,908 Times in 1,840 Posts
Originally Posted by scarlson View Post
I think that's just the keyway for the seat binder bolt key, (you know, the notch to stop the left side of the binder bolt from moving when you are tightening the right side). I don't think that goes all the way through, and I don't think it's damaged much at all.
From where I'm sitting, 1000+ mi. away, respectfully disagree, but agree it was a keyway that is now a void, split open by a hamfist and a short attention span. The other side looks to be doing the same but still intact for now. At any rate, and I hate to say it but imho those ears were not robust enough to begin with, all hamfists considered.
merziac is online now
Old 05-25-22, 01:41 PM
  #25
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 841
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 483 Post(s)
Liked 781 Times in 388 Posts
Originally Posted by merziac View Post
From where I'm sitting, 1000+ mi. away, respectfully disagree, but agree it was a keyway that is now a void, split open by a hamfist and a short attention span. The other side looks to be doing the same but still intact for now. At any rate, and I hate to say it but imho those ears were not robust enough to begin with, all hamfists considered.
To my eye it looks like a normal notch for a keyed bolt, not split, completely rideable as-is.

A mandrel should be placed in the seatpost hole to allow the upper point to be straightened by hammering. Because this is a special bike, this hammering should only be done by someone very good. That probably means a framebuilder, not an LBS mechanic, though there are probably a few mechanics I'd trust with that. Actually none come to mind though. The metal is very malleable and it will bend back without cracking, but let's avoid doing more damage.

I wouldn't even repaint it, if it were mine, though of course the new owner should do as he pleases.

Enjoy!

Mark B
bulgie is offline
Likes For bulgie:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
