triplelizer and spindle length?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

triplelizer and spindle length?

Old 05-24-22, 04:14 PM
  #1
squirtdad
Senior Member
Thread Starter

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 8,430

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1711 Post(s)
Liked 1,279 Times in 799 Posts
triplelizer and spindle length?

I am using a TA tripleizer on a Dura Ace crank set (7400)

I just realized I didn't think about spindle length.

Most Triples have a longer spindle.

Does this apply when using a tripleizer?

have both the original dura ace bb and a un55 cartridge that I used with a 105 triple I had on the bike for last years Cino

thanks
squirtdad is offline
Old 05-24-22, 04:38 PM
  #2
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,800

Bikes: Yes

Mentioned: 447 Post(s)
Tagged: 0 Thread(s)
Quoted: 2613 Post(s)
Liked 1,963 Times in 832 Posts
Yeah, you do need a longer spindle with a triplizer. The 7400 came with an asymmetric 112 mm spindle, which was 3 mm longer on the drive side, for a 43.5 mm chainline. (Details here: https://si.shimano.com/pdfs/si/SI-N-69-000-00-ENG.pdf). The recommended chainline for a road triple is 45mm. With a double at 43.5, the small ring is a 41mm. With a triple, you want the middle ring (which was the small on the double) to be at 45. It doesn't need to be exact, but you at least need it out far enough that the small ring doesn't scrape the frame.

I think a 1.5 mm spacer behind the drive-side cup would give you the right asymmetric proportions, but I usually don't worry about that. I'd suggest a 118mm UN300, and put a spacer behind the drive side cup if you think it's necessary.
__________________
My Bikes
Andy_K is offline
Likes For Andy_K:
Old 05-24-22, 07:45 PM
  #3
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 5,128

Bikes: Seriously downsizing.

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Liked 367 Times in 186 Posts
My rule of thumb for a double/triple conversion is add 5mm to the drive side.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Likes For top506:
Old 05-24-22, 08:59 PM
  #4
Fredo76
The Wheezing Geezer

Fredo76's Avatar

Join Date: Oct 2021
Location: Española, NM
Posts: 278

Bikes: 1976 Fredo Speciale, Jamis Citizen 1, Ellis-Briggs FAVORI, Rivendell Clem Smith Jr.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 211 Times in 108 Posts
Maybe, maybe not.

My powder-coater installed my 46-year-old Phil Wood bottom bracket (a cartridge type that can be moved side-to-side up to 5 mm according to the manufacturer) right in the middle. I was wondering whether I'd have to move it over, but decided to try it as it was.

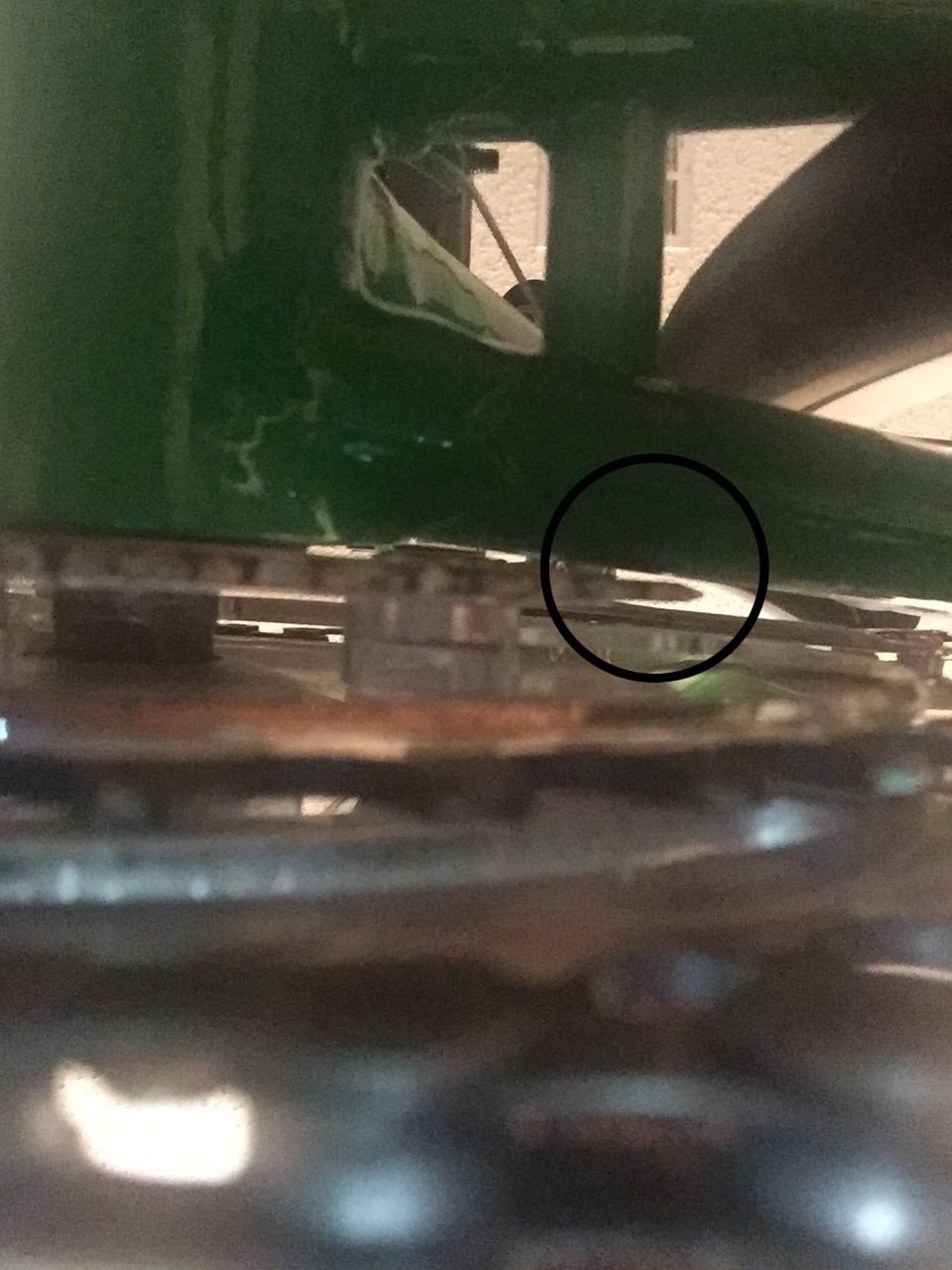

We have clearance, Clarence.

My 28T chainring works just fine with the standard-length spindle in the middle.

I would try yours and see.
Fredo76 is offline
Old 05-25-22, 03:23 PM
  #5
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,015

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1168 Post(s)
Liked 705 Times in 496 Posts
Originally Posted by Fredo76 View Post
Maybe, maybe not.
My powder-coater installed my 46-year-old Phil Wood bottom bracket (a cartridge type that can be moved side-to-side up to 5 mm according to the manufacturer) right in the middle. ...
I put a Shimano cartridge in the 1959 Capo after I had it repainted, and I can move the crankset a few mm laterally by whacking the spindle crank of a crank with a rubber mallet. It seems to stay happily aligned as set under normal riding conditions, so I haven't bothered with a thicker or additional internal shims between the cartridge itself and the cups.(The cartridge is tapered very slightly, and fits fairly snugly into the fixed cup.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-25-22, 03:57 PM
  #6
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,949
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 294 Times in 221 Posts
What Fredo76 said. Getting it done with minimum work is always good. Does not take much time to install the crank on old spindle, give it a try. If it doesn’t work you will still have a better sense of how long a spindle is really needed.

If the granny ring will be primarily used with only the biggest sprockets on the rear the low effort approach gives better chainline. After you see everything fits and clears the last step is will the derailleur cage move far enough inboard.
63rickert is offline
Old 05-25-22, 04:30 PM
  #7
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 13,800

Bikes: Yes

Mentioned: 447 Post(s)
Tagged: 0 Thread(s)
Quoted: 2613 Post(s)
Liked 1,963 Times in 832 Posts
Originally Posted by Fredo76 View Post

We have clearance, Clarence.
Another thing to consider is chain rub. With a 30T or smaller inner ring, the chain is likely to rub on the middle ring when you're fully cross chained. Obviously you will try to avoid being fully cross chained, but it happens.
