Installing bar-end shifters after bars are taped

I recently decided to convert a just-rebuilt bike from downtube shifters to bar ends. I didn't want to strip off the freshly-wrapped bar tape (one of my better wrap jobs, as luck would have it) in order to wrap over the lower sections of shifter housing in the usual manner. The shifters work fine with the housing outside of the tape, but the housing is a bit "floppy." That isn't a problem functionally, but it bothers me a little

Does anyone have a clever method for overwrapping the bottom-most couple of inches of housing--the part closest to the shifters, that is--to secure it a little better? I suppose I could try some sort of Rivendell-esque band of twine, but I'm no doubt there are other approaches that would work as well or better. What have you got?
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash

Last edited by jonwvara; 06-02-22 at 12:21 PM.
jonwvara is offline
Old 06-02-22, 12:27 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,506

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3265 Post(s)
Liked 3,169 Times in 1,978 Posts
Originally Posted by jonwvara View Post
I recently decided to convert a just-rebuilt bike from down-tube shifters to bar ends. I didn't want to strip off the freshly-wrapped bar tape (one of my better wrap jobs, as luck would have it) in order to wrap over the lower sections of shifter housing in the usual manner. The shifters work fine with the housing outside of the tape, but the housing is a bit "floppy." That isn't a problem functionally, but it bothers me just a bit. Does anyone have a clever method for overwrapping the bottom-most couple of inches of housing--the part closest to the shifters, that is--to secure it a little better? I suppose I could try some sort of Rivendell-esque band of twine, but I'm no doubt there are other approaches that would work as well or better. What have you got?
Ifn it was me, I would just wrap another layer over the whole thing.

I know it goes against the grain here but I double wrap most of my bars for extra cushion anyway and especially if the tape is ratty like on a new acquisition.

The last couple that I have done I just wrapped the upper half and called it good.

I also just reinforce the area at the brake lever with electrical tape if the hoods or tape start to come loose or breakdown.

My hands have always gone numb pretty easy and seem to be getting worse.
merziac is offline
Likes For merziac:
Old 06-02-22, 12:37 PM
  #3
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,839

Bikes: Old school lightweights

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2434 Post(s)
Liked 3,260 Times in 1,757 Posts
It's a bit frustrating in the short term when you have to retape your bars quickly if you change out your stem or whatever, but it's worth it. Take a little pride.
SurferRosa is offline
Old 06-02-22, 12:40 PM
  #4
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,022

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 983 Post(s)
Liked 959 Times in 578 Posts
I guess if I had to think through this for a clean look, it would probably take these steps:

1) Remove shifters (I know, I know...)
2) Position housing end where it needs to be to fit properly against the shifter
3) Start tape with matching tape a few inches from the end, matching the original wrap's direction
4) Tuck tape into the bar end
5) Replace shifter

Mind you, I haven't done this, so I may be missing something simple that would thwart this, but this is where I'd start.
noobinsf is offline
Old 06-02-22, 12:54 PM
  #5
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,869

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Liked 260 Times in 185 Posts
I'm guessing that you wrapped from the bottom to the top, so there is no tape to work with at the bar end. If I am wrong you can ignore me now. If I am right you are sort of screwed for an elegant save; but with a deft touch you may be able to cut and add and dress it up.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Old 06-02-22, 01:00 PM
  #6
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,762
Mentioned: 405 Post(s)
Tagged: 0 Thread(s)
Quoted: 3007 Post(s)
Liked 3,866 Times in 1,703 Posts
I would just slice the tape clean at the bar end, insert pod, then use super glue to secure the tape end (with some scotch tape to hold the end secure while the glue dries).
nlerner is offline
Old 06-02-22, 01:54 PM
  #7
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,767

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 700 Times in 342 Posts
What I've done is waxed thread a la Rivendell, with ~.5" right at the shifters and another wrapping about the same size by the bends. I've had a couple singlespeeds that grew derailleur hangers...
Dylansbob is online now
Old 06-02-22, 02:43 PM
  #8
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,417

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1326 Post(s)
Liked 813 Times in 512 Posts
Need a picture of your bars as is. Use cotton tape and wrap over the housing from the shifters to beginning of the bend so that the housing goes up just a bit and heads back down towards the housing stops on your DT. It won't take much tape. Contrasting color would be cool. Finish off the wrap with twine or normal electrical tape.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 06-02-22, 03:10 PM
  #9
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,567
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2454 Post(s)
Liked 1,381 Times in 1,039 Posts
Some bar end control bikes had the cable housing appear early - just beyond the straight return.

tape the housing on provisionally to double check the cable housing lengths and where you wish the cabling to exit and reward the bars. No kludge.
repechage is offline
Old 06-02-22, 03:12 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,567
Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2454 Post(s)
Liked 1,381 Times in 1,039 Posts
Forgot - some Japanese brands used a section of clear vinyl tubing to slide on and protect the frame- the days of raw stainless housing
repechage is offline
Old 06-02-22, 03:37 PM
  #11
jonwvara
Senior Member
Thread Starter

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,575

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 435 Times in 232 Posts
Originally Posted by SurferRosa View Post
It's a bit frustrating in the short term when you have to retape your bars quickly if you change out your stem or whatever, but it's worth it. Take a little pride.
But... but..I have always prided myself on not using more bar tape than strictly necessary. I am at a stand.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 06-02-22, 03:55 PM
  #12
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,558

Bikes: It's complicated.

Mentioned: 1168 Post(s)
Tagged: 0 Thread(s)
Quoted: 4039 Post(s)
Liked 3,513 Times in 1,553 Posts
Originally Posted by jonwvara View Post
But... but..I have always prided myself on not using more bar tape than strictly necessary. I am at a stand.
Looks good, easy, cheap.
Pick two.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-02-22, 04:05 PM
  #13
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,244
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 1186 Post(s)
Liked 1,097 Times in 639 Posts
Originally Posted by merziac View Post
Ifn it was me, I would just wrap another layer over the whole thing.

I know it goes against the grain here but I double wrap most of my bars for extra cushion anyway and especially if the tape is ratty like on a new acquisition.

The last couple that I have done I just wrapped the upper half and called it good.

I also just reinforce the area at the brake lever with electrical tape if the hoods or tape start to come loose or breakdown.

My hands have always gone numb pretty easy and seem to be getting worse.
Beat me to it! I've been using double-thickness wrapping on all my drop bars for over 30 years, since undergoing surgery to repair ulnar nerve damage. If you've never tried it, you'd be amazed at the increase in comfort, as well as in protection of the sensitive nerves in your hands.
Trakhak is offline
Likes For Trakhak:
Old 06-02-22, 04:20 PM
  #14
GhostRider62
Senior Member

Join Date: Apr 2021
Posts: 2,706
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 1590 Post(s)
Liked 1,316 Times in 827 Posts
Unwrap and rewrap with the same tape should be an option unless you want a perfect look
GhostRider62 is offline
Old 06-02-22, 04:38 PM
  #15
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,677

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 861 Times in 434 Posts
Three obvious solutions being overlooked here. (1) Go with stem mounted shifters. (2) Convert the bike to a fixie. (3) Sell the bike and use the cash to buy one that already has barcons.

Okay, I didn't they they were good solutions.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 06-02-22, 05:00 PM
  #16
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,555
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 854 Post(s)
Liked 421 Times in 260 Posts
We are missing some details. Cloth tape? Bottom up or top down? I assume you would have said so if it was shellacked.
Anyway, assuming it’s cloth, you could trim the end flush, then wrap just the housing portion in the drops top-down, tuck the ends in and re-insert the shifters. Pretty simple and wouldn’t look as kludgy as wrapping with twine or whatever.
Alternatively, just pull the tape off and re-wrap. If you did it once you can do it again. I have had pretty good luck re-using cloth tape by wrapping it on a piece of fat dowel as I remove it. Obviously all bets are off if it’s shellacked.

Last edited by due ruote; 06-02-22 at 05:03 PM.
due ruote is offline
Old 06-02-22, 05:09 PM
  #17
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 644
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 191 Times in 115 Posts
Originally Posted by bikingshearer View Post
Three obvious solutions being overlooked here. (1) Go with stem mounted shifters. (2) Convert the bike to a fixie. (3) Sell the bike and use the cash to buy one that already has barcons.

Okay, I didn't they they were good solutions.
Funny, but seriously, good stem shifters on a friction shifting bike is a solution that shouldn't be dismissed. If you ride on the hoods or tops almost exclusively it can be more convenient than bar ends. (Hope this statement doesn't cost me my vintage bike tourist certificate!)
Cycle Tourist is offline
Likes For Cycle Tourist:
Old 06-02-22, 05:14 PM
  #18
Fahrenheit531
No Chain Lube Preference

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,926

Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 707 Post(s)
Liked 491 Times in 258 Posts
Originally Posted by jonwvara View Post
But... but..I have always prided myself on not using more bar tape than strictly necessary. I am at a stand.
Reuse the tape.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 06-02-22, 05:28 PM
  #19
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,558

Bikes: It's complicated.

Mentioned: 1168 Post(s)
Tagged: 0 Thread(s)
Quoted: 4039 Post(s)
Liked 3,513 Times in 1,553 Posts
Originally Posted by bikingshearer View Post
The obvious solution is being overlooked here. Buy another bike with barcons.

This is the correct solution
fify
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-02-22, 05:30 PM
  #20
jonwvara
Senior Member
Thread Starter

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,575

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 435 Times in 232 Posts
Originally Posted by due ruote View Post
We are missing some details. Cloth tape? Bottom up or top down? I assume you would have said so if it was shellacked.
Anyway, assuming it’s cloth, you could trim the end flush, then wrap just the housing portion in the drops top-down, tuck the ends in and re-insert the shifters. Pretty simple and wouldn’t look as kludgy as wrapping with twine or whatever.
Alternatively, just pull the tape off and re-wrap. If you did it once you can do it again. I have had pretty good luck re-using cloth tape by wrapping it on a piece of fat dowel as I remove it. Obviously all bets are off if it’s shellacked.
It's cheapish "cork" tape, wrapped from the bottom, secured at the top with a strip of red electrical tape (tape is black, bike is red). I'll post a picture tomorrow. Barcons are already installed, so I'm not redoing the cabling at this point. That ship has sailed.

My experience with removing and rewrapping this brand of tape, which has an adhesive strip, is that it can be done, but only if you do so immediately--otherwise it rips instead of peeling cleanly away from the bars. This bike has only been ridden a couple of times, but the tape has been on there for a couple of years. No way could it be reused.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Likes For jonwvara:
Old 06-02-22, 05:54 PM
  #21
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,328

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 535 Post(s)
Liked 1,159 Times in 690 Posts

This is the way the Mondia is wrapped with cables exiting like Aero brake cables
My Mondia is the only bike I have that uses bar end shifters. This is how they were done when the bike was new. I looked at a Bicycling Magazine review of the bike when it was new and copied it. This would require doing the bar tape over but no floppy cables, nice and tidy.
Kabuki12 is offline
Likes For Kabuki12:
Old 06-02-22, 07:04 PM
  #22
jonwvara
Senior Member
Thread Starter

jonwvara's Avatar

Join Date: Apr 2006
Location: Washington County, Vermont, USA
Posts: 3,575

Bikes: 1966 Dawes Double Blue, 1976 Raleigh Gran Sport, 1975 Raleigh Sprite 27, 1980 Univega Viva Sport, 1971 Gitane Tour de France, 1984 Lotus Classique, 1976 Motobecane Grand Record

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 435 Times in 232 Posts
Originally Posted by Kabuki12 View Post
This is the way the Mondia is wrapped with cables exiting like Aero brake cables
My Mondia is the only bike I have that uses bar end shifters. This is how they were done when the bike was new. I looked at a Bicycling Magazine review of the bike when it was new and copied it. This would require doing the bar tape over but no floppy cables, nice and tidy.
Nice! I've seen that on a couple of older bikes. Does it add a lot of friction to the shifting effort? It would seem to add a lot of cable, housing, and a bunch of extra curves.
__________________
www.redclovercomponents.com

"Progress might have been all right once, but it has gone on too long."
--Ogden Nash
jonwvara is offline
Old 06-03-22, 02:37 AM
  #23
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,328

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 535 Post(s)
Liked 1,159 Times in 690 Posts
I have nothing to compare it to but they work very well . There doesn’t seem to be any binding, of course the trick to setting up bar ends is getting just the right amount of friction. The first time I went out on a ride I didn’t have enough tension on them and I got some ghost shifting while climbing a hill and it wasn’t fun. My daughter has SunTour type that have a ratchet action that the Campy ones don’t have.

Last edited by Kabuki12; 06-03-22 at 02:40 AM.
Kabuki12 is offline
Old 06-03-22, 09:01 AM
  #24
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,954

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 602 Times in 338 Posts
Cut and remove the tape from the brakes down. The rewrap bottom up including the housing under it how you want it. Then finish with electrical tape covering both the top section at the brakes and the freshly wrapped bottom section.
__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.
bwilli88 is offline
Old 06-03-22, 10:05 AM
  #25
obuckler
Full Member

Join Date: Oct 2013
Location: Dallas
Posts: 331

Bikes: 71 Lygie—72 Raleigh Grand Prix—76 Raleigh Super Course—76 Bruce Gordon—74 Raleigh International(2)—2005 Specialized Roubaix Pro

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 101 Post(s)
Liked 109 Times in 53 Posts
Originally Posted by jonwvara View Post
Nice! I've seen that on a couple of older bikes. Does it add a lot of friction to the shifting effort? It would seem to add a lot of cable, housing, and a bunch of extra curves.

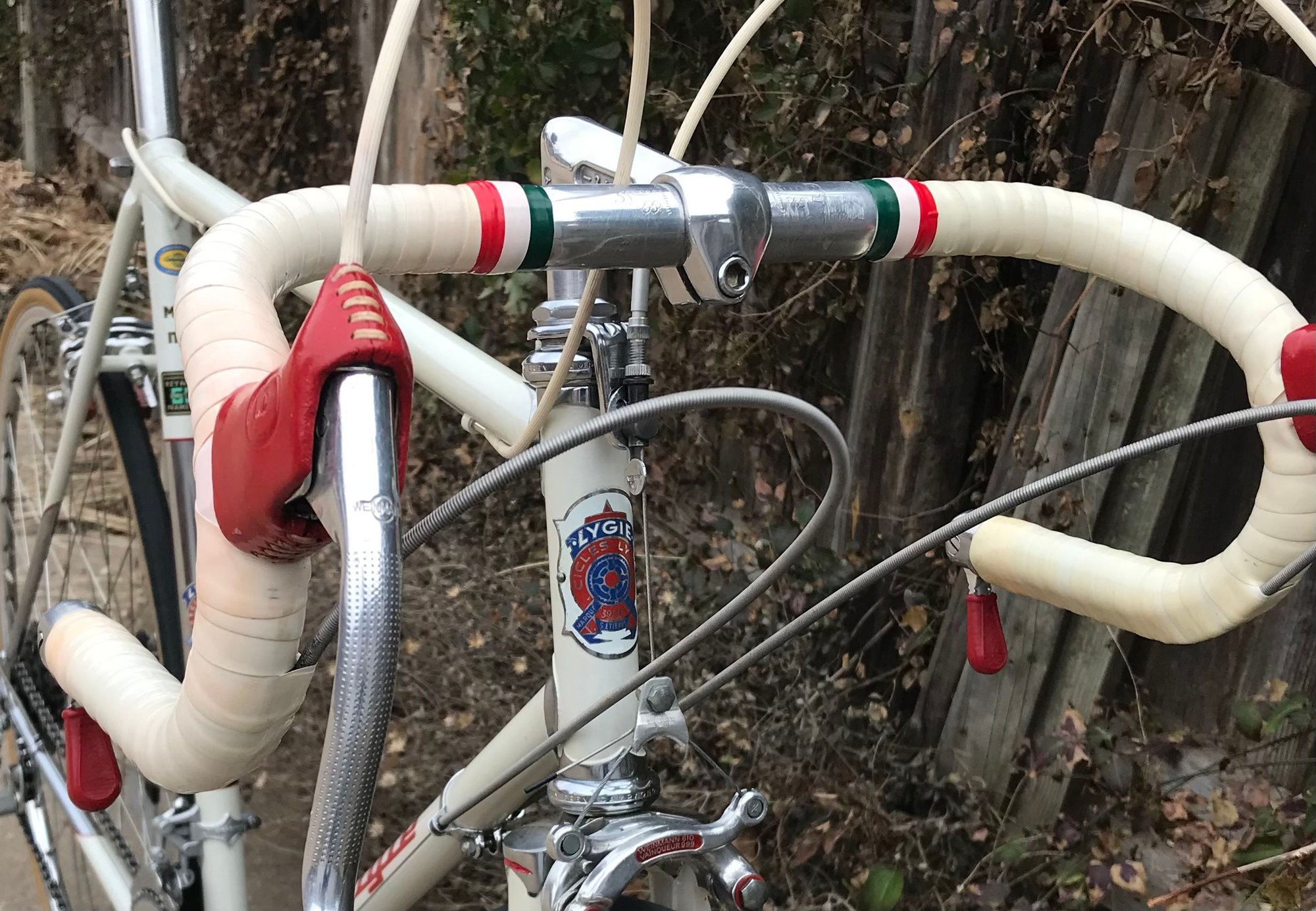

I first set up Campagnolo barcons on my 71 Lygie wrapped along the bars like the Mondia above. I did not
like the feel so I switched it back to the original routing with one big curve from the bottom of the bar. It was a big improvement. I was using the original coiled housing but with a new liner. I also know tension on the barcon should be kept as light as possible.


obuckler is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
