Searching for Mafac Racer with vertical bolt

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Searching for Mafac Racer with vertical bolt

Old 06-15-22, 09:25 AM
  #1
sbabish1
Newbie
Thread Starter

Join Date: Jun 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Searching for Mafac Racer with vertical bolt

Hey everyone, new user/first time posting here so forgive me if I'm posting this in the wrong forum.

I'm searching for a rear Mafac Racer with a vertical mount for my Peugeot eo-8. I know these are pretty hard to come by and I've had no luck searching online so far. I'm reaching out to the community on here to see if anyone might know where I can source one of these, or if anyone has a spare they might be willing to part with? Any advice or help would be useful. Thanks in advance!
sbabish1 is offline
Old 06-15-22, 09:56 AM
  #2
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,544

Bikes: It's complicated.

Mentioned: 1166 Post(s)
Tagged: 0 Thread(s)
Quoted: 4032 Post(s)
Liked 3,495 Times in 1,546 Posts

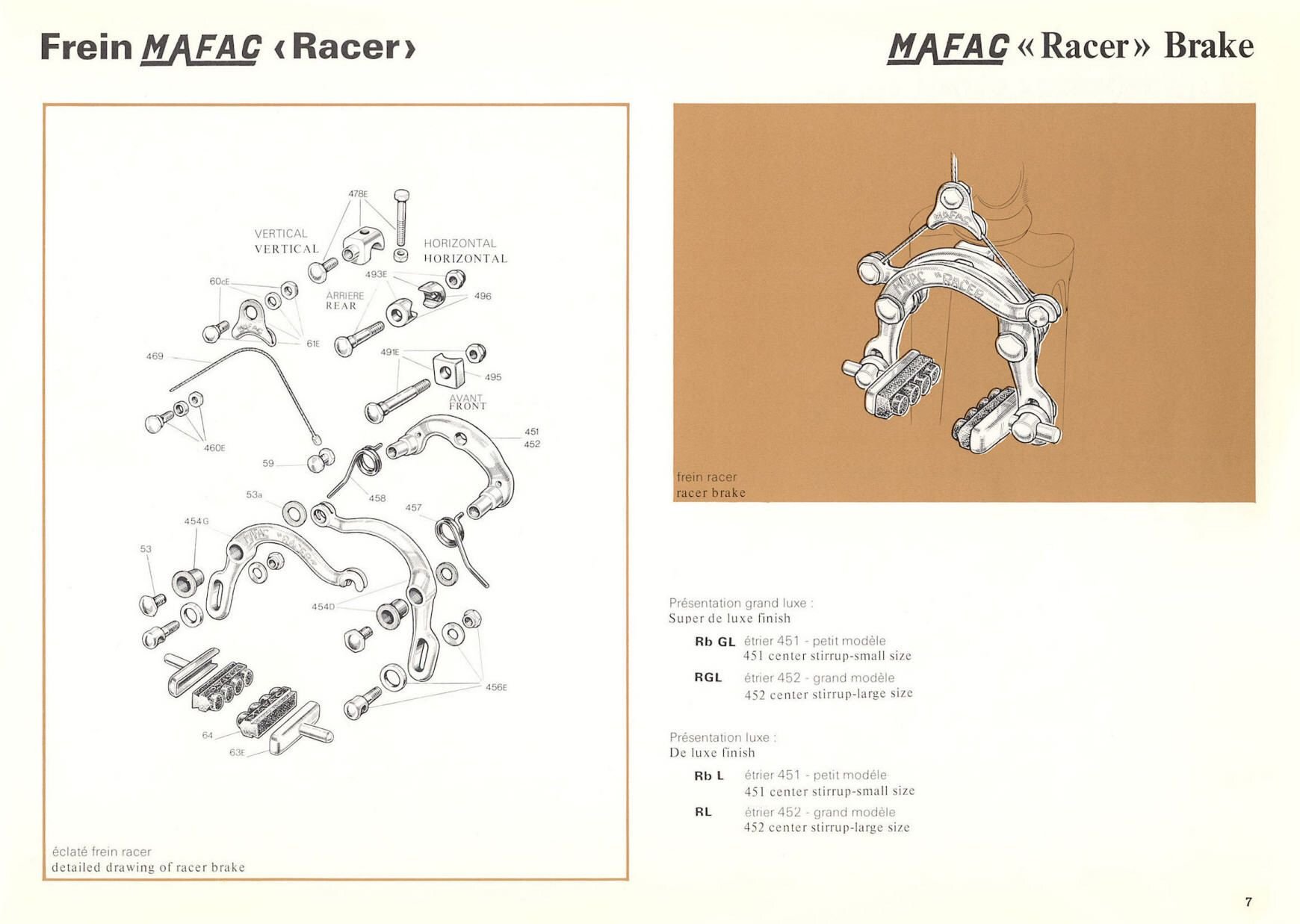

Racers came in short, long, and adjustable reach. You may only need a long reach set of Racers. I didn't know until recently that the only difference between them is the backing plate, item 451E/452E in the picture below:

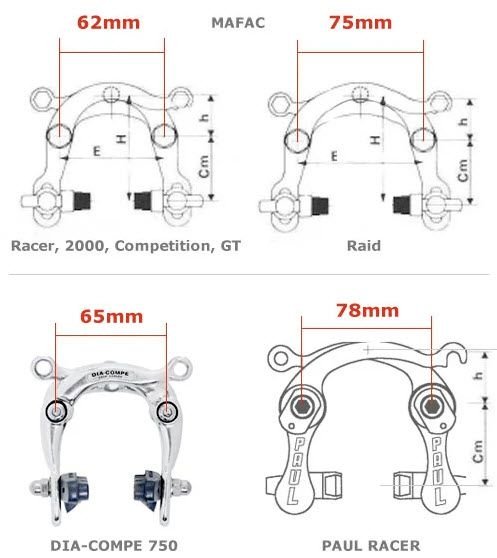

I'm reasonably sure that the difference between 451E and 452E is the vertical distance between the center bolt and the brake pivots (dimension h, below)

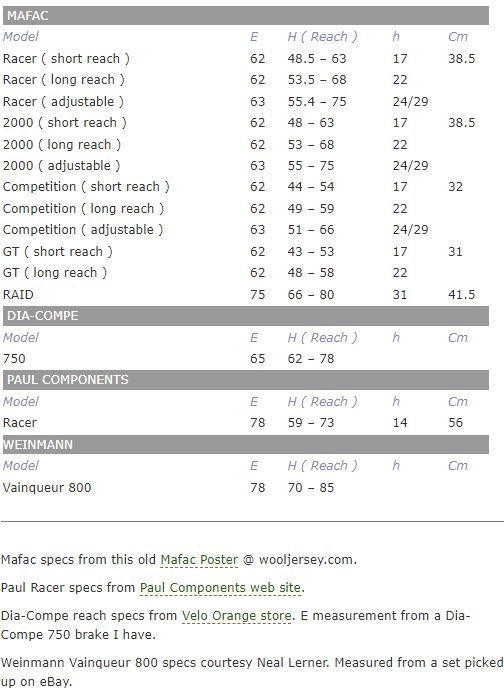

Here's the spec's for he various centerpulls shown above.


Notice our own @nlerner contributing his vast centerpull knowledge, above
______________________________________________________________________
So it appears you need more reach? If they're short reach Racers, and you need no more than 5mm reach, then all you need is a long reach backing plate. If you already have a long reach Racer, then an adjustable backing plate would probably do the trick. Another option is to use MAFAC RAIDs, the longest reach MAFAC centerpulls of all.

If I'm not mistaken, the rear brake bridge often requires a longer reach brake than the front. In that case a Weinmann Vainqueur 800 would work, and are much more easily found.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is online now
Likes For gugie:
Old 06-15-22, 10:05 AM
  #3
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 676

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Liked 458 Times in 230 Posts
I think what the OP means is he needs a racer with the adapter/doo-dad for a brake stay with the vertical hole, not necessarily needing more reach.....?




If that's the case, they do come up on eBay sometimes, though for ridiculous $$ (though if it's what you need, it's what you need...). You may have luck on ebay.fr- I got a set of Mafac Raids there for a decent price that had such and adapter. I didn't need it but ended up repurposing as the brake-bridge mount for my fenders.
ehcoplex is online now
Likes For ehcoplex:
Old 06-15-22, 10:09 AM
  #4
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,752
Mentioned: 404 Post(s)
Tagged: 0 Thread(s)
Quoted: 3000 Post(s)
Liked 3,848 Times in 1,695 Posts
Originally Posted by sbabish1 View Post
Hey everyone, new user/first time posting here so forgive me if I'm posting this in the wrong forum.

I'm searching for a rear Mafac Racer with a vertical mount for my Peugeot eo-8. I know these are pretty hard to come by and I've had no luck searching online so far. I'm reaching out to the community on here to see if anyone might know where I can source one of these, or if anyone has a spare they might be willing to part with? Any advice or help would be useful. Thanks in advance!

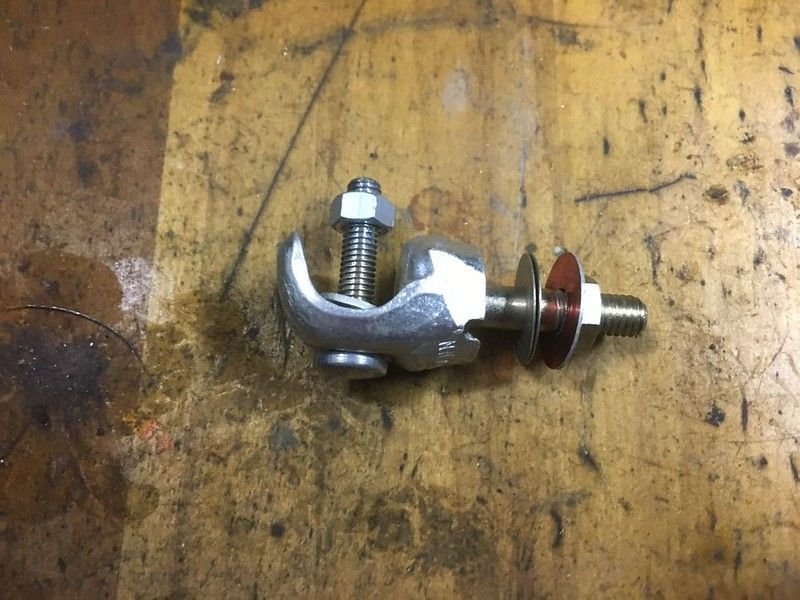

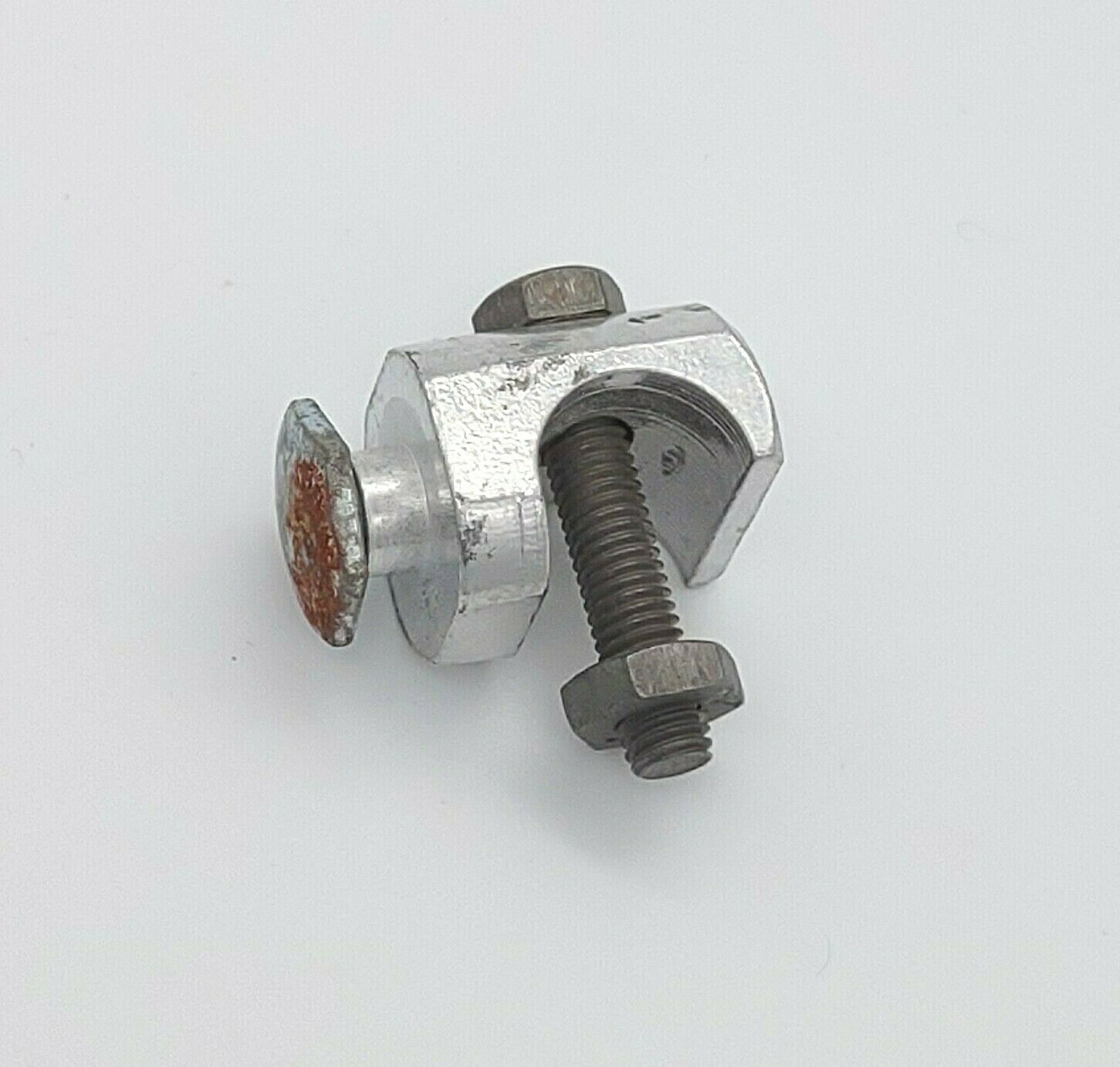

So your frame's rear brake bridge is drilled vertically, rather than horizontally? If so, this is the part you need:



It's separate from the MAFAC caliper itself, so not really a "Racer" vertical bolt. At any rate, I think I have a spare. Email me at lerner dot n at gmail dot com.
nlerner is offline
Old 06-15-22, 10:12 AM
  #5
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 676

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Liked 458 Times in 230 Posts
Here's a whole Racer set on eBay.fr that has such a mount....

https://www.ebay.fr/itm/265694309589

I've had decent luck ordering stuff from ebay.fr, though communicate and check the shipping, etc, first!
ehcoplex is online now
Old 06-15-22, 10:13 AM
  #6
sbabish1
Newbie
Thread Starter

Join Date: Jun 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Right! I just assumed that this part was manufactured by Mafac for some reason. This is exactly what I need, i'll check out ebay this afternoon and hopefully i'll get lucky! Thanks!
sbabish1 is offline
Old 06-15-22, 10:20 AM
  #7
sbabish1
Newbie
Thread Starter

Join Date: Jun 2022
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by nlerner View Post
So your frame's rear brake bridge is drilled vertically, rather than horizontally? If so, this is the part you need:

It's separate from the MAFAC caliper itself, so not really a "Racer" vertical bolt. At any rate, I think I have a spare. Email me at lerner dot n at gmail dot com.
THIS is exactly what I need! I just assumed that this part came with some racer assembly for some reason. I'll shoot you an email in a bit! Thanks!
sbabish1 is offline
Old 06-15-22, 11:06 AM
  #8
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 4,629

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1401 Post(s)
Liked 1,459 Times in 742 Posts
The C&V forum is never the wrong place to be!
52telecaster is offline
Likes For 52telecaster:
Old 06-15-22, 11:13 AM
  #9
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,366
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 366 Post(s)
Liked 306 Times in 183 Posts
Its things like this that encourage one to have a friend with a lathe (or to have one yourself). Easy enough part to fabricate *if* you have the tools and the skills.
markk900 is offline
Likes For markk900:
Old 06-15-22, 11:51 AM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
------

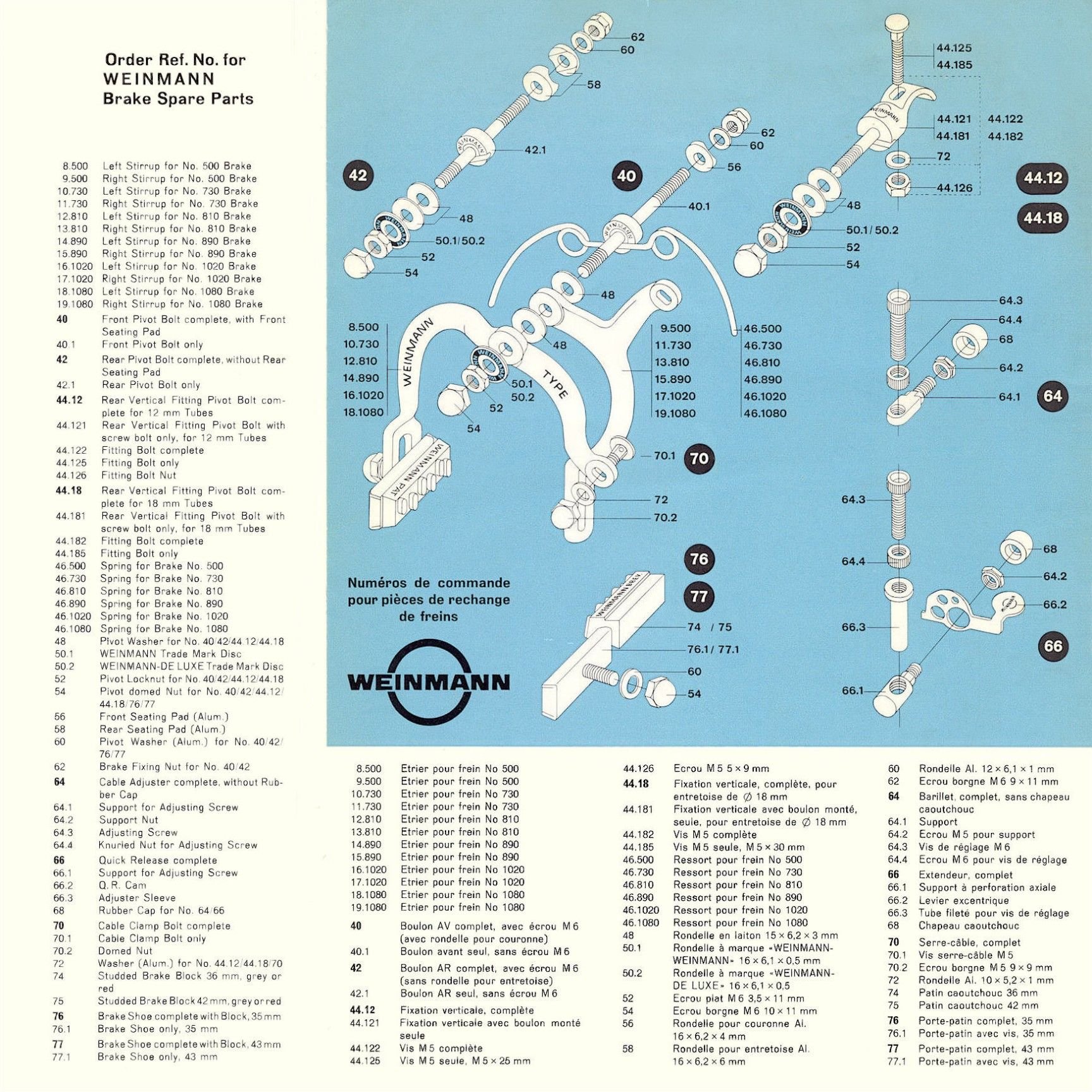

for other readers who may require such a fitting in the future the Weinmann one is generally easier to locate

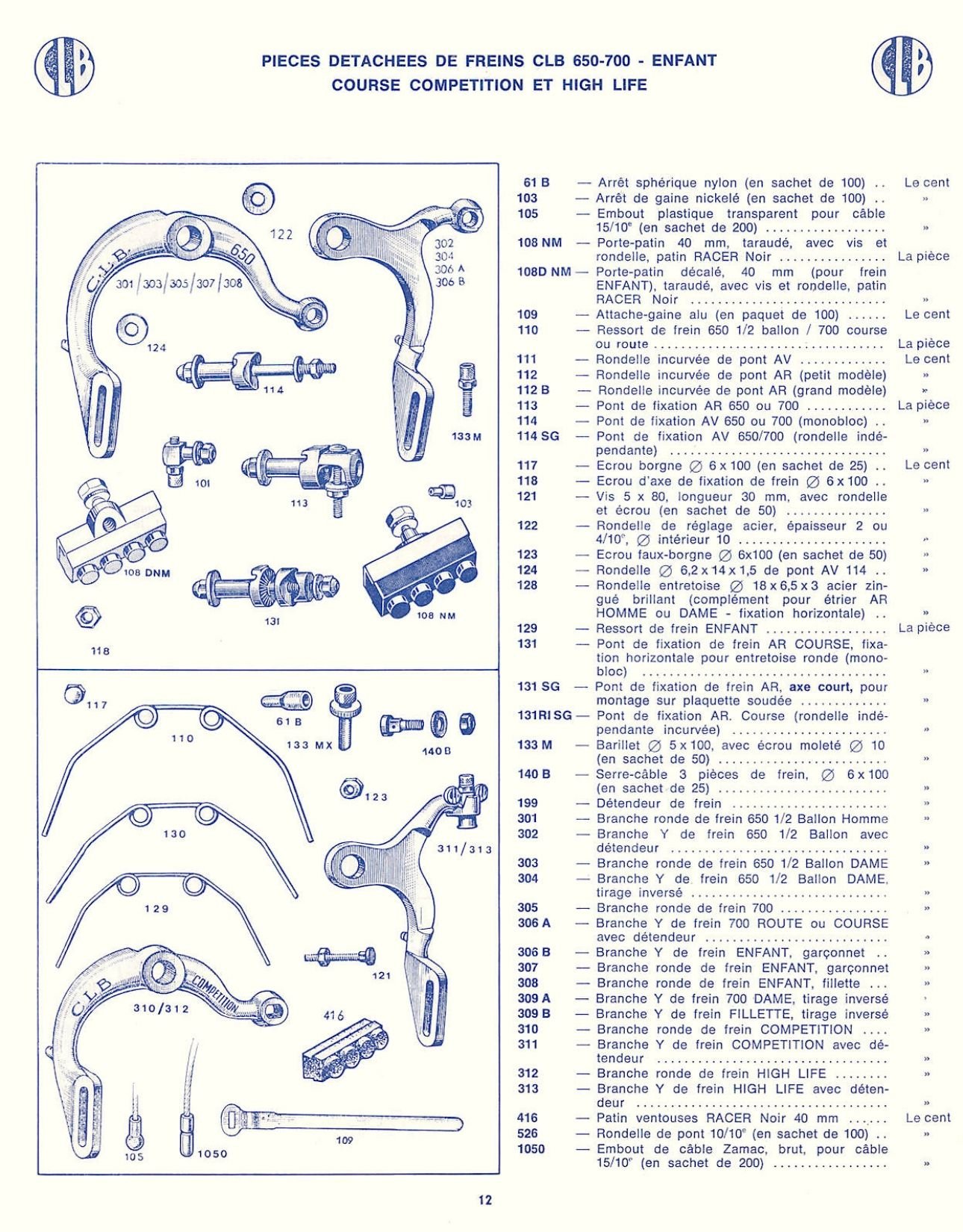

CLB also offered fittings of this type

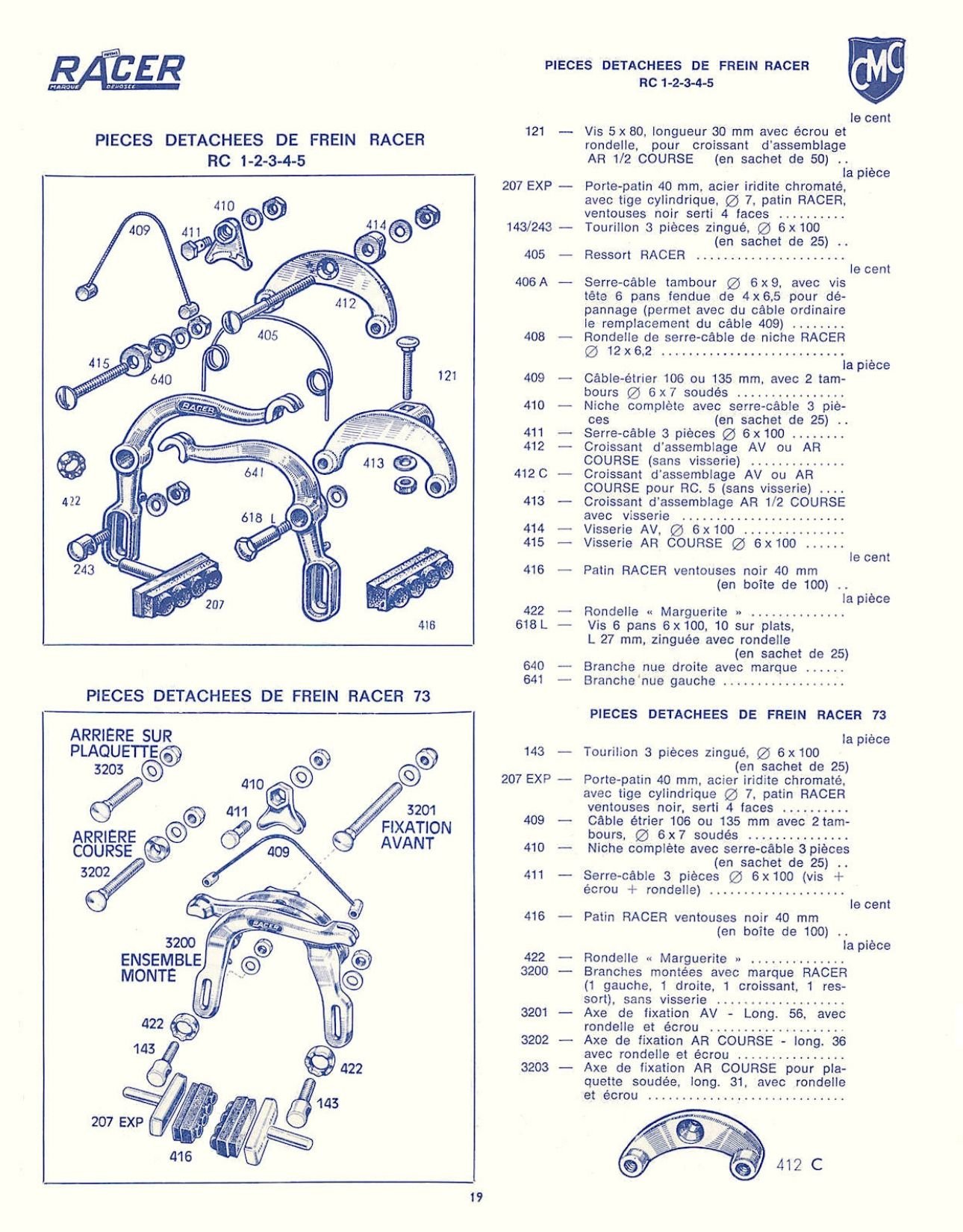

and lastly the MAFAC Racer -




-----

Last edited by juvela; 06-15-22 at 12:05 PM. Reason: addition
juvela is offline
Likes For juvela:
Old 06-15-22, 01:50 PM
  #11
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 676

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Liked 458 Times in 230 Posts

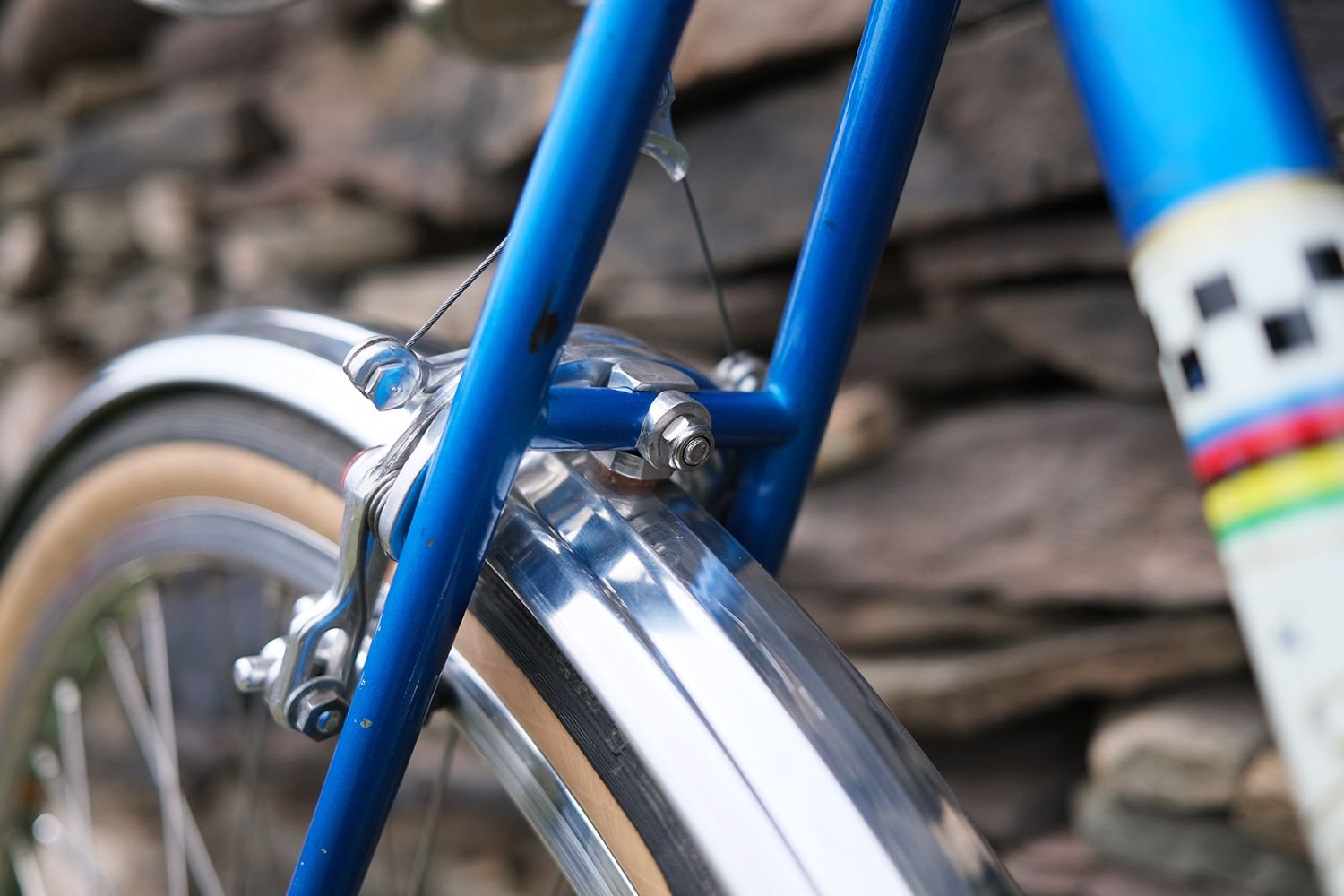

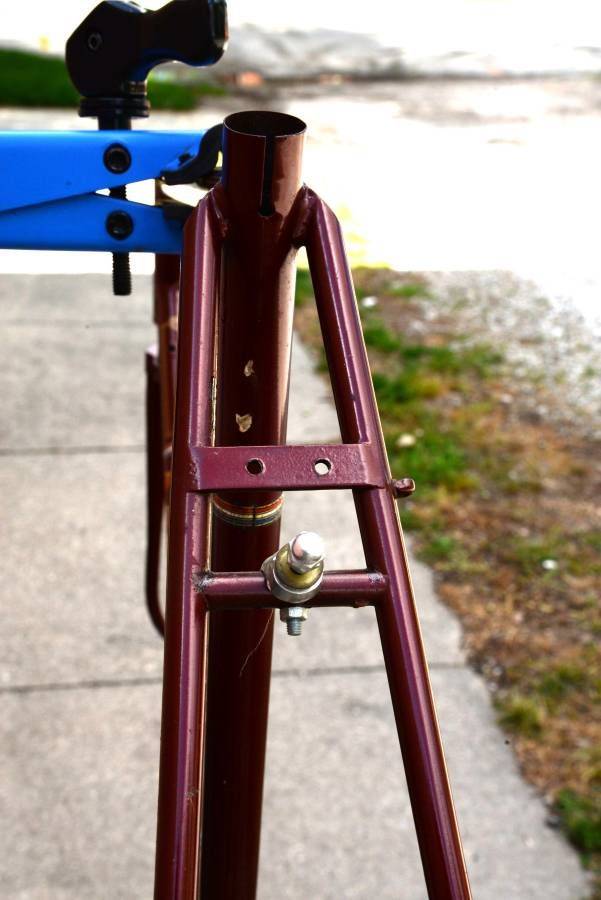

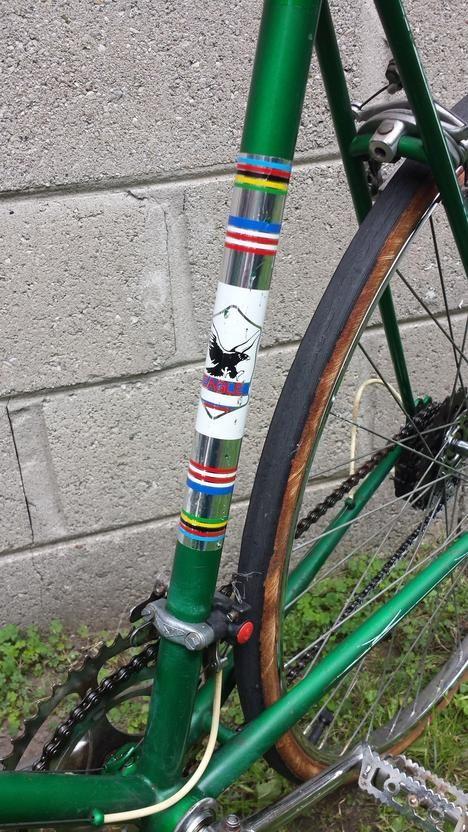

And just for posterity.... or posteriority..... here's one pressed into service as a fender mount-

ehcoplex is online now
Likes For ehcoplex:
Old 06-15-22, 02:52 PM
  #12
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: City of Angels
Posts: 4,514

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1091 Post(s)
Liked 1,463 Times in 793 Posts
Originally Posted by ehcoplex View Post
Here's a whole Racer set on eBay.fr that has such a mount....

https://www.ebay.fr/itm/265694309589

I've had decent luck ordering stuff from ebay.fr, though communicate and check the shipping, etc, first!
How much are these....my calculator seems off......missing a decimal or?
Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 06-15-22, 03:03 PM
  #13
ehcoplex
Senior Member

Join Date: Jun 2021
Posts: 676

Bikes: '38 Schwinn New World, '72 Peugeot PX-10, '97 Cannondale T900, '98 Peugeot Appalaches, ?? Raleigh Sports, ?? Raleigh Superbe, ?? Hercules 3sp (x2)...

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 271 Post(s)
Liked 458 Times in 230 Posts
Originally Posted by xiaoman1 View Post
How much are these....my calculator seems off......missing a decimal or?
Ben
Slightly more than $20- the $ and the are currently at about parity.
The last couple bike things I've bought from FR via eBay have cost around $20 to ship.
ehcoplex is online now
Old 06-15-22, 03:14 PM
  #14
xiaoman1
Awaiting Parole

xiaoman1's Avatar

Join Date: Mar 2014
Location: City of Angels
Posts: 4,514

Bikes: A few too many

Mentioned: 39 Post(s)
Tagged: 1 Thread(s)
Quoted: 1091 Post(s)
Liked 1,463 Times in 793 Posts
[QUOTE=ehcoplex;22542831]Slightly more than $20- the $ and the are currently at about parity.
The last couple bike things I've bought from FR via eBay have cost around $20 to ship.[/QUOTE

Thats a deal, excluding the shipping!
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Voice recognition may sometimes create odd spelling and grammatical errors

xiaoman1 is offline
Old 06-15-22, 07:41 PM
  #15
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

in case obtaining one of the fittings from a member does not work out another low cost approach would be to go through the brake caliper bin(s) at any local co-op(s)

this type of mount seems to be more commonly encountered on cycles from Austria, Belgium, France, Germany, Switzerland &The Netherlands than from some other nations...


-----
juvela is offline
