Cinelli crack or scratch?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cinelli crack or scratch?

Old 07-07-22, 09:37 AM
  #1
embankmentlb
Senior Member
Thread Starter

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,309

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 255 Times in 115 Posts
Cinelli crack or scratch?

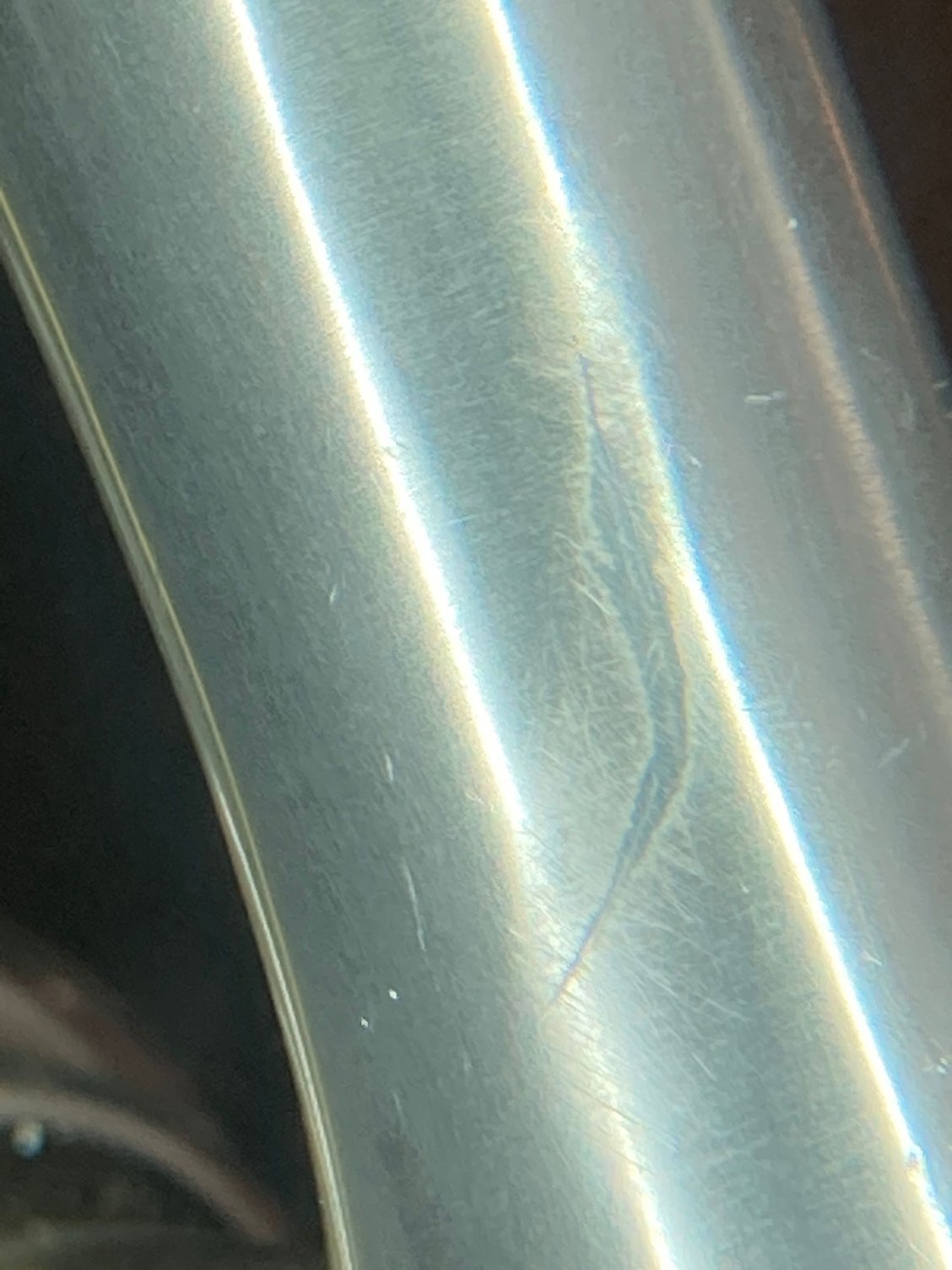

Adding a computer to my 3r today and noticed this mark on the stem. The photos are not that clear but looks like a stress crack to me. What do you guys think? Do these fail in this way? Thank you for your thoughts.
embankmentlb is offline
Old 07-07-22, 09:55 AM
  #2
BrewsterII
Newbie

BrewsterII's Avatar

Join Date: Nov 2018
Location: Arizona
Posts: 35
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 8 Times in 5 Posts
Looks like a scratch to me.
BrewsterII is offline
Likes For BrewsterII:
Old 07-07-22, 10:03 AM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,109
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2651 Post(s)
Liked 1,682 Times in 1,238 Posts
I have found a "forging" crack on one of my Cinelli stems.
retired it, was an early one too before they started anodizing them.
crack check dye to be sure.

from my perspective, I really want the feeling of confidence. Test, don't guess.
repechage is offline
Old 07-07-22, 10:11 AM
  #4
embankmentlb
Senior Member
Thread Starter

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,309

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 255 Times in 115 Posts

I took some steel wool to it and feel pretty confident that it is only a scratch.
embankmentlb is offline
Likes For embankmentlb:
Old 07-08-22, 05:34 AM
  #5
Peruano
Biker

Join Date: Jul 2008
Location: New Mexico
Posts: 195

Bikes: Boone McReynolds, Centurion Pro Tour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 40 Times in 24 Posts
I polish rocks. To test for a crack versus a visual streak, I wet the surface. As the surface dries, the water will be drawn to a crack and that area will stay visibly wet longer. A shallower scratch or streak will not. It should work on metal as well.
Peruano is offline
Old 07-08-22, 05:44 AM
  #6
rancho66
Rancho66

Join Date: Apr 2008
Location: Wisconsin
Posts: 84
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Liked 25 Times in 5 Posts
scratch
rancho66 is offline
Likes For rancho66:
Old 07-09-22, 04:39 AM
  #7
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,204
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Likes: 0
Liked 884 Times in 545 Posts
You need a loupe.

A scratch will usually show metal displaced outwards from the surface, at the edges. Whatever causes the scratch will push metal as well as cut.

A crack will have no upwards displacement at the edges.

In your case:

a) that looks like a scratch to me;
b) it's a likely place for such a scratch; and
c) if that's a Cinelli XA it will crack across the front under the badge first, worry about that instead.
oneclick is offline
Likes For oneclick:
Old 07-09-22, 06:36 AM
  #8
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 6,065

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 890 Post(s)
Liked 1,725 Times in 711 Posts
thinktubes is offline
Likes For thinktubes:
Old 07-09-22, 12:01 PM
  #9
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,960

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 831 Post(s)
Liked 449 Times in 267 Posts
Push down on the bars. The stem will flex. If the feature opens up, it is a crack. If it a scratch, it will not open.
Bad Lag is offline
Likes For Bad Lag:
Old 07-09-22, 08:20 PM
  #10
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,008

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Liked 1,150 Times in 621 Posts
Cinelli Stem - Scratch vs. Crack

Originally Posted by embankmentlb View Post

I took some steel wool to it and feel pretty confident that it is only a scratch.
It's a scratch. You can clearly see how the thin hard anodized surface has been scraped away. A crack would show some division between the surfaces.

Cracks in forged aluminum parts are frequently the result of a flaw in the billet, blank or raw stock used for the forging. There are lots of different kinds of flaws: lap seams, laminations, incomplete mixing of the alloys and so on. Determining the cause of the flaw generally requires lab testing...

Within a 2 week period a number of years ago I ran into 3 different good quality forged aluminum components with cracks. One was in a brand new Nitto Pearl stem, their top of the line model. I was admiring the beautiful workmanship when I noticed what looked like a little scratch. I checked it at 10x magnification and it looked suspicious.



10x magnification



At 60x magnification the crack became obvious.



On the opposite side of the stem more cracks became visible at 60x



I found Nitto's email address and sent them photos of the stem. The next morning I received a replacement stem shipped overnight direct to me from Japan. They also enclosed return shipping for the defective stem!

Where do you find that kind of service and commitment to quality?

Anyway, Nitto makes premium quality components and that kind of crack was easy to overlook by their inspection department. There are several YouTube videos showing their manufacturing processes. I was surprised in this day of CNC machines, automation and robotics how much of their work is done on manual equipment.

I discovered this crack in a Stronglight crank arm I was installing. Again it wasn't obvious until I checked under a microscope.




The crack is the result of a lamination flaw in the billet. The layers were starting to separate around the pedal eye (delaminate). The cracks run parallel to the length of the arm so its not as serious as a crack that runs across the crank arm but still, there's is no way I would use this crank!




It pays to closely inspect highly stressed components like bars, stems, cranks, seatposts, etc. when installing or working on them. Consider this, many C&V components are getting long in the tooth and can easily be 40-50 years old. Unless you've owned them since new, you have no idea of what kind of use and abuse they've been through.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 07-10-22 at 04:29 PM.
