Vintage tandem ID

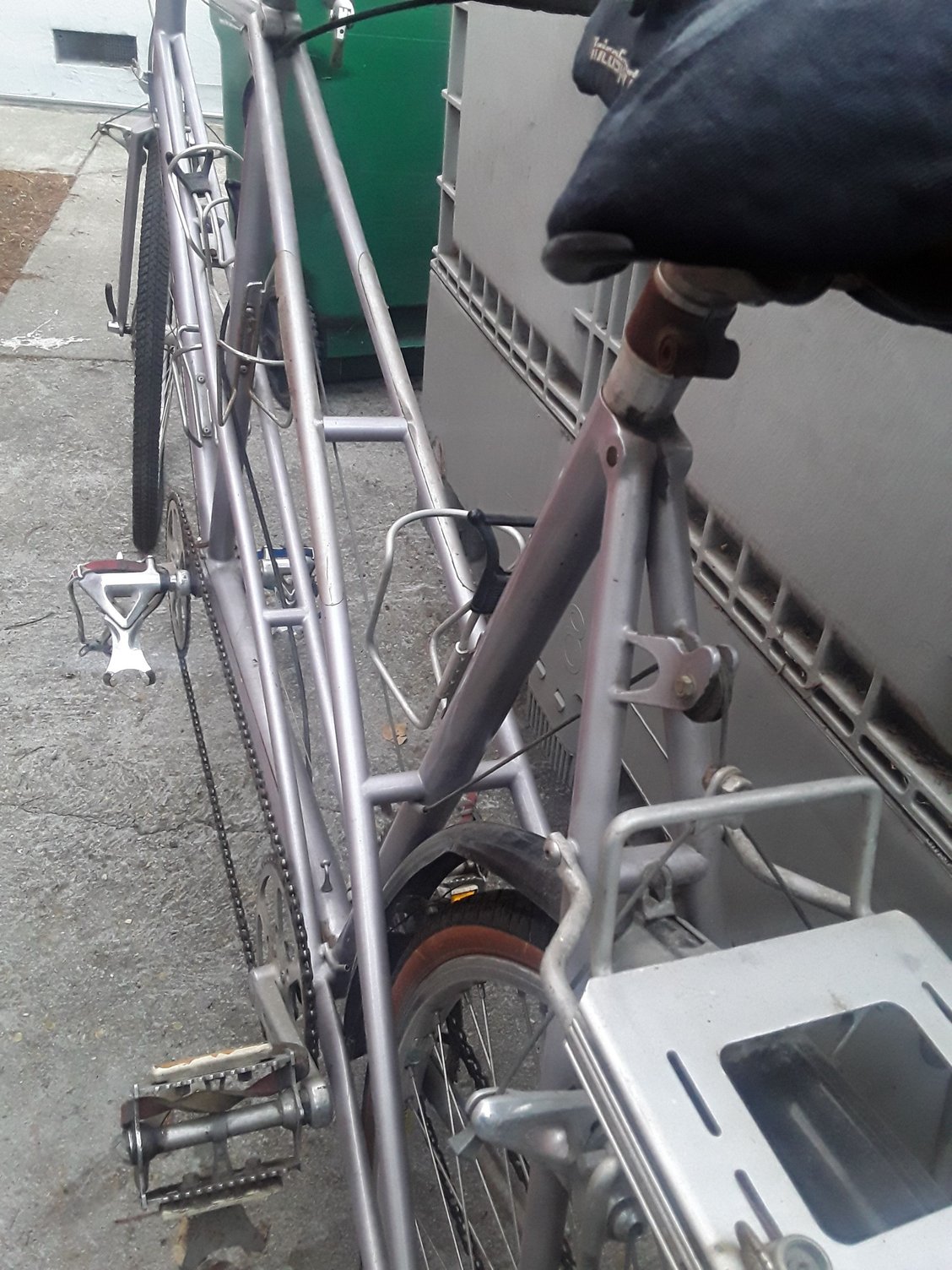

Looking for a maker ID on this frame. Serial number T3 783 . Front fork has extra bracing. Only a Wheelsmith sticker on seat tube.


curbtender is offline
Likes For curbtender:
Old 07-18-22, 02:23 PM
  #2
curbtender
Senior Member
Thread Starter

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,635

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,264 Times in 698 Posts

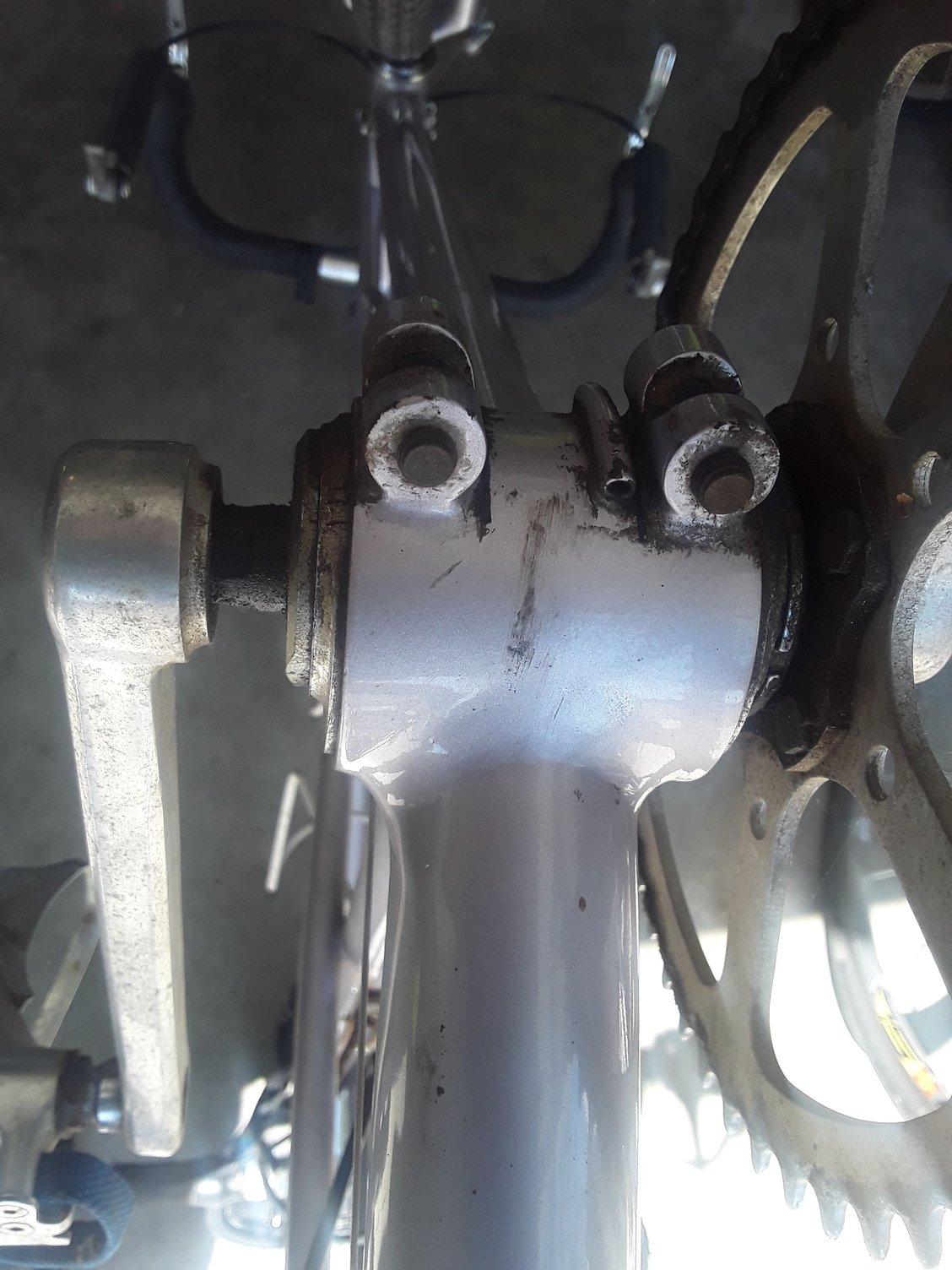

Couple more pictures.




curbtender is offline
Likes For curbtender:
Old 07-18-22, 02:33 PM
  #3
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,590
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 868 Post(s)
Liked 437 Times in 269 Posts
Wow, I have no idea, but it's pretty interesting. Maybe a custom?
What is the gizmo that's hanging by the front brake?
due ruote is offline
Old 07-18-22, 02:42 PM
  #4
curbtender
Senior Member
Thread Starter

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,635

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,264 Times in 698 Posts
Originally Posted by due ruote View Post
Wow, I have no idea, but it's pretty interesting. Maybe a custom?
What is the gizmo that's hanging by the front brake?
Cateye odometer setup that you clamp on at the quick release. No display, but the wire and disc sensor on the wheel are available and in good shape if someone needs it. I'm guessing someone had it built for a tour then left it in the garage for about 40 years.
curbtender is offline
Old 07-18-22, 03:58 PM
  #5
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 1,042
Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 1,090 Times in 508 Posts
Flashes of brilliance there, excellent workmanship, with some annoyances (for me) that you might not mind so much, like the too-short rear toptube. I prefer more fork rake (lower trail) on a tandem, to reduce lean-steer. This bike will wander more than I like if the stoker doesn't sit real still, also a bit with each pedal stroke, but you can adapt and might not notice it all after you're used to it. Don't try adding rake to these blades though, t'll ruin that weird/cool reinforcement. (probably obvious, sorry.)

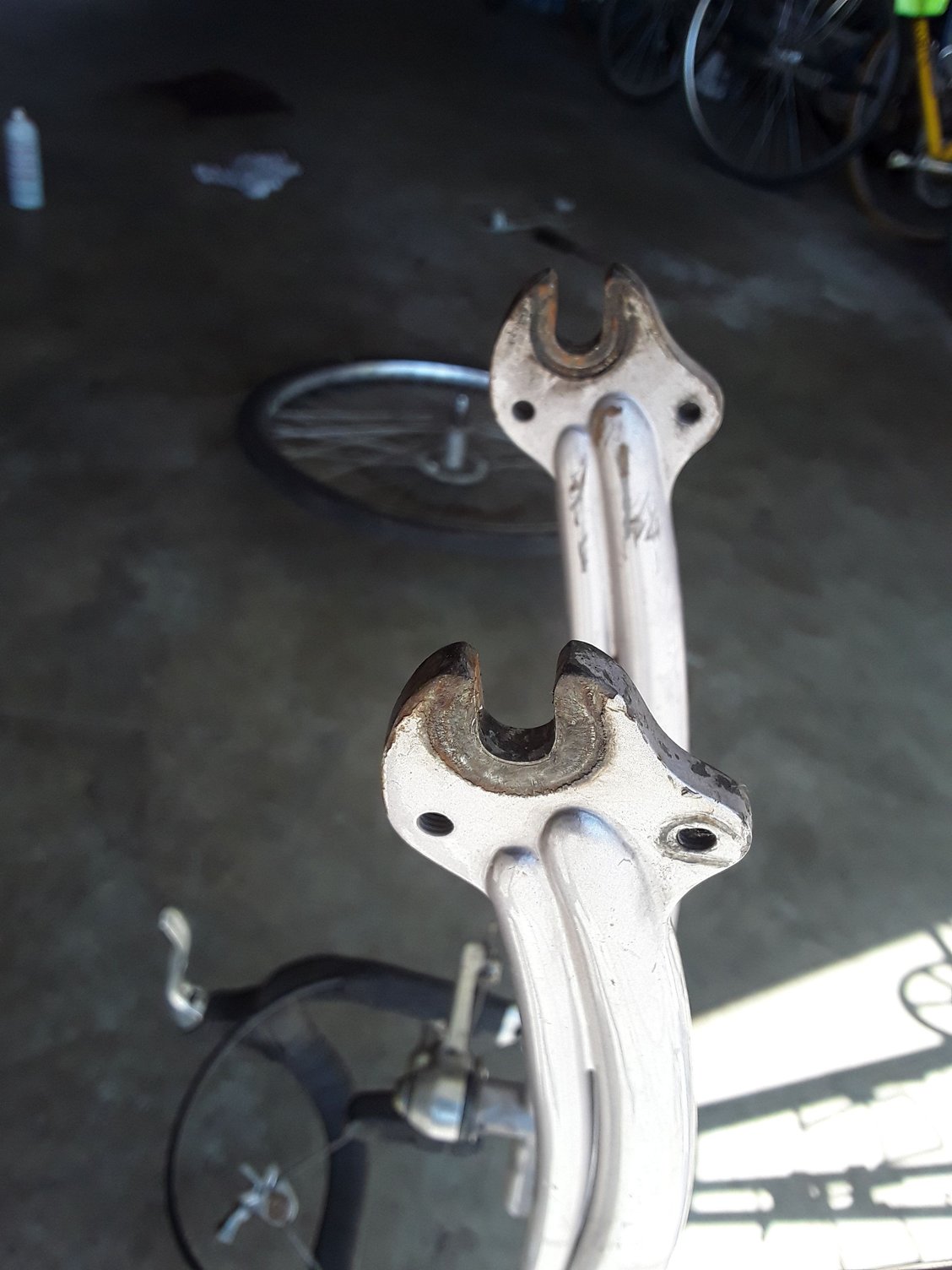

Those dropouts are unique, vaguely ring a bell, but nothing's bubbling up to the top of my memory...

If you're going to ride it a lot I'd consider trying to find or make a larger pulley for the rear brake. "Wire rope" passing over a pulley will fatigue and eventually fray/break if the pulley diameter is less than about 50 times the cable diameter. This is the advice from aircraft, from back when controls were done with cables and pulleys. 50 times is a pretty strict standard that no one would do on a bike, but still I would try for something a good bit larger than what's there. On the other hand, it's a very visible spot, so you will (hopefully) notice if the cable starts to fray. They don't usually break all at once without warning. Plus it's "only" a rear brake.

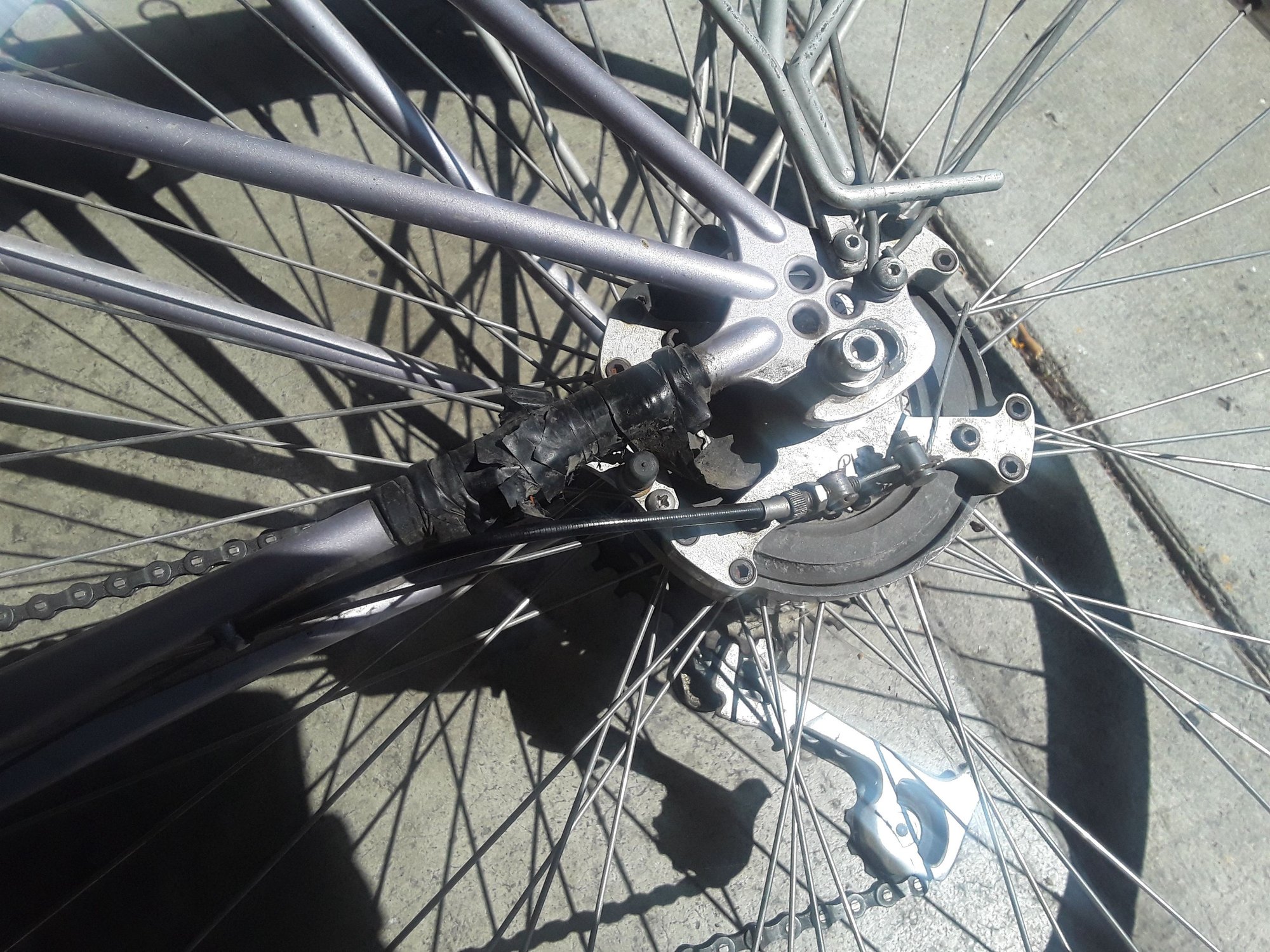

The Phil disk is known to fail catastrophically under hard braking (the worst possible time), but again it's "only" a rear, and a drag brake, not the one you're counting on to stop you. So I'll allow it! I know, you must be so relieved to get my blessing... not! Just clean up the damn electrical tape please, it's hurting my eyes. Since the Phil was only on the market a few years, that could help date the frame if we think it's original. I'm not sure but I would say '81 to '85 maybe? I was a custom tandem builder then, and we did use them, I even made a custom tandem for Mr. Phil Wood himself that had no canti posts, Phil disks only against my recommendation!

The cap'n seatpost is the original (French) LaPrade, the one that SR licensed and made ten million cheap copies of. The original is very light and cool, take good care of it.

Do you have any Eclipse panniers? That rack has extruded channel shapes in the sides, that the Eclipse panniers slide into, a pretty neat method. Modern panniers have locking hooks that work as well or better, but back then most competing designs had plain spring-loaded hooks that could pop off if you hit a pot-hole or cattle-crossing. Sometimes causing damage when they unhooked. So I was a huge fan of the Eclipse method. The panniers come up on ebay now and then. Oh and I might have some spares I'd let go, contact me by PM if you want me to look.

Mark B
bulgie is offline
Likes For bulgie:
Old 07-18-22, 04:20 PM
  #6
curbtender
Senior Member
Thread Starter

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,635

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,264 Times in 698 Posts
Originally Posted by bulgie View Post
Flashes of brilliance there, excellent workmanship, with some annoyances (for me) that you might not mind so much, like the too-short rear toptube. I prefer more fork rake (lower trail) on a tandem, to reduce lean-steer. This bike will wander more than I like if the stoker doesn't sit real still, also a bit with each pedal stroke, but you can adapt and might not notice it all after you're used to it. Don't try adding rake to these blades though, t'll ruin that weird/cool reinforcement. (probably obvious, sorry.)

Those dropouts are unique, vaguely ring a bell, but nothing's bubbling up to the top of my memory...

If you're going to ride it a lot I'd consider trying to find or make a larger pulley for the rear brake. "Wire rope" passing over a pulley will fatigue and eventually fray/break if the pulley diameter is less than about 50 times the cable diameter. This is the advice from aircraft, from back when controls were done with cables and pulleys. 50 times is a pretty strict standard that no one would do on a bike, but still I would try for something a good bit larger than what's there. On the other hand, it's a very visible spot, so you will (hopefully) notice if the cable starts to fray. They don't usually break all at once without warning. Plus it's "only" a rear brake.

The Phil disk is known to fail catastrophically under hard braking (the worst possible time), but again it's "only" a rear, and a drag brake, not the one you're counting on to stop you. So I'll allow it! I know, you must be so relieved to get my blessing... not! Just clean up the damn electrical tape please, it's hurting my eyes. Since the Phil was only on the market a few years, that could help date the frame if we think it's original. I'm not sure but I would say '81 to '85 maybe? I was a custom tandem builder then, and we did use them, I even made a custom tandem for Mr. Phil Wood himself that had no canti posts, Phil disks only — against my recommendation!

The cap'n seatpost is the original (French) LaPrade, the one that SR licensed and made ten million cheap copies of. The original is very light and cool, take good care of it.

Do you have any Eclipse panniers? That rack has extruded channel shapes in the sides, that the Eclipse panniers slide into, a pretty neat method. Modern panniers have locking hooks that work as well or better, but back then most competing designs had plain spring-loaded hooks that could pop off if you hit a pot-hole or cattle-crossing. Sometimes causing damage when they unhooked. So I was a huge fan of the Eclipse method. The panniers come up on ebay now and then. Oh and I might have some spares I'd let go, contact me by PM if you want me to look.

Mark B
Thanks Mark. Yes, that tape bugs me too. I was going to wrap it with thicker plastic and then finish with silicone tape. Does that brake supposed to have some sideways play to it? As far as riding, I'm going to give it a shot, but the captain is pretty tall (64 to top of tube and I ride a 60). Everything seems to be quality. Any idea where
if the T3 gives a clue for makers serial number?

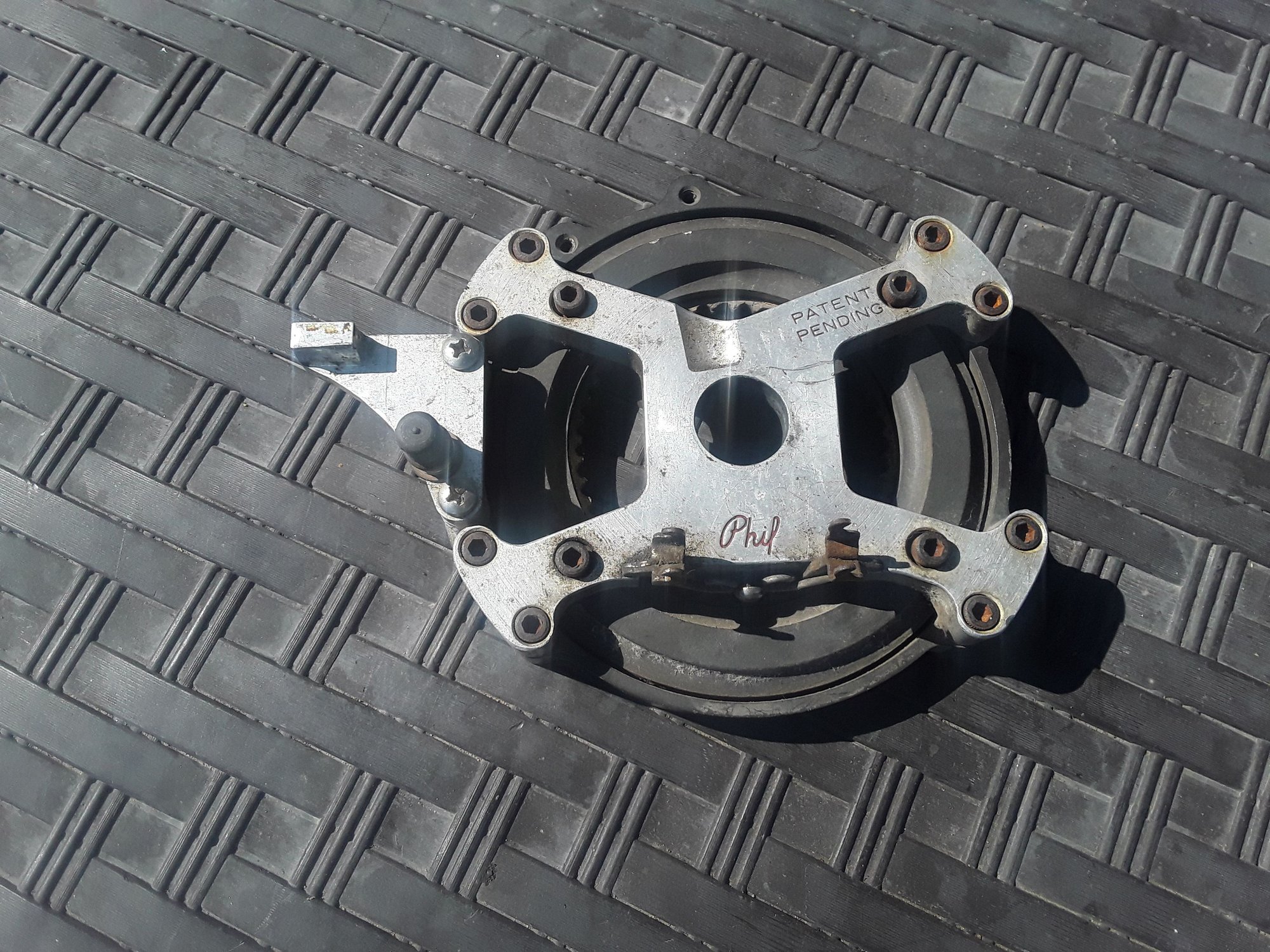

Vintage Phil Wood disc brake.
curbtender is offline
Old 07-19-22, 09:57 PM
  #7
Feldman
Senior Member

Join Date: Feb 2002
Posts: 1,144
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 107 Post(s)
Liked 60 Times in 43 Posts
Originally Posted by bulgie View Post
Flashes of brilliance there, excellent workmanship, with some annoyances (for me) that you might not mind so much, like the too-short rear toptube. I prefer more fork rake (lower trail) on a tandem, to reduce lean-steer. This bike will wander more than I like if the stoker doesn't sit real still, also a bit with each pedal stroke, but you can adapt and might not notice it all after you're used to it. Don't try adding rake to these blades though, t'll ruin that weird/cool reinforcement. (probably obvious, sorry.)

Those dropouts are unique, vaguely ring a bell, but nothing's bubbling up to the top of my memory...

If you're going to ride it a lot I'd consider trying to find or make a larger pulley for the rear brake. "Wire rope" passing over a pulley will fatigue and eventually fray/break if the pulley diameter is less than about 50 times the cable diameter. This is the advice from aircraft, from back when controls were done with cables and pulleys. 50 times is a pretty strict standard that no one would do on a bike, but still I would try for something a good bit larger than what's there. On the other hand, it's a very visible spot, so you will (hopefully) notice if the cable starts to fray. They don't usually break all at once without warning. Plus it's "only" a rear brake.

The Phil disk is known to fail catastrophically under hard braking (the worst possible time), but again it's "only" a rear, and a drag brake, not the one you're counting on to stop you. So I'll allow it! I know, you must be so relieved to get my blessing... not! Just clean up the damn electrical tape please, it's hurting my eyes. Since the Phil was only on the market a few years, that could help date the frame if we think it's original. I'm not sure but I would say '81 to '85 maybe? I was a custom tandem builder then, and we did use them, I even made a custom tandem for Mr. Phil Wood himself that had no canti posts, Phil disks only against my recommendation!

The cap'n seatpost is the original (French) LaPrade, the one that SR licensed and made ten million cheap copies of. The original is very light and cool, take good care of it.

Do you have any Eclipse panniers? That rack has extruded channel shapes in the sides, that the Eclipse panniers slide into, a pretty neat method. Modern panniers have locking hooks that work as well or better, but back then most competing designs had plain spring-loaded hooks that could pop off if you hit a pot-hole or cattle-crossing. Sometimes causing damage when they unhooked. So I was a huge fan of the Eclipse method. The panniers come up on ebay now and then. Oh and I might have some spares I'd let go, contact me by PM if you want me to look.

Mark B
I'd bet on it being a Nor Cal builder pre-1980. Lots of experimenters there and little knowledge of tandem frame parts.
Feldman is offline
Old 07-19-22, 10:53 PM
  #8
curbtender
Senior Member
Thread Starter

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,635

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,264 Times in 698 Posts
That's where it is from. I have another bike built by Jeffrey Richman who built tandems locally. I've been told he often went on tangents while building. Cant find much on him either.
curbtender is offline
Old 07-27-22, 10:19 PM
  #9
Campagnerdo
Full Member

Join Date: Dec 2010
Location: SoCal
Posts: 215
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 26 Times in 17 Posts
According to the serial number, I bet that is tandem number 3 for the year, with a build date of July, 1983.
Campagnerdo is offline
Likes For Campagnerdo:
Old 07-28-22, 09:34 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,821
Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 2540 Post(s)
Liked 1,483 Times in 1,113 Posts
Originally Posted by bulgie View Post
Flashes of brilliance there, excellent workmanship, with some annoyances (for me) that you might not mind so much, like the too-short rear toptube. I prefer more fork rake (lower trail) on a tandem, to reduce lean-steer. This bike will wander more than I like if the stoker doesn't sit real still, also a bit with each pedal stroke, but you can adapt and might not notice it all after you're used to it. Don't try adding rake to these blades though, t'll ruin that weird/cool reinforcement. (probably obvious, sorry.)

Those dropouts are unique, vaguely ring a bell, but nothing's bubbling up to the top of my memory...

If you're going to ride it a lot I'd consider trying to find or make a larger pulley for the rear brake. "Wire rope" passing over a pulley will fatigue and eventually fray/break if the pulley diameter is less than about 50 times the cable diameter. This is the advice from aircraft, from back when controls were done with cables and pulleys. 50 times is a pretty strict standard that no one would do on a bike, but still I would try for something a good bit larger than what's there. On the other hand, it's a very visible spot, so you will (hopefully) notice if the cable starts to fray. They don't usually break all at once without warning. Plus it's "only" a rear brake.

The Phil disk is known to fail catastrophically under hard braking (the worst possible time), but again it's "only" a rear, and a drag brake, not the one you're counting on to stop you. So I'll allow it! I know, you must be so relieved to get my blessing... not! Just clean up the damn electrical tape please, it's hurting my eyes. Since the Phil was only on the market a few years, that could help date the frame if we think it's original. I'm not sure but I would say '81 to '85 maybe? I was a custom tandem builder then, and we did use them, I even made a custom tandem for Mr. Phil Wood himself that had no canti posts, Phil disks only against my recommendation!

The cap'n seatpost is the original (French) LaPrade, the one that SR licensed and made ten million cheap copies of. The original is very light and cool, take good care of it.

Do you have any Eclipse panniers? That rack has extruded channel shapes in the sides, that the Eclipse panniers slide into, a pretty neat method. Modern panniers have locking hooks that work as well or better, but back then most competing designs had plain spring-loaded hooks that could pop off if you hit a pot-hole or cattle-crossing. Sometimes causing damage when they unhooked. So I was a huge fan of the Eclipse method. The panniers come up on ebay now and then. Oh and I might have some spares I'd let go, contact me by PM if you want me to look.

Mark B
I would want a beefier crown but I like the blade reinforcements. That should be a real authorship tell.

the rear wheel tucked under will really add to the thumping on the saddle.

you should look at the flight control rigging on the Spruce Goose... all cables, no hydraulics.
if it was to become a real plane it would need hydraulics, could have used jet engines too.

Last edited by repechage; 07-28-22 at 09:38 PM.
repechage is offline
Old 07-29-22, 06:39 PM
  #11
curbtender
Senior Member
Thread Starter

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,635

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1228 Post(s)
Liked 1,264 Times in 698 Posts

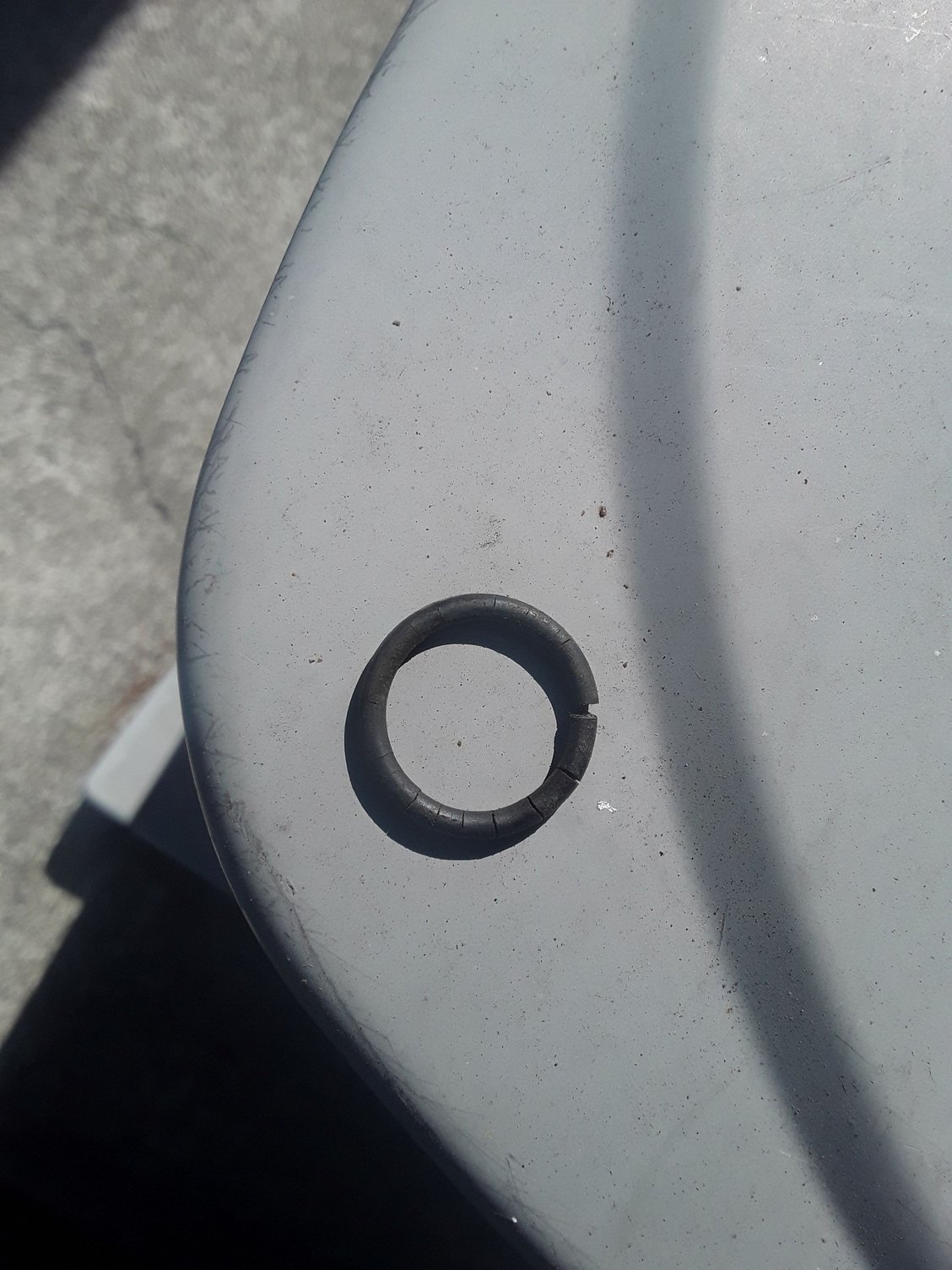

Took the brake off today and found the wobble. Spacer on hub was loose and a rubber o-ring that holds the brake in place had disintegrated. Took that tape off also, lol.
