Road Test/Bike Review (1986) Richard SACHS Signature

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Road Test/Bike Review (1986) Richard SACHS Signature

Old 07-22-22, 10:20 AM
  #1
SpeedofLite
Senior Member
Thread Starter

SpeedofLite's Avatar

Join Date: Aug 2010
Location: Central Florida, USA
Posts: 1,601

Bikes: Litespeed (9); Slingshot (6); Specialized (2); Kestrel (2); Centurion (1); Cervelo (1); FELT (1); Trek (2)

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 1,717 Times in 622 Posts
Road Test/Bike Review (1986) Richard SACHS Signature













__________________
WTB: Slingshot bicycle promotional documents (catalog, pamphlets, etc).
WTB: American Cycling May - Aug, Oct, Dec 1966.
WTB: Bicycle Guide issues 1984 (any); Jun 1987; Jul, Nov/Dec 1992; Apr 1994; 1996 -1998 (any)
WTB: Bike World issue Jun 1974.













SpeedofLite is online now
Likes For SpeedofLite:
Old 07-22-22, 11:48 AM
  #2
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,743
Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 1456 Post(s)
Liked 2,253 Times in 1,107 Posts
Neat!
I hadn't seen this interview before, and it's the first time I'd heard about Mr. Sachs preference for very low bottom brackets! I gotta admit, I got used to a 10 1/2" bottom bracket on my mid 70's Raleigh Gran Sport. I kept that dimension when I had two subsequent custom frames built, and had one builder ask if I really wanted it that low.

Personally, now that I have another bike with a high bottom bracket (about 11"?), I'm not sure that it's a major difference in how the bike handles. With clipless pedals, there's little chance of grounding a pedal in a turn with the lower BB (unlike with conventional pedals). On the bike with the high BB, when I stop at an intersection, I have to get off of the saddle in order to put a foot down.

Another topic that got my attention was the use of SLX tubing on a large frame. As someone who rides 62cm frames, c-t, I'd always thought that SL was too light. Not sure if SLX was considered good enough. I did notice that a SP down tube was used, along with SP fork blades, so that was a good choice to improve the torsional stiffness. The minor tendency to shimmy wasn't surprising, but now I'm wondering if the bike would be considered to "plane".

Thanks for sharing the article!

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 07-22-22, 12:49 PM
  #3
Andrew_G
Newbie

Join Date: Feb 2016
Posts: 68
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 63 Times in 23 Posts
I've owned several Richard Sachs frames over the years, but none at present. I've copied the dimensions of my most recent RS frameset on to my current custom bikes.


I do prefer a low bottom bottom bracket; I consider 26 cm (10.25") my favorite. (Previously used on Richard Sachs and 1979 Pinarello).


I don't notice much difference in BB height when riding on the flat, but when descending, the lower BB feels more stable (secure). To me, a 27cm BB height (previously: 2001 Mercian) feels perched high up and doesn't feel as stable. 26.0 to 26.5 cm, to me, feels much better.


I found that a 25.5 cm (10") BB felt a slight bit soft under pedaling force. (Transition from one RS frame to another.)


All bikes were/are 60 cm c-t, with 175mm cranks and Look pedals.
Andrew_G is offline
Old 07-23-22, 08:00 AM
  #4
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,109
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2651 Post(s)
Liked 1,681 Times in 1,237 Posts
In the clipless pedal era ( most recent, not the original Look ) a low bottom bracket is less of a concern.
Riders are very adaptable, one learns the machine.

way back I had two race bikes, one with a very high bracket. Terrific for criterium racing, I could pedal through a corner and hear my competition behind dig a pedal in the turn.
very useful on the last corner.
today, not that necessary.

do find it interesting that so many plastic frames have 70 mm of drop.
repechage is offline
Likes For repechage:
Old 07-23-22, 09:17 AM
  #5
poprad
Senior Member

poprad's Avatar

Join Date: Jun 2005
Location: In transit
Posts: 1,895

Bikes: 07 Vanilla, 98 IRD road frame built up with 25th Ann DA, Surly cross check with 105 comp, 78 Raleigh Comp GS, 85 Centurionelli

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Liked 911 Times in 187 Posts

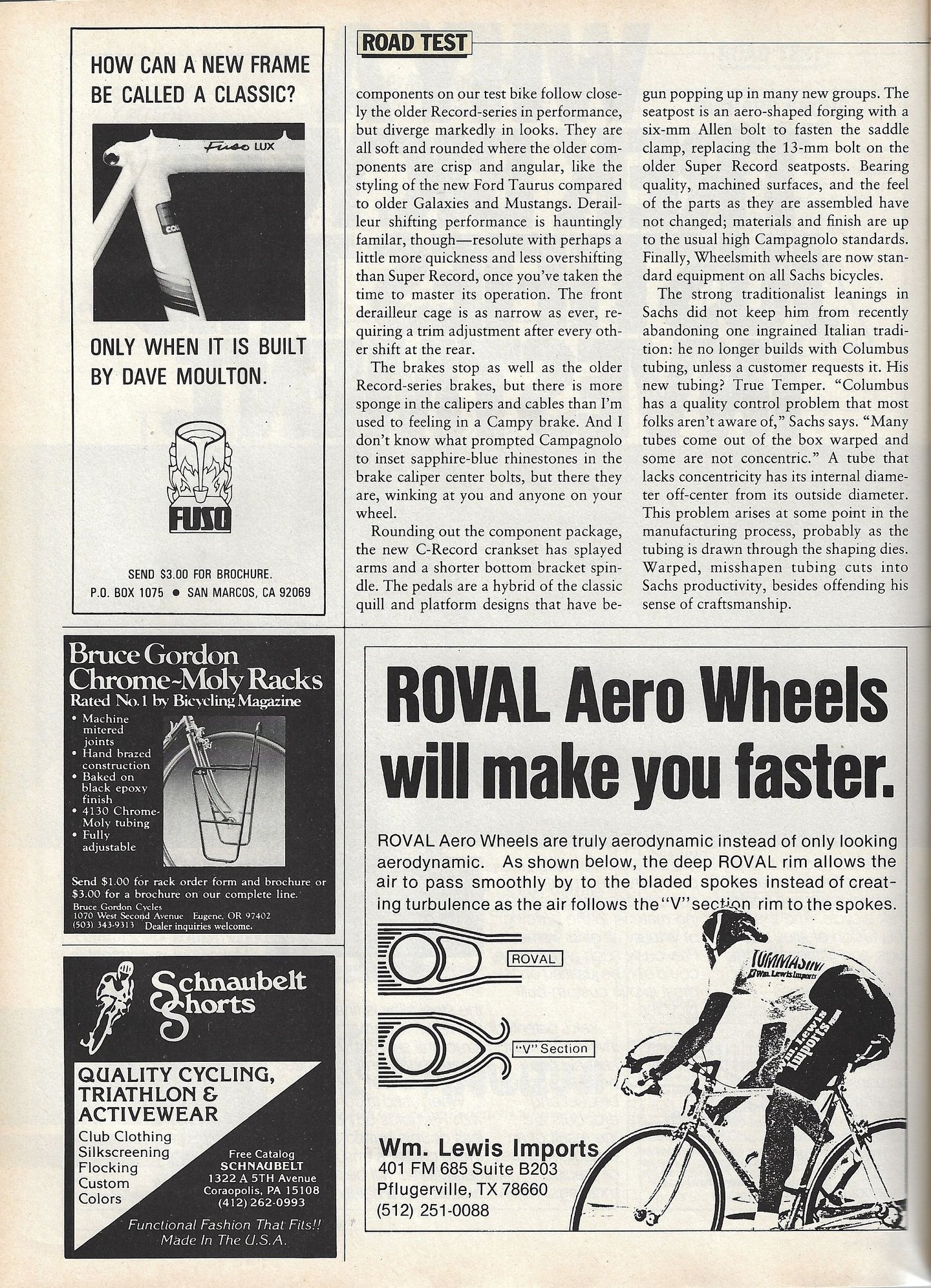

I love the comparison of the design aesthetic of the Campy gruppo to a Ford Taurus!

poprad is offline
Likes For poprad:
Old 08-02-22, 07:52 AM
  #6
Catnap
zungguzungguguzungguzeng

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,665

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 233 Times in 99 Posts
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Likes For Catnap:
Old 08-02-22, 08:47 AM
  #7
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,139
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 3653 Post(s)
Liked 2,455 Times in 1,462 Posts
^^^Great quote.
himespau is offline
Old 08-02-22, 10:28 AM
  #8
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,458

Bikes: 1989 Cinelli Supercorsa

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Liked 1,109 Times in 706 Posts

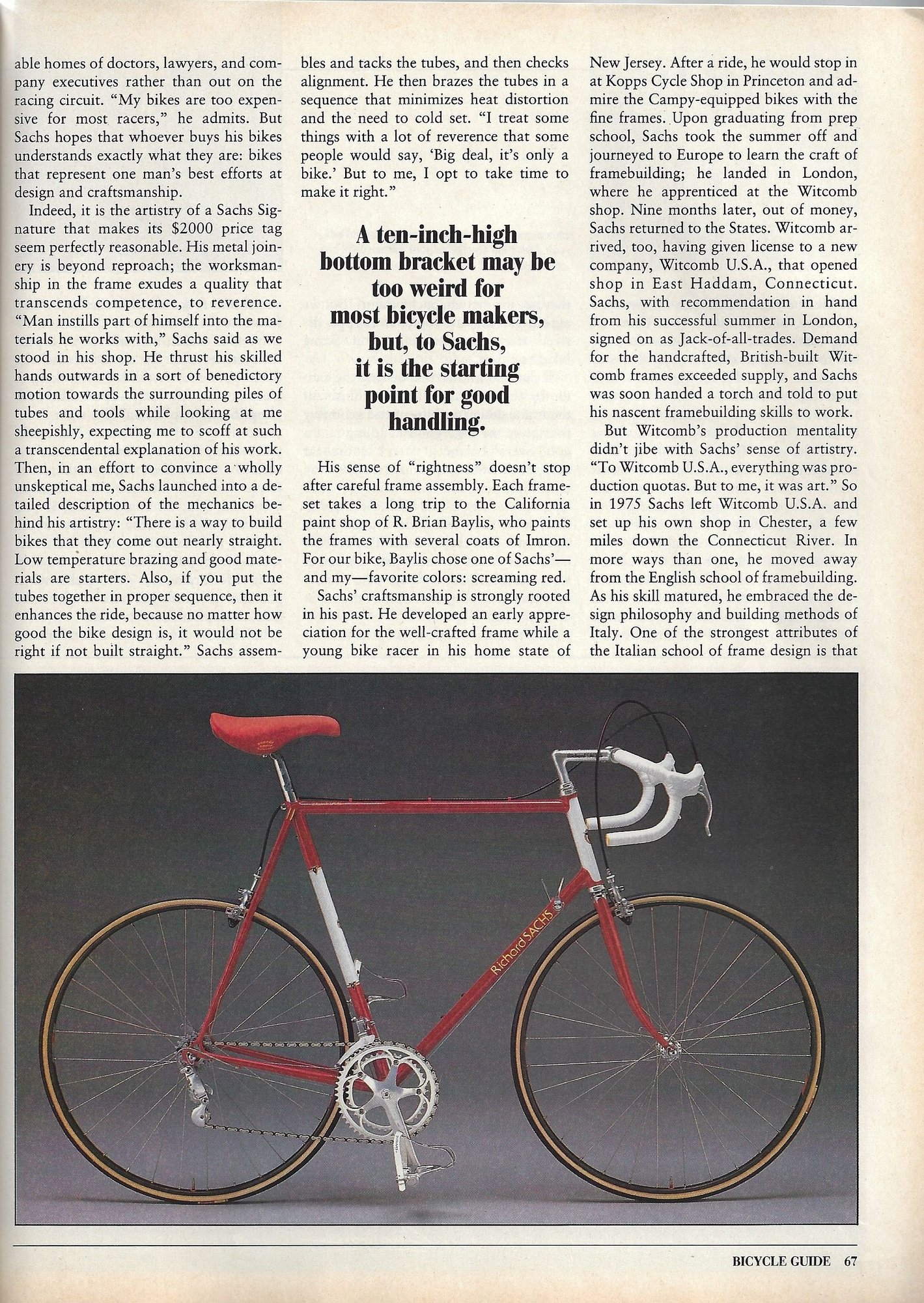

I love the broadside photo of the entire bike along with the detail photos, all with simple backgrounds. Seems that in today's magazines, we rarely get broadside photos; often all we get are "wedge" shots of the bike taken at extreme angles from the front or rear.
