Triple Crank Replacement Help

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Triple Crank Replacement Help

Old 07-26-22, 01:30 PM
  #1
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Triple Crank Replacement Help

I have a Shimano rx100 52/42/30 crank. Many of the teeth in the middle ring are worn down and some even gone. I'd like to replace it. Finding that specific crank is a bit challenging. The crank is on an old Cannondale r500 3x7. What size cranks can go on it? Would a 48/38/28 crank work? Thank you.
elston1999 is offline
Old 07-26-22, 01:50 PM
  #2
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,896
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3062 Post(s)
Liked 4,086 Times in 1,784 Posts
You can likely just replace worn chainrings rather than the whole crankset.
nlerner is online now
Likes For nlerner:
Old 07-26-22, 01:58 PM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,485

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 775 Times in 547 Posts
One important thing to know about "modern" front derailers is that the inner cage plate is shaped for a specific tooth-count difference between the big and middle rings.

So as long as the new crank and rings have a ten-tooth difference between the middle and big ring, and if the derailer height is set properly above the big ring's teeth, the shifting will likely be as good as the particular new crank's chainrings were designed to perform, using a good chain (such as Shimano's, since they literally invented most of the performance features of modern chain).
dddd is offline
Old 07-26-22, 02:12 PM
  #4
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by dddd View Post
One important thing to know about "modern" front derailers is that the inner cage plate is shaped for a specific tooth-count difference between the big and middle rings.

So as long as the new crank and rings have a ten-tooth difference between the middle and big ring, and if the derailer height is set properly above the big ring's teeth, the shifting will likely be as good as the particular new crank's chainrings were designed to perform, using a good chain (such as Shimano's, since they literally invented most of the performance features of modern chain).
not a modern front derailleur. Old suntour.
elston1999 is offline
Old 07-26-22, 04:24 PM
  #5
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
Shimano RX100 Triple Cranks

Originally Posted by elston1999 View Post
I have a Shimano rx100 52/42/30 crank. Many of the teeth in the middle ring are worn down and some even gone. I'd like to replace it. Finding that specific crank is a bit challenging. The crank is on an old Cannondale r500 3x7. What size cranks can go on it? Would a 48/38/28 crank work? Thank you.
Shimano RX100 cranks take 130mm BCD chainrings. The triples used a smaller 74mm BCD inner chainring. They used "SG" chainrings which were slightly narrower than older models.

The easiest, cheapest solution is to just replace the 42T inner chainring. An eBay search for "Shimano 42t SG 130mm BCD chainring" turns up a bunch of them for $30 bucks and up.

Velobase RX100 Triple:

https://velobase.com/ViewComponent.a...5-2358d9f4fa99

There are several complete RX100 triple cranks listed on eBay right now:
https://www.ebay.com/itm/26577281282...IAAOSwe3JiyXu2
https://www.ebay.com/itm/18505058068...oAAOSwkcNhQNb4

If you switch cranks, you don't know what you're going to get with a used set. Also as dddd mentioned, you might run into a FD problem shifting if you go to a smaller big chainring???

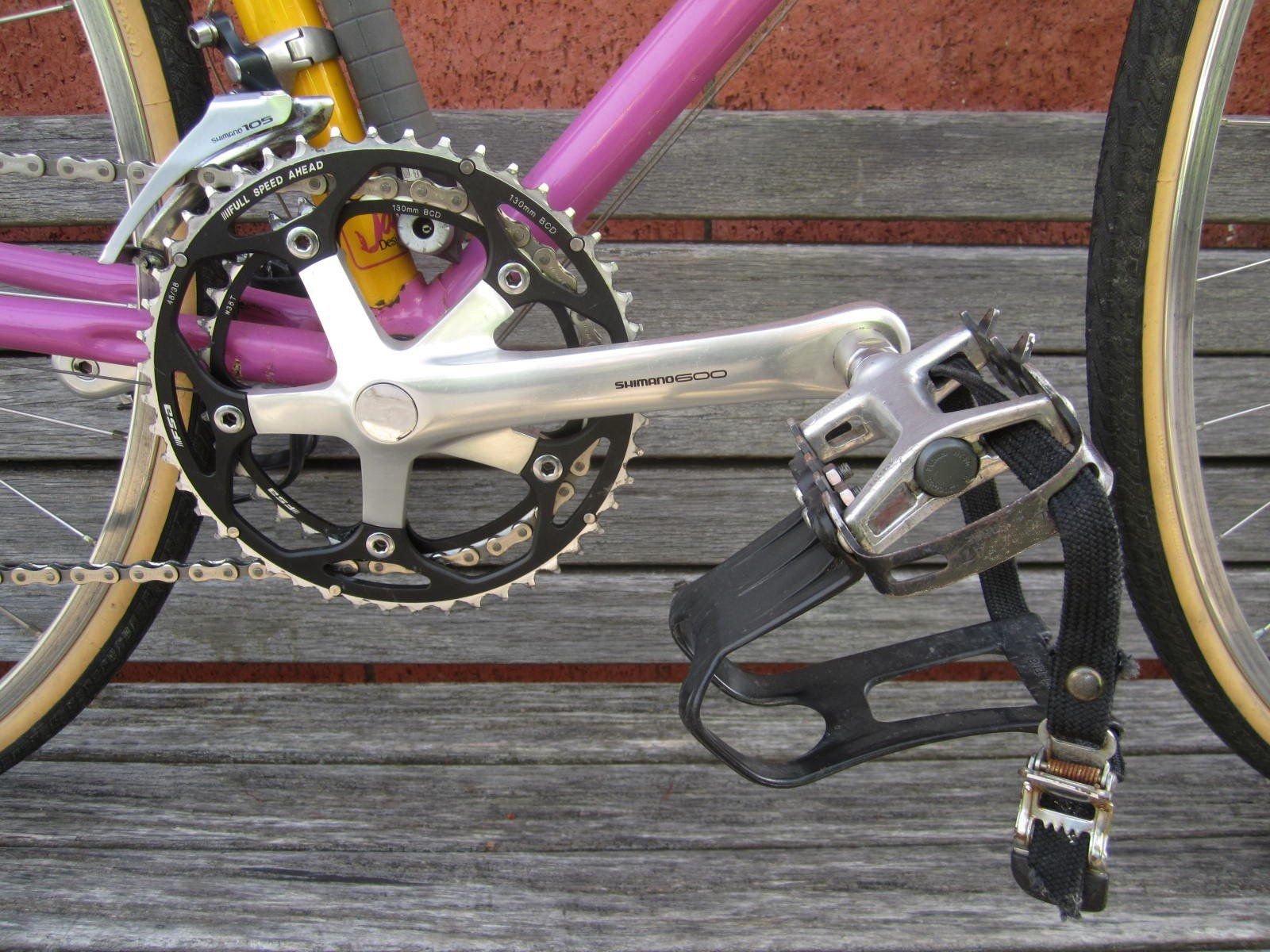

I'm running 49T or 48T x 39T or 38T chainrings on most of my 130mm BCD Shimano cranks. Switched from 52T x 42T... No problems.





Personal opinion on chains: they're 3000+ mile consumable wear items. Most of the Shimano chains are CRAZY over priced!!! All of the better brands like SRAM and KMC will give the same life and... performance as Shimano chains for less money!

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 07-26-22 at 04:42 PM.
verktyg is offline
Likes For verktyg:
Old 07-26-22, 10:03 PM
  #6
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,147

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 2419 Post(s)
Liked 1,118 Times in 659 Posts
Originally Posted by elston1999 View Post
I have a cannonade r500 with a suntour front mech and it is about gone. I have read that many front mechs are interchangeable. IE:7,8,9 speed. It is a 3x7. Would any of the 7,8,9 triple front mechs work (sora, claris, etc)? I do ride quite a bit. I have micronew sti shifters if that helps with recommendations. Thanks community!!
Originally Posted by elston1999 View Post
I have a Shimano rx100 52/42/30 crank. Many of the teeth in the middle ring are worn down and some even gone. I'd like to replace it. Finding that specific crank is a bit challenging. The crank is on an old Cannondale r500 3x7. What size cranks can go on it? Would a 48/38/28 crank work? Thank you.
Hi @elston1999!

I included your post from your other thread, since I think you're asking about the same setup.

Since you have a RX100 crank and a Suntour derailleur with Microshift shifters on a Cannondale- you've got the proverbial "dog's breakfast" of parts on there- so there's a whole world of options.

I think your 2 immediate solutions are- pick out any pre 1995-ish front derailleur (I'd get one to match your rear derailleur just because) and you'll be fine and pick up a 130 BCD chain ring in that 42 range.

For the most part- friction front derailleurs will work on triples in friction- irrespective of being "triple" or "ATB" or "mountain bike" derailleurs. Ask anyone who has a Suntour Cyclone pulling a triple or any Schwinn Voyageur that's running a FD-204 or 206... Once you start getting into indexed front shifting- then the derailleur and tooth count start to really matter.

As far as the crank goes- it looks like the RX100 triple was a 130/74 BCD triple. ATBs and MTBs generally used a 110/74 BCD for their triples. (BCD is Bolt Circle Diameter- where your chainring mounting holes are located.) The smaller BCD meant they could fit a smaller ring- (I think 110 goes down to 34 and the 74 inner ring goes down to 26 or 24)- but you see a lot of ATBs and MTBs with 48-38-28- Which I think is a good range.

If you're comfy with the gearing- just replace the chain ring. If you think it's geared a little tall- get a 48-38-28- But keep in mind the crank length (a lot of ATB/MTB cranks are 175 and a lot of road bikes are 170/172) and that you may need a different length bottom bracket spindle. (it's a lot easier to just change the chainring)

​​​​​​​Good luck!!!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 07-27-22, 02:59 AM
  #7
Ross200
Junior Member

Join Date: Feb 2019
Posts: 135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 35 Times in 30 Posts
Many Shimano chainrings of this vintage have(had?) several teeth that are cut down and shaped to facilitate shifting-super glide. Many not familiar with this feature have been tricked into thinking teeth are worn/missing from the rings. Check the face of the teeth where the chain rollers mesh to verify the wear.

TA and Stronglight both make very nice ramped/pinned middle rings that work great and last much longer than OE if you indeed require new rings.
Ross200 is online now
Likes For Ross200:
Old 07-27-22, 06:54 AM
  #8
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,120

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 963 Post(s)
Liked 795 Times in 434 Posts
elston1999 , only two more posts and you can include pictures with your posts! We like pictures. Just add two more here with basic comments.

Refreshing your existing drive train is the best way to help renew your bike. What year is your Cannondale? My guess would be mid to late 1990s.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is online now
Old 07-27-22, 11:31 AM
  #9
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,306

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,513 Times in 969 Posts
I've got an rx100 50/40/30 in the basement. I'll take a close look with some pics.
clubman is offline
Old 07-27-22, 12:18 PM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,485

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 775 Times in 547 Posts
Originally Posted by verktyg View Post
...Personal opinion on chains: they're 3000+ mile consumable wear items. Most of the Shimano chains are CRAZY over priced!!! All of the better brands like SRAM and KMC will give the same life and... performance as Shimano chains for less money!
verktyg
My preference for Shimano chain is particularly with their 10-speed chain, but also with their 9s chain.

I've observed first-hand, many times, that using a SRAM 10s chain on a 10s Shimano road drivetrain caused very poor shifting quality, which immediately corrected itself with the installation of a similarly-new Shimano 10s chain.
It's also quite noticeable on 9s drivetrains, to a somewhat lesser degree.

I do usually use KMC X-series chain on my own bikes having 7s or 8s cassettes or freewheels, with no difference observed as compared to using Shimano's 7-8s chain.

I've taken a digital caliper to all of the popular 9s chains, and observed that Shimano's 9s chain does have a greater ratio of inside width (at the outer plate) to overall/outside width, this as compared to SRAM, Campag and KMC 9s chain. This may explain the Shimano 9s chain's more-aggressive tooth-grabbing qualities during shifting (which makes for less need of fine adjustment of the cable to insure robust shifting).

Again though, it's with 10s Shimano road drivetrains where Shimano's 10s chain shows the biggest advantage over SRAM 10s chain, and where Shimano's later-issue asymmetric chains (6701, 7801, etc.) clearly offer the best shifting possible. This can be critical when larger 10s road cassettes are used, as the tighter B-tension screw adjustment leaves the guide pulley further away from the smallest cogs in the "convex" part of the cassette's outer profile (usually 3-4 cogs in from the small end of the cassette).
So it's at the 10s level where, to me, Shimano chain actually seems like the best bargain (and where the prices are also closer between brands).
dddd is offline
Old 07-27-22, 12:29 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,485

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 122 Post(s)
Tagged: 0 Thread(s)
Quoted: 1254 Post(s)
Liked 775 Times in 547 Posts
Originally Posted by elston1999 View Post
not a modern front derailleur. Old suntour.
How old, i.e. which model FD?

Generally it was during the mid-90's that shaping of the front derailer's inner cage plate for specific middle-big chainring count differences took over, but such shaping did develop, to some degree, years earlier.

I've been brought several bikes where a well-intended shop mechanic's chainring size changes rendered a customer's triple-drivetrain practically unusable, even after the customer had brought it back to get it's shifting problems corrected!
dddd is offline
Old 07-27-22, 04:37 PM
  #12
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Think this would work? Stronglight Type S-5083 130 BCD Chainring
Attached Images
elston1999 is offline
Old 07-27-22, 04:45 PM
  #13
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
130mm BCD Chainrings

Originally Posted by elston1999 View Post
Think this would work? Stronglight Type S-5083 130 BCD Chainring
Almost all 130mm BCD chainrings will fit on your crank. Is there a ratio that you would like to use: 52T-42T, 52T-44T and so on?

That 44T Stonglight should work well. It will give you and intermediate choice rather than the smaller 42T ring.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Old 07-27-22, 05:02 PM
  #14
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by verktyg View Post
Almost all 130mm BCD chainrings will fit on your crank. Is there a ratio that you would like to use: 52T-42T, 52T-44T and so on?

That 44T Stonglight should work well. It will give you and intermediate choice rather than the smaller 42T ring.

verktyg
My existing setup is 52\42\30 so I was just trying to keep it simple.
elston1999 is offline
Old 07-27-22, 05:28 PM
  #15
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
44T 130 BCD Chainring

Originally Posted by elston1999 View Post
My existing setup is 52\42\30 so I was just trying to keep it simple.
That should work... You might find that you will be riding on the 44T CR a lot more...

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Old 07-27-22, 05:34 PM
  #16
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Last question, that stronglite says 9 speed. Reading conflicting opinions but will it work on my speed setup? Thanks!
elston1999 is offline
Old 07-27-22, 05:36 PM
  #17
elston1999
Newbie
Thread Starter

elston1999's Avatar

Join Date: Jan 2021
Location: Ohio
Posts: 12

Bikes: Cannondale r500, Mongoose Hybrid

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Last question

Originally Posted by verktyg View Post
That should work... You might find that you will be riding on the 44T CR a lot more...

verktyg
Will that stronglite work on 7 speed? Says itís a 9 speed ring but reading conflicting opinions. Thank you
elston1999 is offline
Old 07-27-22, 06:32 PM
  #18
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,004

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 198 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 1,134 Times in 615 Posts
9 Speed Chainrings

Originally Posted by elston1999 View Post
Will that stronglite work on 7 speed? Says itís a 9 speed ring but reading conflicting opinions. Thank you
All of the Shimano cranks that I pictured in my previous post are running 9 speed or 10 speed chainrings with 6-7-8 speed SRAM chains and 7 speed or 8 speed FWs or cassettes. No problems with them.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Likes For verktyg:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
