Specialized Rockhopper '91 build

Hi,

following the acquisition of a Specialized Rockhopper from '91 and a lovely discussion as to what type of shifting I shall put on, I will try'n document the build progress in this thread. I hope that is okay - if mods don't allow such shameless self promotion ( ) please feel free to delete this.

Frame seems to be in quite good condition, just needs proper clean and shine to make it sparkle.

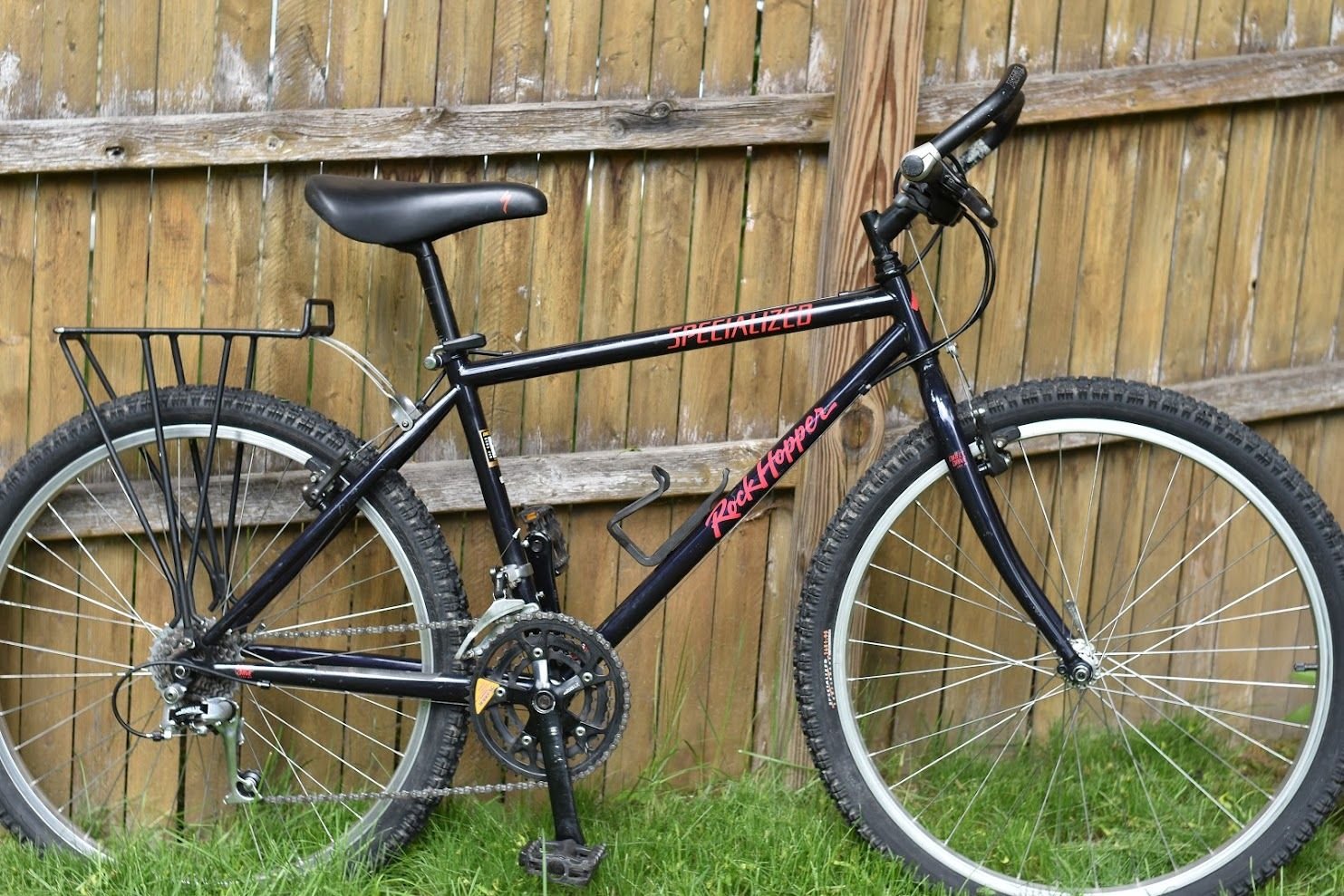

W/o further ado, here goes: Pic of the bike as bought:

Rockhopper in his dusty state as aquired

Stripped the bike down to the frame and removed everything to get the frame cleaned and buffed up with some car wax. While seatpost and quill stem came off no problem, as expected BB gave (and still gives) me troubles. The non-drive side was easily loosened and removed, despite some rust build up in the BB-shell. The drive side hower, won't budge. Will take it to a bikeshop to get the drive side cup loosened/removed

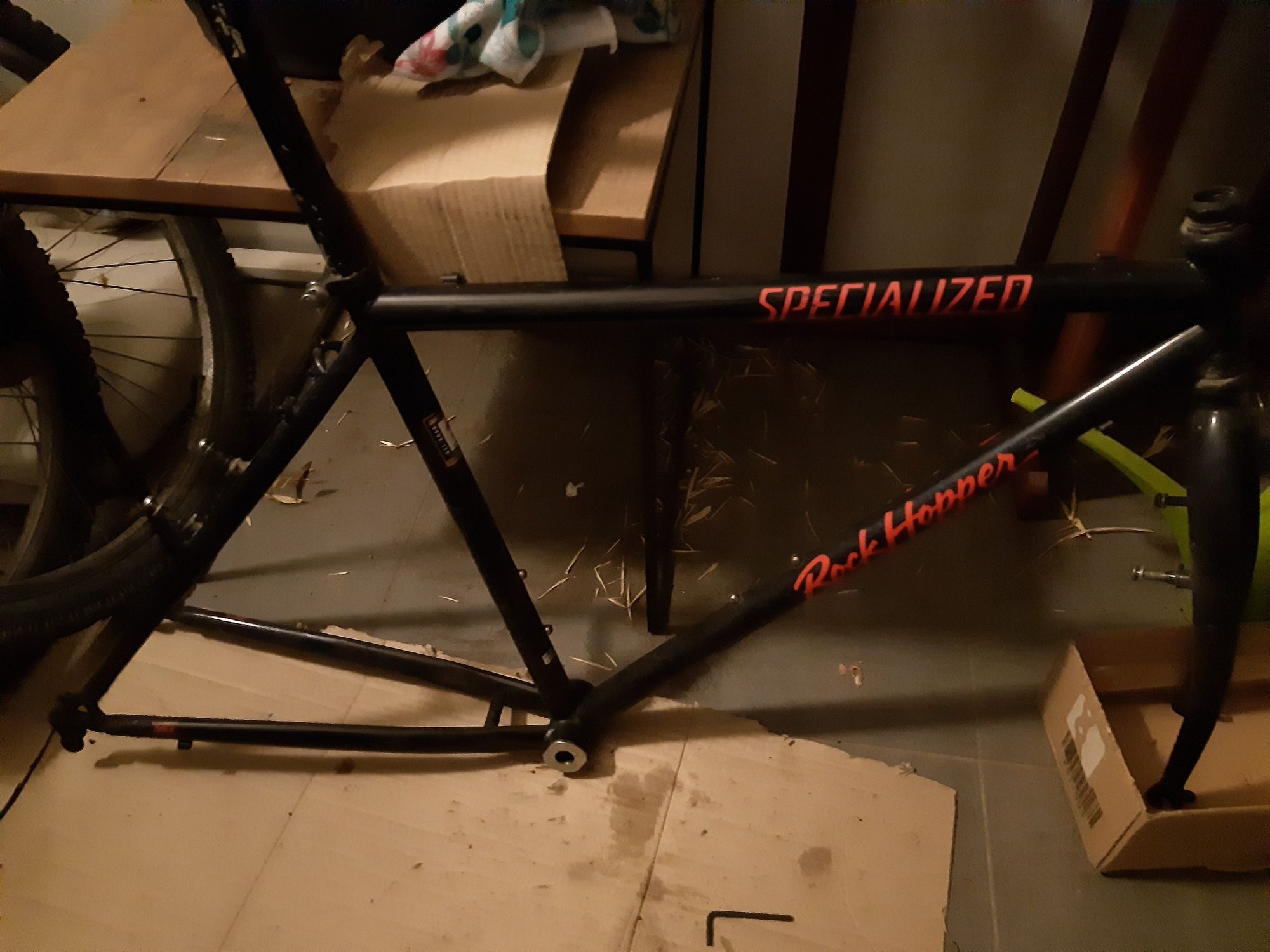

Stuck drive side BB shell. (frame still needs to be washed and polished)

Aight, that's the progress so far. Hope that's something all of you are interested in. Will update in due course.

Peace!

Last edited by Positron400; 07-31-22 at 02:03 PM.
Positron400 is offline
Likes For Positron400:
Old 07-31-22, 02:05 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,566

Bikes: A bunch of old bikes and a few new ones

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 5510 Post(s)
Liked 2,447 Times in 1,571 Posts
Bike forums would fall apart without a lot of shameless self promotion! You are in good company. Looking forward to watching the build. I’m a big fan of vintage MTBs, especially Specialied
bikemig is offline
Likes For bikemig:
Old 08-01-22, 11:12 AM
  #3
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Quick update - My LBS had a 36mm flat wrench and loosened the drive side cup in like 2 seconds . Removed the cup and gave the frame a thorough clean and degrease. Not really much rust buildup except for some in the BB shell. Some WD40 in there and in the steerer/seat tube and drying it overnight. Next up - wax and shine! No pictures at this point as there is no discernible difference to the one I posted
Positron400 is offline
Likes For Positron400:
Old 08-01-22, 11:30 AM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,513 Times in 2,171 Posts
Originally Posted by Positron400 View Post
Quick update - My LBS had a 36mm flat wrench and loosened the drive side cup in like 2 seconds . Removed the cup and gave the frame a thorough clean and degrease. Not really much rust buildup except for some in the BB shell. Some WD40 in there and in the steerer/seat tube and drying it overnight. Next up - wax and shine! No pictures at this point as there is no discernible difference to the one I posted
Great to hear the LBS was up to the task as they should be, sounds like it was a normal job.

We often discuss this here, at length, ad nauseum, many, many schools of thought, albeit some misguided.

These can often be a challenge, if this one came off with just a wrench it was not and may have not been tight enough.

Keep in mind that if they are stuck or very tight as they should be and often are, the LBS may not be up to the task, this can go south very fast, if they attempt and fail it can get desperate as rounded off flats can be very hard to overcome.

They need to come out on the first try when they are really stuck, seized, etc. it usually takes far more than a wrench.

All that said, welcome aboard, glad you found us, you're in the right place. We love these.
merziac is offline
Likes For merziac:
Old 08-01-22, 12:36 PM
  #5
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by merziac View Post

They need to come out on the first try when they are really stuck, seized, etc. it usually takes far more than a wrench.

All that said, welcome aboard, glad you found us, you're in the right place. We love these.
..In fairness, it took the "assistance" of a fairly solid WHACK on the end of the wrench with a hammer, so to me, it seemed to be proper tight BBs always make me nervous when I need to loosen them.

Thanks for the warm welcome and the positive feedback -.I've only been slowly building up the courage/know how to wrench on my own, but my last build gave me confidence to keep going with these.
As promised, I will be providing more updates and pictures. A load of parts should be coming in this week to fully build up the frame. (fingerscrossed)
Positron400 is offline
Likes For Positron400:
Old 08-01-22, 12:50 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,513 Times in 2,171 Posts
Originally Posted by Positron400 View Post
..In fairness, it took the "assistance" of a fairly solid WHACK on the end of the wrench with a hammer, so to me, it seemed to be proper tight BBs always make me nervous when I need to loosen them.

Thanks for the warm welcome and the positive feedback -.I've only been slowly building up the courage/know how to wrench on my own, but my last build gave me confidence to keep going with these.
As promised, I will be providing more updates and pictures. A load of parts should be coming in this week to fully build up the frame. (fingerscrossed)
All good, no worries.

I never use a hammer on these, one slip and....

Plenty of folks do it so, whatever, glad they got it right, this time.

As you can see, we're glad to help. This is a good test case while not being a really special subject but being very well revered none the less.

Get this right and the ones that follow are likely to be less challenging as you move forward.
merziac is offline
Likes For merziac:
Old 08-01-22, 03:59 PM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,133

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1201 Post(s)
Liked 805 Times in 553 Posts
I can't tell what shift levers you have, but I am very partial to good old-fashioned friction or truly friction-compatible thumbies on mountain bikes.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 08-01-22, 10:18 PM
  #8
Azriel
Newbie

Join Date: Jun 2022
Posts: 26
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
cool bike
Azriel is offline
Old 08-01-22, 11:31 PM
  #9
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 796

Bikes: Gunnar, F Moser, Pete Tansley, Rocky Mountain, Diamant, Marin, Shogun, Avanti, Winora

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 216 Times in 116 Posts
very nice project.

for next time, try this Sheldon Brown trick:

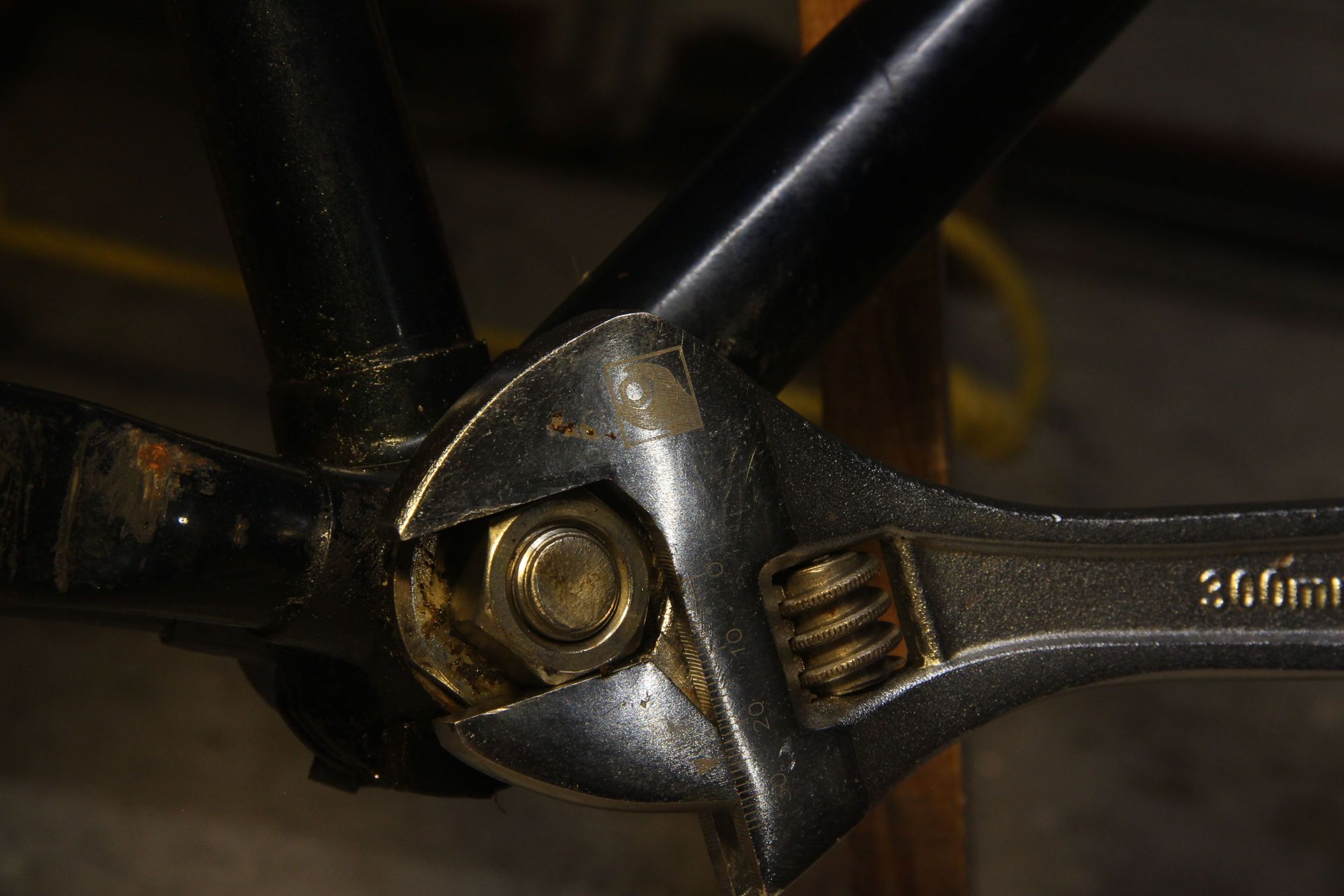

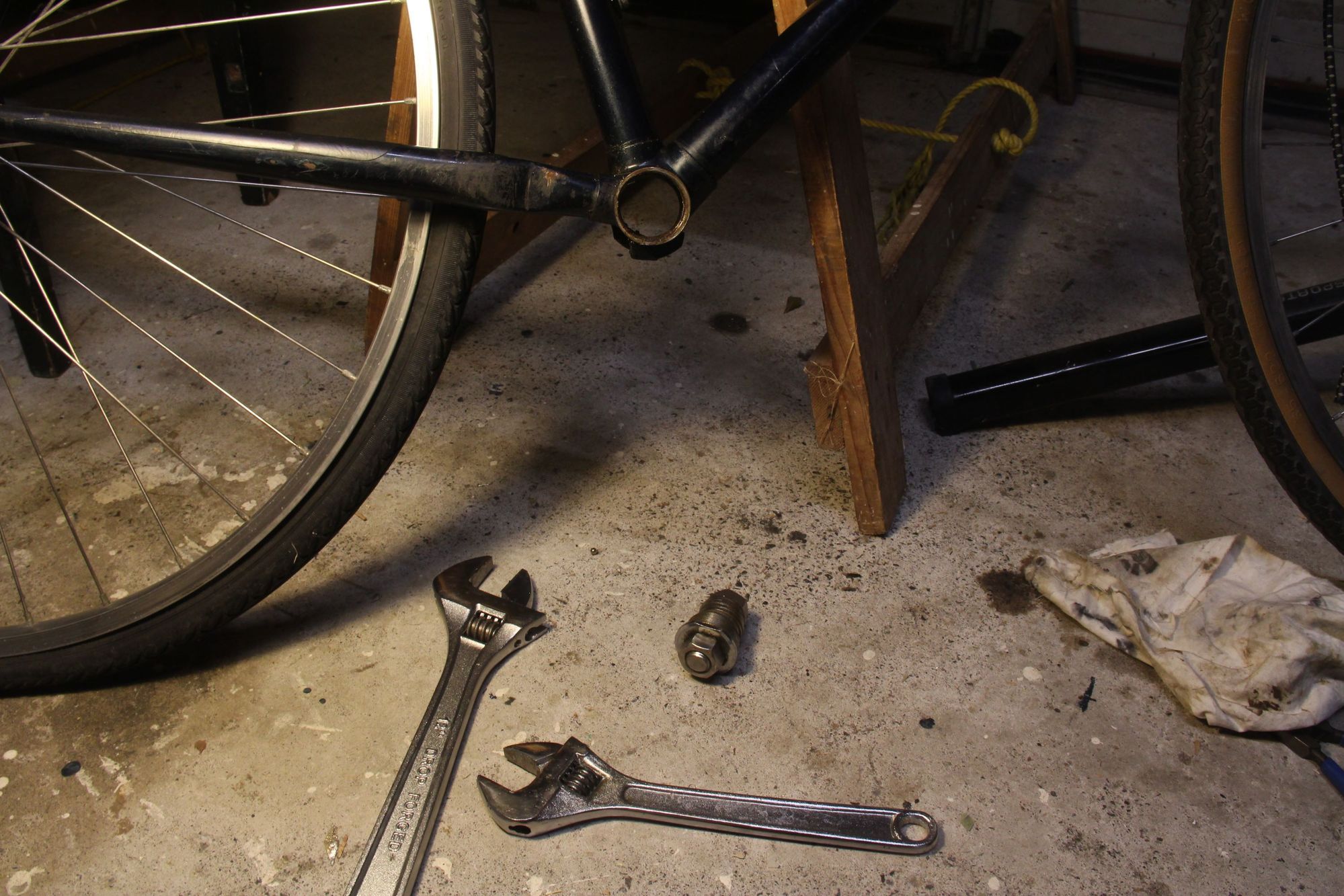

Get a bolt/nut and some washers. Do it up on the fixed cup and keep turning it.
You can apply a lot of force this way, with a long pipe over the wrench (I use a tow-bar bike rack).




Soody is offline
Likes For Soody:
Old 08-02-22, 05:07 AM
  #10
PugRider
Full Member

Join Date: Feb 2013
Location: Worcester, Massachusetts
Posts: 296

Bikes: Fuji Sportif 1.7C, Shogun Metro AT, Jamis Durango SX, Miyata Alumicross, Fuji Special Road Racer, Mongoose ATB, Fuji SST 1.0 Team, Gitane (?), Specialized Rockhopper SS, Univega Gran Turismo, Univega Supra Sport Mixte, Nishiki Tri-A, Diamondback Coil

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 121 Times in 65 Posts
NIce bike! I hear ya on the bb cup, that can be a tough one. I've had bikes where I've just left it on there and cleaned it from the other side. That's the good thing about the older three-piece BBs, I guess. I brought a pretty darn similar Rockhopper back to life during the summer of 2020. The co-op couldn't open shop because of pandemic restrictions, so we basically started a list of people who needed bikes, and spent the summer refurbishing and delivering bikes like Santa Claus. It was a crazy but wonderful experience. This one went to a young graduate student at a local university from Pakistan who got stranded for the summer in all the international air travel craziness and needed something to get around on. It came in as if it was pulled from a tar pit, but it cleaned up well, as most Specialized bikes do.
PugRider is offline
Likes For PugRider:
Old 08-02-22, 10:45 AM
  #11
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by Soody View Post
very nice project.

for next time, try this Sheldon Brown trick:
Get a bolt/nut and some washers. Do it up on the fixed cup and keep turning it.
You can apply a lot of force this way, with a long pipe over the wrench (I use a tow-bar bike rack).
Cool! Will definitely try this the next time I encounter a stubborn BB shell - Thanks!

Regarding the build progress - just now polished the frame up and it looks loads better now! No more dull frame but lovely and shiny! The dings and scratches are still there, since I didn't go the clay bar route but I dont mind them too much

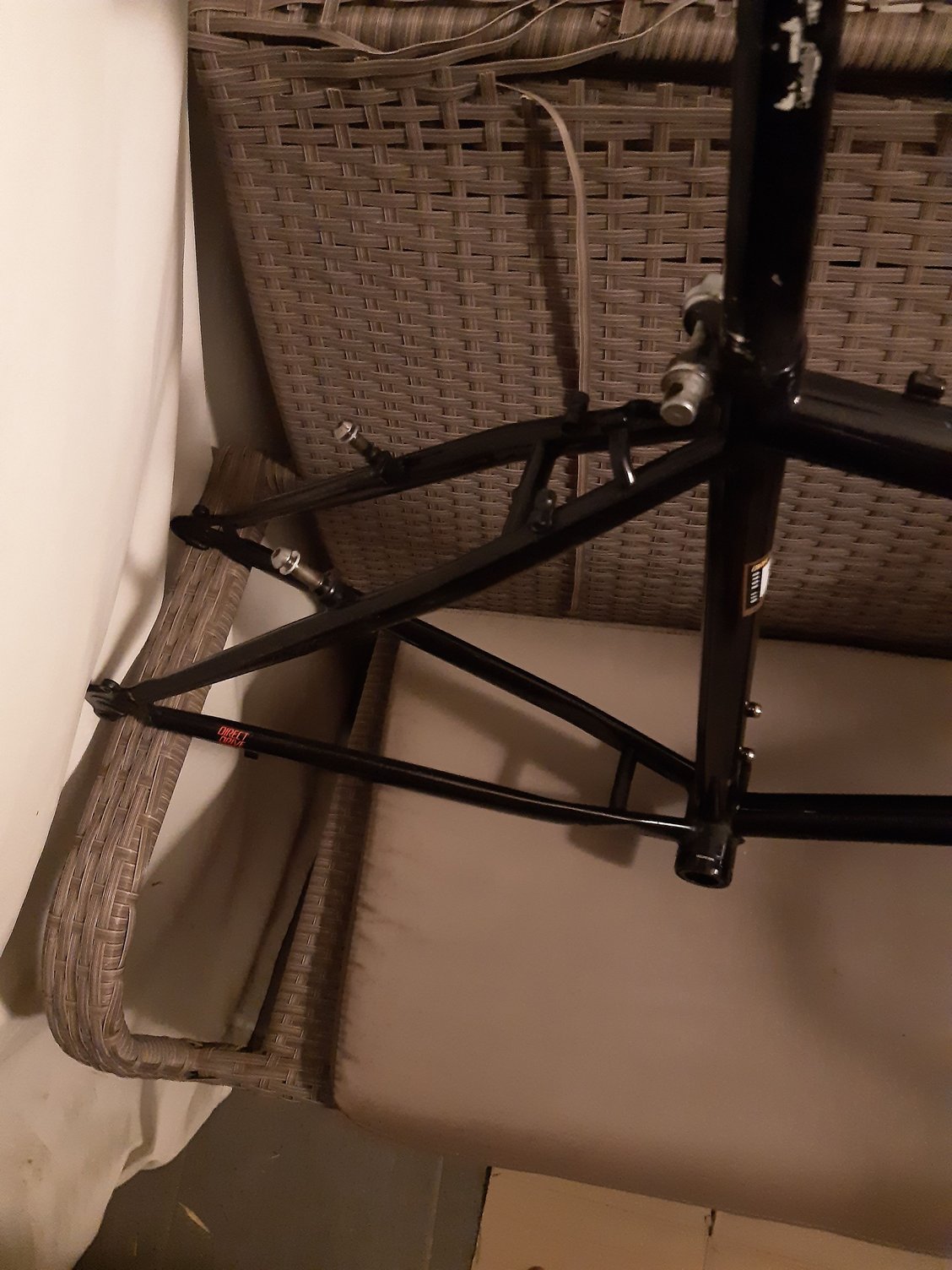

Before polishing

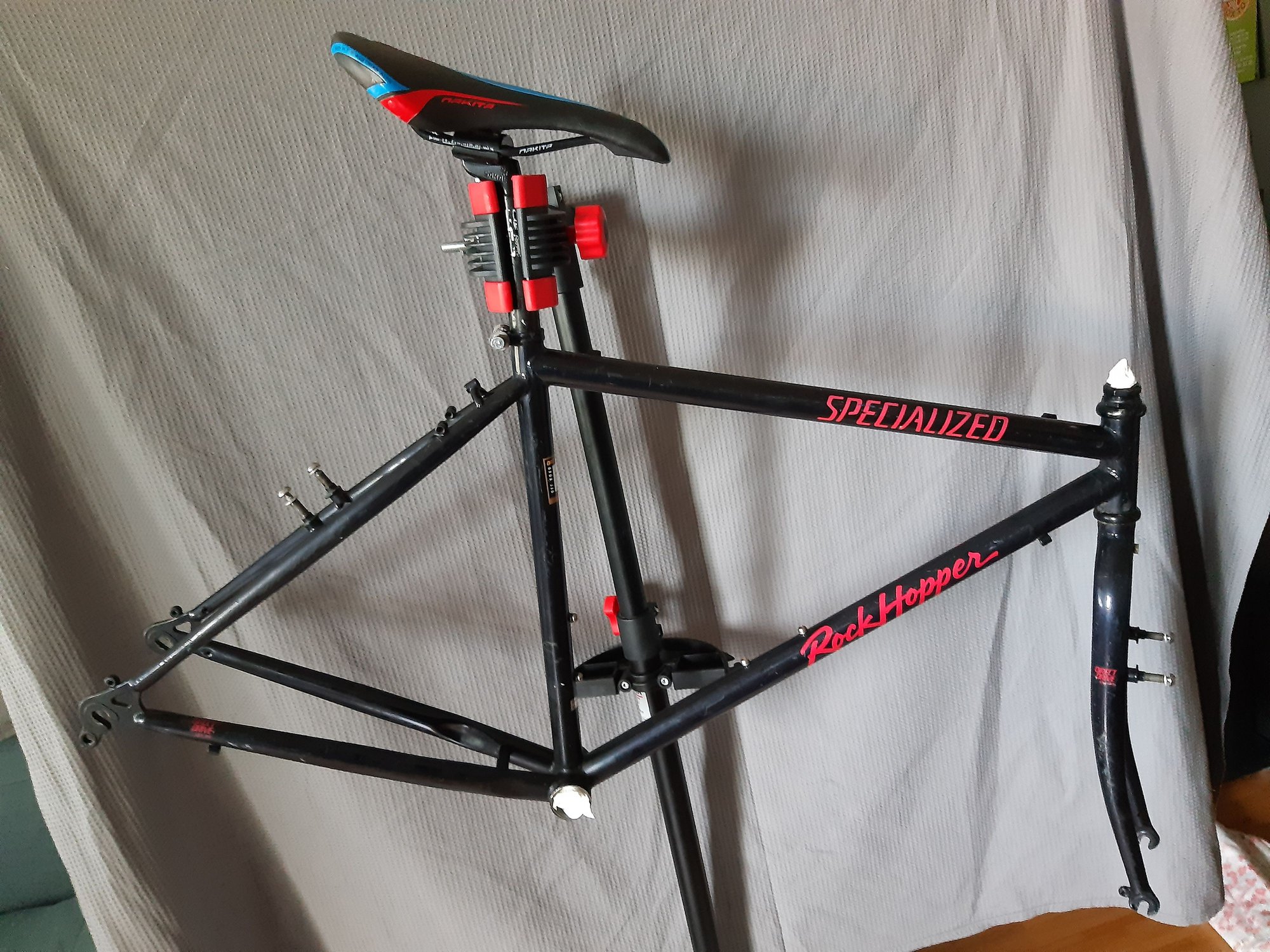

After polishing

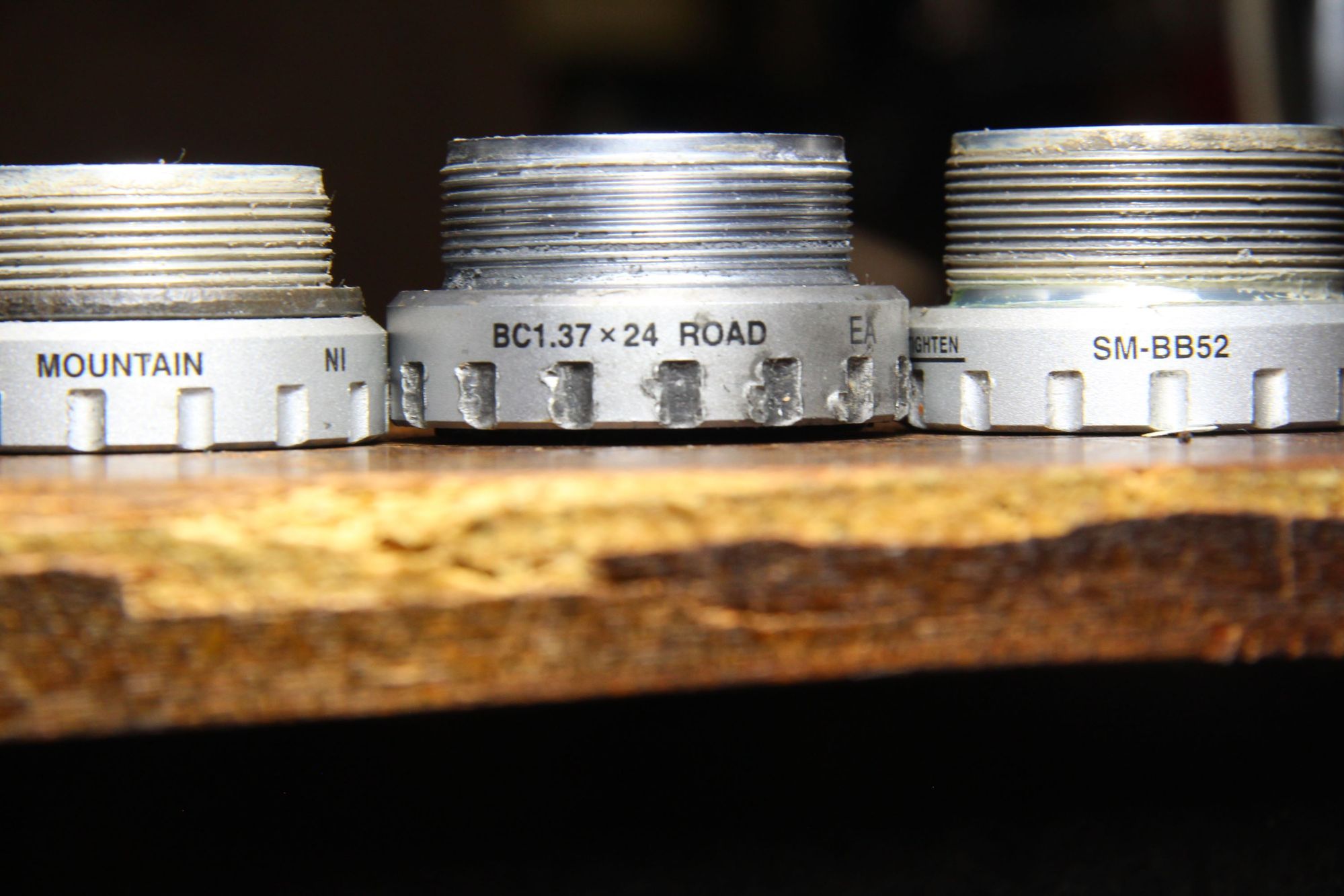

Quickly tried to put my Hollowtech BB in and thought I had the wrong one, since the width of the BB was 73 mm and I was sure It had to be 70 mm. Bike standards are weird!
Next up: Quill stem adapter & stem + BB and Crankset - And maybe a quick testfit of the drop bars (If they arrive anytime soon :/ )

Peace!
Positron400 is offline
Old 08-02-22, 10:47 AM
  #12
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by John E View Post
I can't tell what shift levers you have, but I am very partial to good old-fashioned friction or truly friction-compatible thumbies on mountain bikes.
Seems like you read my mind - I will be putting Microshift 11s Bar end shifters on - in friction mode (at least unitl i get an 11s casette/hub)
Positron400 is offline
Old 08-02-22, 01:47 PM
  #13
Robvolz
Junior Member

Join Date: Jul 2022
Posts: 151
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 104 Post(s)
Liked 70 Times in 31 Posts
I have the same bike in red. Bought at the Janzen Beach REI. They didn't carry specialized so I had it shipped in from their Atlanta Store.

Now when I ride it, people comment on vintage steel. I don't feel that old where a bike I bought brand new is considered vintage. But, it bothers me much less than overhearing some youths comment on the music they listen to.

"I like the oldies, you know....like the BEASTIE BOYS"

grrr.
Robvolz is online now
Likes For Robvolz:
Old 08-02-22, 03:02 PM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,513 Times in 2,171 Posts
Originally Posted by Positron400 View Post
Cool! Will definitely try this the next time I encounter a stubborn BB shell - Thanks!

Regarding the build progress - just now polished the frame up and it looks loads better now! No more dull frame but lovely and shiny! The dings and scratches are still there, since I didn't go the clay bar route but I dont mind them too much

Before polishing

After polishing Peace!
Looks good, love it when this happens.

I would bet that scuffing on the seatstay could be lessened by at least 50% with rubbing compound or medium cut cleaner and more elbow grease.

Anytime the paint is still there and mostly intact, there's often room for improvement, sometimes a lot and sometimes you have to really get after it with your thumb and scrub it good.

The results can be amazing as we see here.
merziac is offline
Old 08-02-22, 05:06 PM
  #15
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 3,032

Bikes: 1984 Araya MB 261, 1992 Specialized Rockhopper Sport, 1993 Hard Rock Ultra, 1994 Trek Multitrack 750, 1995 Trek Singletrack 930

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1200 Post(s)
Liked 962 Times in 618 Posts
Originally Posted by Positron400 View Post
Cool! Will definitely try this the next time I encounter a stubborn BB shell - Thanks!

Regarding the build progress - just now polished the frame up and it looks loads better now! No more dull frame but lovely and shiny! The dings and scratches are still there, since I didn't go the clay bar route but I dont mind them too much
Peace!
Dings and scratches are called patina; like wrinkles and scars, it shows the bike has lived a life.
Korina is offline
Old 08-03-22, 07:23 AM
  #16
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by merziac View Post
Looks good, love it when this happens.

I would bet that scuffing on the seatstay could be lessened by at least 50% with rubbing compound or medium cut cleaner and more elbow grease.
Had to look up what "rubbing compound" and "medium cut cleaners" are, since i am new to the whole "frame restoration" thingy (and it has a different name in my country), but i think i found something and will defo give it a try!
Thanks for the hint!
Positron400 is offline
Likes For Positron400:
Old 08-03-22, 01:26 PM
  #17
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Progress update

Ritchey Venture Max 460 mm Bars arrived, plus I installed the Hollowtech BB. Bars were fit to a quill stem adapter and a 100 mm PRO stem.
Not a fan of all those spacers, but couldnt get the adapter lower - Might need to switch it eventually for a shorter one.
Also the Maxxis tyres arrived today



Ritchey Bars & quill stem adapter. (and too many spacers :/ )

Hollowtech BB

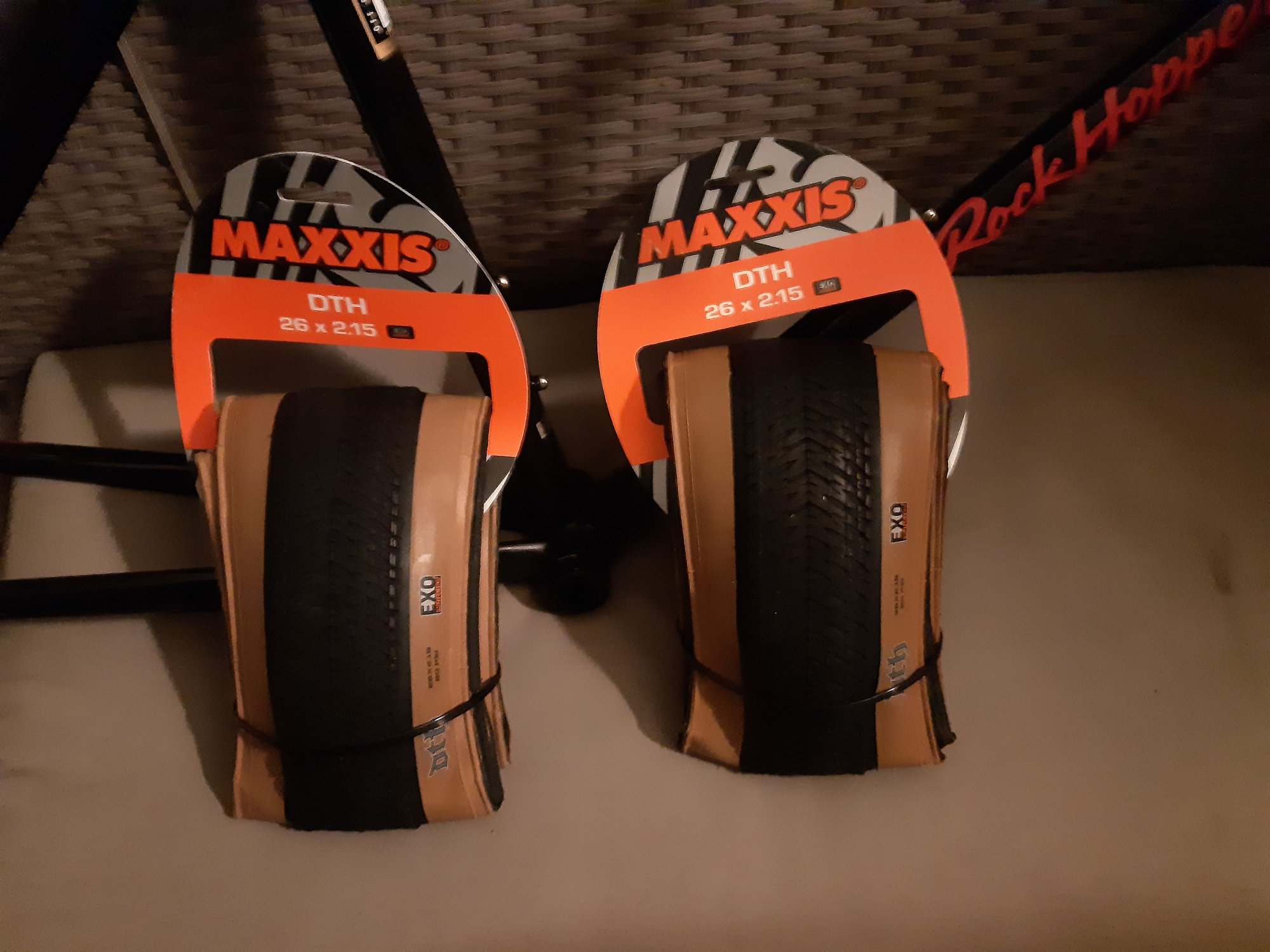

...and some Maxxis DTH 26x2.15 tyres! Should be fun!


Starting to look like a proper ride (almost )

Peace!
Positron400 is offline
Likes For Positron400:
Old 08-04-22, 01:14 PM
  #18
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Update

In todays editon of : "You wont believe the incompatibility issues you can run into when building a bike": Apparently my GRX crankset is incompatible with the BB I planned on using - So I guess I have to get a "proper" MTB crank to get the spindle length right
Positron400 is offline
Old 08-04-22, 04:11 PM
  #19
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,513 Times in 2,171 Posts
Originally Posted by Positron400 View Post
Had to look up what "rubbing compound" and "medium cut cleaners" are, since i am new to the whole "frame restoration" thingy (and it has a different name in my country), but i think i found something and will defo give it a try!
Thanks for the hint!
Well it can still be labor intensive but when you find the right stuff that clicks with your style of work, it can really be an "ah ha" moment and from then on you can get right to it for better faster results. Turtle wax chrome polish and rust remover can work wonders as well, may not be available where you are but should be online. Not for paint but great on chrome and can help with other metals as well, add scotchbrite for more aggressive metal cleaning, start off easy and lean in as it goes well.
merziac is offline
Old 08-04-22, 08:32 PM
  #20
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 796

Bikes: Gunnar, F Moser, Pete Tansley, Rocky Mountain, Diamant, Marin, Shogun, Avanti, Winora

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 216 Times in 116 Posts
Originally Posted by Positron400 View Post
Update

In todays editon of : "You wont believe the incompatibility issues you can run into when building a bike": Apparently my GRX crankset is incompatible with the BB I planned on using - So I guess I have to get a "proper" MTB crank to get the spindle length right
GRX is just hollowtech II right? If you have a 73mm shell you can run road cranks with a 73mm 'mtb' hollowtech bb like deore bb52.
The 73mm hollowtech bbs are 5mm narrower than the 68 road ones. The size ends up being the same if you don't use the included spacers.

It's all compatible as long as it's right for your chainline.
Soody is offline
Old 08-04-22, 08:52 PM
  #21
Rage
Space Ghost

Rage's Avatar

Join Date: Oct 2017
Location: NYC
Posts: 1,762

Bikes: Bridgestone, Fuji, Iro, Jamis, Gary Fisher, GT, Scott, Specialized and more

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 410 Times in 316 Posts
Originally Posted by Robvolz View Post
I have the same bike in red. Bought at the Janzen Beach REI. They didn't carry specialized so I had it shipped in from their Atlanta Store.

Now when I ride it, people comment on vintage steel. I don't feel that old where a bike I bought brand new is considered vintage. But, it bothers me much less than overhearing some youths comment on the music they listen to.

"I like the oldies, you know....like the BEASTIE BOYS"

grrr.
Oofah! I still remember riding my trusty old Rockhopper (which I still have) to J & R music world to buy Paulís Boutique waaay back in the day.
Hard to believe that MCA is gone and the remaining beasties are among the elder statesmen of hip hop now.
Rage is offline
Old 08-05-22, 12:45 AM
  #22
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by merziac View Post
Well it can still be labor intensive but when you find the right stuff that clicks with your style of work, it can really be an "ah ha" moment and from then on you can get right to it for better faster results. Turtle wax chrome polish and rust remover can work wonders as well, may not be available where you are but should be online. Not for paint but great on chrome and can help with other metals as well, add scotchbrite for more aggressive metal cleaning, start off easy and lean in as it goes well.
Yep, I went and ordered some Turtle Wax heavy duty rubbing compound, and the scuffing came right off (with some serious scrubbing and polishing)


Originally Posted by Soody View Post
GRX is just hollowtech II right? If you have a 73mm shell you can run road cranks with a 73mm 'mtb' hollowtech bb like deore bb52.
The 73mm hollowtech bbs are 5mm narrower than the 68 road ones. The size ends up being the same if you don't use the included spacers.

It's all compatible as long as it's right for your chainline.
Yea, I should have clarified - GRX is indeed hollowtech II, but uniformed me, was expecting the spindle to be "just right the right length", (because why not - it's just a crankset like all others ). I didnt take into account the 73 mm width of the bb shell, which is too wide for the GRX crankset to properly fit. I went and ordered a deore 36/26 which should work. I wasnt planning on going that low with gearing, but it should make climbing on "trails" easier. Now I just have to cross my fingers, that my GRX FD will work with the deore crankset (which I am afraid might not, but friction shifting might get around that hopefully..)

Lesson learned, I guess
Positron400 is offline
Old 08-05-22, 01:22 AM
  #23
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 796

Bikes: Gunnar, F Moser, Pete Tansley, Rocky Mountain, Diamant, Marin, Shogun, Avanti, Winora

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 216 Times in 116 Posts
Originally Posted by Positron400 View Post

I didnt take into account the 73 mm width of the bb shell, which is too wide for the GRX crankset to properly fit.

Lesson learned, I guess
No it's not. You just used the wrong bottom bracket. The bb shell is 5mm too wide and you can get hollowtech bbs that are 5mm narrower. The 73mm mtb ones. Like Deore.
Soody is offline
Old 08-05-22, 01:35 AM
  #24
Positron400
Junior Member
Thread Starter

Join Date: Jan 2022
Posts: 112
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Liked 44 Times in 26 Posts
Originally Posted by Soody View Post
No it's not. You just used the wrong bottom bracket. The bb shell is 5mm too wide and you can get hollowtech bbs that are 5mm narrower. The 73mm mtb ones. Like Deore.
colour me suprised - i thougt that was impossible. Could you maybe tell me what BB that would be?
Positron400 is offline
Old 08-05-22, 02:00 AM
  #25
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 796

Bikes: Gunnar, F Moser, Pete Tansley, Rocky Mountain, Diamant, Marin, Shogun, Avanti, Winora

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 216 Times in 116 Posts
Originally Posted by Positron400 View Post
Could you maybe tell me what BB that would be?
I already did man.
Look, i took a photo. Right and left are the same 73 mm 'mtb' bb, left has a 2.5 mm spacer on it. Middle is a road bb. Does this make it clear? They fit the same cranks. The mtb ones are 10 mm wide, the road ones are 12.5 mm wide. There are also bbs for italian shells, which are 11.5 mm wide because italian bb shells are 70mm. They all fit the same cranks.

Btw 'mtb' bbs will often say 68/73 because you can run those 2.5 mm spacers and use them in a 68 frame.

Soody is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
