Questions about Bar End Shifters

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Questions about Bar End Shifters

Old 08-02-22, 10:56 AM
  #1
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Questions about Bar End Shifters

I have a road bike with full Nuovo Record group, 7 speed with Sachs freewheel. Interested in moving from down tube shifters to bar end shifters. Since this is purely friction shifting, can I use vintage Suntour bar ends? And on the Suntour bar ends, must they be pure friction bar ends without ratcheting (clicking) or can I also use the kind that ratchets with clicking? Wasn't sure whether the ratcheting kind are only compatible with Suntour derailleurs. Trying to get up to speed on this. Never worked with bar ends before and, based on what I've read, I think I would prefer Suntour to Campy. Did Campy even make bar end shifters in the 6 or 7 speed era? Thanks for any information.
cpsqlrwn is offline
Old 08-02-22, 11:06 AM
  #2
Kabuki12
Senior Member

Join Date: Jan 2016
Posts: 2,681
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked 1,462 Times in 859 Posts
I have Campagnolo bar end shifters on one of my classics and they work fine , they should handle a 7 speed FW although I haven't tried. The SunTour Power Shifter type bar ends with the ratcheting sound work well . My daughter has them on her bike and I believe a six speed FW with no problem. I prefer down tube shifting myself but as I said I have the bar ends on one bike because it came that way . It always takes me a few shifts for my muscle memory to quit reaching down to shift when I ride that bike.
Kabuki12 is offline
Likes For Kabuki12:
Old 08-02-22, 11:06 AM
  #3
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 3,410

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1009 Post(s)
Liked 335 Times in 238 Posts
The older style SunTour BarCons are friction only with micro clicks. I never had a set but anybody I knew that had them loved them. The “Accushift” generation ones have settings for indexing SunTour Accushift 6 or 7 speed compatible freewheels or cassettes. AFAIK this function can be defeated and the knob turned for friction only. I have a set of these I got from an eBay seller on the island of Cyprus - I had hope of setting up an indexed SunTour touring bike but never got around to it yet.
masi61 is offline
Old 08-02-22, 11:11 AM
  #4
GrayJay
Senior Member

GrayJay's Avatar

Join Date: Sep 2009
Location: EagleRiver AK
Posts: 1,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 29 Times in 17 Posts
Suntour bar-ends will work fine with vintage campy. The suntour micro-ratchet bar ends are a great design, the ratchets help counter-act the cable/spring tension of the rear derailleur so less friction is needed at the shifter to hold the RD in gear, makes for a lighter touch to the shifting and with consistent amount of tension to move the shifter up/down through the full range.
Campy did make vintage bar-end shifters in the pre-index shift era , similar primitive friction mechanism as their downtube shifters that never worked as well as other improved designs.
GrayJay is offline
Likes For GrayJay:
Old 08-02-22, 12:00 PM
  #5
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,249

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1603 Post(s)
Liked 2,178 Times in 1,073 Posts
Suntour barcons will work with pretty much anything up to and including 10 speed stuff. I use them everywhere. Having said that I have never used them with sram.
52telecaster is offline
Likes For 52telecaster:
Old 08-02-22, 12:20 PM
  #6
seypat
Senior Member

Join Date: Oct 2010
Posts: 7,885
Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 2743 Post(s)
Liked 1,909 Times in 1,194 Posts
Since you might be asking in the future, the Shimano L600 Fingertips will go at least 8. I can't remember if I've tried them with a 9 speed setup.
seypat is offline
Likes For seypat:
Old 08-02-22, 01:50 PM
  #7
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 4,076
Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Likes: 0
Liked 593 Times in 391 Posts
FYI,
Simplex also made a lot of bar end shifters. They even had a model that had retrofriction function....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
Old 08-02-22, 10:45 PM
  #8
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,604
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 874 Post(s)
Liked 458 Times in 278 Posts
Suntour Barcons are great. I like to set them as light as possible without ghost-shifting. The small locknuts that hold the lever tension are prone to wandering off, so it’s advisable to use blue Loctite on them.
due ruote is offline
Likes For due ruote:
Old 08-02-22, 11:05 PM
  #9
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,258
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 2120 Post(s)
Liked 1,266 Times in 911 Posts
Don't worry about compatibility with the ratcheting action of Suntour Power shifters. Not only should the chain, cogs and derailleur have enough tolerance to handle it, the ratcheting only works in the "pull" direction. So if you hit a click stop that's a little off, you can always push the shifter to make a micro-adjustment. It's a little hard to explain in words, but once you've used them, in both directions, the idea will.... er.... click.
madpogue is offline
Likes For madpogue:
Old 08-03-22, 06:53 AM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,041

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1404 Post(s)
Liked 1,682 Times in 859 Posts
@cpsqlrwn - These are what you want.
P1000625 on Flickr
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 08-03-22, 07:10 AM
  #11
cpsqlrwn
OldSchool
Thread Starter

Join Date: Jul 2007
Location: Chesapeake, VA
Posts: 1,214
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Liked 25 Times in 17 Posts
Thank you to all who replied for all the beneficial information and pictures. Very helpful. Thanks again.
cpsqlrwn is offline
Old 08-03-22, 02:18 PM
  #12
Einzelherz
Newbie

Join Date: Jul 2022
Posts: 10
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Liked 4 Times in 3 Posts
Originally Posted by due ruote View Post
Suntour Barcons are great. I like to set them as light as possible without ghost-shifting. The small locknuts that hold the lever tension are prone to wandering off, so it’s advisable to use blue Loctite on them.
Should I assume their adjustment is just the torque applied to the pivot nut on the shift lever? Mine are a nice comfortable stiffness (for confidence reasons) but I wouldn't might lightening them a touch.
Einzelherz is offline
Likes For Einzelherz:
Old 08-04-22, 05:25 AM
  #13
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,206
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 822 Post(s)
Likes: 0
Liked 885 Times in 546 Posts
Originally Posted by Einzelherz View Post
Should I assume their adjustment is just the torque applied to the pivot nut on the shift lever? Mine are a nice comfortable stiffness (for confidence reasons) but I wouldn't might lightening them a touch.
They are a locknut; there is another nut inboard of the slotted domed bit.

They fall out when someone tightens the screw on the the other side (to increase the friction) and fails to re-tighten the locknut.
oneclick is offline
Likes For oneclick:
Old 08-04-22, 12:07 PM
  #14
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,265

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1241 Post(s)
Liked 892 Times in 604 Posts
First, note that some of the newer SunTour barcons do not have a true friction mode. This was a huge disappointment for me. My best shot is to reverse them, putting the "rear" shifter in its pseudo-friction mode and using it for the front derailleur.
I am a huge fan of the first-generation SunTour barcons.
I have been missing the external locknut on my Peugeot -- no problem whatsoever.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 08-04-22, 12:44 PM
  #15
Steel Charlie
Full Member

Steel Charlie's Avatar

Join Date: Apr 2009
Posts: 443
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Liked 177 Times in 101 Posts
Keep your down tube shifters in a safe place cos you might want to go back to them real soon. I've tried a variety of bar ends on a variety of bikes for a variety of purposes. I have never found a place that I kept them for more than a very short time. No more for me, thanks.
So plan ahead JIC you get the "that sux" feeling too
Steel Charlie is offline
Old 08-04-22, 06:36 PM
  #16
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,282

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,281 Times in 733 Posts
Originally Posted by John E View Post
First, note that some of the newer SunTour barcons do not have a true friction mode. This was a huge disappointment for me. My best shot is to reverse them, putting the "rear" shifter in its pseudo-friction mode and using it for the front derailleur.
I am a huge fan of the first-generation SunTour barcons.
That should be stressed- if they're black meta/plastic/resin sort of things- those are Suntour's indexing shifters.


__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-04-22, 06:45 PM
  #17
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,282

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,281 Times in 733 Posts
Originally Posted by cpsqlrwn View Post
And on the Suntour bar ends, must they be pure friction bar ends without ratcheting (clicking) or can I also use the kind that ratchets with clicking? Wasn't sure whether the ratcheting kind are only compatible with Suntour derailleurs. Trying to get up to speed on this.
For everything I've seen, "ratcheting" is different than indexing "clicks." Each indexing click is a move to a specific gear, while ratcheting is a gear that clicks when the lever moves a certain amount.

A lot of older shifters (specifically Suntour) had indexed shifting for the rear and ratcheting shifting for the front. Notice the Barcons I posted above- one says "Accushift," the other says "Power Shifter." Suntour called their ratcheting action "Power Shifters."
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-04-22, 06:47 PM
  #18
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,282

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,281 Times in 733 Posts
Originally Posted by masi61 View Post

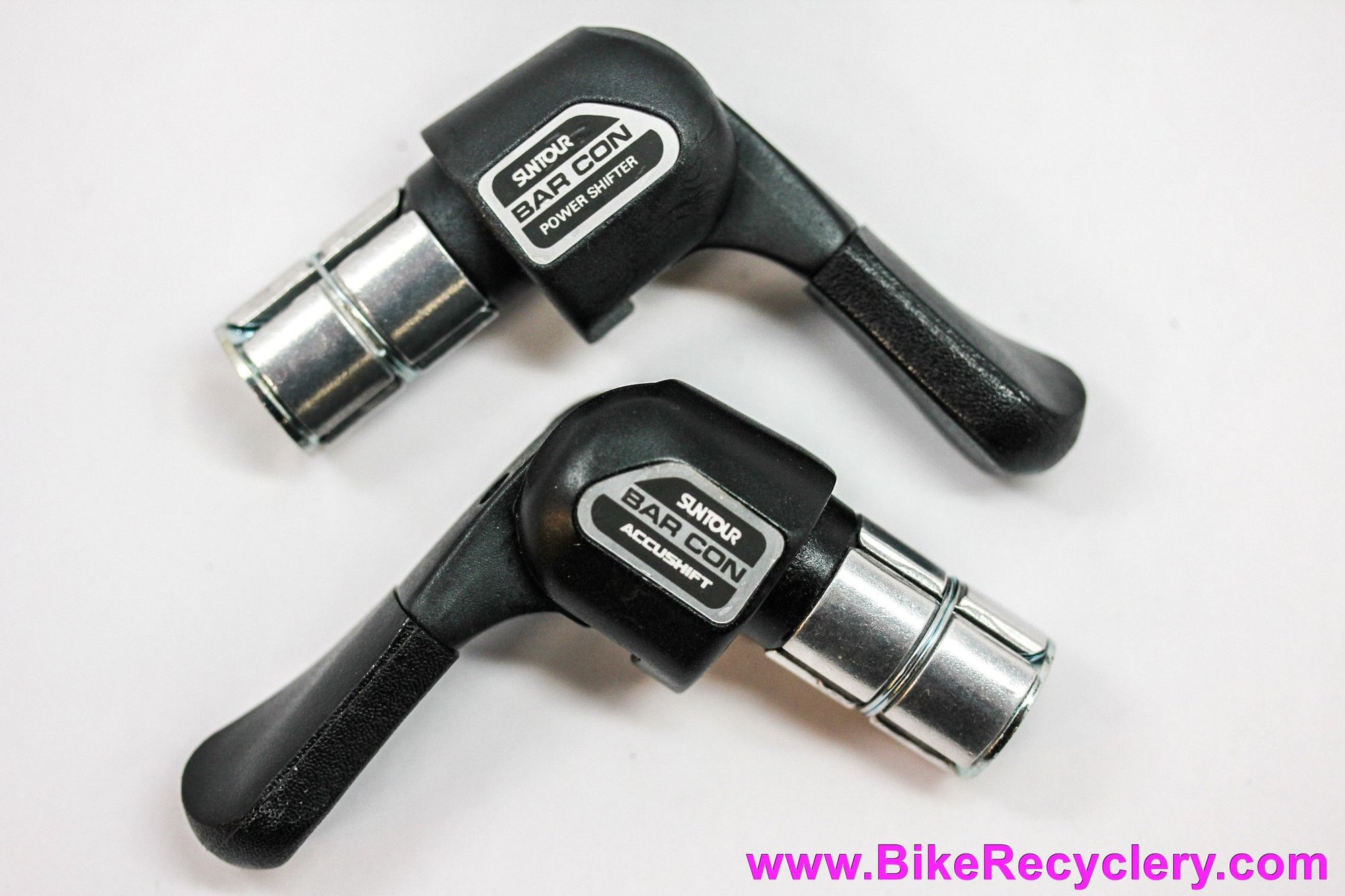

The “Accushift” generation ones have settings for indexing SunTour Accushift 6 or 7 speed compatible freewheels or cassettes. AFAIK this function can be defeated and the knob turned for friction only.
Shimano had a patent on that type of indexing/friction switch- Suntour kept the switch, but had a "Light Indexing" setting- it just didn't click quite as robustly.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
