I take it this is not English Thread

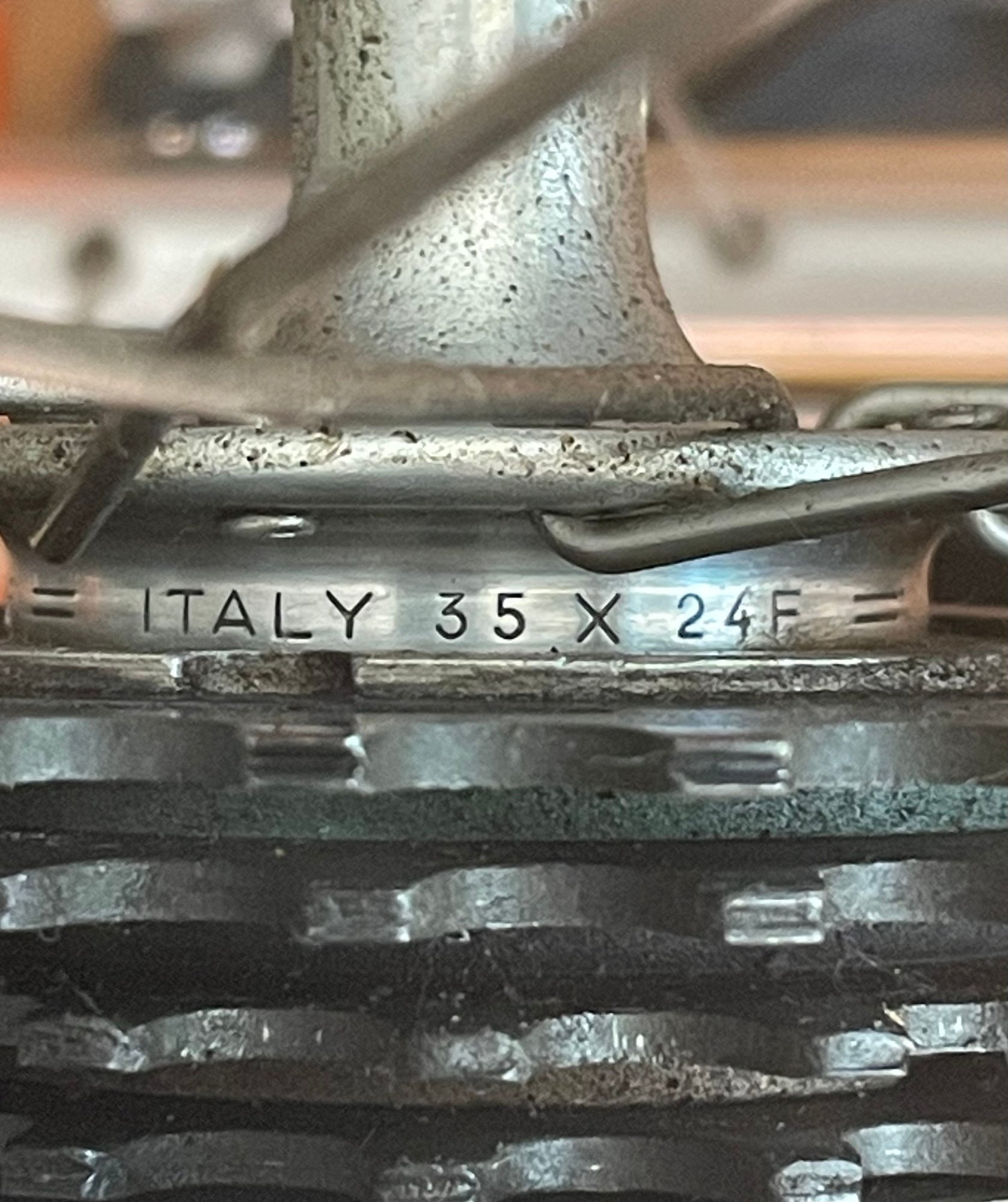

I got a phone call from a friend who works at a community cycle center. They got a box of random parts including a campy six speed gear set. (I thought they were called cassettes but someone corrected me)

anyway, the box said “English Thread”

it never occurred to me that Italian parts could also be threaded for other countries. I am also under the assumption that if my record hubs were English threaded. They would say England instead of Italy. Amiright?
Robvolz is offline
Old 08-07-22, 10:14 AM
  #2
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 866

Bikes: You had me at rusty and Italian!!

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 515 Times in 291 Posts
Italy is the country of origin. The 35x24 is the size/thread.
RustyJames is offline
Old 08-07-22, 10:23 AM
  #3
zandoval
Senior Member

zandoval's Avatar

Join Date: May 2010
Location: Bastrop Texas
Posts: 3,348

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 531 Post(s)
Liked 804 Times in 526 Posts
Salvaged from the Parts Bin... Well ya never know, sometimes even when its marked. Or French... Ha
__________________
No matter where your at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Old 08-07-22, 10:36 AM
  #4
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,703

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 685 Post(s)
Liked 631 Times in 395 Posts
Originally Posted by Robvolz View Post
I got a phone call from a friend who works at a community cycle center. They got a box of random parts including a campy six speed gear set. (I thought they were called cassettes but someone corrected me)

anyway, the box said “English Thread”

it never occurred to me that Italian parts could also be threaded for other countries. I am also under the assumption that if my record hubs were English threaded. They would say England instead of Italy. Amiright?
"English" would be 34.8 x 24 which is very close to "Italian" 35 x 24.

I've never tried to thread English to Italian or the other way around but I have read of others doing so
branko_76 is offline
Old 08-07-22, 12:03 PM
  #5
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,892

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 270 Times in 191 Posts
Close works in horseshoes and hand grenades.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Likes For dweenk:
Old 08-07-22, 12:14 PM
  #6
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,775

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3572 Post(s)
Liked 2,383 Times in 1,558 Posts
Originally Posted by Robvolz View Post
I am also under the assumption that if my record hubs were English threaded. They would say England instead of Italy. Amiright?
That assumes logic in the bike world. Not a safe assumption. Bike standards were all over the place until the '70s and '80s when the Japanese took the best of that was out there (with minor changes) and made that their standard. With their enormous market share (and insistence from mechanics that their shop carry those so-easy-to-deal-with brands, that standard became near universal for a few years. Now systems have changed and are changing and the standards mess is not a whole lot better than 50 years ago, just different.
79pmooney is offline
Old 08-07-22, 12:17 PM
  #7
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 10,775

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 3572 Post(s)
Liked 2,383 Times in 1,558 Posts
And joking - this is an English thread! Every word of it. In fact, other countries are referenced by their English spellings. (I'm going for a ride. I clearly need it.)
79pmooney is offline
Likes For 79pmooney:
Old 08-07-22, 01:00 PM
  #8
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,125
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2066 Post(s)
Liked 1,182 Times in 862 Posts
So is "Jtaly" an English or Italian spelling?
madpogue is online now
Likes For madpogue:
Old 08-07-22, 01:12 PM
  #9
branko_76
Senior Member

branko_76's Avatar

Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,703

Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 685 Post(s)
Liked 631 Times in 395 Posts
Originally Posted by dweenk View Post
Close works in horseshoes and hand grenades.
which one should I send your way?
branko_76 is offline
Likes For branko_76:
Old 08-07-22, 01:39 PM
  #10
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,986

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 799 Post(s)
Liked 497 Times in 308 Posts
Such Knowledge on this Forum!

Originally Posted by RustyJames View Post
Italy is the country of origin. The 35x24 is the size/thread.
So I take it this hub originated in the UK? (Probably from Campagnolo's Factory outside London, in County Bullshire?)




Last edited by machinist42; 08-07-22 at 01:44 PM.
machinist42 is online now
Old 08-07-22, 02:28 PM
  #11
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,892

Bikes: Lots of English 3-speeds, a couple of old road bikes, 3 mountain bikes, 1 hybrid, and a couple of mash-ups

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 863 Post(s)
Liked 270 Times in 191 Posts
Originally Posted by branko_76 View Post
which one should I send your way?
Horseshoe please.
__________________
I hope...that all mankind will at length…have reason and sense enough to settle their differences without cutting throats. Ben Franklin
dweenk is offline
Likes For dweenk:
Old 08-07-22, 03:18 PM
  #12
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,395
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 671 Times in 408 Posts
Yes , Italian thread: 35mm diameter x 24TPI
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 08-08-22, 12:52 AM
  #13
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,125
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2066 Post(s)
Liked 1,182 Times in 862 Posts
Originally Posted by machinist42 View Post
(Probably from Campagnolo's Factory outside London, in County Bullshire?)
Actually, I believe it's in Horsefeathershire?
madpogue is online now
Old 08-08-22, 07:31 AM
  #14
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 866

Bikes: You had me at rusty and Italian!!

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 515 Times in 291 Posts
Originally Posted by machinist42 View Post
So I take it this hub originated in the UK? (Probably from Campagnolo's Factory outside London, in County Bullshire?)



Definitely from county Bullshire. They make horseshoes and hand grenades in a factory down the road from the Campy factory.

Some day someone will explain to me the mish-mash of metric/fractional on bikes and how that came to be. 9/16” spindles thread into 170mm arms that ride on 1/4” bearings in a 68mm wide bottom bracket. Pick a unit of measurements and go with it!!
RustyJames is offline
Likes For RustyJames:
Old 08-08-22, 08:09 AM
  #15
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,125
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2066 Post(s)
Liked 1,182 Times in 862 Posts
Originally Posted by RustyJames View Post
9/16” spindles thread into 170mm arms that ride on 1/4” bearings in a 68mm wide bottom bracket.
...and turn chainrings with a 110mm BCD that drive a chain with links spaced 1/2" on center....
madpogue is online now
Old 08-08-22, 08:26 AM
  #16
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 866

Bikes: You had me at rusty and Italian!!

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 336 Post(s)
Liked 515 Times in 291 Posts
Originally Posted by madpogue View Post
...and turn chainrings with a 110mm BCD that drive a chain with links spaced 1/2" on center....
“I need tires for my 26” wheels.”

”Which 26” wheel?”

😵‍💫
RustyJames is offline
Old 08-08-22, 12:03 PM
  #17
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 2,117

Bikes: frankenbike based on MKM frame

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 458 Times in 285 Posts
Per Sheldon: 'The older British and Italian standards use the same thread pitch but a very slightly different thread diameter, and are generally interchangeable. However, for strong riders and on tandems, it is best not to mix and match -- freewheels sometimes do strip the threads of aluminium hubs.'

I've used ISO freewheels on Italian-threaded hubs for a few years now without problems. I read somewhere (I don't remember where) that it's a bad idea to go back to an Italian-threaded freewheel, but since it's 2022 and I live in the US, I'm unlikely to want to that.
philbob57 is online now
Old 08-08-22, 12:27 PM
  #18
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,028
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1027 Post(s)
Liked 578 Times in 451 Posts
Originally Posted by madpogue View Post
Actually, I believe it's in Horsefeathershire?
where, by law and Church, they use nought but Whitworth measurements.

unworthy1 is offline
Old 08-08-22, 12:41 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,125
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2066 Post(s)
Liked 1,182 Times in 862 Posts
Originally Posted by unworthy1 View Post
where, by law and Church, they use nought but Whitworth measurements.
And by pub? (Meself'll have a Whitworth pin' o' Stout....)
madpogue is online now
Old 08-08-22, 01:02 PM
  #20
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,808
Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2539 Post(s)
Liked 1,479 Times in 1,110 Posts
Originally Posted by RustyJames View Post
Italy is the country of origin. The 35x24 is the size/thread.
yes, but in this case the size stamping shown in the original post is for the thread type of the hub. Italian thread by an Italian company.
as opposed to English thread.
this hub was post CPSC by co-incidence.
prior one needed a Campagnolo decoder ring.
no groove - italian
one groove english
two grooves- French. ( most of the time unless it was plain)

Campagnolo dropped French hub threading as soon as practical.

the differences between Italian and English are primarily the inclusive angle of the individual thread, one at 60 degrees, the other at 55.
and I don't recall which is which, that is what Sutherland's is for.
repechage is offline
Old 08-08-22, 05:01 PM
  #21
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 8,339

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2400 Post(s)
Liked 1,597 Times in 1,110 Posts
Originally Posted by RustyJames View Post
Some day someone will explain to me the mish-mash of metric/fractional on bikes and how that came to be. 9/16” spindles thread into 170mm arms that ride on 1/4” bearings in a 68mm wide bottom bracket. Pick a unit of measurements and go with it!!
Furlongs per fortnight would only serve to further confuse you.
