Hubbub on the Campy high vs normal flange hubs

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Hubbub on the Campy high vs normal flange hubs

Old 09-13-22, 11:53 PM
  #1
Robvolz
Full Member
Thread Starter

Join Date: Jul 2022
Posts: 401
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Liked 240 Times in 106 Posts
Hubbub on the Campy high vs normal flange hubs

Why offer both? When was one advantageous to the other. I have seen identical 1974 colnago supers, never restored with either hubs.

what is the hubbub with these hubs, bub?
Robvolz is offline
Old 09-14-22, 12:25 AM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 11,345

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 224 Post(s)
Tagged: 0 Thread(s)
Quoted: 3545 Post(s)
Liked 3,801 Times in 2,322 Posts
Different strength and stiffness rationales, some era driven, some shiny new things, choices and options. You can sell more if you have more types.

Jobst Brandt drills down in his book The Bicycle Wheel.
merziac is offline
Likes For merziac:
Old 09-14-22, 02:53 AM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 28,888

Bikes: Too many to list here check my signature.

Mentioned: 166 Post(s)
Tagged: 2 Thread(s)
Quoted: 2568 Post(s)
Liked 1,828 Times in 1,051 Posts
__________________
One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 09-14-22, 07:29 AM
  #4
smd4
Senior Member

Join Date: Dec 2020
Location: Wake Forest, NC
Posts: 2,079

Bikes: 1989 Cinelli Supercorsa

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1218 Post(s)
Liked 893 Times in 587 Posts
For a long time Campy introduced new groups/parts, but continued to sell the old ones.
smd4 is online now
Old 09-14-22, 10:38 AM
  #5
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,924

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1362 Post(s)
Liked 1,519 Times in 809 Posts
BITD it was stated that high flange hubs contributed to a stiffer wheel. Today we know better.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Likes For SJX426:
Old 09-14-22, 11:03 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,002
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2622 Post(s)
Liked 1,629 Times in 1,203 Posts
Fashion.

Eddy used low flange, follow the Champion.

Last two bikes I built up have high flange hubs. Dare to be different.
repechage is offline
Likes For repechage:
Old 09-14-22, 11:04 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,002
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2622 Post(s)
Liked 1,629 Times in 1,203 Posts
Originally Posted by smd4 View Post
For a long time Campy introduced new groups/parts, but continued to sell the old ones.
They did make high flange Corsa Record hubs. Very coolio.
repechage is offline
Old 09-14-22, 11:48 AM
  #8
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,636
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1415 Post(s)
Liked 2,095 Times in 1,026 Posts
as noted... "fashion".
I'm assuming that someone had the idea that big flanges offered some advantage... possibly that the larger flange would result in less additional tension in the spokes in the rear wheel when the rider was really applying a lot of torque to the pedals. That might be reasonable for a track hub, where some riders really put out serious peak power. Not likely to matter for most road riding.

My reason for high flange: more shiny aluminum to glitter in the sunlight.



Steve in Peoria
steelbikeguy is offline
Old 09-14-22, 12:17 PM
  #9
Pcampeau
Senior Member

Join Date: Aug 2017
Location: Minneapolis
Posts: 740

Bikes: 1968 Raleigh Super Course. 1972 Raleigh Professional, 1975 Raleigh International, 1978 Raleigh Professional, 1985 Raleigh Prestige, 1972 Schwinn Paramount, 1980 Schwinn Voyageur 11.8, 1978 Schwinn Varsity, 1976 Peugeot PX10, 1972 Motobecane Le Champ

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 250 Post(s)
Liked 421 Times in 242 Posts
I like the look of Campagnolo Record high flange better but they always seem to be laced only to tubular rims. I’ve found several sets of low flange hubs laced to clinchers and I find that more convenient. I should just rebuild one of my sets high flange to clinchers but I never seem to get around to it. I just switch out to a regular riding set of low flange and save my high flange tubular wheels for weekend short rides. As a result, my Chrome Paramount often sports these gray rims instead of the better matching silver, oh well.
Pcampeau is offline
Old 09-14-22, 03:06 PM
  #10
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 7,200
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 715 Post(s)
Liked 557 Times in 284 Posts
The racers edge was large flange front wheel... Small flange rear wheel. Guaranteed to get you on the podium.
big chainring is offline
Old 09-14-22, 05:18 PM
  #11
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 11,371

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, 196? Torpado Professional, 2000 Marinoni Piuma

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1281 Post(s)
Likes: 0
Liked 1,425 Times in 800 Posts
For me, it is an aesthetics issue - I much prefer the Campy high flange hub...

__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Likes For randyjawa:
Old 09-14-22, 05:52 PM
  #12
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 2,058
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 895 Post(s)
Liked 1,361 Times in 692 Posts
Why not both?

P!N20 is offline
Old 09-14-22, 06:09 PM
  #13
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Location: PAZ
Posts: 11,922
Mentioned: 249 Post(s)
Tagged: 0 Thread(s)
Quoted: 2354 Post(s)
Liked 3,937 Times in 1,391 Posts
Originally Posted by P!N20 View Post

Why not both?

They are nice - here's mine on the Mexico, during the last ride it was fully functional:

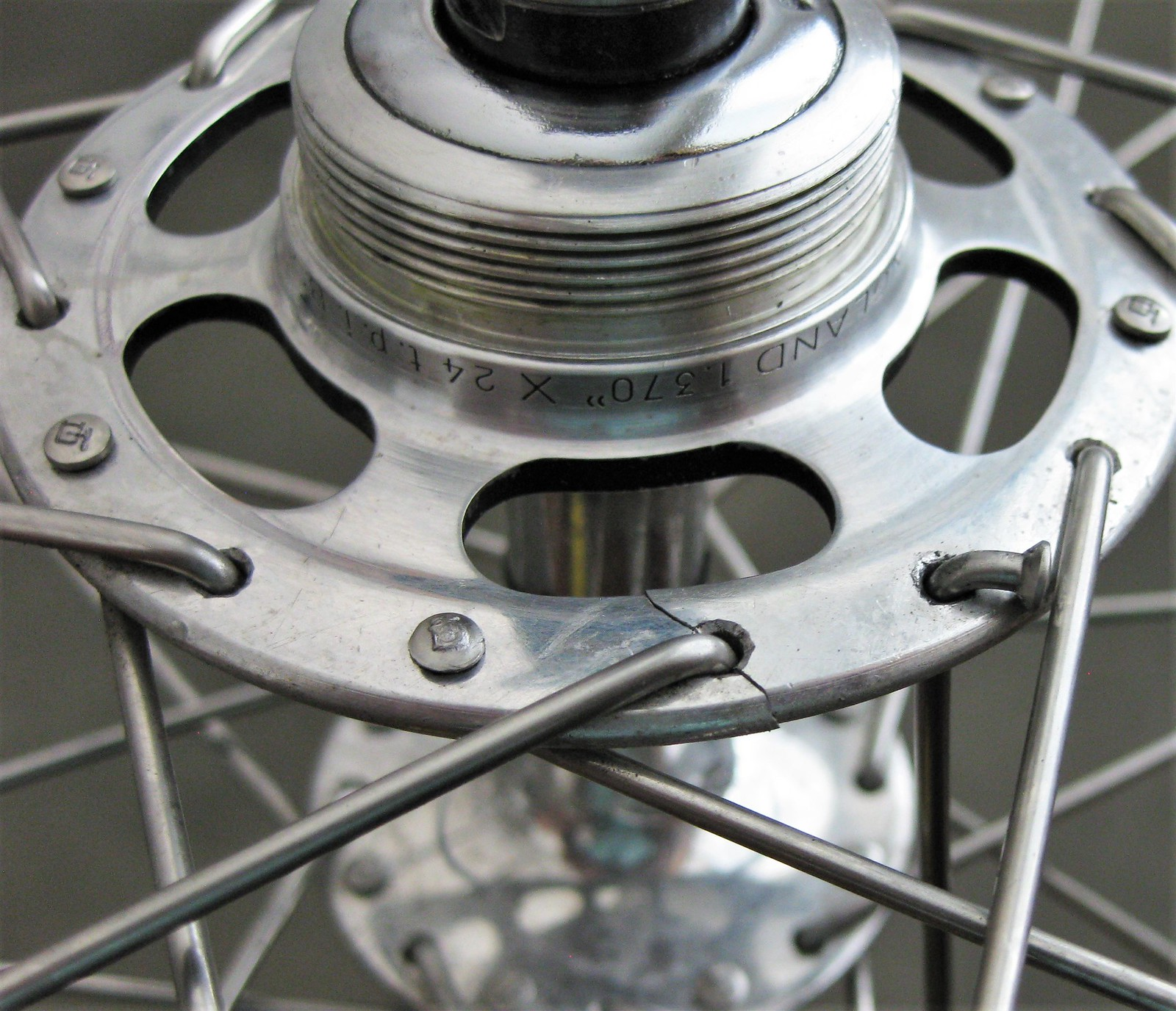

Then this happened during the first couple/three miles of a ride in the very next day:



DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 09-14-22, 06:16 PM
  #14
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,899
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 1471 Post(s)
Liked 939 Times in 493 Posts
I have a high flange record hub with a busted out flange. They looked very sweet for about 30 years, but now no more. The hub set sits in a box robbed of parts now.
TiHabanero is offline
Likes For TiHabanero:
Old 09-14-22, 06:21 PM
  #15
roadcrankr
Junior Member

roadcrankr's Avatar

Join Date: Mar 2004
Location: Glendora, CA
Posts: 168

Bikes: Merlin Extralight '94 & Cannondale Supersix '15

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 131 Times in 77 Posts
The production accountant in me will tell everybody the small flange costs less to manufacture.
Seems Campy ceased making their high flange in the late-seventies. More profit, bubs.
I adore the high flange version, even when people buff them to a glorious shine.
A pinnacle of beauty, along with many of their Nuovo Record components.
roadcrankr is offline
Likes For roadcrankr:
Old 09-14-22, 07:28 PM
  #16
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,636
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1415 Post(s)
Liked 2,095 Times in 1,026 Posts
Originally Posted by Drillium Dude View Post
They are nice - here's mine on the Mexico, during the last ride it was fully functional:



Then this happened during the first couple/three miles of a ride in the very next day:



DD
aw man.

The first photo was all full of sexy bike bits and full of promise... and then.... tragedy!

I thought I should "like" the post, but then I reconsidered, wondering if that would be interpreted as approving of the tragedy.
My sincere condolences!

Steve in Peoria
steelbikeguy is offline
Old 09-14-22, 07:35 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,002
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2622 Post(s)
Liked 1,629 Times in 1,203 Posts
Originally Posted by Drillium Dude View Post
They are nice - here's mine on the Mexico, during the last ride it was fully functional:



Then this happened during the first couple/three miles of a ride in the very next day:



DD
just too strong you are.
repechage is offline
Likes For repechage:
Old 09-14-22, 08:56 PM
  #18
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Location: PAZ
Posts: 11,922
Mentioned: 249 Post(s)
Tagged: 0 Thread(s)
Quoted: 2354 Post(s)
Liked 3,937 Times in 1,391 Posts
Originally Posted by steelbikeguy View Post

aw man.

The first photo was all full of sexy bike bits and full of promise... and then.... tragedy!

I thought I should "like" the post, but then I reconsidered, wondering if that would be interpreted as approving of the tragedy.
My sincere condolences!

Steve in Peoria
Thanks!

It took some time, but I did get over it - sooner than I thought, too. Removed the axle and other fiddly-bits, then passed the borked shell to a pal o' mine who will be storing a zero bike for me soon

Bob Freeman built up a new rear wheel using a 32h low flange Campy hub, new spokes, and the original rim. So far, haven't been on it since the hub failed, but that will hopefully change soon once I bring my stuff down here to AZ.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 09-15-22, 03:08 AM
  #19
JackJohn
WingsToWheels

JackJohn's Avatar

Join Date: Jul 2020
Location: France
Posts: 181

Bikes: Italian, French, British

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Liked 52 Times in 33 Posts
Originally Posted by Robvolz View Post
Why offer both? When was one advantageous to the other. I have seen identical 1974 colnago supers, never restored with either hubs.

what is the hubbub with these hubs, bub?
One of those questions I never happened to research further until recently, glad you asked here, plenty of good advices have been posted.
My two Campy Record hubs received within a groupset are low flange, BUT have different spoke numbers: 32 front, 36 rear. The book mentioned by merziac states that “small-flange front hubs cannot be spoked tangentially with more than 32 spokes without spoke overlap. Flanges of rear hubs must be larger […] For convenience, hubs with the same size flanges, front and rear, have been made to use the same length spokes”, so I’m still wondering wether in my case it was a deliberate choice by the previous owner or just the standard BITD setup. In any case, it’s hard to find just one pair of rims that accommodates both…

JackJohn is offline
Old 09-15-22, 07:27 AM
  #20
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,113
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 785 Post(s)
Likes: 0
Liked 838 Times in 514 Posts
Hi-flange hubs do give a slightly larger bracing angle - tenth of a degree or so.
oneclick is offline
Old 09-15-22, 08:35 AM
  #21
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 23,923

Bikes: Several, mostly not name brands.

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 3118 Post(s)
Liked 2,339 Times in 1,385 Posts
Originally Posted by roadcrankr View Post
The production accountant in me will tell everybody the small flange costs less to manufacture.
Seems Campy ceased making their high flange in the late-seventies.
FWIW, Campagnolo offered high flange hubs as an option with their Triomphe, Victory, and C-Record groups in the mid to late 80s.
JohnDThompson is offline
Likes For JohnDThompson:
Old 09-15-22, 11:08 AM
  #22
esasjl
Newbie

Join Date: Jan 2021
Posts: 59

Bikes: '84 Chas Roberts, '91 Peugeot Galibier, '90 Gitane Leader, '51 Dayton Elite, '90 Verago ATB, '08 Dawes Sardar

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 100 Times in 27 Posts
High/large flange hubs have been around a while, not sure when from though, e.g.,
https://www.classiclightweights.co.u...h-hub-company/
Personally I like high flange on 27"/700c and low flange on 26".
esasjl is offline
Old 09-15-22, 11:38 AM
  #23
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 2,652

Bikes: 71 Stella,72 Mondia Special,72 ItalVega Grand Rallye, 73 Windsor Pro,75 Colnago Super,76 Kabuki DF,77 Raleigh Comp.GS,78 Raleigh Pro,80 Moto Gran Sprint,82 Medici Pro Strada

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 629 Post(s)
Liked 1,436 Times in 844 Posts

On my Colnago Super, just luv the look and I ain't strong enough to break them like Jeff!
For me , it's the look and I don't know about strength or rigidity

Of course you could always find a nice set of early Phil hubs , these things roll nicely!
Kabuki12 is offline
Likes For Kabuki12:
Old 09-15-22, 11:48 AM
  #24
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,388

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 313 Post(s)
Liked 184 Times in 120 Posts
JohnJohn-

Differing spoke counts were not unheard of. On racers, 32F and 36R due to rear weight bias. For touring bikes, 40R and 36F because, in period, tourists typically used rear panniers which heavily biased weight to the rear. Time trial bikes often used 28F and 28R to minimize weight along with really light weight tubular rims and tires.
bertinjim is offline
Likes For bertinjim:
Old 09-15-22, 12:51 PM
  #25
El Chaba
Full Member

Join Date: Dec 2016
Posts: 411
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 215 Times in 77 Posts

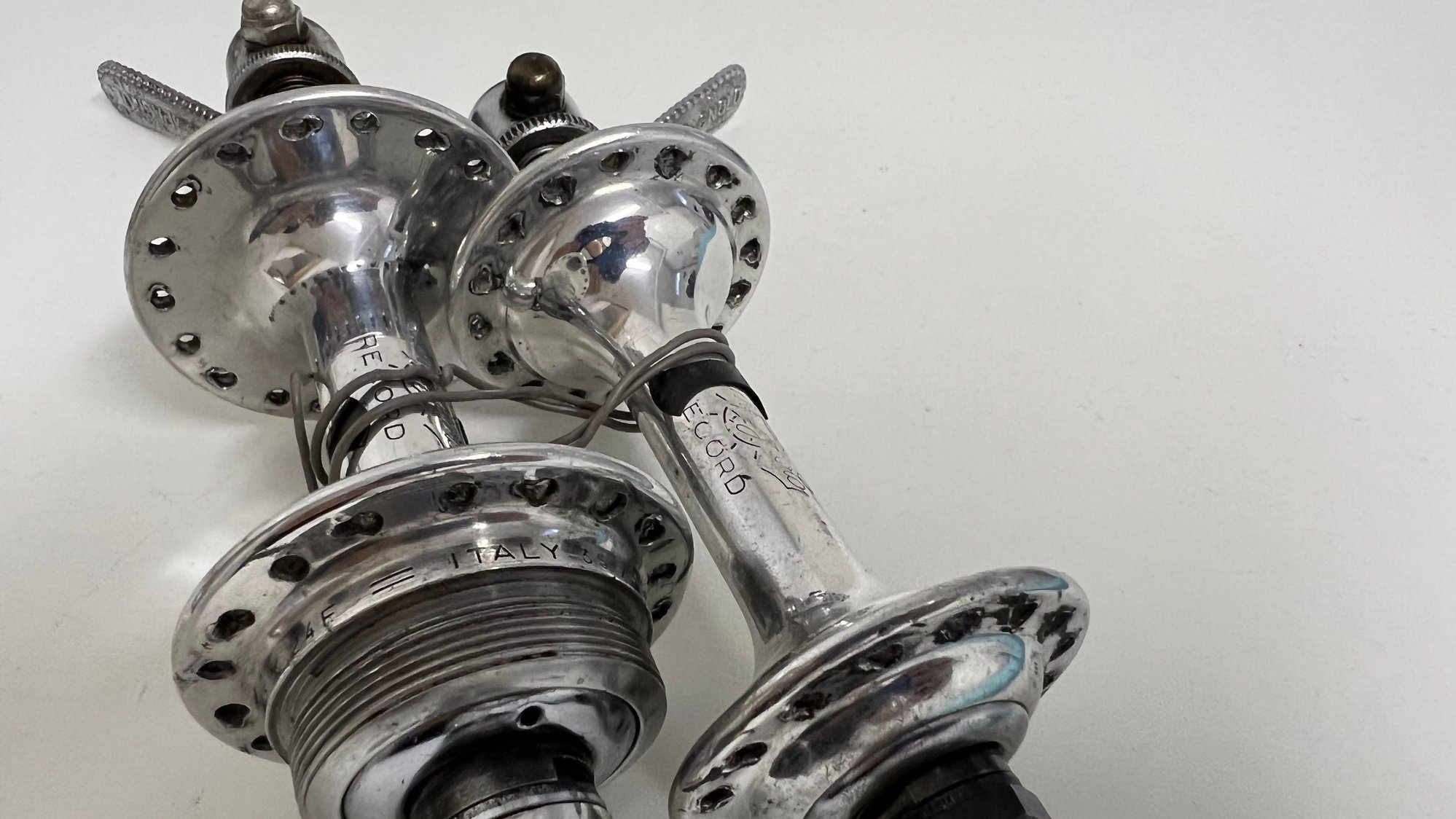

Well, Jan Jannsen used high flange hubs, and since he was the coolest guy that ever threw a leg over a top tube that HAS to make them cooler….
El Chaba is offline
Likes For El Chaba:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2022 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
