These NISI rims…. What is going on?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

These NISI rims…. What is going on?

Old 10-06-22, 11:25 AM
  #1
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 563
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 323 Times in 140 Posts
These NISI rims…. What is going on?

These are/were on my Dad’s Colnago Oro. Notice instead of a sticker is an embossed NISI badge. Pretty fancy. Never seen any wheel with such jewelry.

later notice the strange divots scooped out between the nipple access holes. Maybe to aid glue adhesion? Maybe to lighten it?

dunno. Also don’t know if these are strictly track wheels. Pop had them hanging in the garage, preferring to roll some French rims built by Seattle’s Wheelsmith.

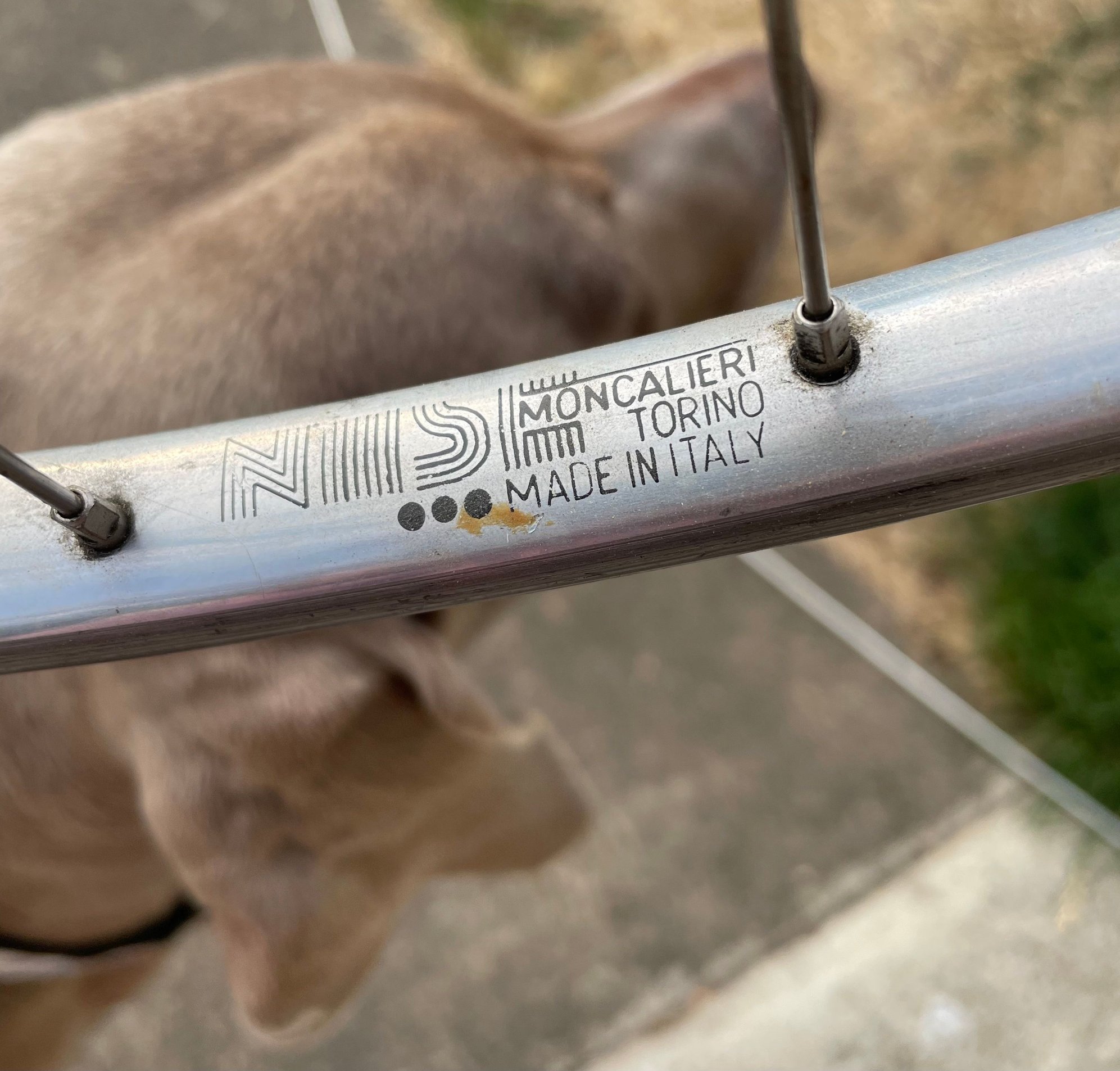

Not a sticker, but a badge that I would suspect could throw off the weight balance

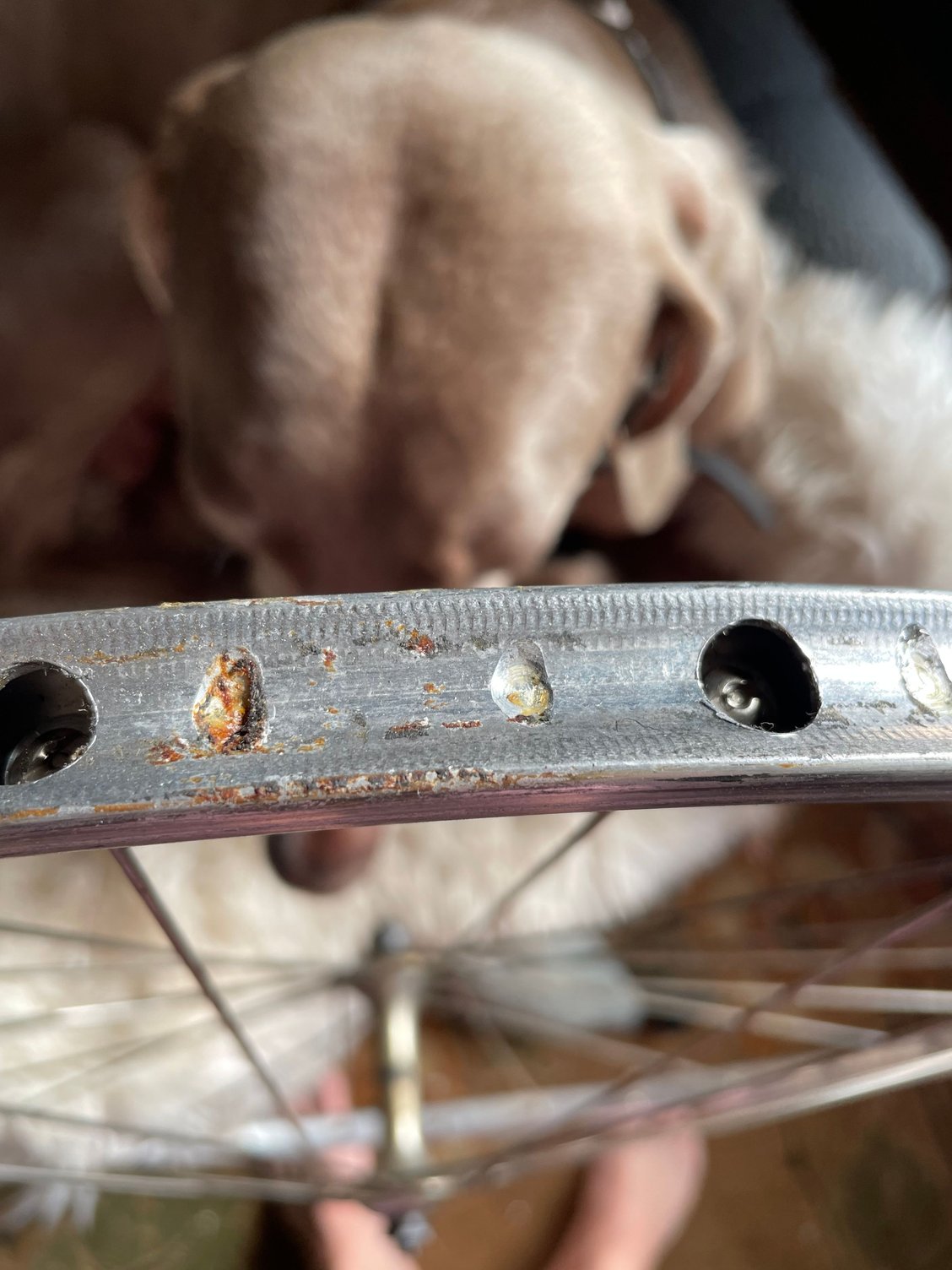

Two chunked out divots, not very well even

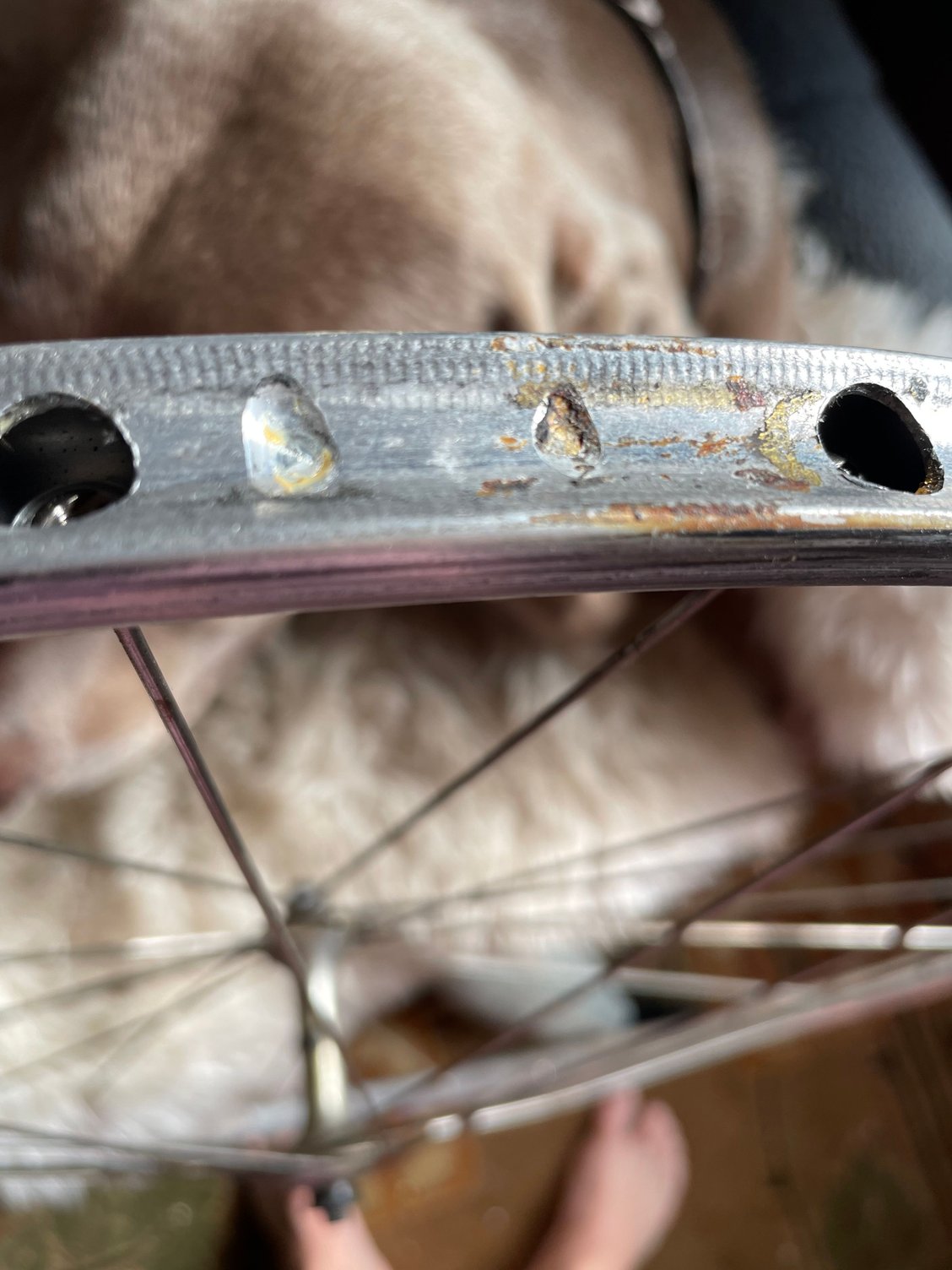

Again with the divots (2) between each nipple hole. They look so hastily done.
Robvolz is offline
Old 10-06-22, 11:42 AM
  #2
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,358

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1644 Post(s)
Liked 536 Times in 402 Posts
I've seen those divots on a bunch of Nisi rims, since about 1970. I don't have an explanation, but I think it's a quality rim.
Road Fan is online now
Old 10-06-22, 11:48 AM
  #3
GrayJay
Senior Member

GrayJay's Avatar

Join Date: Sep 2009
Location: EagleRiver AK
Posts: 1,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 29 Times in 17 Posts
Divots were likely a DIY modification to try to give the cement more grab on the rim.

Usually it is the rim joint (opposite valve stem) is the heavy/imbalance point of a wheel, often there is an internal spline inside the rim joint. Back in the 80's there were aftermarket bike wheel weights available that slipped over the valve stem which were intended to re-balance a wheel. Any/all wheel "imbalance" I have ever experienced riding was entirely due to lumpy tires, especially with cheap tubular. Ive had a few MTB tires that are so far out of round that they are hugely annoying to ride on smooth roads.
GrayJay is offline
Old 10-06-22, 11:54 AM
  #4
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 563
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 323 Times in 140 Posts
I just noticed the "jewelry" is where the rim joint is. Perhaps it holds the thing together os maybe they had problems with separation and this was the just the lil bit more to insure everything stays put.
Robvolz is offline
Old 10-06-22, 12:08 PM
  #5
Andrew_G
Newbie

Join Date: Feb 2016
Posts: 68
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 63 Times in 23 Posts
In 1976, I bought gold anodized Nisi tubular rims for my first racing bicycle. My Nisi rims also had the drilled countersinking on the outside face, like yours. My rims had a sticker instead of a badge for the branding of Nisi. The overall appearance of the rims I owned vs. yours is otherwise very similar.


So, the drilled countersinking is done by the manufacturer. I believe it's done to lighten the rim.


I've not seen this countersinking done by any other manufacturer. I soon owned Mavic tubular rims (Monthlerery, others) right after I bought the Nisi rims.


I suspect that the ridges on the outside edges may be for improving the glue adhesion. I don't recall whether other manufacturers also had that feature.
Andrew_G is offline
Old 10-06-22, 12:31 PM
  #6
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,203
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 819 Post(s)
Likes: 0
Liked 883 Times in 544 Posts
Originally Posted by Andrew_G View Post
I suspect that the ridges on the outside edges may be for improving the glue adhesion. I don't recall whether other manufacturers also had that feature.
Of the rims hereabout that don't have tyres on them, Martano and Saturne have a similar treatment.
oneclick is offline
Old 10-06-22, 01:31 PM
  #7
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,448

Bikes: A few

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 151 Times in 79 Posts
Given the condition of the rim sidewalls, I would venture a guess and say they were used on a road bike.

A few years ago I built up a set of Nisi Campione Del Mondo rims for the Bianchi, and do remember the dimples mentioned. I thought they were for balancing the rim. The dimple pattern if memory serves was random, and not what I would expect if they were for lightening the rim. The treads I think are for glue adhesion. The ones I built had decals, and not the embossed logo.

Nice rims.
satbuilder is offline
Likes For satbuilder:
Old 10-06-22, 03:28 PM
  #8
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,358

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1644 Post(s)
Liked 536 Times in 402 Posts
Originally Posted by GrayJay View Post
Divots were likely a DIY modification to try to give the cement more grab on the rim.

Usually it is the rim joint (opposite valve stem) is the heavy/imbalance point of a wheel, often there is an internal spline inside the rim joint. Back in the 80's there were aftermarket bike wheel weights available that slipped over the valve stem which were intended to re-balance a wheel. Any/all wheel "imbalance" I have ever experienced riding was entirely due to lumpy tires, especially with cheap tubular. Ive had a few MTB tires that are so far out of round that they are hugely annoying to ride on smooth roads.
No, I think they were factory, not DIY. I bought a bike in 1970 which had Nisi tubular rims, which had those same drillings, and little vertical hashmarks on the rim sidewalls. As time went on I needed a rim replaced and the shop had a fresh supply of Nisi. The replacement a few years after the bike was first delivered also had those features. I can't imagine they were DIY, though knocking heads with the shop guys (the old Turin Bicycle Coop in Chicago) we did not come up with any decent explanations for why the factory did that. I also have a pair of Nisi clinchers, and they don't have that feature.

So I don't see any reason why the factory did that, but those marks were made before the rims were received by my bike shop.

Last edited by Road Fan; 10-07-22 at 05:40 AM.
Road Fan is online now
Old 10-06-22, 03:33 PM
  #9
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,358

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1644 Post(s)
Liked 536 Times in 402 Posts
Originally Posted by satbuilder View Post
Given the condition of the rim sidewalls, I would venture a guess and say they were used on a road bike.

A few years ago I built up a set of Nisi Campione Del Mondo rims for the Bianchi, and do remember the dimples mentioned. I thought they were for balancing the rim. The dimple pattern if memory serves was random, and not what I would expect if they were for lightening the rim. The treads I think are for glue adhesion. The ones I built had decals, and not the embossed logo.

Nice rims.
Yes, mine had some roughening on the tire seating area, and the drillings were not in any clear pattern. My rims had a "Nisi" winged decal and the name of the town "Moncalieri" in several places on the rim. I think they may have also been marked "Toro," but I'm not sure. In the early 1970s I did not own a handy electronic camera for which I did not have to get film developed. Last time I Iooked at Velobase about them, it said the company started in the 1980's !!!!!
Road Fan is online now
Old 10-06-22, 04:01 PM
  #10
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,651

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2797 Post(s)
Liked 3,994 Times in 2,121 Posts
How to crop a photo on a smartphone, computer, or tablet
SurferRosa is offline
Old 10-06-22, 04:16 PM
  #11
Lattz
Senior Member

Join Date: Aug 2017
Location: Germany
Posts: 784

Bikes: 80s Alan Super Record, 79' Somec Special, 90s Rossin(?) Columbus Ego Triathlon, previously: Bianchi SBX Reparto Corse (stolen) and so on...

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Liked 594 Times in 471 Posts

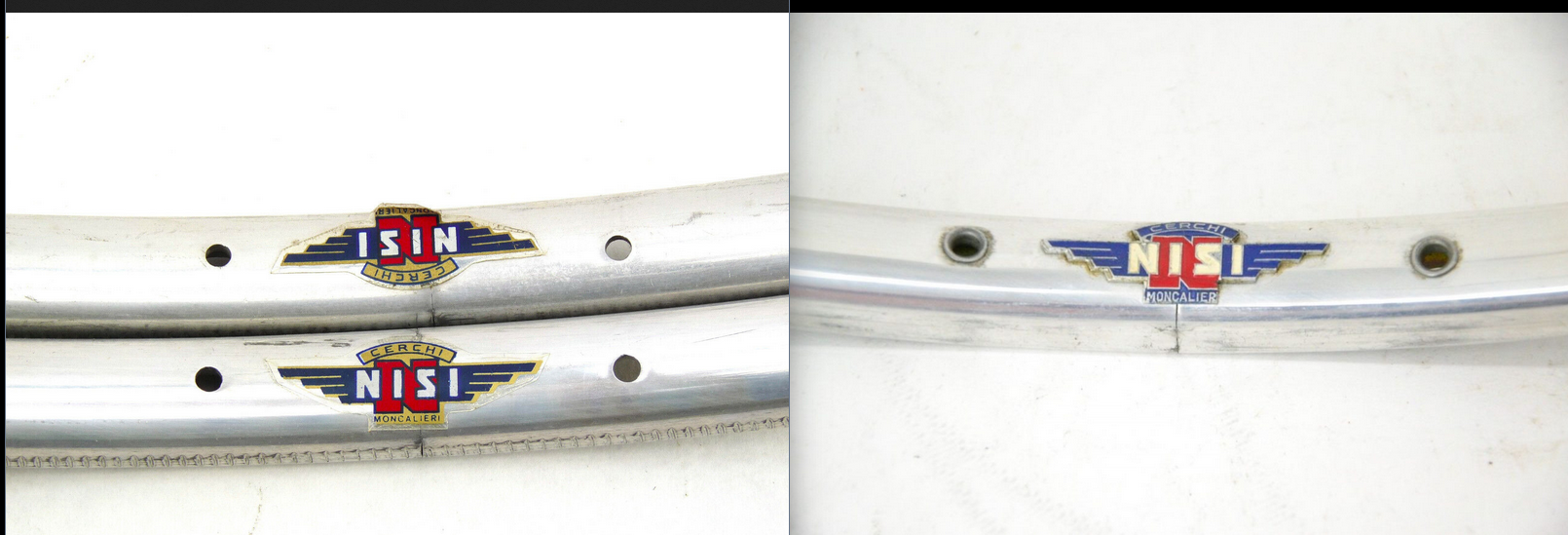

Cicli Berlinetta just posted a pair of NOS ones with factory nylon packaging, and they have it as well...
https://cicli-berlinetta.com/product...622-20mm-290g/

I would say, it helpts ensure to keep the dang together but also a nicer way than a decal to burn their logo into your brain triggering the #wantitnow.....

I like their decal logo as well, but these look cooler in my book:


Last edited by Lattz; 10-06-22 at 04:20 PM.
Lattz is offline
Old 10-06-22, 04:53 PM
  #12
Robvolz
Senior Member
Thread Starter

Join Date: Jul 2022
Posts: 563
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 351 Post(s)
Liked 323 Times in 140 Posts

no sir!!

I put the Weimaraner as background on purpose. 😁
Robvolz is offline
Likes For Robvolz:
Old 10-06-22, 07:12 PM
  #13
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,448

Bikes: A few

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 151 Times in 79 Posts
Ghost dog!
satbuilder is offline
Old 10-06-22, 07:24 PM
  #14
SurferRosa
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 6,651

Bikes: Old school lightweights

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 2797 Post(s)
Liked 3,994 Times in 2,121 Posts
Originally Posted by Robvolz View Post
no sir!!

I put the Weimaraner as background on purpose.
<facepalm>
