Single speed conversion

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Single speed conversion

Old 10-27-22, 02:19 PM
  #1
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts
Single speed conversion

I'm new to this realm so Im hoping yall can guide me correctly. I have an old 74 raleigh frame with rear spacing of 126. The wheels I am getting are 120mm. What would be the best way to safely and correctly fit the wheels? Thanks for any help at all!
hwheel72 is offline
Old 10-27-22, 02:54 PM
  #2
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,949

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1575 Post(s)
Liked 1,259 Times in 751 Posts
First: Welcome. Understand that in this realm, need pictures of your bike and the wheels.
The best way in my opinion is to get a longer axle and some spacers.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Likes For Classtime:
Old 10-27-22, 02:59 PM
  #3
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,874

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 828 Times in 496 Posts
It is probable that your frame was originally spaced at 120 so someone has cold-set it a bit wider. For your project, you may be able to add some spacers to the axle to fit 126, though this would depend on your axle length. Can it accommodate the spacers with enough room to put nuts on it (assuming it's a solid axle - if it's a QR spacing won't work.) If I were you, I'd just cold set it back to 120. We're talking only 3mm each side so it should be easy. Here's a link for you to ponder: https://sheldonbrown.com/frame-spacing.html
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 10-27-22, 03:34 PM
  #4
grumpus
Full Member

Join Date: Apr 2016
Posts: 278
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 93 Times in 77 Posts
Originally Posted by hwheel72 View Post
I'm new to this realm so Im hoping yall can guide me correctly. I have an old 74 raleigh frame with rear spacing of 126. The wheels I am getting are 120mm.
At the least, do nothing - just tighten the axle nuts to pull the dropouts in (but this may place stress on the frame and axle, in time resulting in bending or breaking). Next easiest - space the hub with a 3 mm washer on each side. Possibly best solution but more involved - bend the frame to fit the hub.
Steel frames can be "cold set" without compromising their structure. The easiest way to squeeze a back end is with a tourniquet - loop a rope or ratchet strap around the back of the chain stays, place a stick or an old seat post or similar in the loop and wind it up so the dropouts are pulled together. You'll need to pull them closer than the final spacing because they'll spring back a bit. Unwind and check the width. With a bit of luck you have the right width (a mm either way is fine) both sides bent evenly and nothing broke*. Check the fit with your new wheel, and check that it sits in the middle of the seat stays and the chain stays. If it's not central you may have bent the frame unevenly, or the wheel rim may not be central on the hub.
Also check that the dropouts are parallel i.e. lying flat against the hub lock-nuts - they may be angled slightly from the cold setting, in which case you can tweak them with a large adjustable wrench.

* You don't mention what sort of frame it is - the "entry level" (I'm being nice here) Raleighs I used to see had a tendency for the pressed dropouts to break, also structural corrosion in the chainstays (but you might live somewhere they don't salt the roads).
grumpus is offline
Likes For grumpus:
Old 10-27-22, 04:06 PM
  #5
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 29,231

Bikes: Too many to list here check my signature.

Mentioned: 174 Post(s)
Tagged: 2 Thread(s)
Quoted: 2721 Post(s)
Liked 2,189 Times in 1,220 Posts
Originally Posted by hwheel72 View Post
I'm new to this realm so Im hoping yall can guide me correctly. I have an old 74 raleigh frame with rear spacing of 126. The wheels I am getting are 120mm. What would be the best way to safely and correctly fit the wheels? Thanks for any help at all!

Iíd be curious to see pics as well. What kind of dropouts does this bike have? Will the new solid axle fit in the dropouts? Sometimes they are fatter.

the simplest thing to have done woukd have been to remove the freewheel from your existing wheel and put a BMX single on it.
__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Likes For Bianchigirll:
Old 10-27-22, 05:49 PM
  #6
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 999

Bikes: Gunnar, Shogun, Concorde, F Moser, Pete Tansley, Rocky Mtn, Diamant, Krapf, Marin, Avanti, Winora, Emmelle, Ken Evans

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 255 Post(s)
Liked 342 Times in 193 Posts
+1 longer axle if needed and some spacers.
Install your crank before you try to space the wheel. You will probably have to move spacers around on the axle to get the chainline straight, and then re-dish to center the rim. You can do it with math or eyeball it.
Soody is offline
Likes For Soody:
Old 10-27-22, 06:28 PM
  #7
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts


hwheel72 is offline
Likes For hwheel72:
Old 10-27-22, 06:29 PM
  #8
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts

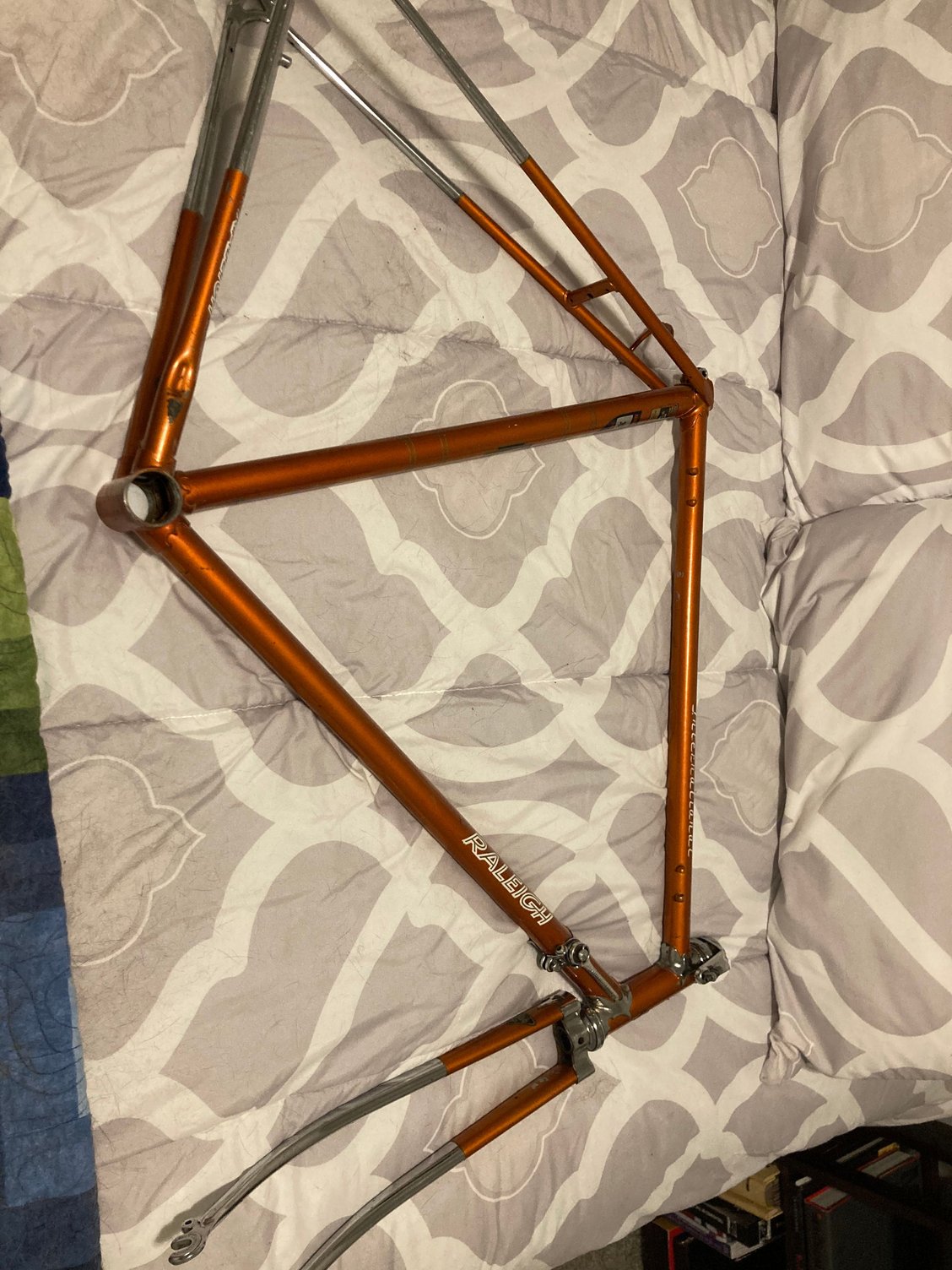

74 International, Iím pretty sure 126 is where it started based on the type of bike frame and itís purpose.
hwheel72 is offline
Likes For hwheel72:
Old 10-27-22, 06:48 PM
  #9
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts
Thanks for all the tips so far! Now that y’all have an idea of what frame it is, the wheels I ordered are the Velocity track wheel set . 120mm on the back.. here is a link to the wheel set:

https://www.velocityusa.com/product/...track-wheelset
hwheel72 is offline
Old 10-28-22, 05:40 AM
  #10
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,299

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1251 Post(s)
Liked 925 Times in 620 Posts
That is a nice frame -- do not do anything permanent to it. Obviously, do not hack off the derailleur mounting tab. I would also recommend strongly against cold-setting back to 120mm because the highest and best (far most valuable) use of that frame may be to spread it to 130mm for an 8-speed or 9-speed cassette. A bit of cold-working is fine, but back-and-forth?
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 10-28-22, 06:58 AM
  #11
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 2,015

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1974 Allegro No. 76, 1973 Raleigh Competition, 1973 Raleigh GS, 1971 Gitane Tour de France and others

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 712 Post(s)
Liked 975 Times in 521 Posts
You have plenty of room to fit 3 mm spacers between the cones and the locknuts on the stock axles depicted. I would highly recommend that. FWIW, when I built up my '73 Raleigh Competition as a fixed-gear, it was also set for a 126mm hub. I replaced the solid axle in the Surly New Track hub I used with a hollow one and a quick release, and added washers on both sides to make it all fit. It works flawlessly. If you go with a quick release conversion, use a traditional steel skewer with an internal cam like an old Campagnolo or Maillard or similar.
rustystrings61 is offline
Likes For rustystrings61:
Old 10-28-22, 07:14 AM
  #12
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,874

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 958 Post(s)
Liked 828 Times in 496 Posts
Originally Posted by hwheel72 View Post
74 International, Iím pretty sure 126 is where it started based on the type of bike frame and itís purpose.
The Internationals of that vintage came with a 14-24 5 speed freewheel, though the Professional models came with a 6 speed. I think any previous owner would have a hard time resisting the upgrade to a 6 speed, which would have prompted the frame mod.

Originally Posted by John E View Post
That is a nice frame -- do not do anything permanent to it. Obviously, do not hack off the derailleur mounting tab. I would also recommend strongly against cold-setting back to 120mm because the highest and best (far most valuable) use of that frame may be to spread it to 130mm for an 8-speed or 9-speed cassette. A bit of cold-working is fine, but back-and-forth?
I've cold-set a number of early 70s Raleighs back to original spacing without issue. The 72 Supercourse (my commuting bike) went from 120 to 130 then back to 120. Anything more than 10mm though would probably be too much though.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 10-28-22, 07:29 AM
  #13
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,155

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 826 Post(s)
Liked 798 Times in 431 Posts
Best to cold set it and check the alignment of the stays that they stayed centered. Google the String test.
Just putting a 120mm wheelset in a 126 frame could pull only one stay set over resulting in a misaligned frame.
__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.
bwilli88 is offline
Likes For bwilli88:
Old 10-28-22, 11:03 AM
  #14
grumpus
Full Member

Join Date: Apr 2016
Posts: 278
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
Liked 93 Times in 77 Posts
Originally Posted by hwheel72 View Post
That's very nice - if you choose to cold set it you may have difficulty keeping it centred because of the big clearance dimple in the drive side chain stay. If you have a good bench vice you can clamp the bottom bracket shell in soft jaws and push or pull one of the chain stays. The no-vice solution is to support the head and seat tubes on wooden blocks, have someone stand on the head tube then step on the stay you want to bend. Do the string check, and put a level on the head and seat tubes for parallel, to be sure it's tracking properly. Or as it's so nice, if you're not confident to do it yourself maybe find a local frame builder to do it for you.
grumpus is offline
Old 10-28-22, 12:04 PM
  #15
icemilkcoffee
Senior Member

icemilkcoffee's Avatar

Join Date: Aug 2009
Posts: 1,795
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1072 Post(s)
Liked 976 Times in 578 Posts
Forget tweaking the frame. It's WAY easier to just replace the axle with a longer axle and space out the lock nuts with washers.
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 10-28-22, 12:28 PM
  #16
79pmooney
Senior Member

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 11,492

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 3981 Post(s)
Liked 2,868 Times in 1,869 Posts
Two comments. Yes. do the string test. These dropouts are unlikely to spread evenly because of the indent for the chainrings. Rather than the tourniquet approach, I'd do a one-side-at-a-time approach with 2x4s. I think Sheldon Brown's website has a good explanation.

Second, if you choose to go with a quick-release, get those dropout adjust screws in good order. (I skip the relatively hard to find originals and go to Ace hardware and simply use SS pan head screws with a nut on the back side. I know some cringe but that works quite well. And the reason? Runn9ing single speed (or fix gear) requires setting the cha9in "tension" properly as well as centering the tire and wheel between the chainstays. Trying to do both at the same time, well, on a good day, maybe no sweat, but in the rain and dark when you flatted and just want to get home? Not happening. Far better to have correctly set dropout screws so you can just hold the wheel back against the screws and close the QR. (Yes, the tight chain folk simply push the wheel back until the chain is tight, center the wheel and close. But - they are also running a setup that will shorten the life of chain and BB and hub bearings. You want 1/2" of vertical play in the chain. And it may take a couple or three pedal revolutions to get to the tightest place in the chain's path around the drivetrain.

So, dropout screws set correctly in the peace of your shop go a long ways to making that chain slack correct on the road with a QR. Now, if you simply use the track nuts that come on the hub, it's easy. The screws aren't needed. I push the wheel back while pulling the tire against the left chainring, Tighten the right nut. Center the tire. Tighten the left. Chain is now pretty close to correct on most bikes. Final tuning is done by loosening one nut and rocking the tire. (Right nut for big chain slack changes, left nut for fine tuning and tire centering.) Take more steps that the QR but you never "blow it" and have to start all over. And after a while, you get to know that bike and develop a system that gets you there faster. (I ride two fix gears with cogs on both sides. Stop often and flip the wheel. So I do this juggling act all the time. Easy. (Though the bikes are different. On goes fastest tightening the right nut first, the other the left.)
79pmooney is online now
Likes For 79pmooney:
Old 10-28-22, 04:31 PM
  #17
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 29,231

Bikes: Too many to list here check my signature.

Mentioned: 174 Post(s)
Tagged: 2 Thread(s)
Quoted: 2721 Post(s)
Liked 2,189 Times in 1,220 Posts
Originally Posted by hwheel72 View Post


Youíre going to make the International into a single speed?


__________________
ďOne morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"

Sugar "Kane" Kowalczyk
Bianchigirll is offline
Old 10-28-22, 07:20 PM
  #18
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts
Originally Posted by Bianchigirll View Post
Youíre going to make the International into a single speed?


Hahaha, how dare I!
hwheel72 is offline
Old 10-28-22, 07:27 PM
  #19
hwheel72
Steele is Real
Thread Starter

Join Date: Oct 2018
Location: Rowlett, Tx
Posts: 155

Bikes: 86 De Rosa Pro, 79 Gazelle Champion Mondial, 72 Nishiki Professional, 71 Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
Liked 36 Times in 23 Posts
A plethora of information! Exactly what I hoped for and so many awesome suggestions. Once I get the wheels, I’ll revisit all ideas and go from there. Also, will be using a white industries drivetrain which should look lovely and perform even better. Yeah, I know. Spending a little money on this but it’s a beautiful frame so why not enhance the beauty a little more….

stay tuned….
