Silver rear derailleur, 34 teeth compatibility for 80's trekking

Old 12-04-22, 04:17 PM
  #26
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,320

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 Peugeot PX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 750 Post(s)
Liked 1,753 Times in 674 Posts
Microshift R10 is pretty good. Looks the same as the Sun XCXD and easier to procure.
__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1973 Free Spirit Ted Williams, 1972 Raleigh Super Course, 1971 Philips Sport




ascherer is offline
Old 12-06-22, 02:02 AM
  #27
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
Originally Posted by bwilli88 View Post
They are both 36t large cogs. The Zunow was 12-36 9 speed and the Centurion is a 11-36 10 speed
Did you use them as is? because i have the same 105 RD5500 and cannot clear the 34 cog. Any advice is greatly appreciated
Positron400 is offline
Old 12-06-22, 05:43 AM
  #28
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,130

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 776 Times in 422 Posts
Two things helped. 1, B screw turned all the way in. 2, Chain length worked in my favor, I used BIG-BIG no derailleur + 4 pins (2 links).
I feel that the geometry was perfect for both bikes with this setup, it allowed me to have the tightest chain that FIT and having that "tight" chain kept the RD off the largest cog.
__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.
bwilli88 is offline
Old 12-06-22, 06:13 AM
  #29
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
Originally Posted by bwilli88 View Post
Two things helped. 1, B screw turned all the way in. 2, Chain length worked in my favor, I used BIG-BIG no derailleur + 4 pins (2 links).
I feel that the geometry was perfect for both bikes with this setup, it allowed me to have the tightest chain that FIT and having that "tight" chain kept the RD off the largest cog.
thanks! Very much appreciated. I never considered the chain length to be a factor in RD clearance. Just to be sure, before i go and cut a chain, you are using a 105 RD 5500 with a 36 cog ?
Positron400 is offline
Old 12-06-22, 06:18 AM
  #30
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,130

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 776 Times in 422 Posts
See my above post with the blue bike.
__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.
bwilli88 is offline
Likes For bwilli88:
Old 12-06-22, 07:15 AM
  #31
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,283

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,285 Times in 734 Posts
Originally Posted by Positron400 View Post
thanks! Very much appreciated. I never considered the chain length to be a factor in RD clearance. Just to be sure, before i go and cut a chain, you are using a 105 RD 5500 with a 36 cog ?
Remember those are GS cages- so technically 5503 and 6603.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 12-06-22, 07:38 AM
  #32
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
Originally Posted by The Golden Boy View Post
Remember those are GS cages- so technically 5503 and 6603.
I am not that well versed in production serial numbers. could you maybe elaborate?
Positron400 is offline
Old 12-06-22, 08:50 AM
  #33
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,130

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 776 Times in 422 Posts
55 is the series, 105, 03 is the cage length
66 is the series, Ultegra, 03 is the cage length.
__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.
bwilli88 is offline
Old 12-06-22, 10:10 AM
  #34
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,283

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,285 Times in 734 Posts
Originally Posted by Positron400 View Post
I am not that well versed in production serial numbers. could you maybe elaborate?
Originally Posted by bwilli88 View Post
55 is the series, 105, 03 is the cage length
66 is the series, Ultegra, 03 is the cage length.
While not exactly the cage length- it's the 'triple specific components'

So a 6600 set is for an Ultegra 10s double, with a short derailleur cage and a back plate on the front derailleur that is specific for a double chainring crank.

The 6603 set is for an Utlegra 10s triple, with a long (GS) derailleur cage and a lower back plate on the front derailleur that is meant to work with a triple chainring crank.

GS cages are generally referred to as "long," but really SGS was the LONG cage and GS is medium... I don't think there are anymore SGS caged derailleurs anymore.

And just a word of warning- I've theorized that the "new-ish" triple front derailleurs are designed to ONLY work with the cranksets they're designed for. Not just the chainring sizes, but for the ramps and pins to be in specific places. I've not gotten a 7803 FD to work with either a compact double or an old school 28/38/50 triple. However, I have used a regular 7700 FD without issue. Go figure.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 12-06-22, 11:42 AM
  #35
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
thanks. Are there any other versions of the 105 5500 than the SS or GS? I am fairly certain (like 99 %) I have the long cage (GS) version. And RD-5500 is stamped into the back of the whatchamacallit.
Positron400 is offline
Likes For Positron400:
Old 12-06-22, 02:03 PM
  #36
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,283

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 2464 Post(s)
Liked 1,285 Times in 734 Posts
Originally Posted by Positron400 View Post
thanks. Are there any other versions of the 105 5500 than the SS or GS? I am fairly certain (like 99 %) I have the long cage (GS) version. And RD-5500 is stamped into the back of the whatchamacallit.
I just learned something new- I would have sworn it would be a separate model- but I just looked at my 7803 that I have handy- and it's marked 7800. Surprise.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 12-07-22, 10:34 AM
  #37
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
Originally Posted by bwilli88 View Post
Two things helped. 1, B screw turned all the way in. 2, Chain length worked in my favor, I used BIG-BIG no derailleur + 4 pins (2 links).
I feel that the geometry was perfect for both bikes with this setup, it allowed me to have the tightest chain that FIT and having that "tight" chain kept the RD off the largest cog.
One more thing, what size are your front chainrings? I am using a 48/34.
Positron400 is offline
Old 12-07-22, 11:23 AM
  #38
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 797

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 319 Times in 226 Posts
Originally Posted by The Golden Boy View Post
GS cages are generally referred to as "long," but really SGS was the LONG cage and GS is medium... I don't think there are anymore SGS caged derailleurs anymore.
They certainly no longer seem to exist in Shimano's road and Gravel lineups. But they're still out there in Shimano's mountain RD offerings.
Hondo6 is offline
Likes For Hondo6:
Old 12-07-22, 11:30 AM
  #39
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
OT: but i use an Ultegra setup on my "let's call it a road bike" with a RD that clears a 34 cassette no problem. I'd consider that quite a long cage

Last edited by Positron400; 12-07-22 at 01:08 PM.
Positron400 is offline
Likes For Positron400:
Old 12-07-22, 05:50 PM
  #40
bwilli88
Not lost wanderer.

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 3,130

Bikes: Bikes in USA; 73 Raleigh SuperCourse dingle speed, 72 Raleigh GranSport SS, 72 Geoffry Butler, 81 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Liked 776 Times in 422 Posts
Originally Posted by Positron400 View Post
One more thing, what size are your front chainrings? I am using a 48/34.
One was a half step 48-45 and the other was either a half step 49-46 or compact half step + granny 50-46-34

__________________
Cambodia bikes, 83 Gazelle Opafiets, A Klunker, Maxwell All-road, Bridgestone SRAM 2 speed, 2012 Fuji Stratos.

Last edited by bwilli88; 12-07-22 at 06:20 PM.
bwilli88 is offline
Old 12-08-22, 02:54 AM
  #41
Positron400
Full Member
Thread Starter

Join Date: Jan 2022
Posts: 234
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 94 Post(s)
Liked 97 Times in 52 Posts
Originally Posted by bwilli88 View Post
One was a half step 48-45 and the other was either a half step 49-46 or compact half step + granny 50-46-34
Thanks! I am afraid that might not work for me then after all, seeing as i have a 48/34 crankset. Will give it a try though
Positron400 is offline
Old 12-09-22, 12:12 PM
  #42
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,632

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1307 Post(s)
Liked 869 Times in 613 Posts
I wouldn't fully count on any 5503 or 6603 rear derailer quite properly clearing even a 34t big cog without:
1) giving a very clunky shift onto the biggest cog-
2) having the top pulley contact the big cog's teeth noisily, and or jamming when/if the pedals are turned backwards-
3) requiring such a short chain such that shifting off of the largest cog is extremely hesitant.

The B-screw can be extended to increase clearance if needed (depending on factors such as the hanger's length and the chain length needed for the full range of the chainrings).
An "extending nut" can be fitted to the tip of the B-screw as installed, then secured with Loctite. I first grind the hex flats making the nut perfectly round, to reduce the diameter for turning clearance. At the same time, I give the nut's outer periphery a 45-degree cone profile to better interface with the dropout hanger's stop tang, all of which prevents a merely-longer M4 screw from slipping past the edge of the tang.
...((All this to gain B-tension adjustment range, so as to use a 6503 RD on my Holdsworth Special with a 12-34t 9s cassette)).

Earlier 6s-era and some 7s-era SIS RD's usually will not index an 8, 9 or 10s cassette perfectly, as these derailer's actuation ratio tends to be regressive when shifting to the largest cog. Those who are even moderately fussy about consistent index-shifting response may find a proper cable tension adjustment elusive for this reason.

Pre-index RD's and even most Accushift RD's (3040 series excepted) typically have a higher actuation ratio, moving a good bit further across the cassete for any given amount of cable movement. This accomodates certain older levers having less cable pull, and also makes for a quicker shifting action to the extent that the chain gap is a given.
The actuation ratio for most Suntour and most pre-index vintage derailers tends to mirror the lower "leverage" number associated with Dura-Ace 74xx rear derailers, and the 74xx front derailers also have greater cage movement for any given cable movement than any newer Shimano derailers!

But the chain gap for pre-index rear derailers (Suntour long-cage models no exception) tends to be relatively huge, since vintage (typically bushed, but even the bushingless Sedisport) chain is much stiffer, laterally, than any modern chain.
So, for responsive shifting, expect to have to possibly:
1) back out or remove the B-tension screw entirely-
2) carve metal from the B-tension screw's boss on the B-knuckle-
3) figure out a way to adjust a non-adjustable derailer's cage pivot's or B-pivot's spring tension-
4) use modern, HG-style, or at least UG-style cassette/freewheel cogs-
5) accept that the shifting will be lazy/unresponsive on the smaller end of the cassette-
5) bring the cable's path up to entirely plastic-lined (and index/compressionless) status-
6) keep the shift lever's friction surfaces (and pivot!) lubricated with light lubricant such as plain oil.

"New-ish" triple front derailers did indeed evolve during the 1990's to incorporate more-technical inner cage-plate shapes which are specific to the tooth-count difference between the middle and large chainrings. Changing this tooth count difference typically results in a very poor-shifting front derailer, particularly when shifting up to the big ring.

Various "Deore" mech's from the late eighties into the early 90's make a particularly robust, good-shifting and good-looking addition to a rando or gravel-y build.
These have been common to find on "garage-sale mtb's", so many Ebay vendors strip these bikes for such salable parts.
These derailers can be dolled-up with different branding decals if desired, as here on my 1968 Steyr-Sears, where I enjoy super-robust friction shifting over a 6s Uniglide freewheel:

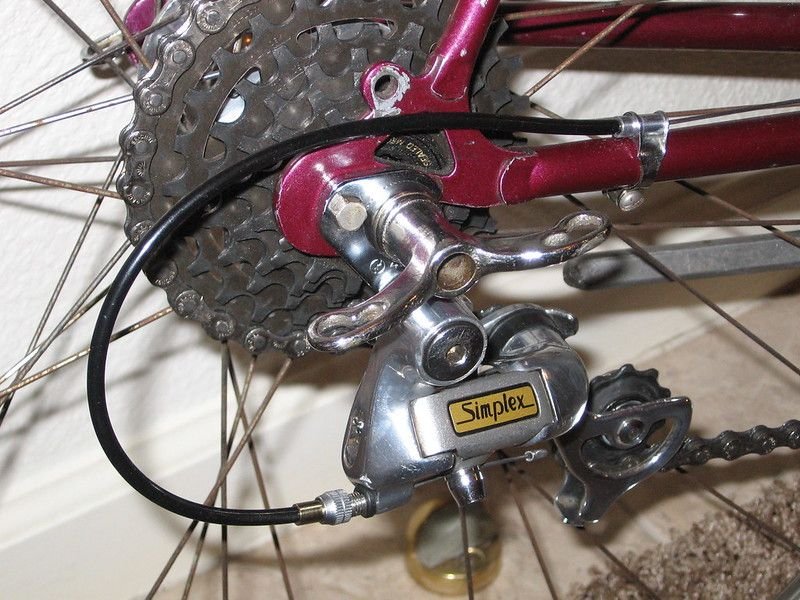

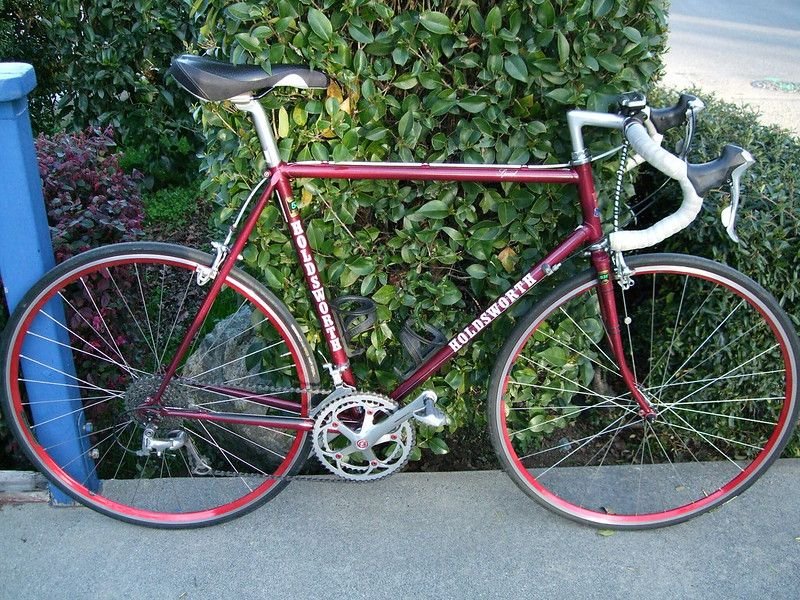

The Holdsworth, Marlboro-era (mid-1980's) having an apparently relatively-short Campagnolo derailer hanger:

Last edited by dddd; 12-09-22 at 12:50 PM.
dddd is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
