Another “Mystery” (Japanese?) bike

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Another “Mystery” (Japanese?) bike

Old 12-04-22, 11:35 AM
  #1
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,295

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 64 Times in 42 Posts
Another “Mystery” (Japanese?) bike

So thanks to ‘02 nrs I saw this thing on the Ft Wayne Indiana facebook. Since I was driving thru Ft Wayne anyway I ended up with it to the tune of 40 bucks. The attraction was for the parts, but I am curious as to the pedigree of the bike. The parts bits include Suntour Superbe FD, RD, shifters, and front hub (rear hub is campy record, replacement?). Cranks are Sugino Super Mighty, brakes are Gran Compe, headset is Tange Levin alloy. BB is 68mm BSC, with Sugino cups and spindle. Rims are matching Mavic sew ups, 700c. Interesting points are the nice fluted seat stays (like my Colnagos!) and the number LS 1 under the bottom bracket. There is no indication of holes for a head badge. The seatpost diameter is 26.6. Drop outs are Tange “Pro”.






LS 1

Threaded seat clamp ear


Fluted seat stays

So, any ideas as to what this might be? Thanks!
evwxxx is offline
Old 12-04-22, 12:08 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,465
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3099 Post(s)
Liked 1,867 Times in 1,324 Posts
-----

you might wish to also include the possibility of a Flanderland navtivity


CMAW non-fixie MauriceMoss
-----
juvela is offline
Old 12-04-22, 12:25 PM
  #3
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,192
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1099 Post(s)
Liked 648 Times in 507 Posts
couple more data points: is the 26.6 seatpost 100% the correct size for the seat tube?

If so the size is a bit curious: if this were JP then a seattube that size would point to something heavier-gauge such as Tange #3 or lower, yet given some of the details of this frame I think it's likely made of
"better stuff" such as metric seamless DB and of the lighter stuff than say 531C (which might take 26.4 more frequently, or this tube was reamed out a touch more).

Please check the outside diameters of the 3 main tubes with an accurate (digital is best) caliper.

In which case with metric tubing it could be of Benelux-origin, as juvela suggests, but still an oddball to find metric tubing there.

Pull out the fork and check for any stamping on the steerer. also check the interior base of that steerer for any "rifling"

One last point: looks like "LS1" might be just the part of a longer serial number, the rest of which was ground off....correct?

Last edited by unworthy1; 12-04-22 at 12:30 PM.
unworthy1 is offline
Old 12-04-22, 01:51 PM
  #4
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,295

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 64 Times in 42 Posts
Originally Posted by unworthy1 View Post
couple more data points: is the 26.6 seatpost 100% the correct size for the seat tube?

If so the size is a bit curious: if this were JP then a seattube that size would point to something heavier-gauge such as Tange #3 or lower, yet given some of the details of this frame I think it's likely made of
"better stuff" such as metric seamless DB and of the lighter stuff than say 531C (which might take 26.4 more frequently, or this tube was reamed out a touch more).

Please check the outside diameters of the 3 main tubes with an accurate (digital is best) caliper.

In which case with metric tubing it could be of Benelux-origin, as juvela suggests, but still an oddball to find metric tubing there.

Pull out the fork and check for any stamping on the steerer. also check the interior base of that steerer for any "rifling"

One last point: looks like "LS1" might be just the part of a longer serial number, the rest of which was ground off....correct?
yes there is definitely “flatness” after the LS 1 numerals,,, the frame feels very lightweight, so the 26.6 seat tube surprised me. As you can see from the pic of the whole bike the seat was jammed all the way in, so I was surprised that it came out at all, but it was in very snug. Tried another 26.6 seatpost and it too was nice and snug. Pulled the fork, original color black, marked Ishiwata. Outside diameters of main tubes are:

seat tube -28.9
top tube - 25.85
down tube - 29.0

these measurements done with mechanical caliper with cold fingers, so,,,
evwxxx is offline
Old 12-04-22, 01:57 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 12,465
Mentioned: 357 Post(s)
Tagged: 1 Thread(s)
Quoted: 3099 Post(s)
Liked 1,867 Times in 1,324 Posts
-----

Ishiwata 022 was the tube set expected

this fits in with a Flanders origin

also surprised by the pillar size; although it would fit in with a metric standard

be aware there are a few Flanders makers to use metric standard rather than BSC/ISO


-----
juvela is offline
Old 12-04-22, 03:36 PM
  #6
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,295

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 64 Times in 42 Posts
Originally Posted by juvela View Post
-----

Ishiwata 022 was the tube set expected

this fits in with a Flanders origin

also surprised by the pillar size; although it would fit in with a metric standard

be aware there are a few Flanders makers to use metric standard rather than BSC/ISO


-----
thanks, at least the BB is standard!
evwxxx is offline
Old 12-05-22, 07:08 AM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 23,230
Mentioned: 631 Post(s)
Tagged: 1 Thread(s)
Quoted: 4706 Post(s)
Likes: 0
Liked 2,978 Times in 1,844 Posts
The serial number format appears to be that used by Bianchi's Japanese source and, if so, would indicate a 1982 model manufactured at the end of 1981. The component mix is largely in accordance with a Bianchi Professional. The frame characteristics, for the most part, are consistent with a 1982 Professional, with concerns being the colour (repaint?) and seat post size. Like others, I was expecting an Ishiwata 022 tubeset and a 27.2mm seat post. The 26.6mm post is actually typical of a Tange tubeset. It's possible that they could have been building a similar model for another client but with a Tange tubeset. However, I'm not aware of any. It's worth noting that the seat post size would be correct if an Ishiwata 022 seat tube had inadvertently been installed upside down. Pending further evidence, a Bianchi Professional would be my leading candidate.
T-Mar is offline
Likes For T-Mar:
Old 12-05-22, 09:18 AM
  #8
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,623

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 2369 Post(s)
Liked 2,643 Times in 1,611 Posts
LS1? Well it's obviously then a Chevrolet.
dedhed is offline
Likes For dedhed:
Old 12-05-22, 12:32 PM
  #9
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 12,192
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1099 Post(s)
Liked 648 Times in 507 Posts
So, thanks to T-Mar (again) most likely a re-sprayed Japanese Bianchi Pro with some very nice Sun Tour Superbe parts!
You did quite well for $40!

The builder for most of these JP Bianchis has remained a stubborn mystery, even stymied the Great Ones (like T-Mar), but they are certainly well-made and enjoyed by nearly everyone who rides one them.
unworthy1 is offline
Likes For unworthy1:
Old 12-05-22, 01:06 PM
  #10
Highmass
Newbie

Join Date: Aug 2019
Posts: 58
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 17 Times in 12 Posts

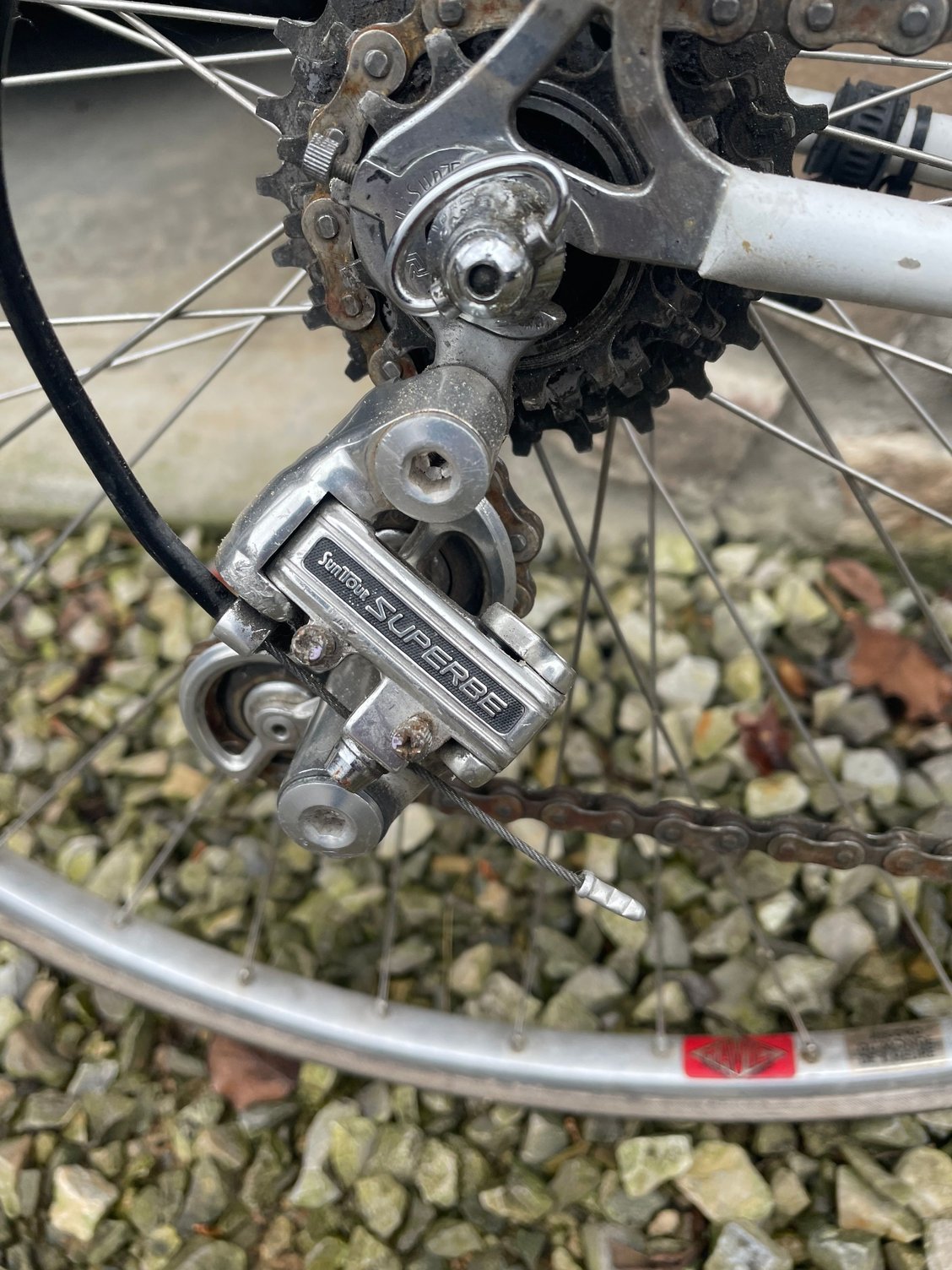

And it gets even better. That is not an ordinary Superbe RD. It is a Superbe Pro. A Superbe would have chromed steel for for the two big allen bolts (With engraving), and a hex nut for the cable attatchment. On a Superbe Pro, the cable attatchment is as shown, and the two large allen bolts are aluminium, making it 25 grams lighter than the regular Superbe. Score!
Highmass is offline
Likes For Highmass:
Old 12-05-22, 04:06 PM
  #11
evwxxx
FalconLvr
Thread Starter

Join Date: Jun 2006
Location: SW Virginia
Posts: 1,295

Bikes: 62 Falcon, 58 Raleigh Lenton Gran Prix, 74 Raleigh Pro, 75 Raleigh Int, 75 Raleigh Comp, 76 Colnago Super, 75 Crescent, 80 Peugeot PX10, plus others too numerous to mention!

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 64 Times in 42 Posts
I love it when a plan comes together (ie stopping off in Ft Wayne on the way from South Bend to Blacksburg Virginia)!
evwxxx is offline
