Old 01-24-23, 06:53 PM
  #101
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Originally Posted by USAZorro View Post
This is sorta gas-pipe... 4130 qualify? Giant Iguana with marshmallow tires.




Nope...Too nice.
1989Pre is offline
Likes For 1989Pre:
Old 01-24-23, 07:04 PM
  #102
Murray Missile
Senior Member
Thread Starter

Murray Missile's Avatar

Join Date: Jun 2013
Location: 700 Ft. above sea level.
Posts: 3,017

Bikes: Not as many as there were awhile ago.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 969 Times in 482 Posts
Here's a couple that aren't done yet, they're "mystery" tubing.
1972 Gitane Interclub currently undergoing renovation:


A 19?? "Clara", believed to be a rebranded Chiorda sold though a Sporting goods chain in NY state BITD. It does have some original Campy but it's Valentino that was obsolete when the bike was built. Probably got the components on clearance so they could market a "Campy equipped" bike at bargain prices.
__________________
".....distasteful and easily triggered."
Murray Missile is offline
Likes For Murray Missile:
Old 01-25-23, 02:27 PM
  #103
beng1
Full Member

Join Date: Feb 2014
Posts: 413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 223 Times in 117 Posts
The pipe used for gas-pipe in homes is very similar to rigid electrical conduit. Both are threaded on construction sites using the same equipment, usually Ridgid brand pipe cutting and threading equipment. This pipe has a thick enough wall to allow for the cutting of threads so it can be screwed together with threaded couplings. In my career as a union-electrician, I have run tons and tons of rigid electrical conduit, and have also used the same tools used for it to run gaspipe in some homes.

Gas pipe and rigid electrical conduit are low-carbon steel, they can be bent with a hand bender, usually gas pipe is not bent in installations, but electrical conduit always is bent because it saves money on expensive fittings and also because wire has to be pulled through it and it needs a radius bend to make that possible.

There is also thin-wall electrical tubing which is also low-carbon and easily bent, but it's thin walls would make it unsuitable for structural use as in a bicycle because it would probably bend very easily just from the pedaling force on a bottom-bracket.
,
The tubing used in constructing bicycle frames of lugged-frame bikes is high carbon steel, so it has a spring-like property to it, as springs themselves are made of spring-steel, which is high-carbon steel hardened to the degree where it will spring and not break. Moving up the ladder would be chrome-moly frame tubing, which has chromium and molybdenum added to the high-carbon steel, 4130 is a chrome-moly steel.

Lugged-frame bikes with high-carbon or chromoly frames will typically have non-butted tubes with a straight wall thickness close to 1 millimeter, or about .039". A butted alloy steel frame will have frame tubes that are close to one-mm at the ends and in the middle can be almost half that thickness.

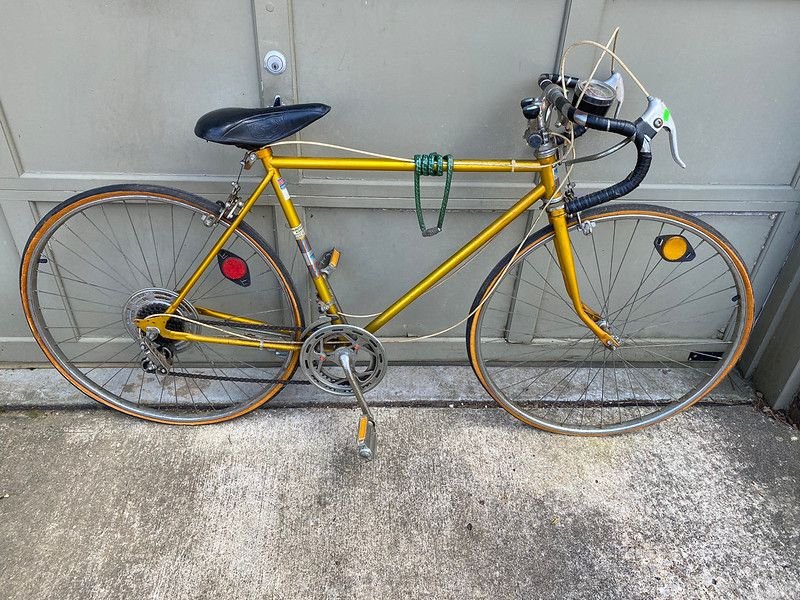

Today I measured the wall-thickness of a 40+ year-old Huffy ten-speed frame I had cut up for parts with a vernier caliper and it was a solid .075" thick, almost two-mm or almost twice as thick and heavy as the tubing used on a high-end lugged frame bicycle. It is easy to see why a ten-speed frame made of tubing this thick would weigh more than twice as much as a high quality Columbus SL frame, which is why my Columbus framed Schwinn supersport weighs about ten pounds less than my Huffy ten-speed bike.

I also used to work in a metal distribution center/fab shop, employed as a fabricator/welder/machinist, and had my hands on a lot of different types of steel tubing and countless other types of metal products, which gives me some insight into how bicycles are fabricated.

So when someone tells me a bicycle is made of gas-pipe, I have a very real-world idea and expectation for what it's frame material should be, and that would be very heavy wall low-carbon steel. Not thick enough to be threaded, because the last piece of rigid electrical conduit I measured had a .150" wall, twice as thick as a Huffy frame tube, but it's frame should have tubing with a wall thickness about twice that of most lugged bikes, and be about twice as heavy as the frame of any higher priced bicycle with chromoly straight gauge or butted tubing.

Last edited by beng1; 01-25-23 at 08:05 PM. Reason: corrected typo
beng1 is offline
Likes For beng1:
Old 01-25-23, 03:11 PM
  #104
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,640

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1317 Post(s)
Liked 880 Times in 616 Posts
Safe to say then that there are no actual gas-pipe bicycles.

I always figured as much, seeing the "gas-pipe" description of bike tubing as simply being a derogatory exaggeration.

But we can perhaps broadly categorize frame steel as either "gas-pipe", "conduit" or "boutique", depending on whether the frame uses 1" tubing, or depending on whether or not the steel has significant alloying elements in it, or whether it is butted, respectively.
Good enough when we're drinking.
dddd is offline
Likes For dddd:
Old 01-25-23, 03:21 PM
  #105
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 801

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 321 Times in 228 Posts
Originally Posted by beng1 View Post
Today I measured the wall-thickness of a 40+ year-old Huffy ten-speed frame I had cut up for parts with a vernier caliper and it was a solid .75" thick, almost two-mm . . . . .
Last time I checked, .75" is the same as 3/4" - or a bit over 19mm (19.05mm, to be precise).
Hondo6 is online now
Old 01-25-23, 03:25 PM
  #106
HelpSingularity
Junior Member

HelpSingularity's Avatar

Join Date: Jun 2022
Location: San Diego
Posts: 165

Bikes: 1974 Masi GC, 1982 Trek 728, 1992 Trek Multitrack 750

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 93 Times in 64 Posts
I love the title of this thread: "Gas pipe love and other depravities"
HelpSingularity is offline
Likes For HelpSingularity:
Old 01-25-23, 03:29 PM
  #107
HelpSingularity
Junior Member

HelpSingularity's Avatar

Join Date: Jun 2022
Location: San Diego
Posts: 165

Bikes: 1974 Masi GC, 1982 Trek 728, 1992 Trek Multitrack 750

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Liked 93 Times in 64 Posts
Originally Posted by Hondo6 View Post
Last time I checked, .75" is the same as 3/4" - or a bit over 19mm (19.05mm, to be precise).
He just forgot to add the 0 in front of the 7.
HelpSingularity is offline
Likes For HelpSingularity:
Old 01-25-23, 03:30 PM
  #108
Hondo6
Senior Member

Join Date: Sep 2021
Location: SW Florida, USA
Posts: 801

Bikes: Yes

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 306 Post(s)
Liked 321 Times in 228 Posts
Originally Posted by HelpSingularity View Post
He just forgot to add the 0 in front of the 7.
Really? I thought that was just another "negligible" difference that could be ignored.
Hondo6 is online now
Likes For Hondo6:
Old 01-25-23, 03:50 PM
  #109
Trakhak
Senior Member

Trakhak's Avatar

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,640
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1412 Post(s)
Liked 1,420 Times in 826 Posts
Originally Posted by beng1 View Post
The pipe used for gas-pipe in homes is very similar to rigid electrical conduit. Both are threaded on construction sites using the same equipment, usually Ridgid brand pipe cutting and threading equipment. This pipe has a thick enough wall to allow for the cutting of threads so it can be screwed together with threaded couplings. In my career as a union-electrician, I have run tons and tons of rigid electrical conduit, and have also used the same tools used for it to run gaspipe in some homes.

Gas pipe and rigid electrical conduit are low-carbon steel, they can be bent with a hand bender, usually gas pipe is not bent in installations, but electrical conduit always is bent because it saves money on expensive fittings and also because wire has to be pulled through it and it needs a radius bend to make that possible.

There is also thin-wall electrical tubing which is also low-carbon and easily bent, but it's thin walls would make it unsuitable for structural use as in a bicycle because it would probably bend very easily just from the pedaling force on a bottom-bracket.
,
The tubing used in constructing bicycle frames of lugged-frame bikes is high carbon steel, so it has a spring-like property to it, as springs themselves are made of spring-steel, which is high-carbon steel hardened to the degree where it will spring and not break. Moving up the ladder would be chrome-moly frame tubing, which has chromium and molybdenum added to the high-carbon steel, 4130 is a chrome-moly steel.

Lugged-frame bikes with high-carbon or chromoly frames will typically have non-butted tubes with a straight wall thickness close to 1 millimeter, or about .039". A butted alloy steel frame will have frame tubes that are close to one-mm at the ends and in the middle can be almost half that thickness.

Today I measured the wall-thickness of a 40+ year-old Huffy ten-speed frame I had cut up for parts with a vernier caliper and it was a solid .75" thick, almost two-mm or almost twice as thick and heavy as the tubing used on a high-end lugged frame bicycle. It is easy to see why a ten-speed frame made of tubing this thick would weigh more than twice as much as a high quality Columbus SL frame, which is why my Columbus framed Schwinn supersport weighs about ten pounds less than my Huffy ten-speed bike.

I also used to work in a metal distribution center/fab shop, employed as a fabricator/welder/machinist, and had my hands on a lot of different types of steel tubing and countless other types of metal products, which gives me some insight into how bicycles are fabricated.

So when someone tells me a bicycle is made of gas-pipe, I have a very real-world idea and expectation for what it's frame material should be, and that would be very heavy wall low-carbon steel. Not thick enough to be threaded, because the last piece of rigid electrical conduit I measured had a .150" wall, twice as thick as a Huffy frame tube, but it's frame should have tubing with a wall thickness about twice that of most lugged bikes, and be about twice as heavy as the frame of any higher priced bicycle with chromoly straight gauge or butted tubing.
Great information. Thanks. I don't believe there's been an earlier post by anyone on Bike Forums that discussed the characteristics of low-carbon versus high-carbon steel in bike fabrication. Certainly not in anything like this depth. There's a lot to digest here.

On this topic, I've always wondered whether the first steel bikes were literally built with gas pipe, i.e., with pipe that was conveniently available for use in bike fabrication because it was already being manufactured in great quantities for use in the distribution of gas throughout towns and cities for use in commercial and residential properties, in street lighting, etc. (A standard dimension for the outer diameter of both gas pipes and bike tubing in the 19th century was one inch, I believe.) So I just did a search and found this:

"By the early 1800's, Paris and London had installed gas lamps along their streets. The added light increased accessibility and demand for nighttime activities, changing the nighttime culture from one of shutting oneself in to going out and socializing with others."

Coincidentally, I learned only yesterday that the first patent for a more or less modern bicycle (crank drive, rotating pedals rather than stationary pegs, etc.) was issued in 1866, in my home town of New Haven.

I guess that explains why bike manufacturers are said to use gas pipe. If bikes had come first, would my gas stove use bike pipes?
Trakhak is offline
Likes For Trakhak:
Old 01-25-23, 06:25 PM
  #110
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,640

Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1317 Post(s)
Liked 880 Times in 616 Posts
Originally Posted by Trakhak View Post
Great information. Thanks. I don't believe there's been an earlier post by anyone on Bike Forums that discussed the characteristics of low-carbon versus high-carbon steel in bike fabrication. Certainly not in anything like this depth. There's a lot to digest here.

On this topic, I've always wondered whether the first steel bikes were literally built with gas pipe, i.e., with pipe that was conveniently available for use in bike fabrication because it was already being manufactured in great quantities for use in the distribution of gas throughout towns and cities for use in commercial and residential properties, in street lighting, etc. (A standard dimension for the outer diameter of both gas pipes and bike tubing in the 19th century was one inch, I believe.) So I just did a search and found this:

"By the early 1800's, Paris and London had installed gas lamps along their streets. The added light increased accessibility and demand for nighttime activities, changing the nighttime culture from one of shutting oneself in to going out and socializing with others."

Coincidentally, I learned only yesterday that the first patent for a more or less modern bicycle (crank drive, rotating pedals rather than stationary pegs, etc.) was issued in 1866, in my home town of New Haven.

I guess that explains why bike manufacturers are said to use gas pipe. If bikes had come first, would my gas stove use bike pipes?
I'm not sure about that logic, since later bikes used "aircraft tubing" (and I think that bikes preceded aircraft, if barely).

Earlier (chainless) bikes though used various grades of castings and cold-worked iron or steel, and lots of wood before that.

Aircraft were first to use familiar lightweight steel tubing (why Reynolds 531 was created).
dddd is offline
Old 01-25-23, 08:09 PM
  #111
beng1
Full Member

Join Date: Feb 2014
Posts: 413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 223 Times in 117 Posts
Originally Posted by HelpSingularity View Post
He just forgot to add the 0 in front of the 7.
Right, I corrected the typo, or maybe switching between fractions of a millimeter and English measurements is confusing. A problem us USA people have because our country uses both measurement systems. Even worse, my father was a dealer/racer of British motorcycles and I grew up with British Whitworth and other odd measuring systems. One of the 1970s Norton motorcycles I had used USA. British and metric bolts and nuts all at once, that is how it was made.... !!!
beng1 is offline
Old 01-25-23, 08:26 PM
  #112
beng1
Full Member

Join Date: Feb 2014
Posts: 413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 223 Times in 117 Posts
Originally Posted by Trakhak View Post
Great information. Thanks. I don't believe there's been an earlier post by anyone on Bike Forums that discussed the characteristics of low-carbon versus high-carbon steel in bike fabrication. Certainly not in anything like this depth. There's a lot to digest here.

On this topic, I've always wondered whether the first steel bikes were literally built with gas pipe, i.e., with pipe that was conveniently available for use in bike fabrication because it was already being manufactured in great quantities for use in the distribution of gas throughout towns and cities for use in commercial and residential properties, in street lighting, etc. (A standard dimension for the outer diameter of both gas pipes and bike tubing in the 19th century was one inch, I believe.) So I just did a search and found this:

"By the early 1800's, Paris and London had installed gas lamps along their streets. The added light increased accessibility and demand for nighttime activities, changing the nighttime culture from one of shutting oneself in to going out and socializing with others."

Coincidentally, I learned only yesterday that the first patent for a more or less modern bicycle (crank drive, rotating pedals rather than stationary pegs, etc.) was issued in 1866, in my home town of New Haven.

I guess that explains why bike manufacturers are said to use gas pipe. If bikes had come first, would my gas stove use bike pipes?
I collect old hand tools and have done a lot of research on the early industrial era. I doubt there was a lot of variety in metal tubing until the late 1800s. I had an 1899 Pierce bicycle which had thin-wall carbon steel tubes of a very high quality and it was a very light bike, but it was an exception and not a rule. Most of the steel in the USA came from England until in the mid 1800s the USA started to get steel mills. On a lot of old USA tools you will see them marked "London Spring Steel". The first USA hand-saw manufacturer to get it's own steel mill, and thus the ability to undercut the prices of all it's competitors, was Disston in Pennsylvania, and it quickly put most other saw manufacturers out of business by 1900 because of it and became the largest saw manufacturer on Earth through WWII.

I imagine in the earliest days of bicycle manufacture, with the small choice of metal tubing there was, a lot of the same quality and type of tubing was used for a very wide variety of manufactured items.

I realize that "gaspipe" bike is just a figure of speech, but I wanted to make people aware that the mass-produced department store bicycles made in the USA in the 1970s and earlier, which had butt-welded or brazed frames with no lugs, are a LOT closer to being like real gas pipe than any of the lugged frame bikes, or the tig-welded chromoly mountain-bikes and other bikes.
beng1 is offline
Likes For beng1:
Old 01-25-23, 08:33 PM
  #113
beng1
Full Member

Join Date: Feb 2014
Posts: 413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 223 Times in 117 Posts

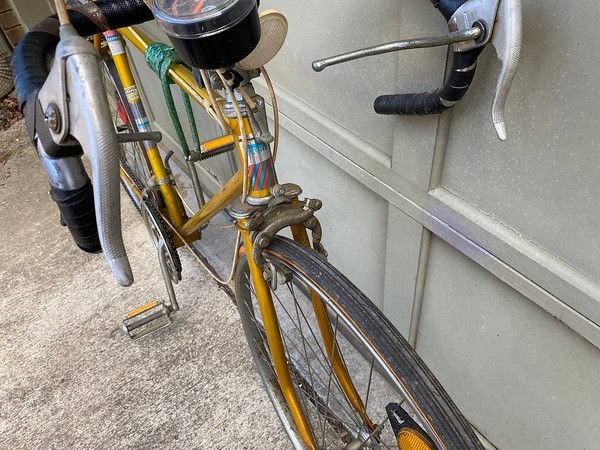

I am particularly proud of my Huffy's solid-steel centerpull brake calipers, wheel hubs, crankset and derailleurs, items which lesser bikes use cheap weak aluminum for;








beng1 is offline
Likes For beng1:
Old 01-26-23, 03:00 AM
  #114
SkinGriz
Live not by lies.

Join Date: Nov 2020
Posts: 895

Bikes: BigBox bikes.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 501 Post(s)
Liked 428 Times in 328 Posts
Originally Posted by beng1 View Post
I collect old hand tools and have done a lot of research on the early industrial era. I doubt there was a lot of variety in metal tubing until the late 1800s. I had an 1899 Pierce bicycle which had thin-wall carbon steel tubes of a very high quality and it was a very light bike, but it was an exception and not a rule. Most of the steel in the USA came from England until in the mid 1800s the USA started to get steel mills. On a lot of old USA tools you will see them marked "London Spring Steel". The first USA hand-saw manufacturer to get it's own steel mill, and thus the ability to undercut the prices of all it's competitors, was Disston in Pennsylvania, and it quickly put most other saw manufacturers out of business by 1900 because of it and became the largest saw manufacturer on Earth through WWII.

I imagine in the earliest days of bicycle manufacture, with the small choice of metal tubing there was, a lot of the same quality and type of tubing was used for a very wide variety of manufactured items.

I realize that "gaspipe" bike is just a figure of speech, but I wanted to make people aware that the mass-produced department store bicycles made in the USA in the 1970s and earlier, which had butt-welded or brazed frames with no lugs, are a LOT closer to being like real gas pipe than any of the lugged frame bikes, or the tig-welded chromoly mountain-bikes and other bikes.
One thing about pipe. I’ve used some pipe under a lot of force the wrong way as a cheater on the end of a spud wrench. None of it ever split.

I’m not overwhelmingly convinced the seam in pipe makes it meaningfully weaker or is enough of a stress riser to be concerned about.

Maybe at the wall thickness of bike frames or if it couldn’t be butted to make a lighter frame because of the seam.

But I think calling low end old bikes “gas pipes” is close enough to reality.
SkinGriz is offline
Likes For SkinGriz:
Old 01-26-23, 04:36 AM
  #115
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Does anyone have the hardness specs on any of the hi-ten tubesets?

Here is one, which is used on my Nervex-lugged Grubb:

Reynolds 'A' Quality 2030 drawn, butted
(U.T.S.: 541 Mpa/ 455 N/mm2)
post-brazing strength: 312 N/mm2 (27,000 psi)
(I don't know the yield strength.)

Last edited by 1989Pre; 01-26-23 at 04:41 AM.
1989Pre is offline
Old 01-26-23, 07:16 AM
  #116
Trakhak
Senior Member

Trakhak's Avatar

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,640
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1412 Post(s)
Liked 1,420 Times in 826 Posts
Originally Posted by beng1 View Post
I collect old hand tools and have done a lot of research on the early industrial era. I doubt there was a lot of variety in metal tubing until the late 1800s. I had an 1899 Pierce bicycle which had thin-wall carbon steel tubes of a very high quality and it was a very light bike, but it was an exception and not a rule. Most of the steel in the USA came from England until in the mid 1800s the USA started to get steel mills. On a lot of old USA tools you will see them marked "London Spring Steel". The first USA hand-saw manufacturer to get it's own steel mill, and thus the ability to undercut the prices of all it's competitors, was Disston in Pennsylvania, and it quickly put most other saw manufacturers out of business by 1900 because of it and became the largest saw manufacturer on Earth through WWII.

I imagine in the earliest days of bicycle manufacture, with the small choice of metal tubing there was, a lot of the same quality and type of tubing was used for a very wide variety of manufactured items.

I realize that "gaspipe" bike is just a figure of speech, but I wanted to make people aware that the mass-produced department store bicycles made in the USA in the 1970s and earlier, which had butt-welded or brazed frames with no lugs, are a LOT closer to being like real gas pipe than any of the lugged frame bikes, or the tig-welded chromoly mountain-bikes and other bikes.
I've come across mentions of "Sheffield steel" here and there over the years. I know nothing about it, so just looked it up. This is the short quotation Google came up with, followed by a pertinent link. Hope you find this interesting.

---The Sheffield steelmaking district had little or no reputation outside the area before Benjamin Huntsman invented crucible steel in 1742. The early steelmakers simply supplied the cutlers, but by the mid nineteenth century nearly half the European output of steel was made in the Sheffield district.

[Edit: "cutler: a person who makes or sells cutlery"]


The South Yorkshire Steel Industry and the Industrial Revolution
Trakhak is offline
Likes For Trakhak:
Old 01-26-23, 10:14 AM
  #117
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Originally Posted by beng1 View Post
I am particularly proud of my Huffy's solid-steel centerpull brake calipers, wheel hubs, crankset and derailleurs, items which lesser bikes use cheap weak aluminum for;
If there is one steel component that should have a following on modern, rim-brake bikes, it is the brake calipers. The next time you are descending gleefully at 40mph and spot a family of geese making their way-cross, 30 feet ahead, you will know why. No flex. On my 1948 show-piece, I have steel hubs, crank-set, b.b., handlebar, 4-sp derailleur, brake calipers and levers, pedals and toe-clips. I could afford aluminum, but I also like to annoy the swells.
1989Pre is offline
Likes For 1989Pre:
Old 01-26-23, 01:21 PM
  #118
beng1
Full Member

Join Date: Feb 2014
Posts: 413
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 442 Post(s)
Liked 223 Times in 117 Posts
Originally Posted by 1989Pre View Post
If there is one steel component that should have a following on modern, rim-brake bikes, it is the brake calipers. The next time you are descending gleefully at 40mph and spot a family of geese making their way-cross, 30 feet ahead, you will know why. No flex. On my 1948 show-piece, I have steel hubs, crank-set, b.b., handlebar, 4-sp derailleur, brake calipers and levers, pedals and toe-clips. I could afford aluminum, but I also like to annoy the swells.
If you look at center-pull brakes, the arm pivot is a lot closer to the brake pad than on side-pull brakes, sometimes about twice as close, so the sidepull arm might have to endure four times the stress of a center-pull arm, because I believe the force on a lever increases exponentially with distance. And many times the arms of early side-pull alloy brake arms are the same size in cross-section as their center-pull cousins. And aluminum being about half the strength of steel, and also much more likely to crack and break from work-hardening under flex, would seem to make an alloy side-pull eight times more likely to break in hard use than a steel centerpull, and four times more likely to break than an alloy centerpull. Modern side-pulls are a lot more compact with shorter beefier arms and I am sure safe. But I have a pair of 70s side-pulls off a Schwinn with very skinny looking arms which I at 200 pounds, do not think I want to gamble on .
beng1 is offline
Old 01-26-23, 01:58 PM
  #119
Trakhak
Senior Member

Trakhak's Avatar

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 3,640
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1412 Post(s)
Liked 1,420 Times in 826 Posts
Unfortunately, the only steel brakes on the market in the modern era are designed and manufactured to reach the lowest possible price point. Quality is barely a consideration. With disc brakes dominating the market for the foreseeable future, we're unlikely to see the return of high-quality steel rim brakes.

Here's a review of a couple of brakes designed by engineers who considered the standard aluminum brakes available road bikes sadly lacking. Great article. Thanks are due to SpeedofLite for posting it.

Equipment/Product Review (1988) SCOTT Superbrake / MATHAUSER Hydraulic Brake

Trakhak is offline
Likes For Trakhak:
Old 01-26-23, 02:15 PM
  #120
zookster
Junior Member

Join Date: May 2022
Location: Dixiana, AL
Posts: 95

Bikes: 1993 Diamond Back Sorrento, 1965 Schwinn Racer 3-speed, 1987 Schwinn High Sierra, 1990 Specialized Sirrus, 1980 Fuji S12-S, 1976 Kabuki Submariner, 2020 Specialized Sirrus 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 190 Times in 53 Posts
I picked up this fine example of mid-70's gas pipe depravity today. Complete with the trifecta of depravities - turkey levers (marked LH and RH just in case you get confused), stem shifters, and horror of horrors a metal dork disc. Additional bonus, a bolt-on kickstand! What sealed the deal for me was the glitter vinyl wrapped combination chain lock that was so common BITD.


Montgomery Ward 10 Speed

zookster is offline
Likes For zookster:
Old 01-26-23, 02:41 PM
  #121
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Originally Posted by beng1 View Post
If you look at center-pull brakes, the arm pivot is a lot closer to the brake pad than on side-pull brakes, sometimes about twice as close, so the sidepull arm might have to endure four times the stress of a center-pull arm, because I believe the force on a lever increases exponentially with distance. And many times the arms of early side-pull alloy brake arms are the same size in cross-section as their center-pull cousins. And aluminum being about half the strength of steel, and also much more likely to crack and break from work-hardening under flex, would seem to make an alloy side-pull eight times more likely to break in hard use than a steel centerpull, and four times more likely to break than an alloy centerpull. Modern side-pulls are a lot more compact with shorter beefier arms and I am sure safe. But I have a pair of 70s side-pulls off a Schwinn with very skinny looking arms which I at 200 pounds, do not think I want to gamble on .
Not only do I employ steel calipers, but I use the Phillips "Monitor" stabilizer, so in times of duress, my fork blades become part of the braking system.
1989Pre is offline
Likes For 1989Pre:
Old 01-26-23, 02:45 PM
  #122
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Originally Posted by zookster View Post
I picked up this fine example of mid-70's gas pipe depravity today. Complete with the trifecta of depravities - turkey levers (marked LH and RH just in case you get confused), stem shifters, and horror of horrors a metal dork disc. Additional bonus, a bolt-on kickstand! What sealed the deal for me was the glitter vinyl wrapped combination chain lock that was so common BITD.


Montgomery Ward 10 Speed

Nice color! I am no fan of dork discs and turkey levers I would probably remove, but I actually like stem-shifters! The tires look nice. Are they useable?
1989Pre is offline
Old 01-26-23, 03:00 PM
  #123
zookster
Junior Member

Join Date: May 2022
Location: Dixiana, AL
Posts: 95

Bikes: 1993 Diamond Back Sorrento, 1965 Schwinn Racer 3-speed, 1987 Schwinn High Sierra, 1990 Specialized Sirrus, 1980 Fuji S12-S, 1976 Kabuki Submariner, 2020 Specialized Sirrus 3.0

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 190 Times in 53 Posts
Originally Posted by 1989Pre View Post
Nice color! I am no fan of dork discs and turkey levers I would probably remove, but I actually like stem-shifters! The tires look nice. Are they useable?

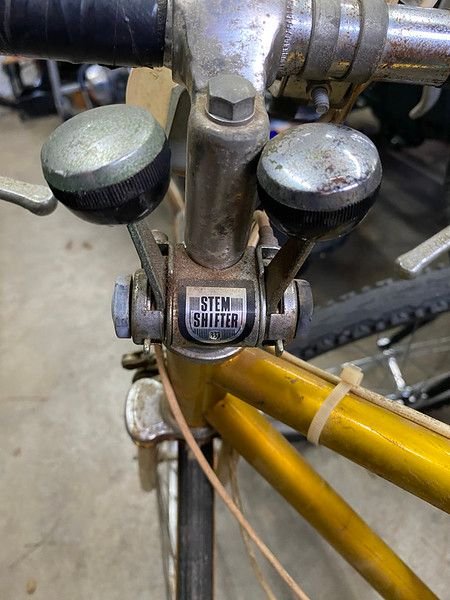

I think the paint will clean up well, it appears to be in decent condition overall. The stem shifters are a style I don't recall seeing before, so they will stay. Disc will stay for now. The turkey levers may have to stay, looks like they are the pivot, not a separate lever like the Dia Compe or Weinmann brakes I have had on others.

Tires are in poor condition, may be ok for a test ride but not much more. Holding air for now at least.



zookster is offline
Likes For zookster:
Old 01-26-23, 03:04 PM
  #124
1989Pre
Standard Member

Join Date: Apr 2009
Location: Brunswick, Maine
Posts: 3,299

Bikes: 1948 P. Barnard & Son, 1962 Rudge Sports, 1963 Freddie Grubb Routier, 1980 Manufrance Hirondelle, 1983 F. Moser Sprint, 1989 Raleigh Technium Pre, 2001 Raleigh M80

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 897 Post(s)
Liked 242 Times in 154 Posts
Originally Posted by zookster View Post
I think the paint will clean up well, it appears to be in decent condition overall. The stem shifters are a style I don't recall seeing before, so they will stay. Disc will stay for now. The turkey levers may have to stay, looks like they are the pivot, not a separate lever like the Dia Compe or Weinmann brakes I have had on others.

Tires are in poor condition, may be ok for a test ride but not much more. Holding air for now at least.



Chrome fork crown, too. That's pretty cool.
1989Pre is offline
Likes For 1989Pre:
Old 01-26-23, 04:54 PM
  #125
Murray Missile
Senior Member
Thread Starter

Murray Missile's Avatar

Join Date: Jun 2013
Location: 700 Ft. above sea level.
Posts: 3,017

Bikes: Not as many as there were awhile ago.

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 969 Times in 482 Posts
Originally Posted by 1989Pre View Post
Chrome fork crown, too. That's pretty cool.
It's a chrome sheet metal cap.
__________________
".....distasteful and easily triggered."
Murray Missile is offline
Likes For Murray Missile:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
