Let's chat about coaster brakes

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Let's chat about coaster brakes

Old 01-18-23, 10:23 AM
  #1
markk900
Senior Member
Thread Starter

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,467
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 425 Times in 227 Posts
Let's chat about coaster brakes

In the 3 speed thread there was a little digression about coaster brakes, but it seemed to deserve a thread of its own.....so lets talk about our experiences of coasters.

I'll start: my wife's uncle had a 1938 CCM Road Racer (bought used in 1940), which we inherited when he passed. It was originally equipped with a flip flop rear wheel (single speed fixed/freewheel) and likely a Phillips "Center Pull" brake. As he aged he seemed to want something a little easier to control, so in the late 70s he took it to a bike shop that swapped out the original wheels and installed a coaster brake rear wheel (and flipped the bars upside down!). When we got the bike, the brake barely worked so I sourced another Phillips centre pull (I believe through the generosity of clubman ), but also cleaned up the hub and installed a new brake cylinder (the old one was definitely worn). Its a Perry B100 hub (though it has no markings and the brake arm is generic). In the other thread, dirtman noted he had several bikes pass through his hands with this hub and it worked fine. My experience has been that while it works, braking would be better described as "gentle *********** of forward movement". Even with the addition of the hand brake (albeit with very old pads) stopping swiftly is a challenge, and with the coaster on its own it can be downright awful.

While I get that I am a lot heavier than I used to be, it seems to me that the coaster ought to be better than I am experiencing. After all, the entire Marin MTB scene started with clunkers (much heavier bikes) ridden by adults (in size ) and they were smoking the brakes at the bottom of the Repack..... How are others' experience running coasters?

Satisfying "pics or it didn't happen", here's the Road Racer as currently equipped:




Last edited by markk900; 01-18-23 at 10:27 AM.
markk900 is online now
Likes For markk900:
Old 01-18-23, 10:41 AM
  #2
RustyJames
Senior Member

RustyJames's Avatar

Join Date: Mar 2021
Location: Beaverton, OR
Posts: 1,092

Bikes: You had me at rusty and Italian!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Liked 658 Times in 371 Posts
I have a cheap cruiser ca. 1990 with a coaster brake and I serviced everything on the bike including the coaster brake hub and stopping is horrifying. I remember my BMX bikes from my youth being able to lock the rear but not my cruiser. 26” wheel inertia vs. 20”? Boundless energy and weight saving of 40+ years ago? Who knows but I take it very slow on the cruiser.
RustyJames is offline
Likes For RustyJames:
Old 01-18-23, 10:42 AM
  #3
TugaDude
Senior Member

TugaDude's Avatar

Join Date: Nov 2010
Posts: 3,251
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 510 Post(s)
Liked 521 Times in 373 Posts
Coaster brakes take me back to my youth when my bike was a hand-me-down, bronze-colored affair. I think it was probably a Western Flyer, but won't swear to it. It had a banana seat and a coaster brake. No hand brakes at all. From what I remember it stopped on a dime and never gave me any problems. I remember having to replace the front tire once and maybe a tube along the way. Other than that, maintenance was non-existent. Not proud of that, just stating facts. The bike refused to die and I rode it literally every day for some time.

I have a somewhat vague goal of someday building a single speed with a coaster brake. Not sure what bars I'll use, but probably moustache or something which keeps me more upright than standard drops. And I will have at least a front brake "just in case" I'm sure. Don't have a timeline, but it will likely happen. Or not, and that's OK too, I have plenty of other options. But part of me wants to try a coaster brake again. For nostalgia if nothing else. Velomine used to sell a decent wheelset for cheap that featured a rear coaster brake hub. I'll probably go that route if I do it.
TugaDude is online now
Likes For TugaDude:
Old 01-18-23, 12:10 PM
  #4
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,509

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2188 Post(s)
Liked 1,724 Times in 1,071 Posts
I've had the best results with the Fichtel-Sachs/Torpedo brand of coasters, even when on an IGH. I had a TCW 3 that stopped well but of course the brake disengages if you hit a false neutral so that will never do. CCM's seemed to be good when new, Majestic (Montreal) were adequate at best and as mentioned in the English 3 Speeds, the Perry B100 weren't good stoppers in my experience.

Fave is a two speed Duomatic on a 57 Sports with a front backup that's rarely called into use.

clubman is offline
Likes For clubman:
Old 01-18-23, 12:13 PM
  #5
Reynolds 531
Senior Member

Join Date: Oct 2014
Location: Reno nevada
Posts: 638

Bikes: 4 Old school BMX, 6 Klunkers, 5 29er race bikes, 4 restored Sting Rays, Now 3 vintage steel bike being built up

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 160 Times in 85 Posts
I love coaster brakes. I especially love Bendix 2 speed coaster brakes.
Reynolds 531 is offline
Likes For Reynolds 531:
Old 01-18-23, 12:19 PM
  #6
BFisher
Senior Member

Join Date: Aug 2013
Posts: 2,315
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 753 Post(s)
Liked 1,856 Times in 872 Posts
Never had an issue with them if they are a good brake and adjusted well.

On a sporty road bike? Well, no.

But for a cruiser, they are perfectly fine if coupled with a decent front caliper. If you want to lock up the rear wheel with a coaster, slam it like you did before you learned that you "needed" more to have real fun. Some of my best biking memories happened on a coaster brake bike.
BFisher is offline
Old 01-18-23, 12:34 PM
  #7
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 3,056

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 380 Post(s)
Liked 434 Times in 266 Posts
All the recent discussion about coaster brakes is timely and gives me some things to consider. I have a spare coaster brake hub that I was thinking about building into a 27 inch wheel. I may go with a 26 inch mountain bike rim instead. In either case, I will make sure to have an alternate means of braking. Luckily, here in the flatlands, we don't have any stop signs at the bottom of steep hills. I usually just coast to slow down and only use the brakes to complete the stop.
Pompiere is online now
Old 01-18-23, 01:02 PM
  #8
wschruba
Senior Member

Join Date: Sep 2015
Location: New Jersey
Posts: 1,562
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 480 Post(s)
Liked 26 Times in 19 Posts
F&S work well on a flatlands bike, but fall short if you ask them to do panic braking. The Perry (and many of the other "English" copies) are derivatives of that design, which uses a roller clutch to push out the brake shoes...so parts are plentiful. Look for a square axle stub sticking out at the end of the axle, and you'll almost certainly get parts that are exchangeable/functional.

Brakes made on the other side of the "pond" were/are more reliable*, for the most part. The king of coaster brakes, Bendix (first Morrow) just plain have more available power; their design is very close to the mature Shimano (now Histop/KT) that is currently made. The fade resistance of the heavier Morrow hub is astounding (for a coaster brake...), and its shoes are massive compared to the size of the hub. The downside is that Morrow parts were already rare 40 years ago, and are getting even rarer. On the positive side of things, you can literally have a machine shop re-line the shoe assembly, since it is pinned-on bronze.

The final version of the Shimano design, CB-110 (and the slightly-less durable/practically useless KT and Histop, respectively), performs adequately in use. They can easily lock up a 622 wheel.

I've ridden most of the available crop extensively, including getting my hands on a new Velosteel (underwhelming: see F&S comment). The F&S design is an interesting way of accomplishing what the American engineers from Bendix did, but other than rolling more smoothly, I don't think it particularly works well. As noted, "slows down" more than "stops"; sometimes the rollers/pockets have worn, but without new replacements, you have no idea what dimensions you need to hit. Even with new parts, I've found the braking lackluster. Bendix models work nicely, but you must note that you want "red band" models, and definitely not something that came on a smaller wheel. New Departure Model "C" hubs used a more traditional brake setup, but parts are almost non-existent...and they didn't work as well as Bendix/Morrow, anyway. My Morrow (a fairly "young" 77-year-old model) looks rough on the outside, but rolls exceptionally well, with the hubshell riding on ~2" diameter ball tracks. As mentioned before, the absolute limits of braking power are high, and the high mass helps considerably with managing heat. The pedal lash between engagement/braking is on the higher side. The Morrow lives on a mountain bike that is used on the more sedate XC trails in my area.

The much maligned CB-110 is adequate for what you may ask of it. The biggest complaint with it is the tendency to get grabby fast, and the need to regrease it to get it to quiet back down...but if you happen to get it to the squeal point, and keep riding it, the shoes are usually dead. Not a big problem, since the same shoes have been made for something like 50 years, and are cheap. Bevel the leading side of the shoes (remember which way the wheel turns when the brake is operating), and replace the RH hub ball ring/axle bearings with loose bearings, and you will get a reasonably well performing brake.

*Not included: the New Departure Model D. It's neat, but not suited to sport cycling; the friction element is 100% unique to the hub, and is best described as a drag stack from a fishing reel. Neat to own, not a particularly "good" hub. I passed up on a cut-away sales model that a guy was selling at the expo in Philly several years ago, and have regretted it since.
wschruba is offline
Likes For wschruba:
Old 01-18-23, 01:03 PM
  #9
Kobe
Senior Member

Kobe's Avatar

Join Date: Feb 2007
Location: Schwenksville, Pa
Posts: 2,811

Bikes: '80 Mercian Olympic, '07 Rivendell AHH, '16 Clockwork All-Rounder, '22 New Albion Privateer

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 256 Post(s)
Liked 236 Times in 146 Posts
I love those wing nuts on the CCM, if I ever do this I'll definitely be adding those.
__________________
Kobe is offline
Old 01-18-23, 01:38 PM
  #10
FrejusFlyer
Newbie

FrejusFlyer's Avatar

Join Date: Mar 2018
Posts: 72
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 46 Times in 17 Posts
I've got a Perry 2-Star on this one. Definitely not a great stopper. If I pick up too much speed on a downhill, forget about it. I don't remember having any stopping issues with my old coaster brake equipped Royce Union as a kid back in the 70's. Likely all the extra weight is the issue.

FrejusFlyer is offline
Likes For FrejusFlyer:
Old 01-18-23, 01:42 PM
  #11
nlerner
Senior Member

Join Date: Dec 2005
Posts: 16,251
Mentioned: 433 Post(s)
Tagged: 0 Thread(s)
Quoted: 3291 Post(s)
Liked 4,836 Times in 2,013 Posts
On one of my commuters, I'm running a new Sturmey Archer SRC-3 coaster-brake 3-speed hub. I'm super happy with its performance (though I also run a front brake and tend to use that more than the coaster).
nlerner is offline
Likes For nlerner:
Old 01-18-23, 01:50 PM
  #12
RB1-luvr
I don't know.

RB1-luvr's Avatar

Join Date: May 2003
Location: South Meriden, CT
Posts: 1,351

Bikes: '90 B'stone RB-1, '92 B'stone RB-2, '89 SuperGo Access Comp, '03 Access 69er, '23 Trek 520, '14 Ritchey Road Logic, '09 Kestrel Evoke, '17 Surly Wednesday, '89 Centurion Accordo, '15 CruX, '17 Ridley X-Night

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 241 Times in 145 Posts
servicing coasters is satisfying. I'm a fan of prewar cruisers. I've serviced maybe a dozen different brands including the modern Shimano copy ones (E110?) on dept store bikes. There are mods to improve them which is also fun.

My favorite coaster hubs are the Komet Super and the WWII (black out) New Departure Model D.
RB1-luvr is offline
Likes For RB1-luvr:
Old 01-18-23, 03:03 PM
  #13
markk900
Senior Member
Thread Starter

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,467
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 425 Times in 227 Posts
While I have read lots about 2 speed coasters, how do they actually work? Is it a slow/small backpedal to change gears and a hard stomp to slow down, or ?

Reynolds 531 : Wonderful klunker material!
markk900 is online now
Old 01-18-23, 03:05 PM
  #14
markk900
Senior Member
Thread Starter

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,467
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 425 Times in 227 Posts
Originally Posted by Pompiere View Post
All the recent discussion about coaster brakes is timely and gives me some things to consider. I have a spare coaster brake hub that I was thinking about building into a 27 inch wheel. I may go with a 26 inch mountain bike rim instead. In either case, I will make sure to have an alternate means of braking. Luckily, here in the flatlands, we don't have any stop signs at the bottom of steep hills. I usually just coast to slow down and only use the brakes to complete the stop.
The wheels on the CCM are 27"......the hubs are laced to Rigida steel rims.
markk900 is online now
Old 01-18-23, 03:28 PM
  #15
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 3,056

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 380 Post(s)
Liked 434 Times in 266 Posts
Originally Posted by RB1-luvr View Post
My favorite coaster hubs are the Komet Super and the WWII (black out) New Departure Model D.
I bought a box of loose parts from a closed bike shop several years ago that included more than a dozen black New Departure brake arms. They were NOS with handwritten price tags on them. I made a couple into bottle openers, but I still have several unmolested ones.

Pompiere is online now
Likes For Pompiere:
Old 01-18-23, 03:28 PM
  #16
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,485

Bikes: Yes, please.

Mentioned: 262 Post(s)
Tagged: 0 Thread(s)
Quoted: 1993 Post(s)
Liked 3,217 Times in 1,355 Posts
I grew up with coaster brakes. They were the standard brakes on utility bikes here in Holland BITD. Which was 99% of all bikes. As a kid I rated them higher than those kinda cool but cheap-looking "hand brakes". I had flat spots on my rear tire. Lots of them.
__________________
Perhaps.










non-fixie is offline
Old 01-18-23, 03:47 PM
  #17
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,509

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2188 Post(s)
Liked 1,724 Times in 1,071 Posts
Originally Posted by markk900 View Post
While I have read lots about 2 speed coasters, how do they actually work? Is it a slow/small backpedal to change gears and a hard stomp to slow down, or ?

Reynolds 531 : Wonderful klunker material!
A slight back-pedal engages the gear change, usually about a third of a turn, less if your crank is in a favourable position.. I'm sure it takes about the same time as throwing an SA trigger
clubman is offline
Likes For clubman:
Old 01-18-23, 04:22 PM
  #18
markk900
Senior Member
Thread Starter

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,467
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 402 Post(s)
Liked 425 Times in 227 Posts
Originally Posted by Kobe View Post
I love those wing nuts on the CCM, if I ever do this I'll definitely be adding those.
They are Phillips wingnuts I bought several years ago - probably from the big auction site but can't remember exactly where...... I need to add a wingnut to the brake arm fixing bracket so I can actually remove the wheel without tools.....I mean, a dime will work for the arm fixing screw if needed but it should all be tool-less.
markk900 is online now
Likes For markk900:
Old 01-18-23, 04:45 PM
  #19
BFisher
Senior Member

Join Date: Aug 2013
Posts: 2,315
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 753 Post(s)
Liked 1,856 Times in 872 Posts
@clubman, isn't the F&S Duomatic a marvel? I have one on a German folding bike, 36h, that I really like. I even have one of the little multi wrenches that go with them. I've been tempted to remove it from that bike and build a 700c wheel around it, but I can't bring myself to dismantle the folder.
BFisher is offline
Likes For BFisher:
Old 01-18-23, 04:49 PM
  #20
Schweinhund
Captain Dorkdisk

Join Date: Oct 2022
Location: The CV of California
Posts: 619

Bikes: More than I need, less than I want.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 359 Times in 182 Posts
Originally Posted by markk900 View Post
In the 3 speed thread there was a little digression about coaster brakes, but it seemed to deserve a thread of its own.....so lets talk about our experiences of coasters.

I'll start: my wife's uncle had a 1938 CCM Road Racer (bought used in 1940), which we inherited when he passed. It was originally equipped with a flip flop rear wheel (single speed fixed/freewheel) and likely a Phillips "Center Pull" brake. As he aged he seemed to want something a little easier to control, so in the late 70s he took it to a bike shop that swapped out the original wheels and installed a coaster brake rear wheel (and flipped the bars upside down!). When we got the bike, the brake barely worked so I sourced another Phillips centre pull (I believe through the generosity of clubman ), but also cleaned up the hub and installed a new brake cylinder (the old one was definitely worn). Its a Perry B100 hub (though it has no markings and the brake arm is generic). In the other thread, dirtman noted he had several bikes pass through his hands with this hub and it worked fine. My experience has been that while it works, braking would be better described as "gentle *********** of forward movement". Even with the addition of the hand brake (albeit with very old pads) stopping swiftly is a challenge, and with the coaster on its own it can be downright awful.

While I get that I am a lot heavier than I used to be, it seems to me that the coaster ought to be better than I am experiencing. After all, the entire Marin MTB scene started with clunkers (much heavier bikes) ridden by adults (in size ) and they were smoking the brakes at the bottom of the Repack..... How are others' experience running coasters?

Satisfying "pics or it didn't happen", here's the Road Racer as currently equipped:



I don't recall Perry B100 hubs to be powerfull brakers, not anything like a New Departure (sold to Nankai) or a Bendix red band.
Schweinhund is offline
Likes For Schweinhund:
Old 01-18-23, 05:53 PM
  #21
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,509

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2188 Post(s)
Liked 1,724 Times in 1,071 Posts
Originally Posted by BFisher View Post
@clubman, isn't the F&S Duomatic a marvel? I have one on a German folding bike, 36h, that I really like. I even have one of the little multi wrenches that go with them. I've been tempted to remove it from that bike and build a 700c wheel around it, but I can't bring myself to dismantle the folder.

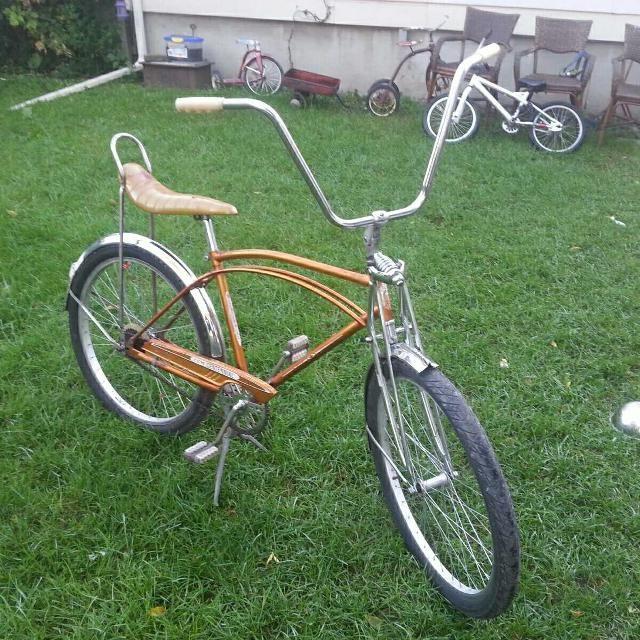

Agreed, wonderful engineering. We see them on CCM roadsters and choppers from the late 60's. 1967 was Canada's Centennial so CCM marketed a couple of Duomatic models ...the Duomatic Chopper and the CCM GT101.. The smaller wheels were 28 holes and the full size bike were 36 iirc. I've scored three of these hubs by keeping my eyes open for these Centennials that are usually rusted to hell...but the hubs clean up like magic.



clubman is offline
Likes For clubman:
Old 01-18-23, 06:07 PM
  #22
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 1,703

Bikes: 1984 Schwinn Supersport, 1988 Trek 400T, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1978 Raleigh Supercourse, 1986 Trek 400 Elance, 1991 Waterford PDG OS Paramount, 1971 Schwinn Sports Tourer, 1985 Trek 670

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Liked 857 Times in 453 Posts

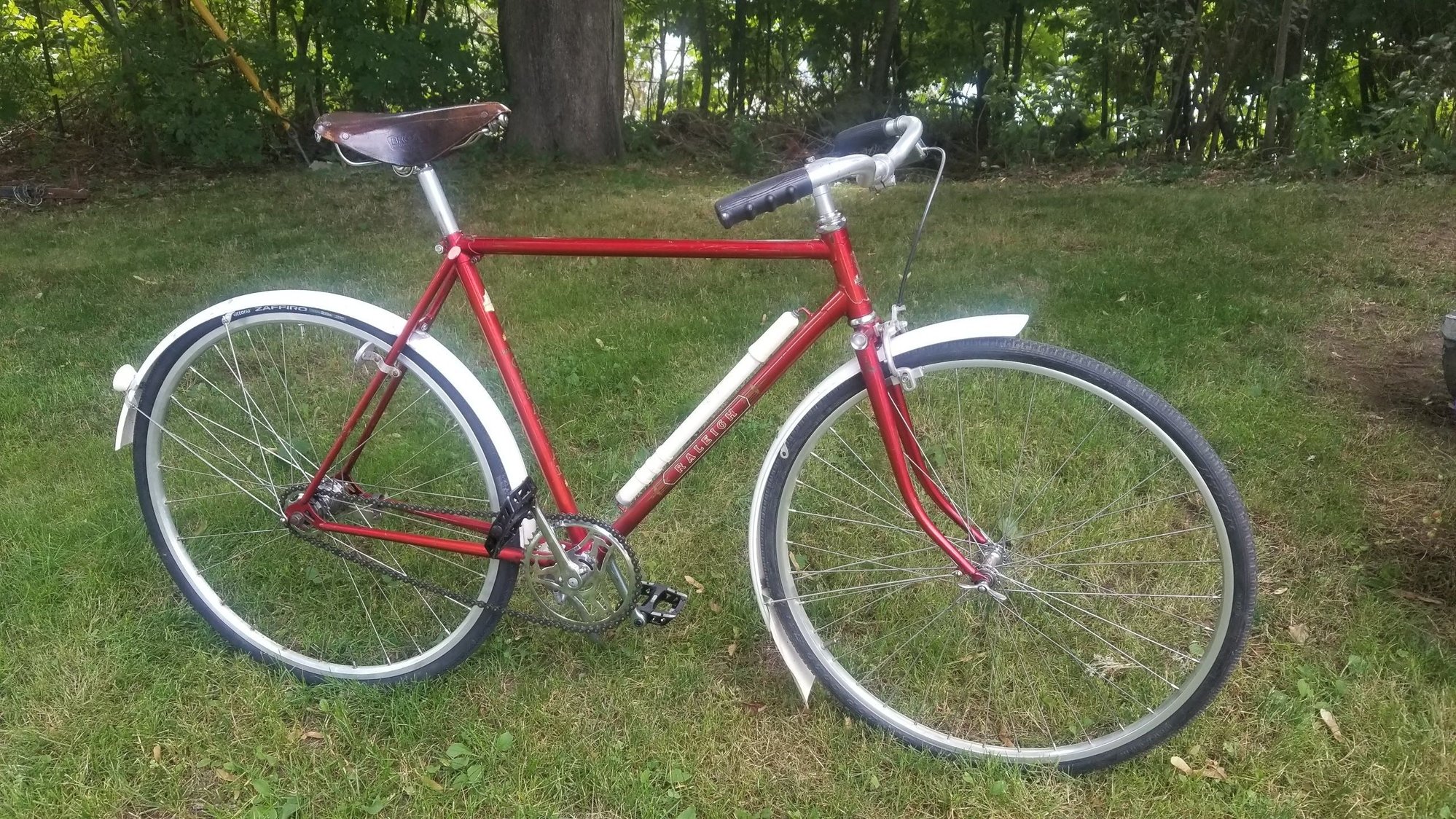

I built this up a couple of years ago, no stopping issues whatsoever, actually find the braking quite impressive. Lots of fun to skid too, if you don’t mind flat spotting the tires a bit.
Tim



1971 Schwinn Sports Tourer

SA 2 speed kickback hub with coaster brake
tkamd73 is offline
Old 01-19-23, 07:15 AM
  #23
clubman
Phyllo-buster

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,509

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2188 Post(s)
Liked 1,724 Times in 1,071 Posts
DIg the brake arm tab. Handsome and minimalist with stance!
clubman is offline
Likes For clubman:
Old 01-19-23, 07:59 AM
  #24
daverup
Senior Member

daverup's Avatar

Join Date: Jun 2019
Location: Michigan USA
Posts: 673

Bikes: A bunch of old bikes.

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 189 Post(s)
Liked 527 Times in 264 Posts
I overhauled a Sturmey Archer S3C on a 76 Fair Lady. The hub was not functioning when I got it. Broken springs, and gummed up everything. Some of the springs for the coaster side seem to be NLA, but reshaping the more commonly available versions seems to be working ok. The coaster brake itself is only average I'd say, not as strong as others.

daverup is offline
Likes For daverup:
Old 01-19-23, 08:21 AM
  #25
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts Unknown
Posts: 7,596

Bikes: Mike Melton custom, 1982 Stumpjumper, Alex Moulton AM, 2010 Dawes Briercliffe, 2017 Dahon Curl i8, 2021 Motobecane Turino 1x12

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1231 Post(s)
Liked 1,021 Times in 620 Posts
The MONē:

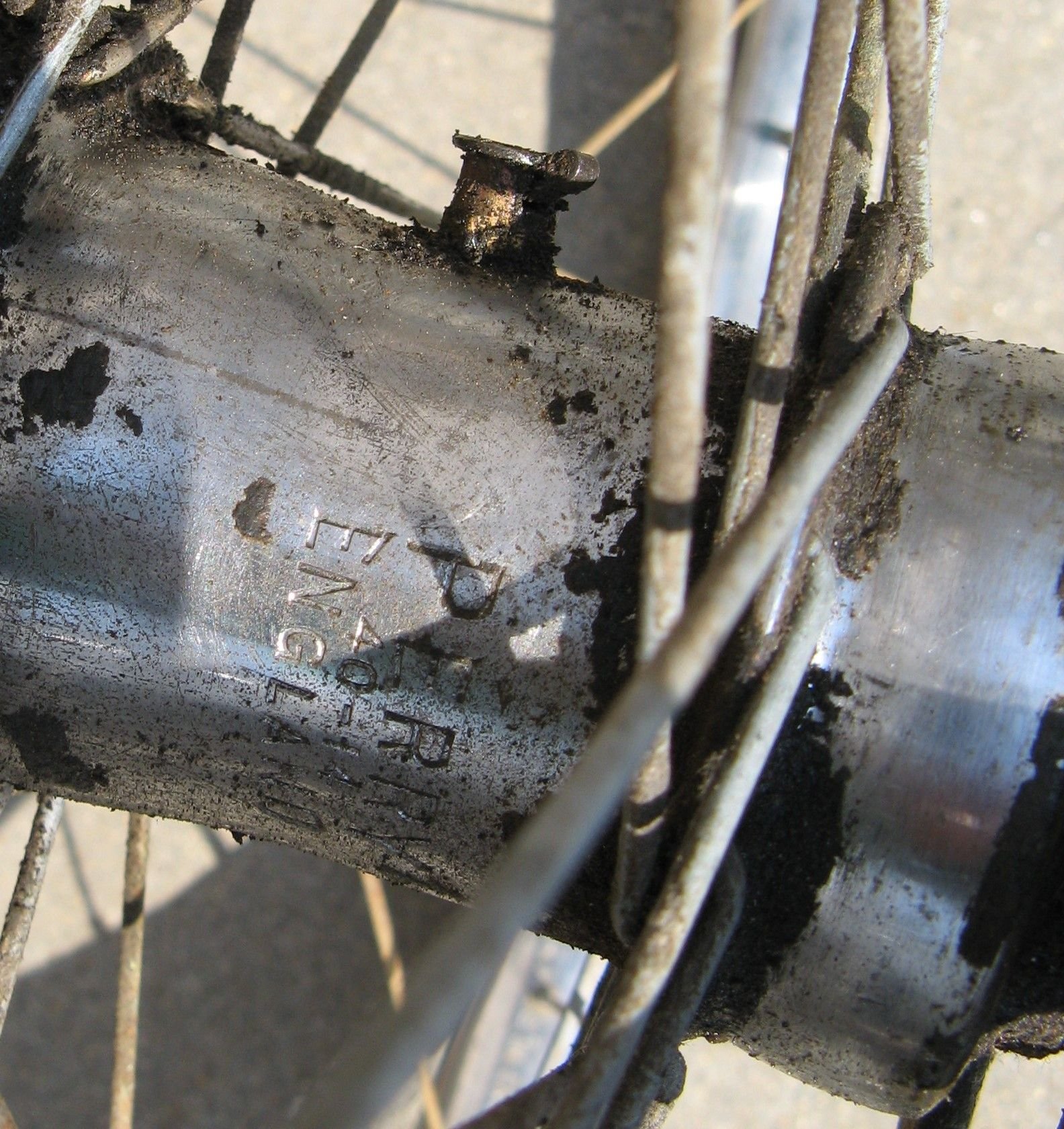

Souped up coaster brake hub ? MON?
tcs is online now
Likes For tcs:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
