Freewheel cogs and steps - High/Low?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Freewheel cogs and steps - High/Low?

Old 01-23-23, 09:17 AM
  #1
AJI125
Full Member
Thread Starter

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 427

Bikes: 1972 Fuji The Finest | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Liked 277 Times in 131 Posts
Freewheel cogs and steps - High/Low?

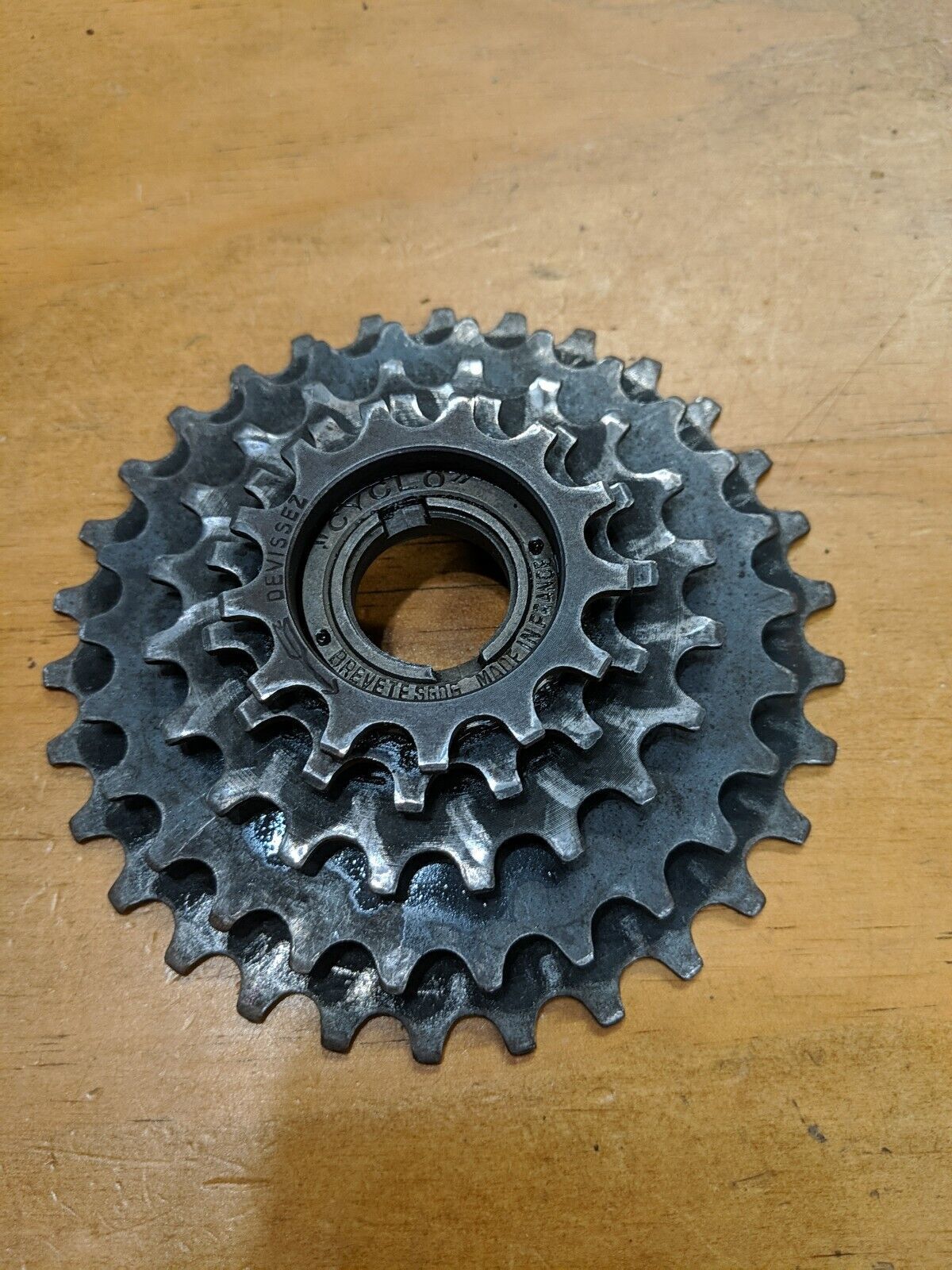

Happened upon this on the 'bay. Thought it was interesting - two close cogs on the low end and high end, and one in between. Enough to give mountaindave nightmares as it's not great for half-stepping, but I guess the benefit is you have nice close gearing when hammering on the flats (if anyone actually does that) or climbing? I guess I could've counted the teeth just to check but I didn't go that far in my curiousity, yet.

But I'm familiar with half-stepping, corncobs, and bailout/alpine setups, just not this configuration. Any experience would be interesting to hear!

https://www.ebay.com/itm/31430155985...mis&media=COPY

AJI125 is offline
Old 01-23-23, 11:02 AM
  #2
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,340

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 1,176 Times in 569 Posts
Be ready for both the mountain climbs and the sprints in the same TdF stage.
pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 01-23-23, 11:11 AM
  #3
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,340

Bikes: Snazzy* Schwinns, Classy Cannondales, Aero Lotus & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 1109 Post(s)
Liked 1,176 Times in 569 Posts
I should also add that the Cyclo is built differently than all other freewheels I've worked on. The pawls and their springs are carried on the outer body and the ratchet teeth are integrated into the inner body. This is the opposite of every other freewheel that I've ever serviced.
__________________
Bob
Enjoying the GA coast all year long!

Thanks for visiting my website: www.freewheelspa.com





pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 01-23-23, 11:50 AM
  #4
hazetguy
saddle angle optimizer

hazetguy's Avatar

Join Date: Nov 2004
Posts: 353
Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1532 Post(s)
Likes: 0
Liked 1,792 Times in 887 Posts
i've had this Suntour freewheel hanging around for a few years. 13 16 20 30 34
i'd seriously consider using it if there's a derailleur that can make that huge jump.



hazetguy is offline
Likes For hazetguy:
Old 01-23-23, 12:14 PM
  #5
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 1,138

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 418 Post(s)
Liked 453 Times in 255 Posts
Not quite as extreme, but I have a nice Suntour narrow spaced 6 speed that was stock on a Trek 412 that is 14-16-19-23-27-30. Nice progressions except for that 27-30 head scratcher. Maybe I’ll try to put a 32 on it sometime.
sd5782 is online now
Old 01-23-23, 01:04 PM
  #6
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 3,056

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 380 Post(s)
Liked 434 Times in 266 Posts
I've wondered about these freewheels myself. They look like they would work best for rolling hills. I live in the flatlands, wind is the only reason for me to swap gears. I do almost all my riding in the 55-75 inch range, so I like the middle gears to be close together so I can find the ideal cadence for the variable wind speed.
Pompiere is online now
Old 01-24-23, 01:11 PM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,281

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1247 Post(s)
Liked 911 Times in 608 Posts
Originally Posted by sd5782 View Post
Not quite as extreme, but I have a nice Suntour narrow spaced 6 speed that was stock on a Trek 412 that is 14-16-19-23-27-30. Nice progressions except for that 27-30 head scratcher. Maybe Iíll try to put a 32 on it sometime.
I once ran 16-18-21-24-26 on a short-cage SunTour Cyclone that could not handle 28T.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 01-24-23, 01:12 PM
  #8
daka
Full Member

Join Date: Nov 2019
Location: SF Bay Area
Posts: 396

Bikes: Raleigh Super Course x2, Raleigh International, Raleigh Gran Sport

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 230 Times in 142 Posts
It is hard to tell if it makes any sense or not without knowing the tooth count of the chainwheeels. It may be that the combinations allow for an evenly spaced sequence of ratios if some of the cross-chaining combinations are usable, like they might be on a bike with long chainstays.
daka is offline
Likes For daka:
Old 01-24-23, 01:13 PM
  #9
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,281

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1247 Post(s)
Liked 911 Times in 608 Posts
Originally Posted by hazetguy View Post
i've had this Suntour freewheel hanging around for a few years. 13 16 20 30 34
i'd seriously consider using it if there's a derailleur that can make that huge jump.



A long-cage SunTour, such as a VGT, could handle that with aplomb.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 01-24-23, 02:03 PM
  #10
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 5,279

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 1612 Post(s)
Liked 2,197 Times in 1,083 Posts
Originally Posted by John E View Post
A long-cage SunTour, such as a VGT, could handle that with aplomb.
It sure could. Any suntour gt I think.
52telecaster is offline
Old 01-25-23, 05:29 AM
  #11
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,773

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 618 Post(s)
Liked 397 Times in 264 Posts
Originally Posted by daka View Post
It is hard to tell if it makes any sense or not without knowing the tooth count of the chainwheeels. It may be that the combinations allow for an evenly spaced sequence of ratios if some of the cross-chaining combinations are usable, like they might be on a bike with long chainstays.
https://www.gear-calculator.com/?GR=DERS&KB=47,52&RZ=13,16,20,30,34&UF=2215&TF=90&SL=2.6&UN=MPH&DV=gearInches

Roller Coaster Gearing
bark_eater is offline
Old 01-25-23, 07:30 AM
  #12
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,281

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1247 Post(s)
Liked 911 Times in 608 Posts
Yes, it sort of works with the once-common 52-47 ring combo, but I don't like the gap spanning the entire 50s to low 60s gear inch range, which I use a lot. This was also my objection with Schwinn's gappy half-step that was standard on some years of Paramounts:
52-49 / 14-16-18-23-26
This is solved easily and cleanly with a 6-speed freewheel, viz:
52-49 / 14-16-18-20-23-26
or 52-47 / 13-16-20-25-30-34 instead of the 5-speed unit shown.
This is also why I put a 13-15-17-20-23-26 ultra-6-speed freewheel on the UO-8, to go with my 45-42 ringset up front.
Side note: I really like logarithmic spacing of gear ratio displays, as provided by that calculator, because what counts is the percentage change from ratio to ratio. When I devise or test a gearset, I always rank the resulting gear-inches or equivalent and then compute the sequence of ratios from one to another, shooting for something like a 5 to 7 percent progression, except possibly at the bottom of the range, and sometimes inevitably at the top of the range (e.g., the 1.5-step gearing I use on two of my road bikes -- the others get half-step).
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
