Need help finding seat post binder bolt for Bottecchia

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Need help finding seat post binder bolt for Bottecchia

Old 01-21-06, 06:29 PM
  #1
PBR Streetgang
Senior Member
Thread Starter

PBR Streetgang's Avatar

Join Date: Jan 2006
Location: SF
Posts: 227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Need help finding seat post binder bolt for Bottecchia

Does anyone know what currently available seat post binder bolt would work with my 70s Bottechia. A picture of the seat cluster is attached. The tabs where the binder bolt attaches are about 21mm across.

Thanks,

Eric
Attached Images
File Type: jpg
Seat Cluster 001.jpg (46.0 KB, 42 views)
PBR Streetgang is offline
Old 01-22-06, 01:35 PM
  #2
markwebb
The Recycled Cycler

markwebb's Avatar

Join Date: Feb 2005
Posts: 2,399

Bikes: Real Steel. Really. Ti is cool, too !

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Since it's Italian, I would bet a Campy NOS seat post binder bolt off eBay would work. There are usually several available @ about $20.
markwebb is offline
Old 01-22-06, 01:56 PM
  #3
CardiacKid
SNARKY MEMBER

CardiacKid's Avatar

Join Date: Jul 2005
Location: South Austin
Posts: 2,829
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
It looks like it uses a Campy. When I got my last bike, the seller hadn't secured all of the parts and apparently 1/2 of the binder bolt fell out of a hole that was torn in the box. I went to my lbs and got a generic bolt. It turned out to be too long. Instead of taking it back and continuing the search, I just cut it to the proper length with my Dremel tool. Cost about $3.
CardiacKid is offline
Old 01-22-06, 05:16 PM
  #4
hubs
@#$% cars

Join Date: Jun 2004
Location: Chicago
Posts: 405

Bikes: '02 Schwinn Frontier;'03 Fisher Tiburon; '04 Raleigh Companion; 04 Dahon SpeedPro; 69 Raleigh Sport fixed

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by CardiacKid
... my Dremel tool. Cost about $3.
Nice deal on the dremel tool!
hubs is offline
Old 01-22-06, 05:51 PM
  #5
CardiacKid
SNARKY MEMBER

CardiacKid's Avatar

Join Date: Jul 2005
Location: South Austin
Posts: 2,829
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
It's amazing the deals you can get on Ebay.
Seriously, if you do have to cut it, you will have to do something to protect the cut end from rusting.
CardiacKid is offline
Old 01-24-06, 12:29 PM
  #6
PBR Streetgang
Senior Member
Thread Starter

PBR Streetgang's Avatar

Join Date: Jan 2006
Location: SF
Posts: 227
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks for the responses
PBR Streetgang is offline
Old 01-24-06, 06:25 PM
  #7
M-theory
Senior Member

M-theory's Avatar

Join Date: Sep 2005
Posts: 309
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a late 70's Botecchia and currently it has a Suigino bolt...but Campy is nicer. Any old-school, notched seat binder bolt from the bike shop will work.
M-theory is offline
Old 02-20-21, 06:10 PM
  #8
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 435

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 142 Times in 90 Posts
Reviving an ancient thread for a related issue:

refurbing a 72 Bottecchia Professional and discovering that the seat lug ears are too narrow to accept a regular campy/sugino pin -- there was a hardware store bolt in there before, and a keyed brake cable hanger needs to be part of the picture, but I am curious if there's something weird about this particular frame or if other Pros/Giros of this era are similar?
niliraga is offline
Old 02-20-21, 07:03 PM
  #9
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Originally Posted by niliraga View Post
Reviving an ancient thread for a related issue:

refurbing a 72 Bottecchia Professional and discovering that the seat lug ears are too narrow to accept a regular campy/sugino pin -- there was a hardware store bolt in there before, and a keyed brake cable hanger needs to be part of the picture, but I am curious if there's something weird about this particular frame or if other Pros/Giros of this era are similar?

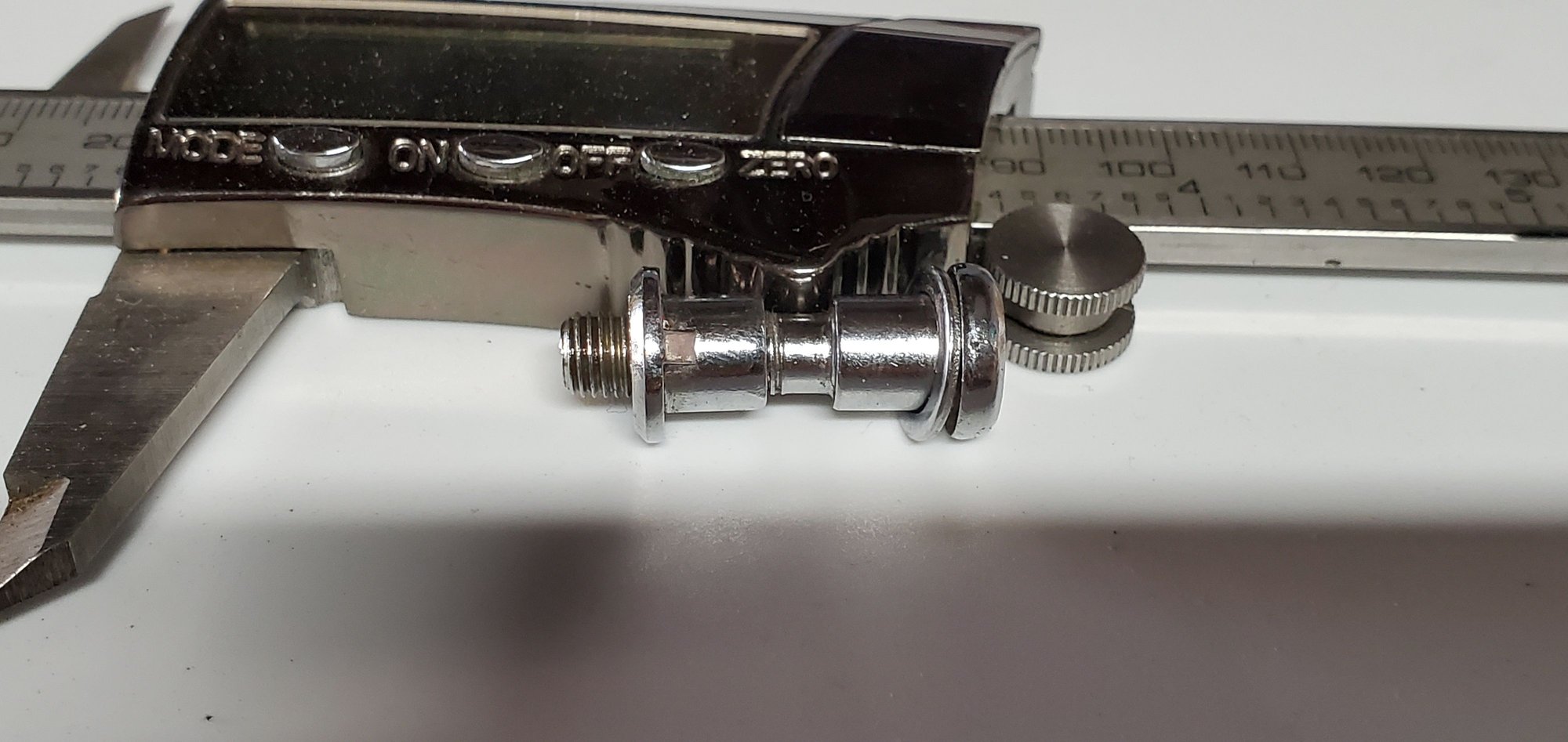

A notched bolt like this one should work..18mm closed...26mm open.

Pm me if you want it.



__________________
88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap



malcala622 is online now
Old 02-20-21, 09:25 PM
  #10
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 435

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 142 Times in 90 Posts
Originally Posted by malcala622 View Post
A notched bolt like this one should work..18mm closed...26mm open.

Pm me if you want it.


thanks -- so that's a slimmer diameter than the "usual" similar-looking pins? realise I may have been ambiguous - the ears are a normalish distance apart, it's just that the hole in them is too small to accept the regular pins that I have. a narrower (and fugly) threaded bolt was in there before....
niliraga is offline
Old 02-20-21, 09:29 PM
  #11
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 3,546

Bikes: 88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 1023 Post(s)
Liked 682 Times in 442 Posts
Originally Posted by niliraga View Post
thanks -- so that's a slimmer diameter than the "usual" similar-looking pins? realise I may have been ambiguous - the ears are a normalish distance apart, it's just that the hole in them is too small to accept the regular pins that I have. a narrower (and fugly) threaded bolt was in there before....

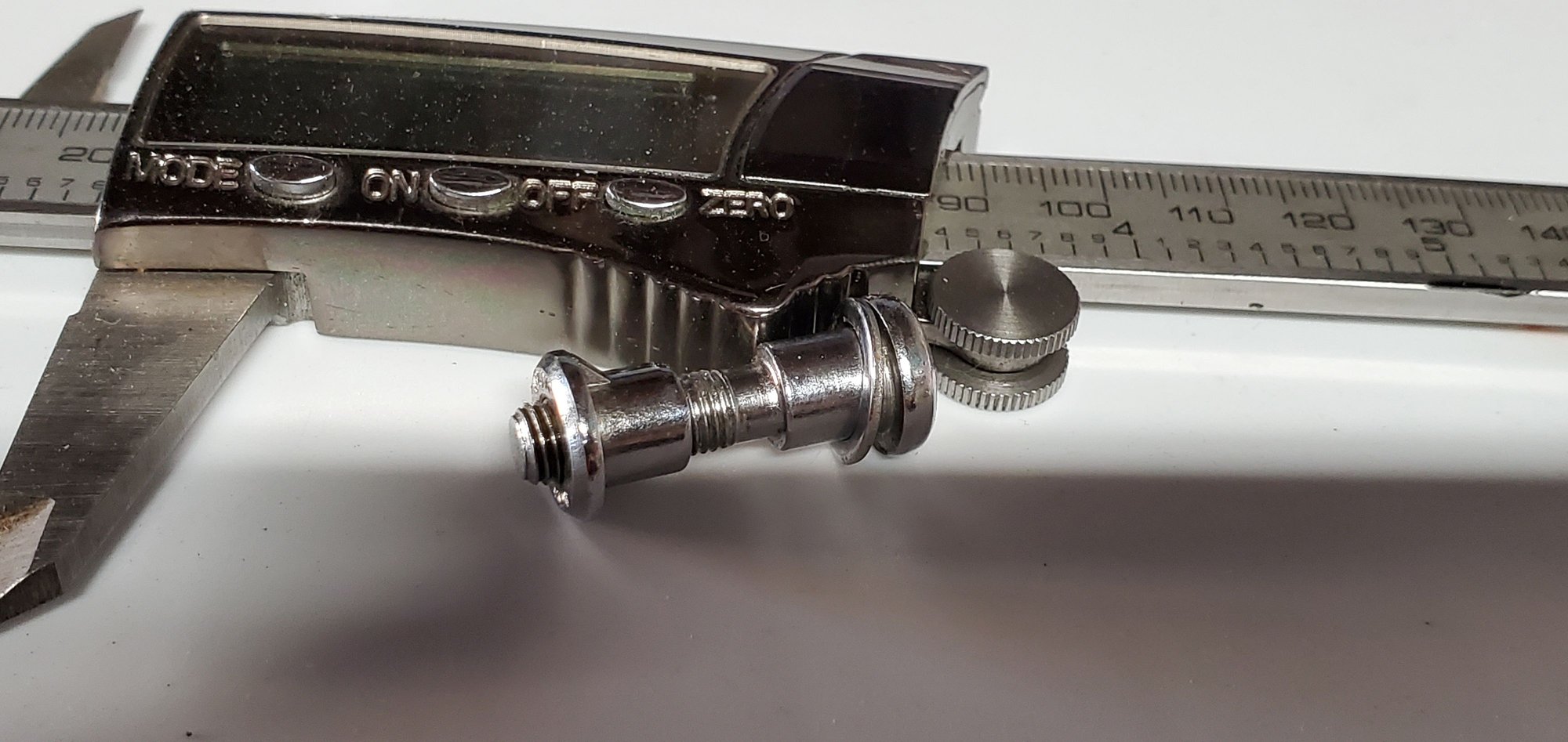

This one measures 8mm thick. If you have digital calipers try measuring the binder bolt hole to verify.
__________________
88' Bianchi Giro. 88' Bianchi Krono. 92' Tommasini Prestige. 80' Gios Torino. 83' Basso Gap



malcala622 is online now
