Old 12-24-10, 01:17 AM
  #1126
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RobbieTunes View Post
Welcome to the forums, by the way.
Glad to have you around.
Thx!

What are your plans for the bike?
There is so much surface-rust on it, that I'll have it blown and painted. Maybe some chrome too. Otherwise I'll pretty much stay with the parts, it rides fine. (Best ride I've ever had, but I have never had any real expensive bikes.) New handlebar-tape and probably a new saddle.

Then I'll ride it!
GamleOle is offline
Old 12-24-10, 07:16 AM
  #1127
EddyR
Senior Member

Join Date: Aug 2007
Location: Locust NC
Posts: 680

Bikes: 1992, Cannondale R900-1988 Cannondale 105- !988 Schwinn Prelude

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 60 Times in 37 Posts
I have seen one of these before. It looked and weighted the same as my Tange 1 1987 ironman.
Ed
EddyR is offline
Old 12-24-10, 07:42 AM
  #1128
T-Mar
Senior Member
Thread Starter

Join Date: Nov 2004
Posts: 23,233
Mentioned: 647 Post(s)
Tagged: 1 Thread(s)
Quoted: 4710 Post(s)
Likes: 0
Liked 2,999 Times in 1,854 Posts
GamleOle,

WSI had signed a five year licensing deal for the use of Dave Scott's name and the Ironman logo. Obviously, WSI did not purchase the rights to usee them in Europe, presumibly because of the extra expense and/or because they felt the names were not as recognizable in Europe (when the deal was originally negotiated in 1984).

The bicycle itself is very interesting. The paint and decals are very similar to the 1987 US market model. Yet it is obviously a 1988 model by virtue of the serial number. In addition to the tubeset, the other sigbifigant variation from the US models is the manufacturer. The US market Centurion had last used that manufacturer in 1980. Thxs for posting.
T-Mar is offline
Old 12-25-10, 06:10 AM
  #1129
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

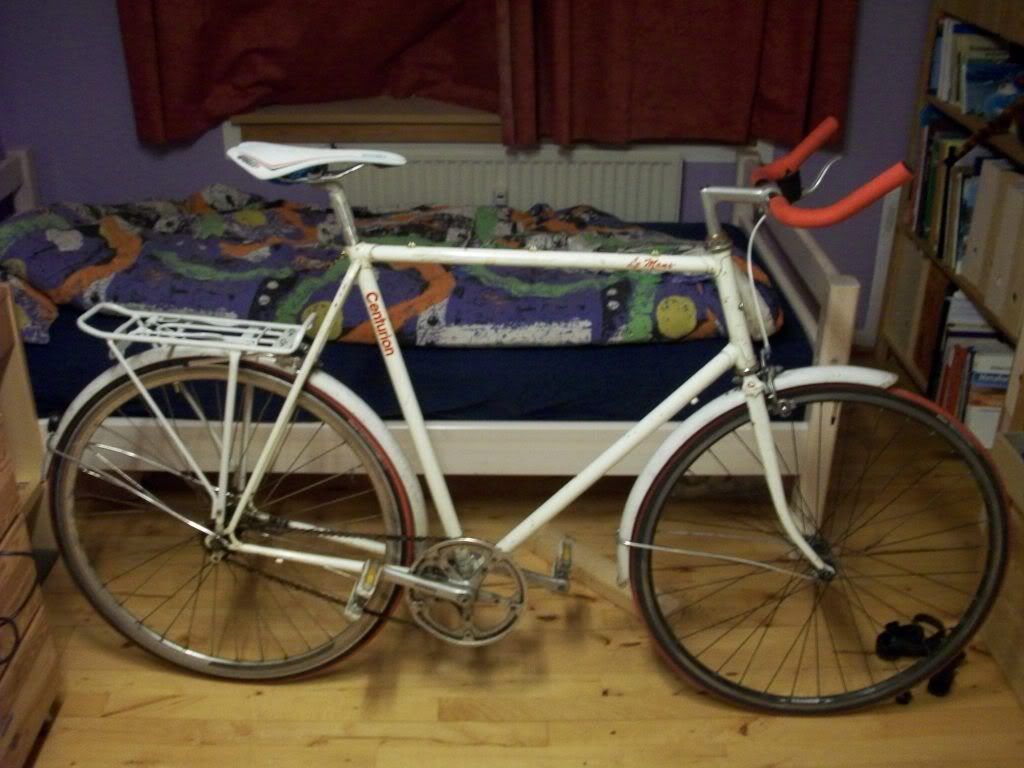

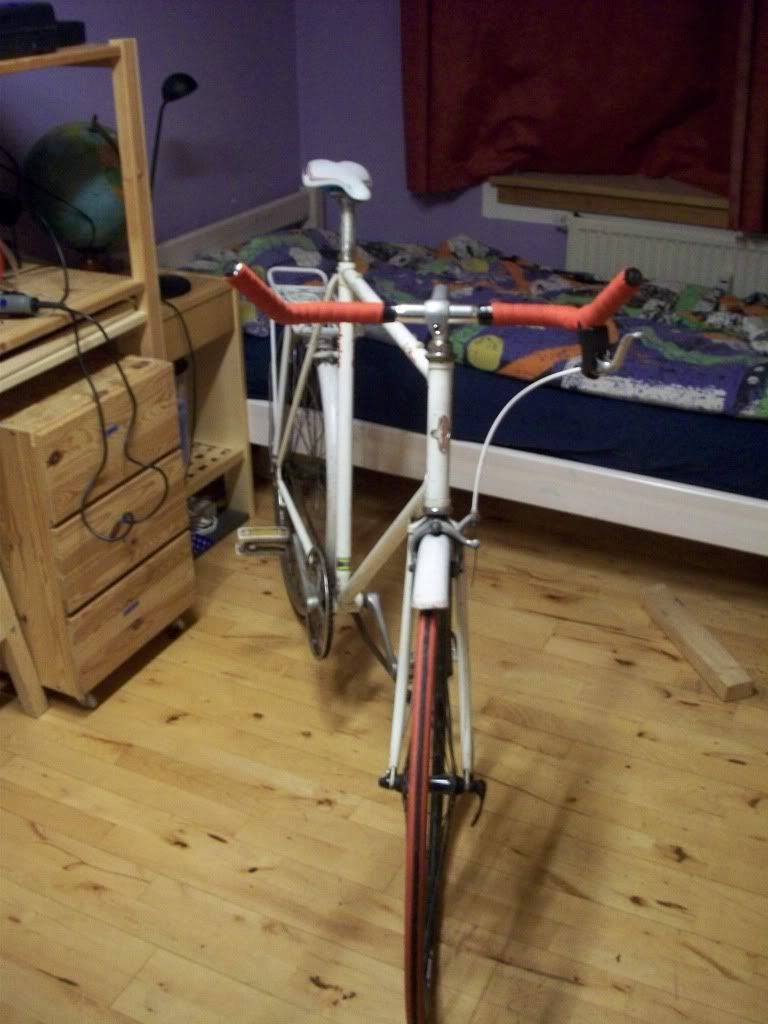

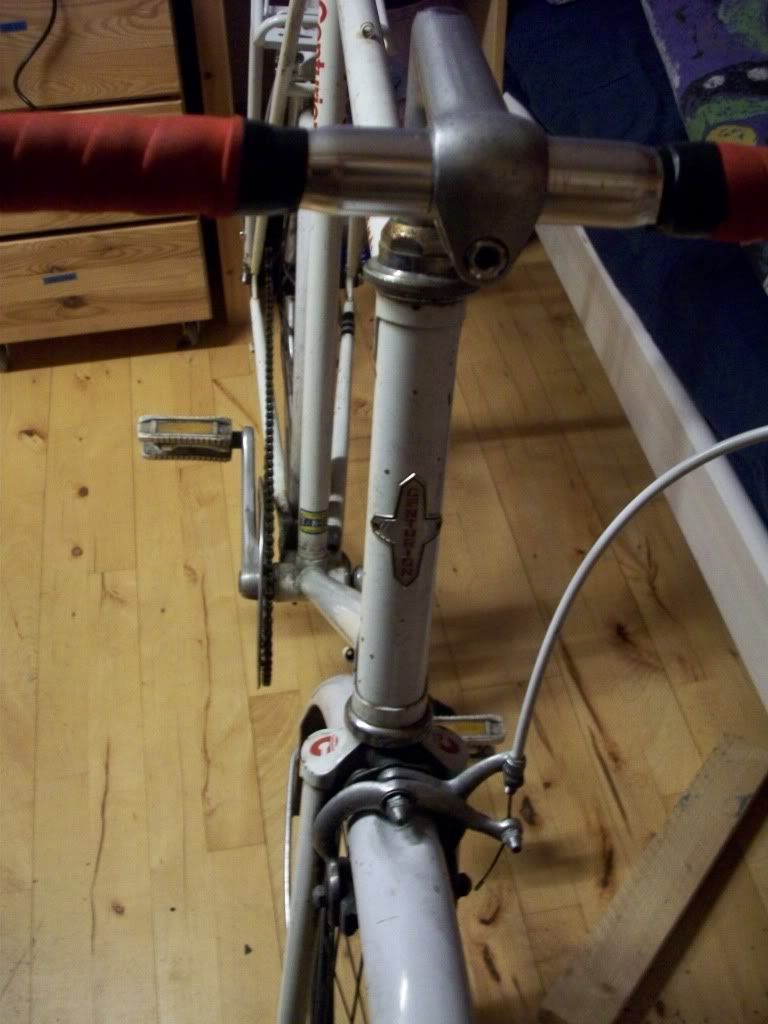

Centurion LeMans

Serial Number: WAK18017A (The last "A" indicating it was imported to Denmark in 1985.)

I've had the bike partially disassembled, and the frame cleaned thoroughly. There is no other serial number.









My daily commuter, taking the brunt of all the ****ty rides.

Frame and fork is Tange Hi-ten.

Things I know are not original:
Entire rear wheel.
Entire front wheel.
Saddle.
Bar-tape.
Hood.
Luggage-carrier. (Enligthen me if it has a more correct name.)

Original things I've replaced:

White Kashimax saddle.
White bar tape.
Leigthweigth Luggage carrier made of steel.
Front wheel.

Original rear-wheel was already replaced when I picked it up. (From original owner.)

Original parts (I feel convinced):

Handlebar: Sakae Custom
Stem: No visible name
Seatpost: Laprade SR
Fenders: No name visible, made of metal.
Headset: No visible name.
Brake, lever and claw: Dia-Compe
Crank-box: Kaita?
Crank-set: Sugino
Original front hub: Suzue 5 B LPF
Original front rim: Araya

Original rear wheel:

I strongly believe the original bike came with this:

A 5-speed internal hub operated by two levers, with the two cables going into each side of the hub. This includes coasting abilety and internal hub-brake.

Reasons for my belief:

- I have seen other bikes with this set-up. One exectly like it, still with the setup. One which had a dropbar, but was otherwise identical, and one with a reverse paint-scheme (red frame, white letters) otherwise identical.
- I removed the remnants of the setup, when I took over the bike.

Semi-relavent rants:

Bikes in Denmark:

Denmark is a small country, and the distances are short.

Therefore, the bulk of danish bikes is not sporting or touring bikes, but bikes for commuting.

The country is filled with dedicated bike-lanes along the roads, and you can bring your bike with you in most trains. In the Copenhagen area, the urban-trains have a special bike-room, and taking the bike with you is free in these trains. You can even bring your bike with the Copenhagen Metro, outside a few rush-hours. (You have to pay a $1½ fare though.)

The Danish population is currently 6 million people, while the number of bikes is estimated to be 4,5 millions.

40 years ago most bikes in Denmark would simply have a single-speed hub with internal coaster brake. This was so much default, that if nothing was mentioned, it was assumed this was the set-up. Bikes with derailleurs were quite uncommon, and internal-gears were just beginning to enter the market.

So most people simply rode, and ride, their bikes for commuting, and didn't care for maintenance and such. And they wanted what they were accustomed too; a coaster brake.

This has made internal gears quite popular in Denmark, and in these days they are on a very large percentage of Danish bikes.

The fact that the "Less maintenance"-argument is much weaker than the "Sum of all bothers"-argument, haven't made in impact.

The bicycle graveyards are full of reasonable bikes, thrown out because the internal gear broke, and it would be to expensive to have it replaced.

To be fair, there is a point in favour of internal gears with coaster brakes, as opposed to derailleur: A coaster brake is more reliable when it is raining/snowing. And it often is in Denmark.

For the reasons stated above, I suspect that many imported bikes are specially "accustomed" to the danish market, including internal gears, fenders and so on.

The Danish serial-number system:

The Danish serial number system was introduced in 1942 (Forty-two, no typo), to discourage bike-theft. Every bike sold from a vendor, outlet etc. must have one. There may be a few imported and/or track-bikes and/or bikes for teams without it.

Originally the system was operated manually. But these days, when a bike is reported stolen, the serial-number is entered into a central database. This database can be checked on-line by the police 24/7.

I have descibed the system in the "Centurion SL Computerized" thread.

A guess could be, that it was simply demanded, that imported frames did not have a second serial number, so as to avoid confusion. And that this is the reason that the Danish Centurion bikes are not engraved with the standard Centurion serial number.

Questions and comments are welcome.

Last edited by GamleOle; 12-25-10 at 06:13 AM. Reason: Forgot a detail.
GamleOle is offline
Old 12-26-10, 08:47 AM
  #1130
T-Mar
Senior Member
Thread Starter

Join Date: Nov 2004
Posts: 23,233
Mentioned: 647 Post(s)
Tagged: 1 Thread(s)
Quoted: 4710 Post(s)
Likes: 0
Liked 2,999 Times in 1,854 Posts
Originally Posted by GamleOle View Post
Serial Number: WAK18017A (The last "A" indicating it was imported to Denmark in 1985.)

I've had the bike partially disassembled, and the frame cleaned thoroughly. There is no other serial number...

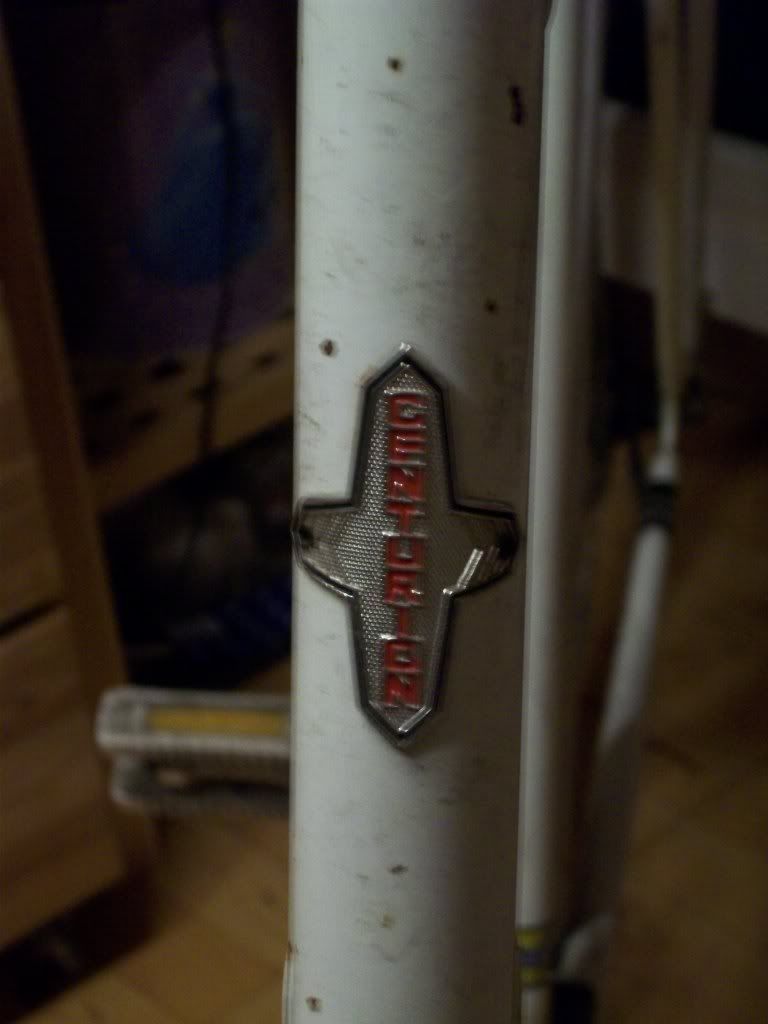

This bicycle appears to be much older than 1985. The head badge and Tange tubing sticker are both representative of the 1970s. By 1985 I would also have expected a set of bottle bosses on a LeMans. The presence of a dropout with integral derialleur hanger would suggest it was orignally intended for a derailleur. These dropouts, in conjunction with other features, would place it late 1970s.

Of course, that is based on North American models. Some discrepancies could be due solely to the market. If it is from the era I suspect, the serial number may be located on the lower seat tube and consist of a letter and three numbers. It would also be intertesting to check the date codes on the components you suspect to be original.
T-Mar is offline
Old 12-26-10, 09:51 AM
  #1131
AZORCH
Senior Member

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Posts: 3,131

Bikes: 1966 Paramount | 1971 Raleigh International | ca. 1970 Bernard Carre | 1989 Waterford Paramount | 2012 Boulder Brevet | 2019 Specialized Diverge

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Liked 72 Times in 37 Posts
Originally Posted by T-Mar View Post
This bicycle appears to be much older than 1985. The head badge and Tange tubing sticker are both representative of the 1970s. By 1985 I would also have expected a set of bottle bosses on a LeMans. The presence of a dropout with integral derialleur hanger would suggest it was orignally intended for a derailleur. These dropouts, in conjunction with other features, would place it late 1970s.

Of course, that is based on North American models. Some discrepancies could be due solely to the market. If it is from the era I suspect, the serial number may be located on the lower seat tube and consist of a letter and three numbers. It would also be intertesting to check the date codes on the components you suspect to be original.
That's exactly the same head badge as my Super LeMans, which I believe we have accurately dated to 1976. T-Mar, I can't see the logotype lettering clearly on the seat tube, but it appears to be a sans serif font, which is a new one for me.
AZORCH is offline
Old 12-26-10, 10:03 AM
  #1132
Robofunc
Senior Member

Robofunc's Avatar

Join Date: Oct 2010
Location: St. Petersburg, FL
Posts: 1,051

Bikes: Schwinn, Bottecchia, Miyata, projects

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

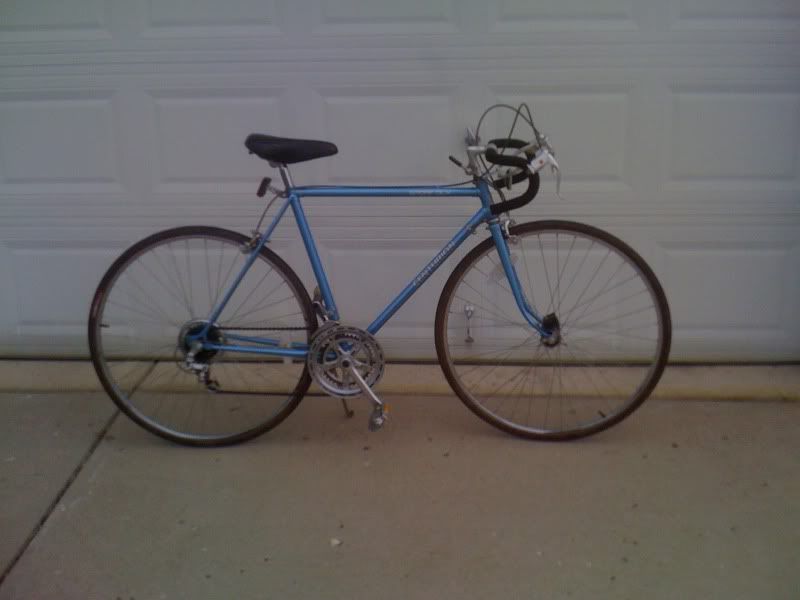

I have an 80s LeMans12, serial number N2N7973. It's got a Tange Champion #5 sticker and most of the components are SunTour Blaze. Check out this thread for photos:

198? Centurion LeMans 12
Robofunc is offline
Old 12-26-10, 10:13 AM
  #1133
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'll be happy to try and help.

Where do I find the production code for:

- Brake
- Seatpost
- Stem
- Original front wheel (Could "5 B LPF" be a date-code for the front hub?)
- Crank-box
- Crank-set

Edit: The original front-rim is a 622/700c (Not a 27"). It still lives in my basement.

Last edited by GamleOle; 12-26-10 at 10:27 AM. Reason: Additional info
GamleOle is offline
Old 12-26-10, 10:36 AM
  #1134
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
And a question:

I am planning on posting a few more Centurions, which also seem to be somewhat odd in correspondence with what I've read about Centurion in North America. They migth shed some more ligth on things, but maybe also confuse things.

Would it be best to post them now/soon, or better to wait a little?
GamleOle is offline
Old 12-26-10, 11:01 AM
  #1135
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 8,115

Bikes: Miyata 618 GT, Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Mondia Special, Univega Alpina, Miyata team Ti, Santa Cruz Highball

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1387 Post(s)
Liked 1,820 Times in 918 Posts
https://www.velobase.com/Default.aspx
curbtender is online now
Old 12-26-10, 04:48 PM
  #1136
jtgotsjets
Senior Member

Join Date: Oct 2004
Location: Toronto, Ontario
Posts: 1,755

Bikes: Miele Azsora, Kuwahara Cascade

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by GamleOle View Post
And a question:

I am planning on posting a few more Centurions, which also seem to be somewhat odd in correspondence with what I've read about Centurion in North America. They migth shed some more ligth on things, but maybe also confuse things.

Would it be best to post them now/soon, or better to wait a little?
now now now!
jtgotsjets is offline
Old 12-28-10, 04:49 AM
  #1137
T-Mar
Senior Member
Thread Starter

Join Date: Nov 2004
Posts: 23,233
Mentioned: 647 Post(s)
Tagged: 1 Thread(s)
Quoted: 4710 Post(s)
Likes: 0
Liked 2,999 Times in 1,854 Posts
Originally Posted by GamleOle View Post
I'll be happy to try and help.

Where do I find the production code for:

- Brake
- Seatpost
- Stem
- Original front wheel (Could "5 B LPF" be a date-code for the front hub?)
- Crank-box
- Crank-set

Edit: The original front-rim is a 622/700c (Not a 27"). It still lives in my basement.
The best source for identifying and decyphering component date codes is the components page of the Vintage-Trek website.
T-Mar is offline
Old 12-28-10, 05:57 AM
  #1138
RobbieTunes
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,399 Times in 904 Posts
pics.pics.pics

post 'em all.

and thanks.
__________________

BLDMAMTAOLD


RobbieTunes is offline
Old 12-28-10, 12:48 PM
  #1139
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Think I've created a misunderstanding, sorry.

Where on the items do I find the code?
GamleOle is offline
Old 12-28-10, 01:34 PM
  #1140
GamleOle
Member

Join Date: Dec 2010
Posts: 31
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

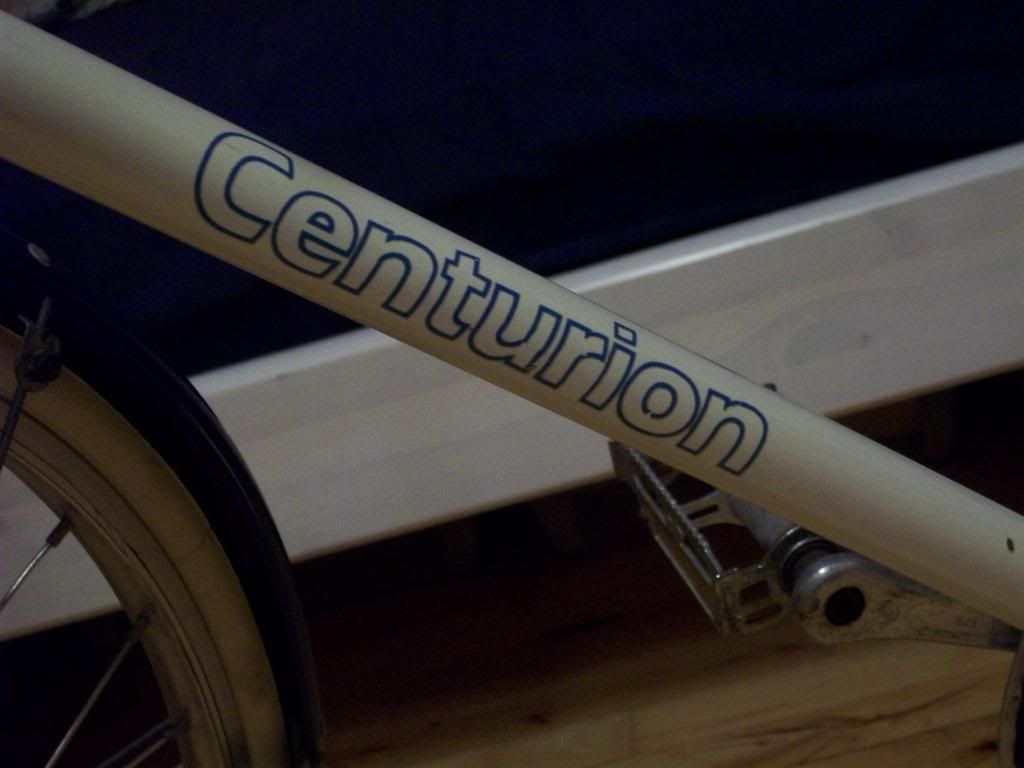

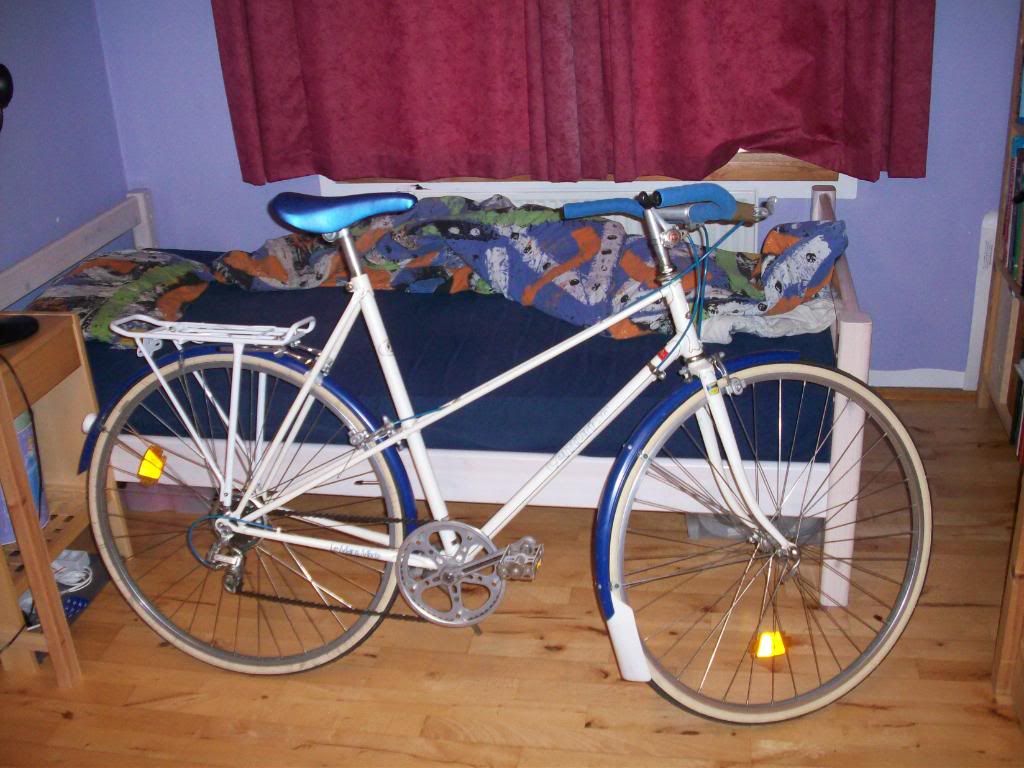

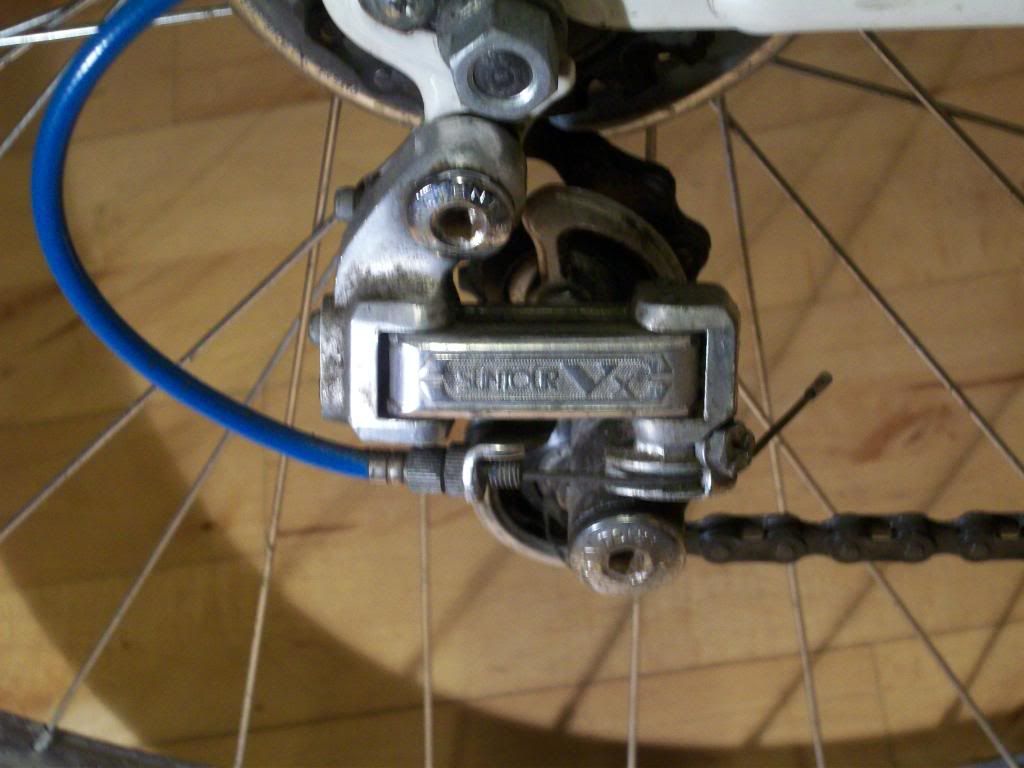

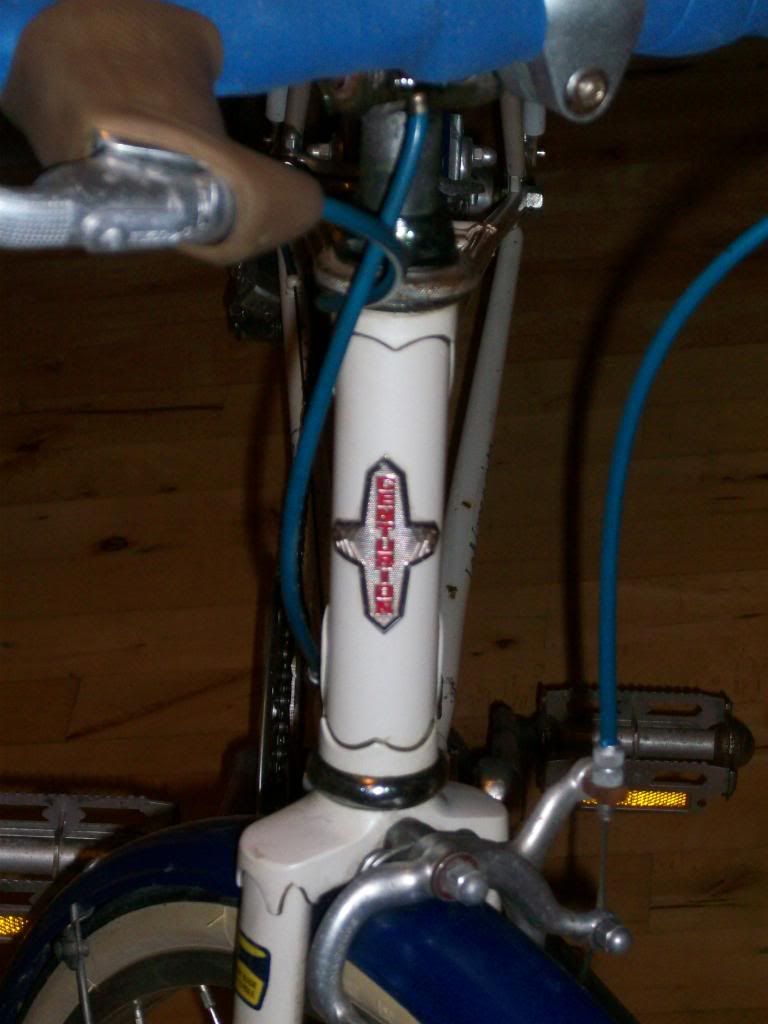

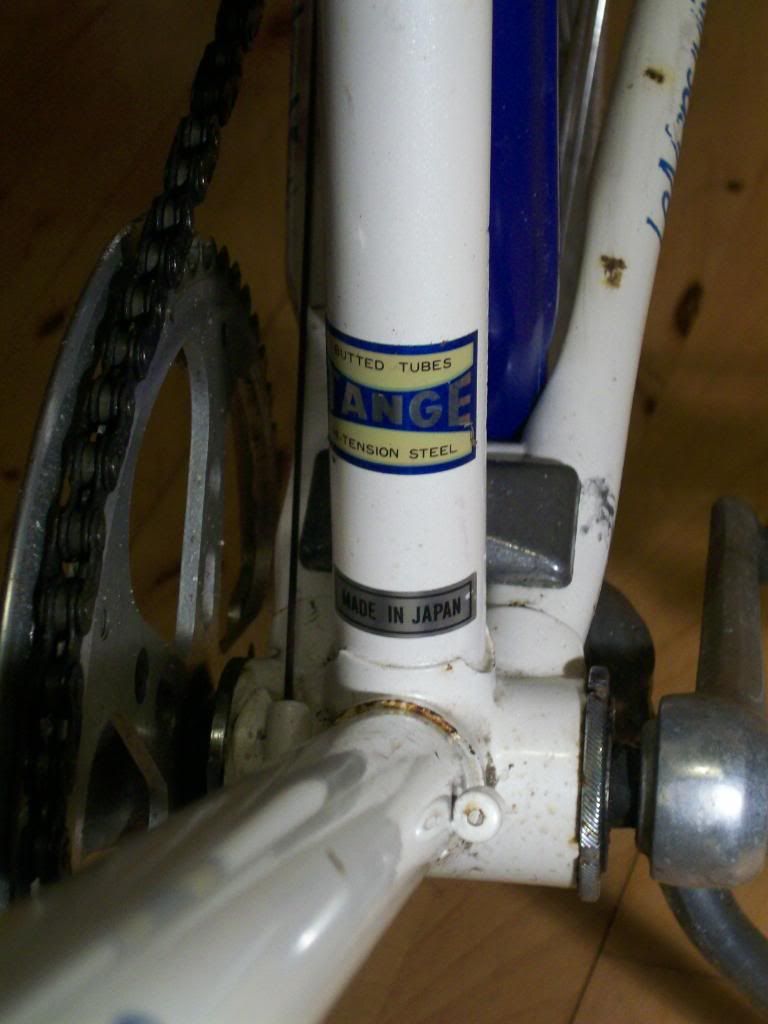

Le Mans Mixte

Serial number: WAK08631V (Indicating it was imported to Denmark in 1982.)

When I picked it up, I had it partially dis-assembled and the frame given a thorough cleaning. I didn't see any other serial-number then. When I took it up for photoing, it was still all clean, and I went over it again. Still nothing.





















Since picking it up, I have removed/replaced:

Bar-tape: Blue
Hoods: Brown (Withered away)
Luggage carrier: Leigthweitgth steel.
Tires.


Other parts:

I strongly suspect all other items (except the reflexes in the wheels) are what was originally on the bike. (It was quite dirty when picked up, but apart from that, well kept. Just look at the saddle.)

Seatpost: No name visible
Saddle: Kashimax. (The same type of saddle, only white and worn out, was on the LeMans above.)
Stem: Says "Centurion" on the front, and has three stylized letters lower on the side facing the rider. Looks like "UIN".
Handlebar: Sakae Custom Road Champion

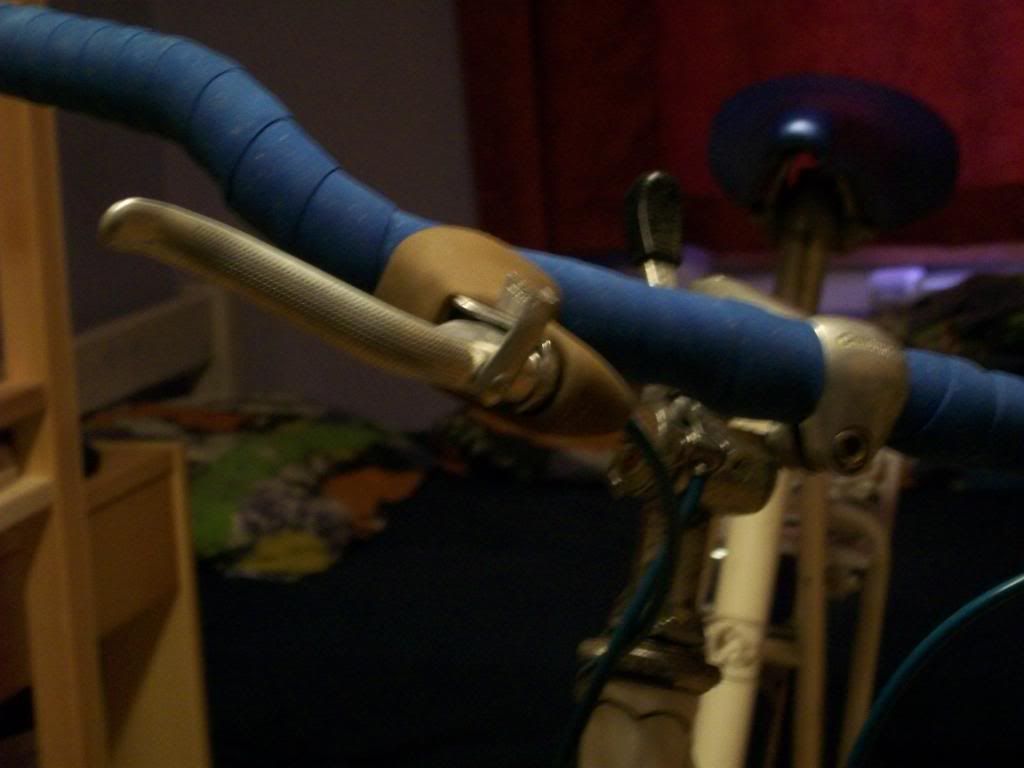

Brakes: Dia-Compe. A smaal engravement on the inside of the levers says "Dia-Compe regular.
Crankset: Sugino (With a centurion decal on the arms)
Rims. ARAYA 27 X 1 1/4 w/o JAPAN
Hubs: Sunshine 5345 (They both have that number, allthough they are obviously front and rear hub, respectively.
Front quick-release: Sunshine Close.

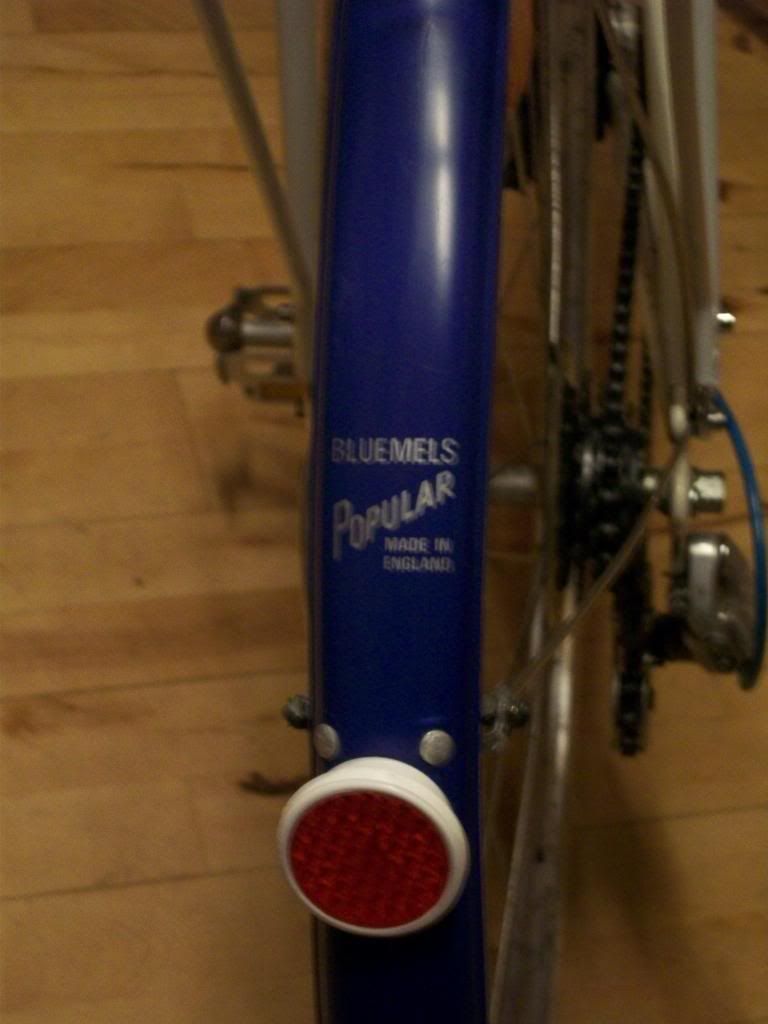

Fenders: Bluemels Popular.

I would believe the fenders were on the bike when it was sold originally. Those things (in many different colours) where a rage in those years here in Denmark, and were on every bike and its brother.

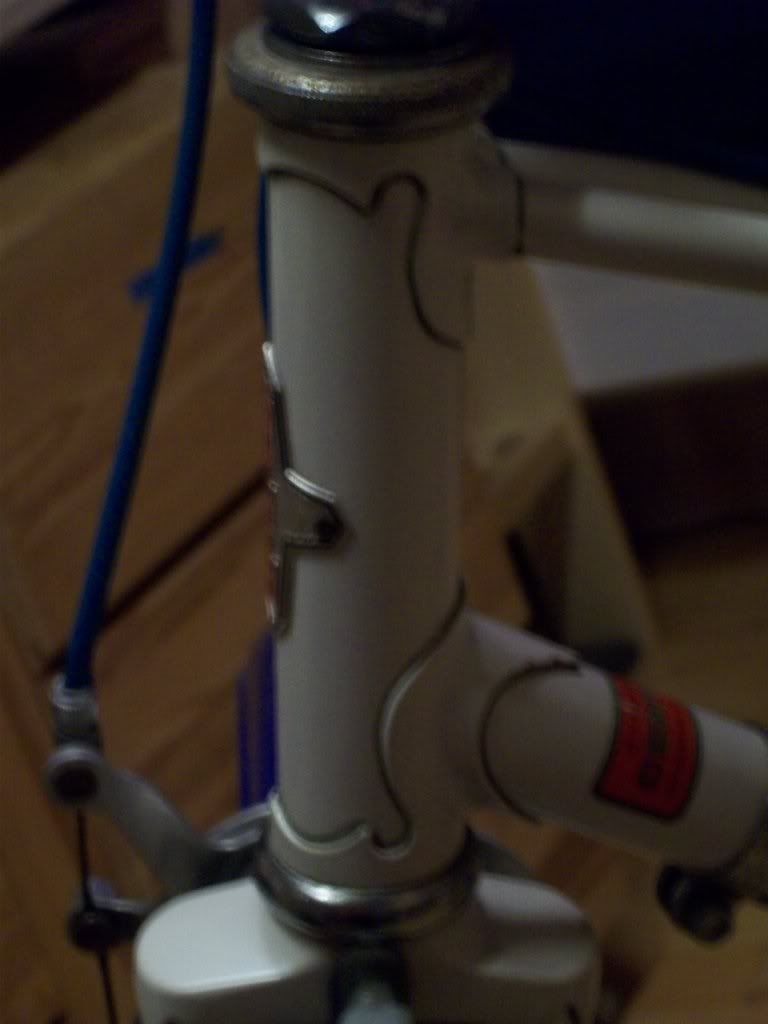

The red decal is from a local danish bicycle-shop.

Comments and questions are welcome.
GamleOle is offline
Old 01-12-11, 05:25 PM
  #1141
Machine Age
Senior Member

Join Date: Oct 2010
Location: Los Angeles CA
Posts: 187
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Here are the specs for the 1985 Centurion Elite RS I just picked up from Craigslist for $80. Amazing condition. See this thread for details.



Serial: KE510552
Tubeset: frame sticker says "Tange 2, Cr-Mo Seamless Tubing, Double Butted Tubes"; Fork sticker says "Tange Cr-Mo Steel Fork Blade"
Dropouts: Shimano ST
Group: Shimano 600 (6207 series) including pedals w/original clips, RD, FD, freewheel, cogs (13-28), downtube friction shifters.
Stem: Nitto Technomic
Bars: Nitto Olympiad 115
Headset: Tange Falcon
Saddle: Selle Italia Mundialita (suede-like cover)
Seatpost: Sugino
Cranks: Sugino ALP
Chainrings: Sugino 52 / 42 gold anodized
Wheels: Araya 700C gold anodized
Hubs: Suzue "Sealed Tech" QR
Brake Levers: Gran Compe gold anodized
Brakes: Dia Compe Royal S
Wrap: Black vinyl (appears to be original)
Tires: Trim Line 700/25 100PSI
Frame Pump: Zefal HP X 4 (original?)

Last edited by Machine Age; 01-12-11 at 05:26 PM. Reason: added photo
Machine Age is offline
Old 01-12-11, 06:06 PM
  #1142
blue303
Senior Member

Join Date: Aug 2010
Location: Greenfield, IN
Posts: 53

Bikes: 2011 Raleigh Revenio 3.0, 1986 Centurion Accodo RS

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

1983 Sport DLX
N3D0404
Stem: SR
Bars: Nitto Chromed Steel
Seatpost: Chromed Steel
Cranks: Sugino
Wheels: Araya Chromed Steel 27 x 1 1/4"
Brake Levers: Dia Compe
Brakes: Dia Compe
Shifters: Suntour Stem
Front Derailleur: Suntour Spirit
Rear Derailleur: Suntour Honor
blue303 is offline
Old 01-12-11, 07:27 PM
  #1143
rothenfield1
Senior Member

rothenfield1's Avatar

Join Date: Jun 2009
Location: Montereyish
Posts: 2,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by GamleOle View Post
Think I've created a misunderstanding, sorry.

Where on the items do I find the code?
Depends on the part. Shimano's are usually stamped on the back side of the component such as on the back of the crank arms. You'll see 2 letters stamped. Here is the sight that will tell you what they mean.
https://www.vintage-trek.com/component_dates.htm
rothenfield1 is offline
Old 01-12-11, 07:34 PM
  #1144
rothenfield1
Senior Member

rothenfield1's Avatar

Join Date: Jun 2009
Location: Montereyish
Posts: 2,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Pretty sure Robbie pegged this as an '86 Elite RS.
rothenfield1 is offline
Old 01-17-11, 10:05 PM
  #1145
RobbieTunes
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,399 Times in 904 Posts
Yep, note the decal differences between the '85 belonging to Machine Age and the '86 belonging to rothenfield1.
'85 had almost the same decals on the Elite, Ironman, and Prestige. '86 is when the decals began to get busy and the fonts changed.
Both way cool bikes.

blue303, that's probably the earliest Sport DLX I've ever seen. Big-time Raleigh influence, IMO, very similar to the Raleigh Rapide of the same year.

And I just had to throw this in, as I'm finally done. Tinkering on this one is over, and there are parts from 4 or 5 BF C&V members on it. I was riding it Sunday and a guy came up to me, asked me if Centurion was selling new bikes again....
__________________

BLDMAMTAOLD


RobbieTunes is offline
Old 01-17-11, 10:41 PM
  #1146
rothenfield1
Senior Member

rothenfield1's Avatar

Join Date: Jun 2009
Location: Montereyish
Posts: 2,329
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
^^^
It does look like a modern bike; difference being, I imagine it rides better then one. You should see if you can buy the Centurion trademark and start selling your own builds. I'd buy one.
rothenfield1 is offline
Old 01-17-11, 10:59 PM
  #1147
Oregon Southpaw
Larger Chainring

Oregon Southpaw's Avatar

Join Date: Jul 2009
Location: Corvallis, Oregon
Posts: 1,231

Bikes: 1988 Schwinn Circuit. Bike-Boom-Puegeot. First "real bike" Trek 720 Hybrid in gross disrepair.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Robbie,

I would have also been incredibly confused if I would have seen this bike in the wild. When thinking of vintage whips with modern kit, I always think "What would Robbie do?", cause your stuff always looks righteous and ready for a fight.
Oregon Southpaw is offline
Old 01-17-11, 10:59 PM
  #1148
Chicago Al
Senior Member

Chicago Al's Avatar

Join Date: Jun 2009
Location: Chicago, the leafy NW side
Posts: 2,579

Bikes: 1974 Motobecane Grand Record, 1987 Miyata Pro, 1988 Bob Jackson Lady Mixte (wife's), others in the family

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 109 Times in 51 Posts
^ That Facet makes me faster just looking at it.
__________________
I never think I have hit hard, unless it rebounds.

- Dr Samuel Johnson
Chicago Al is offline
Old 01-28-11, 01:15 PM
  #1149
JMacabre
Member

Join Date: Jan 2011
Location: Fort Meade, MD
Posts: 39

Bikes: 82 Schwinn World, 78 Fuji ???

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I picked up a Centurion Sport DLX in almost mint condition last night. Everything seems to be original except for the seat. I've been trying to figure out the date and as far as I can tell it's a 1985. I'm noticing that about 99% of the serial number I see begin with "N" mine doesn't Y5E2782. Does anyone know what the difference is?
JMacabre is offline
Old 01-29-11, 08:51 AM
  #1150
steelnutcase
Junior Member

Join Date: Dec 2010
Posts: 24
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
I picked up an older Centurion yesterday and would appreciate help identifying the model. It has been repainted so there are no identifying decals, only a 1970s style headbadge. The specifics:

SN 6R5011. There is no letter in front of the 6. The date code on the Suntour derailleurs is RL (Dec 75) so it appears to be a 1976 model.
Derailleurs are SL front and VGT Luxe rear. 5 speed Pro-Compe freewheel, suntour bar-end shifters

Most other components are SR including handlebars (Randnner), Custom seatpost (26.0mm), stem, cranks (Apex 5 RG with 118 BCD). DiaCompe centerpulls (no braze-ons on the frame) with cable release on levers and with safety levers

The lugs on semi-ornate on the headtube but with very long points on the top and seat tube. As long as on my 77 semi-pro. They might be chromed under the paint but I don't know. The dropouts are single-eyelet chrome without adjustors.

There are braze-ons: top tube cable guides, down tube cable stops, water bottle bosses (one pair) and a BB rear derailleur cable guide.

Any guesses on the model and tubing type?

Thanks
steelnutcase is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell or Share My Personal Information -

Copyright © 2023 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
