Raleigh Headbadges

Was there a difference between the Raleigh Headbadges from Raleigh Canada and the Nottingham and American Raleighs?
Blue Order is offline
Old 07-05-06, 06:50 PM
  #2
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,087

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1759 Post(s)
Liked 2,328 Times in 1,285 Posts
As I've never seen one, I cannot advise as to the differences, if any, of the Canadian badges VS others, but I am well versed as to the variants from England/UK and the later Raleigh USA badges.

*Nottingham badges from the early '30s were of brass, and featured an offset top rivet, to place the rivet behind the Heron's eye.

*By the '40s, the badge had been revised to a stamped aluminum design, with the top badge rivet centered, effectively serving the purpose of a rather large Heron's "eye." This badge remained in use on the DL22 Sports until around '63 or '64, while the S22 spartan models used it until early 1973, when the Sunset Yellow (a.k.a. "All-Gold") variants were discontinued.

*A revised brass badge replaced the aluminum badges on most models in the '63/64 model year period. The brass design featured the same rivet pattern as the aluminum design. Additionally, the complete pattern and lettering of the badge were lightly stamped into the badge surface as well, followed by the traditional red/black tampo transfer. Rivets were generally of the traditional squashed type, although these badges are sometimes seen with small blind rivets on some of the lower-end Raleigh 10 speed models. This badge is probably the most common, and was used on the majority of all Raleighs until the Huffy takeover in 1982.

*Variants bearing strikeouts in place of "NOTTINGHAM ENGLAND" of both the aluminum and later brass badges mentioned above were used on Raleighs made in Holland, Ireland, and other Raleigh machines not produced in the Nottingham factory.

*A very pretty Heron badge with an oval design and a multi-color tampo was used during the '68-70 period. These are called the "Anniversary" badge, and were used primarily on the higher-end road models, and are seen commonly on the Super Course.

*After the Huffy takeover, 1983 Raleigh badges for the Bridgestone/Panasonic-manufactuered top-end racing models became a 3D design stamped out of soft metal. A brass coloring plus the traditional red/black coloring was used. "THE" was dropped in "THE RALEIGH" from the title in the headbadge, badges now only read "RALEIGH," "NOTTINGHAM ENGLAND" was dropped in favor of "RALEIGH CYCLE COMPANY OF AMERICA." The traditional 3-rivet pattern remained, abeit slightly altered.

*Framesets made in Nottingham after the Huffy takeover (such as the 1982 Competition MKII and 1982 International MKII) for the U.S. market were essentially identical to the '84 badges as mentioned above, but featured angled foward slash symbols (e.g. "//////") in place of "CYCLE COMPANY OF AMERICA." I believe these badges were riveted, but can't recall for a fact.

*Badges virtually identical to those used on the post-Huffy, Nottingham-made, U.S.-market frames (i.e., the models with "/////" symbols on the badge, as mentioned above) were sometimes used on lower-end models such as the Marathon and Capri. These badges varied by only one detail: They are not riveted, but glued on. Two guide prongs protrude out the back, these fit into impressions on the frame.

*Badges on all higher-end (Grand Prix/Supercourse/Competition/Prestige) Japanese/Taiwanese produced frames were revised in 1985 to be affixed without rivets in the glue-on/two prong fashion, similar to the early '84 badges for the low end models as described above. The words "CYCLE COMPANY OF AMERICA" at the bottom are retained.

*1986 Technium frames built in the U.S. feature a badge design similar, but slightly different in dimensions and font styles from the final 1985 badge design. Badges are finished with a chrome appearance instead of a gold/brass color. Red/black colors remain, along with the glue-on mounting design.

There were various other badge designs used in the U.K. in the '80s that are somewhat different then the badges used in the States. Further, there were a few other badge variants after '86, plus the current ones used today. I will not detail these, for I do not have enough data about them.

Hope this helps. If you need any additional info, let me know.

Take care,

-Kurt
__________________








Last edited by cudak888; 05-22-08 at 05:56 PM.
cudak888 is offline
Old 07-05-06, 11:29 PM
  #3
mswantak
Glutton for Punishment

Join Date: Aug 2004
Location: San Leandro, CA
Posts: 2,896
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
I know I take my life in my hands contradicting Kurt on matters Raleigh, but the 'Anniversary' badge was used on all Raleigh's sport models in that period, Records and Grand Prix included. Also, in my experience the Nottingham heron badge was used on bikes from Handsworth, Worksop, and at least two Gazelle-built bikes I've seen. They varied only in having the 'Built under license' decal in place of 'Made in England' on the seat tubes.
mswantak is offline
Old 07-06-06, 01:55 PM
  #4
531Aussie
Aluminium Crusader :-)

Join Date: Apr 2004
Location: Melbourne, Australia
Posts: 10,049
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 5 Times in 4 Posts
I've never seen one of these before......nice

https://retroraleighs.com/racing-usa.html

531Aussie is offline
Old 07-06-06, 02:40 PM
  #5
dougb
Put some lights on!

dougb's Avatar

Join Date: Sep 2004
Location: MPLS
Posts: 139

Bikes: 1983 Raleigh International MKII (wrecked), 198? Giordana Scorpius, 1992 Trek 930 Singletrack, 1986 Raleigh Super Course, 1988 Tommaso Cromor, 1984 Sekai 2500 Grandtour

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by cudak888
*After the Huffy takeover, 1983 Raleigh badges for the Bridgestone/Panasonic-manufactuered top-end racing models became a 3D design stamped out of soft metal. A brass coloring plus the traditional red/black coloring was used. "THE" was dropped in "THE RALEIGH" from the title in the headbadge, badges now only read "RALEIGH," "NOTTINGHAM ENGLAND" was dropped in favor of "RALEIGH CYCLE COMPANY OF AMERICA." The traditional 3-rivet pattern remained, abeit slightly altered.

*Badges on all higher-end (Grand Prix/Supercourse/Competition/Prestige) Panasonic-produced frames were revised in 1985 to be affixed without rivets in the glue-on/two prong fashion, similar to the early '84 badges for the low end models as described above. The words "CYCLE COMPANY OF AMERICA" at the bottom are retained.
I don't doubt your contention that some 80s Raleighs were made by Bridgestone or Panasonic (or National?). It makes sense to me, but I'm wondering if you can direct me to a source for this information. Despite Sheldon Brown and my own memory, I sometimes feel like the historical record of 80s bicycle manufacturing/assembly fell into a black hole.
Thanks
dougb is offline
Old 07-06-06, 03:45 PM
  #6
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,087

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1759 Post(s)
Liked 2,328 Times in 1,285 Posts
Originally Posted by mswantak
I know I take my life in my hands contradicting Kurt on matters Raleigh, but the 'Anniversary' badge was used on all Raleigh's sport models in that period, Records and Grand Prix included. Also, in my experience the Nottingham heron badge was used on bikes from Handsworth, Worksop, and at least two Gazelle-built bikes I've seen. They varied only in having the 'Built under license' decal in place of 'Made in England' on the seat tubes.
Thanks for the clarification there. I was trying to pull up the image of one of the late '60s GPs in my head when I wrote that down, trying to remember whether they used the Anniversary badge or not.


Originally Posted by dougb
I don't doubt your contention that some 80s Raleighs were made by Bridgestone or Panasonic (or National?). It makes sense to me, but I'm wondering if you can direct me to a source for this information. Despite Sheldon Brown and my own memory, I sometimes feel like the historical record of 80s bicycle manufacturing/assembly fell into a black hole.
Thanks
I'll admit that it has yet to be confirmed that the work was contracted out to Panasonic - revised it to reflect country of origin.

This said, from what I've heard, the general consensus is that Panasonic manufactured these models. I'm inclined to agree after inspecting an NOS Panasonic (forgot the model, was white with a green fade) at the LBS - both the lugs and general craftsmanship appear nearly identical.

What does seem to be a pattern though is that by '85, most, if not all production was moved to Taiwan according to seattube decals. No mention about Panasonic or anyone else though.

I share your sympathy. Information pertaining to machines made after '81 has seeming vanished. Information seems to crop up for 1986-onwards, but by then, the Technium moved in (and when aluminum steps in, I step out).

Take care,

-Kurt
__________________








Last edited by cudak888; 05-22-08 at 05:59 PM.
cudak888 is offline
Old 07-06-06, 05:23 PM
  #7
Blue Order
Senior Member
Thread Starter

Join Date: May 2005
Posts: 7,279
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Thanks Kurt, you're a gentleman and a scholar!
Blue Order is offline
Old 07-06-06, 06:44 PM
  #8
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,087

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1759 Post(s)
Liked 2,328 Times in 1,285 Posts
Originally Posted by Blue Order
Thanks Kurt, you're a gentleman and a scholar!
My pleasure to be of service, anytime!

-Kurt
__________________







cudak888 is offline
Old 07-17-22, 01:53 AM
  #9
somaweeraruchir
Newbie

Join Date: Jul 2022
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by cudak888 View Post
As I've never seen one, I cannot advise as to the differences, if any, of the Canadian badges VS others, but I am well versed as to the variants from England/UK and the later Raleigh USA badges.

*Nottingham badges from the early '30s were of brass, and featured an offset top rivet, to place the rivet behind the Heron's eye.

*By the '40s, the badge had been revised to a stamped aluminum design, with the top badge rivet centered, effectively serving the purpose of a rather large Heron's "eye." This badge remained in use on the DL22 Sports until around '63 or '64, while the S22 spartan models used it until early 1973, when the Sunset Yellow (a.k.a. "All-Gold") variants were discontinued.

*A revised brass badge replaced the aluminum badges on most models in the '63/64 model year period. The brass design featured the same rivet pattern as the aluminum design. Additionally, the complete pattern and lettering of the badge were lightly stamped into the badge surface as well, followed by the traditional red/black tampo transfer. Rivets were generally of the traditional squashed type, although these badges are sometimes seen with small blind rivets on some of the lower-end Raleigh 10 speed models. This badge is probably the most common, and was used on the majority of all Raleighs until the Huffy takeover in 1982.

*Variants bearing strikeouts in place of "NOTTINGHAM ENGLAND" of both the aluminum and later brass badges mentioned above were used on Raleighs made in Holland, Ireland, and other Raleigh machines not produced in the Nottingham factory.

*A very pretty Heron badge with an oval design and a multi-color tampo was used during the '68-70 period. These are called the "Anniversary" badge, and were used primarily on the higher-end road models, and are seen commonly on the Super Course.

*After the Huffy takeover, 1983 Raleigh badges for the Bridgestone/Panasonic-manufactuered top-end racing models became a 3D design stamped out of soft metal. A brass coloring plus the traditional red/black coloring was used. "THE" was dropped in "THE RALEIGH" from the title in the headbadge, badges now only read "RALEIGH," "NOTTINGHAM ENGLAND" was dropped in favor of "RALEIGH CYCLE COMPANY OF AMERICA." The traditional 3-rivet pattern remained, abeit slightly altered.

*Framesets made in Nottingham after the Huffy takeover (such as the 1982 Competition MKII and 1982 International MKII) for the U.S. market were essentially identical to the '84 badges as mentioned above, but featured angled foward slash symbols (e.g. "//////") in place of "CYCLE COMPANY OF AMERICA." I believe these badges were riveted, but can't recall for a fact.

*Badges virtually identical to those used on the post-Huffy, Nottingham-made, U.S.-market frames (i.e., the models with "/////" symbols on the badge, as mentioned above) were sometimes used on lower-end models such as the Marathon and Capri. These badges varied by only one detail: They are not riveted, but glued on. Two guide prongs protrude out the back, these fit into impressions on the frame.

*Badges on all higher-end (Grand Prix/Supercourse/Competition/Prestige) Japanese/Taiwanese produced frames were revised in 1985 to be affixed without rivets in the glue-on/two prong fashion, similar to the early '84 badges for the low end models as described above. The words "CYCLE COMPANY OF AMERICA" at the bottom are retained.

*1986 Technium frames built in the U.S. feature a badge design similar, but slightly different in dimensions and font styles from the final 1985 badge design. Badges are finished with a chrome appearance instead of a gold/brass color. Red/black colors remain, along with the glue-on mounting design.

There were various other badge designs used in the U.K. in the '80s that are somewhat different then the badges used in the States. Further, there were a few other badge variants after '86, plus the current ones used today. I will not detail these, for I do not have enough data about them.

Hope this helps. If you need any additional info, let me know.

Take care,

-Kurt
Dear Kurt.
Did the Irish Raleigh badge ( Chopper/ Grifter head badge ) have the same dimensions of that of an universal badge..( 25mm×55mm) ?
somaweeraruchir is offline
Old 07-17-22, 05:43 PM
  #10
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,516 Times in 2,173 Posts
Originally Posted by somaweeraruchir View Post
Dear Kurt.
Did the Irish Raleigh badge ( Chopper/ Grifter head badge ) have the same dimensions of that of an universal badge..( 25mm×55mm) ?
Hi, 16? year old zombie thread here and Kurt will respond but you needed to quote him.

Paging cudak888
merziac is offline
Old 07-17-22, 06:18 PM
  #11
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,895
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3062 Post(s)
Liked 4,078 Times in 1,782 Posts
Originally Posted by merziac View Post
Hi, 16? year old zombie thread here and Kurt will respond but you needed to quote him.

Paging cudak888
That method of mentioning has been broken for ages. You need to ignore the pop up and just go with @cudak888.
nlerner is offline
Likes For nlerner:
Old 07-17-22, 06:28 PM
  #12
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,087

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1759 Post(s)
Liked 2,328 Times in 1,285 Posts
Originally Posted by somaweeraruchir View Post
Dear Kurt.
Did the Irish Raleigh badge ( Chopper/ Grifter head badge ) have the same dimensions of that of an universal badge..( 25mm×55mm) ?

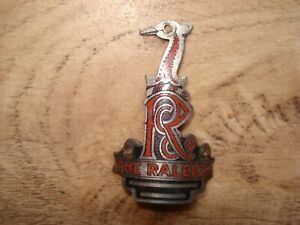

I believe the bolt pattern is the same. However, if I'm not mistaken, an Irish Chopper would have a badge based off the etched and plated 1950's variant (which also survived on the S22 Sports into 1972 for some inexplicable reason) instead of the stamped brass version. "NOTTINGHAM ENGLAND" is struck out from the bottom on the Irish variants.



This is purely a personal preference, but I've always found this badge far and away much more elegant and better executed than the brass badges.

-Kurt
__________________








Last edited by cudak888; 07-17-22 at 06:32 PM.
cudak888 is offline
Old 07-17-22, 09:30 PM
  #13
Desert Ryder
Henderson, NV

Desert Ryder's Avatar

Join Date: Jan 2022
Location: Henderson/Las Vegas NV
Posts: 180

Bikes: Trek Alpha 3700, GT STS DH, Raleigh Grand Prix

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Liked 215 Times in 95 Posts

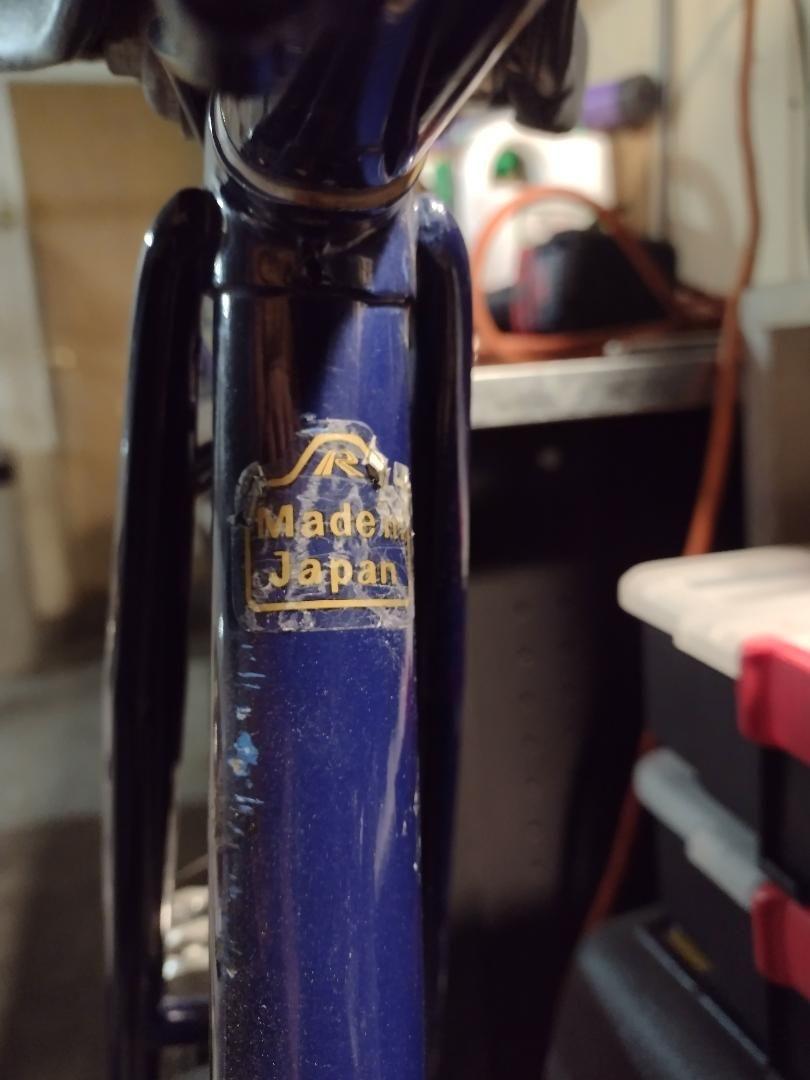

What is there to say about the "Made in Japan" headbadges?
Grand Prix model. 1980?


Desert Ryder is offline
Old 07-18-22, 07:10 AM
  #14
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,895
Mentioned: 409 Post(s)
Tagged: 0 Thread(s)
Quoted: 3062 Post(s)
Liked 4,078 Times in 1,782 Posts
Or how about the early 1930s when the headbadge was a decal?!

nlerner is offline
Likes For nlerner:
Old 07-23-22, 03:21 AM
  #15
somaweeraruchir
Newbie

Join Date: Jul 2022
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
​​​
Dear Kurt, Thank you very much for the reply..This is the serial number of a Raleigh bicycle i am planning to restore It has the serial number ET 90 next to the seat post..( left ) Do you have an idea about the country of manufacture ..? Thanks
somaweeraruchir is offline
Old 07-24-22, 08:40 AM
  #16
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 27,087

Bikes: https://www.theheadbadge.com

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1759 Post(s)
Liked 2,328 Times in 1,285 Posts
Originally Posted by somaweeraruchir View Post
​​​
Dear Kurt, Thank you very much for the reply..This is the serial number of a Raleigh bicycle i am planning to restore It has the serial number ET 90 next to the seat post..( left ) Do you have an idea about the country of manufacture ..? Thanks
I've been out of the Raleigh serial stuff for a long time now. Don't know when I'll get around to the new Headbadge site that will help establish a registry and discussion forum for this.

-Kurt
