Old 02-10-21, 04:54 PM
  #826
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,667
Mentioned: 402 Post(s)
Tagged: 0 Thread(s)
Quoted: 2955 Post(s)
Liked 3,677 Times in 1,646 Posts
I've always thought of the S12-S as the quintessential sport touring bike, and converting one to 650B increases the utility greatly. Here's one I had for a while, converted to 650B x 38mm wheels. There was certainly room for fenders.
nlerner is offline
Old 02-10-21, 05:11 PM
  #827
VintageRide
Senior Member

VintageRide's Avatar

Join Date: Jul 2008
Location: Burnaby,B.C., Canada
Posts: 557

Bikes: 2013 Rawland Stag ; 1981 Fuji 650b; Early '60's P. Peschi ; Early '80's Kuwahara Cascade

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 26 Times in 10 Posts
I stand 5' 11" with a 32" inseam, rather long legged and have ridden 58 - 59 cm sized bikes, the Rawland Stag I also use is 58 cm square and fits well enough, though in reality the slightly smaller 56 cm Fuji is better suited. But then I am retired and at an age where being closer to the handlebars is more comfortable. The stem is a Nitto Technomic 70mm with Velo Orange Rando handlebars which are also quite comfortable giving a nice upsweep. Keeps the stem height lower, I also like the " in the drops " design, made all the better by their being splayed outward.

Some other observations are that there is no toe overlap with the front wheel and the bottom bracket drop is still quite good once converted. I cannot help but think the bike was designed with 650b in mind, the Japanese do generally have a thing for French bikes. Or at least they use to so the influence is there.


I was also using 175mm crank arms with no issues, if you study my bike you can get an idea based on my measurements and yours. Of course a longer stem if needed can allow for slight differences in top tube length. The crankset currently in use has 170 mm arms so the seat post went up a bit to compensate. I do not feel cramped while riding at all and my arms are on the longer side but neck issues have had me go with a shorter stem / higher handlebars.

Last edited by VintageRide; 02-10-21 at 05:22 PM.
VintageRide is offline
Old 02-10-21, 05:59 PM
  #828
VintageRide
Senior Member

VintageRide's Avatar

Join Date: Jul 2008
Location: Burnaby,B.C., Canada
Posts: 557

Bikes: 2013 Rawland Stag ; 1981 Fuji 650b; Early '60's P. Peschi ; Early '80's Kuwahara Cascade

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 26 Times in 10 Posts
I like that Lejuene by the way. Had a lower end model made around 1968 in green metallic - nice enough bike in nice condition that would have probably been great converted. It had steel cranks and Rigida rims, Mafac center pulls etc. Unfortunately I sold it after a few months.
VintageRide is offline
Old 02-13-21, 09:16 AM
  #829
bear_a_bug
Senior Member

bear_a_bug's Avatar

Join Date: May 2013
Location: Portland, Oregon
Posts: 327

Bikes: 650B'd '74 Raleigh Super Tourer and '83 Trek 620, '73 Zeus Competition, 2018 Rawland xSogn

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 108 Times in 50 Posts
Originally Posted by gugie View Post
As far as 650b convertability is concerned, I would say yes. @bear_a_bug did one awhile ago that turned out very nice. Not sure what the frame differences are outside of the LTD version had chrome socks front and rear, at least for the years I've seen.
Loved my S-12 S LTD, except for that mouthful of a model name. Chrome socks were a nice upgrade from the usual S-12 S. It's eerie how well they take to 650B conversions, almost like that permutation was considered when it was designed. Weirdest part is how well the chainstay indentations line up and accommodate 650B x 42 tires.

Woulda kept mine if they had made a 24" frame. The 23" was just slightly undersized for me. Ended up selling it to a friend who really loved it, too.
bear_a_bug is offline
Likes For bear_a_bug:
Old 02-13-21, 10:41 AM
  #830
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,138

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6994 Post(s)
Liked 1,713 Times in 1,067 Posts
Originally Posted by bear_a_bug View Post
Loved my S-12 S LTD, except for that mouthful of a model name. Chrome socks were a nice upgrade from the usual S-12 S. It's eerie how well they take to 650B conversions, almost like that permutation was considered when it was designed. Weirdest part is how well the chainstay indentations line up and accommodate 650B x 42 tires.

Woulda kept mine if they had made a 24" frame. The 23" was just slightly undersized for me. Ended up selling it to a friend who really loved it, too.
So you used the original brake calipers?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 02-13-21, 01:39 PM
  #831
bear_a_bug
Senior Member

bear_a_bug's Avatar

Join Date: May 2013
Location: Portland, Oregon
Posts: 327

Bikes: 650B'd '74 Raleigh Super Tourer and '83 Trek 620, '73 Zeus Competition, 2018 Rawland xSogn

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 108 Times in 50 Posts
Originally Posted by noglider View Post
So you used the original brake calipers?
Nope - think it came equipped with the Dia Compe 500g sidepulls (at least thats what was on it when I bought the bike from the original owner). Swapped over to Dia Compe 750 centerpulls. Just enough reach to do it.
bear_a_bug is offline
Old 02-13-21, 04:33 PM
  #832
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,138

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6994 Post(s)
Liked 1,713 Times in 1,067 Posts
Thanks, @bear_a_bug. I think I sold that model, and you're right, it came with 500g calipers. It really did work out well for you.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 03-02-21, 10:16 AM
  #833
scaldin
Member

Join Date: Jan 2013
Location: Cincinnati
Posts: 32

Bikes: 2001 Litespeed Classic, 1997 LeMond Zurich, Ross Mt. Olympus frankenbike

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 22 Times in 5 Posts
Just finished this project, It couldn't have gone smoother. Rims from Cycles Toussaint, 38mm Col deVie tires fit with no chainstay modification (although snug), tektro 556 brakes, and the BB height is the same. (? not sure how I managed that)

scaldin is offline
Likes For scaldin:
Old 03-02-21, 10:27 AM
  #834
DQRider
Old Boy

DQRider's Avatar

Join Date: Jan 2016
Location: Minnesota
Posts: 2,083

Bikes: Mostly 1st-generation MTBs/ATBs.

Mentioned: 129 Post(s)
Tagged: 0 Thread(s)
Quoted: 859 Post(s)
Liked 901 Times in 384 Posts
Originally Posted by scaldin View Post
Just finished this project, It couldn't have gone smoother. Rims from Cycles Toussaint, 38mm Col deVie tires fit with no chainstay modification (although snug), tektro 556 brakes, and the BB height is the same. (? not sure how I managed that)
Most likely the larger circumference of the tires made up for the difference in rim size.

.
__________________

Roulez pour la joie, jamais pour la douleur.


USMC 1981-1991 Semper Fi!
DQRider is offline
Old 03-02-21, 11:44 AM
  #835
no67el
Senior Member

Join Date: Oct 2018
Location: Mad River Valley, VT
Posts: 246

Bikes: How many is too many?

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 105 Post(s)
Liked 159 Times in 78 Posts

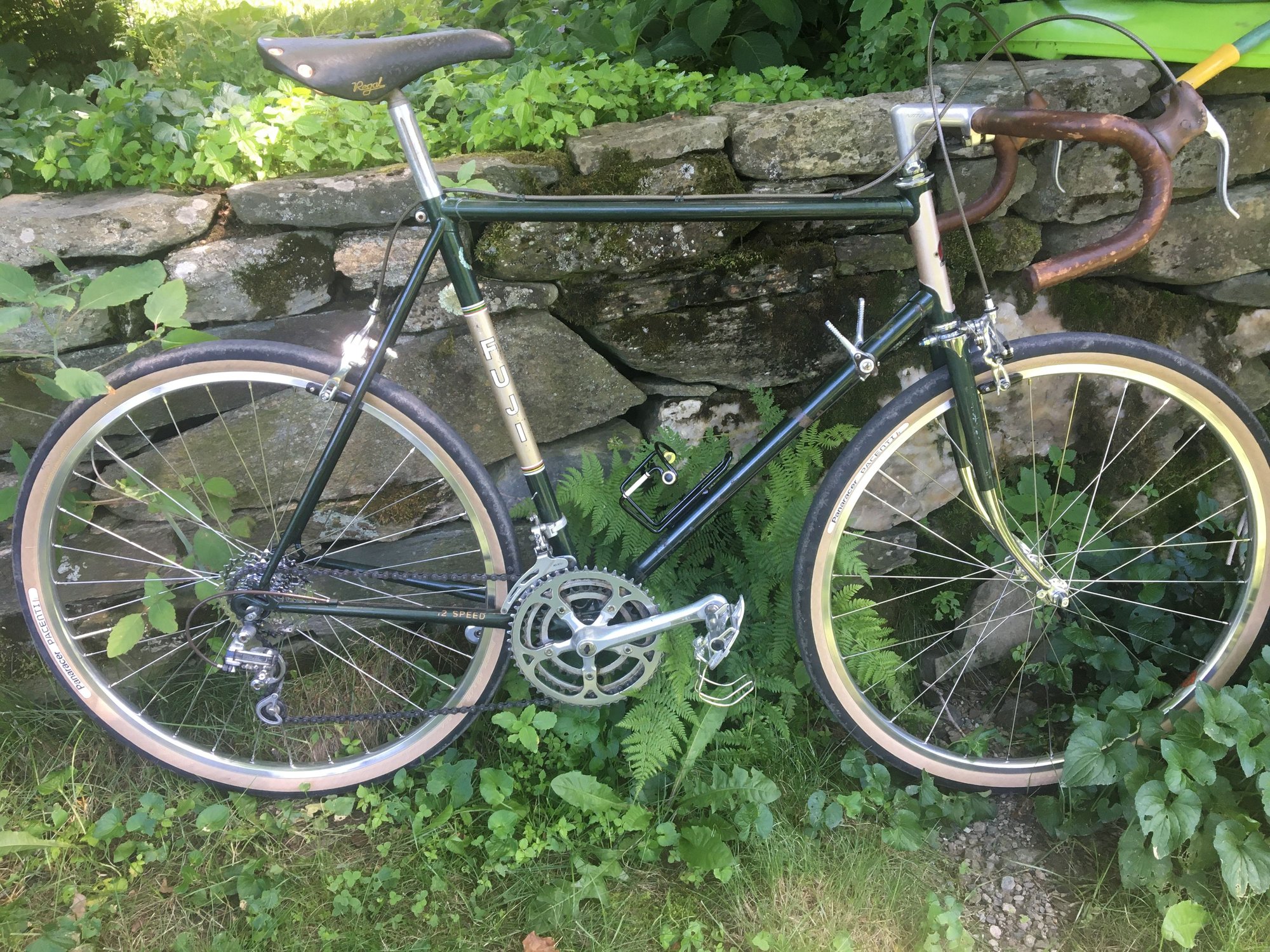

The now-obligatory Fuji S12-S conversion--- in this case a somewhat oddball variant called the "10th Anniversary" edition, which I think was a celebration of a Boston area shop's relationship with Fuji? I saw a blurry picture on craigslist and the paintjob made me think it was a Touring Series IV, but I was happy to find an S12 and the price was right. The 22" frame is a bit small for me, but this was really an experiment to see how I liked the 650b ride. Now I need to find a 23" S12 ltd frame to put these wheels on...

Very happy with how the Tektro brake calipers work with the original DiaCompe levers... Rims are Pacenti with new 105 hubs.



Original owner put on the triple and the Suntour BL long-cage derailleur, so this thing is ready to climb some hills!
no67el is offline
Old 03-03-21, 03:28 PM
  #836
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: New York, NY, USA
Posts: 40,138

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 493 Post(s)
Tagged: 0 Thread(s)
Quoted: 6994 Post(s)
Liked 1,713 Times in 1,067 Posts
@scaldin it looks like an original design!
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 03-03-21, 05:11 PM
  #837
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,720

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 677 Times in 329 Posts

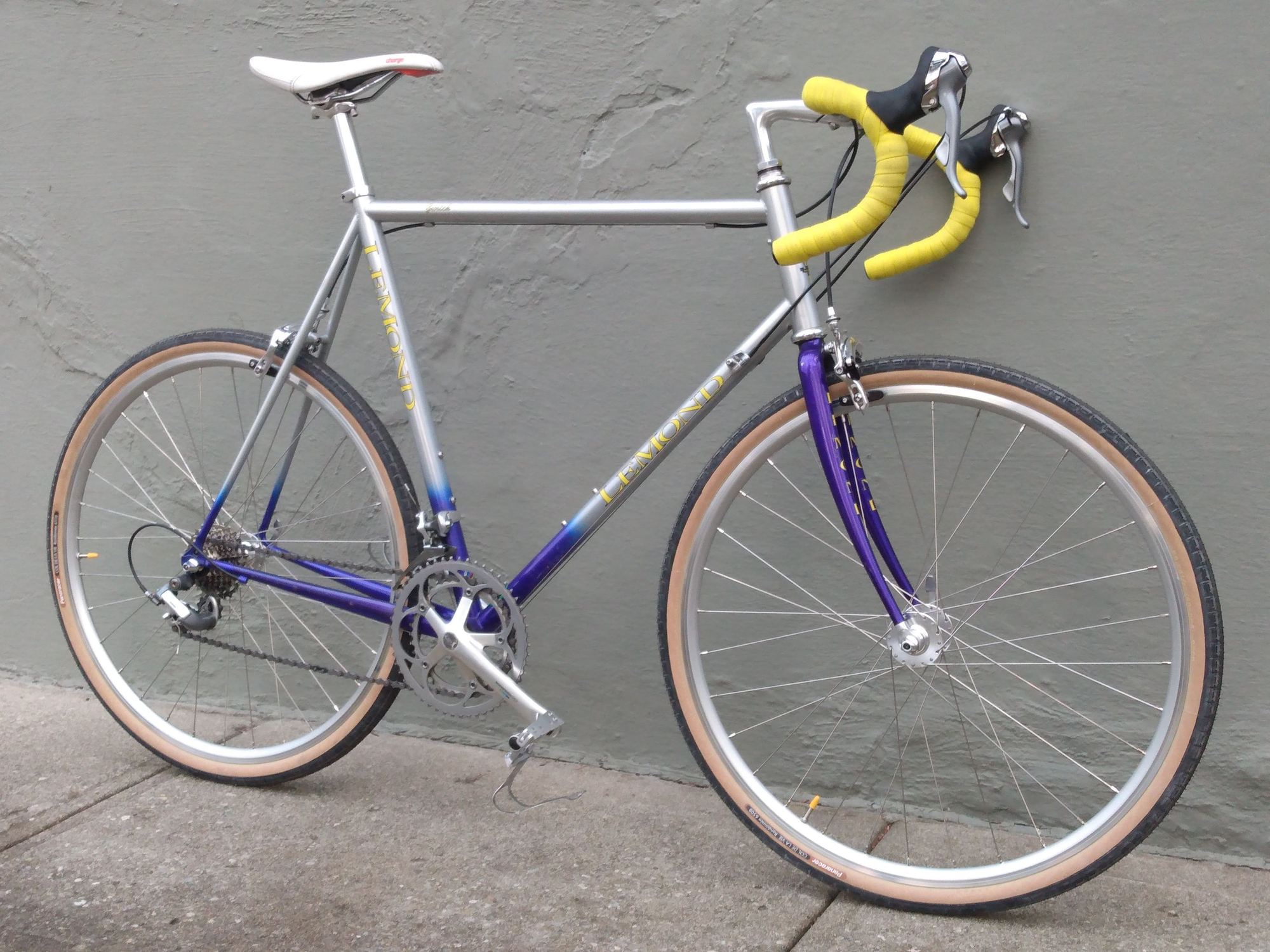

Testing my 650b wheelset in another frame. Now installed in a Schwinn SuperSport.

Dylansbob is offline
Likes For Dylansbob:
Old 03-04-21, 12:17 PM
  #838
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,209

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Liked 567 Times in 318 Posts
Originally Posted by Dylansbob View Post
Testing my 650b wheelset in another frame. Now installed in a Schwinn SuperSport.

Wow! How does that DA RD handle that amount of chain wrap and sprocket size?
mountaindave is offline
Old 03-04-21, 01:17 PM
  #839
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,720

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 677 Times in 329 Posts
Originally Posted by mountaindave View Post
Wow! How does that DA RD handle that amount of chain wrap and sprocket size?

I was feeling too lazy to swap the freewheel, so I left the 32t on and just put a cheap hanger extender on it. It *works*, but was skipping around a bit under hard power. Haven't really ridden the bike beforehand, so I don't know if the derailleur is tweaked, the extender is flexing, I can't shift anymore, or maybe, just maybe I'm putting too much power down for the frame.

Those extenders are kinda handy. I used one with a short cage rapid-rise xtr on a 1x with a 42t. That was with a friction shifter, but I think it would have indexed.
Dylansbob is offline
Likes For Dylansbob:
Old 03-04-21, 02:12 PM
  #840
AJI125
Senior Member

AJI125's Avatar

Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 410

Bikes: 1972 Fuji The Finest | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 249 Times in 122 Posts
Originally Posted by Dylansbob View Post
Testing my 650b wheelset in another frame. Now installed in a Schwinn SuperSport.

Love these color combos on this era of Schwinn (late 1980s I think). I see them pop up from now and then around town and am always intrigued. Also like the ubiquitous Ironmans, but something about the white Seat Tubes get my heart rate and blood pressure up! Cool looking conversion!
AJI125 is offline
Old 03-04-21, 02:49 PM
  #841
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,720

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 677 Times in 329 Posts
Originally Posted by AJI125 View Post
Love these color combos on this era of Schwinn (late 1980s I think). I see them pop up from now and then around town and am always intrigued. Also like the ubiquitous Ironmans, but something about the white Seat Tubes get my heart rate and blood pressure up! Cool looking conversion!
I've been trying to decide whether to paint the headtube white to match OR to strip the paint off the tips to give the girl some bright socks. Just wondering if either detail would just get lost in the presentation.
Dylansbob is offline
Old 03-04-21, 04:18 PM
  #842
JT1973
Senior Member

Join Date: Feb 2015
Location: Chicago
Posts: 94

Bikes: 1973 Jack Taylor ToB, 1974 or '75 LeJeune Champ du Monde (possibly from the Carre Shop), 1971 Motobecane Le Champion, 1980s Rodriguez frame (future 650b conversion project)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 7 Times in 6 Posts
Just helped a friend by the 24” size of this year of super sport! I’m excited to see it as a 650b conversion.
Dylansbob , is there additional clearance for a wider tire or do the Col’ d’ Vie max out that space at around 36mm wide? Also, did those Zac19 rims build up nicely?

thanks for experience!
best,

Originally Posted by Dylansbob View Post
I've been trying to decide whether to paint the headtube white to match OR to strip the paint off the tips to give the girl some bright socks. Just wondering if either detail would just get lost in the presentation.
JT1973 is offline
Old 03-04-21, 05:05 PM
  #843
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,720

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 677 Times in 329 Posts
Originally Posted by JT1973 View Post
Just helped a friend by the 24” size of this year of super sport! I’m excited to see it as a 650b conversion.
Dylansbob , is there additional clearance for a wider tire or do the Col’ d’ Vie max out that space at around 36mm wide? Also, did those Zac19 rims build up nicely?

thanks for experience!
best,

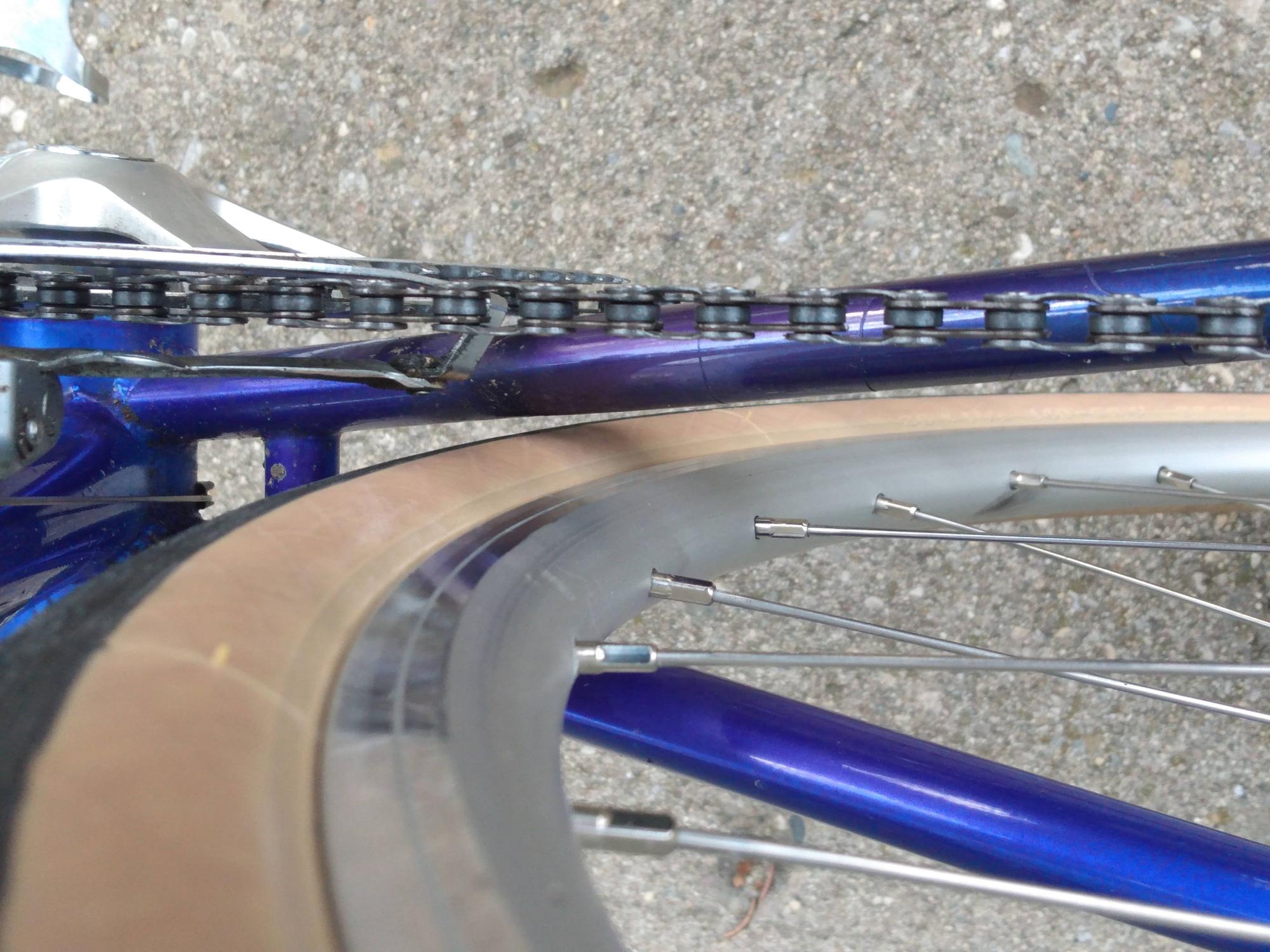

The Zacs built up pretty nicely. They're a proven, doublewalled extrusion, so they should be at least as strong as my mediocre wheelbuilding skills. I've probably done ~50 wheels in the last decade and still feel like they're ******.

If I pull the adjusters and slam the wheel all the way back, I can fit a set of Hectre on these rims. I'm not because the clearance is ~2mm and I like to ride my local city mtb park on *all* my bikes. The hectes I have came from the co-op and have a slight wobble in the casing. Clearance everywhere else is fine, maybe even for a fender. If I decide to keep this bike, I may put a slightly deeper crimp than the factory did on the chainstays.
Dylansbob is offline
Old 03-05-21, 09:22 AM
  #844
JT1973
Senior Member

Join Date: Feb 2015
Location: Chicago
Posts: 94

Bikes: 1973 Jack Taylor ToB, 1974 or '75 LeJeune Champ du Monde (possibly from the Carre Shop), 1971 Motobecane Le Champion, 1980s Rodriguez frame (future 650b conversion project)

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 7 Times in 6 Posts
Thanks, Dylansbob ! Great to hear Hetres could possibly fit. And that recent zac19 are a good rim to build up. I have a pair that’s anodized more brown ish than black and an older decal. I had read that the first extrusion was problematic for mounting tires, maybe inaccurate in size by a small amount, making 650b tires slightly too big. I don’t know if I have first or later extrusion. Anyway, thanks for additional annecdotal data.
best,
leif

Originally Posted by Dylansbob View Post
The Zacs built up pretty nicely. They're a proven, doublewalled extrusion, so they should be at least as strong as my mediocre wheelbuilding skills. I've probably done ~50 wheels in the last decade and still feel like they're ******.

If I pull the adjusters and slam the wheel all the way back, I can fit a set of Hectre on these rims. I'm not because the clearance is ~2mm and I like to ride my local city mtb park on *all* my bikes. The hectes I have came from the co-op and have a slight wobble in the casing. Clearance everywhere else is fine, maybe even for a fender. If I decide to keep this bike, I may put a slightly deeper crimp than the factory did on the chainstays.
JT1973 is offline
Old 03-06-21, 07:07 AM
  #845
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,209

Bikes: More than I care to admit

Mentioned: 137 Post(s)
Tagged: 0 Thread(s)
Quoted: 1020 Post(s)
Liked 567 Times in 318 Posts
Originally Posted by JT1973 View Post
...Also, did those Zac19 rims build up nicely?..,
I bought a set of cheap 650b wheels from ebay in 2016 and they used Zac19. They are not the worst rim I’ve ever used, but they aren’t the greatest either. Getting the bead to seat properly was doable, but not as easy as a Grand Bois, Pacenti, or Velocity. You definitely get what you pay for in this case.
mountaindave is offline
Old 03-06-21, 08:30 AM
  #846
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,586

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 539 Post(s)
Liked 291 Times in 204 Posts
Anyone know about " Mach1 ER10" rims? Their double wall at least.

https://www.jbi.bike/site/product_de..._number=742431
bark_eater is online now
Old 03-06-21, 08:33 AM
  #847
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 1,586

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 539 Post(s)
Liked 291 Times in 204 Posts
Mach1 web page:

https://translate.google.com/transla...45&prev=search
bark_eater is online now
Old 03-25-21, 09:29 PM
  #848
jPrichard10
Senior Member

Join Date: Sep 2013
Location: Portland, Cascadia
Posts: 232
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 65 Times in 37 Posts
Originally Posted by mountaindave View Post
I bought a set of cheap 650b wheels from ebay in 2016 and they used Zac19. They are not the worst rim I’ve ever used, but they aren’t the greatest either. Getting the bead to seat properly was doable, but not as easy as a Grand Bois, Pacenti, or Velocity. You definitely get what you pay for in this case.
I was going to come here to recommend the Soma Weymouth rim as a cheap middle ground, but I see that they've raised in price since I last got them with a coupon for around $50 each. They now cost as much as Pacenti Brevets, which are the best 650b rim I've built. I'm curious about those Mach1s as well as the Araya TX-310f which I just discovered.
jPrichard10 is offline
Old 05-18-21, 05:15 AM
  #849
GeoffroyFromLux
Senior Member

GeoffroyFromLux's Avatar

Join Date: Apr 2019
Location: Luxembourg
Posts: 52

Bikes: Motobecane CT2 1984

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 49 Times in 9 Posts
Unknown frame builder but very nice and light.



GeoffroyFromLux is offline
Old 05-18-21, 04:13 PM
  #850
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 1,720

Bikes: ~'75 Colin Laing, '80s Schwinn SuperSport 650b, ex-Backroads ti project...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 677 Times in 329 Posts
Finally finished, except for a 46 or 48t chainring and barend caps.

Dylansbob is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
