For Sekine and/or SA 3 speed fans...

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

For Sekine and/or SA 3 speed fans...

Old 07-06-07, 02:38 PM
  #1
Antipodes
Who cares, just ride it!
Thread Starter

Join Date: Jun 2006
Location: Melbourne
Posts: 989

Bikes: 1992ish Davidson Impulse, 1981 Apollo Gran Sport SS, 2006 Salsa Las Cruces, 2010 Soma Double Cross

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
For Sekine and/or SA 3 speed fans...

So a while ago I had this idea to build a utilitarian cruiser road bike with a 3 speed hub. Well, here it is - an old Sekine that I got from a trade with a friend. I don't know what model or year it is, but the serial number is FV15952 for those who may be able to help. I have changed quite a few of the original parts out, including the wheelset (of course), the cranks (originally the dreaded Shimano Selecta), the bars and stem (SR), the levers (obviously), seatpost etc, etc. The calipers are the original Shimano Tourney.
Specs aside, it was fun to make. I squashed the rear spacing down to 120mm because I couldn't get my hands on one of the longer-axled SA AW hubs - only the "standard" 118mm or whatever it is version. I added a small spacer on the left side and built a wheel 3X with a NOS alloy Weinmann 27". Admittedly, the axle is only just long enough, but the wheel doesn't have a lot of dish, which is great. Front wheel is a 27" Araya/Sansin. Both have Conti Ultra Sport tyres, which are rated to 102psi, which is definitely nicer than most of the older 27" tyres that are only rated to around 85psi.
Anyone else here have a 3-speed roadie? It's proving to be a lot of fun.


Antipodes is offline
Old 07-06-07, 05:17 PM
  #2
FlatTop
holyrollin'

FlatTop's Avatar

Join Date: Jun 2005
Location: L.B.N.J.U.S.A.
Posts: 1,324

Bikes: Raleigh, Rudge, James 3spds., and a cast of many

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nice combination! I quite like 27" wheels and I'm a devotee of three speeds...I should do likewise. What size sprocket is on the hub? I should think this bike would be the ultimate candidate for a 22-23 tooth sprocket.
FlatTop is offline
Old 07-07-07, 05:43 AM
  #3
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,445

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 210 Post(s)
Liked 3 Times in 3 Posts
I built one from a Kabuki frame and a Shimano hub. I did a trial set up last fall with the steel rims that I had, just to see if the concept would work, then I built it up with alloy rims over the winter. The alloy rims made a big difference in ride. I use the 39 tooth chainwheel and a 19 tooth cog. Here in the flatlands, that gives me a headwind gear, a cruising gear, and a tailwind gear (42, 55, 74 inches). I really like the simplicity of the three speed vs. all the gears.
Pompiere is offline
Old 07-07-07, 06:20 AM
  #4
wahoonc
Membership Not Required

wahoonc's Avatar

Join Date: Jan 2005
Location: On the road-USA
Posts: 16,854

Bikes: Giant Excursion, Raleigh Sports, Raleigh R.S.W. Compact, Motobecane? and about 20 more! OMG

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Nice build up Leigh!

I love the upright position of the older Raleighs as well as the internal geared hubs. My biggest problem has been the fact that the frames on come in about 3 sizes and they have been too small. I have a Dawes Galaxy 25.5" frame that is getting built up as a Club Racer with a 4 speed S-A hub (got to have that granny gear for this old body of mine ) The more comfortable a bike is the more likely you are to ride it.

Aaron
__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(

ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.

"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"
_Nicodemus

"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"
_krazygluon
wahoonc is offline
Old 07-07-07, 07:21 AM
  #5
skyrider
Senior Member

skyrider's Avatar

Join Date: Nov 2005
Location: Harrow Ontario
Posts: 590

Bikes: 85 bianchi stelvio, 80s Rossi, 80s Fiori modena

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Very nice bike, great job, How does it ride.
skyrider is offline
Old 07-07-07, 11:34 AM
  #6
Antipodes
Who cares, just ride it!
Thread Starter

Join Date: Jun 2006
Location: Melbourne
Posts: 989

Bikes: 1992ish Davidson Impulse, 1981 Apollo Gran Sport SS, 2006 Salsa Las Cruces, 2010 Soma Double Cross

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by skyrider
Very nice bike, great job, How does it ride.
It rides really smooth and with the higher pressure Conti tyres (102psi), it is fairly nimble when you want it to be. Admittedly, it is no racing bike - it is too upright for that. Shifting is flawless...well, as flawless as a SA AW gets anyway...
Antipodes is offline
Old 07-07-07, 11:45 AM
  #7
roughrider504
Senior Member

roughrider504's Avatar

Join Date: Sep 2005
Location: New Orleans
Posts: 1,240

Bikes: Raleigh Sports, Raleigh DL-1, Raleigh Alyeska, Modern Brifter Raleigh, Schwinn Sprint (curved ST) converted to 3spd, Chrome Schwinn Sierra, Jamis Quest (fixed) and many projects

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Anyone else here have a 3-speed roadie?

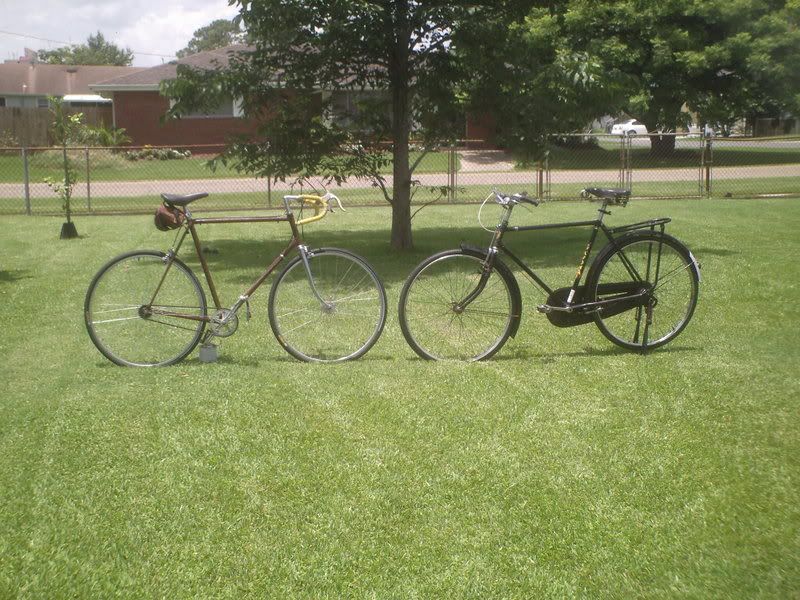

Yep. 1980 Trek 414. Parked with its -far from roadie- SA friend.
roughrider504 is offline
Old 07-07-07, 02:39 PM
  #8
wrey
Shin Banger

wrey's Avatar

Join Date: Nov 2003
Location: Portland, Or
Posts: 164

Bikes: 1956 Steyr Touriste de Luxe, 1983 Torker 280x, 89 Merlin MTB, 1983 Peugeot UE-8, 59 Schwinn Balloon, Diamond Back Sorrento, 1987 Gitane Victoire, 1984 Schwinn World Sport

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Great bike, looks really comfortable. That gives me some ideas for the future. Nice job!
wrey is offline
