Retro roadies- old frames with STI's or Ergos

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Retro roadies- old frames with STI's or Ergos

Old 02-03-19, 08:58 AM
  #7126
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 680
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 301 Post(s)
Liked 84 Times in 47 Posts
Originally Posted by Giacomo 1 View Post
You know, I really did sweat every detail on this build, maybe because it is my last, but this was going to be the build with no compromise, so thanks for noticing.

Its going to be 60 degrees on Tuesday here, and I'm so tempted to go for a ride, but the streets are bleach white with salt, so yeah, I'll wait for the birds and sun of springtime.
I know they're meant to ride but it would be a crime to ride that in salt
nomadmax is offline
Old 02-03-19, 09:06 AM
  #7127
eja_ bottecchia
Senior Member

eja_ bottecchia's Avatar

Join Date: Jul 2010
Posts: 5,273
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 728 Post(s)
Liked 90 Times in 68 Posts
Originally Posted by Giacomo 1 View Post
You know, I really did sweat every detail on this build, maybe because it is my last, but this was going to be the build with no compromise, so thanks for noticing.

Its going to be 60 degrees on Tuesday here, and I'm so tempted to go for a ride, but the streets are bleach white with salt, so yeah, I'll wait for the birds and sun of springtime.
Noooooo...don’t do it. Don’t go riding in the salt.

BTW, I love that black stem. It looks fantastic.
eja_ bottecchia is online now
Old 02-03-19, 03:28 PM
  #7128
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,725

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 40 Times in 32 Posts

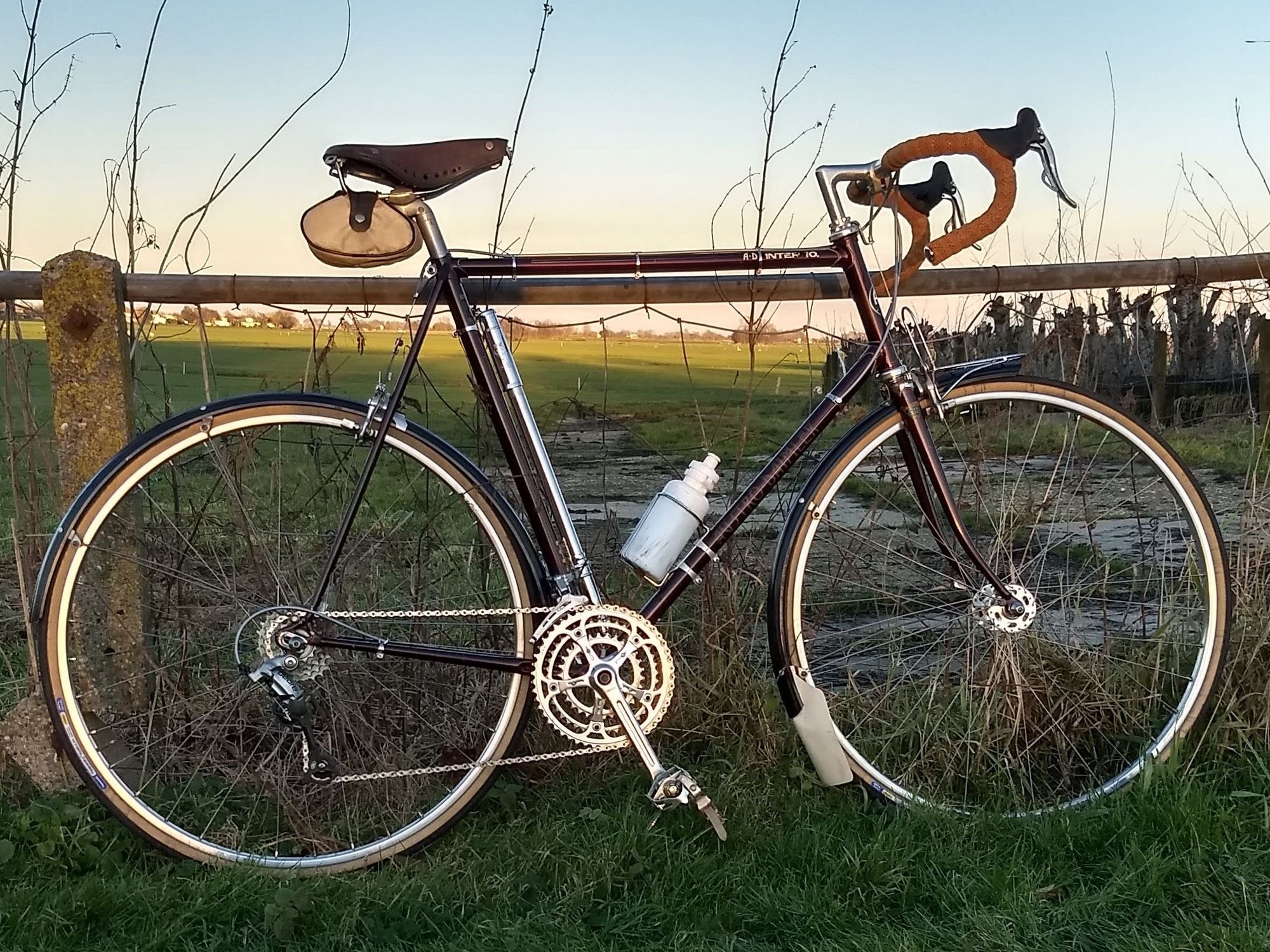

Only the Campagnolo Chorus brifters and the Shimano Deore RD are modern-ish, the rest is at least thirtyfive years old. 15-speed Ergo:

__________________
Reasons to be cheerful!
non-fixie is online now
Old 02-03-19, 03:37 PM
  #7129
Nagrom_
Fixie Infamous

Nagrom_'s Avatar

Join Date: Dec 2011
Location: SF
Posts: 10,474

Bikes: 2007 CAAD Optimo Track, 2012 Cannondale CAAD10, 1996 GT Force restomod, 2015 Cannondale CAADX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
CAAD3 Campy build I did a few years back. And the GT with sram is my current roadie. Hardest parts of both builds was finding the fork.
Nagrom_ is offline
Old 02-03-19, 03:45 PM
  #7130
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,517

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '92 Specialized Epic Carbon - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '92? Bushnell Track Bike

Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 796 Post(s)
Likes: 0
Liked 27 Times in 23 Posts
That GT looks killer. The saddle to bar drop is positively track-like.
RiddleOfSteel is offline
Old 02-03-19, 04:52 PM
  #7131
Nagrom_
Fixie Infamous

Nagrom_'s Avatar

Join Date: Dec 2011
Location: SF
Posts: 10,474

Bikes: 2007 CAAD Optimo Track, 2012 Cannondale CAAD10, 1996 GT Force restomod, 2015 Cannondale CAADX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks! It's a great bike.
​​​
​I had to slam the stem and use the lowest stack headset I could find in order to get the 1" straight blade carbon fork I found to work. Might have had to face 5mm of headtube off as well
Nagrom_ is offline
Old 02-03-19, 07:27 PM
  #7132
kcblair
Old Legs

kcblair's Avatar

Join Date: Nov 2016
Location: Mass.
Posts: 1,114

Bikes: '80 Strayvaigin, '84 Ciocc Aelle-Shimano 105, '90 Concorde Astore-Campy Athena,85 Bridgestone 500/Suntour, 2005 Jamis Quest, 2017 Raleigh Merit 1, Raleigh Carbon Clubman

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by non-fixie View Post
Only the Campagnolo Chorus brifters and the Shimano Deore RD are modern-ish, the rest is at least thirtyfive years old. 15-speed Ergo:

!5 speed Ergo, That's just plain Kool !. KB
kcblair is offline
Old 02-04-19, 11:47 AM
  #7133
antmaster5000
Senior Member

Join Date: Apr 2017
Location: Seattle
Posts: 103

Bikes: Centurion Pro Tour 15 '83, Trek 5200 '99

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
I have become sufficiently jealous and inspired by this thread. The CL search begins!

A couple questions: Does anyone have experience buying a lone frameset and then a complete groupset? Of course it depends on the frame, but for vintage roadies what do you look for in a modern groupset? Also, I see a lot of threadless headsets in this thread. What is the general era that these start to pop up? I've never had one on a road bike but I think I'd like to for modern stem and bar combinations.
antmaster5000 is offline
Old 02-04-19, 01:28 PM
  #7134
dpicare26
Senior Member

dpicare26's Avatar

Join Date: Nov 2012
Location: Pennsylvania
Posts: 425

Bikes: '11 Specialized Allez, '09 Specialized Tricross Comp, '91 Schwinn LeTour (SS). '74 Schwinn Paramount, '85 Trek 600, '89 Schwinn Circuit

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

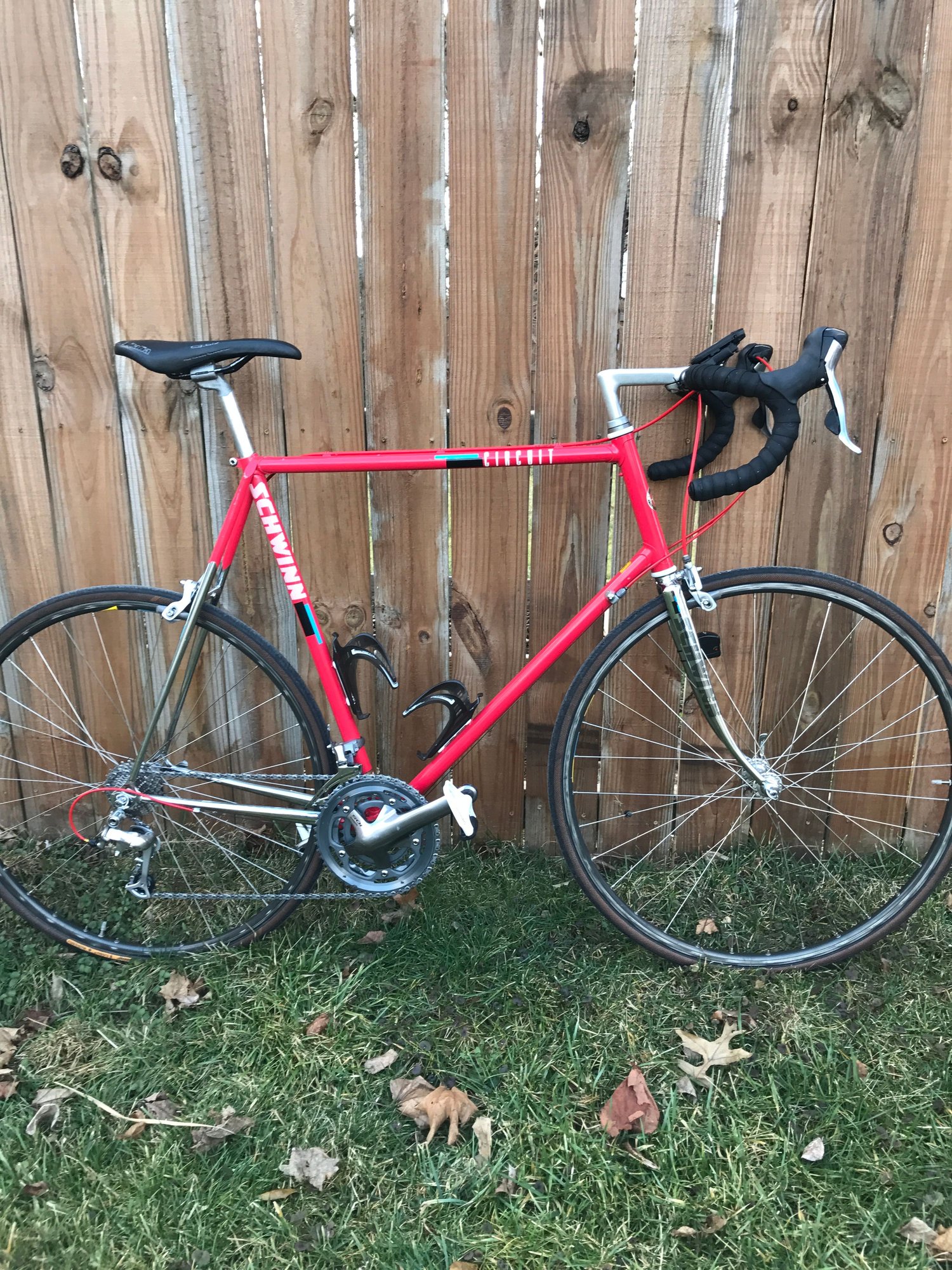

My 1989 Schwinn Circuit. Shimano 105


dpicare26 is offline
Old 02-04-19, 01:51 PM
  #7135
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,725

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 40 Times in 32 Posts
Originally Posted by kcblair View Post
!5 speed Ergo, That's just plain Kool !. KB
Isn't it? I'm actually thinking of going totally overboard and upgrade to 18-speed!
__________________
Reasons to be cheerful!
non-fixie is online now
Old 02-04-19, 05:09 PM
  #7136
botty kayer
Senior Member

Join Date: Jun 2018
Posts: 58
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
Liked 20 Times in 10 Posts
My Brian Rourke has had an update, with some 'new' wheels, Campagnolo Chorus 10 speed hubs, Sapim spokes laced to Mavic Open Pro rims, and Vittoria Corsa G+ tyres.
botty kayer is offline
Old 02-04-19, 05:31 PM
  #7137
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,420

Bikes: fewer (n-1)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
Originally Posted by non-fixie View Post
Only the Campagnolo Chorus brifters and the Shimano Deore RD are modern-ish, the rest is at least thirtyfive years old. 15-speed Ergo:

Originally Posted by kcblair View Post
!5 speed Ergo, That's just plain Kool !. KB
Originally Posted by non-fixie View Post
Isn't it? I'm actually thinking of going totally overboard and upgrade to 18-speed!
Or 24 speed?



Brent
obrentharris is offline
Old 02-04-19, 07:24 PM
  #7138
Nagrom_
Fixie Infamous

Nagrom_'s Avatar

Join Date: Dec 2011
Location: SF
Posts: 10,474

Bikes: 2007 CAAD Optimo Track, 2012 Cannondale CAAD10, 1996 GT Force restomod, 2015 Cannondale CAADX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by antmaster5000 View Post
I have become sufficiently jealous and inspired by this thread. The CL search begins!

A couple questions: Does anyone have experience buying a lone frameset and then a complete groupset? Of course it depends on the frame, but for vintage roadies what do you look for in a modern groupset? Also, I see a lot of threadless headsets in this thread. What is the general era that these start to pop up? I've never had one on a road bike but I think I'd like to for modern stem and bar combinations.
You can make anything threadless. You just need a new fork and headset. Most old threaded frames are 1" headtube so you're fairly limited on forks. Then you'll need an 1" - > 1 1/8" steerer shim.

Get some downtube shifter to barrel adjust adapters. Problem Solvers sells em.


When your getting a groupset just mind how the front derailleur is attached and bottom bracket compatibility.
Nagrom_ is offline
Old 02-04-19, 07:38 PM
  #7139
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 925
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 3 Times in 3 Posts
Originally Posted by antmaster5000 View Post
I have become sufficiently jealous and inspired by this thread. The CL search begins!

A couple questions: Does anyone have experience buying a lone frameset and then a complete groupset? Of course it depends on the frame, but for vintage roadies what do you look for in a modern groupset? Also, I see a lot of threadless headsets in this thread. What is the general era that these start to pop up? I've never had one on a road bike but I think I'd like to for modern stem and bar combinations.
You can make most any groupset work. The front derailleur needs to be compatible with the frame, e.g. braze-on style vs clamp on style. And you obviously can't use a crank that uses a press-in bottom bracket. Once you get your frame, feel free to start a new thread here about what groupsets you are looking at and we can give you more info.

The threadless bits you see might be threadless stems clamped to adapters that fit into threaded forks. It's the easiest way to put a modern cockpit on a vintage bike with a threaded fork and headset. You can also go the 1" threadless route, but that stuff is getting harder to find and you would need to get a new fork and headset.
tricky is offline
Old 02-04-19, 08:35 PM
  #7140
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,725

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 40 Times in 32 Posts
Originally Posted by obrentharris View Post
Or 24 speed?



Brent
Only with a with a quadruple up front, as my brifters are old 9-speeds. Who needs that many speeds anyway?

Nice bécane, BTW!
__________________
Reasons to be cheerful!
non-fixie is online now
Old 02-04-19, 10:16 PM
  #7141
vintagerando
Senior Member

Join Date: Mar 2015
Location: Connecticut
Posts: 1,949
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Are most these upgrades accomplished with cold-setting the rear triangle?
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 02-04-19, 10:52 PM
  #7142
lasauge
Pedalin' Erry Day

lasauge's Avatar

Join Date: Jun 2011
Location: Colorado Springs
Posts: 944
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by vintagerando View Post
Are most these upgrades accomplished with cold-setting the rear triangle?
I have 5 bikes that fit this category, and only in one case did I need to "cold set" the rear triangle. That last one is a truly exceptional case because I use that frame as my main commuting bike, and my route to work is about 50% off-road trail, so I respaced the frame so that it would happily accept the 135mm MTB hubs which were part of a wheelset that was previously in use on my CX bike.
__________________
Reach me faster by email.
lasauge is offline
Old 02-05-19, 01:54 AM
  #7143
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,367

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by vintagerando View Post
Are most these upgrades accomplished with cold-setting the rear triangle?
My ‘87 Marinoni was built for a 130mm rear hub, but the ‘79 Miyata was re-spaced to that width. I had it done professionally, but I’ve also done a DIY re-space on a weird tandem. Twasn’t hard to do.
Dfrost is offline
Old 02-05-19, 09:20 AM
  #7144
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,745
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Originally Posted by vintagerando View Post
Are most these upgrades accomplished with cold-setting the rear triangle?
None of mine.
None.
And that's a lot of bikes.
Only from 126 to 130, though, never from 120.
I've tried 120 to 126 once, and immediately switched back, for peace of mind.

For me, a 120 means 5 speeds, and the quotient is an even number, so I like it that way.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-05-19, 09:24 AM
  #7145
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,745
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Originally Posted by shuru421 View Post


What is it running now? 126 rear spacing perhaps?
2x10 Centaur, no cold setting. I'm considering going to go triple Centaur with just a BB/crankset/FD swap. I need a climber, but then again, it's such a race bike, a triple may just be too incongruous.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-05-19, 09:47 AM
  #7146
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 10,935
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1332 Post(s)
Liked 21 Times in 14 Posts
Originally Posted by RobbieTunes View Post
2x10 Centaur, no cold setting. I'm considering going to go triple Centaur with just a BB/crankset/FD swap. I need a climber, but then again, it's such a race bike, a triple may just be too incongruous.
Yeah, but that's the thing about a triple. You can leave on the race-y gearing (53/42) while adding a granny. If you want to keep the race-y look of a double, you lose the race gearing. Plus 3 is more than 2 and more is moar better.
himespau is offline
Old 02-05-19, 09:50 AM
  #7147
shuru421
Senior Member

Join Date: Aug 2012
Posts: 641
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 240 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RobbieTunes View Post
2x10 Centaur, no cold setting. I'm considering going to go triple Centaur with just a BB/crankset/FD swap. I need a climber, but then again, it's such a race bike, a triple may just be too incongruous.
Interesting..do you do anything after putting on the 130 hub? Or just put-in-the-frame and ride?
Curious as to why not more riders used the Dura-Ace 130 hub with the 'mushroom' locknut?
shuru421 is offline
Old 02-05-19, 10:00 AM
  #7148
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,745
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Just put-it-in-the-frame and ride.
You quickly develop a technique for the rear wheel that works and saves your knuckles, too.

As for the DA 130 hub, if you mean the 8-sp with the locking cog, well, that was a problem with the cassettes, too.

I also think Shimano sort of shot themselves in the foot (feet?) from the DA 6sp freewheel right up through the 8-sp STI, with compatibility issues, and that stigma lingered a while. People just avoided Dura Ace, both for the issues and the cost. Which only benefited Ultegra even more, and still does. The R8000 is selling like crazy.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 02-05-19, 10:56 AM
  #7149
HarborBandS
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 277
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by vintagerando View Post
Are most these upgrades accomplished with cold-setting the rear triangle?
Unlike Robbie, I wasn't able to squeeze a 130mm hub in the Schwinn Super Sport frame pictured in this thread back in late October. The rear stays were just too rigid. So I cold set the frame using the threaded rod method that can be seen on "RJ the Bike Guy's" YouTube channel. I feel this is more gentle and safer than the old Sheldon Brown 2x4 lumber lever method.

Last edited by HarborBandS; 02-05-19 at 11:02 AM.
HarborBandS is offline
Old 02-05-19, 11:01 AM
  #7150
HarborBandS
HarborBandS

Join Date: Jun 2018
Location: Chicago Western Suburbs
Posts: 277
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 175 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by antmaster5000 View Post
I have become sufficiently jealous and inspired by this thread. The CL search begins!

A couple questions: Does anyone have experience buying a lone frameset and then a complete groupset? Of course it depends on the frame, but for vintage roadies what do you look for in a modern groupset? Also, I see a lot of threadless headsets in this thread. What is the general era that these start to pop up? I've never had one on a road bike but I think I'd like to for modern stem and bar combinations.
For the build I posted here in October, I used a 1" threadless fork and an inexpensive Origin 8 1" threadless headset. I had to use a shim to use a 1-1/8" stem on the 1" steerer (available from many places). It does not creek.

I spent more on components for that build that I might re-use on a future bike (105 5800 components, seat post, wheel set, saddle, etc), but didn't put a lot of dough in the frame, headset, and fork. A lot of this stuff may end up on a nicer frame at some point in the future.

Last edited by HarborBandS; 02-05-19 at 11:04 AM.
HarborBandS is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
