@tommyblair22, we'd love to know technical details about your renovation.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
10-13-16, 02:14 PM
#2280
Senior Member
Join Date: Aug 2009
Location: Berkeley, CA
Posts: 7,301
Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Peugeot UE-8, '75 Peugeot PR-10L, '80 Colnago Super, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin
Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 769 Post(s)
Liked 1,684 Times
in
460 Posts
@mississippimud, that's a nice Fuso!
10-13-16, 02:36 PM
#2281
Full Member
@mississippimud, that's a nice Fuso!
10-14-16, 04:27 PM
#2283
Moultoneer
Join Date: Jul 2012
Location: NC
Posts: 141
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
@tommyblair22, we'd love to know technical details about your renovation.

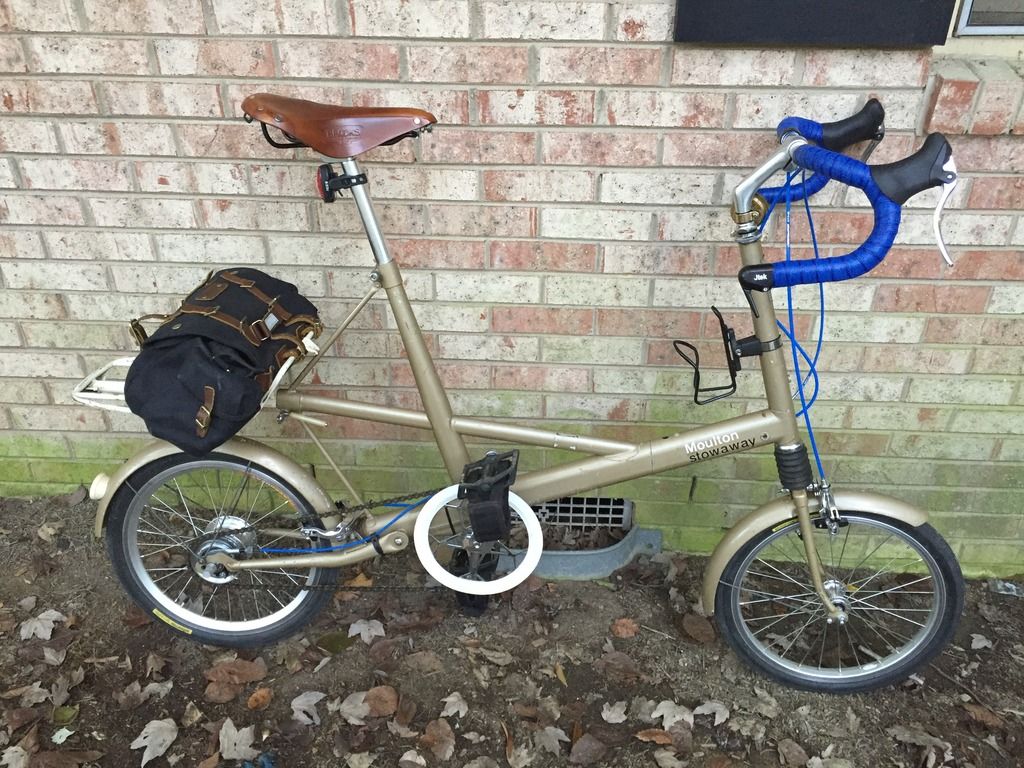

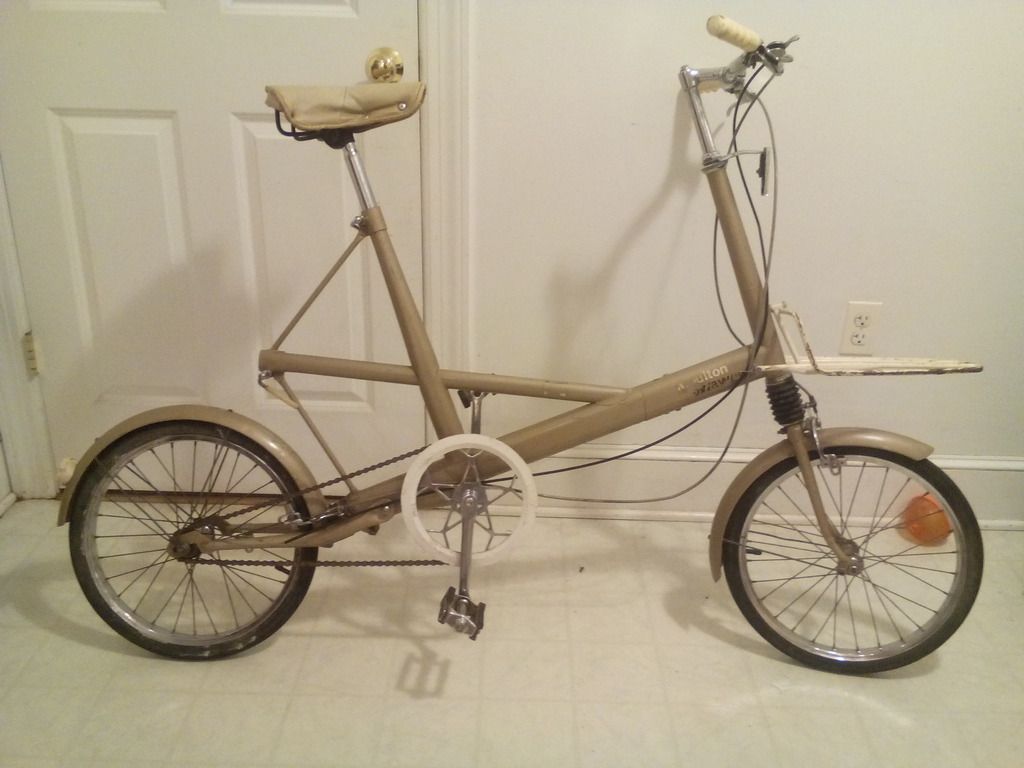

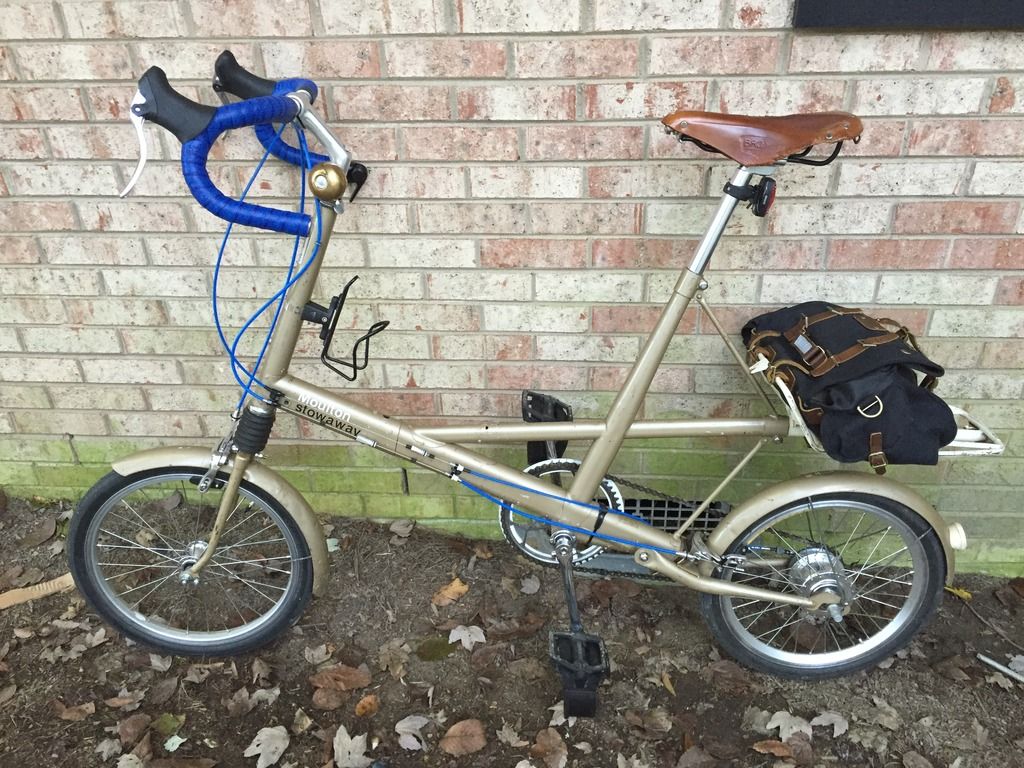

Sure thing!
It was a challenge basically every step of the way since this model was not intended to have multiple gears, rear brakes etc. I worked with Gilbert of North Road Bicycles as he specializes in Moultons. Here is what we did:
Straightened the forks
Riveted two cable guides to non-drive side of frame. I will need to design a new front rack as mine is incompatible now

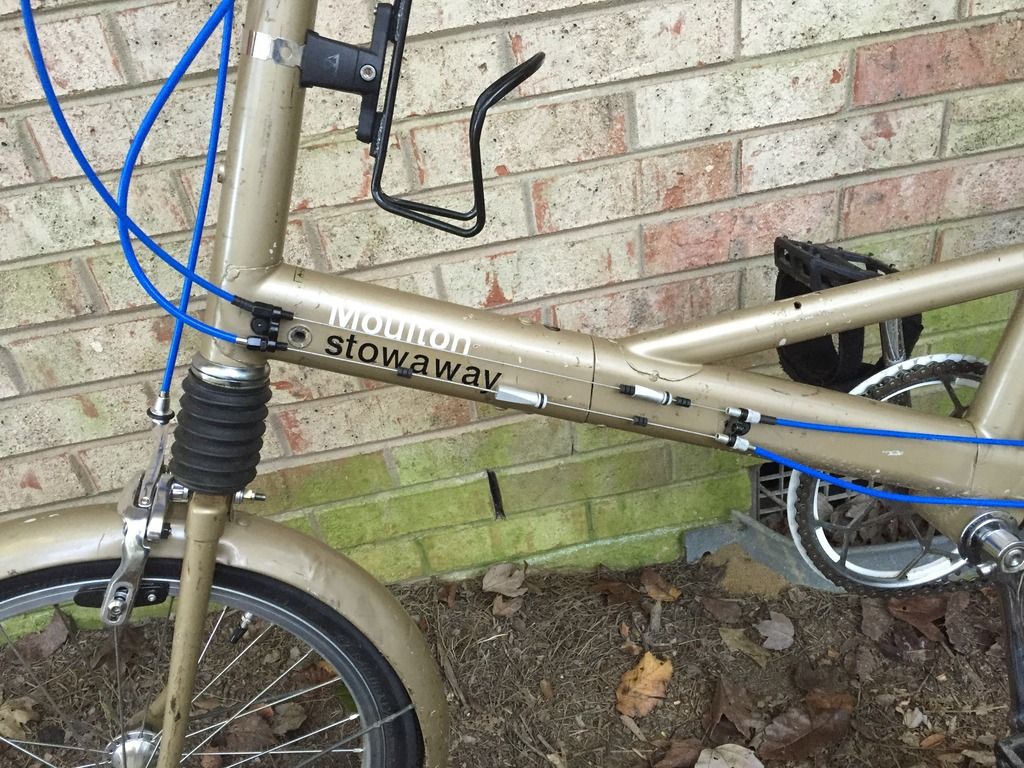

I wanted to maintain seperability, so I used Moulton specific cable couplers . Breaks down in about a minute.
Swapped the axle from a takeoff Bromoton front wheel with spacers. I will move to a dynohub in the future
Built a rear wheel with a Velocity Aero heat and Sturmey Archer XRF8 W hub
Instead of the twist shifter, I used a JTEK bar end shifter specific to the hub
Added alloy drop bars, stem, seatpost
To get the seatpost to sit properly I had to ream the seat tube .2mm as it had ovalized for some reason.
I used Tektro 559 Brake calipers with Origin8 levers.
Obligatory Brooks saddle and brass bell
In the future I'd like to sort out a better bottle cage situation. Recommendations welcome if you have any.
Rides like a new bike, suspension still very firm. Wasn't cheap, but well worth it for me.
Last edited by tommyblair22; 10-14-16 at 04:35 PM.
10-17-16, 12:18 PM
#2284
Senior Member
Join Date: Oct 2010
Location: Sacramento, CA
Posts: 535
Bikes: 2015 Redline Conquest Elite; 2014 Fuji Tahoe 1.1 27.5er; 2006 Scott Speedster S30 (sold); 2001 Specialized S-Works CX; 1990 Trek 750 (sold); 1999 Bianchi Volpe; 1988 Bianchi Campione D'Italia.
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
1999 Bianchi Volpe
I was looking to add a "go fast" drop bar commuter to my stable and found this 1999 Bianchi Volpe on craigslist. Was in pretty lousy condition, covered in crud, shifters frozen. I probably overpaid a little considering it's condition, but I was hopeful that I could get it up and running without spending too much.
crud covered:
Beginning to strip down:
Cleaned and stripped, new BB installed.
Ready to ride:
Took it out for a 30mi ride with a buddy yesterday and it made its maiden commute today. Enjoying it so far. I am experiencing a little hand numbness, which was never usually a problem for me. My weight distribution doesn't feel different than my other bikes.
Big thanks to the folks here and in mechanic's forum for all the free advice that helped me get this all sorted.
crud covered:
Beginning to strip down:
Cleaned and stripped, new BB installed.
Ready to ride:
Took it out for a 30mi ride with a buddy yesterday and it made its maiden commute today. Enjoying it so far. I am experiencing a little hand numbness, which was never usually a problem for me. My weight distribution doesn't feel different than my other bikes.
Big thanks to the folks here and in mechanic's forum for all the free advice that helped me get this all sorted.
10-28-16, 10:17 PM
#2286
Senior Member
I got my bargain basement Rossin sorted out with some Cinelli bars and stem and a nice wheelset, I am really digging it.
The wheels are Campy 50th anniversary hubs laced to H + Son TB14s, crazy-smooth with some Veloflex Master 25s on there----I only paid $50 for the hubs/ and skewers, I thought it was going to be a scam of some kind but they arrived nicely packed and in great shape.
Before:
After:
The wheels are Campy 50th anniversary hubs laced to H + Son TB14s, crazy-smooth with some Veloflex Master 25s on there----I only paid $50 for the hubs/ and skewers, I thought it was going to be a scam of some kind but they arrived nicely packed and in great shape.
Before:
After:
10-29-16, 07:24 AM
#2287
real far gone
Join Date: Oct 2009
Location: Dark Hollow, Pennsylvania
Posts: 333
Bikes: Motobécane Grand Record, Peugeot PR10, Gitane Gran Tourisme, Peugeot PX-10
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 5 Times
in
3 Posts
TdF as found:
As it is now:
As it is now:
10-29-16, 09:55 AM
#2288
Senior Member
Join Date: Nov 2010
Location: Magnolia State, 100° with 110% humidity
Posts: 1,277
Bikes: American, Italian, and Japanese.. in no particular order.
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 270 Times
in
126 Posts
I really like the look...Very crisp and clean looking. The wheelset and stem are a huge improvement.
I got my bargain basement Rossin sorted out with some Cinelli bars and stem and a nice wheelset, I am really digging it.
The wheels are Campy 50th anniversary hubs laced to H + Son TB14s, crazy-smooth with some Veloflex Master 25s on there----I only paid $50 for the hubs/ and skewers, I thought it was going to be a scam of some kind but they arrived nicely packed and in great shape.
Before:
After:
The wheels are Campy 50th anniversary hubs laced to H + Son TB14s, crazy-smooth with some Veloflex Master 25s on there----I only paid $50 for the hubs/ and skewers, I thought it was going to be a scam of some kind but they arrived nicely packed and in great shape.
Before:
After:
10-30-16, 10:11 AM
#2289
tantum vehi
Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,421
Bikes: More than I care to admit
Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 1112 Post(s)
Liked 775 Times
in
413 Posts
That Rossin looks happier now.
Last edited by mountaindave; 12-19-16 at 08:32 PM.
11-02-16, 01:19 PM
#2290
Senior Member
Looking for a "bad weather" bike but not wanting to spend very much. I found this at a local rummage sale for $40, I wanted something to fit wider tires but I'm not complaining. I had all the consumables on hand, except a better pair of brake levers, so another $23.00. Waiting on the levers to get it finished.
11-02-16, 04:30 PM
#2291
Senior Member
Join Date: Nov 2010
Location: Magnolia State, 100° with 110% humidity
Posts: 1,277
Bikes: American, Italian, and Japanese.. in no particular order.
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 350 Post(s)
Liked 270 Times
in
126 Posts
Seriously!?!? $40!?!? Do you hold some sort of sway over people that makes them hand their bikes over to you for paltry sums of cash?!?!
Looking for a "bad weather" bike but not wanting to spend very much. I found this at a local rummage sale for $40, I wanted something to fit wider tires but I'm not complaining. I had all the consumables on hand, except a better pair of brake levers, so another $23.00. Waiting on the levers to get it finished.
12-19-16, 01:21 PM
#2292
Senior Member
A couple of recent ones I completed:

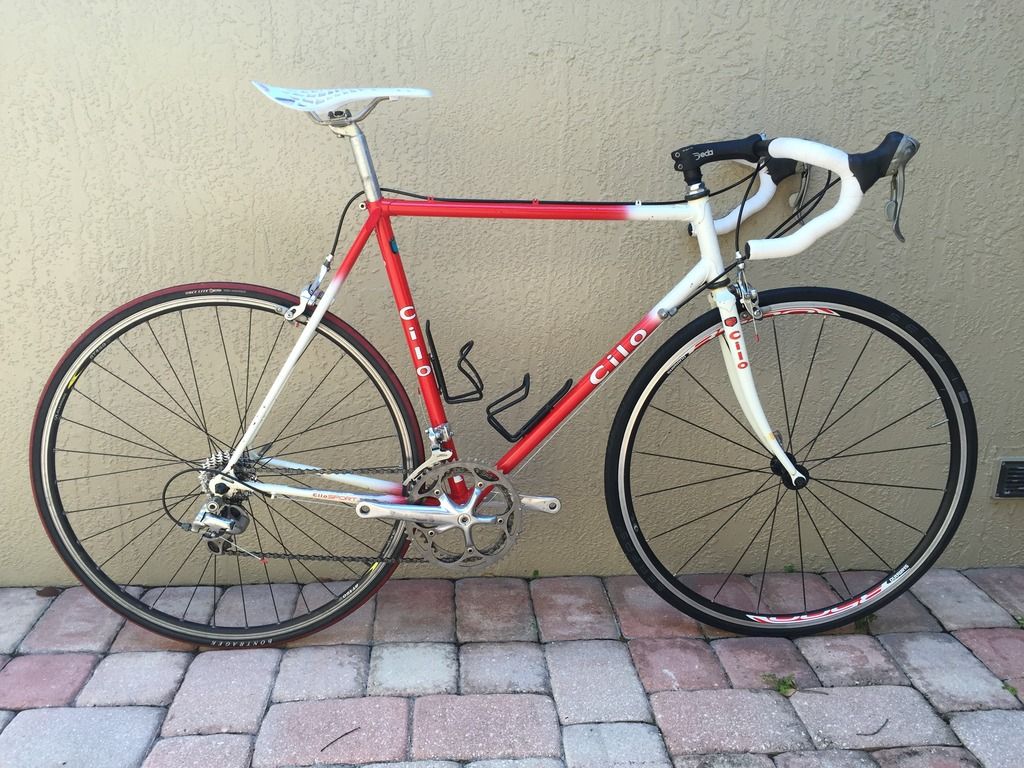

1987 Cilo Sport 105 upgraded to Ultegra STI:

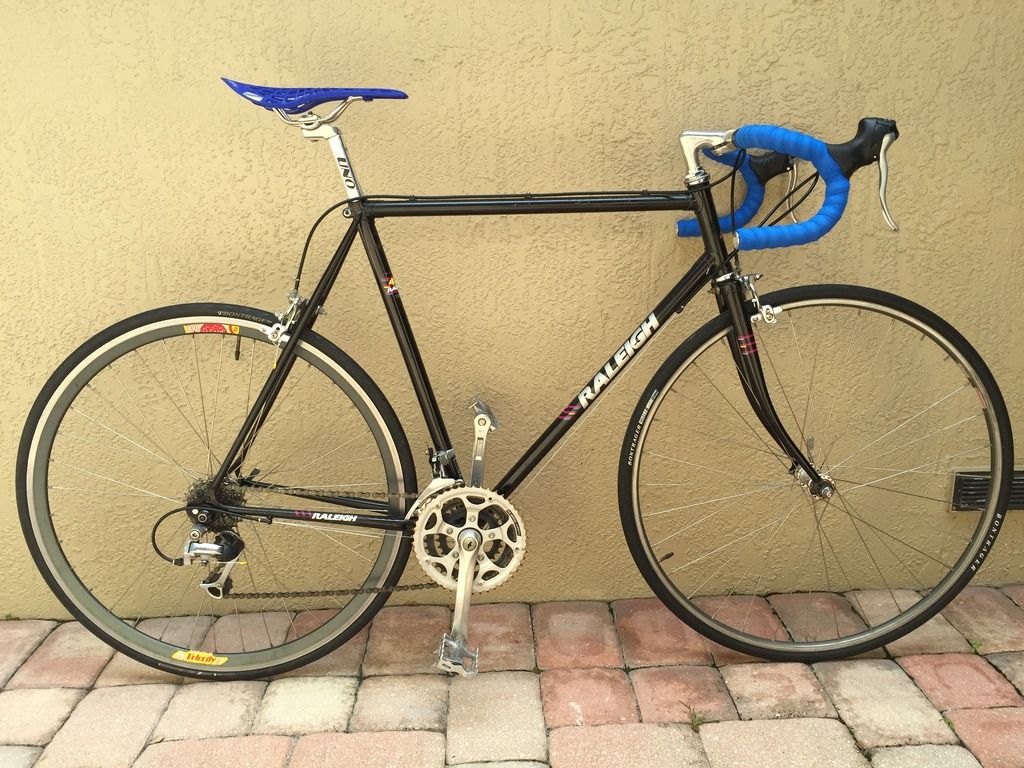

4130 steel Raleigh upgraded to Sora STI Triple:
1987 Cilo Sport 105 upgraded to Ultegra STI:
4130 steel Raleigh upgraded to Sora STI Triple:
12-19-16, 07:21 PM
#2294
Senior Member
Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,939
Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 217 Times
in
100 Posts
12-19-16, 08:42 PM
#2295
tantum vehi
Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,421
Bikes: More than I care to admit
Mentioned: 147 Post(s)
Tagged: 0 Thread(s)
Quoted: 1112 Post(s)
Liked 775 Times
in
413 Posts
As a fellow TdF owner and French aficionado, I can't believe I missed this before/after. @HamboneSlim - it is very impressive! I particularly like the blue accents on the crankset, fluted seat post, cabling, clips, bar tape and tires. Well done!!
12-19-16, 10:16 PM
#2296
real far gone
Join Date: Oct 2009
Location: Dark Hollow, Pennsylvania
Posts: 333
Bikes: Motobécane Grand Record, Peugeot PR10, Gitane Gran Tourisme, Peugeot PX-10
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 5 Times
in
3 Posts
Thanks guys. I built the TdF this summer, and plan to start putting some miles on it next year.
12-20-16, 04:09 AM
#2298
Newbie
Join Date: Oct 2016
Location: Santa Fe, NM
Posts: 33
Bikes: Burley Duet; Kestrel Legend SL; Cannondale SR600, Cannondale Trail 6 29er,
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 6 Times
in
3 Posts
86 Trek 500 Ironman
This was a rescue from a trash pile...
After picture is fresh from Joe Bell....at the time the upcharge for the fade paint was bit too pricey I went single color and spent the upcharge on highlighting the lugs.
Presently being built up with 105 STI...
After picture is fresh from Joe Bell....at the time the upcharge for the fade paint was bit too pricey I went single color and spent the upcharge on highlighting the lugs.
Presently being built up with 105 STI...
Last edited by icedog; 12-20-16 at 06:13 PM. Reason: Of course I mean 105...
12-20-16, 04:47 PM
#2299
Senior Member
Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,950
Bikes: A green one, "Ragleigh," or something.
Mentioned: 193 Post(s)
Tagged: 0 Thread(s)
Quoted: 1601 Post(s)
Liked 575 Times
in
327 Posts
__________
On a different project, not done with the actual bike yet, but the side-by-side before and after shot of the rims shows what improvement can be made with a little Mothers Metal Polish, a bit of water and a worn out old green (now black) scotchbrite pad. Oh, and 15 minutes of elbow grease.
Oddly enough, all the rusty spokes still turned nicely in their nipples and it was easy to get these things nice and true. I was just going to try and save just the rims for future wheel building, but I think I'll keep the wheels whole for now, and put them on a bike I'm refurbing for an employee. I'll tell him to watch and listen for spokes breaking; maybe give me a chance to show him how to replace spokes.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Last edited by Lascauxcaveman; 12-20-16 at 04:58 PM.
12-20-16, 06:14 PM
#2300
Newbie
Join Date: Oct 2016
Location: Santa Fe, NM
Posts: 33
Bikes: Burley Duet; Kestrel Legend SL; Cannondale SR600, Cannondale Trail 6 29er,
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 6 Times
in
3 Posts
I'm no Joe Bell, but maybe I'll try copying the nice infill he did on your sweet Trekky lug details. I have a great candidate for that, my most recent build, a 1989 Trek 400 (more pics on the link).
__________
On a different project, not done with the actual bike yet, but the side-by-side before and after shot of the rims shows what improvement can be made with a little Mothers Metal Polish, a bit of water and a worn out old green (now black) scotchbrite pad. Oh, and 15 minutes of elbow grease.
Oddly enough, all the rusty spokes still turned nicely in their nipples and it was easy to get these things nice and true. I was just going to try and save just the rims for future wheel building, but I think I'll keep the wheels whole for now, and put them on a bike I'm refurbing for an employee. I'll tell him to watch and listen for spokes breaking; maybe give me a chance to show him how to replace spokes.
__________
On a different project, not done with the actual bike yet, but the side-by-side before and after shot of the rims shows what improvement can be made with a little Mothers Metal Polish, a bit of water and a worn out old green (now black) scotchbrite pad. Oh, and 15 minutes of elbow grease.
Oddly enough, all the rusty spokes still turned nicely in their nipples and it was easy to get these things nice and true. I was just going to try and save just the rims for future wheel building, but I think I'll keep the wheels whole for now, and put them on a bike I'm refurbing for an employee. I'll tell him to watch and listen for spokes breaking; maybe give me a chance to show him how to replace spokes.
